Basic Specifications
Automatic Grade
Semi-Automatic
Filling Valve Head
Single-Head
Dosing Device
Adjustable Volume
Filling Principle
Pressure
Transport Package
Plywood Case
Product Overview
The semi-automatic filling machine is designed specifically for efficient liquid and cream filling tasks. Unlike fully automatic lines, this equipment focuses on high-precision filling and can be operated independently. It is classified by filling principles such as volume or mass measurement and is available in single or multi-head configurations to match production needs.
Ideal for medicine, daily chemical, food, and pesticide industries, this pneumatic piston filling machine uses a one-way valve to control flow and a reed switch to adjust cylinder stroke for precise volume control.
Key Features
- ✓ Reasonable design, compact size, and user-friendly operation.
- ✓ High-quality imported pneumatic components.
- ✓ Material contact parts made of 316L stainless steel (GMP compliant).
- ✓ Adjustable filling volume and speed with high precision.
- ✓ Anti-drip and lifting filling device integrated into the head.
Technical Parameters
| Parameter Item |
Specifications |
| Filling Volume |
5-60ml, 10-125ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
| Filling Speed |
20-50 bottles/min |
| Filling Head |
Single head or Double Head |
| Filling Accuracy |
±1% |
| Power Supply |
220V/110V 50/60Hz |
| Air Pressure |
0.4-0.9MPa |

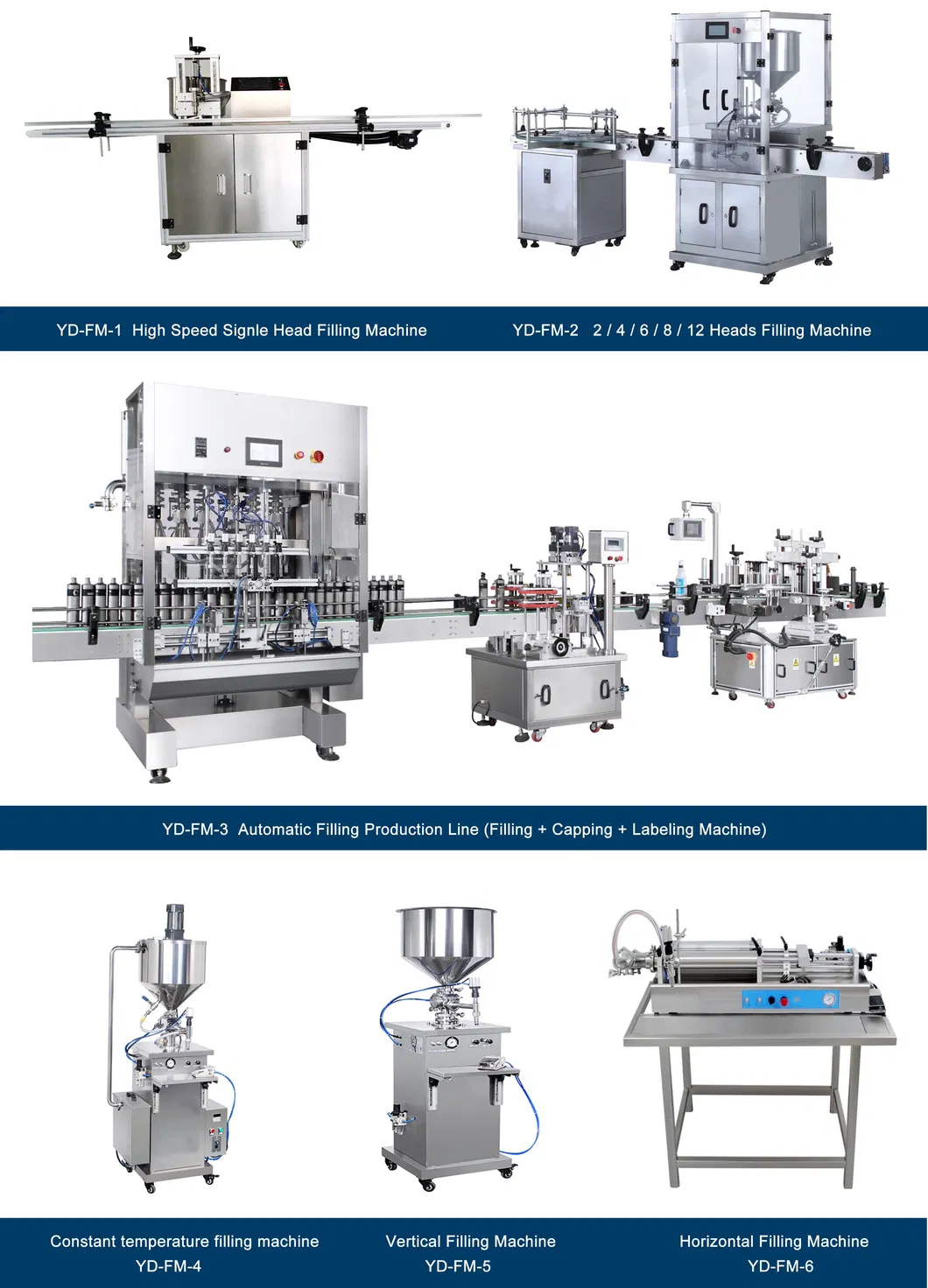

Optional Machine Configurations
Automatic High Speed One Nozzle Filling Machine (YD-FM-1)
Suitable for various media like cream, lotion, and liquid, balancing high output with cost efficiency.
Multi-Nozzle Filling Machine (YD-FM-2)
Available in 2/4/6/8/12 nozzles for shampoo, edible oil, liquid soap, and disinfectants.

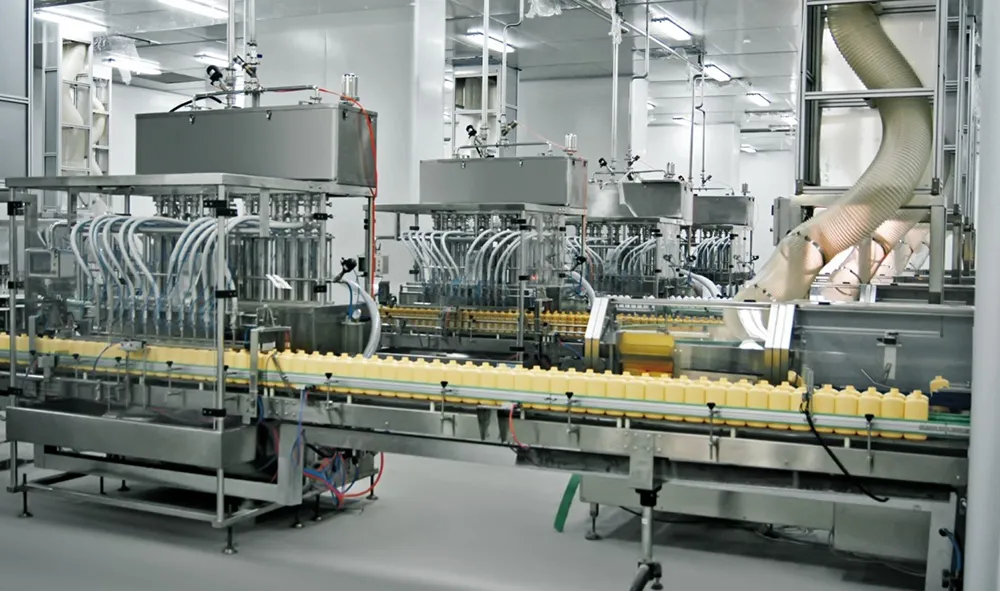

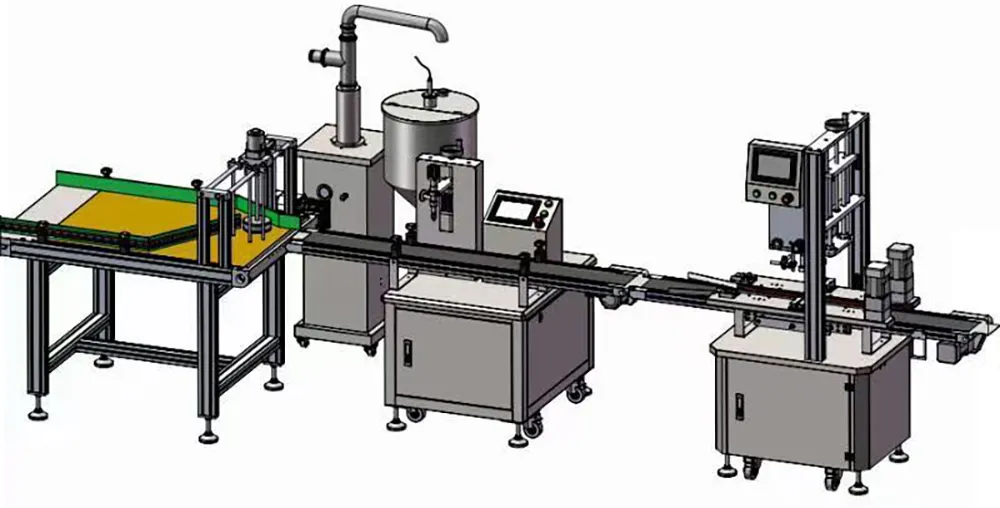

Production Line (YD-FM-3)
Integrated filling, capping, and labeling solutions customized to specific workflow needs.

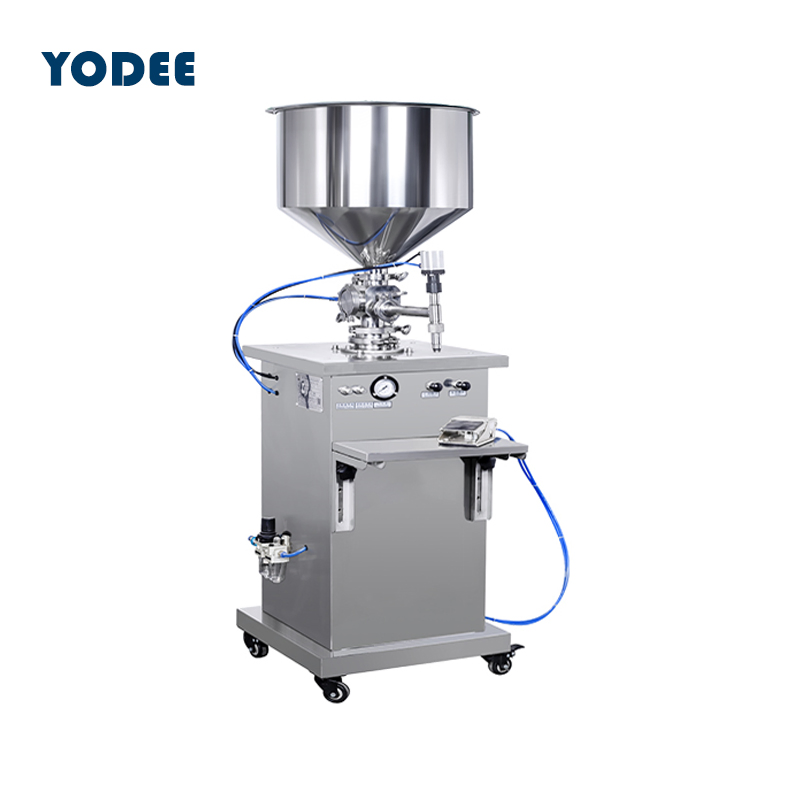

Constant Temperature Filling Machine (YD-FM-4)
Features water circulation heating for high-viscosity materials like Vaseline, solid balm, and wax.

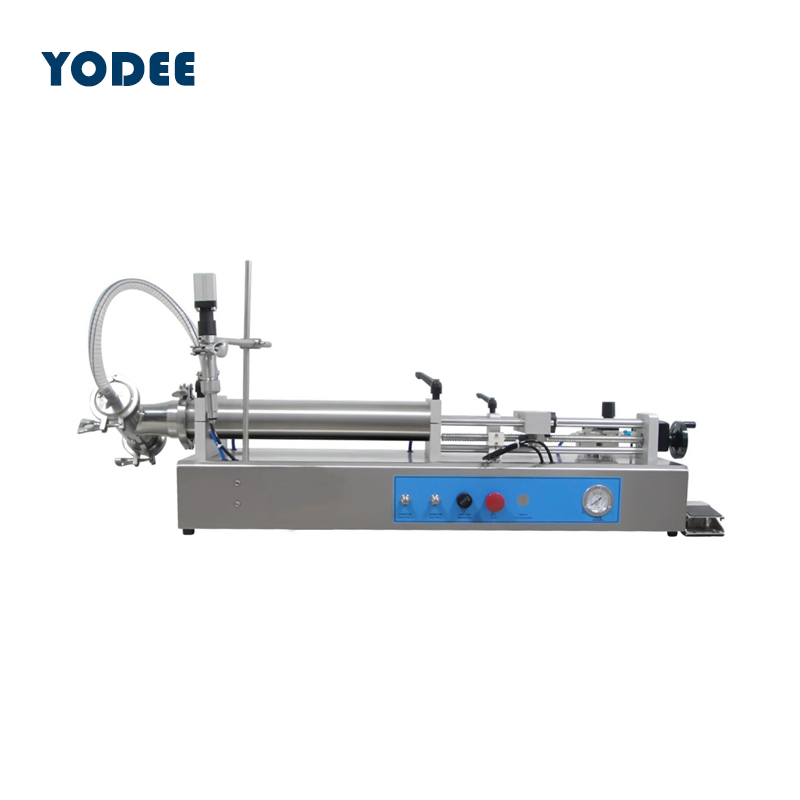

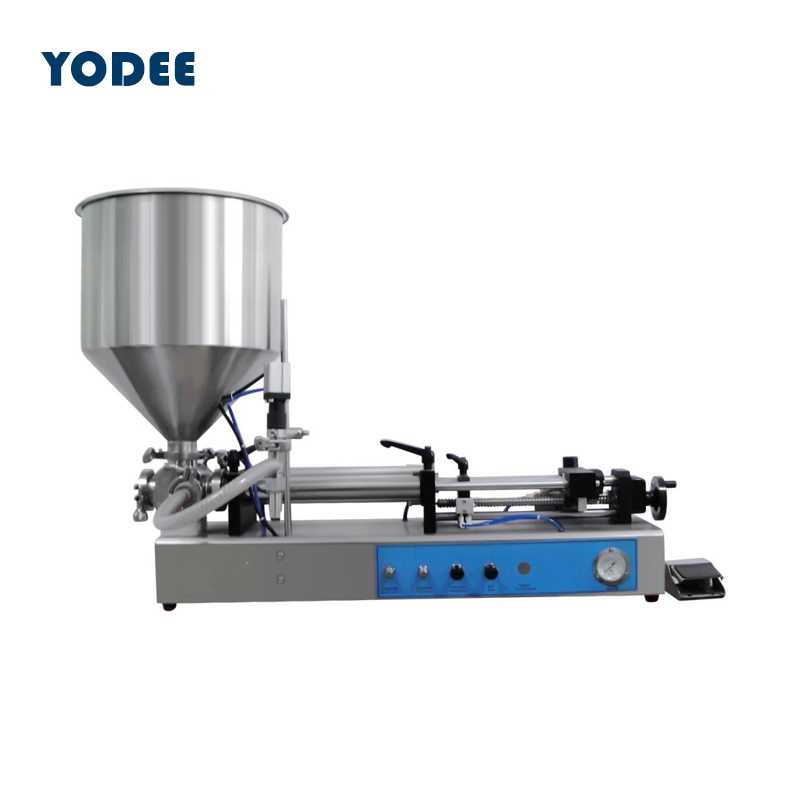

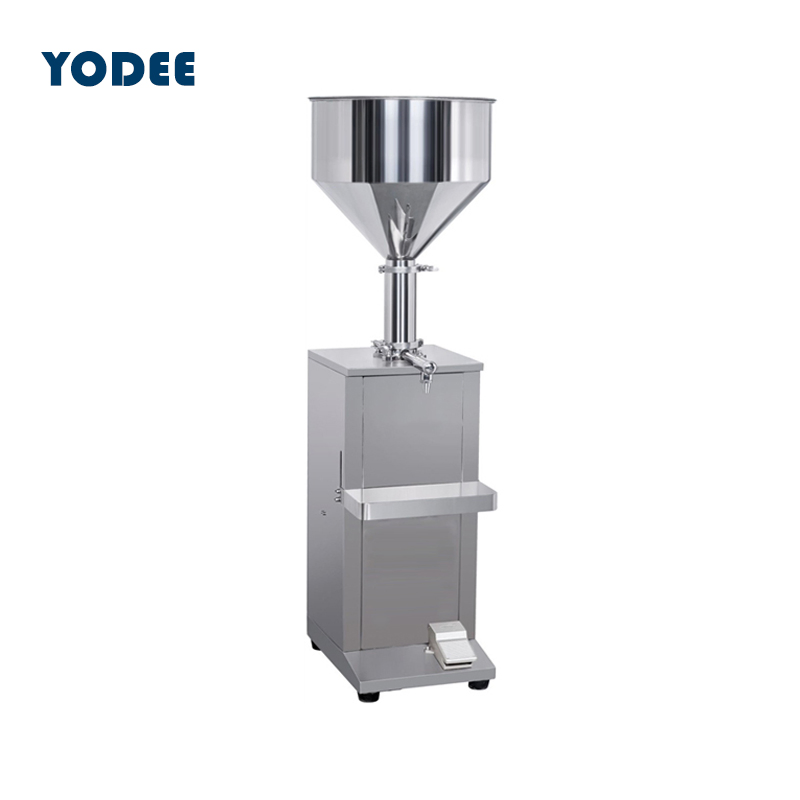

Semi-Automatic Vertical/Horizontal Filling (YD-FM-5/6)
Pneumatic-controlled units ideal for explosion-proof environments and medium to high viscosity products.

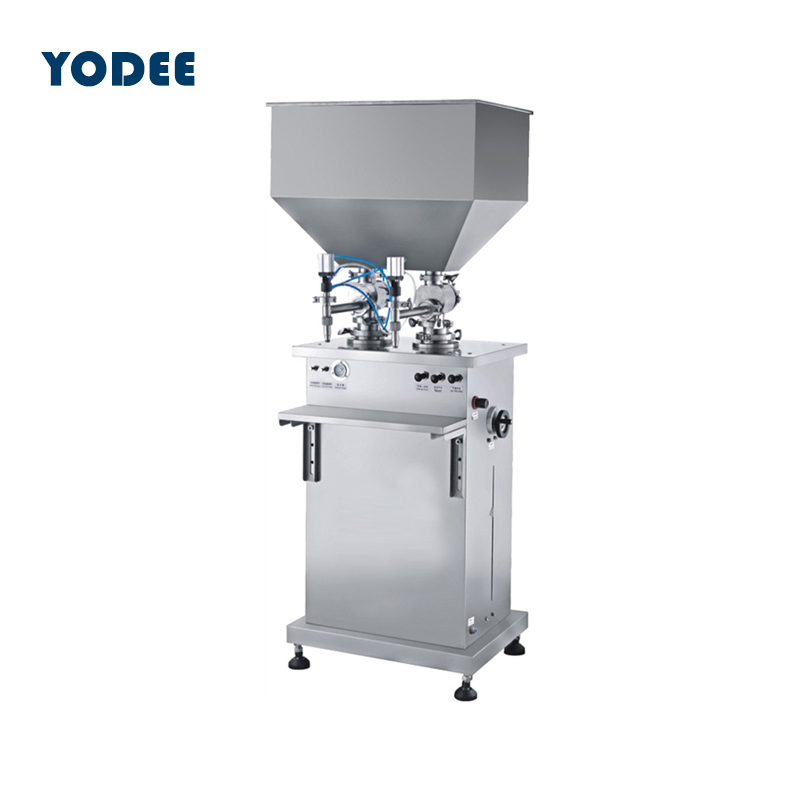

Machine Visuals
Service & Support
After-sale Service:
- One-year machine warranty with free accessory replacement.
- Lifelong technical support and assistance for factory transformation.
- On-site engineer guidance for installation and maintenance training upon request.
- Acceptance of customer engineers for intensive equipment training.
Shipment Service:
- Flexible pickup for customers with their own transportation agents.
- Multiple shipping modes: Sea, Air, Express, and Rail transportation.
- Customized shipping plans for oversized equipment.
Frequently Asked Questions
What materials are suitable for this machine?
It is ideal for filling liquids and creams across medicine, food, daily chemicals, and pesticides, including high-viscosity products.
How accurate is the filling volume?
The machine features high precision with a filling accuracy of ±1%.
Is the filling machine safe for chemical products?
Yes, the parts in contact with materials are made of 316L stainless steel, and the pneumatic-only horizontal models are excellent for explosion-proof environments.
Can I fill hot materials?
Yes, the Semi-Automatic Constant Temperature version (YD-FM-4) is specifically designed to heat and melt materials like wax or heavy pastes before filling.
What happens if I need a different filling volume range?
The filling volume is adjustable, and we offer different models covering ranges from 5ml up to 5000ml to meet specific requirements.
Does the machine require a power supply?
While basic filling is driven by compressed air (pneumatic), power (110V/220V) is required for models with heating functions or specific electronic controls.
