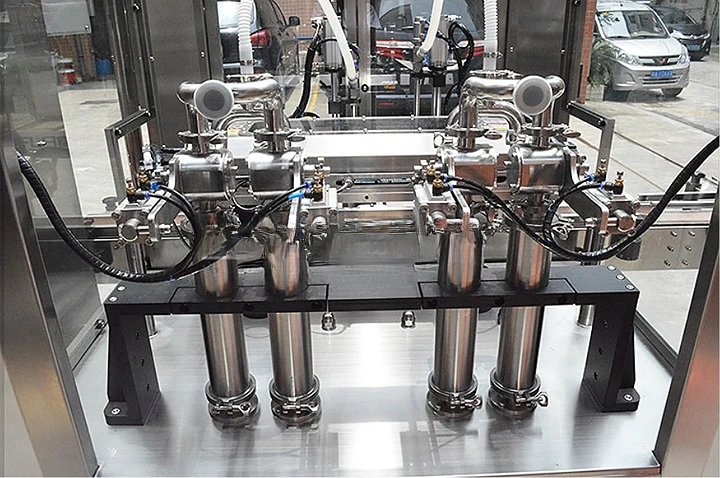

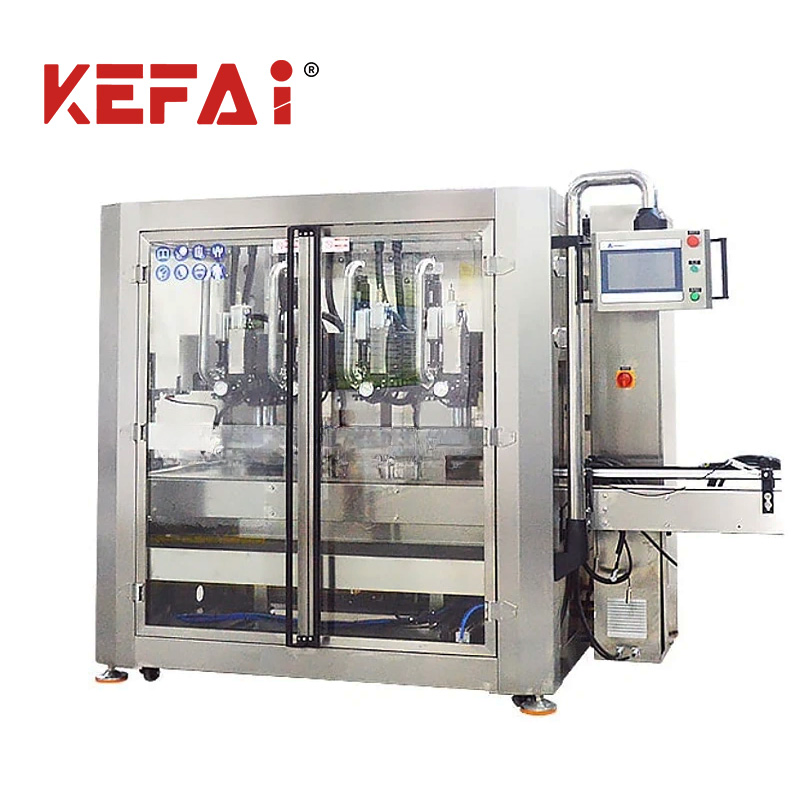

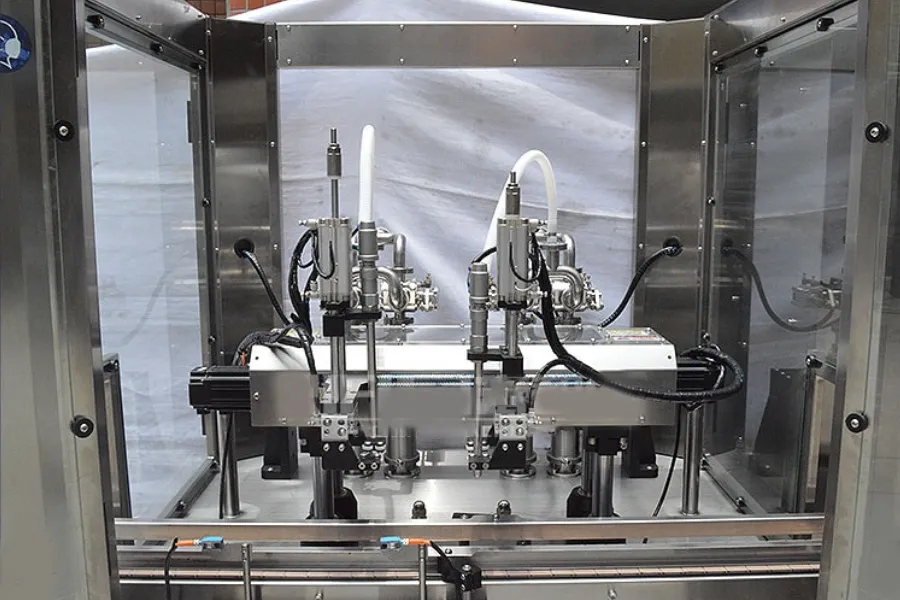

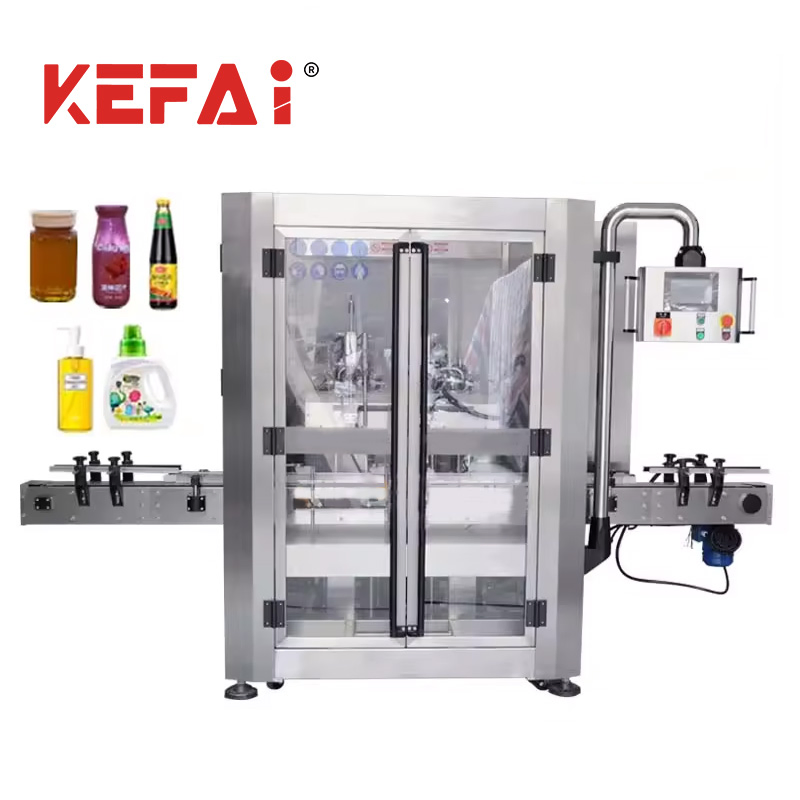

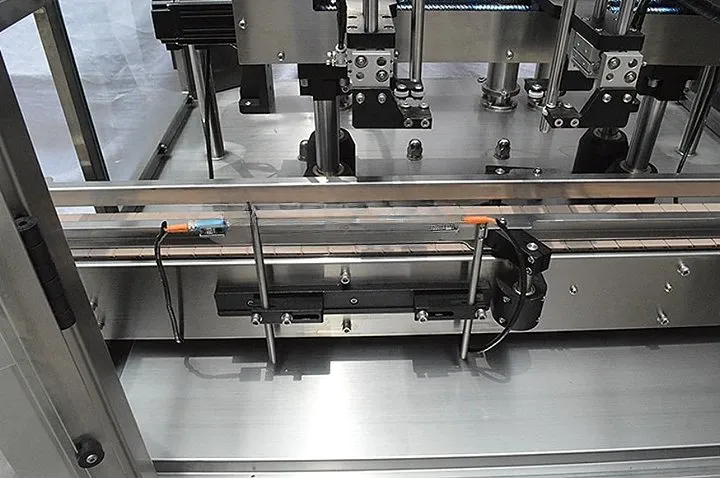

The piston tracking filling machine is suitable for filling viscous liquid, such as paste, honey, jam, sauce, oil, etc. It is equipped with a servo motor and only needs to enter a certain number to adjust the filling range. Compared with other filling machines, this tracking-type filling machine can control the filling nozzle to follow moving bottles during filling work. It reduces production error and improves filling accuracy. Widely used in cosmetics, seasonings, washing and care products, and other industries.
| Model | KF01-L-6 | KF01-L-8 | KF01-L-12 |
|---|---|---|---|
| Filling range | 100-1000ml | ||
| Filling speed(BPH) | 1440-1800 | 1920-2400 | 2880-3600 |
| Filling accuracy | ±1% (depends on material) | ||
| Voltage | 1.75KW/220V | 2.1KW/220V | 2.8KW/220V |
| Working pressure | 0.6-0.8MPA | ||
| Machine weight(KG) | 450 | 500 | 550 |
| Outline dimension(mm) | 2000*1300*2100 | 2000*1300*2100 | 2000*1400*2200 |
All products before delivery are tested by assembly and debugging engineers, cleaned, and wrapped in stretch film for protection. Precision parts use flexible packaging. All products are packed in plywood wooden cases for export. The equipment is fixed tightly to withstand loading and unloading, with upward marks posted on the cases.
