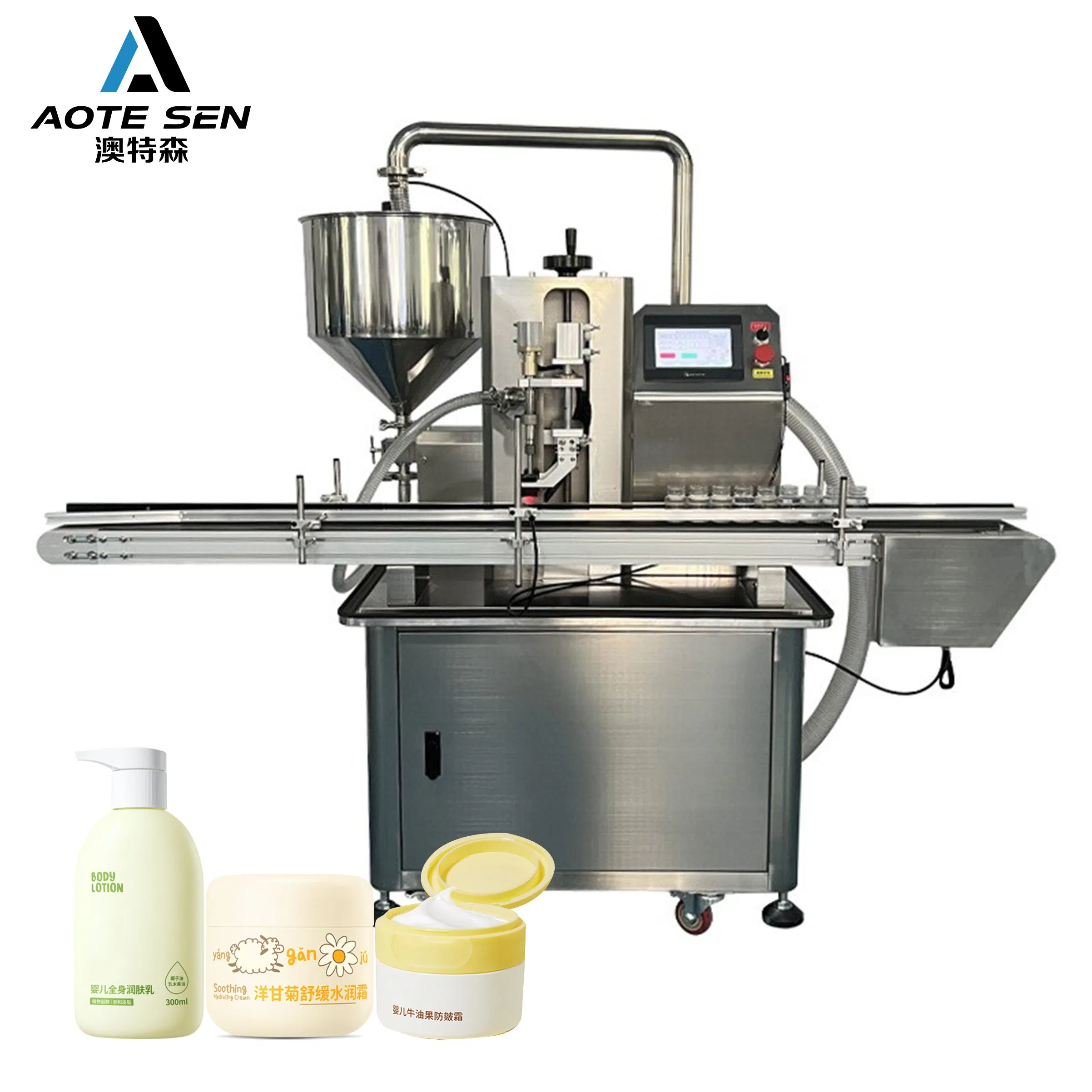

The Fully Automatic Gear Pump Filling Machine is engineered for high precision and stability when handling medium to high viscosity fluids. It is an ideal solution for industries such as food (sauces, syrups), daily chemicals (creams, lotions), and pharmaceuticals. Its core advantage lies in its ability to handle shear-sensitive materials while maintaining exceptional filling accuracy.
| Technical Specifications | |
|---|---|
| Equipment Name | Fully automatic servo gear pump filling machine |
| Voltage / Power | 220V 50HZ / 2 KW |
| Material | 304 & 316 Stainless Steel |
| Net Weight | 200 KG |

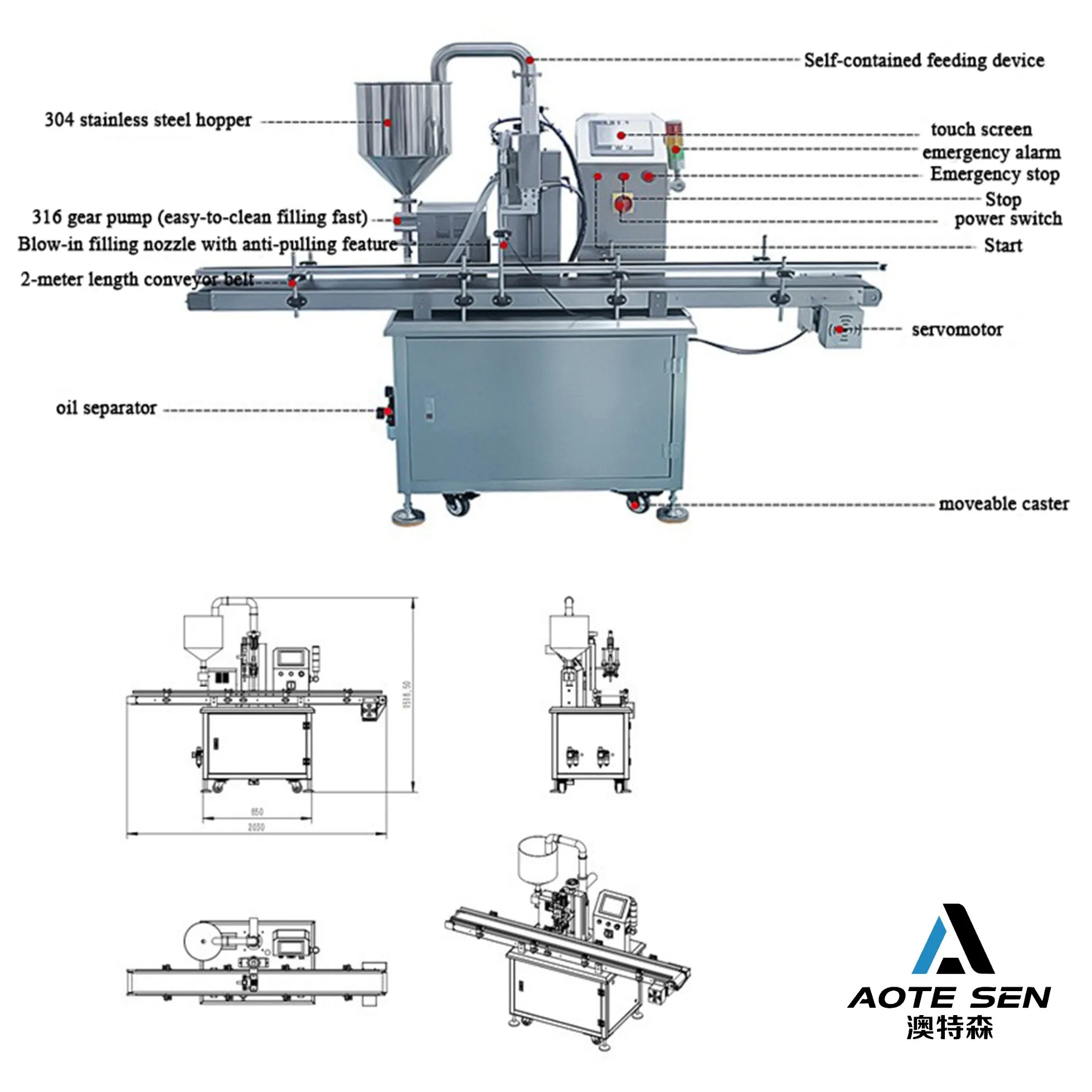

| Overall Dimensions | 2000 x 760 x 1500 mm |
| Production Speed | 50ml: 60-80 bpm; 500ml: 30-40 bpm; 1000ml: 20-25 bpm |
| Pump Motor | Servo Motor |
| Fill Accuracy | ± 1% |
| Fill Volume Range | 5-5000ml (Customizable) |

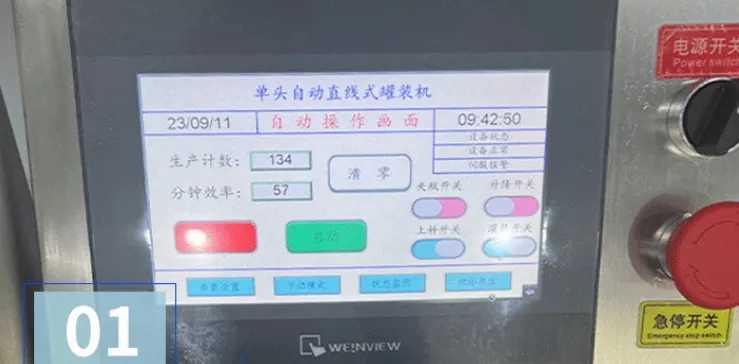

The PLC acts as the "solid brain" of the system, providing reliable real-time logical control. Combined with an intuitive touch screen interface, it enhances operation ease, maintenance efficiency, and production transparency.

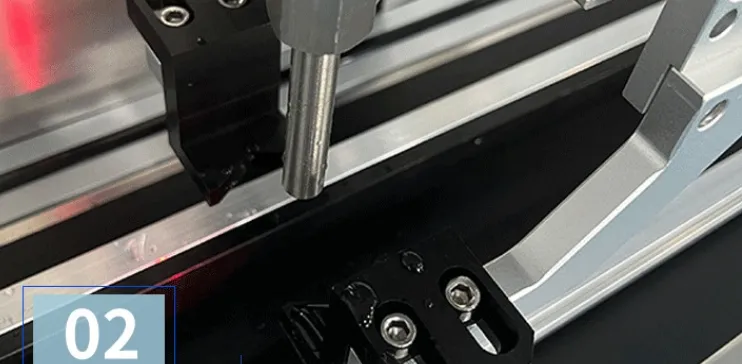

Utilizing 316 stainless steel ensures enhanced corrosion resistance and high-temperature stability. It is the preferred material for harsh environments and high-end hygiene requirements in food and medical applications.

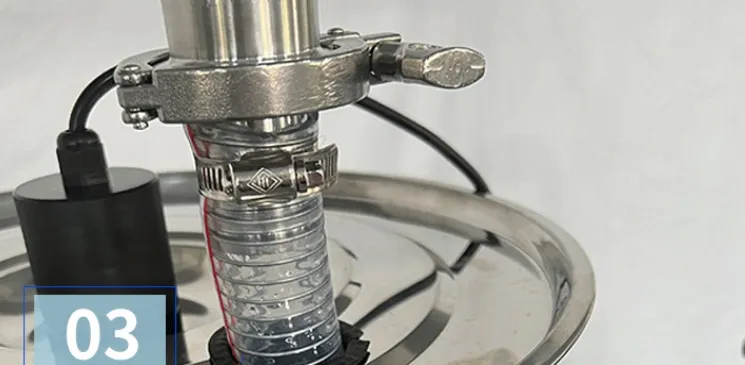

The feeding tube is designed with a snap-on mechanism, making it extremely convenient for replacement and cleaning while preventing rust and contamination.
