Vertical Form-Fill-Seal Technology:

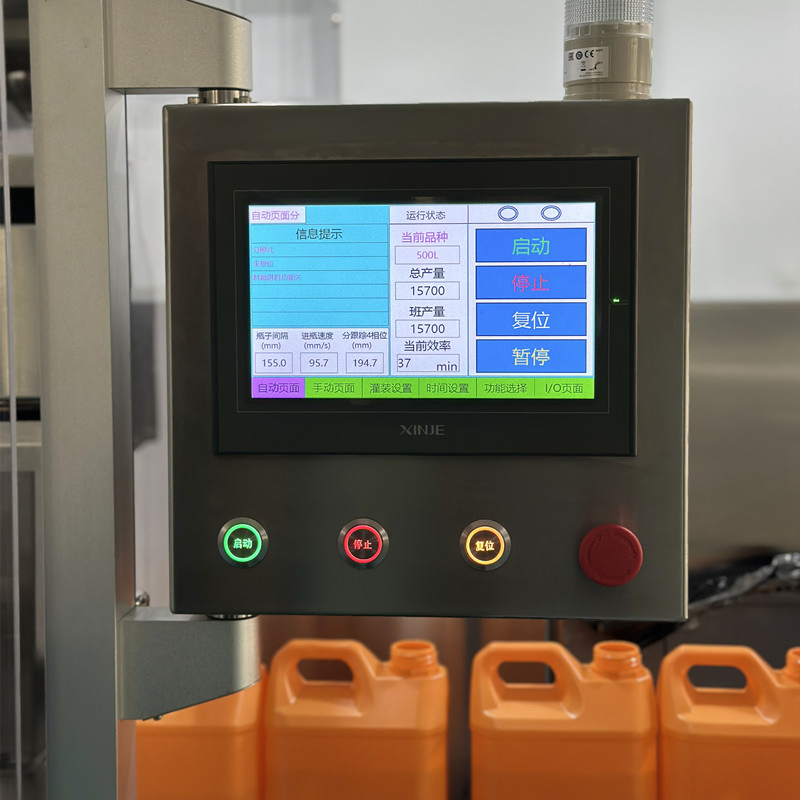

The machine is driven by a servo motor. The container will be sent to this position, and then the filling head will subside into the container. The filling volume and filling time can be set in an orderly manner. It is suitable for various low-viscosity materials and containers of various shapes. The color touch screen operation panel can display the production station, operation procedures, and filling methods, making it easy to operate and maintain.

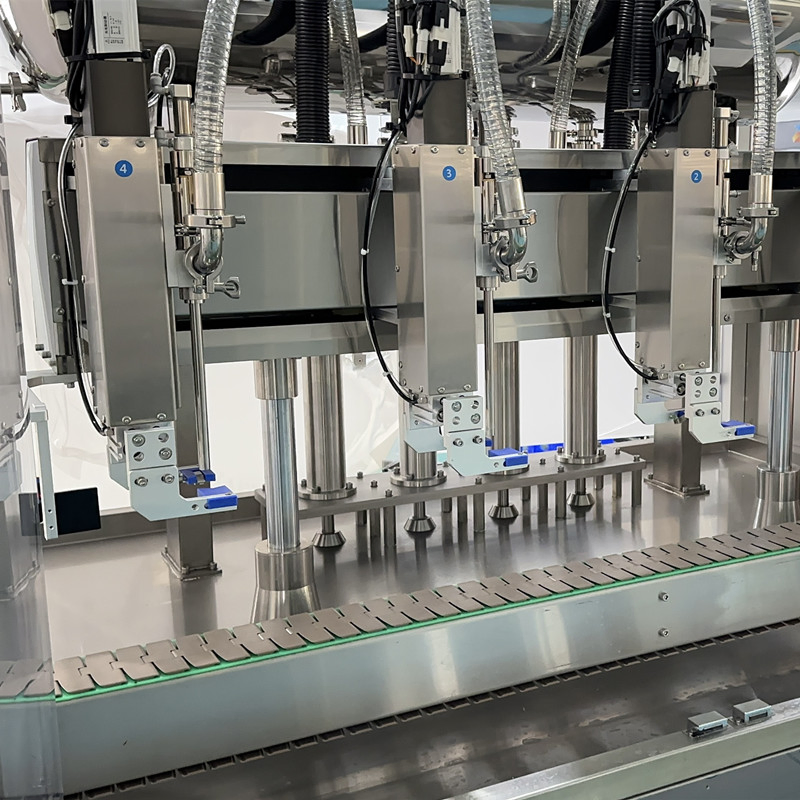

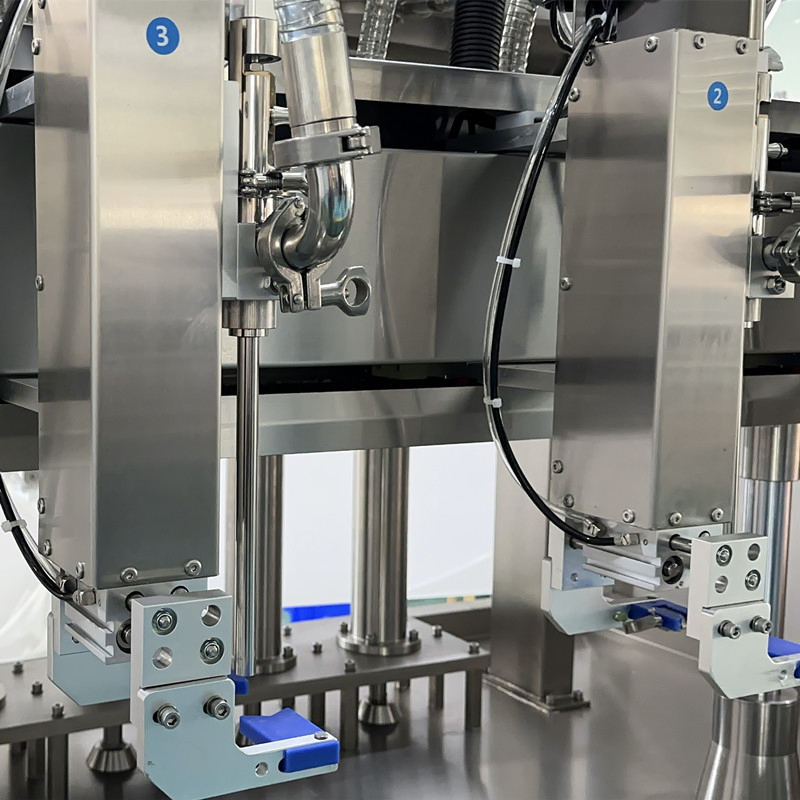

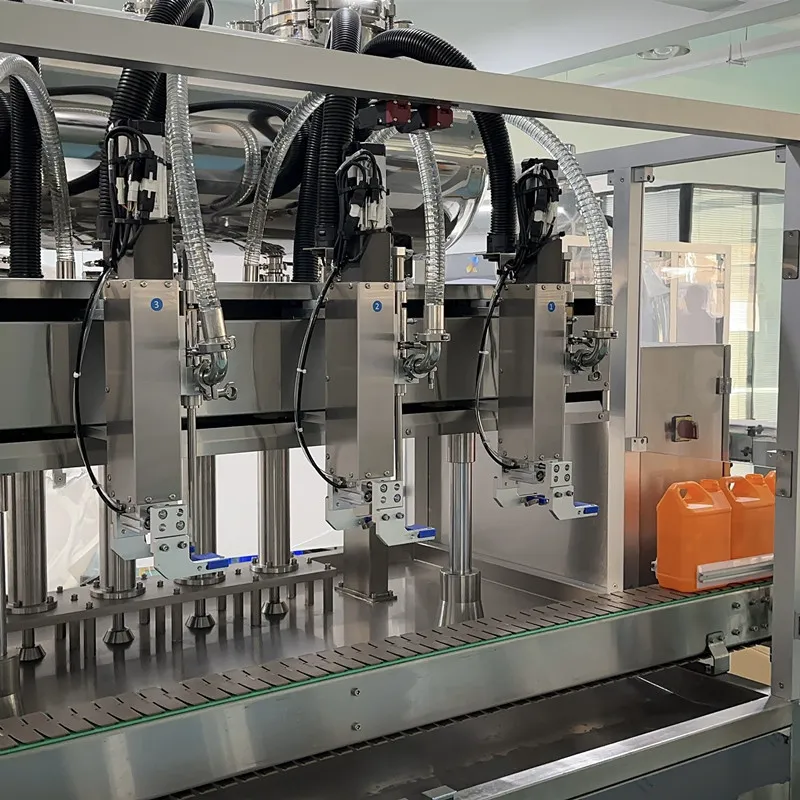

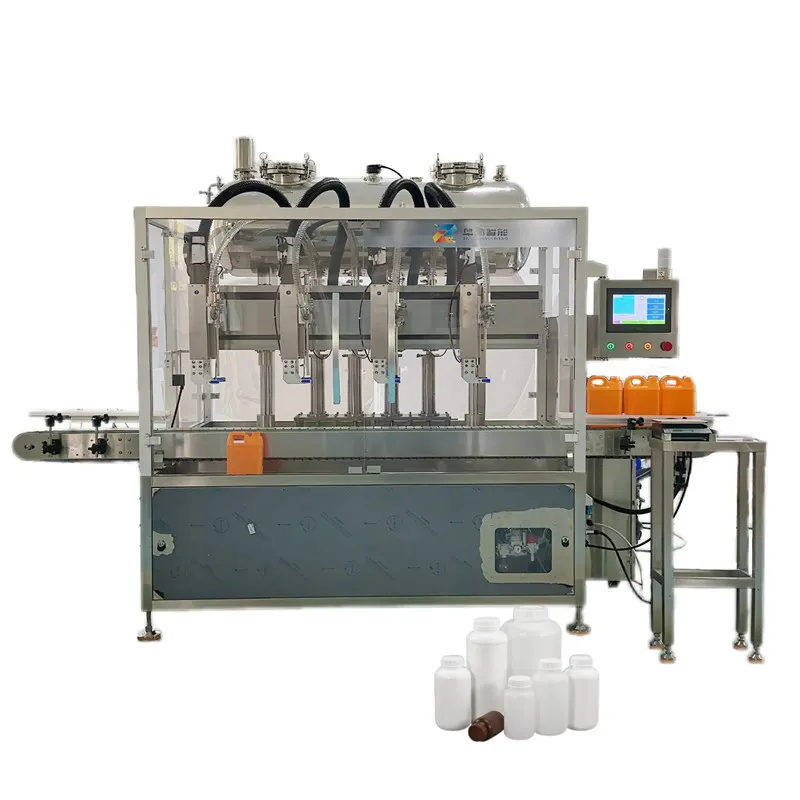

Servo Tracking Filling Nozzle:
The filling head tracks the bottles during operation, allowing for continuous filling. This ensures the bottle operates stably and meets the demands of high-speed production, significantly enhancing capacity.

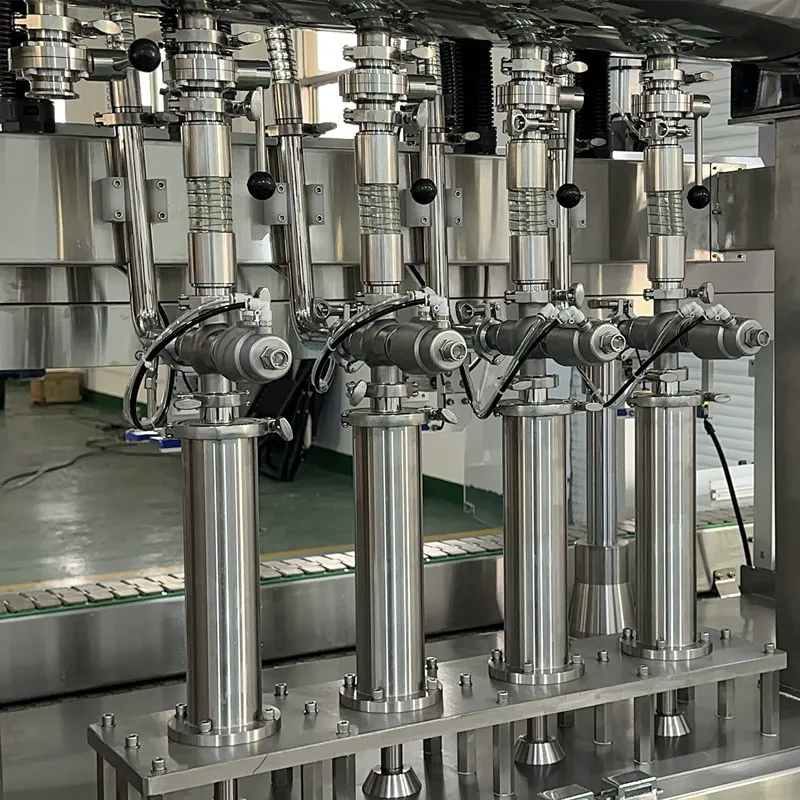

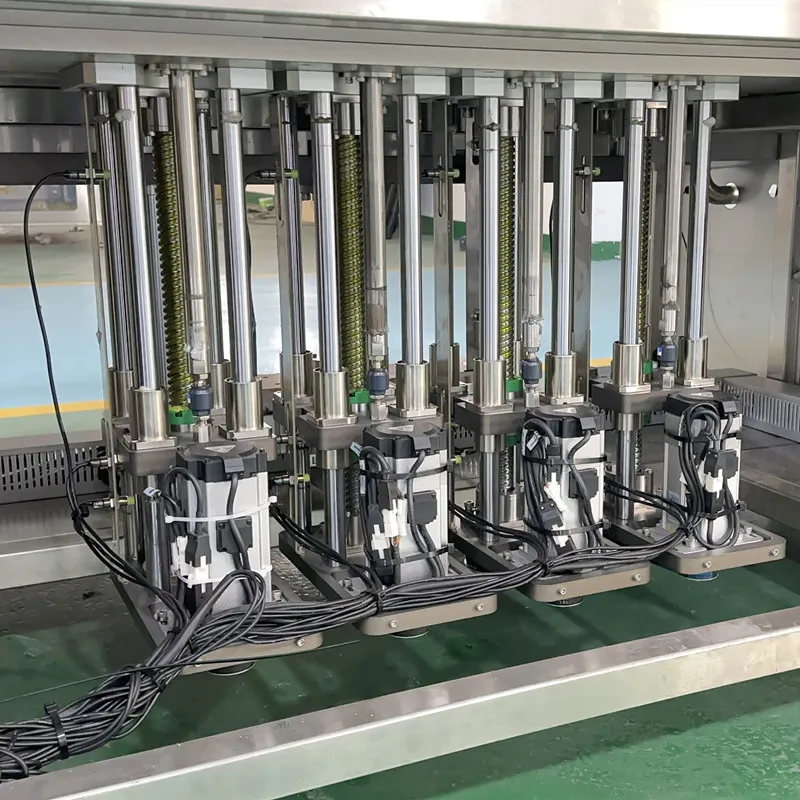

Piston & Structural Stability:
The cylinder piston features a detachment function for quick removal of residual substances. All connections use quick-release connectors for easy maintenance. Each piston is driven by a Panasonic high-power servo motor with a double stainless steel chain drive, providing a quieter and more durable operation compared to traditional belt drives.

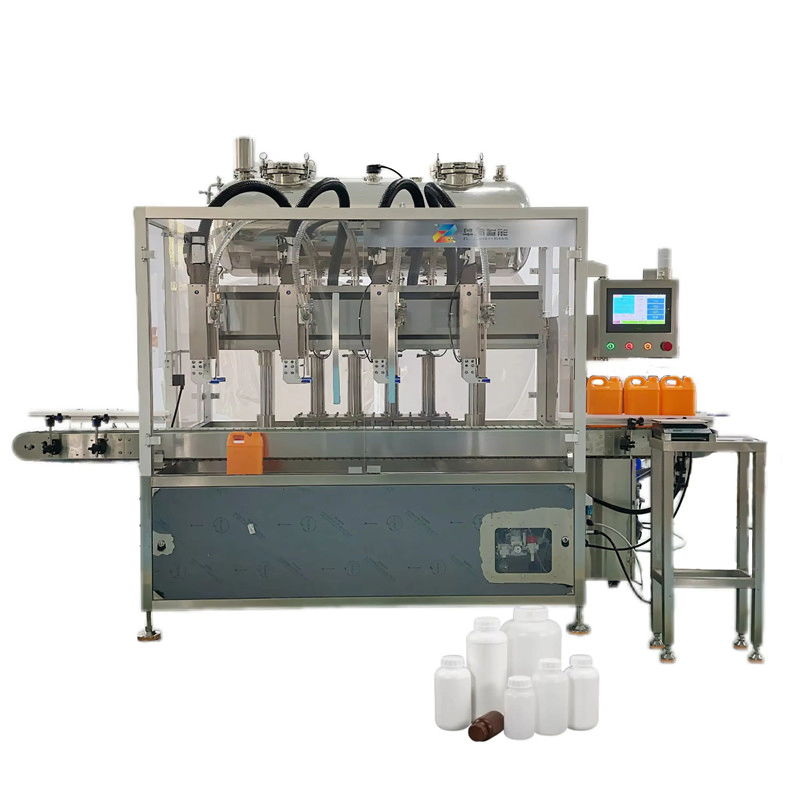

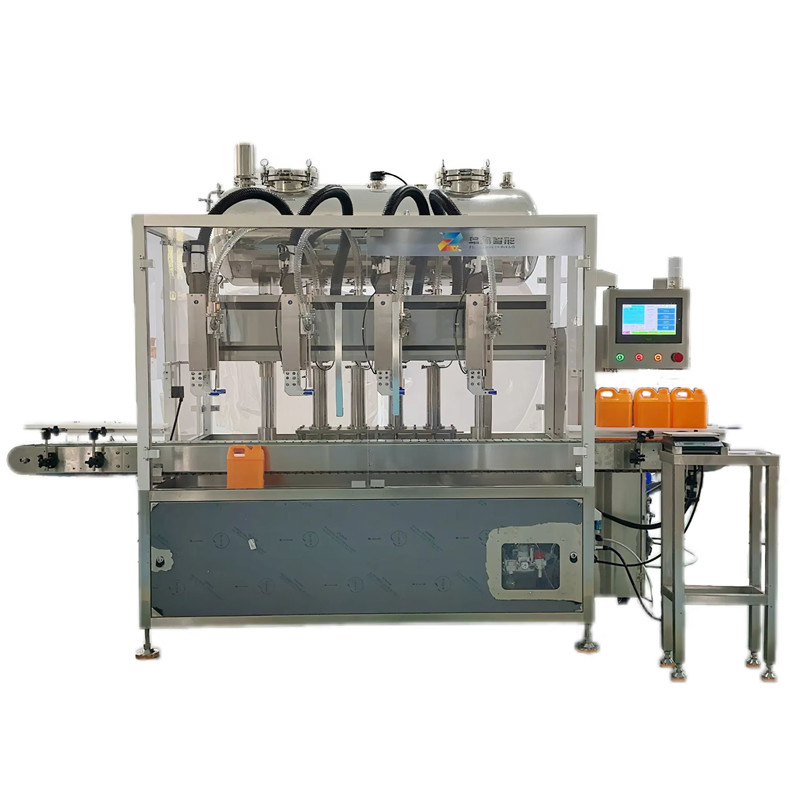

| Machine Model | BDH-ZY-4HFM |
| Filling Nozzles | 4 nozzles (1,2,3,4 heads, customizable) |
| Filling Range | 50-1000 milliliters, customizable |
| Power Supply | 220V 50Hz |
| Power | 8.5kw |
| Filling Accuracy | ±0.5% |
| Machine Size | 2300X1300X2350mm |
| Speed | 60-70 bottles per minute (500 ml, lotion) |
