Automatic Servo Gear Pump Filling Machine for Liquid Soap, Gel, and Hand Shower Bottling High Precision & Easy Operation

Customization:	Available
After-sales Service:	on-Site/ on-Line
Warranty:	1 Years

📊 Basic Information

Model NO.	HWFM-GP	Type	Servo Gear Pump Filling Machine
Automatic Grade	Automatic	Material Type	Liquid
Filling Valve Head	Single-Head	Dosing Device	Servo Gear Pump
Filling Principle	Servo Control Gear Pump	Structure	Linear
Packaging Material	Plastic, Glass, Can, Metal, Barrel	Materials	Stainless Steel 316 & 304
Voltage	220V/50Hz; 380V/50Hz	Filling Volume	20-5000ml
Machinery Capacity	1800-4000 Bottles/Hour	Filling Accuracy	1%
Core Components	PLC, HMI, Motor, Cylinder	Production Capacity	50-100 Set/Month

⚙️ Product Description

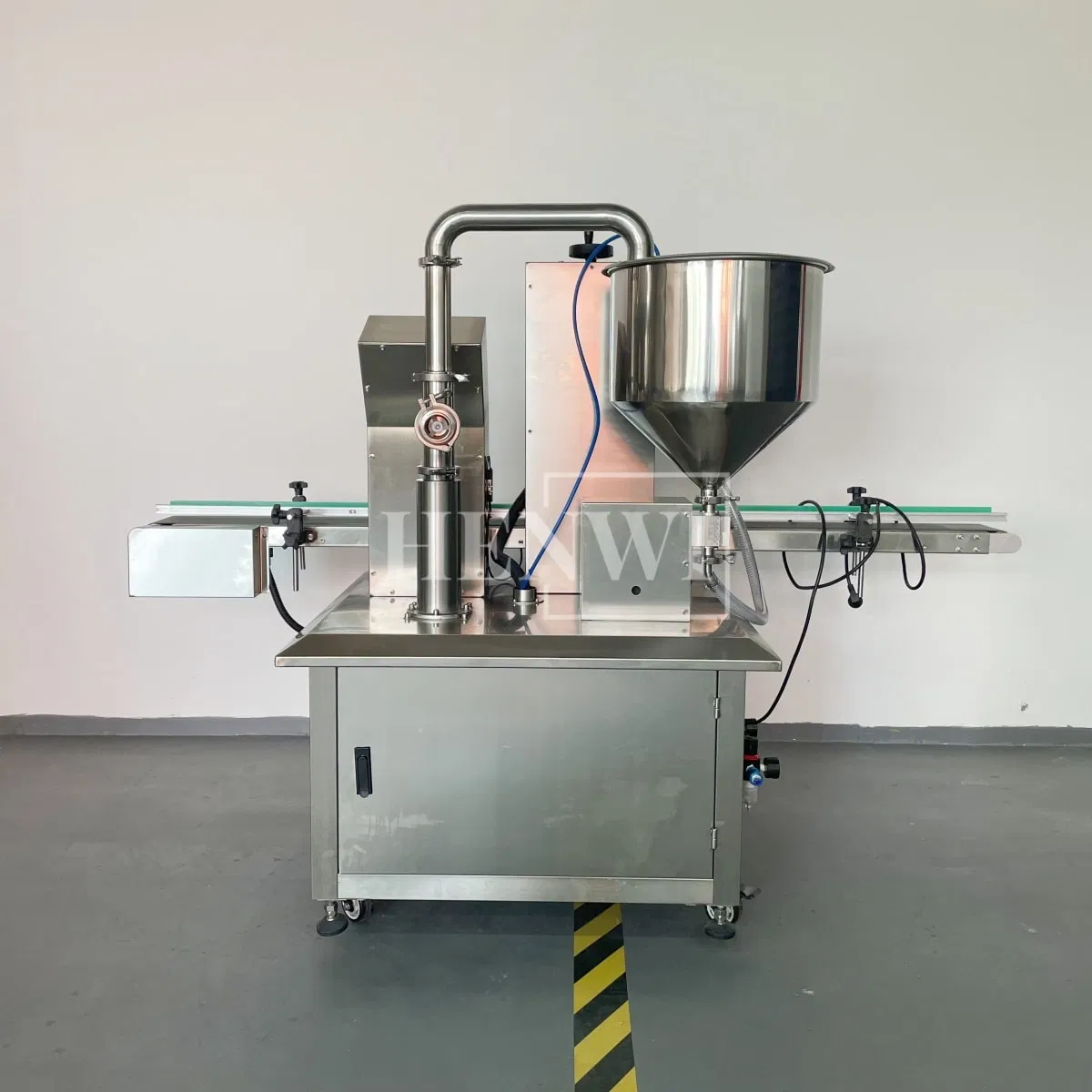

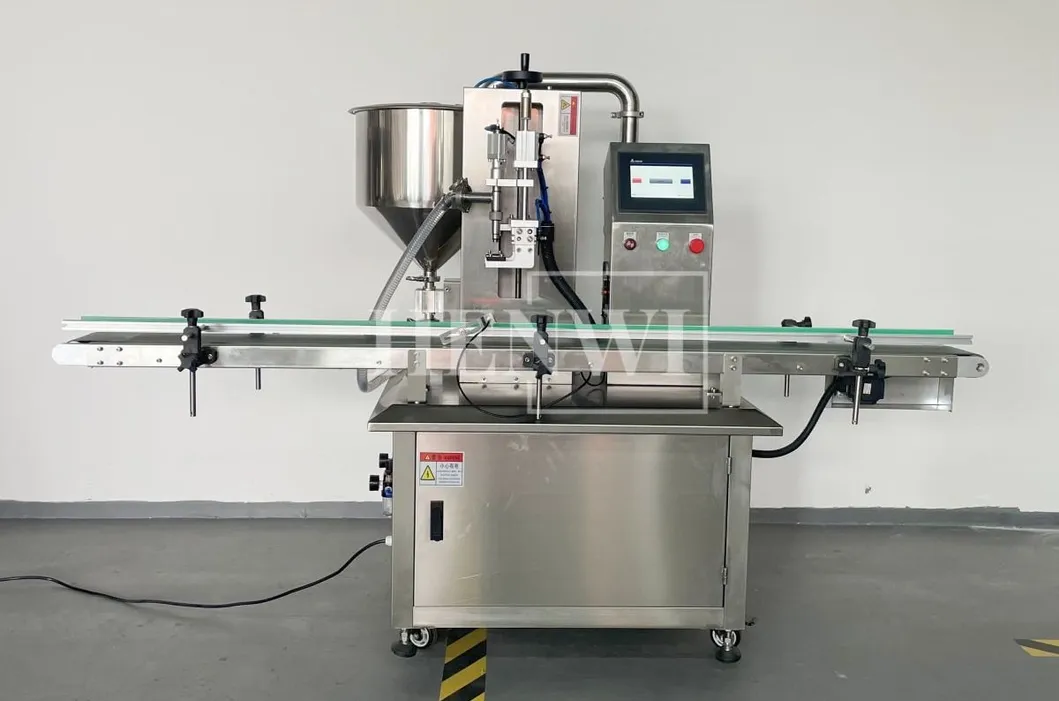

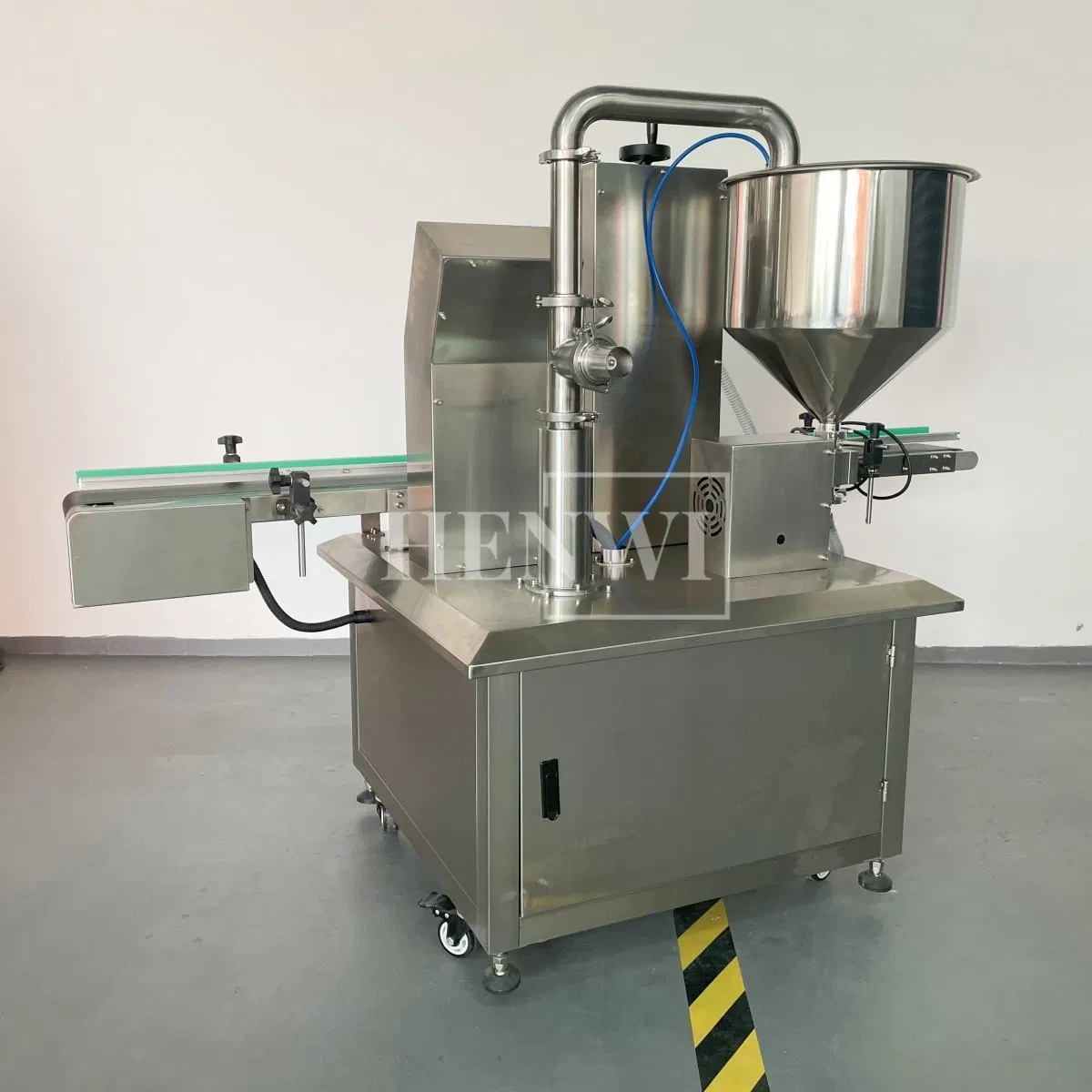

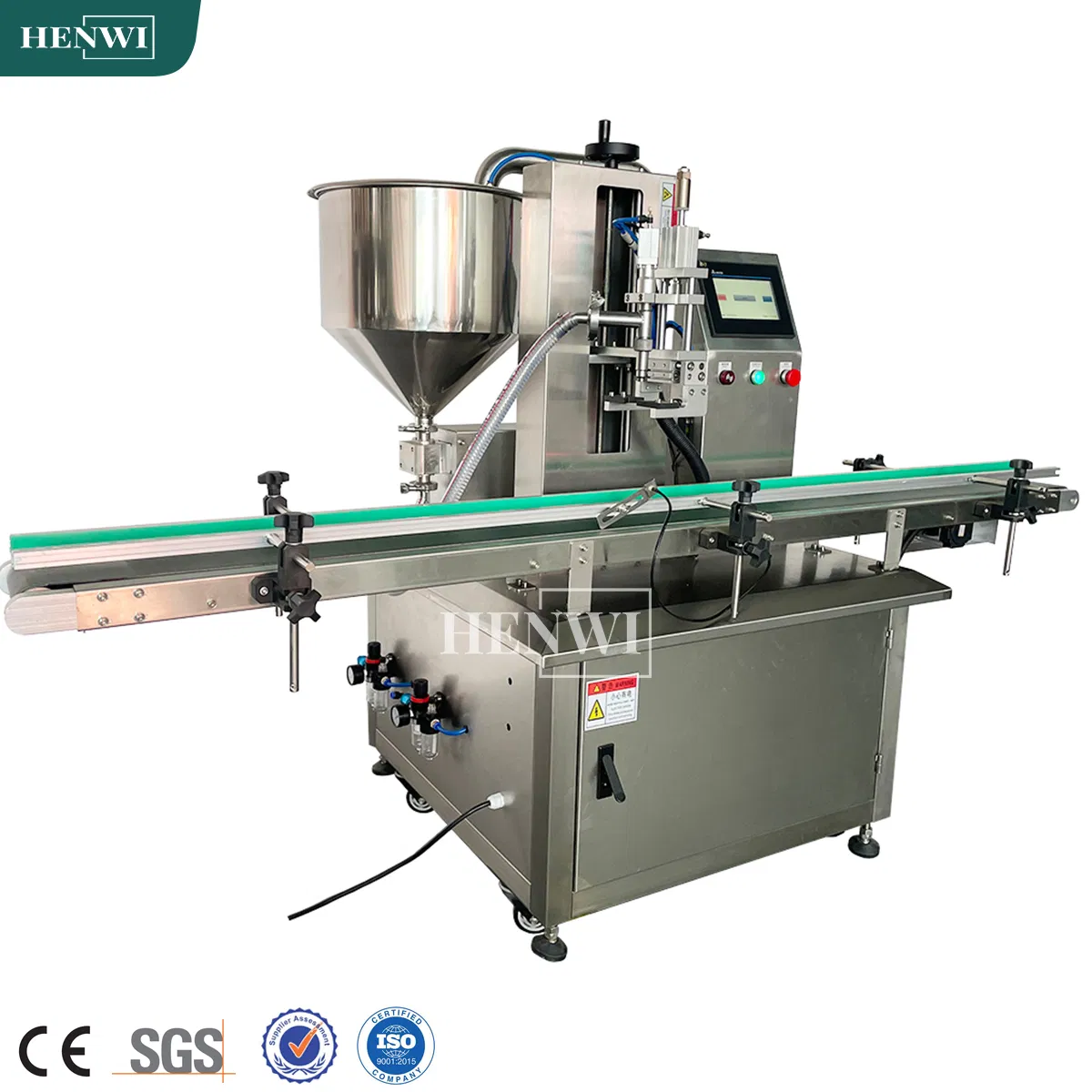

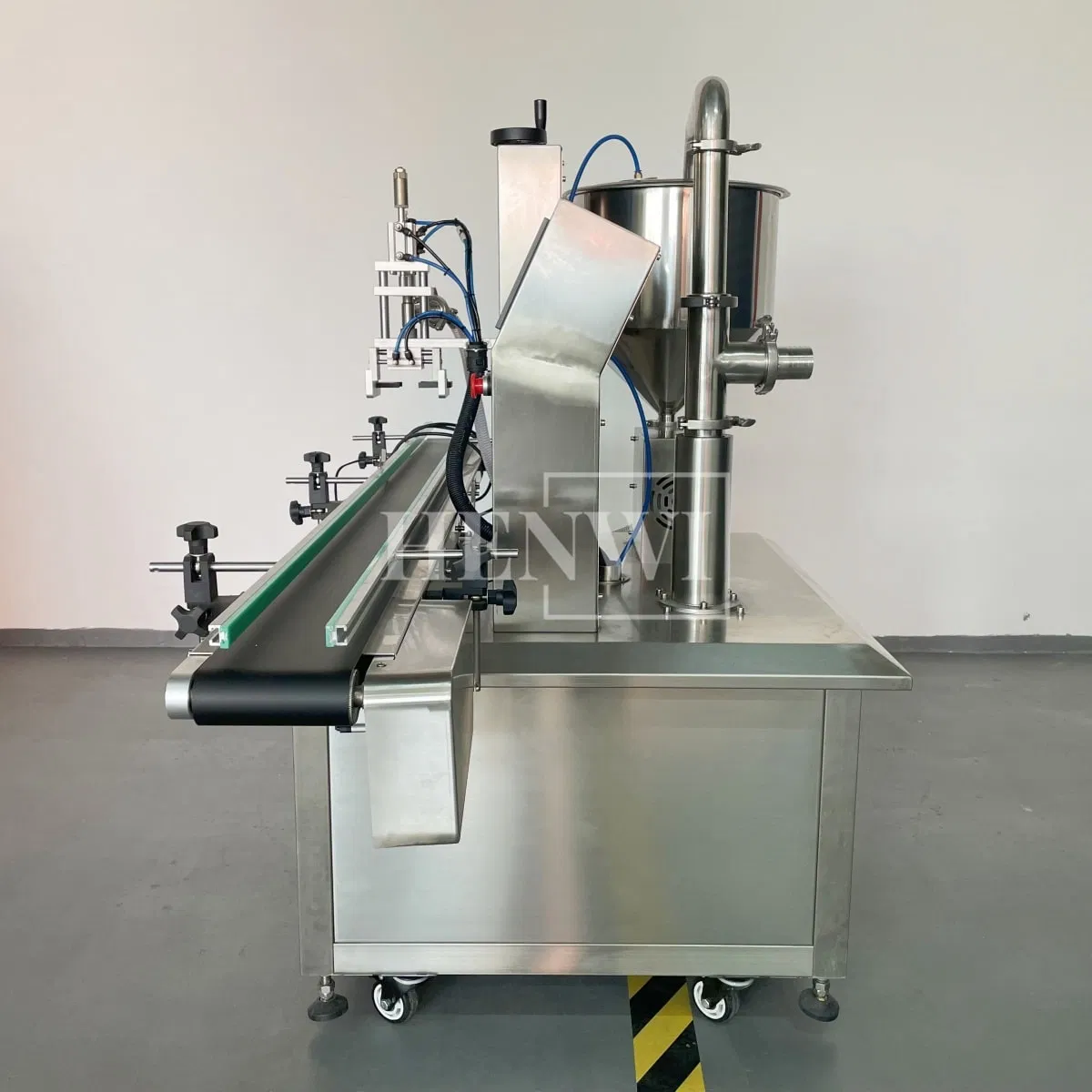

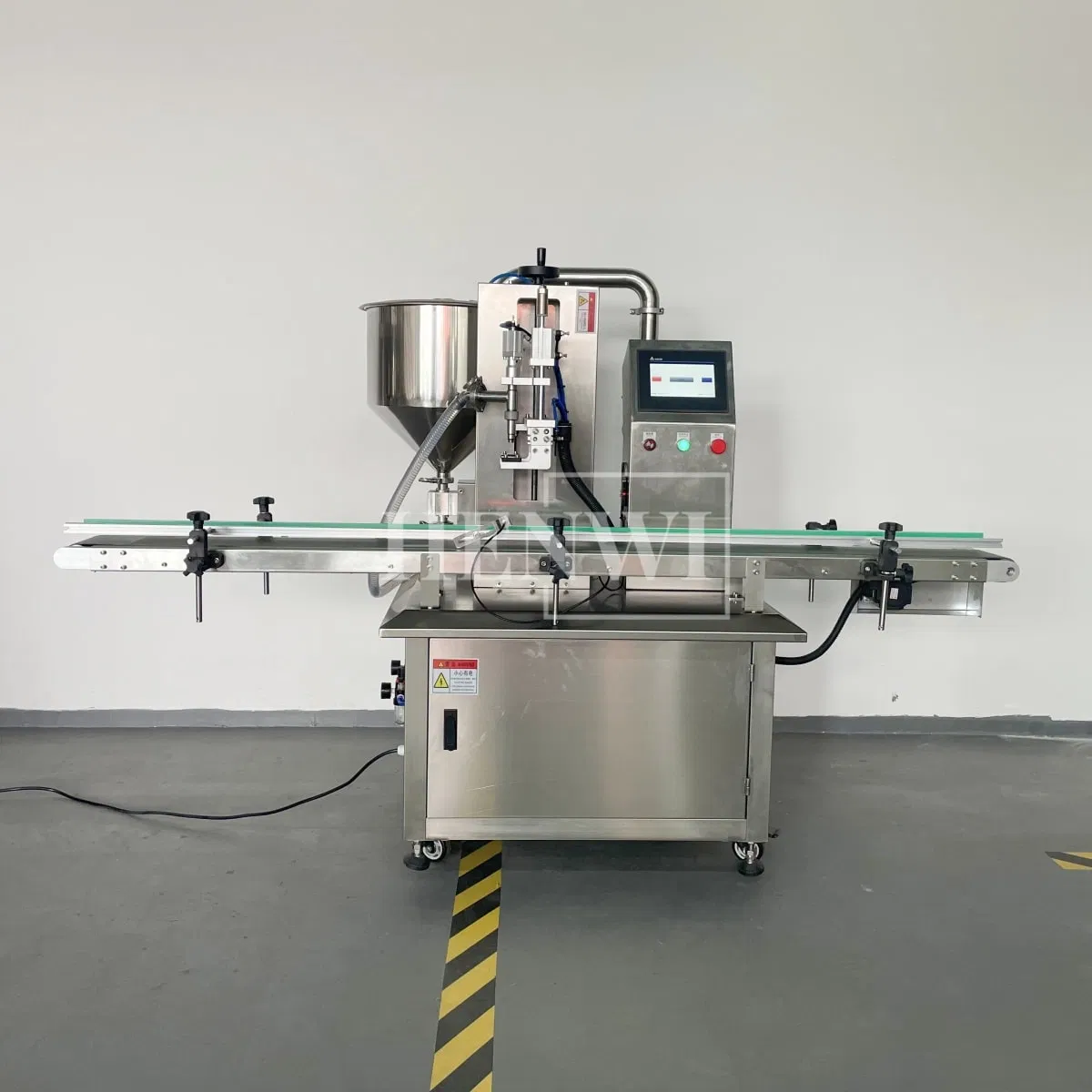

Automatic Servo Gear Pump Filling Machine

The automatic single-head servo gear pump filling machine is a high-precision and efficient filling device widely used in industries such as cosmetics, pharmaceuticals, food, and chemicals. It is designed for the accurate dosing of liquids, viscous fluids, or semi-fluids.

◈

Servo Drive System: Equipped with a high-precision servo motor that accurately controls the speed and rotation angle of the gear pump, achieving precise control over the filling volume with minimal error.

◈

Gear Pump Structure: Offers stable flow and durability. It is suitable for medium to high-viscosity fluids. Made of stainless steel to meet sanitary standards.

◈

Automated Operation: Controlled by a PLC system with a touch screen interface. Includes automatic feeding, filling, and stopping functions.

◈

Hygienic Design: Contact parts are made of high-quality stainless steel, easy to clean and meeting GMP sanitary standards.

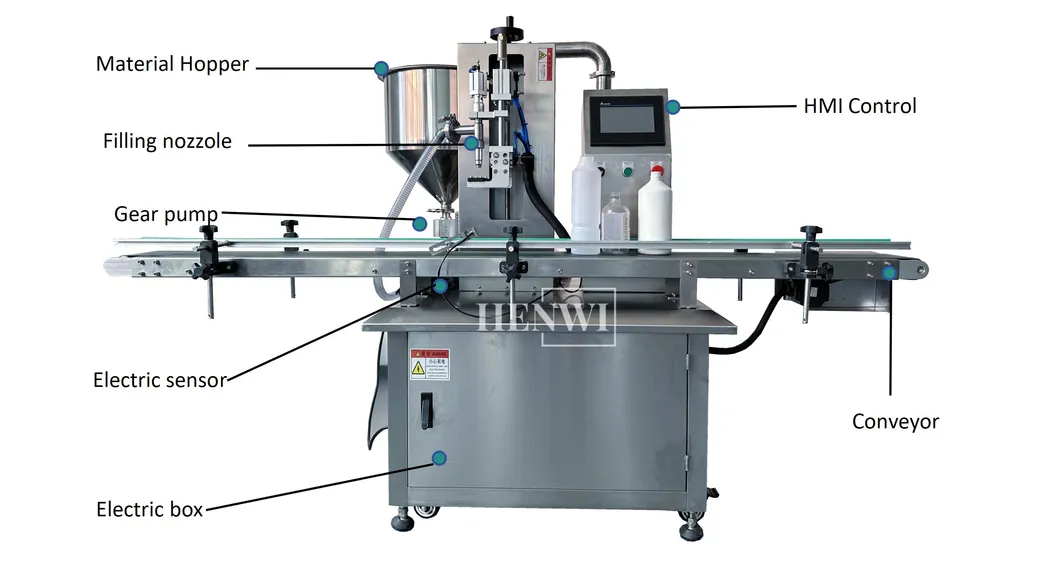

📸 Detailed Components

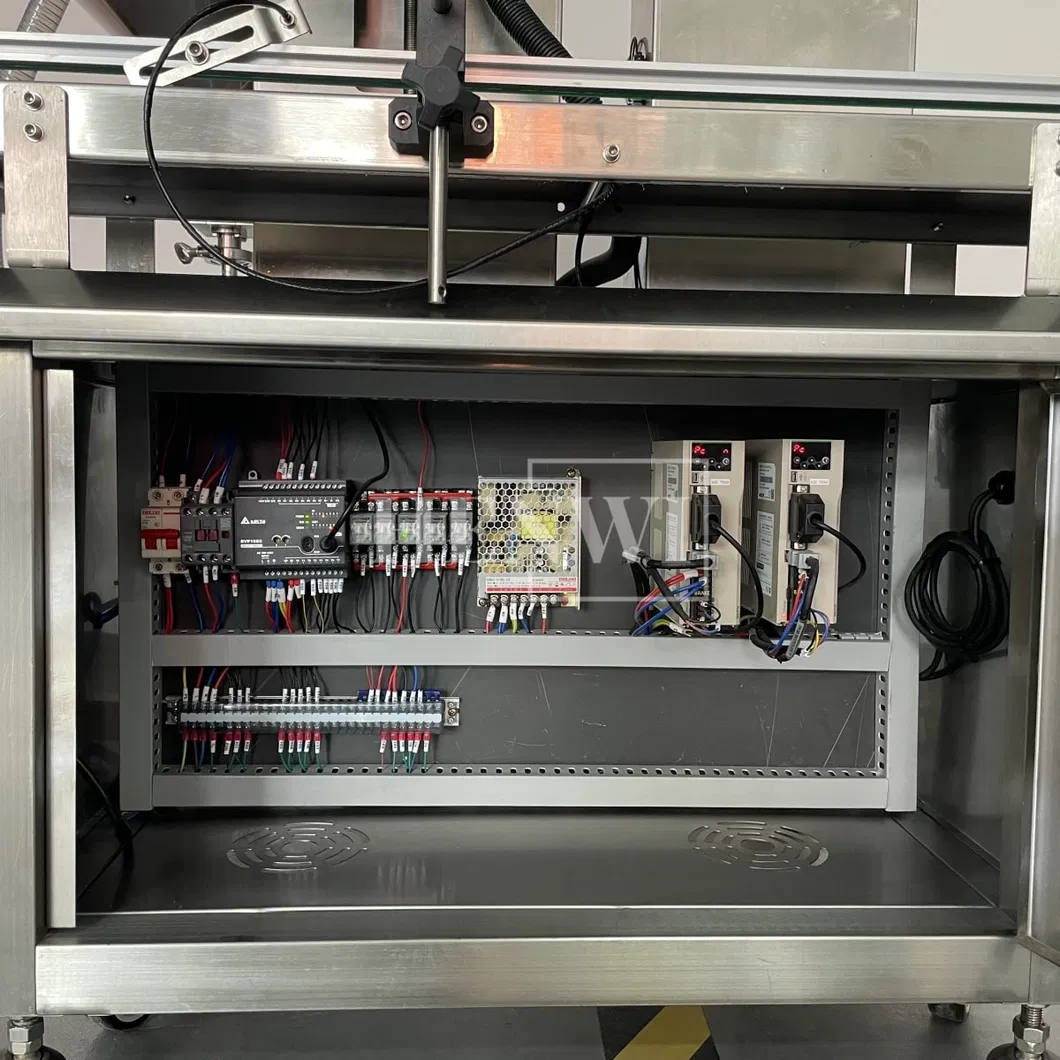

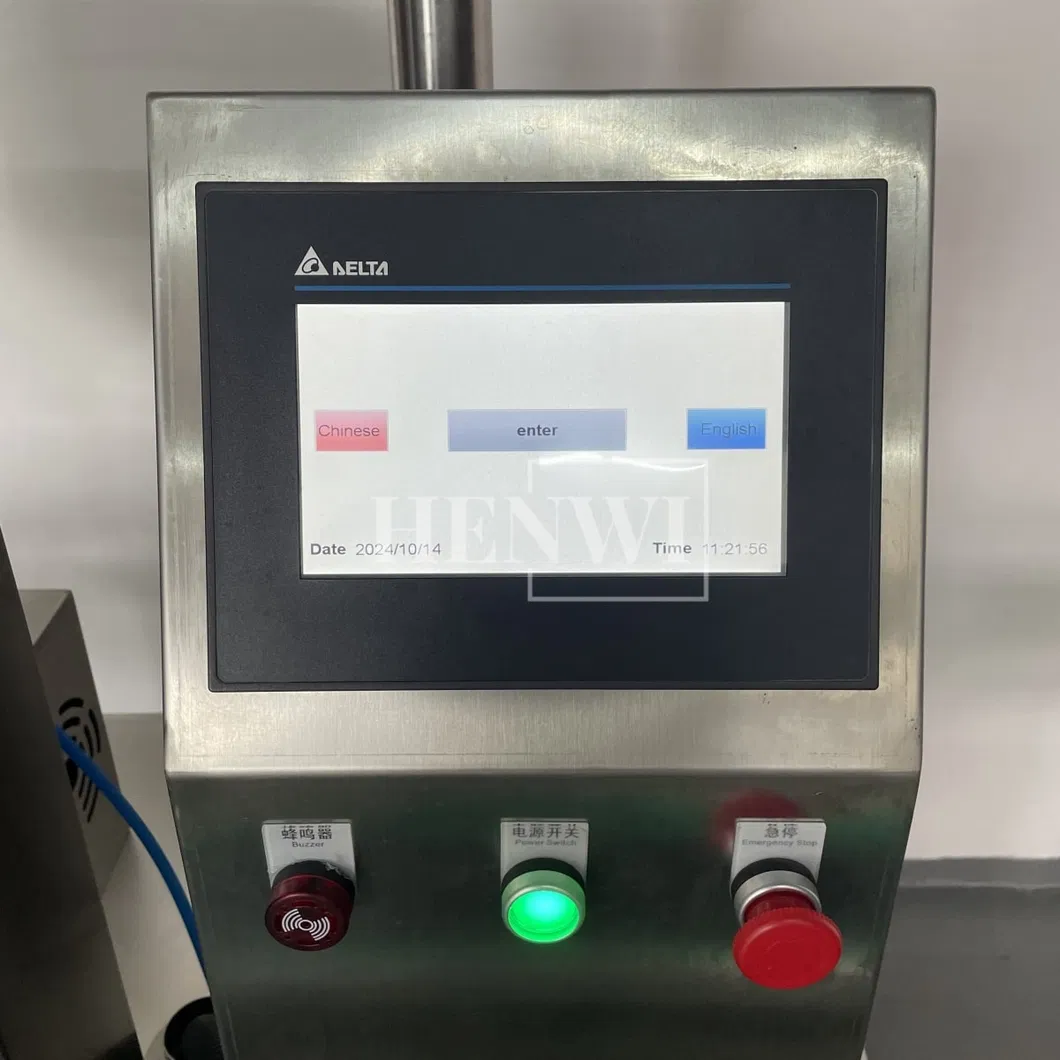

PLC Touchscreen & Electrical Box

Intelligent PLC control system with intuitive user interface for real-time monitoring, fault diagnosis, and data storage.

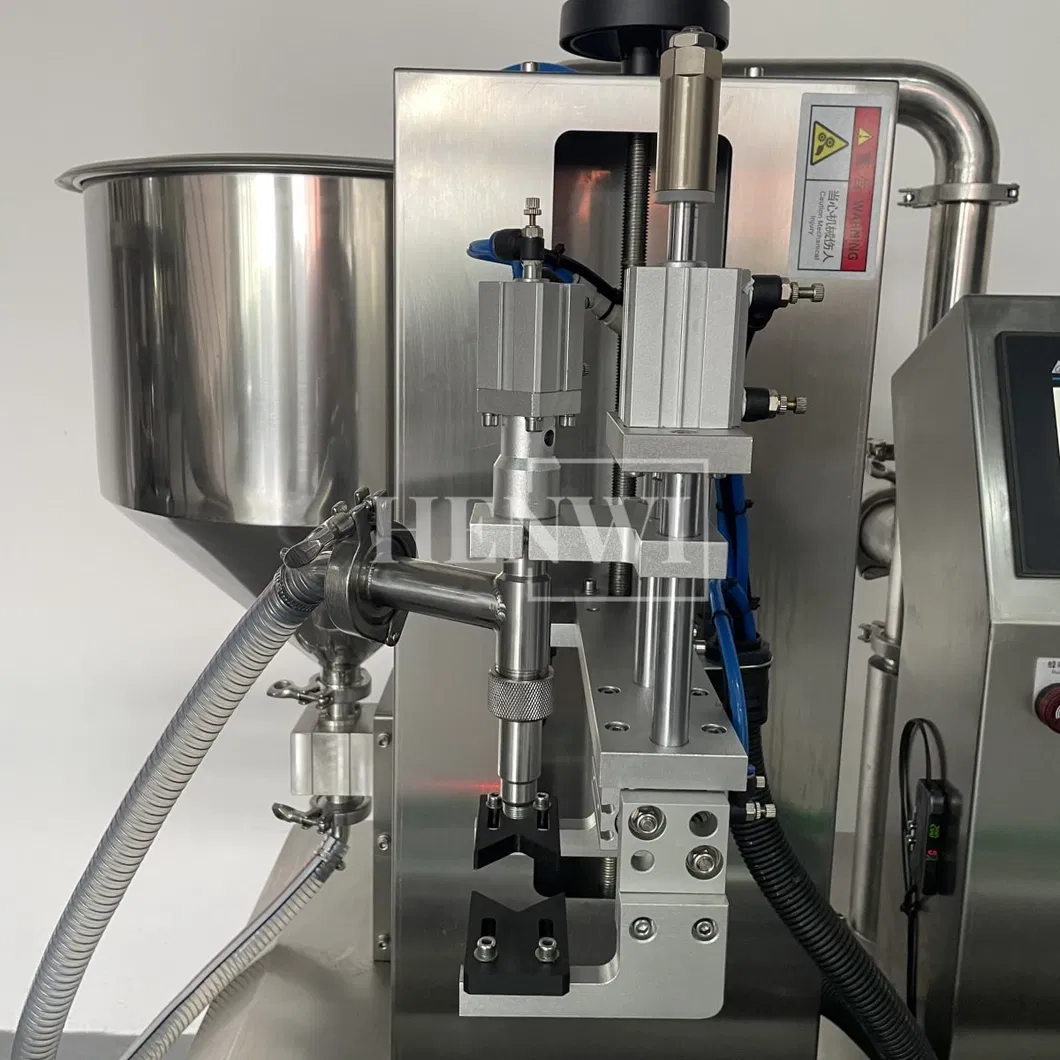

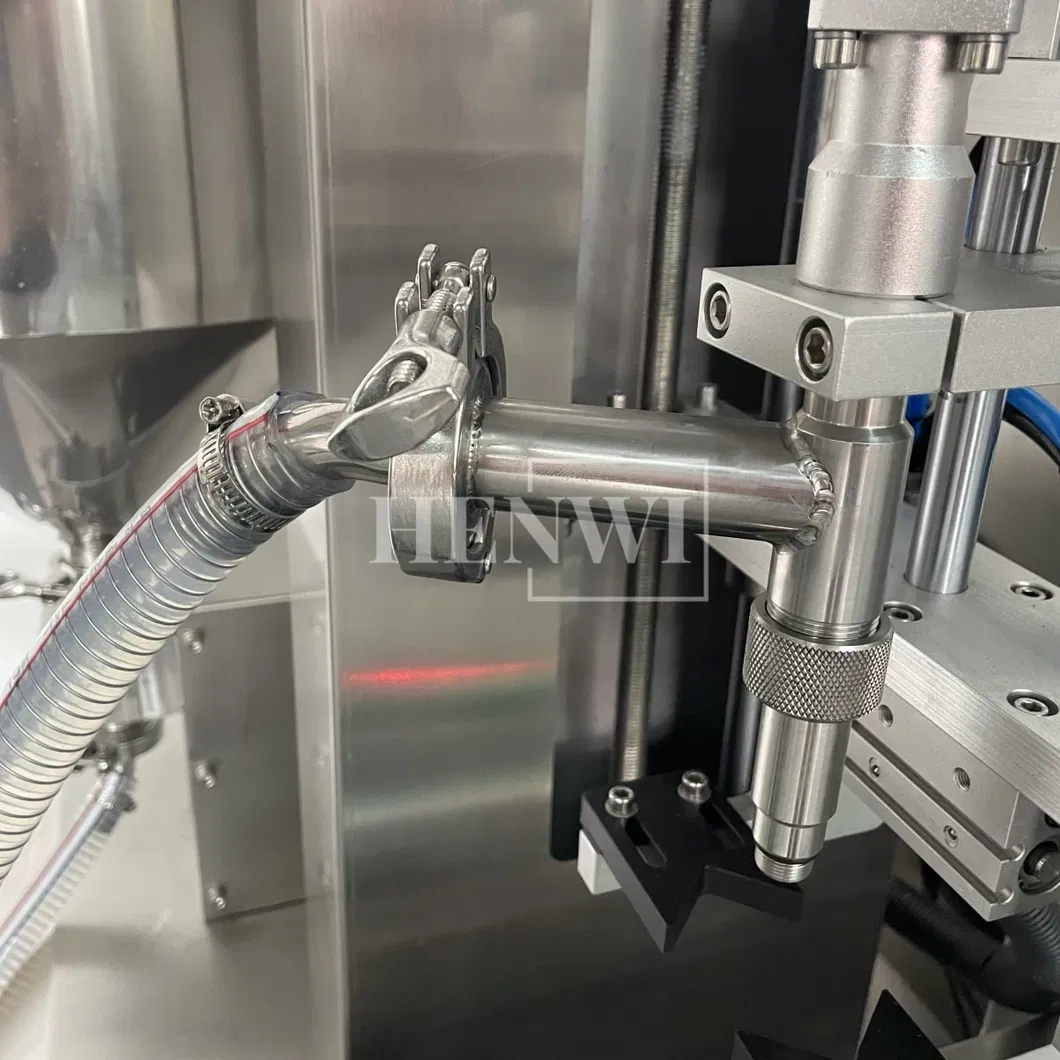

Anti-drip Filling Nozzle

Equipped with bottle-clamping device and advanced anti-drip mechanism to ensure clean operation and minimize product waste.

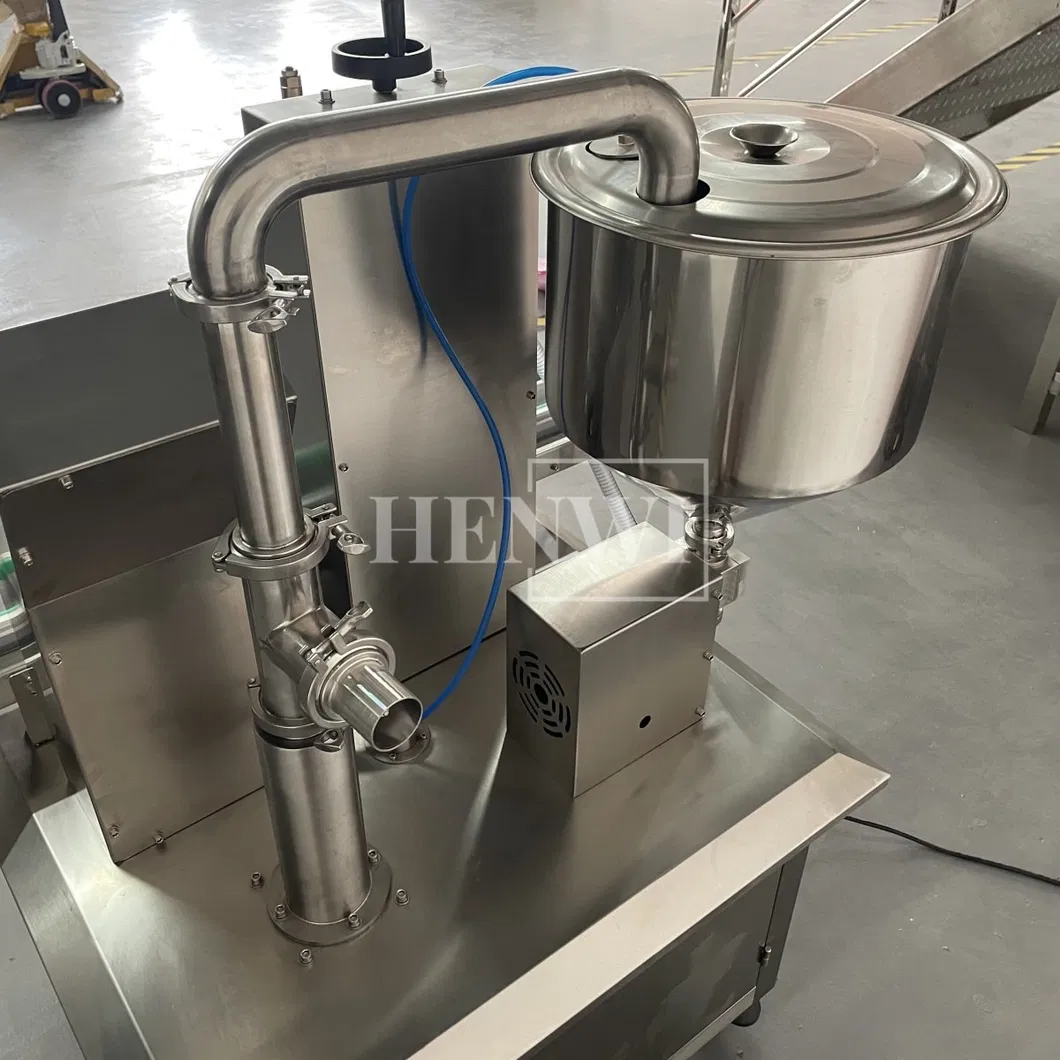

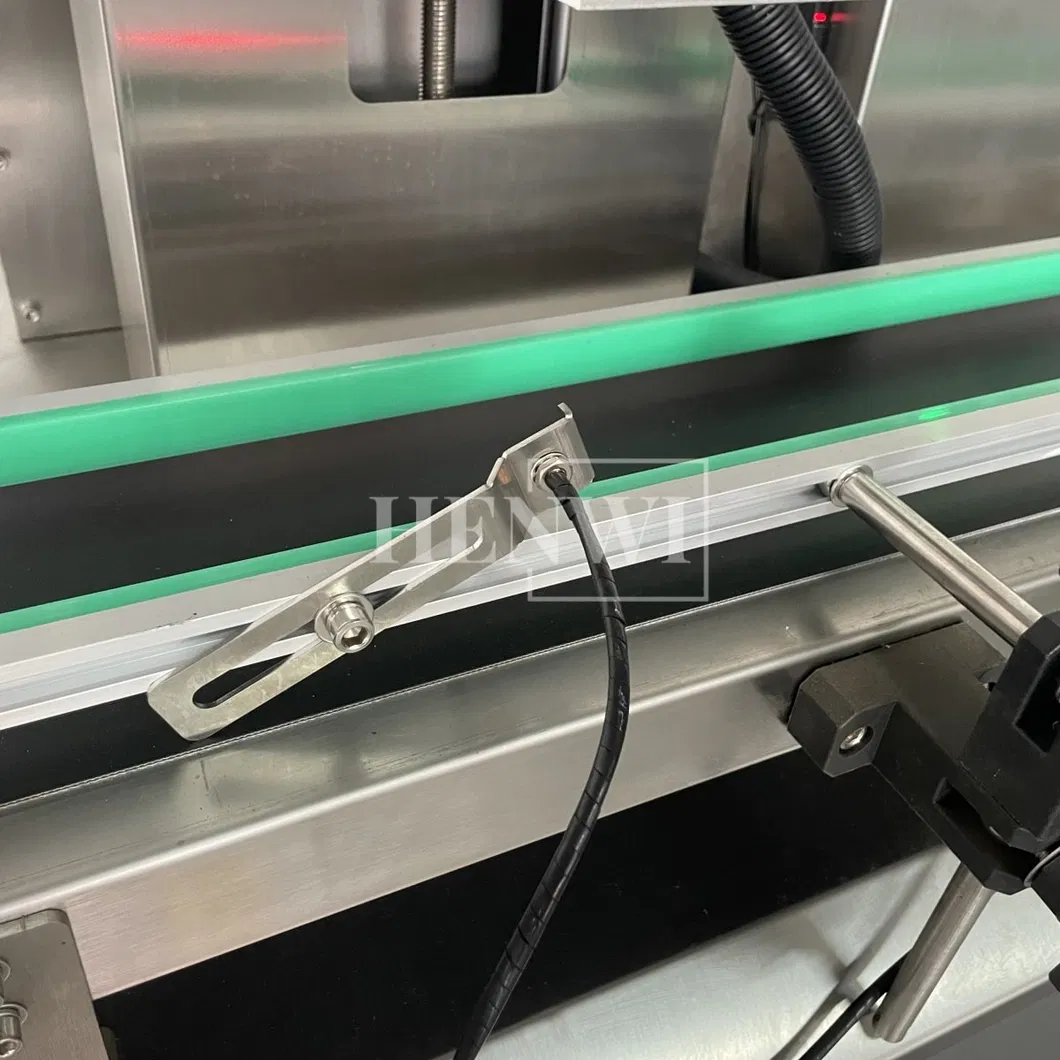

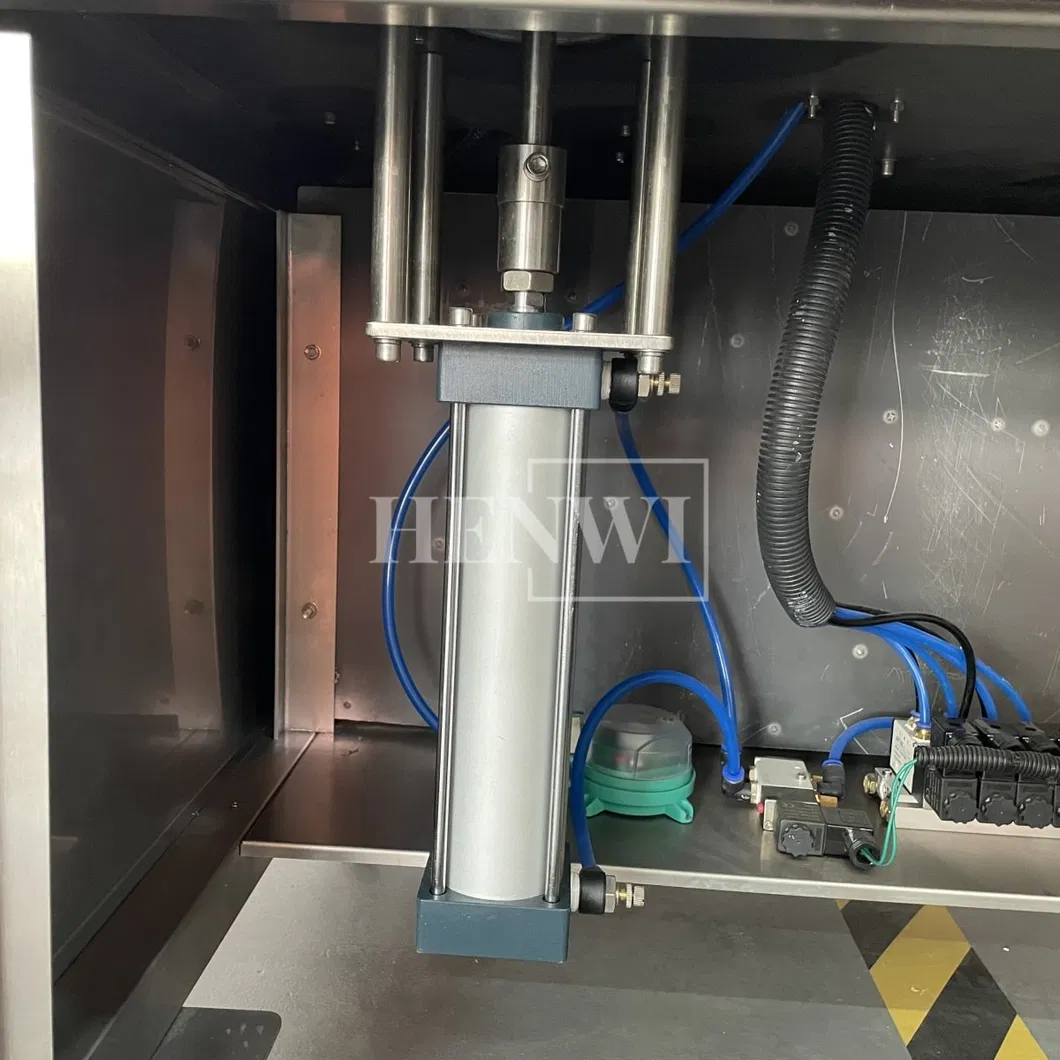

Sensors & Feeding System

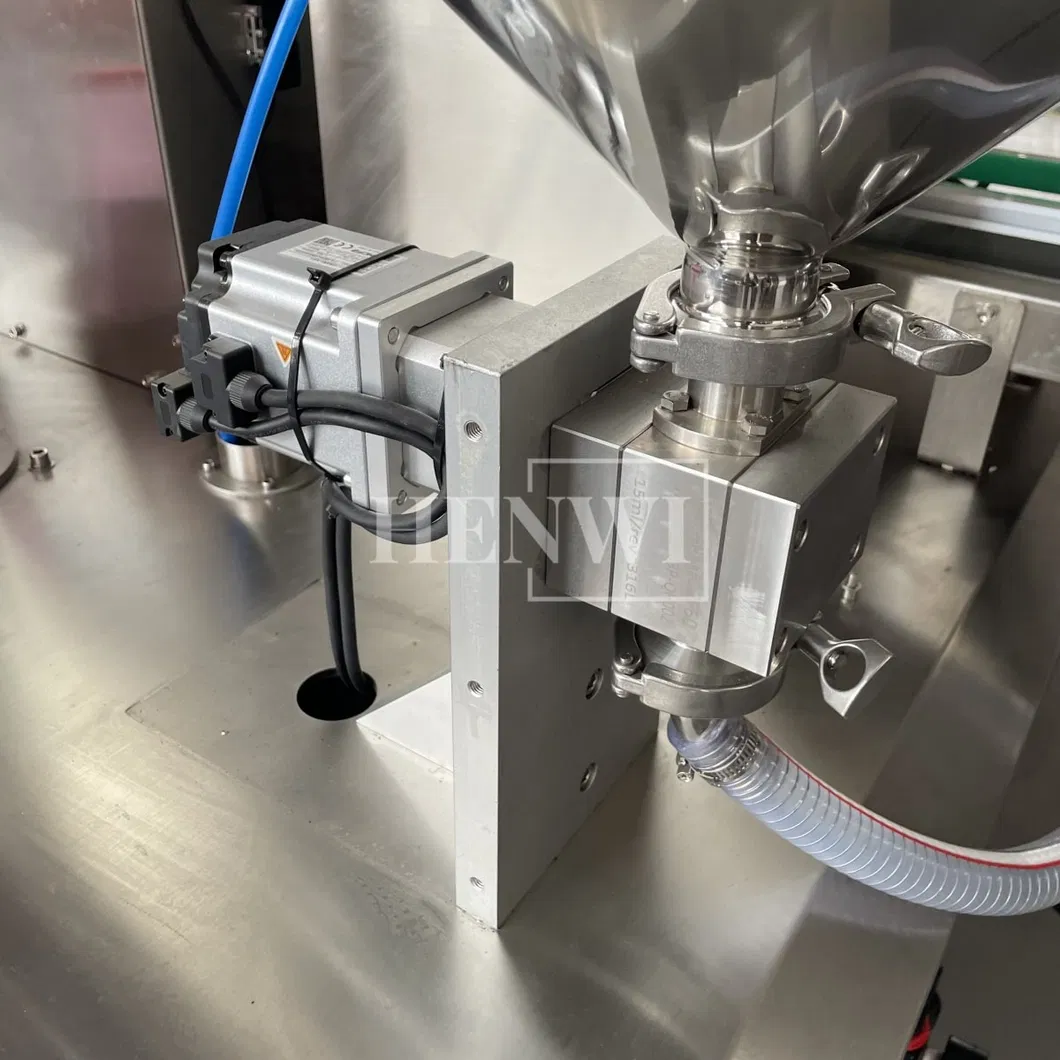

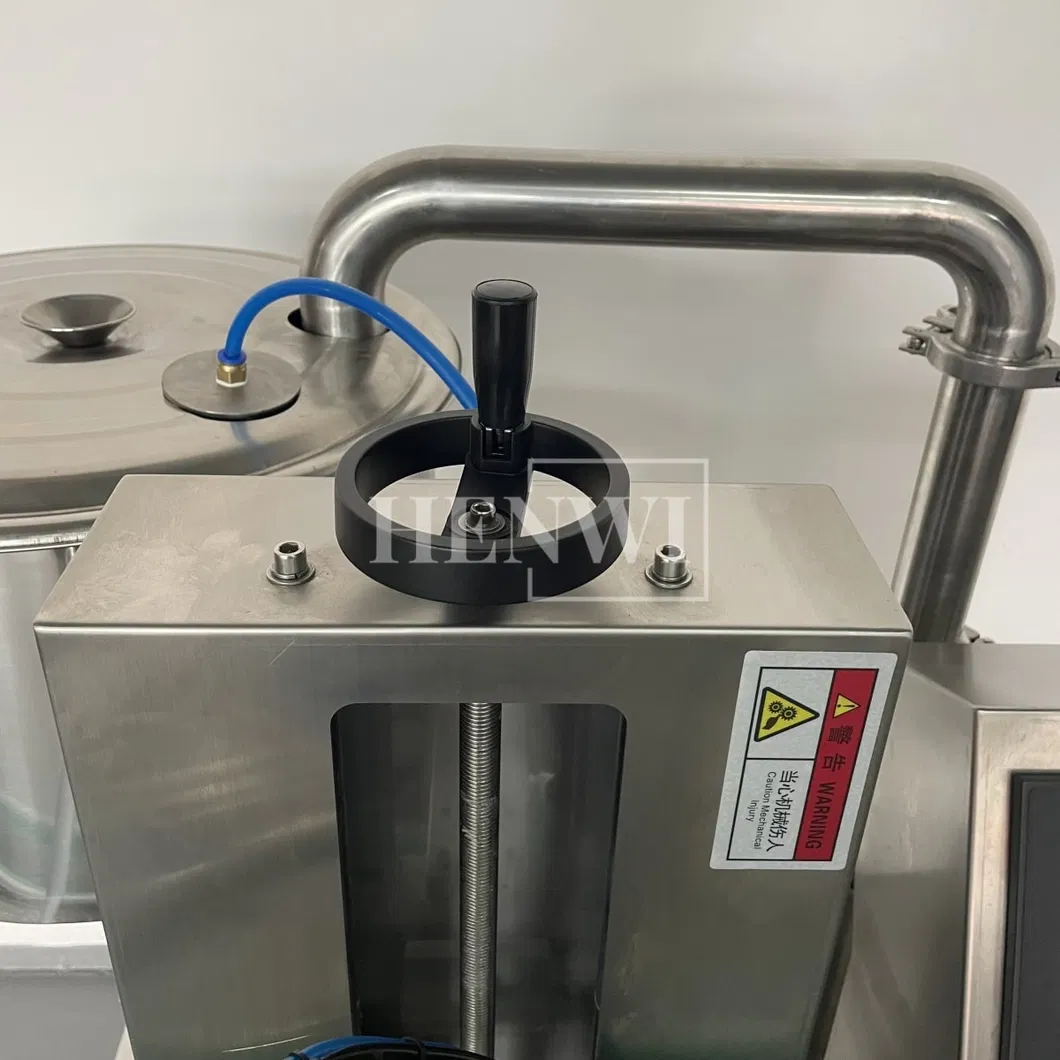

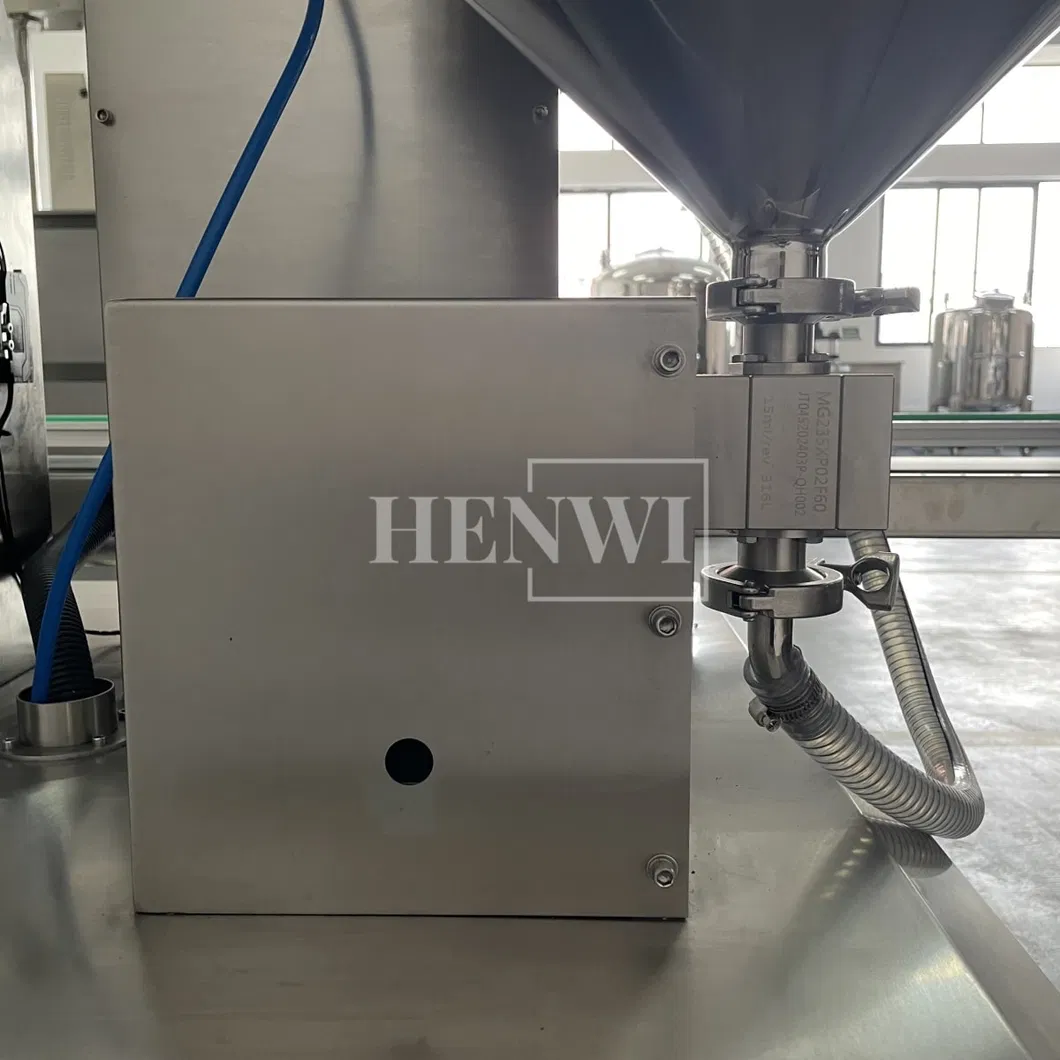

Servo Gear Pump & Adjustments

📋 Product Parameters

Number of filling heads	1
Filling range	50-2000ml
Filling speed	1800-2400 bottles/hour
Measuring accuracy	±0.1%
Power / Voltage	1.5KW / 220V
Working air pressure	0.6-0.7Mpa
Machine size	20006001500mm
Machine weight	200kgs
Control System	Delta PLC & Touch Screen
Pneumatic Components	AirTac Taiwan
Sensors	KEYENCE

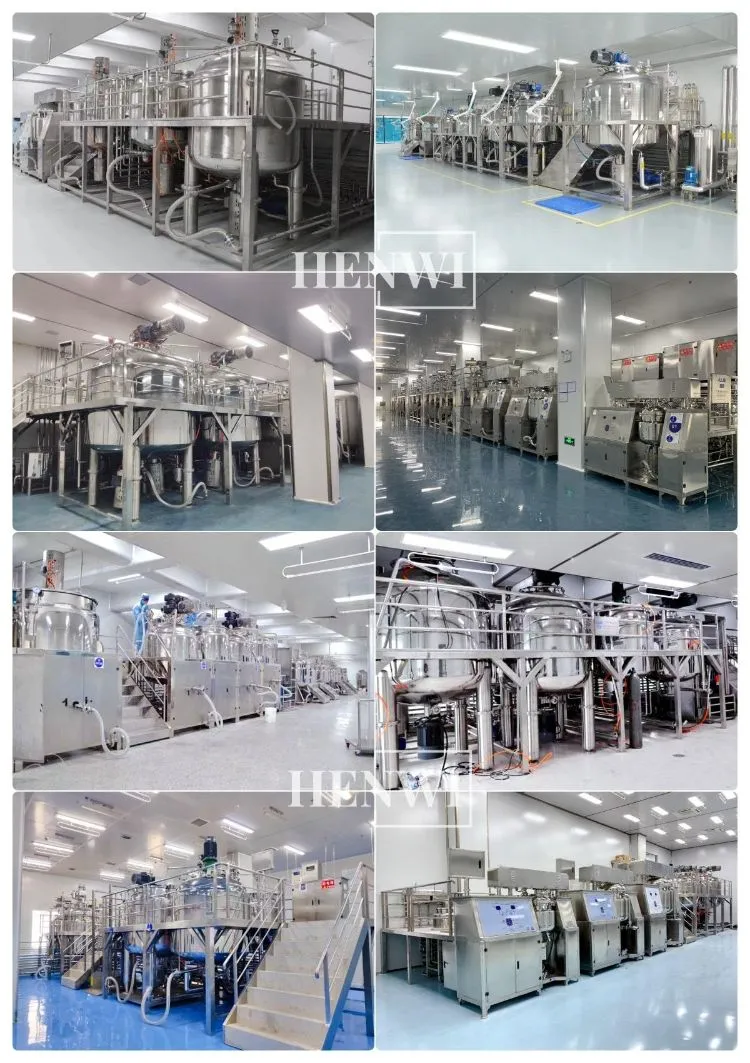

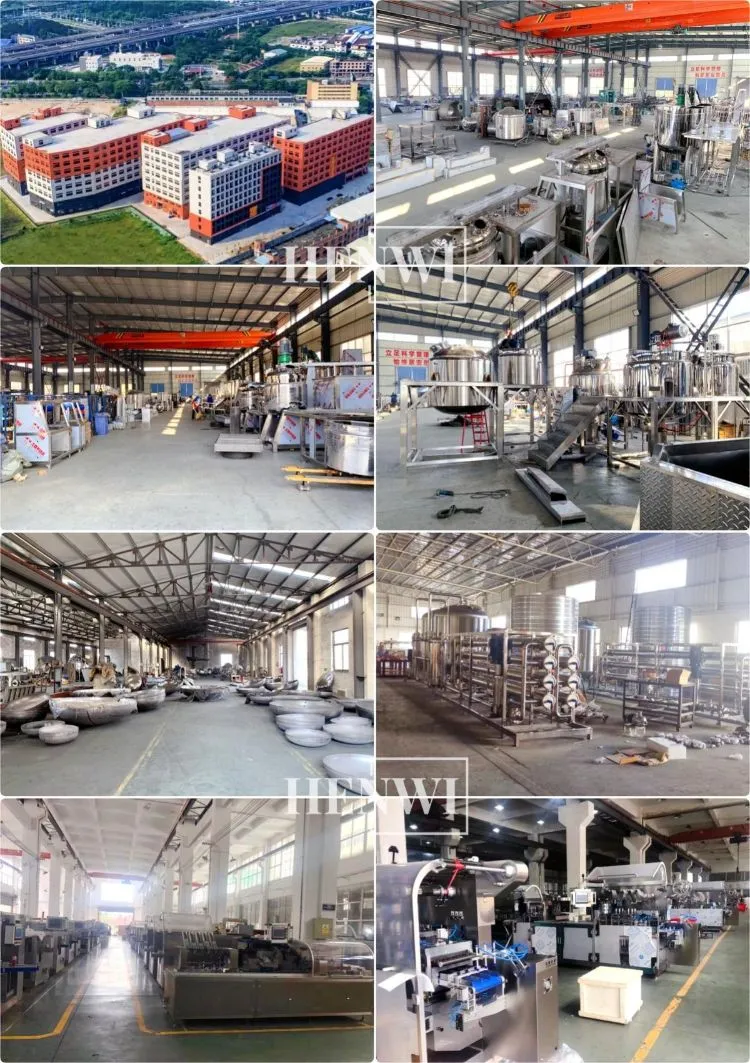

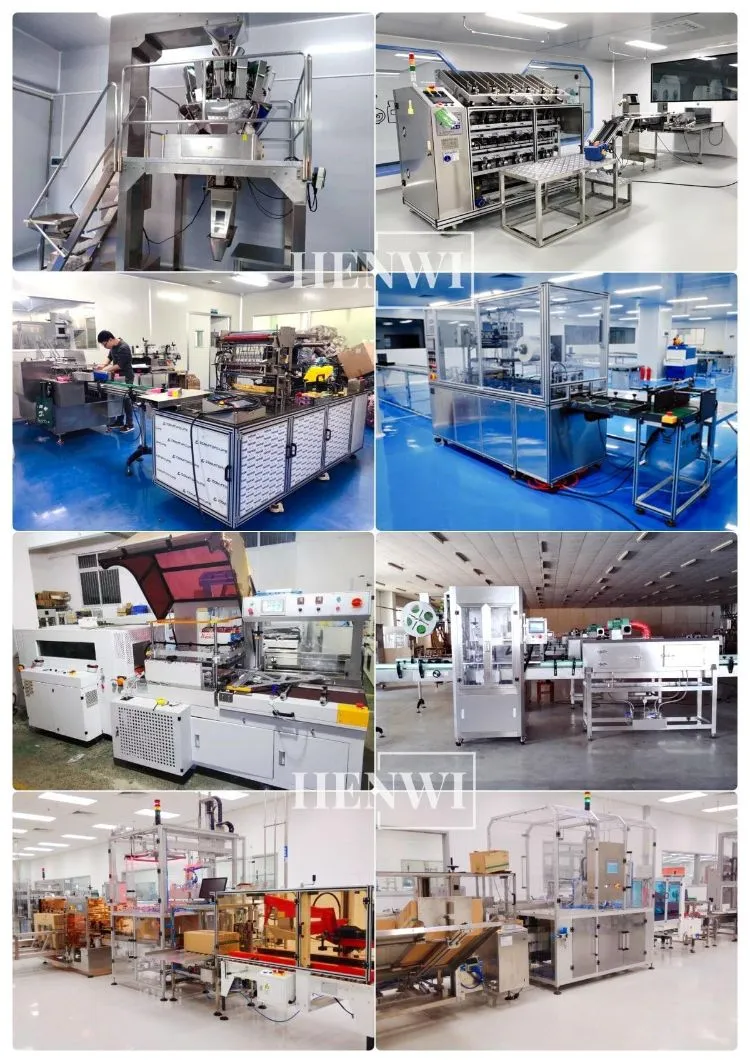

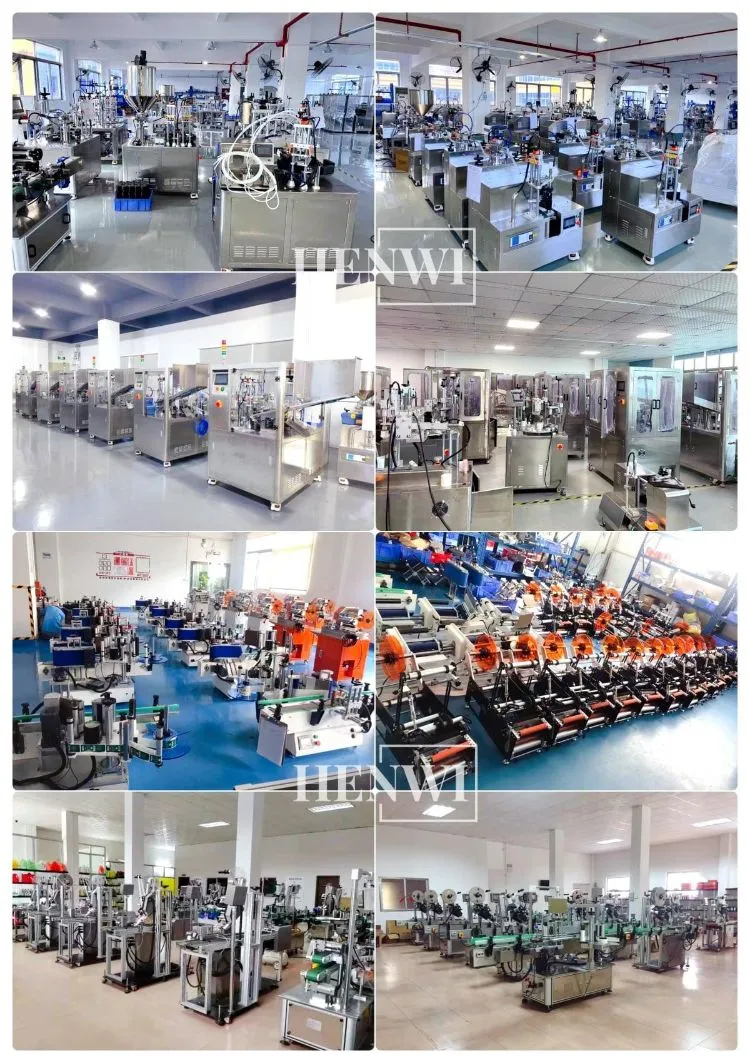

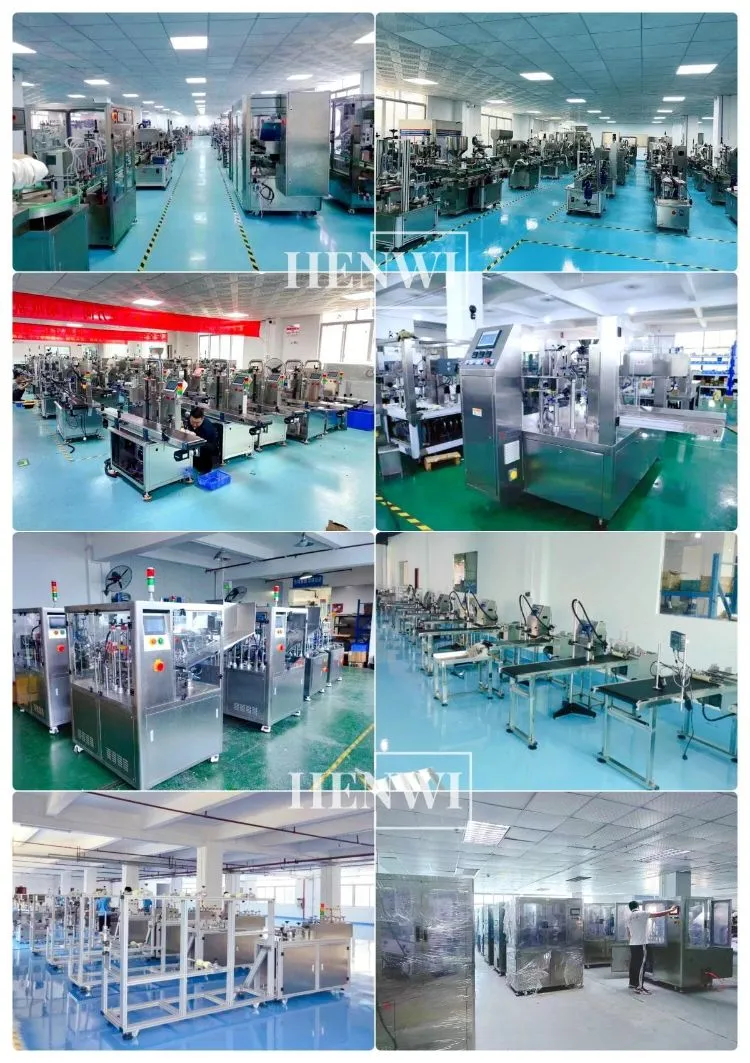

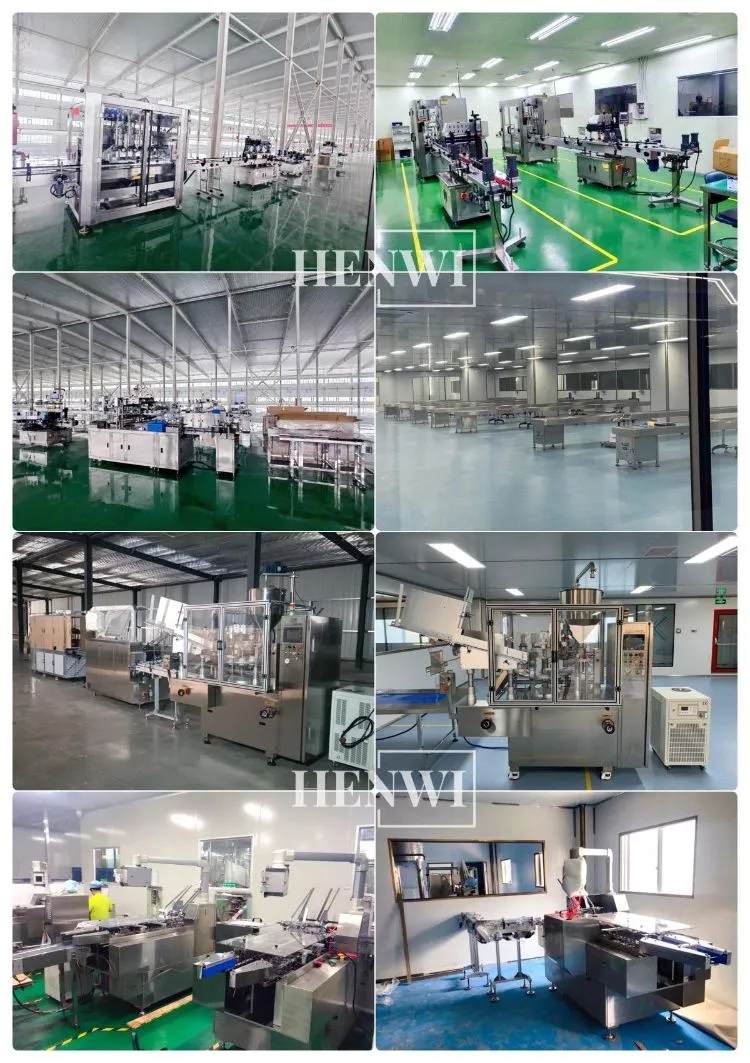

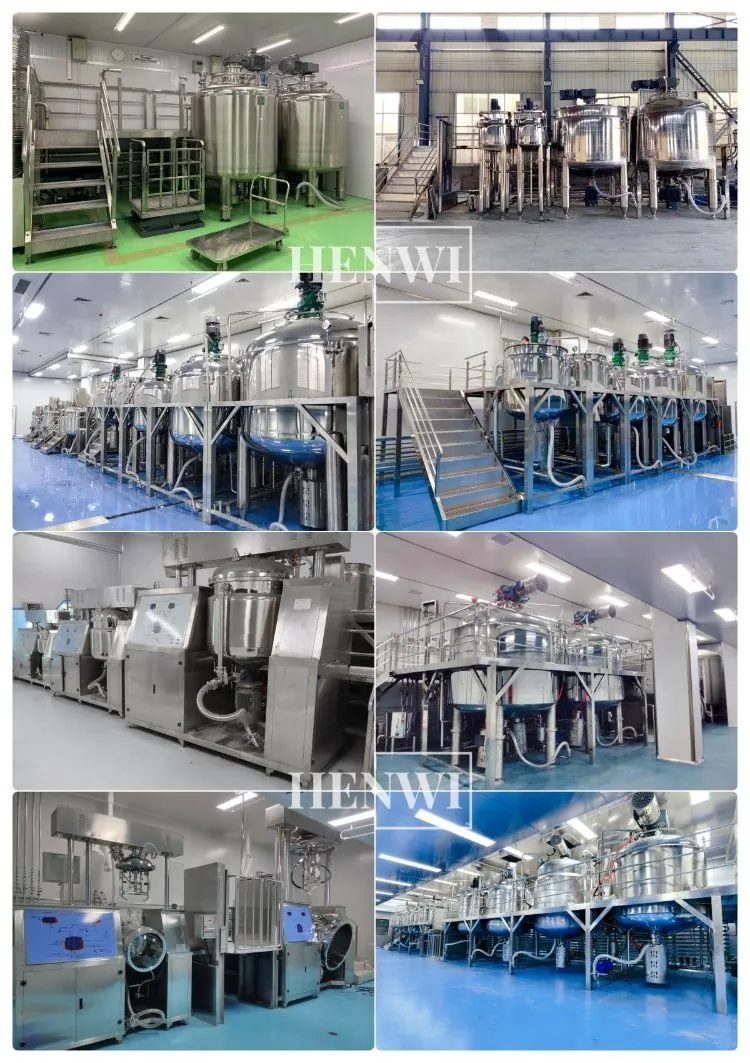

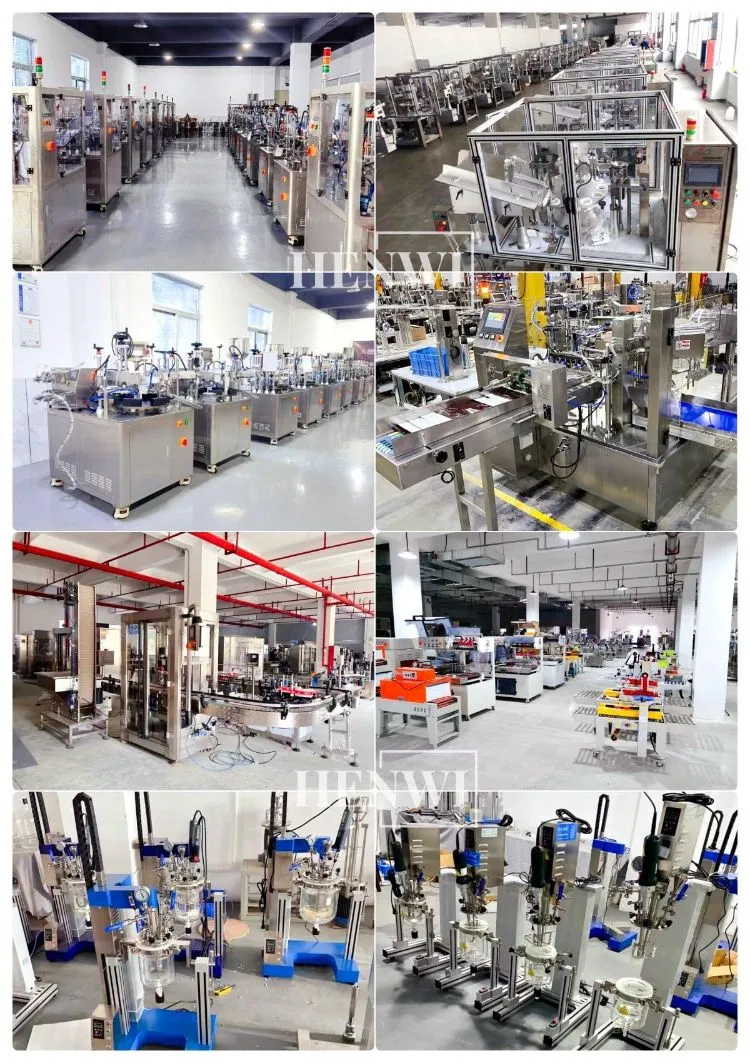

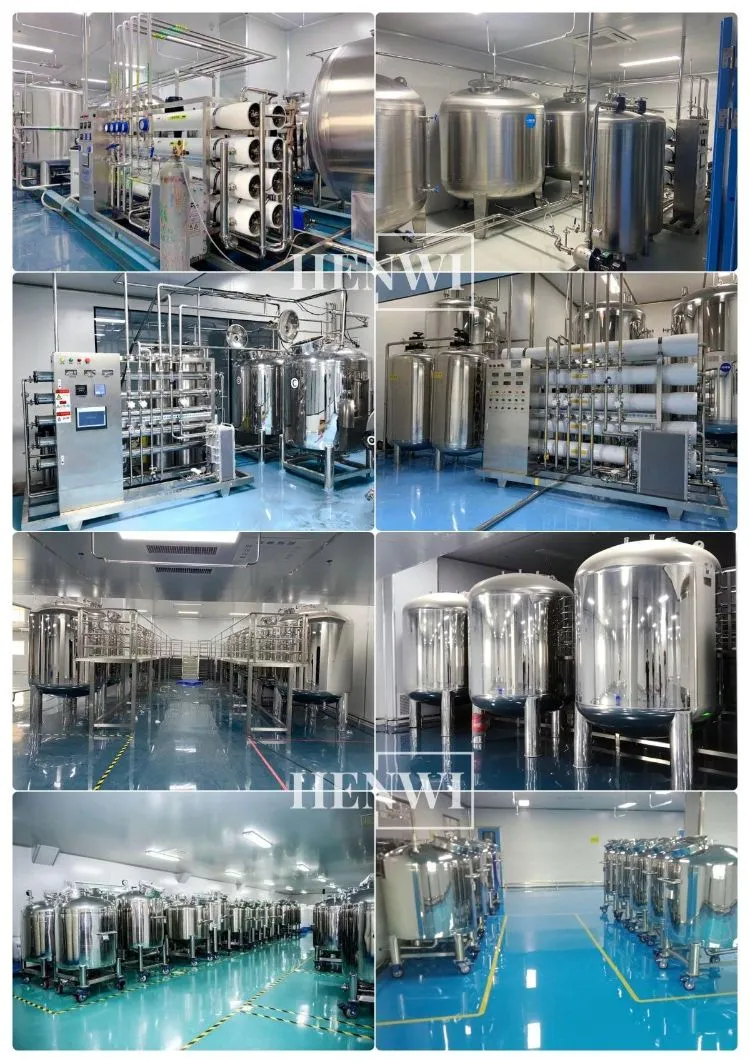

🏭 Factory Display

Frequently Asked Questions

Q1: What types of liquids can the servo gear pump handle?

It is highly versatile, suitable for low-viscosity liquids (water, alcohol), medium-viscosity (oils, lotions), and high-viscosity materials (creams, gels).

Q2: How accurate is the filling volume?

Thanks to the high-precision servo motor and gear pump system, the measuring accuracy can reach ±0.1%, significantly reducing material waste.

Q3: Is the machine easy to clean for product changeovers?

Yes, the gear pump and stainless steel 316/304 parts are designed for quick disassembly and cleaning, meeting strict GMP sanitary standards.

Q4: Can the filling speed and volume be adjusted?

Absolutely. All parameters including filling speed, volume, and timing can be easily adjusted via the PLC touch screen interface.

Q5: Does the machine prevent dripping after filling?

Yes, the filling nozzle features an advanced pneumatic anti-drip mechanism that ensures a clean cut-off after each filling cycle.

Q6: What bottle materials are compatible with this machine?

The machine is compatible with a wide range of containers including plastic bottles, glass bottles, metal cans, and barrels.
