Basic Information
Material Type
Liquid Gel Sauce Paste
Filling Valve Head
Multi-Head
Filling Principle
Pressure
Packaging
Bottles, Jars, Tins, Cans, Boxes
Name
Automatic Liquid Gel Cream Paste Filling Machine
Filling Scope
10-1000ml (Customize)
Capacity
1500-2500bph (Customize)
Filling Option
Servo Piston/Pump Filling
Capping Option
Capping/Pressing/Crimping
Product Introduction

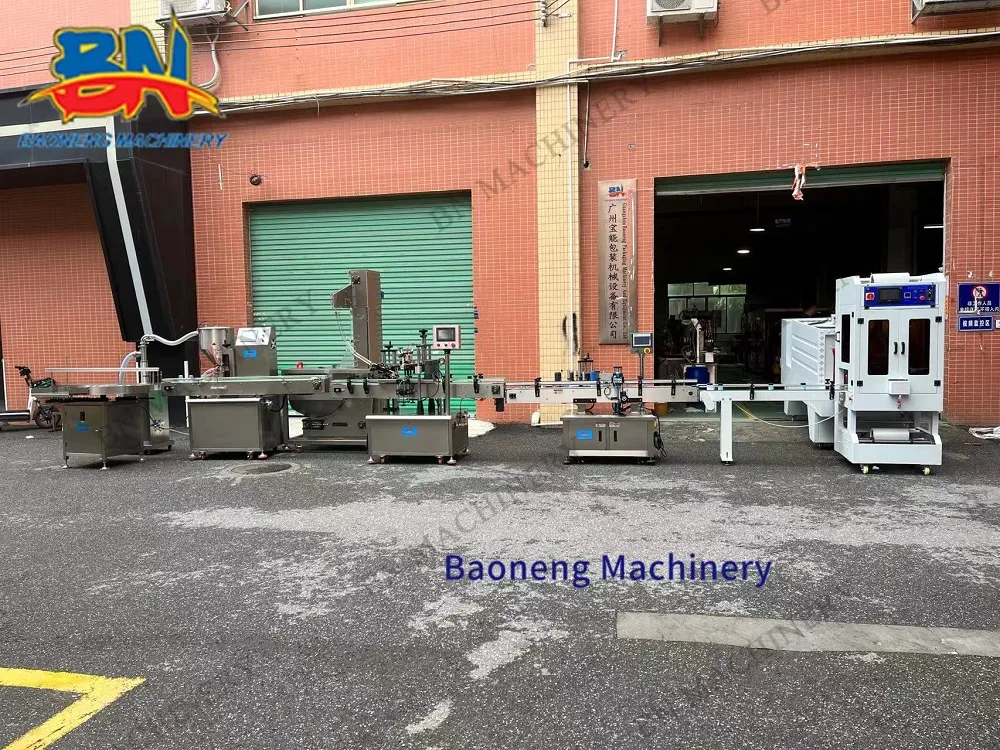

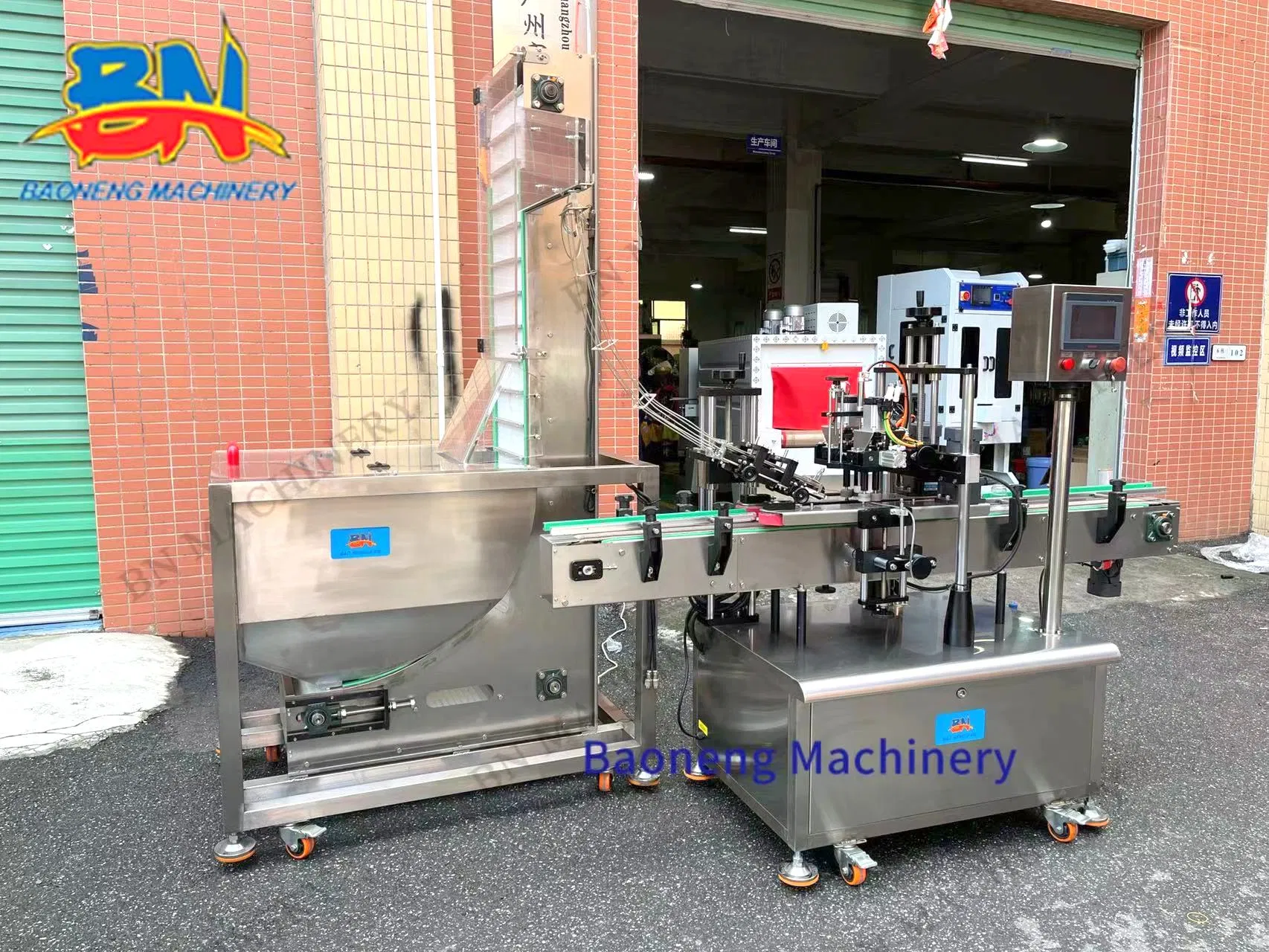

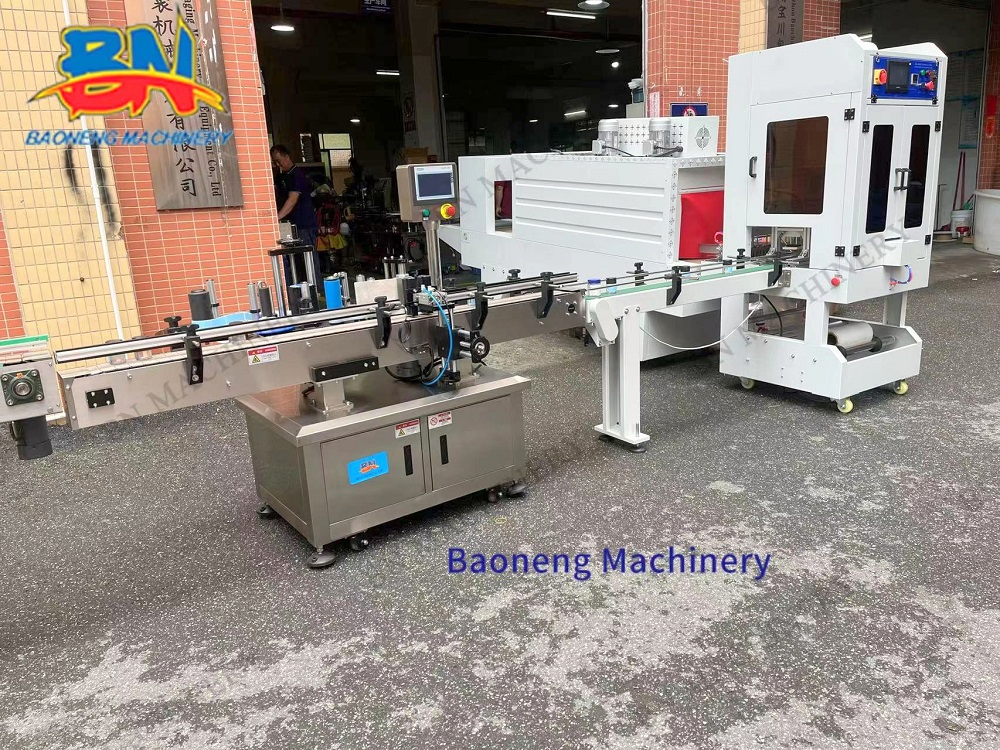

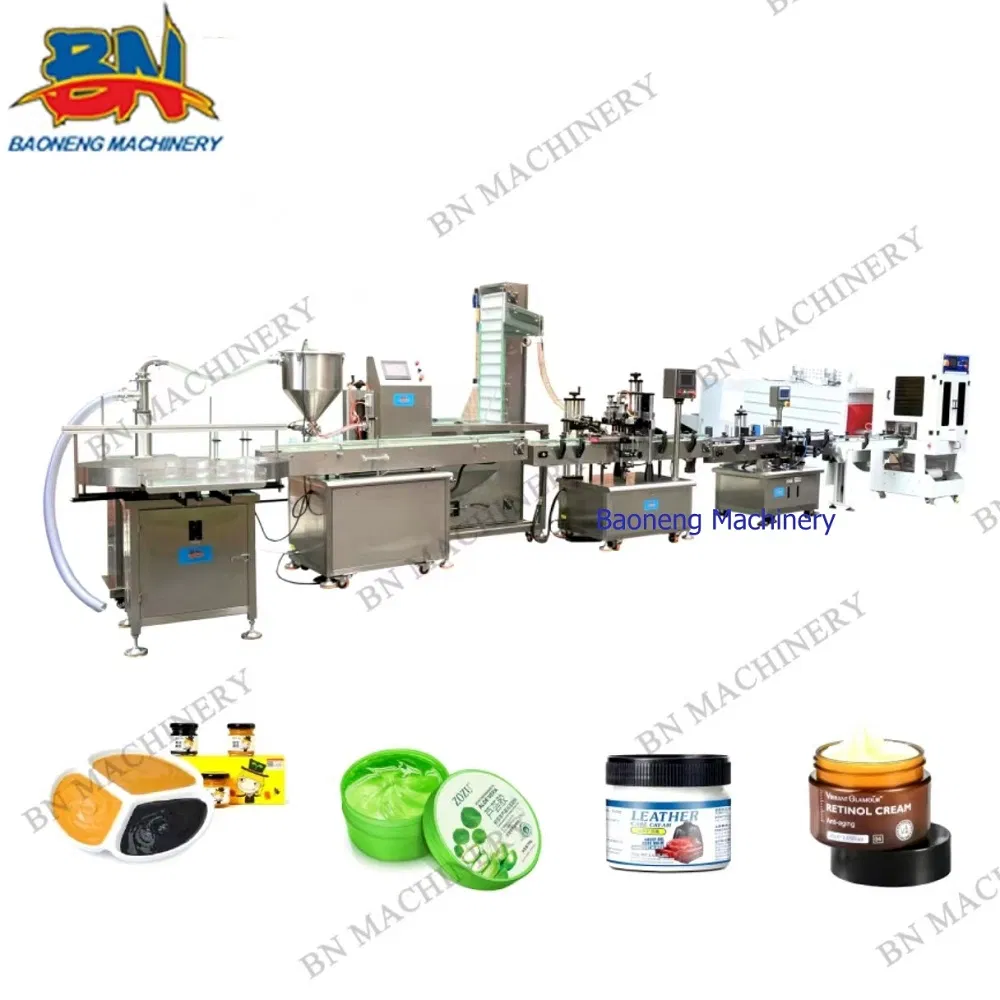

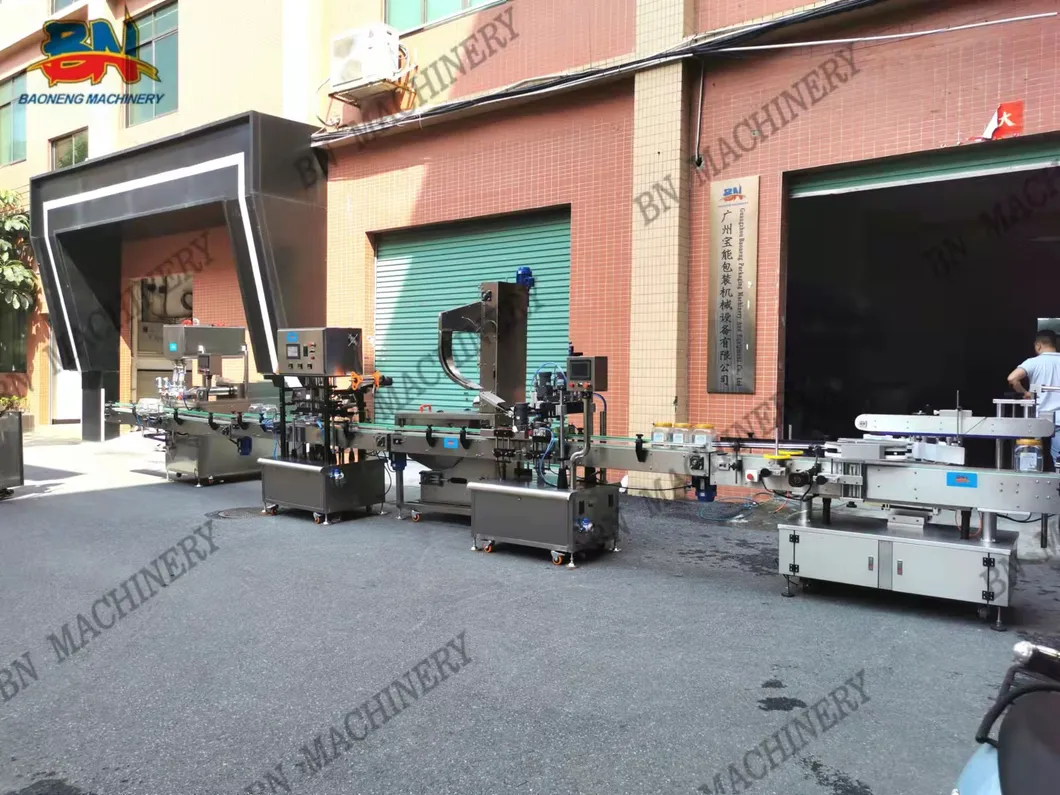

The cost-effective automatic liquid oil gel cream bottle filling machine with capping labeling line consists of a bottle turntable, servo piston filling (optional servo pump filling), servo capping, round labeling, and ink jet printing. It is suitable for various liquid gel sauce cream bottles, jars, and cans, widely used in foodstuff, cosmetics, pharmaceutical, daily chemical, and chemical fields for automated packaging.
Automatic Universal High-speed Servo Piston Filler Line (2000-2500BPH)
Main Features
- Adopts servo piston measurement for filling, with a sanitary design suitable for all kinds of liquids, viscosities, gels, sauces, creams, and pastes.
- Piston and conveying belt are driven by servo motors for high filling accuracy; components are easy to dismantle for maintenance and washing.
- Adjustable filling speed and dosage via touch screen; high precision and convenient operation.
- Removable filler hopper for liquid self-priming or equipped with liquid level sensors for automated material pumping.
- Filling nozzles with anti-drip devices ensure no dripping or leakage during the production process.
- PLC program and touch screen interface with "no bottle no filling" logic, auto counting, and fault alarming.
- Constructed with top-quality SUS304/SUS316 stainless steel for durability and hygiene.
Technical Parameters
| Filling Nozzle + Capping Head |
1 nozzle filling + 4-wheel servo capping |
| Filling Way |
Servo piston filling (or servo pump based on material) |
| Filling Scope |
20-200ml / 50-500ml / 100-1000ml (Customized) |
| Capacity |
20-40 BPM |
| Filling Error |
≤ ±0.8% |
| Air Pressure |
0.5-0.7 MPa |
| Voltage |
220V 50/60Hz 1P |
| Machine Power |
2.5 Kw |
| Labelling |
Adhesive stickers round labeling (Surface/side optional) |
| Dimension |
L2000 × W850 × H1550 mm |
Machine Details & Components

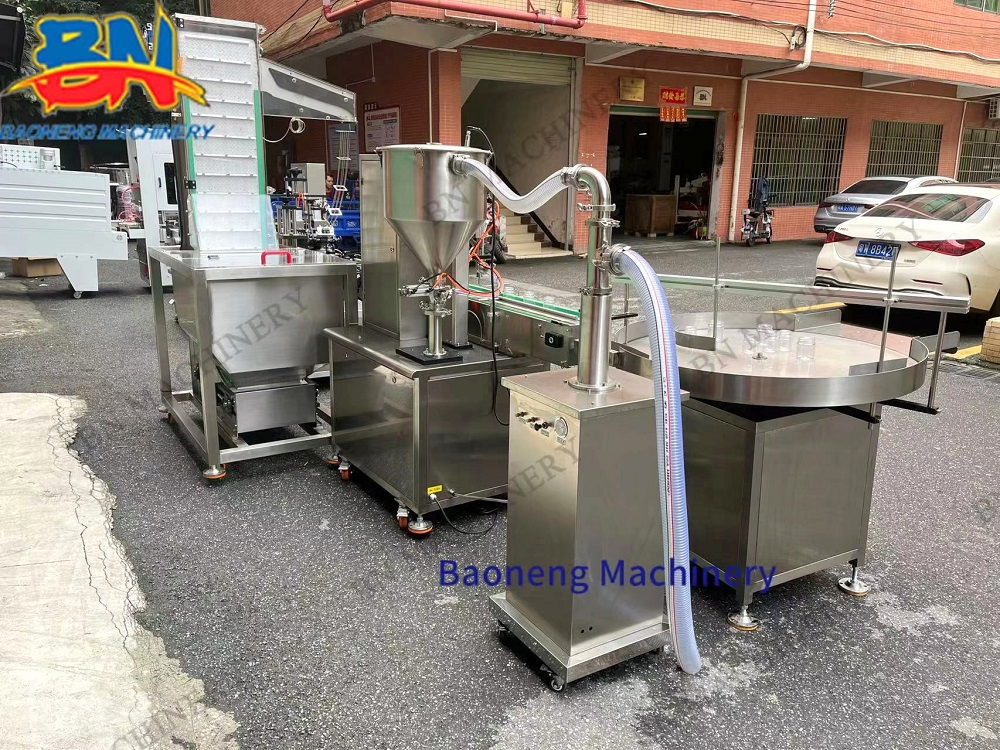

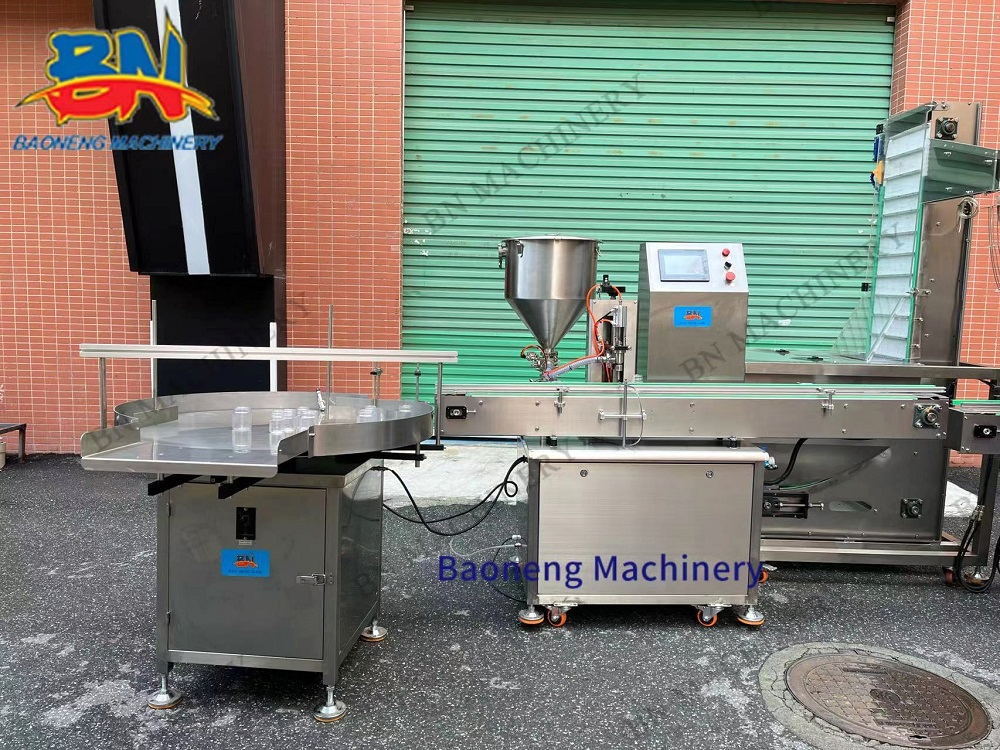

Bottle Turntable + Servo Piston Filler

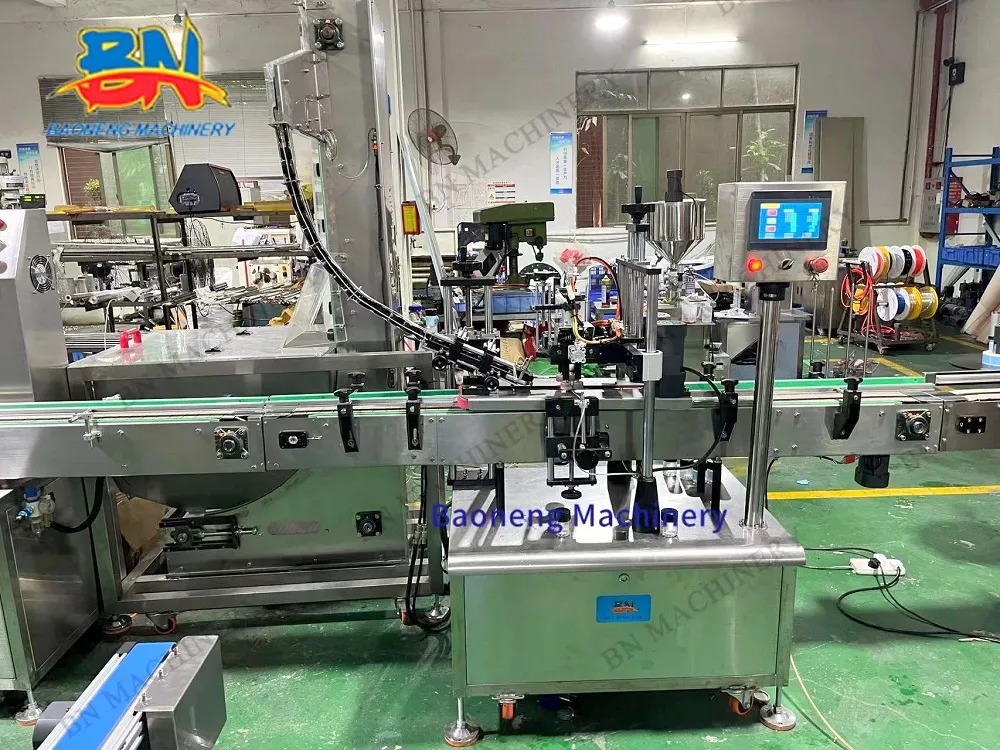

Continuous Filling Without Bottle Fixing

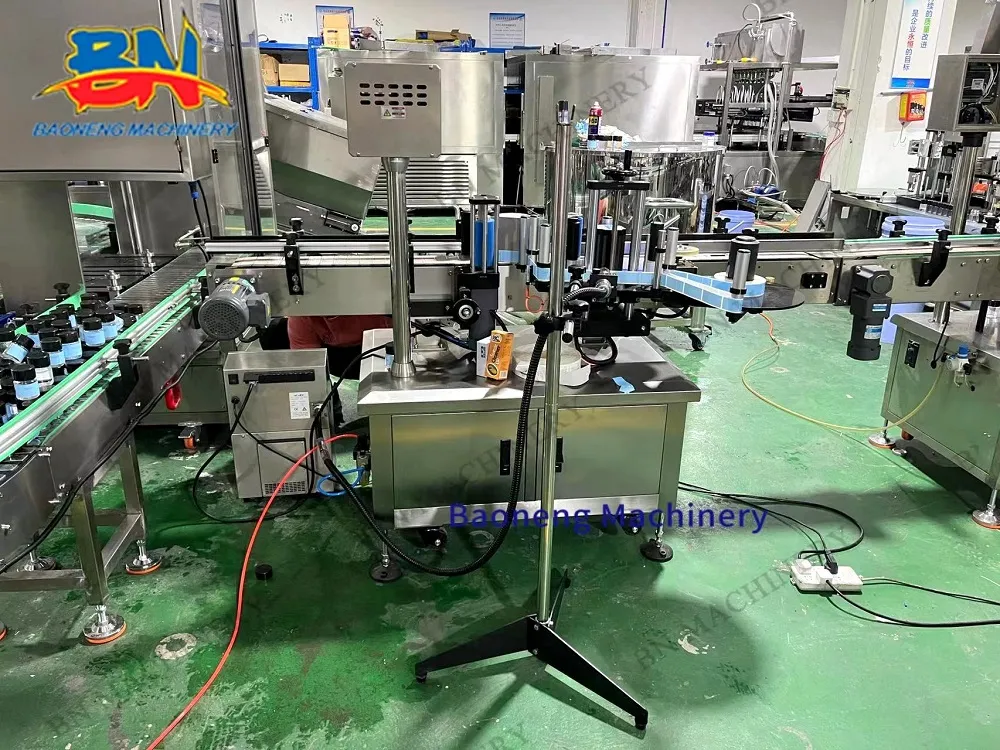

Bottle Jar Turntable + Servo Filler
Servo Piston Filler + Auto Pneumatic Pump
Servo Piston Filling + Sauce Filling Nozzle

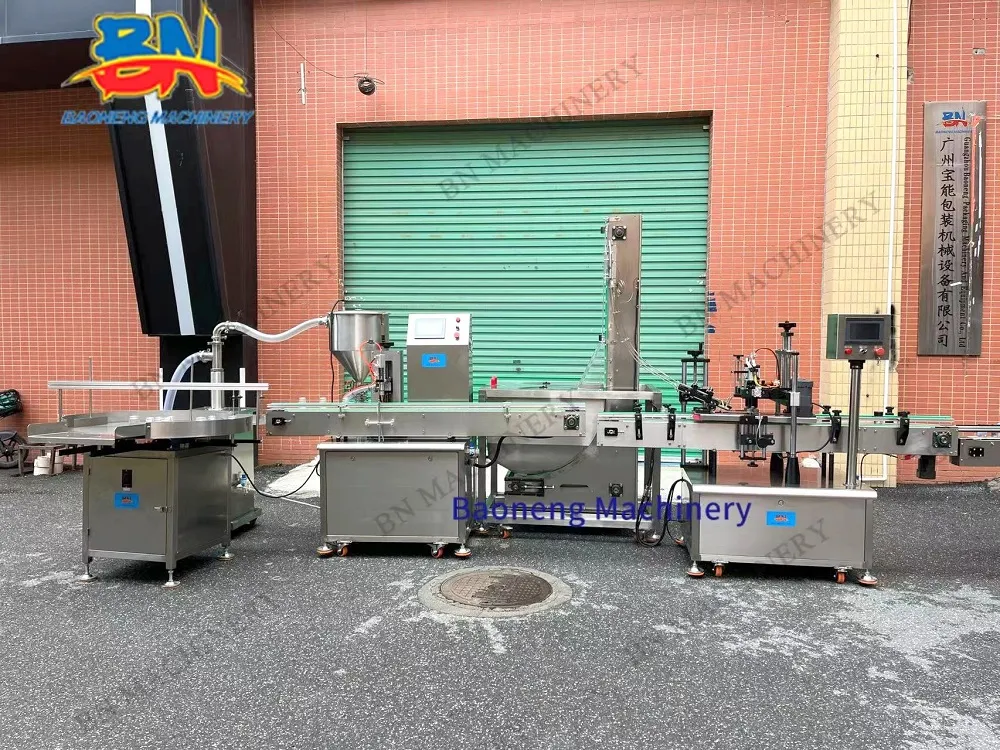

Professional Customization Based on Specific Materials and Plant Layout
ISO and Patented Certificates for Pump Filling & Capping

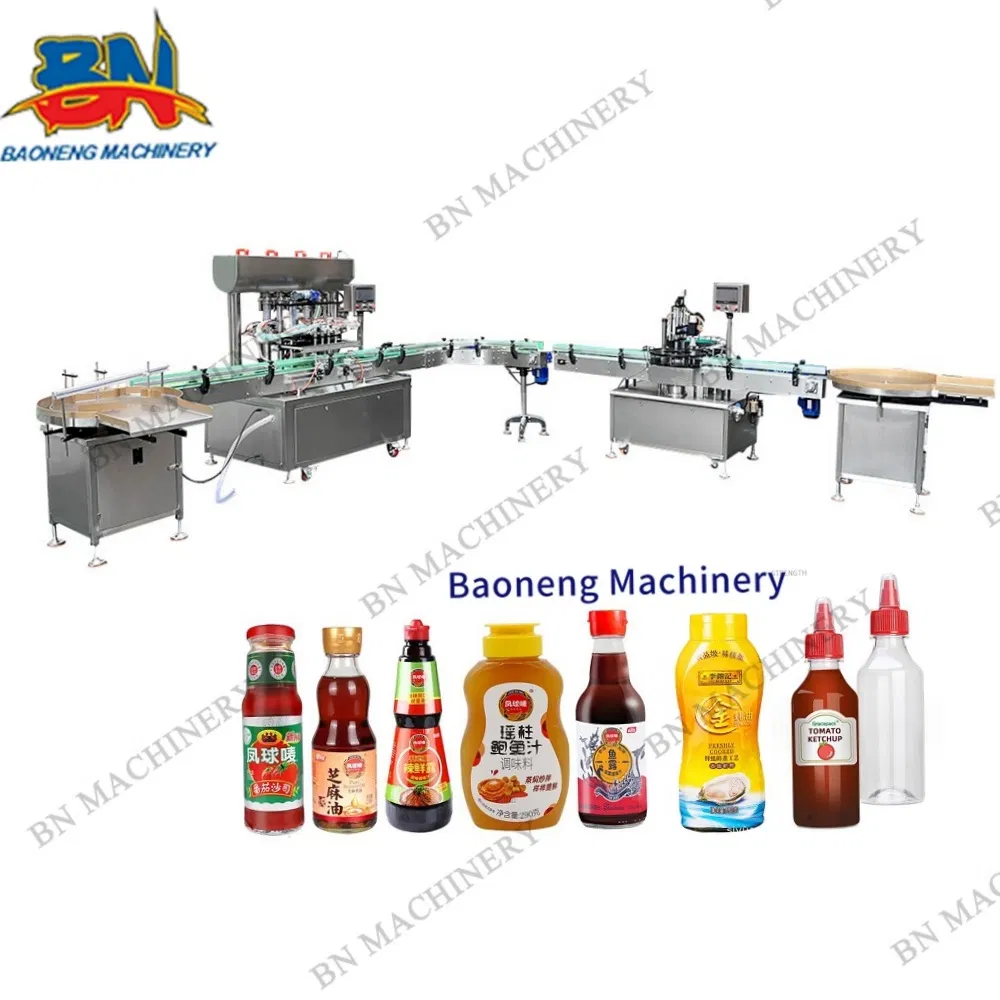

4-Nozzle Servo Piston Filling Machine Details

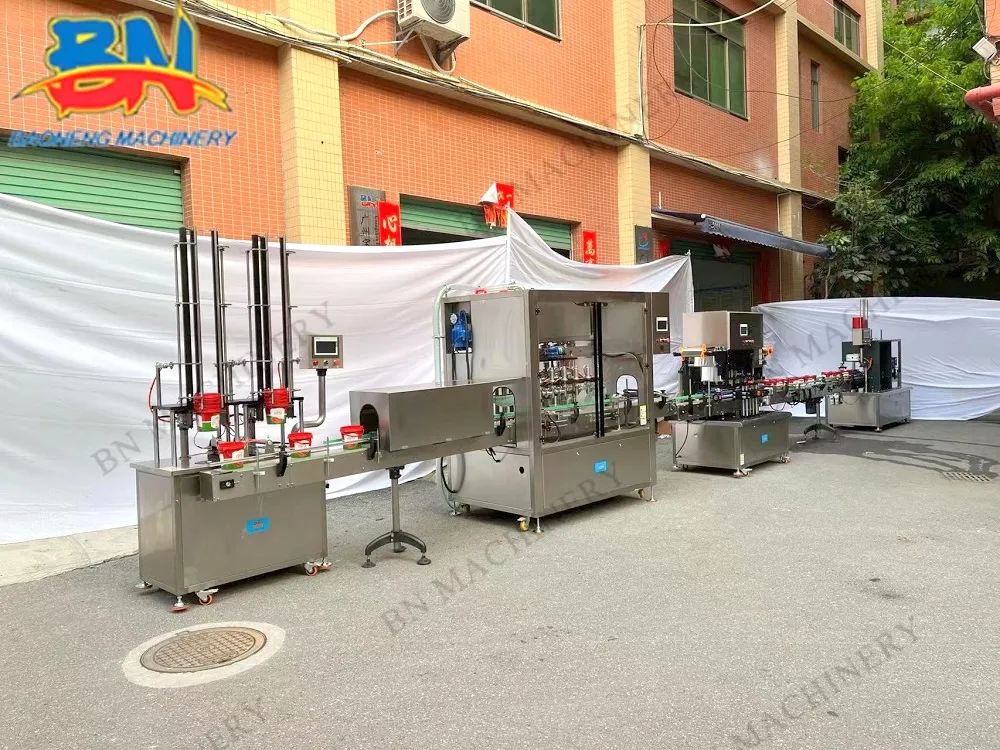

Automatic Cup Pail 6-Nozzle Servo Piston Filling Machine
Automatic Glass Bottle Sauce Paste Filling + Vacuum Capping

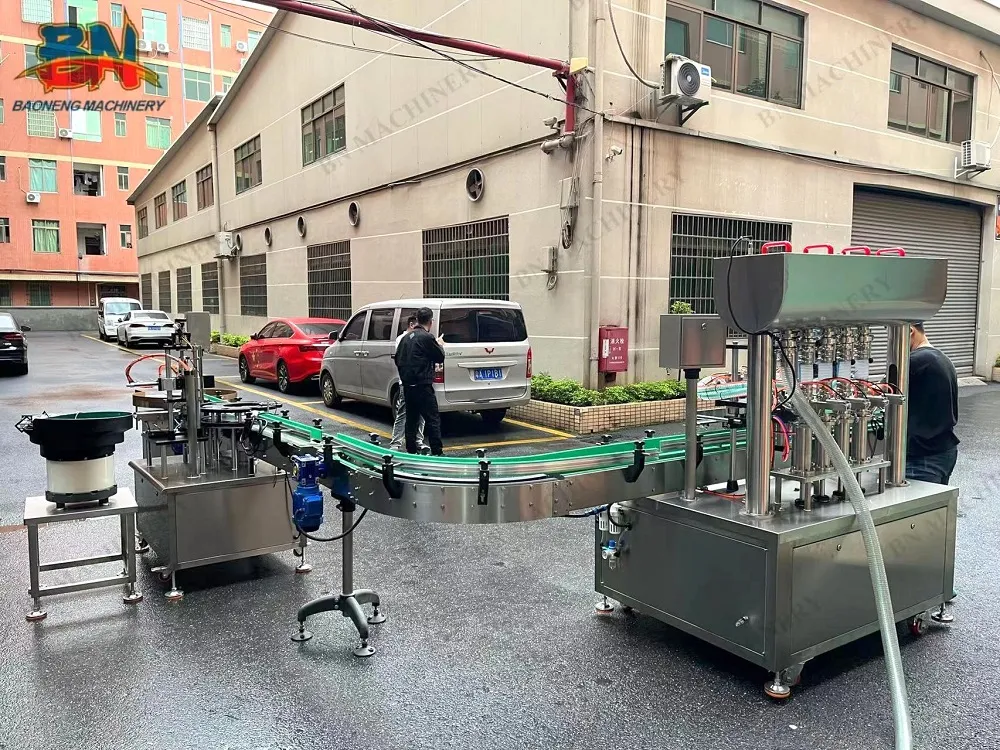

Squeeze Bottle Tomato Paste Filling Machine Line

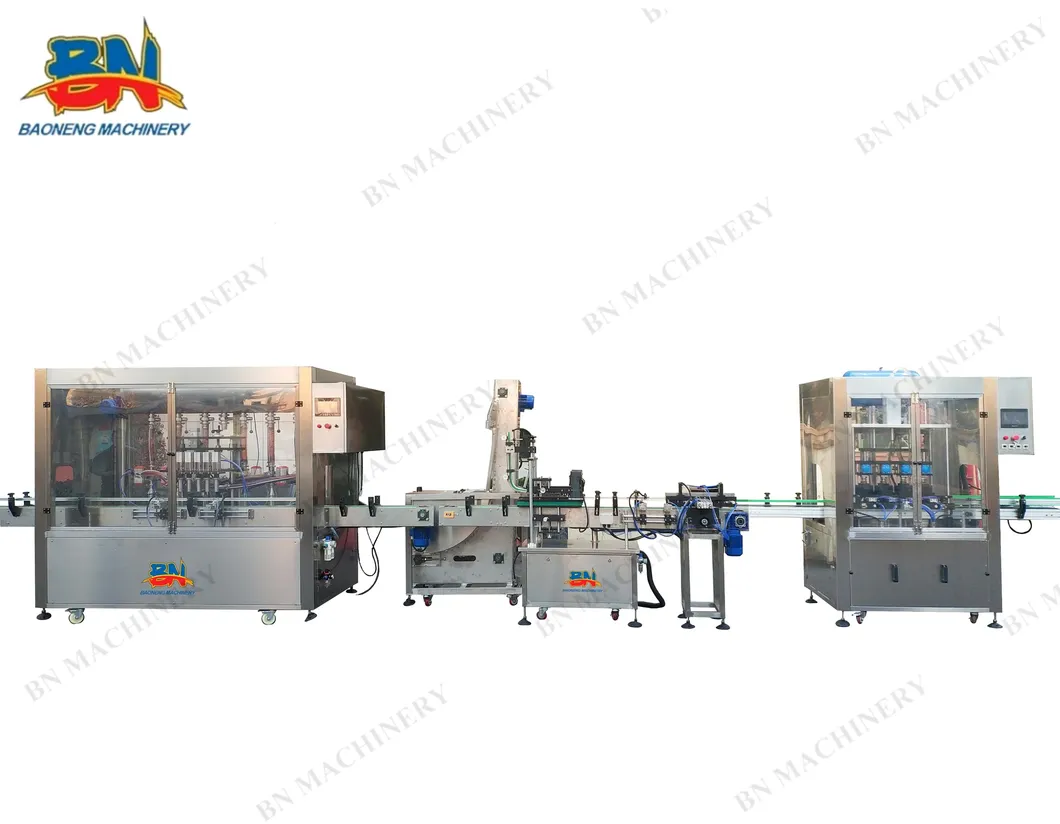

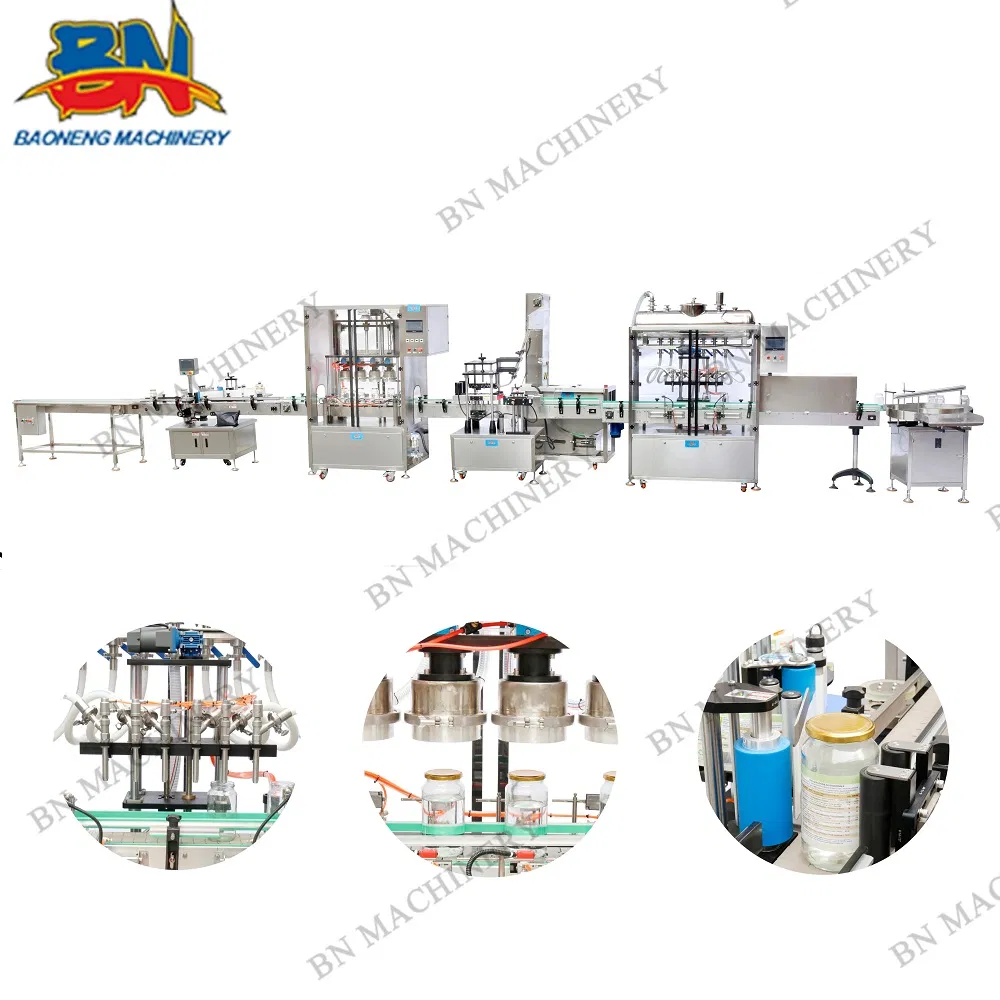

Juice Sauce Filling + Vacuum Capping + Labelling System

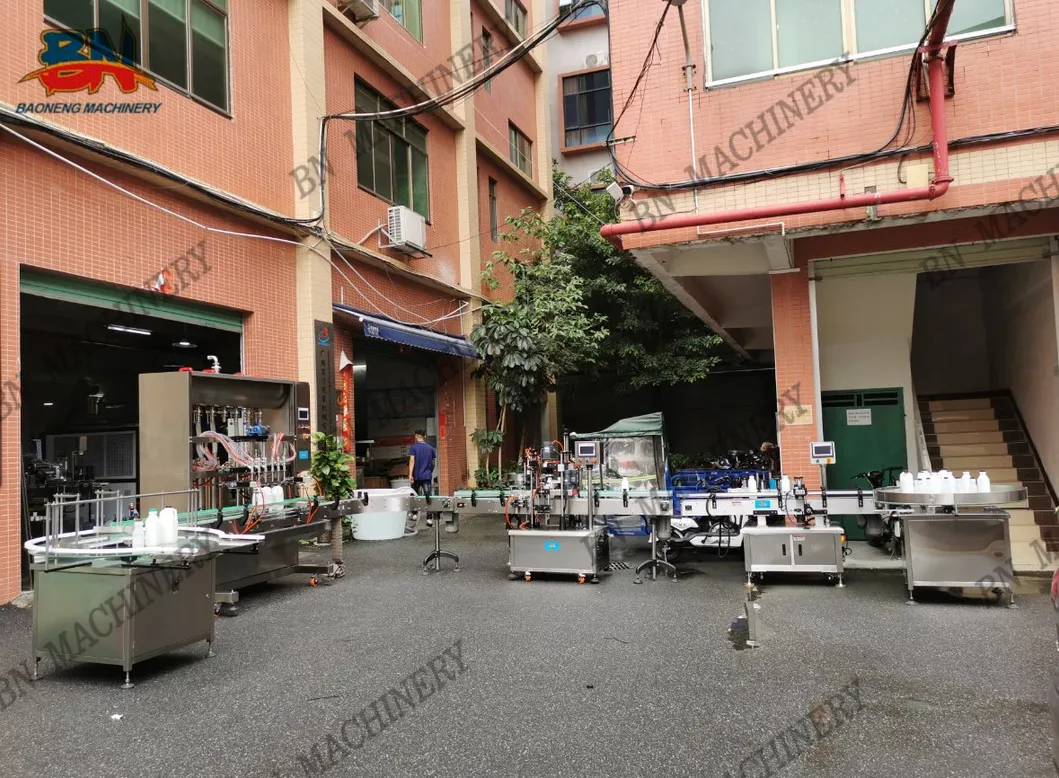

Automatic Bottle Sealing Capping Machines
Plastic Jar Paste Filling + Labeling Line

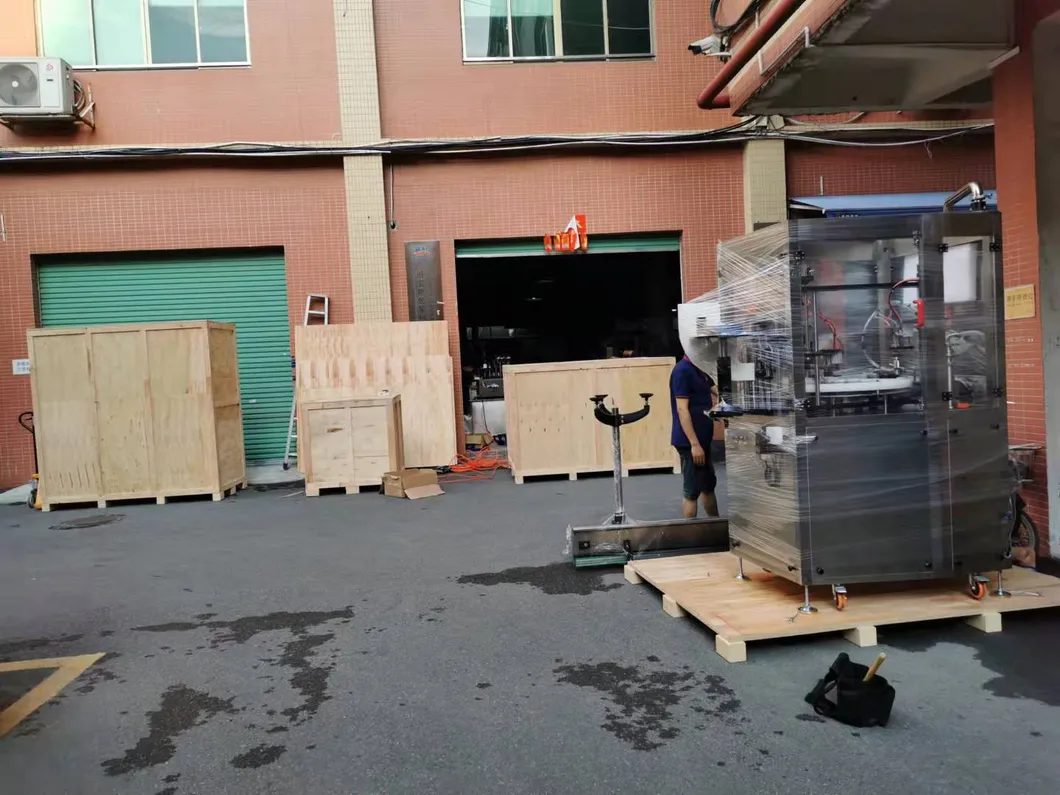

Meticulous Packaging and Container Loading Before Delivery

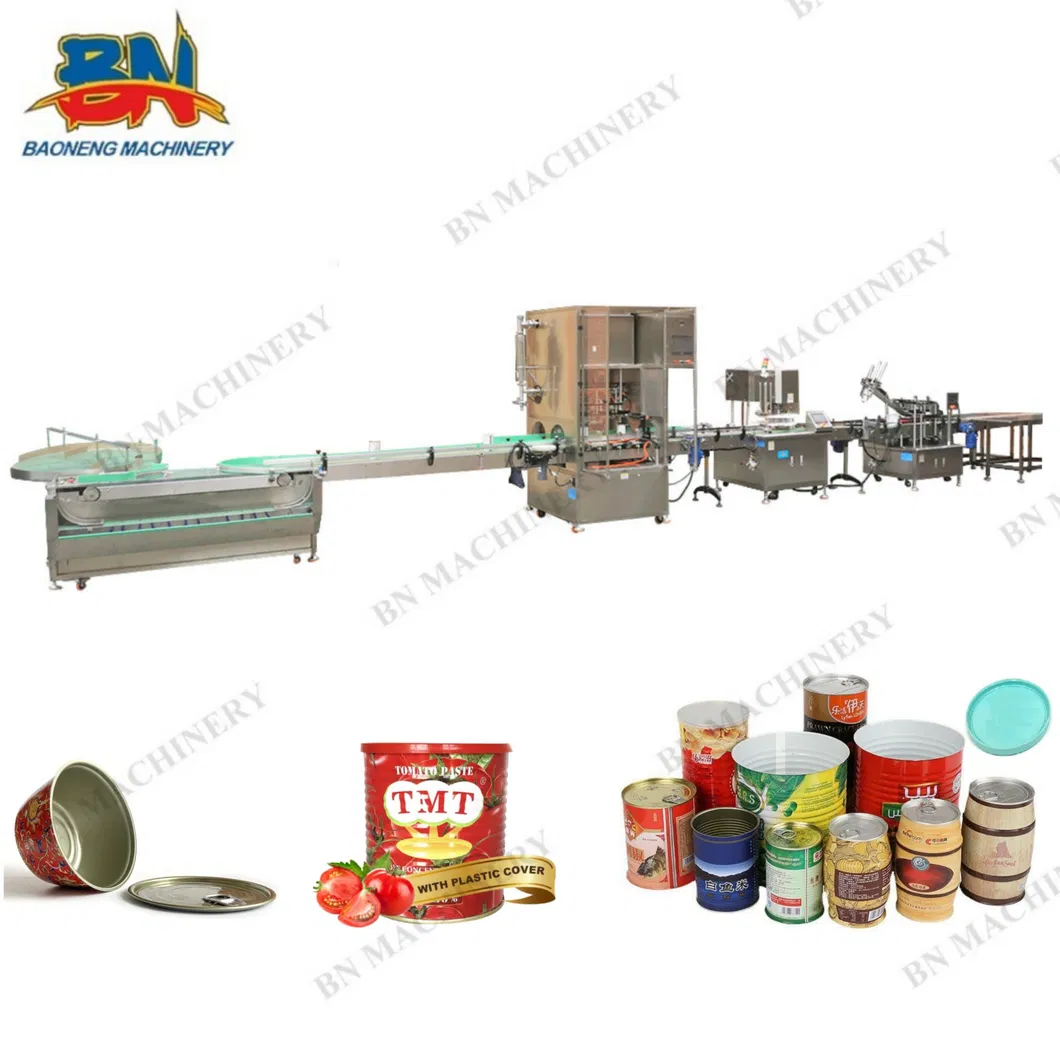

Butter/Margarine Can Feeder + Weighing Filling + Seaming Line
Frequently Asked Questions (FAQ)
What types of products can this machine fill?
The machine is highly versatile and can handle various liquids, liquids with high viscosity, gels, sauces, creams, and pastes. It is ideal for the food, cosmetic, pharmaceutical, and chemical industries.
What is the filling range and accuracy?
The filling scope can be customized from 10ml to 1000ml (common ranges include 20-200ml and 100-1000ml). The filling error is maintained at a high precision of ≤ ±0.8% using servo piston technology.
Is the machine compatible with different container shapes?
Yes, the linear structure design allows the machine to be easily adjusted to accommodate various packaging containers such as bottles, jars, tins, cans, and boxes made of plastic, glass, or metal.
What is the production capacity of the filling line?
The standard capacity ranges between 1500 to 2500 bottles per hour (BPH), or approximately 20-40 bottles per minute (BPM), and can be professionally customized to meet your specific production needs.
How is the machine controlled and operated?
The machine features a high degree of automation utilizing a PLC program and a touch screen man-machine interface. This allows for easy adjustment of filling speed, dosage, and capping torque with one-button washing and auto-fault alarming.
What materials are used in the construction of the machine?
The machine is primarily constructed from top-quality SUS304 stainless steel. All parts that come into contact with the product are made of SUS304 or SUS316 to ensure sanitary standards and long-term durability.
