Customization: Available
After-sales Service: Online-Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.:PX-BFC850
Type:Piston Filling Machine
Automatic Grade:Automatic
Material Type:Liquid
Filling Valve Head:Multi-Head
Dosing Device:Plunger
Filling Principle:Pressure
Structure:Linear
Packaging:Bottle
Material:SUS304/316(Meet GMP Standard)
Power:220V 50Hz / 60Hz
Capacity:2500-3000bph
Product Description

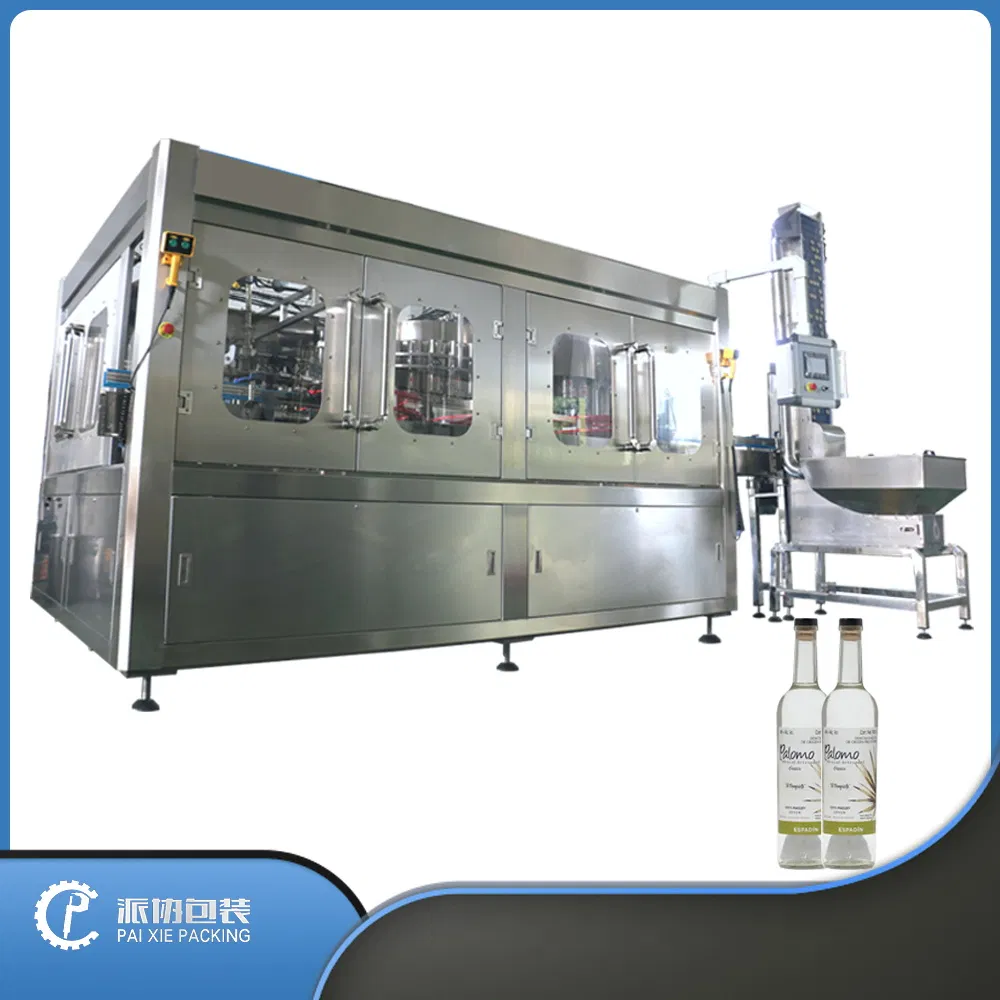

Filling Machine
This machine is the introduction of German technology, combined with the characteristics of wine alcohol production industry, designed to develop various capacity alcohol drinks filling machine. The machine has excellent mechanical operation reliability, improved rinsing, filling, cleaning and other functions.
Equipment Features
  • High Efficiency: Rotary automatic low-vacuum filling machine with fast filling speed and high filling accuracy. Ideal for wine, vinegar, soy sauce, and beverages.
  • Stable Control: Liquid level control mechanism using a pontoon type structure for simple and reliable operation.
  • Versatile Compatibility: Adjustable middle pillar accommodates 160-360 mm high bottles without changing parts.
  • Safety Protection: Overload protection device at the inlet and outlet. Equipment stops automatically if a bottle is stuck to ensure safety.
  • Durable Construction: Main exposed parts are made of stainless steel or nylon. Transmission parts are enclosed for stable movement and low noise.
  • Soft Support Mechanism: Advanced lifting mechanism prevents bottle breakage or damage to filling heads for irregular or super high bottles.
Product Parameters
ModelPX-BFC850
Working PositionsRinsing 14, filling 12, capping 5 (Customizable)
Production Speed3000 bottles per hour (500ml)
Air Source Pressure0.3~0.7Mpa
Air Consumption0.2~0.6M3/min
Rinse Water Pressure0.06~0.2Mpa
Rinse Water Consumption1t/hour
Main Motor Power2.42kw
Dimensions (L*W*H)2360*1770*2700 mm
Weight2800kg
Detailed Photos

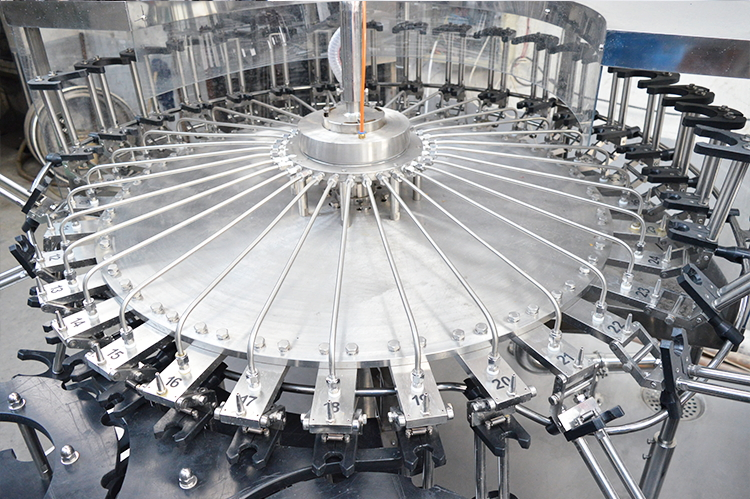

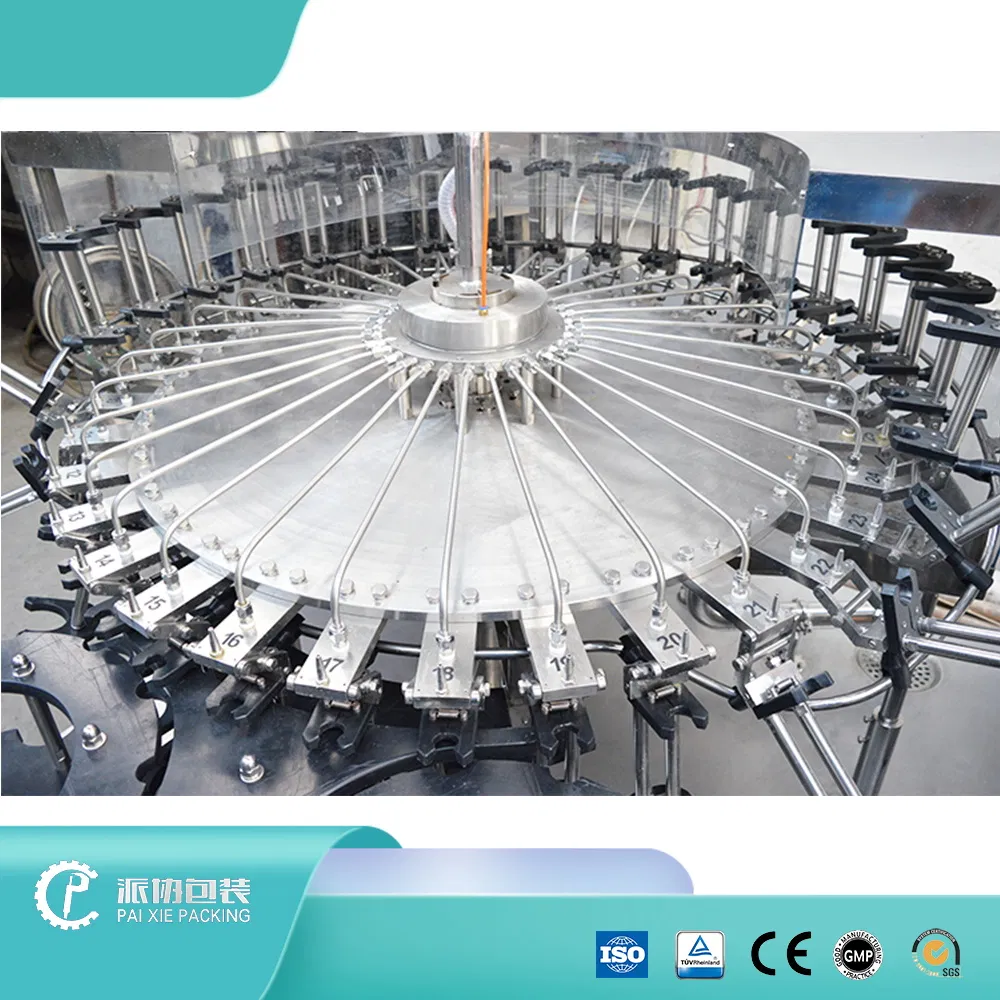

Rinsing Part

Rinsing Part: Customizable stainless steel or plastic washing pipes.

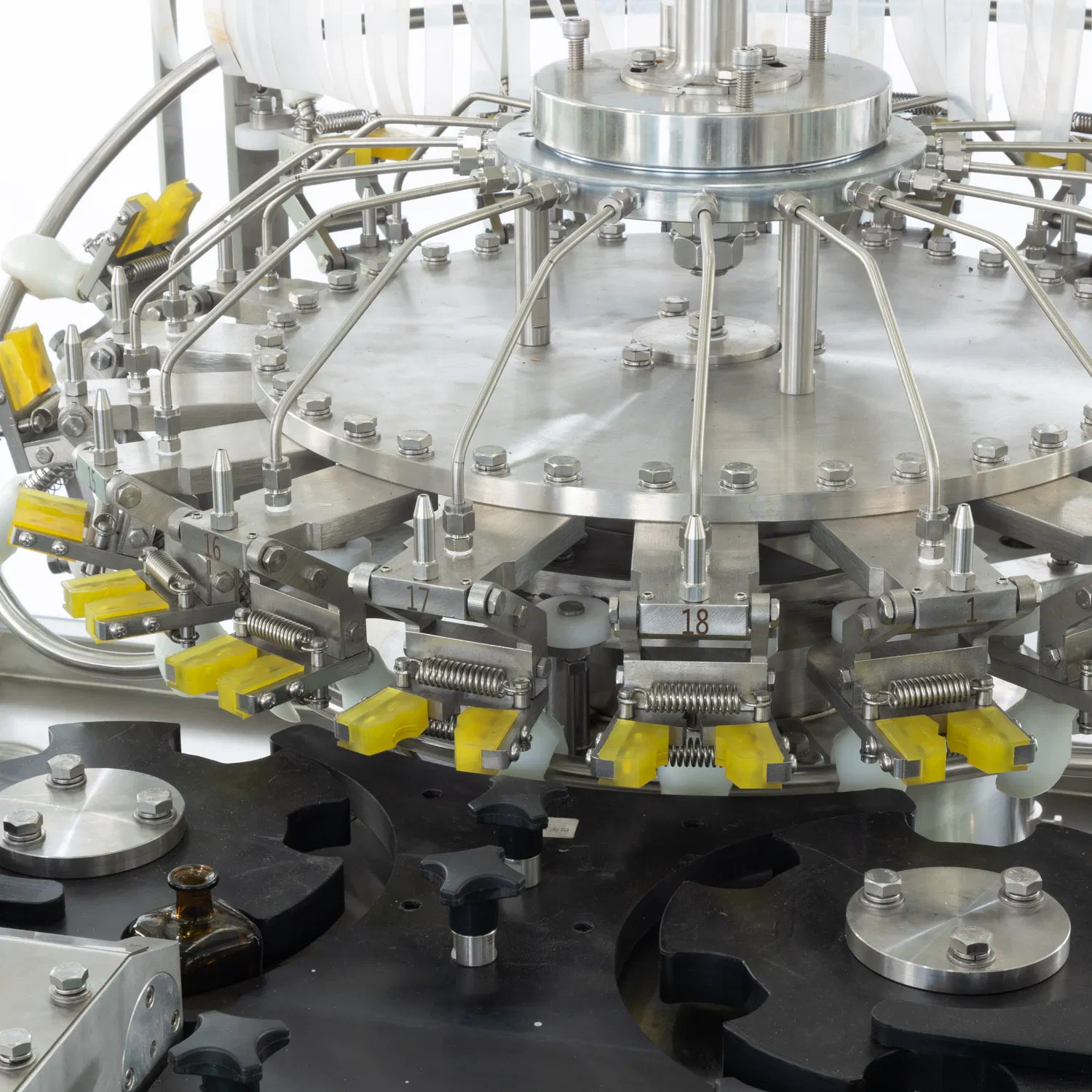

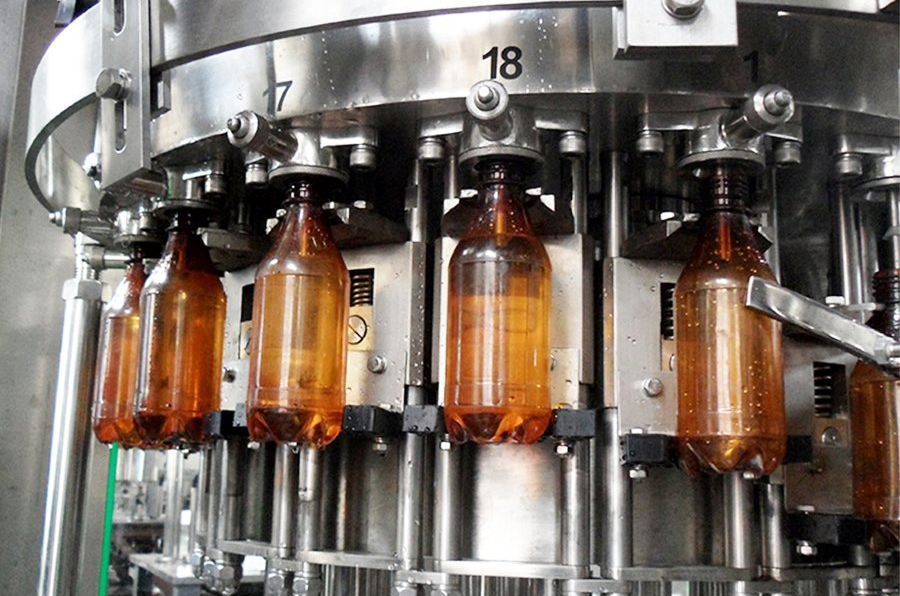

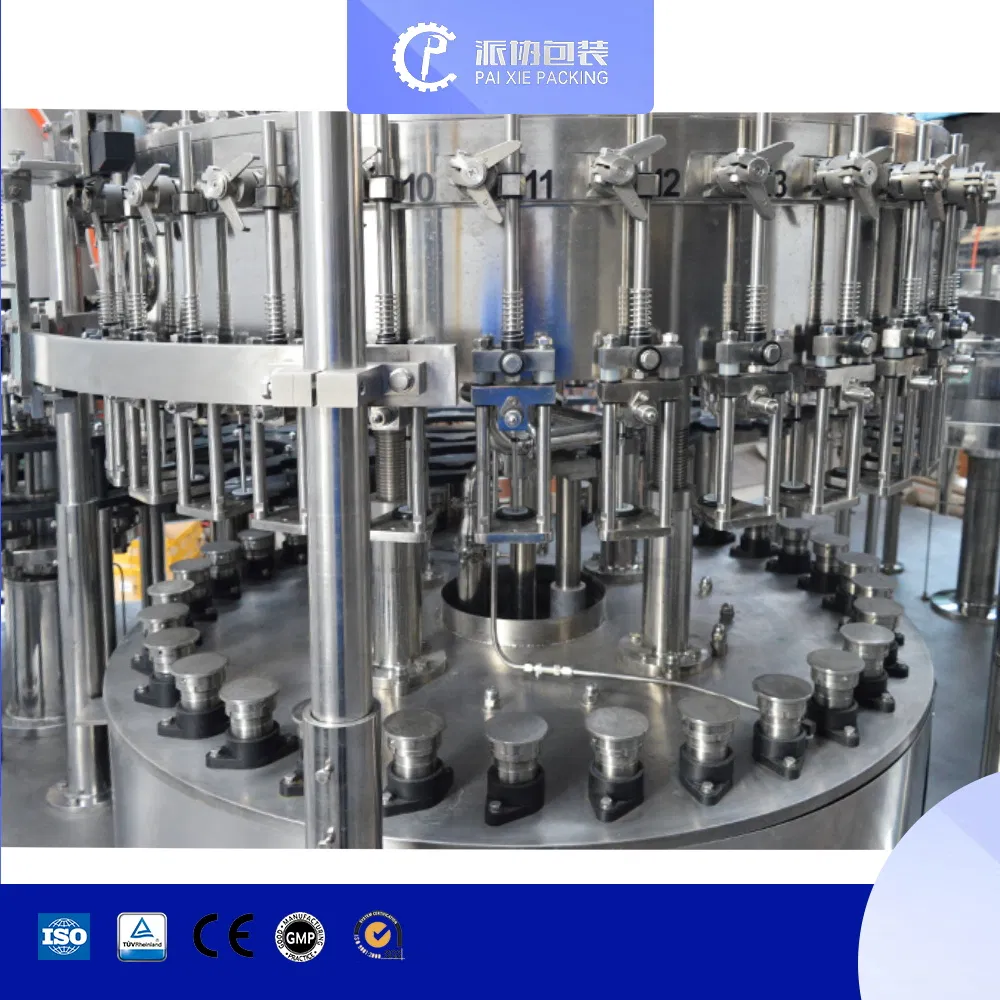

Filling Part

Filling Part: SUS316 valves with German technology for high precision.

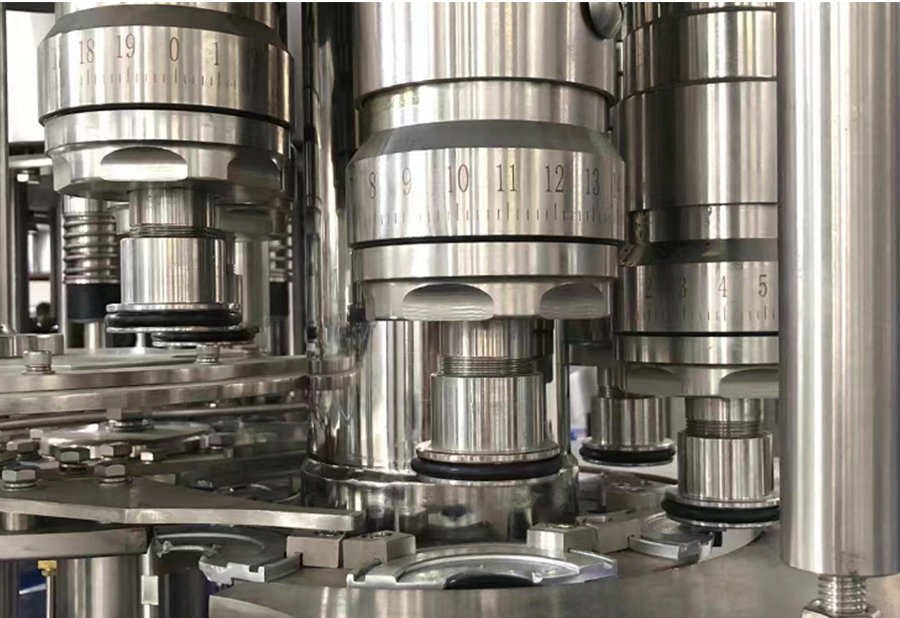

Capping Part

Capping Part: Highly effective acentric cap sorting to reduce abrasion.

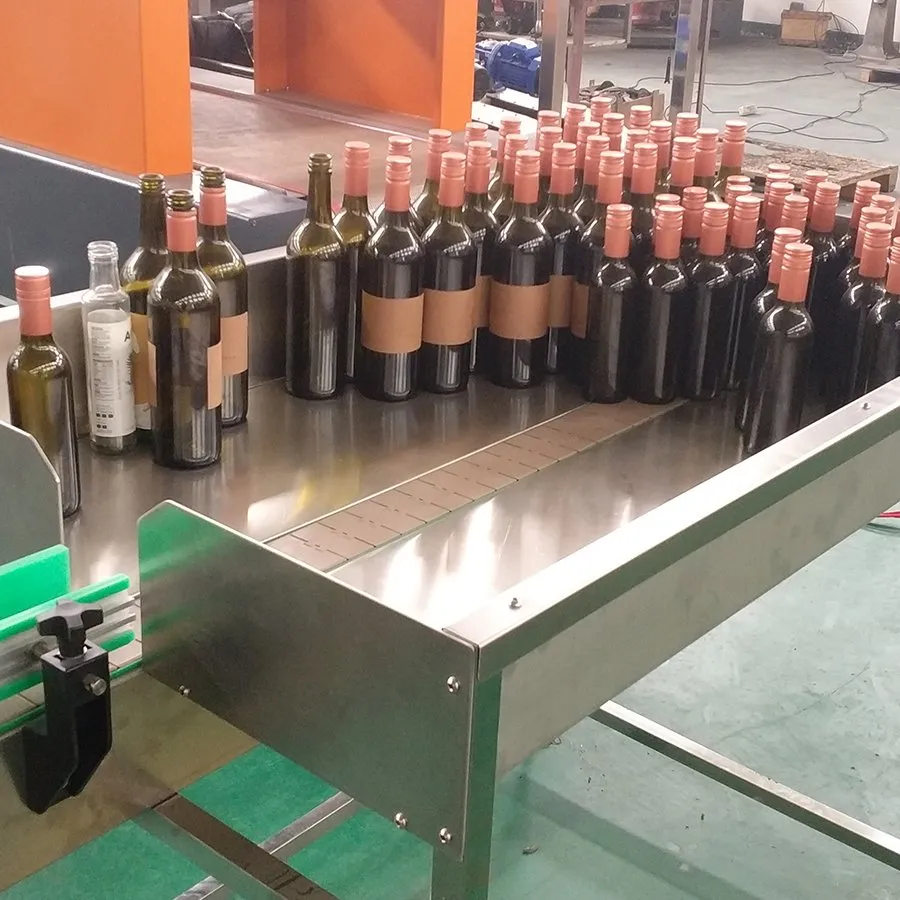

Bottle Feeding

Turntable System: Automatic feeding and collecting with variable speed adjustment.

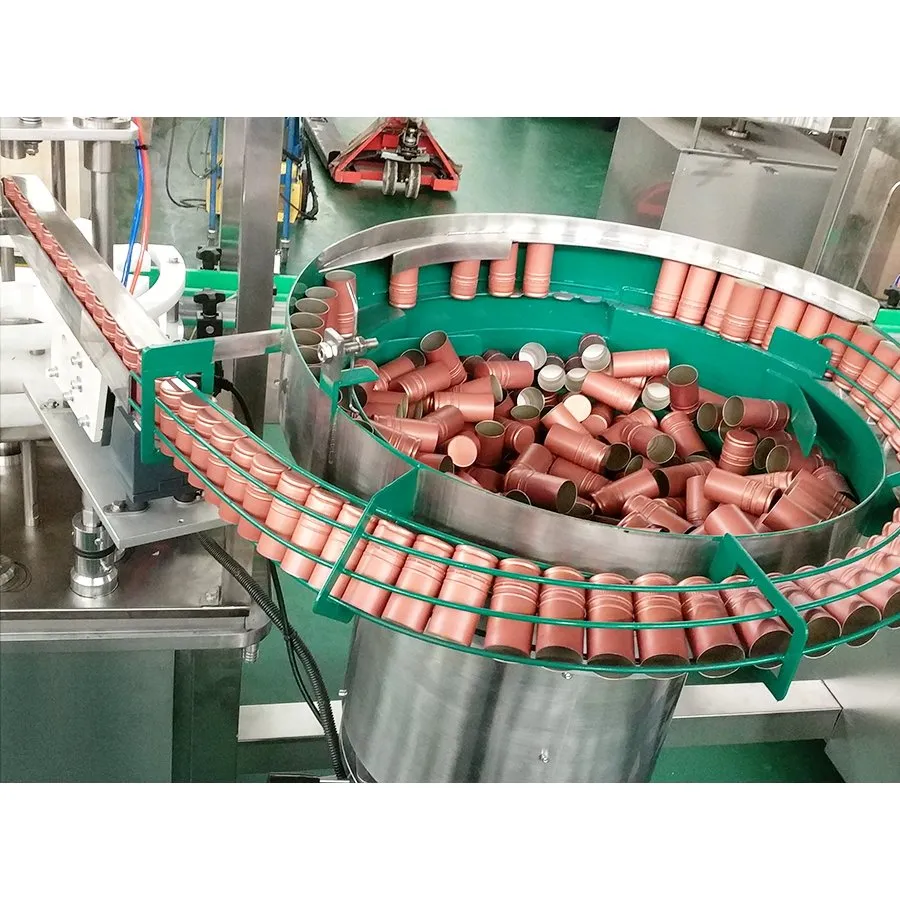

Vibrator System

Cap Vibrator: Auto-sorting cap system customized to specific cap sizes.

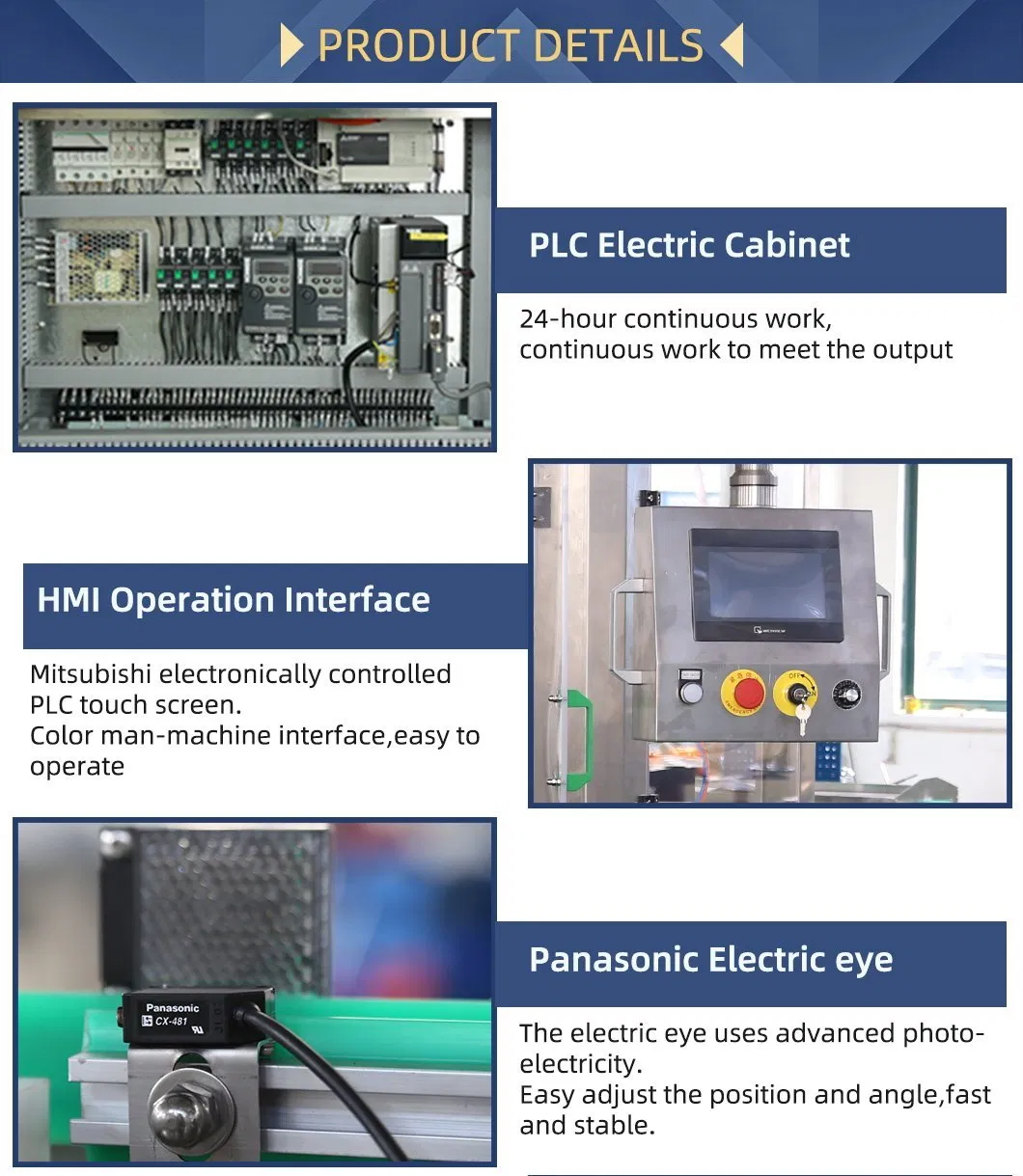

Detailed View Machine Structure Full Process Quality Control
FAQ
Q1: Do you have any reference project?
A1: We have reference projects in most countries, and you can visit their factories if we get the permission of the customer.
Q2: What's your guarantee or warranty of quality?
A2: We offer high-quality machines with a 2-year guarantee. We provide spare parts free of charge during these 2 years.
Q3: Do you provide customized service?
A3: Yes, we customize the machine according to your needs, including material, power, filling type, and bottle types.
Q4: When can I get my machine after I paid?
A4: We will deliver the machines on time as per the date agreed upon by both sides.
Q5: How can I install my machine when it arrives?
A5: We will send our engineer to your site as soon as your machines ready, to assist with testing and training your technicians.
Q6: What materials are used in the construction of the machines?
A6: The main parts are constructed from SUS304 or SUS316 stainless steel to meet GMP standards, ensuring durability and hygiene.
