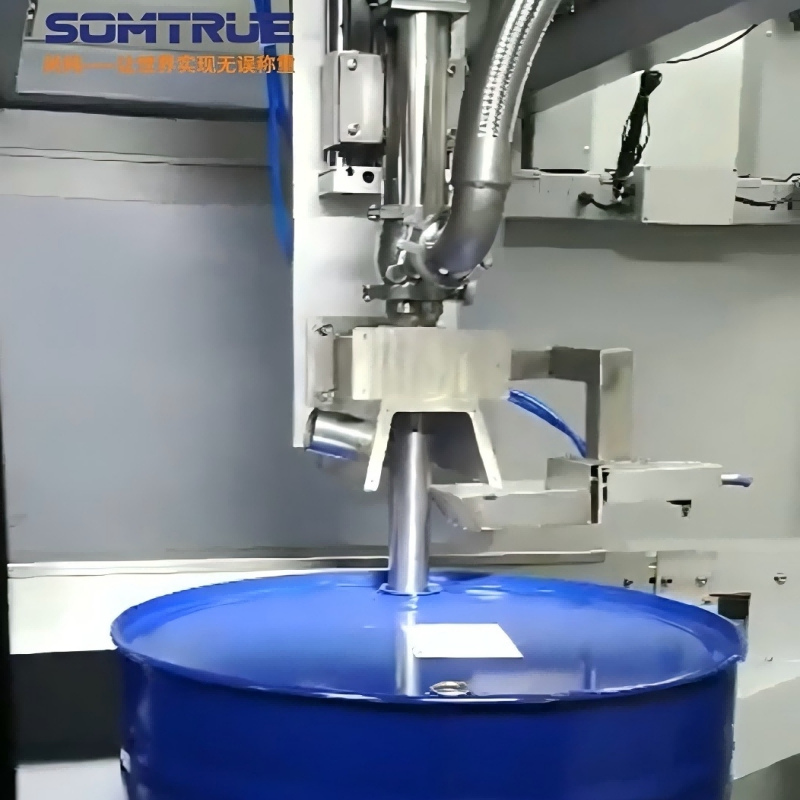

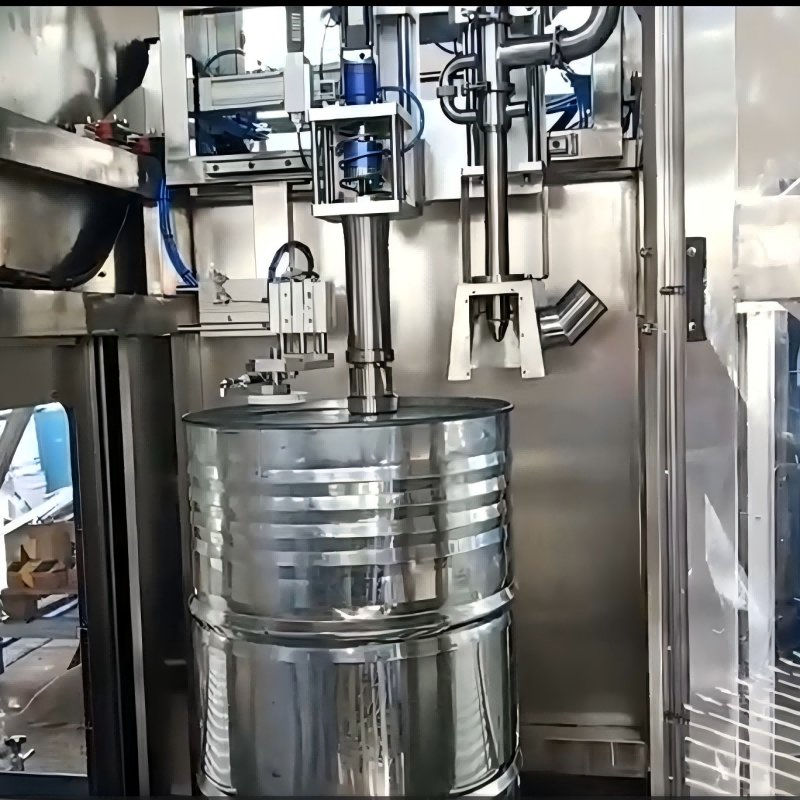

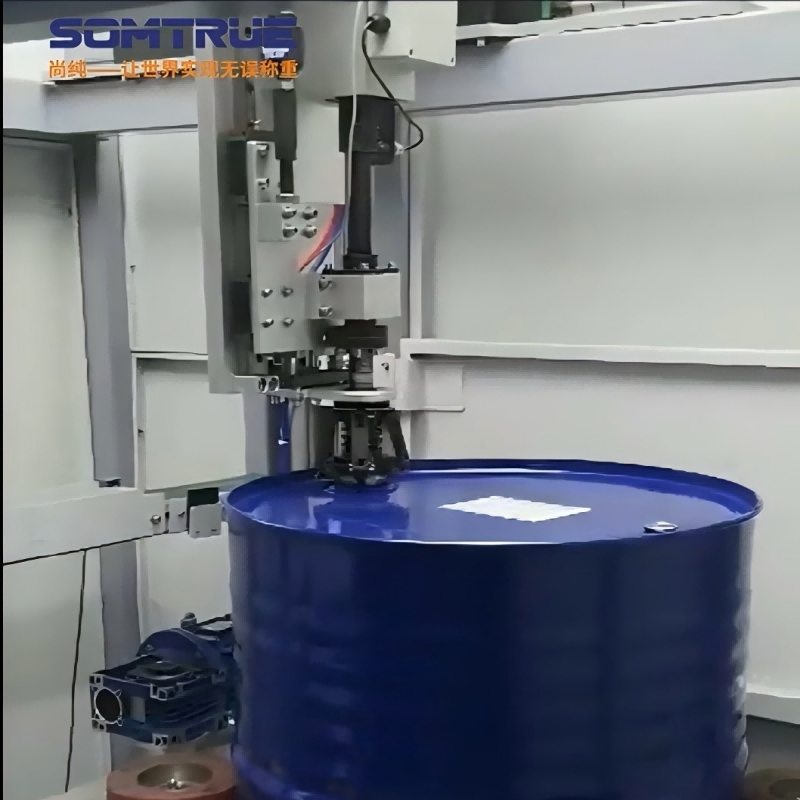

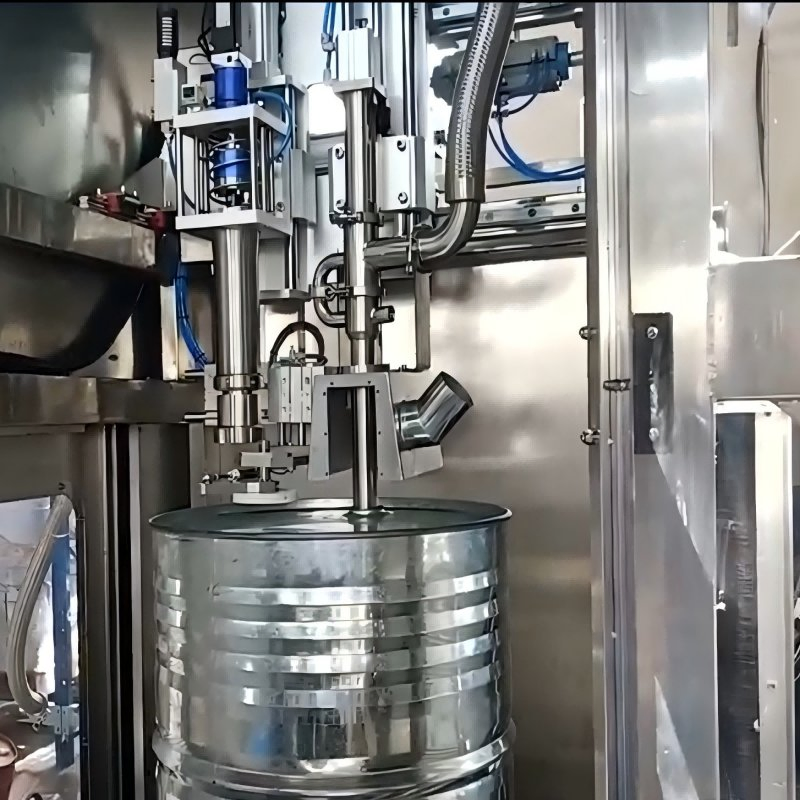

200L Visual Fully Automatic Stainless Steel Compact Anti-Drip Filling Machine

Customization: Available
After-sales Service: Installation, Training and Maintenance
Warranty: 1 Year

Product Description

📊

Basic Information

Model NO. Standard Series
Type Weighing-type Filling Machine
Automatic Grade Fully Automatic
Material Type Liquid
Filling Valve Head 1 or Customized
Filling Principle Pressure
Structure Linear
Packaging Barrel (Plastic/Metal)
Filling Accuracy ±0.1%
Specification 2080x1650x2200mm or customized

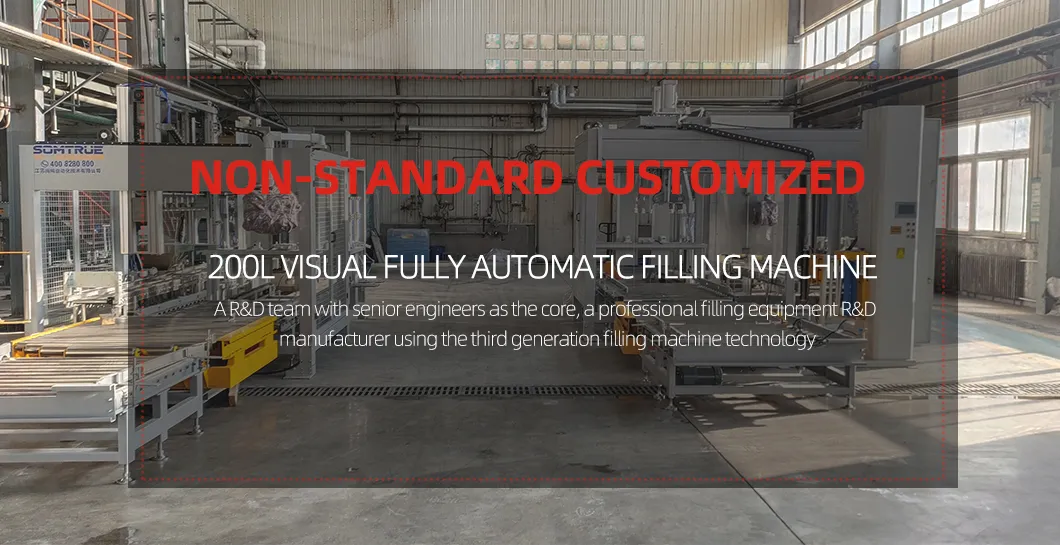

Fully Automatic Filling Machine
⚙️

Product Description

The 200L Visual Fully Automatic Filling Machine uses an advanced vision system to achieve high precision filling operations, with automatic detection and calibration functions to ensure accuracy and consistency in each filling.

  • Visual Positioning: Coordinate moving system for automatic barrel search and filling gun alignment.
  • Multi-material Filling: Independent filling for various materials with automatic conversion and no cleaning required.
  • Dual-speed Quantitative Filling: Fast and slow speeds to ensure both accuracy and production capacity.

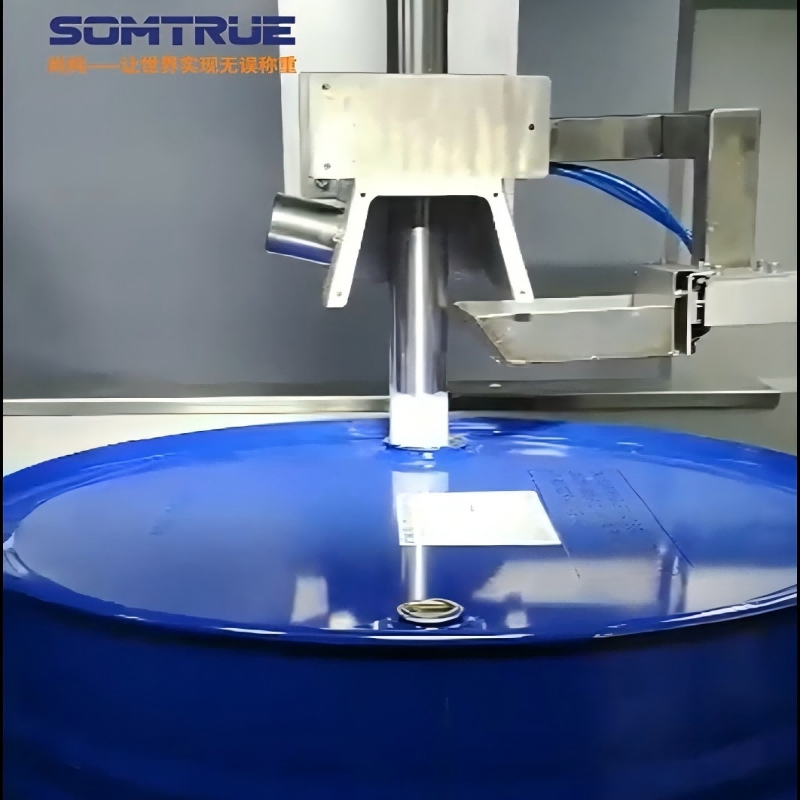

  • Anti-Drip Design: Liquid cup design minimizes leakage of residual liquid after perfusion.
  • Safety Interlock: Detects spray gun position before filling; automatic fault alarms and diagnosis.
  • Smart Interface: Touch screen operation with intuitive prompts and data upload capabilities.
Machine Detail 1

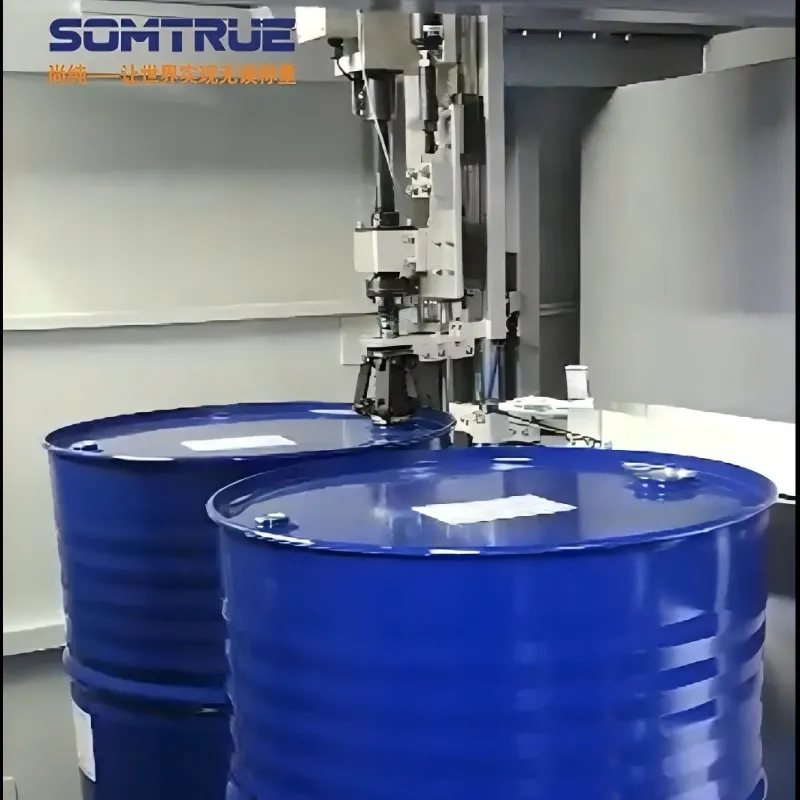

Machine Detail 2
🔄

Process Workflow

1
Loading: Forklift empty barrels onto the conveyor line.
2
Positioning: Visual camera locates the barrel mouth automatically.
3
Filling: Actuator opens the lid, performs peeling, filling, and re-inspection. Refills automatically if weight is below target.
4
Labeling: Robot applies labels based on camera-guided positioning.
5
Strapping & Pickup: Automatic horizontal strapping followed by forklift pickup of full barrels.
Process Flow
🏭

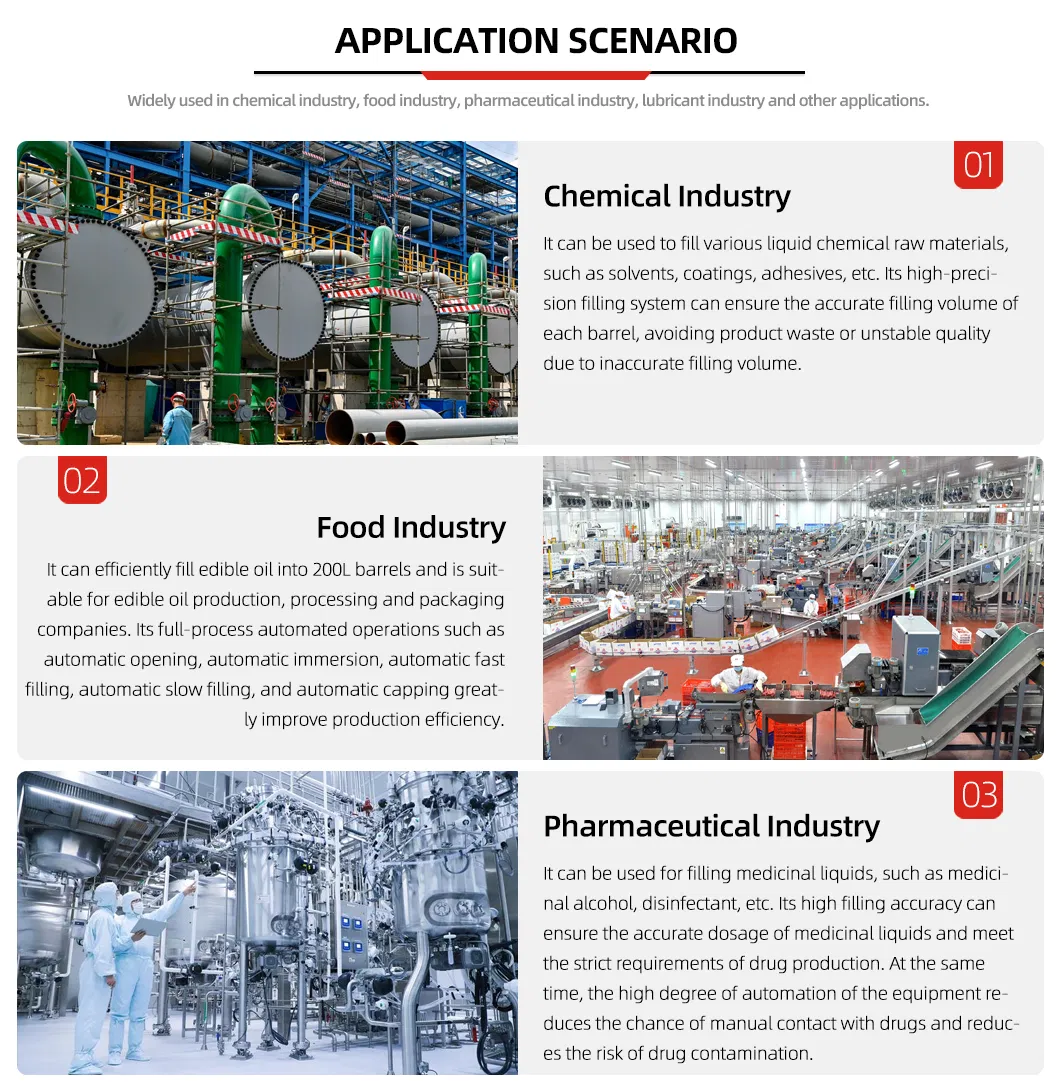

Application Scenarios

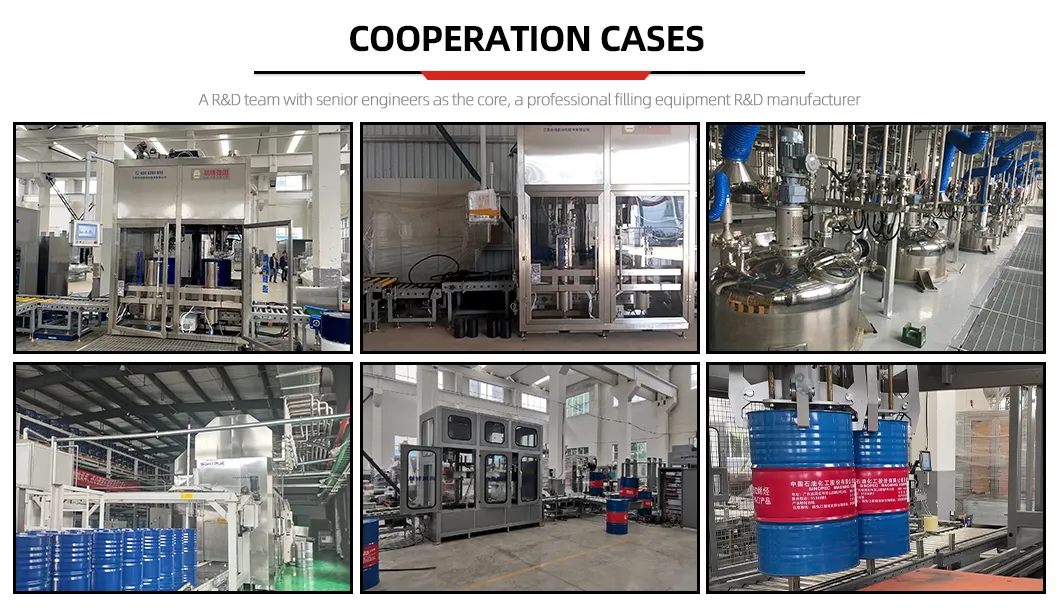

Our systems serve diverse industries including new energy batteries, semiconductors, chemical pharmaceuticals, and high-end manufacturing. We specialize in G5-level ultra-high purity filling processes and intelligent industrial solutions.

Application 1
Application 2
Application 3
📜

Certifications & Global Presence

Exhibition
Certification 1
Certification 2

Frequently Asked Questions

Q1: Do you have reference projects for this filling machine?
A1: Yes, we have numerous reference projects globally. You are welcome to visit our facility to see the machines in operation or request videos of our equipment running at client sites.
Q2: Can the machine be customized for specific liquid types?
A2: Absolutely. We design machines according to your specific requirements, including material compatibility, power needs, filling types, and container specifications.
Q3: What is the warranty period and technical support?
A3: We offer high-quality equipment with a 1-year guarantee and provide life-long technical support to ensure your production line remains efficient.
Q4: How long does the installation process typically take?
A4: Depending on the complexity of the order, we dispatch engineers to your plant. Installation and commissioning usually take between 10 to 25 days.
Q5: What maintenance is required for the visual positioning system?
A5: The system is designed for industrial durability. Regular cleaning of the camera lens and periodic software calibration checks are recommended to maintain peak accuracy.
Q6: Is training provided for our machine operators?
A6: Yes, during the installation phase, our engineers provide comprehensive hands-on training for your staff, covering operation, safety protocols, and basic troubleshooting.
