Automatic Sachet Liquid Juice Soft Carbonated Beverage 20L 5 Gallon Pure Drink Mini Mineral Water Production Plant Cup Can Bottle Wine Filling Bottling Machine

1 / 5

Automatic Sachet Liquid Juice Soft Carbonated Beverage 20L 5 Gallon Pure Drink Mini Mineral Water Production Plant Cup Can Bottle Wine Filling Bottling Machine

Customization:	Available
After-sales Service:	Overseas After-Sales
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Type

Piston Filling Machine

Automatic Grade

Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Dosing Device

Plunger

Filling Principle

Pressure

Structure

Rotary

Packaging

Bottle

Packaging Material

Plastic

Voltage

380-440V 50Hz 3phase, 220V 60Hz 3 Phase

Filling Volume Error

0.5%

Power

18kw

Material

304/316 Stainless Steel

Origin

China

⚙️ Product Description

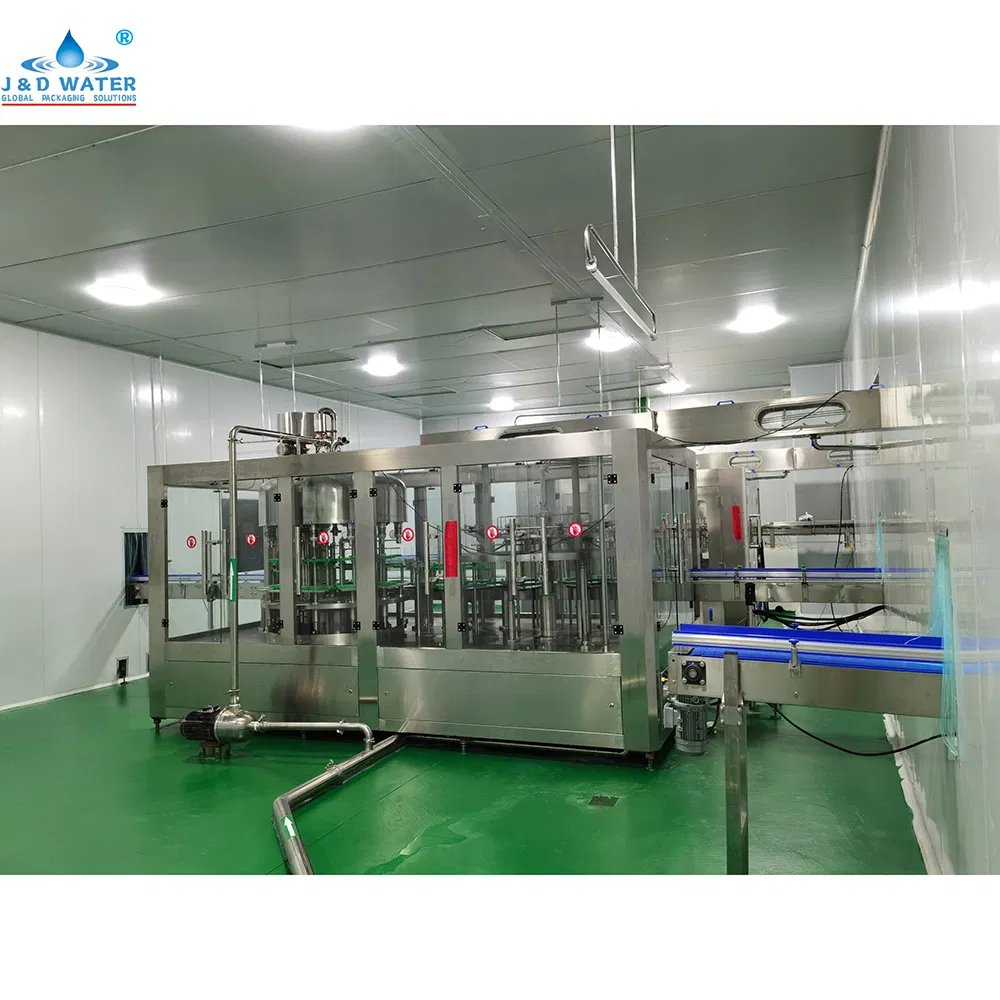

The juice bottling machine is an automated liquid packaging equipment, specially designed for carbonated (such as carbonated beverages, soda water) and non-carbonated liquids (such as mineral water, juice), integrating rinsing, filling and capping functions. The three-in-one model supports hot filling (such as juice, tea beverages), and the production efficiency can reach 36000 bottles/hour.

Intelligence and Automation: PLC control + touch screen operation, to achieve automatic functions such as liquid level control, cap shortage alarm, bottle jam shutdown, etc.
Hygiene and Durability: Material contact parts are made of 304/316 stainless steel, which meets food grade standards.
High Precision: Filling accuracy is ±0.1%, and liquid level error is ≤5mm.

Model	JND 8-8-3	JND 14-12-5	JND 18-18-6	JND 24-24-8	JND 32-32-8	JND 40-40-10	JND 50-50-15	JND 60-60-15	JND 72-72-15
Capacity (BPH)	1500-2000	3000-4000	4000-5000	6000-8000	9000-11000	12000-14000	6000-18000	20000-24000	28000-30000
Bottle Type	Diameter: 50-100mm \| Height: 150-320mm \| Volume: 250-2000ml
Total Power(kw)	4.0	4.8	5.03	6.4	8.07	9.56	11.18	15	18

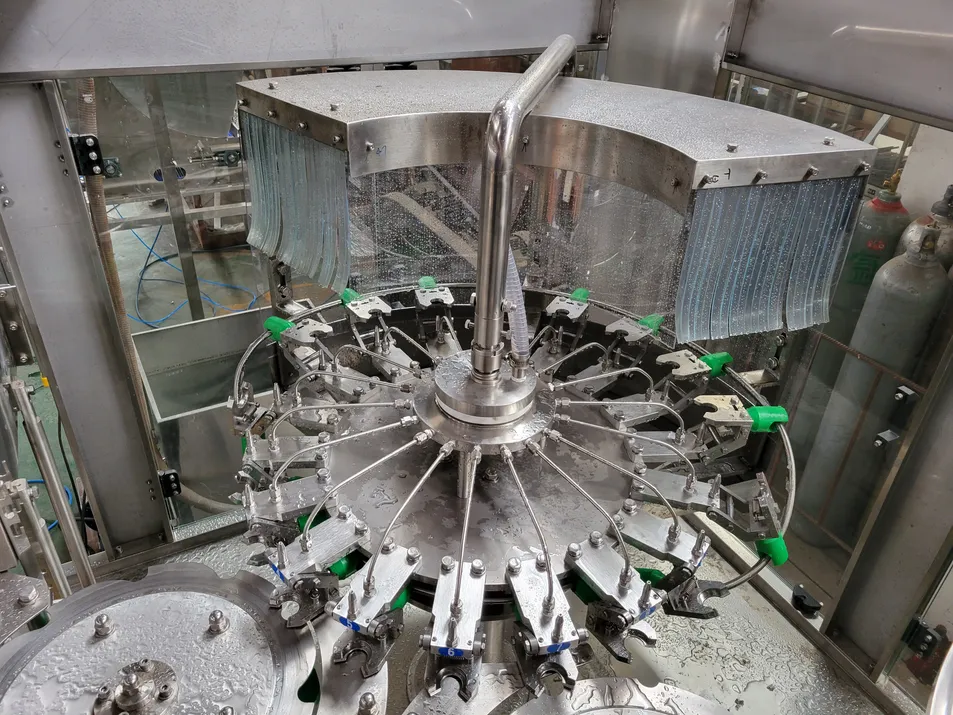

💧 Washing Part

Into bottle way is air conveyor direct connection with bottle dial. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. Stainless steel Gripper with plastic pad ensures minimal bottle crash during washing.

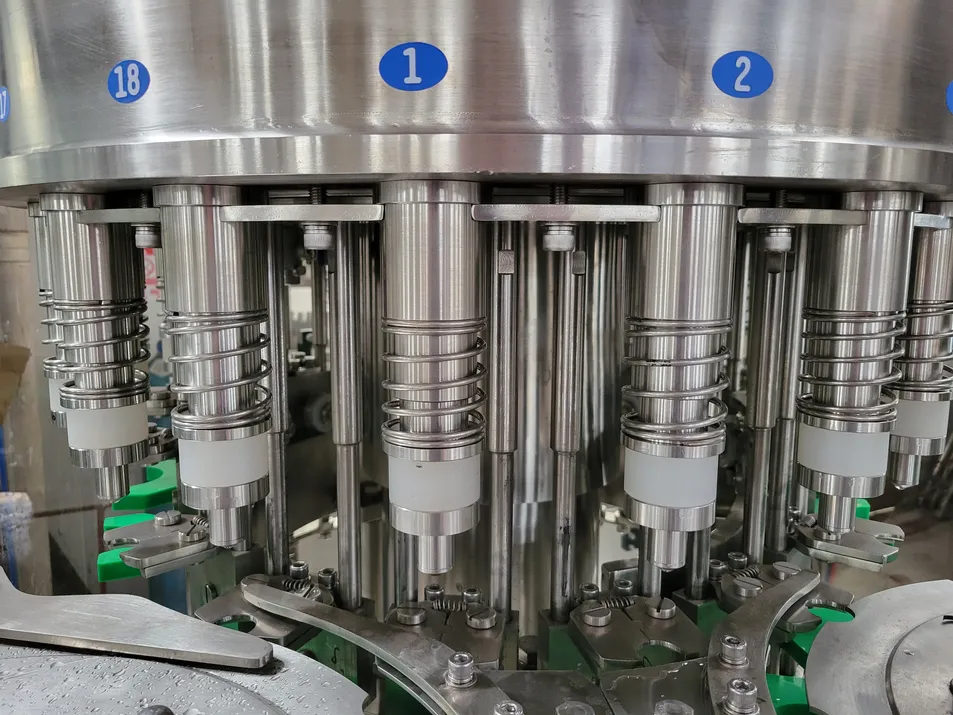

🍼 Filling Part

High precision filling nozzle with adjustable volume. All contact parts and liquid tanks are made of fine-polished 304/316 stainless steel with no dead corners for easy cleaning. Efficient spray nozzles rinse thoroughly and save water.

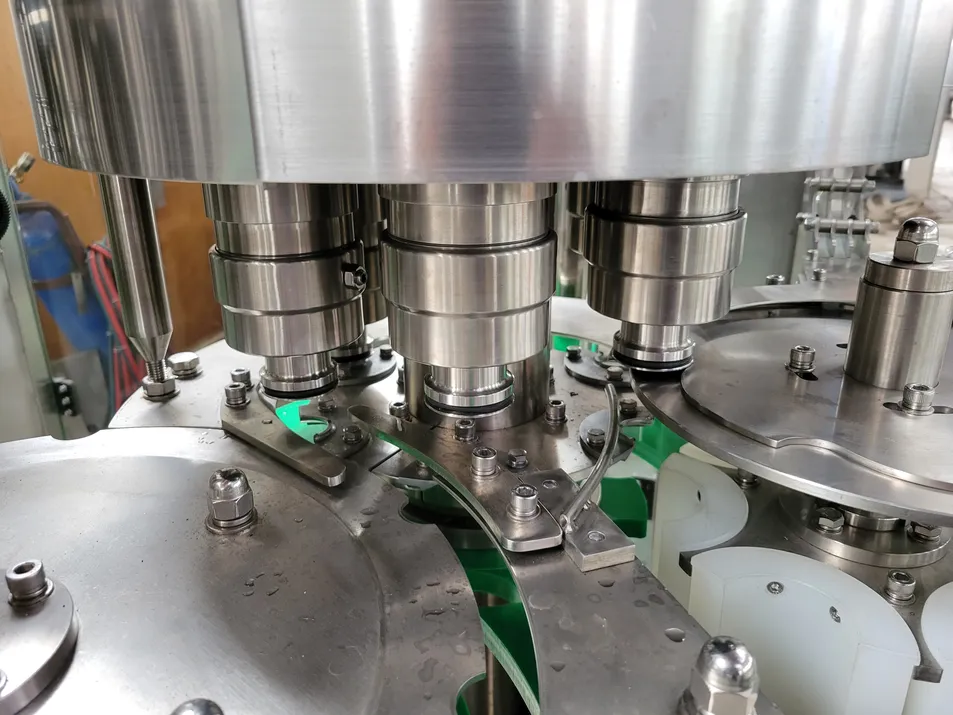

🔒 Capping Part

Place and capping system with electromagnetic heads and burden discharge function. Features "No bottle no capping" and automatic stop when lack of bottles. Stable and reliable capping effect with a defective rate ≤0.2%.

🏢 Professional Manufacturing

As an excellent supplier of complete sets of beverage equipment, we have served customers across 125+ countries and regions worldwide with 9000+ equipment installations. Our products hold ISO9001 quality management system certification and CE certification.

📐 Custom Services & Layout

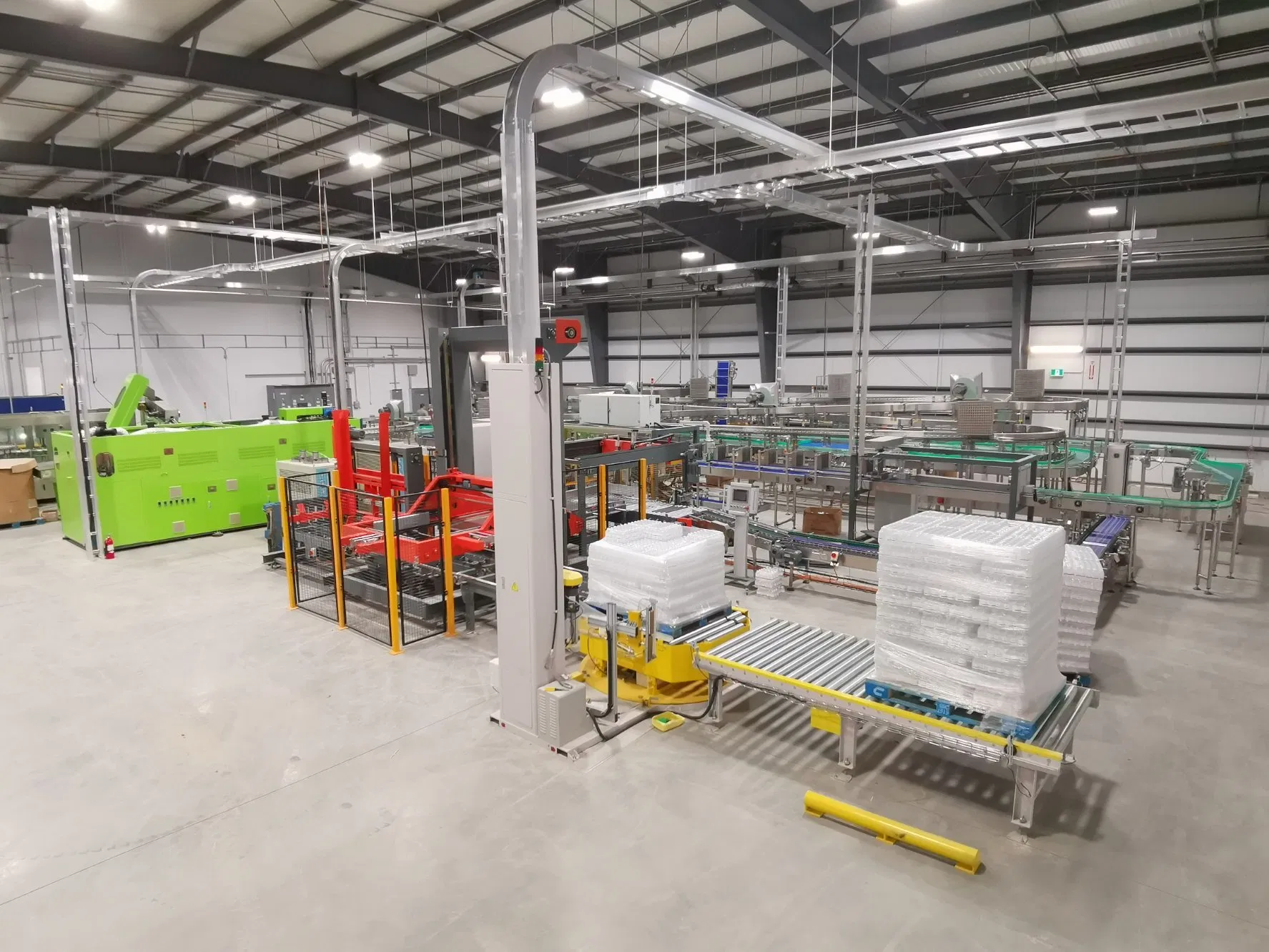

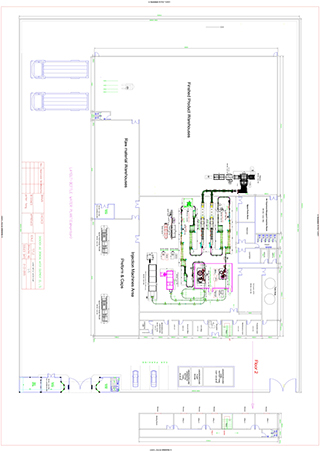

We provide supporting equipment based on liquid type, bottle style, and output requirements. From water treatment to palletizing, we offer full factory layout drawings using CAD software to ensure smooth conveyor system operation and optimal space utilization.

🛠️ After-Sales Support

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

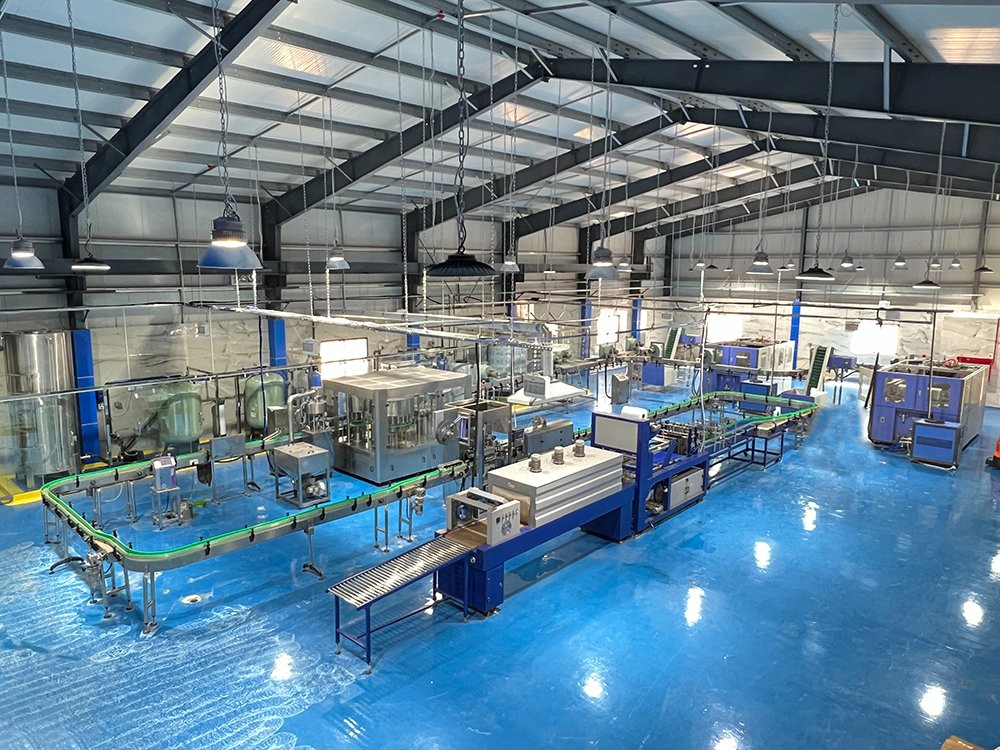

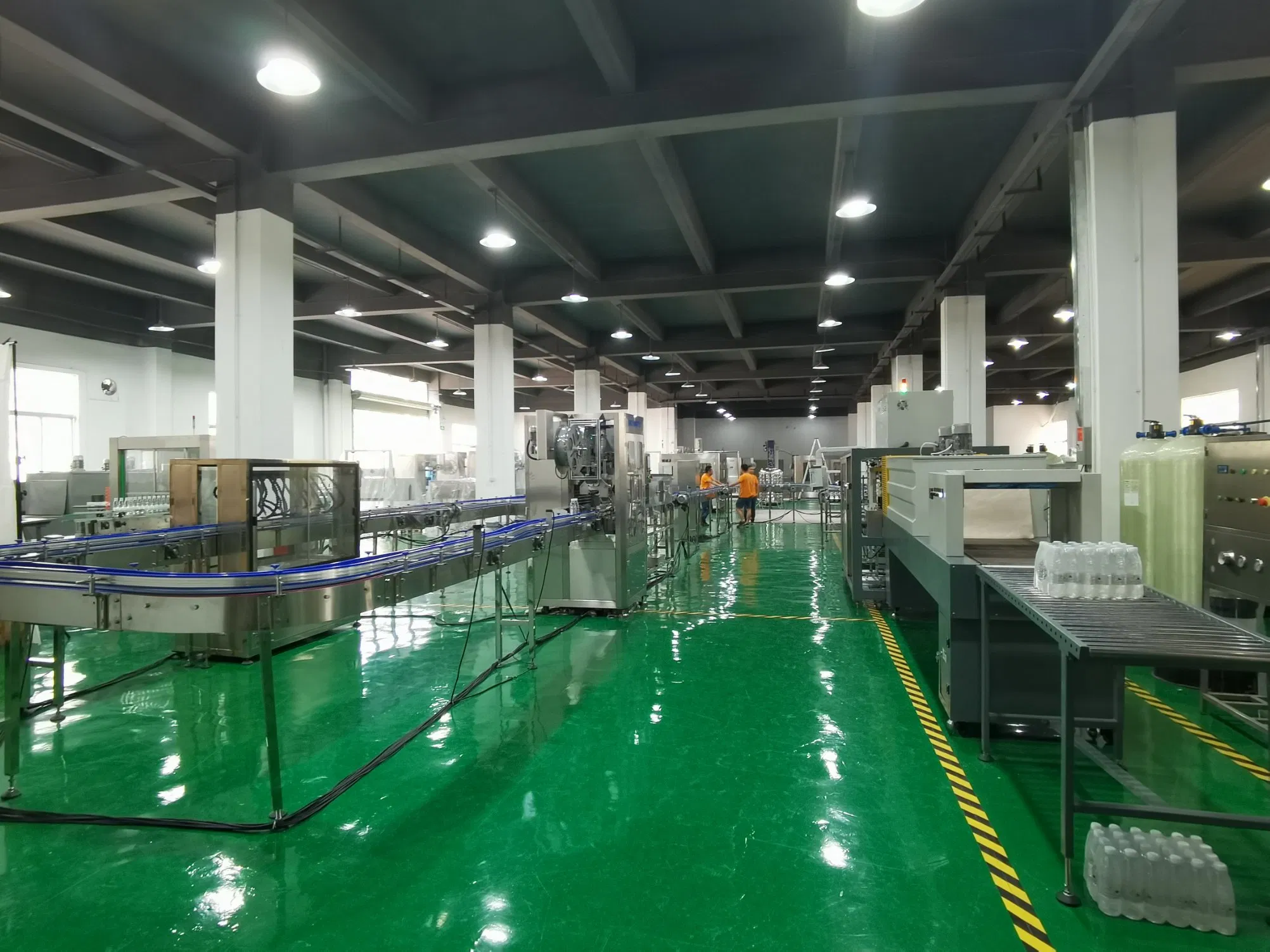

🏭 Complete Production Solutions

1. 0.2-2L Bottled Hot Filling Line: 2000-30000 BPH (Tea, Juice, Functional drinks)
2. 0.2-2L Bottled Water Line: 2000-48000 BPH (Purified, Mineral, Spring water)
3. 0.2-2L Carbonated Beverage Line: 1000-36000 BPH (Soda, Carbonated drinks)
4. 5-Gallon (19L) Bottled Water Line: 100-2400 BPH

❓ Frequently Asked Questions

What is the lead time for equipment orders?

Standard models typically ship within 30-45 days. Customized units also require approximately 30–45 days depending on the complexity of the specifications.

Do you provide international after-sales service?

Yes, we provide comprehensive global support including equipment installation, commissioning, operator training, and long-term technical assistance.

What types of liquids can your machines handle?

Our equipment is versatile and can handle mineral water, pure water, carbonated soft drinks, soda, fruit juices, tea, and even wine or distilled spirits.

What materials are used in the construction of the machines?

All parts in contact with the liquid are made of food-grade 304 or 316 stainless steel, ensuring compliance with international hygiene standards.

Can you provide a complete turnkey production line?

Absolutely. We provide full solutions including water treatment, blow molding, filling, capping, labeling, coding, and final packaging/palletizing systems.

Is the filling volume adjustable?

Yes, the filling volume can be adjusted within a fine rank to ensure consistent liquid levels across different bottle sizes.
