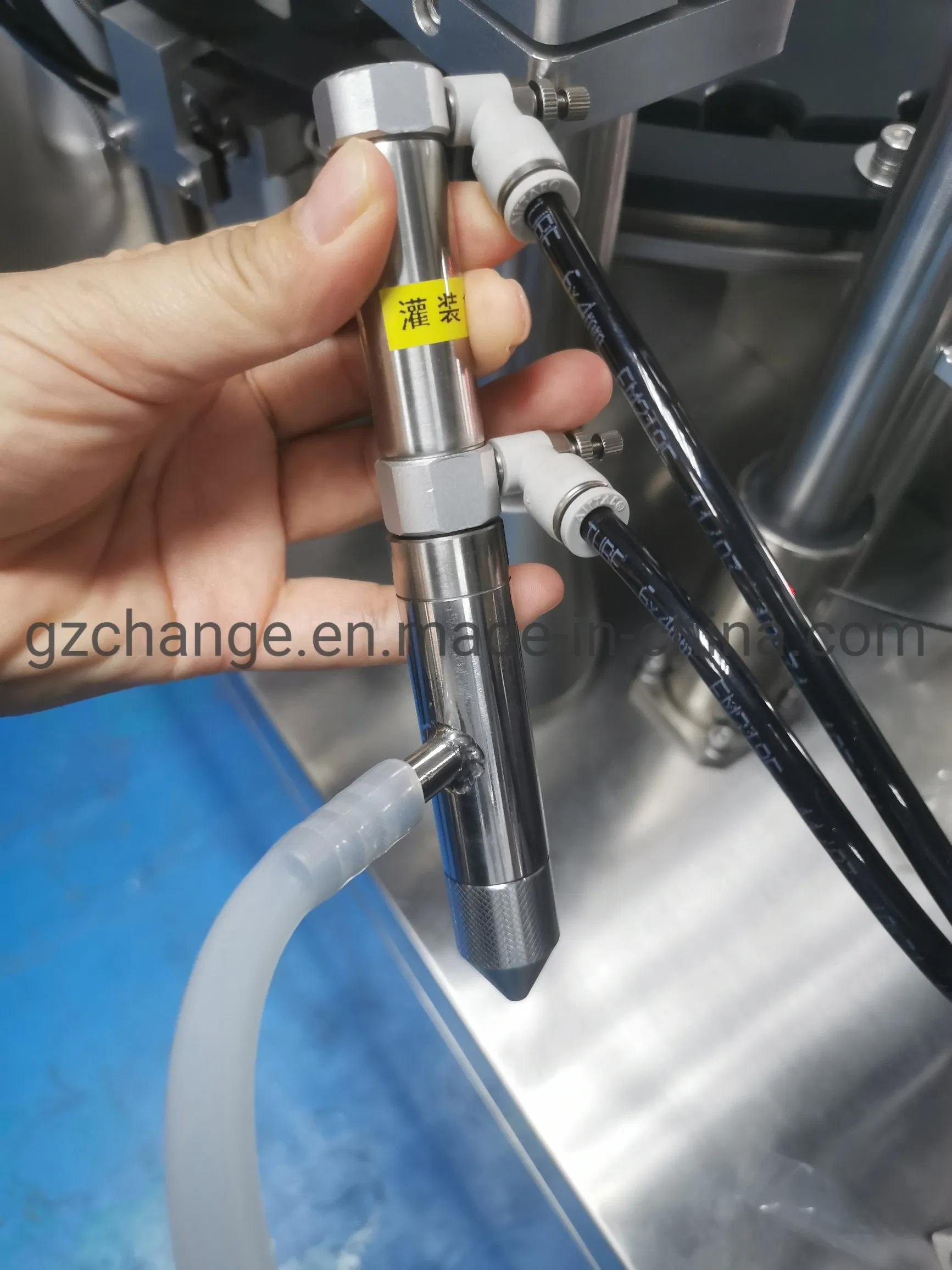

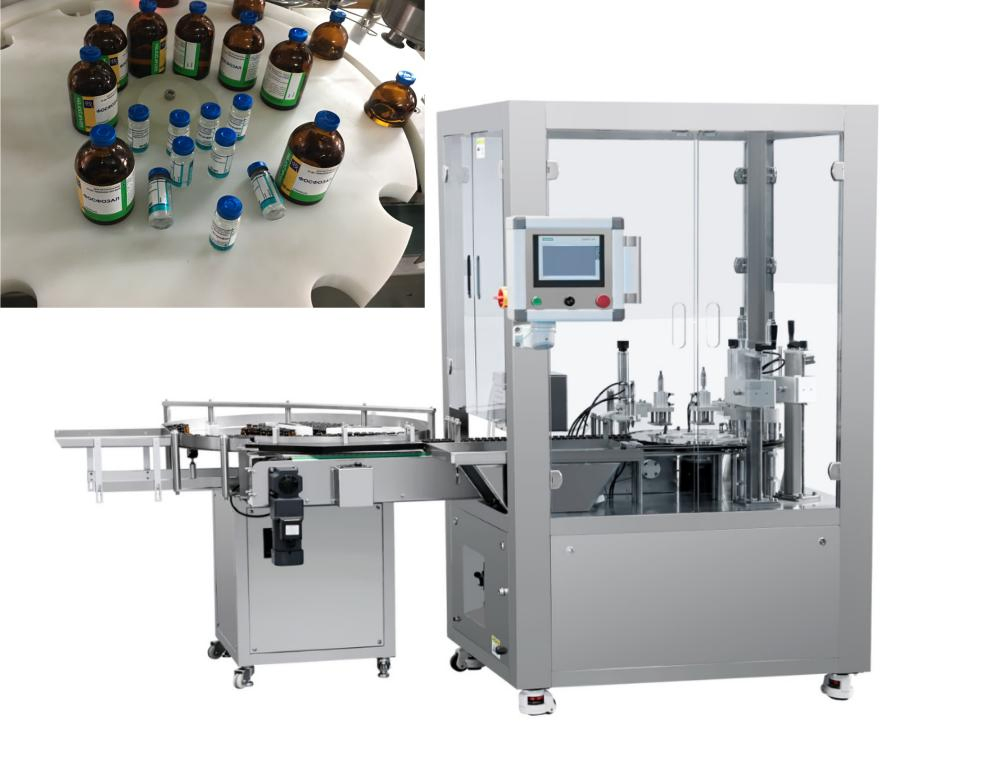

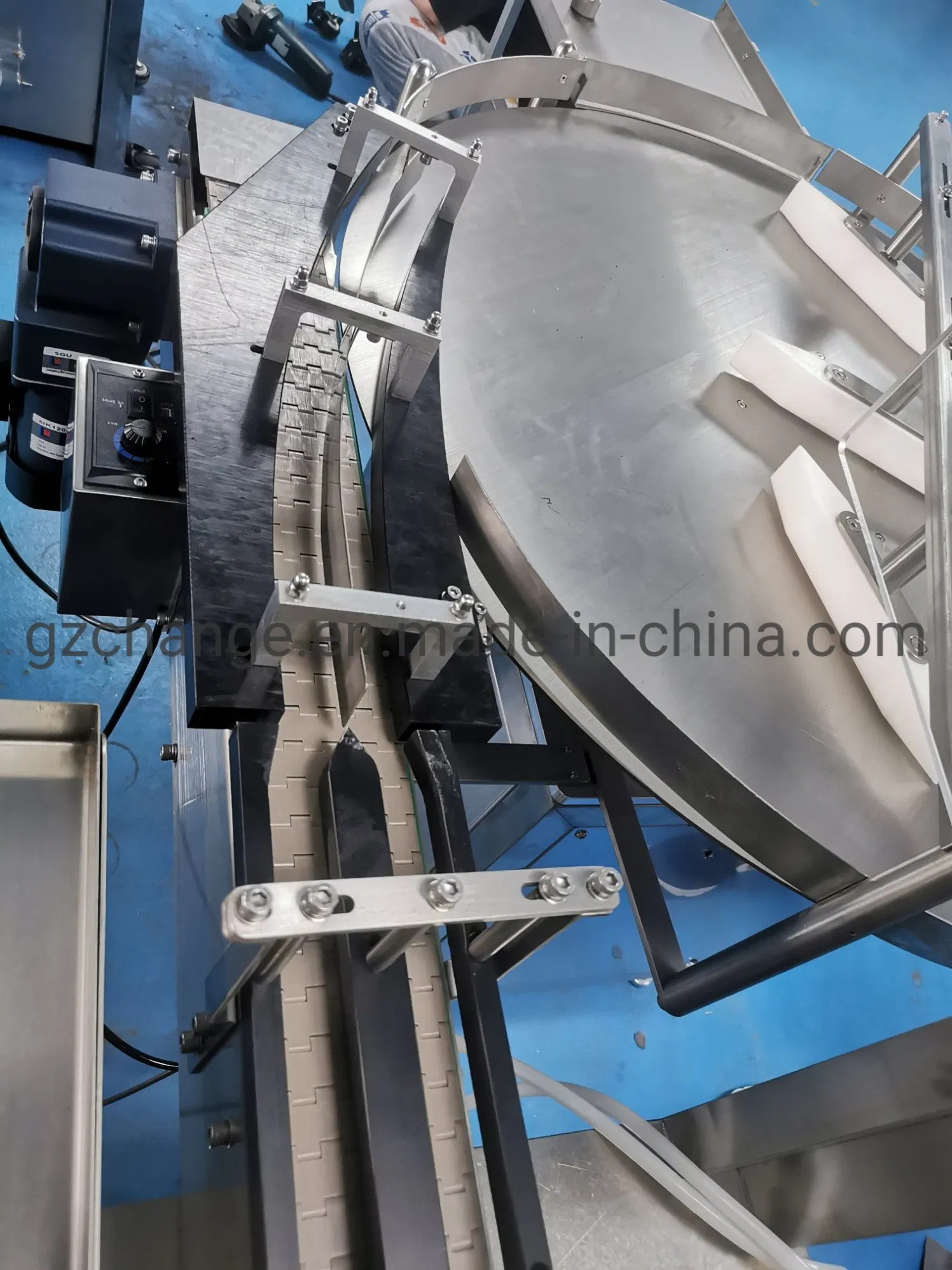

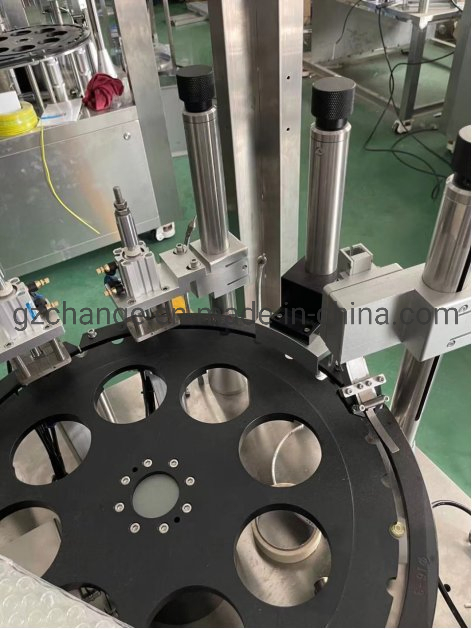

This monoblock consists of bottle inlets, 2-peristaltic-pump filling, auto stopper feeding & pressing, and auto cap feeding-closing system. It can automatically finish bottle-in, filling, pressing rubber plugs, and closing caps. It is widely used in food, chemicals, pharmaceuticals, and cosmetics industries.

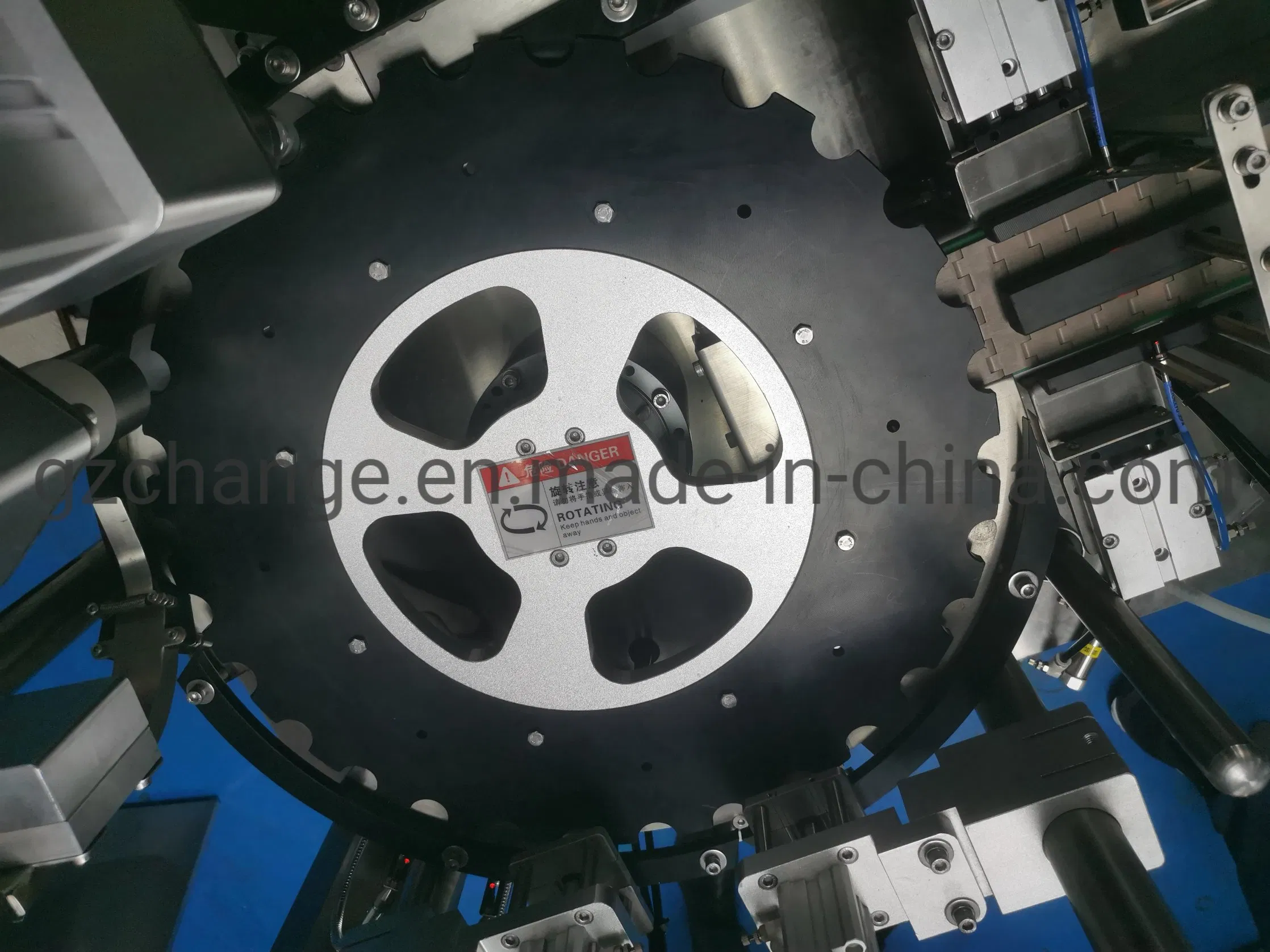

It adopts the PLC program system to control, equipped with a touch screen man-machine interface system, making it convenient and easy to operate. The monoblock system makes the machine small and delicate, adopting a graduator to position bottles for stability.
| Filling nozzle | 2, 4 |
| Pressing head | 1, 2 |
| Capping head | 1, 2 |
| Filling scope | 5ml--150ml (Customizable) |
| Bottles caliber | 10mm-40mm (Customizable) |
| Capacity | 800-1000BPH (100ml) |
| Filling precision | ≤±1% |
| Capping pass rate | 99% |
| Air pressure | 0.4~0.6MPa |
| Voltage | AC220V 50Hz 1P |
| Power | 1.5kw |
| Noise | ≤70dB |
| G.W. | 600 kg |
| Dimension(mm) | L2500×W1200×H1750 |
Warranty: One year after-sales warranty. We provide installation support and staff training. Free spare parts are included for initial maintenance.
Payment Terms: 40% deposit by T/T before production, 60% balance before shipment. L/C is also accepted.
Package: Standard wooden Case Packing.
Shipment Terms: FOB, EXW, CIF, CNF.
