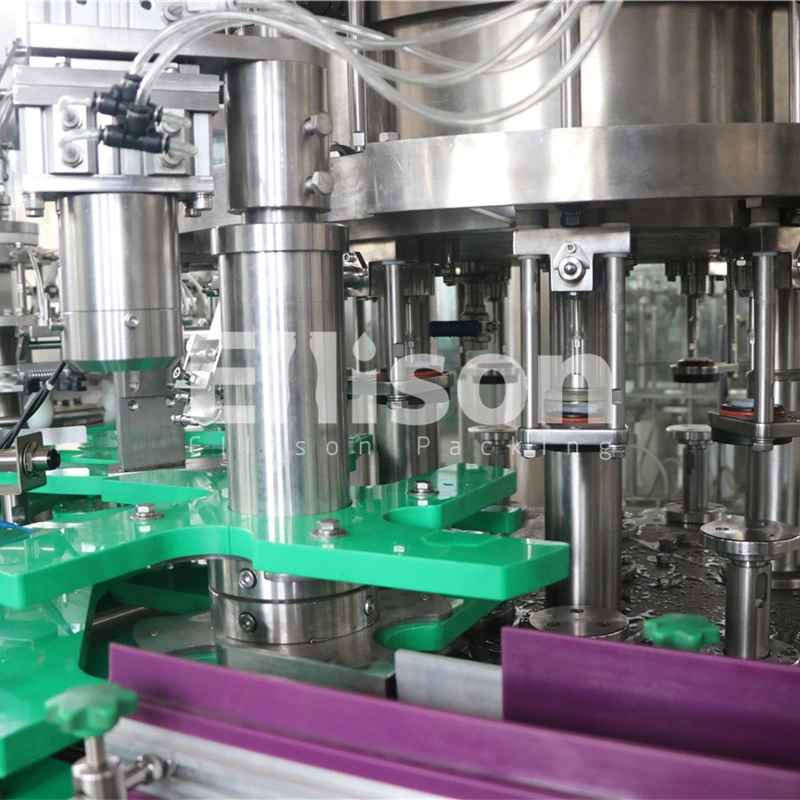

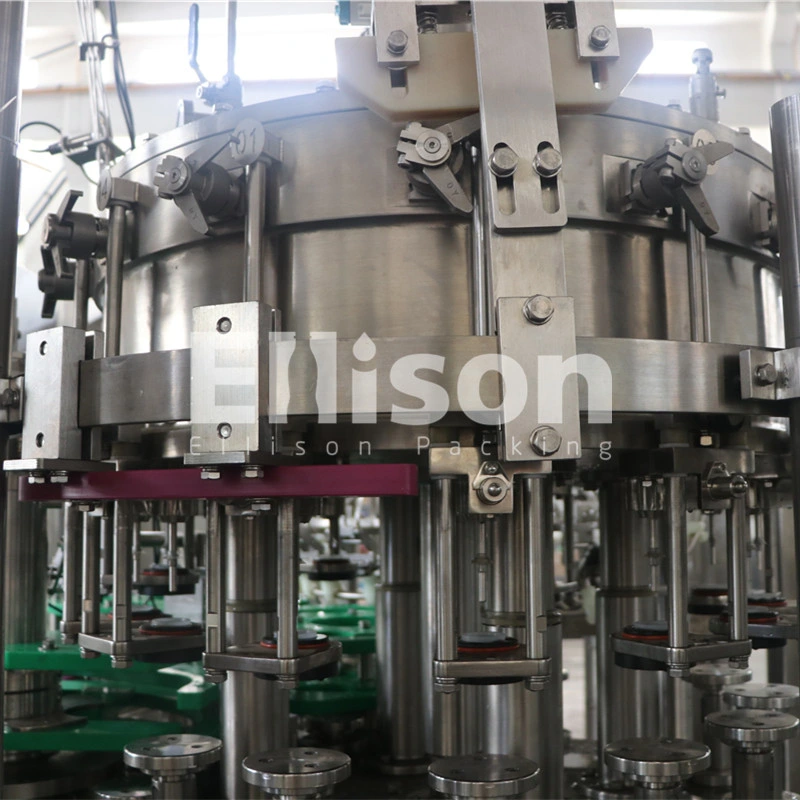

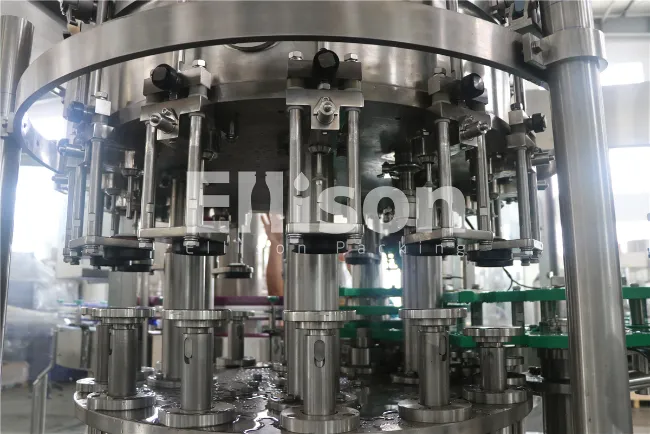

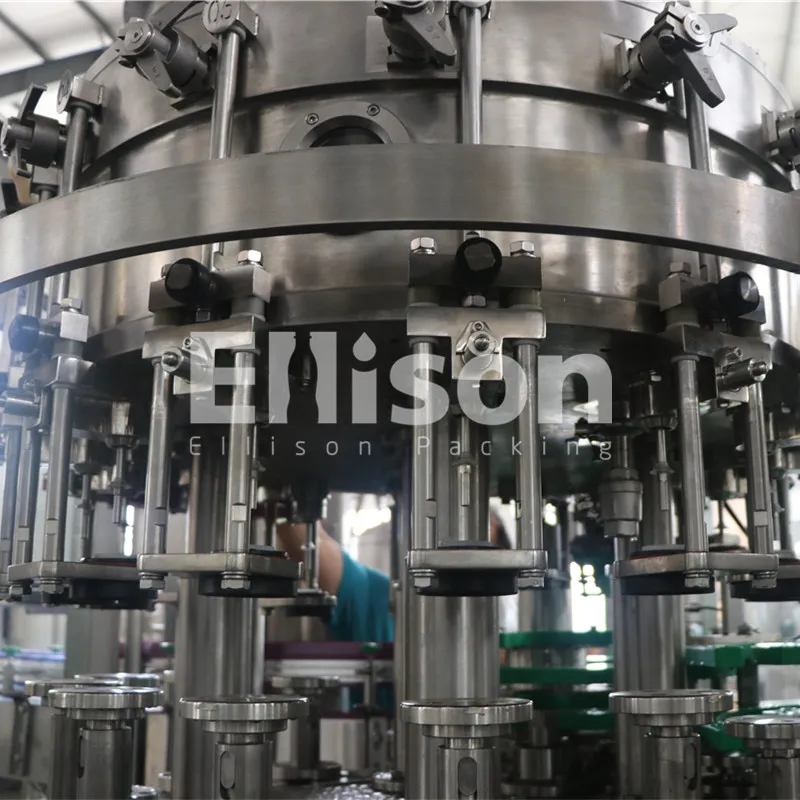

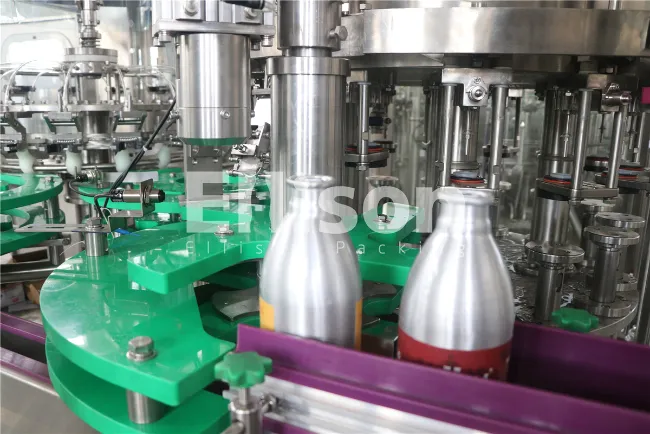

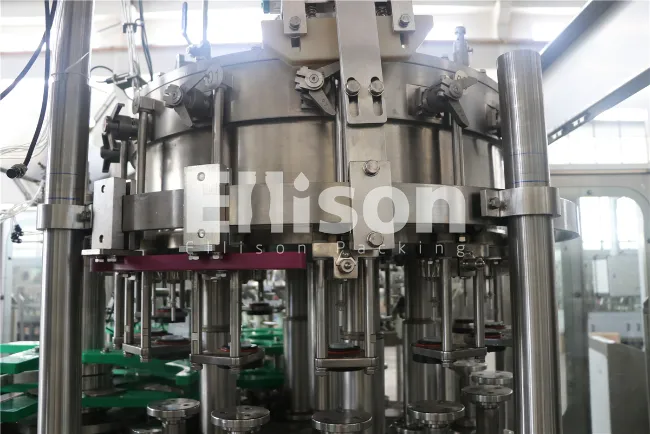

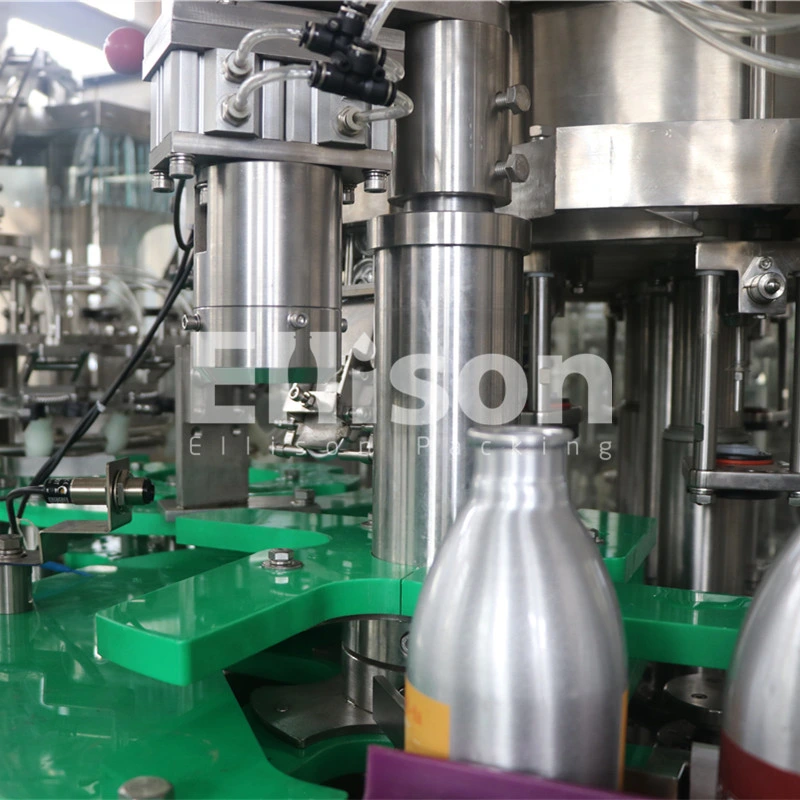

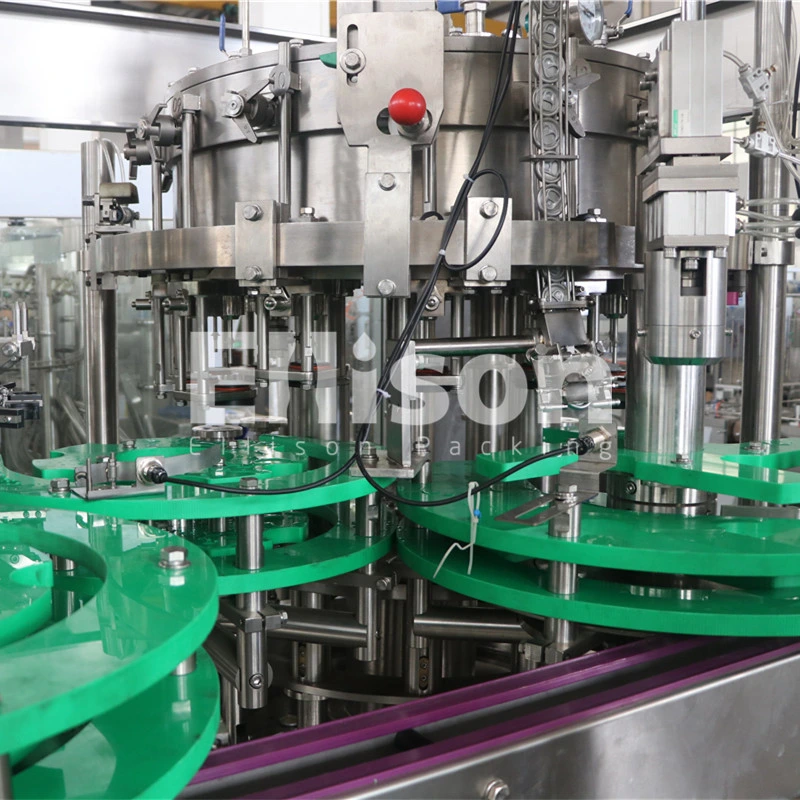

The machine is mainly used for carbonated beverages, beer, Coca-Cola, gas-containing fruit wine etc. It adopts pneumatic control without tank contact to automatically lower the lid, and adopts Isobaric filling technology.
The production capacity is variable frequency speed regulation, which ensures the beauty and hygiene requirements of the whole machine. To improve the vacuum in the tank, steam ejector can be equipped according to customer's requirements, and remote monitoring system can be equipped to ensure maximum technical support to customers.
Anti-foaming system: Cold or hot sterile water with high pressure to push out the neck air, reduce the TPO amount.
Twice vacuum filling: True isobaric filling method with mechanical two-step valves for stable beer quality.
Capping system: Mechanical transmission technology for more harmonious and stable operation compared to pneumatic systems.
| Model | Capacity (500ml/min) | Can Height | Filling Temp | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|
| GD12-4 | 80-120 | 65-190mm | 0-4ºC | 5.5 | 3000 |
| GD18-4 | 120-150 | 65-190mm | 0-4ºC | 6.5 | 4000 |
| GD24-6 | 150-250 | 65-190mm | 0-4ºC | 7.8 | 4800 |
| GD30-6 | 240-300 | 65-190mm | 0-4ºC | 8.5 | 5200 |
| Parts Name | Brand | Origin |
|---|---|---|
| PLC / Inverter / Touch Screen | SIEMENS | Germany |
| Solenoid Valve / Air Component | AIRTAC | Taiwan |
| Drive Motor | FEITUO | Swiss |
| Main Bearing | SKF | Sweden |
| Sensor | AUTONICS | Korea |
Sample Service: We provide running machine videos and welcome factory visits to see equipment in operation.
Customized Service: Machines are designed according to specific requirements (material, power, filling type, bottle kinds).
After-Sales Service: On-site installation, testing, and training by engineers. One-year warranty with free spare parts included.
