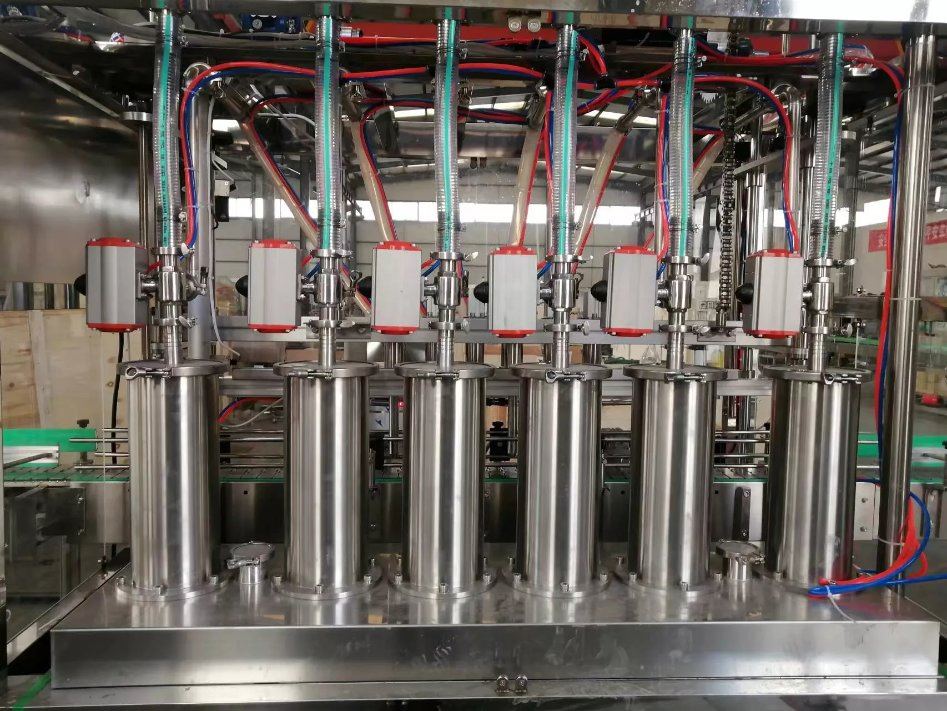

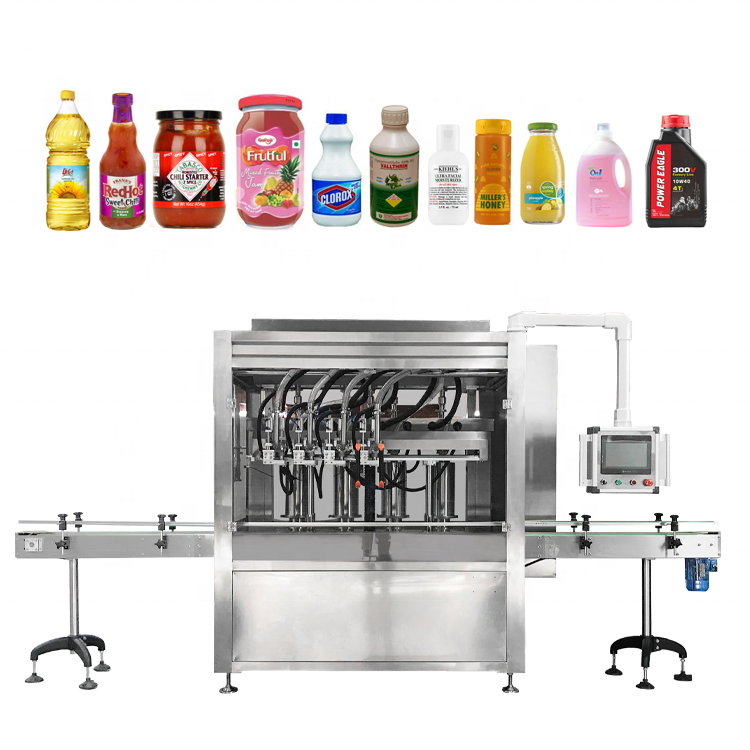

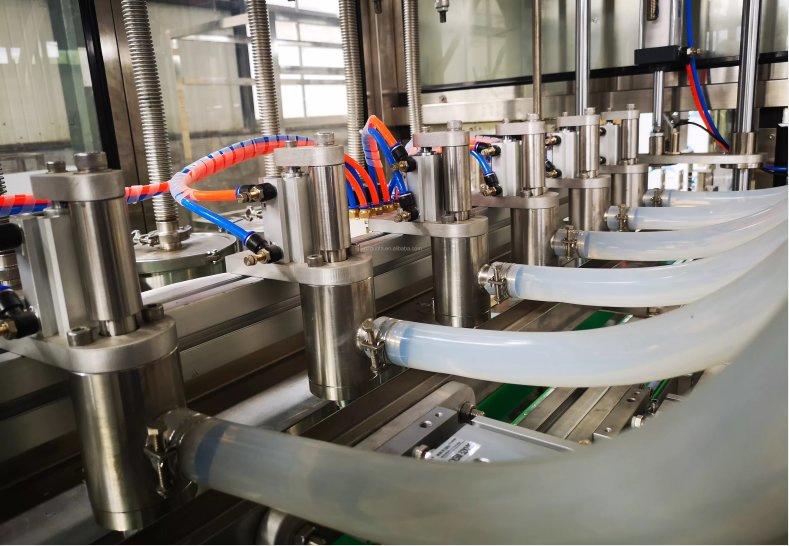

Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
1 / 5
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine
Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine

Servo Motor Linear Type Piston Paste Bottle Liquid Filling Machine

Customization: Available
After-sales Service: 24 Hours Services
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information

Model NO.
CQD- 2, CDQ-4, CDQ-6, CDQ-8, CDQ-10, CDQ-12
Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Pressure
Structure
Linear
Weight
About 80kg
Capacity
500-1800 Bph
Application
Lubricants, Edible Oil, Cosmetics, Peanut Oil, etc
Volume
50-5000ml

Product Description

This machine adopts a piston pump and rotary valve, suitable for filling all kinds of thick and sticky materials across multiple industries:
🍴
Food Industry: Edible oil, yogurt, tomato paste, chilli sauce, honey, butter, ketchup, lunch meat, etc.
🧴
Cosmetic Industry: Shampoo, liquid soap, hand sanitizer, laundry detergent, shower gel, cream, lotion, hair gel, etc.
🚗
Car Care: Motor oil, lube oil, antifreeze, brake fluid, fuel additive, screen cleaning liquid, etc.
💊
Pharmaceutical: Syrup, oral liquid, alcohol, etc.

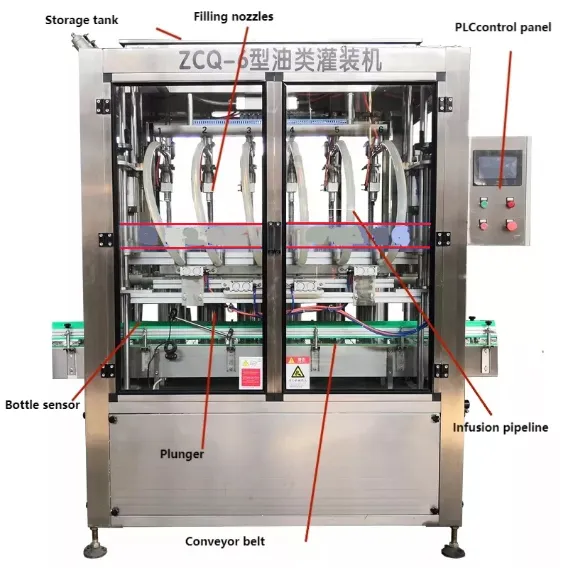

Automatic Piston Paste Filling Machine

Key Features

1. Speed range from 500bph to 2000bph depending on configuration.
2. Filling volume adjustable via touch screen, offering easy operation and control.
3. All contact parts are made of SUS 304, meeting National Food Hygiene Standards.
4. High filling precision and stability.
5. High compatibility for various bottle types: glass, plastic, and PET.
6. Closed-condition filling ensures sanitary requirements are met.

Technical Details

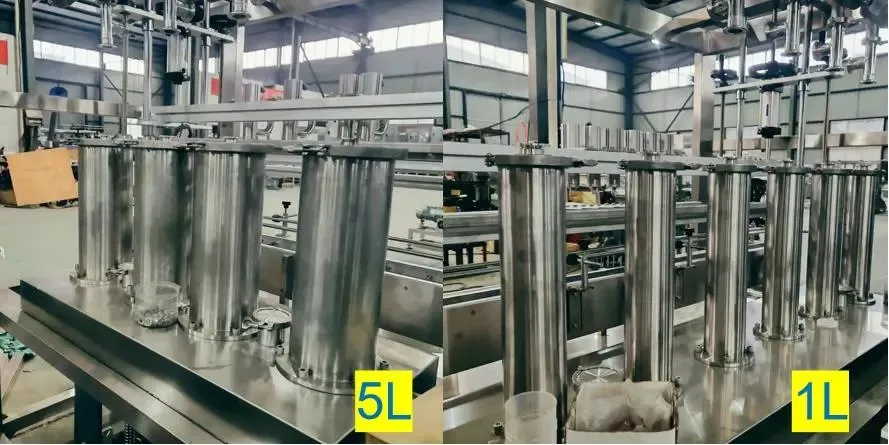

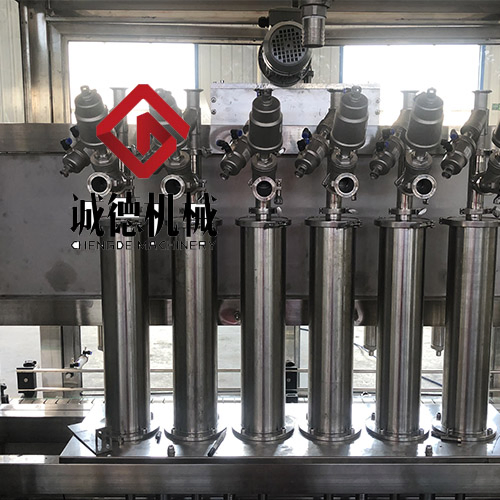

Piston Cylinders

SS304/316 Honing Piston Cylinders

Constructed with food-grade SUS304/316 material. Piston filling volumes are available in two ranges: 100ml to 1000ml and 500ml to 5000ml. Features an integrated cleaning function, making it ideal for milk, sauces, and other liquids.

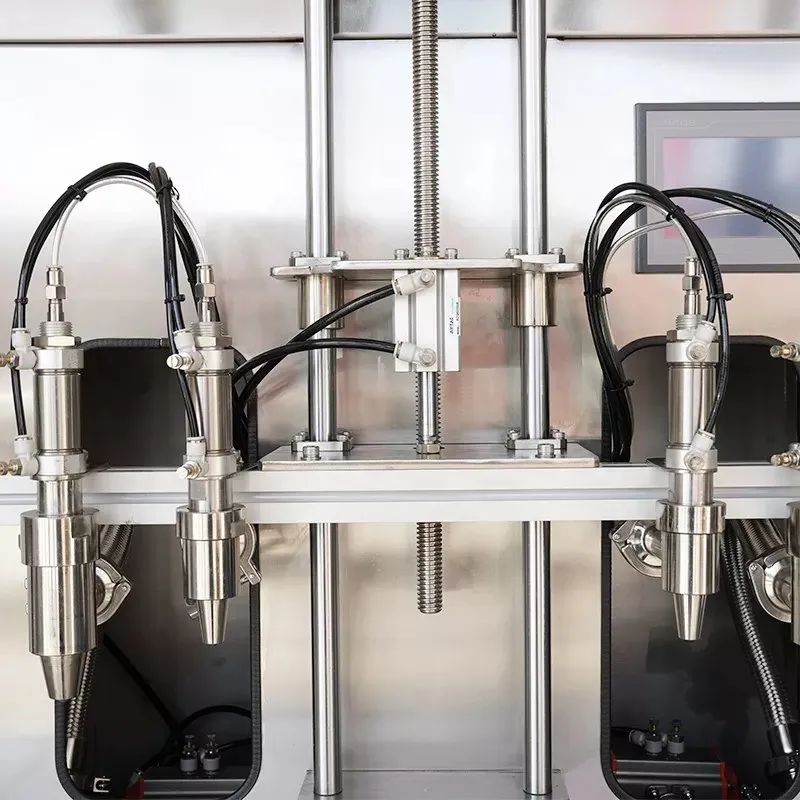

Filling Nozzles

Each filling head operates as a stand-alone unit with automatic filling capability. Heads can be opened or closed separately and include error correction functions. They share a mobile tank with quick-release hose connections.

Filling Nozzles

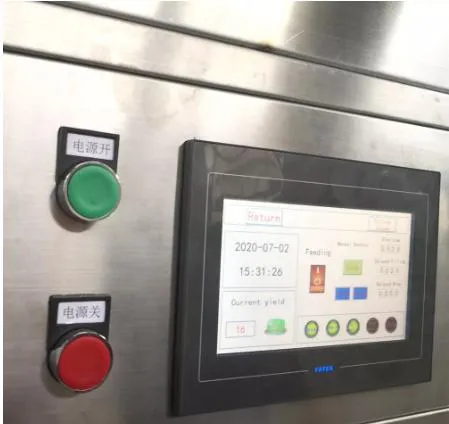

Intelligent Touch Screen

Intelligent Touch Screen

PLC and touch screen control provide simple operation, automatic counting, and "no bottle, no filling" protection. Features a 360-degree rotatable bracket for operator convenience and recipe preservation for quick changeovers.

Specifications

Qty of filling head
6~14 heads
Filling capacity
50ML-5000ML
Filling method
Equal-liquid level plunger filling
Filling speed
6~8 bottles/min/head (500ml)
Filling accuracy
±1%
Main materials
#304 Stainless Steel, Food Grade PVC
Air pressure
0.6-0.8Mpa
Power
220V/380V or Customized

Application Range

Widely used for semi-fluids, pastes, and viscous liquids such as detergent, shampoo, soap, gel, oil, honey, jams, ketchup, and salad dressings.

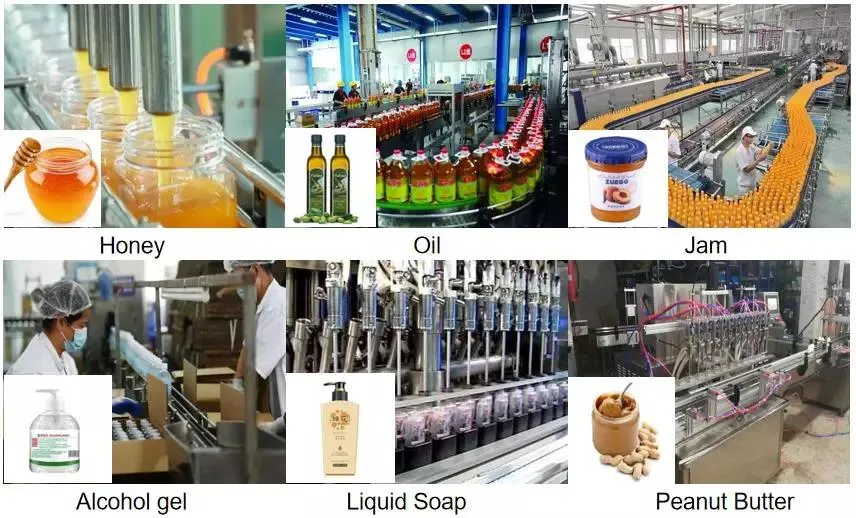

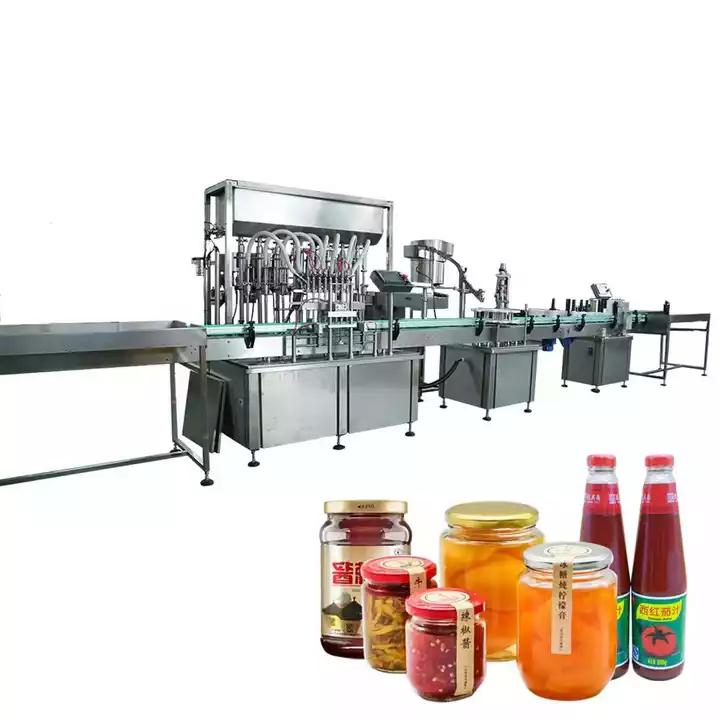

Application Examples

Manufacturing & Quality

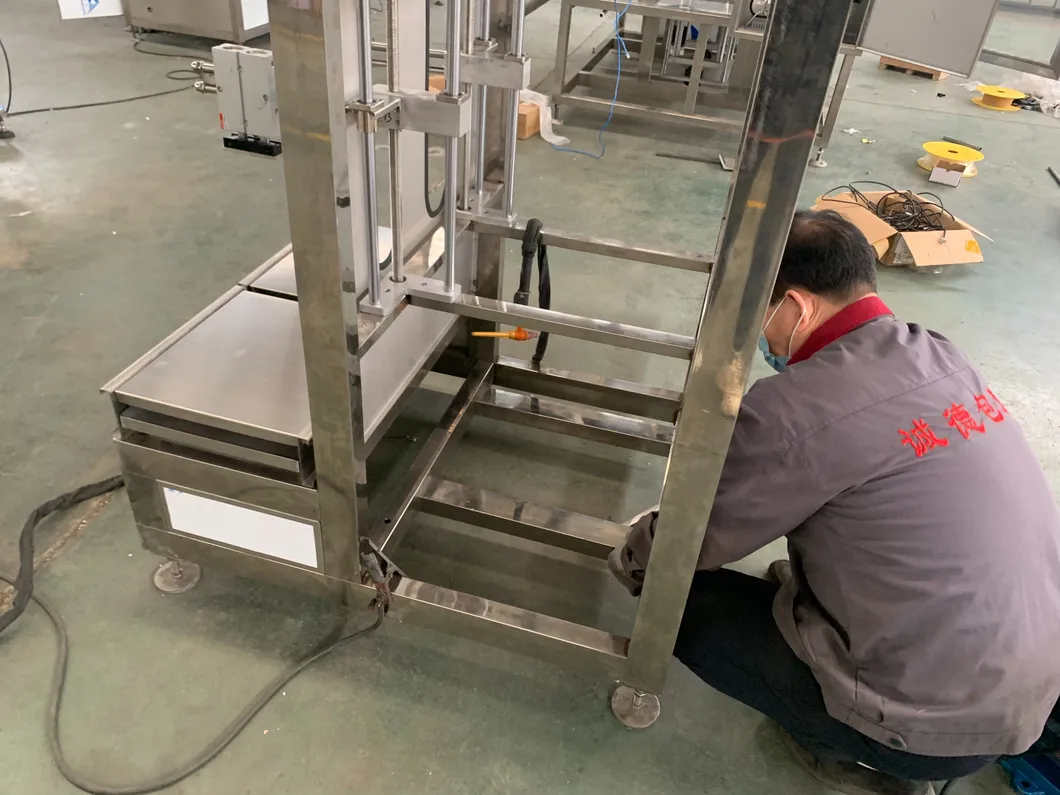

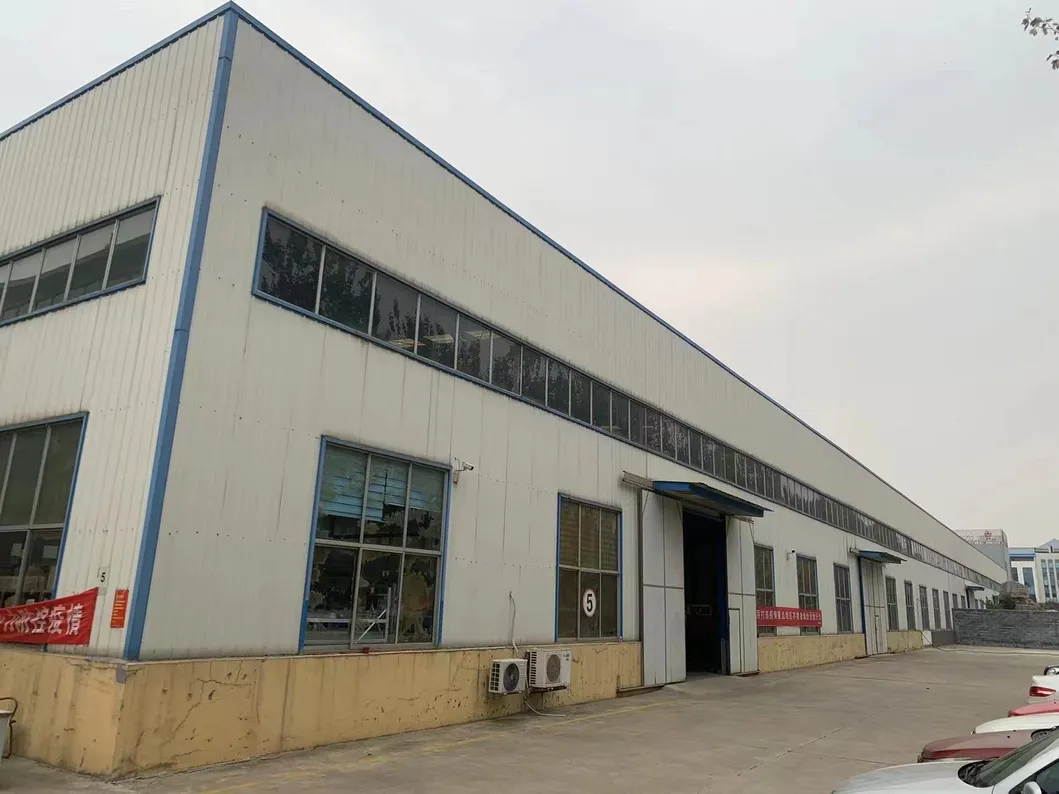

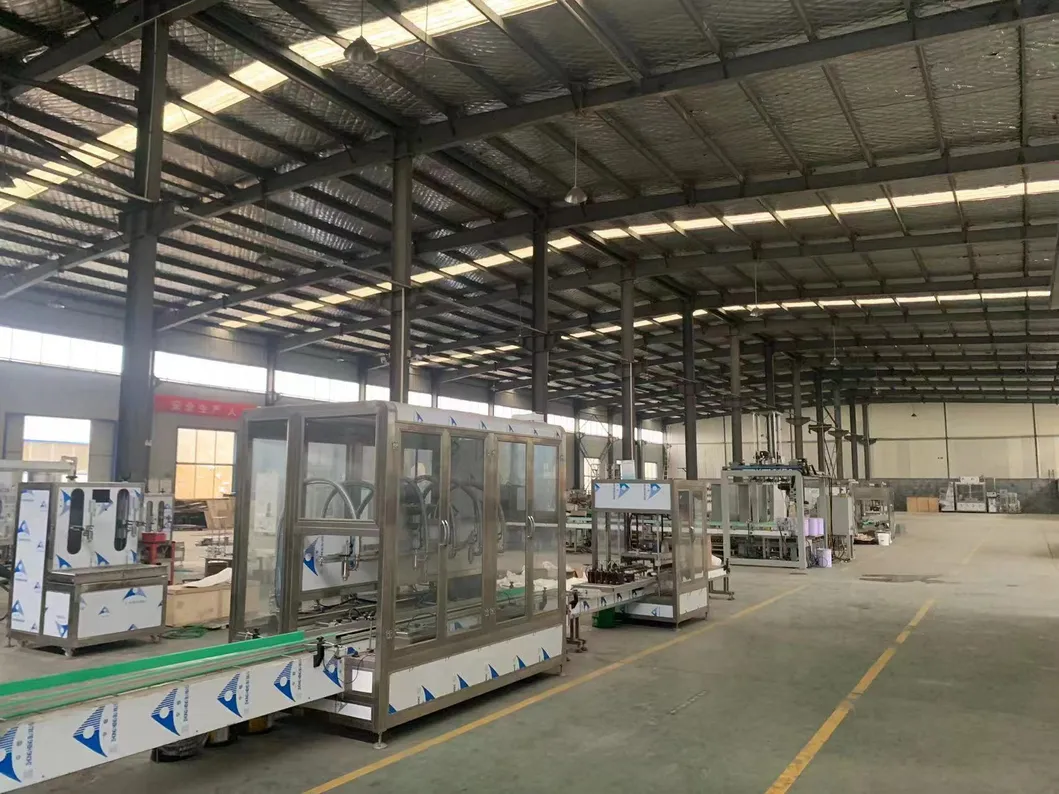

Workshop 1 Workshop 2 Workshop 3
Our facility covers 6,000 square meters with standardized workshops. We utilize advanced CNC production equipment, ERP, MES, and DNC systems to ensure every precision part meets the highest standards. Over 95% of parts are manufactured in-house to maintain strict quality control and flexible production cycles.

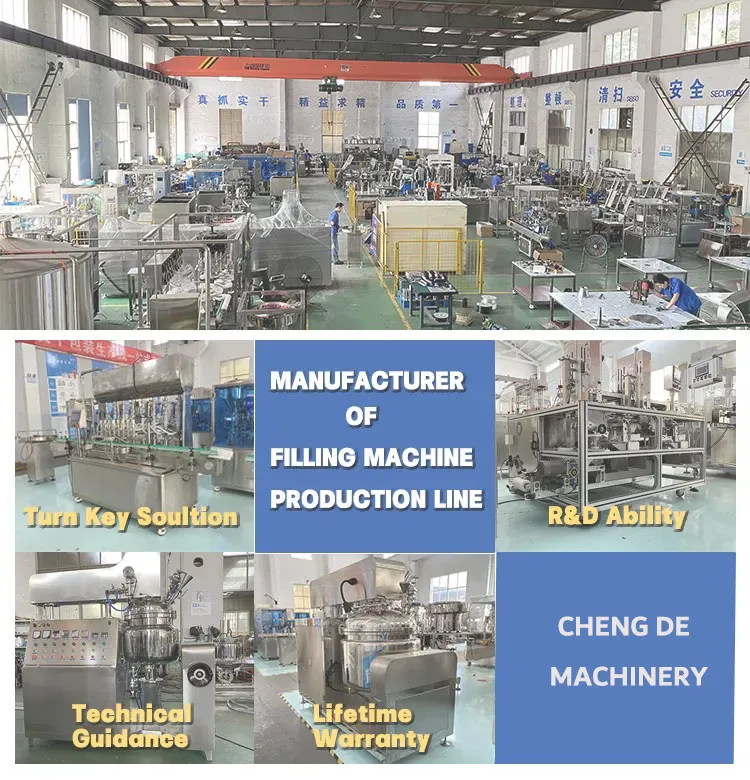

Quality Control

Services & Logistics

Customized Service: Machines can be designed according to specific requirements (material, power, filling type, bottle shapes).

Installation Support: Video guidance and online calls are provided. On-site installation is also available.

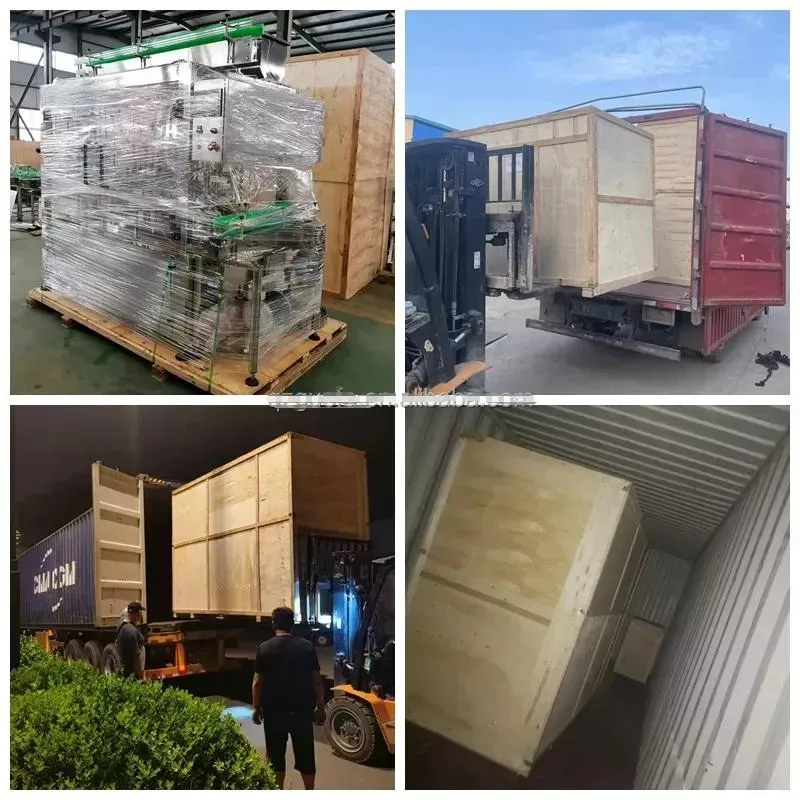

Packing: Anti-rust treatment followed by plastic wrap and thick wooden boxes or steel frames for long-distance sea transport.

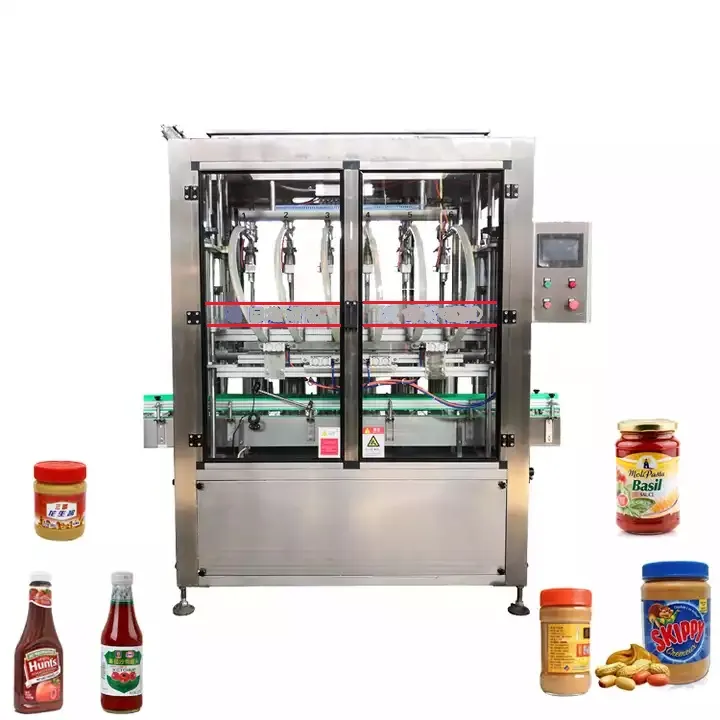

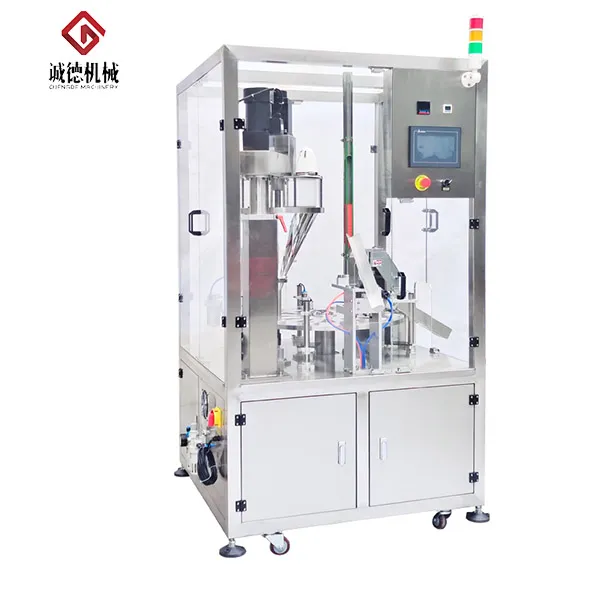

Packing 1 Shipping 1 Shipping 2

Frequently Asked Questions

How long does delivery take?
Standard models take approximately 10 days. If in stock, delivery is immediate. Customized models usually require 20 to 30 days depending on specific requirements.
What is the after-sale service guarantee?
All products undergo strict QC testing before delivery. We provide a one-year warranty on all machines and dedicated technical support for any usage questions.
Is the machine easy to install upon arrival?
Yes. We provide intuitive installation videos for every model along with remote technical video support to ensure your setup is correct and efficient.
Do you provide on-site commissioning?
We have professional installation engineers with extensive international experience who can provide on-site commissioning and worker training directly at your facility.
Will I need to change accessories frequently?
Accessory life depends on daily maintenance. We provide free wearing parts with your order and include a comprehensive strategy for daily maintenance.
Can the machine handle different bottle sizes?
Yes, the machine is designed for high compatibility across glass, plastic, and PET bottles, with adjustable filling ranges from 50ml to 5000ml.
