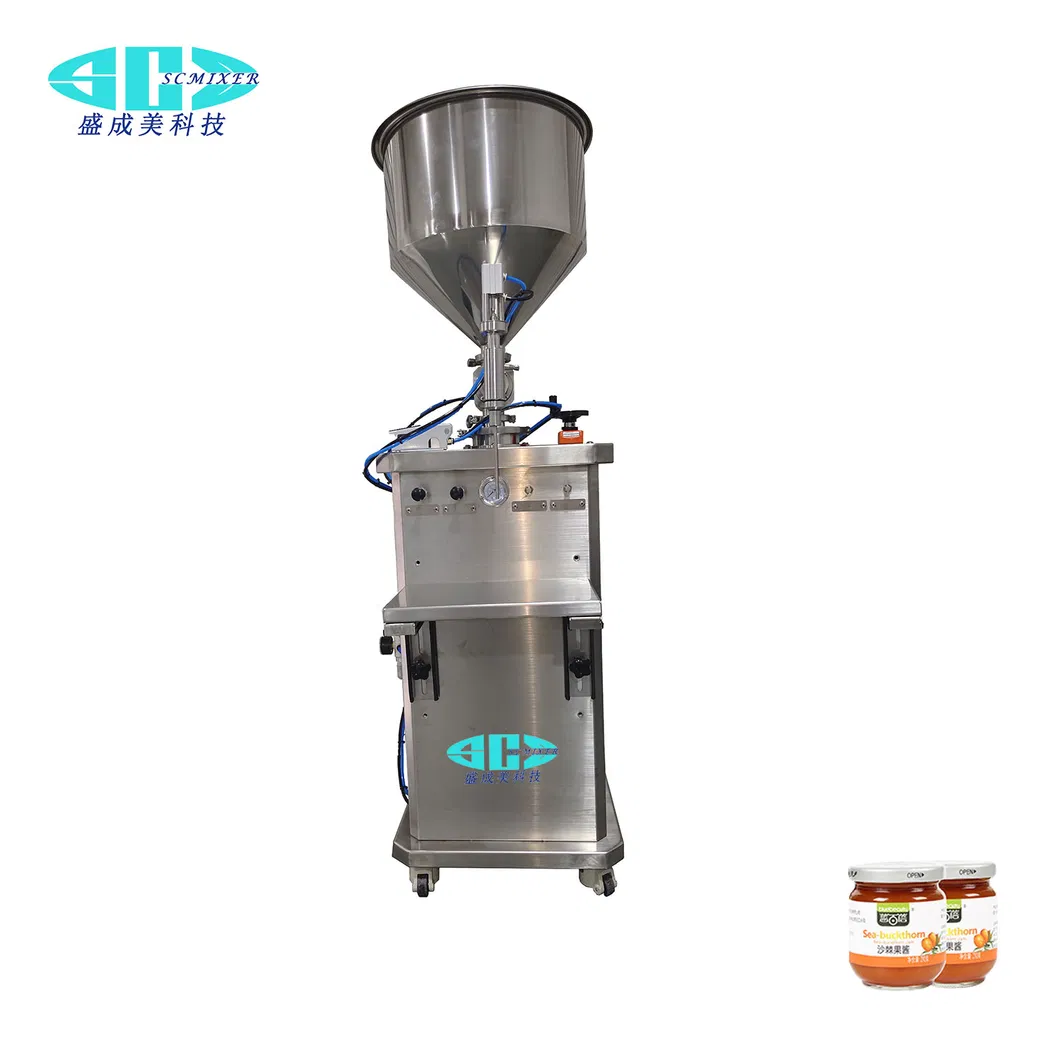

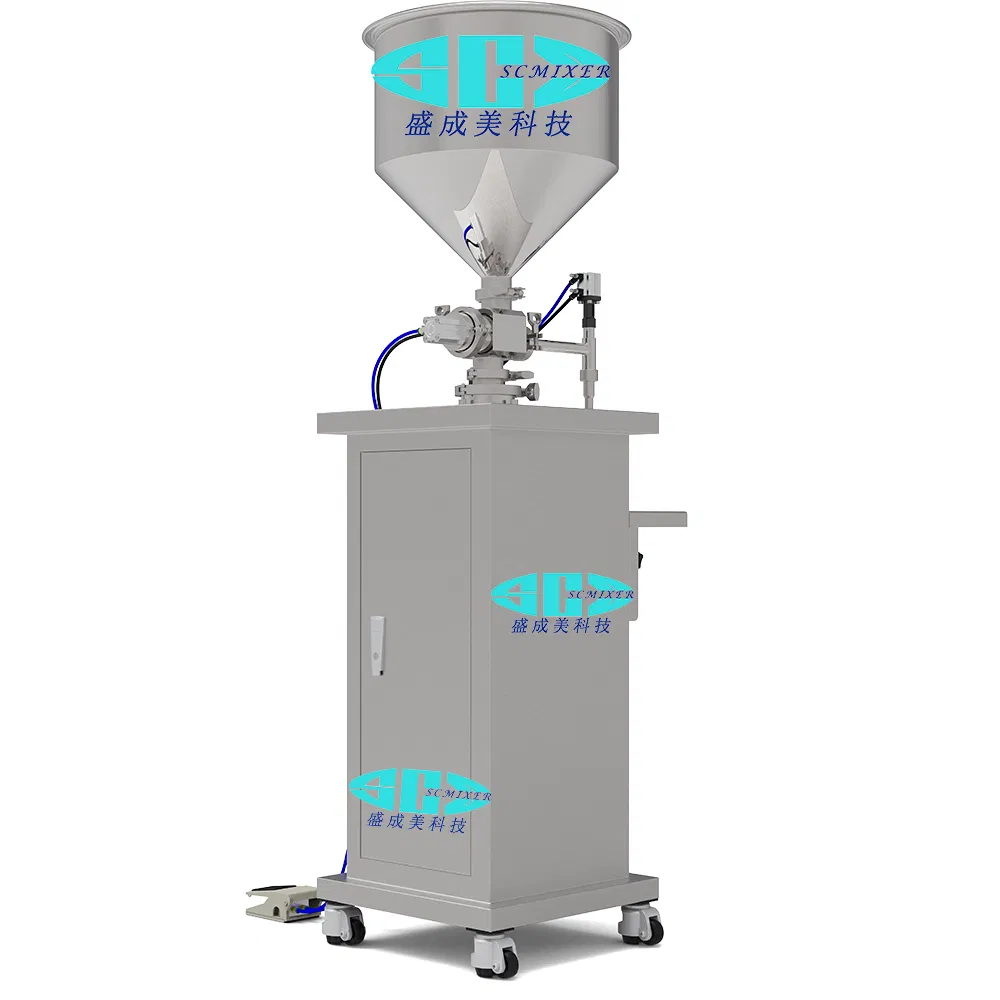

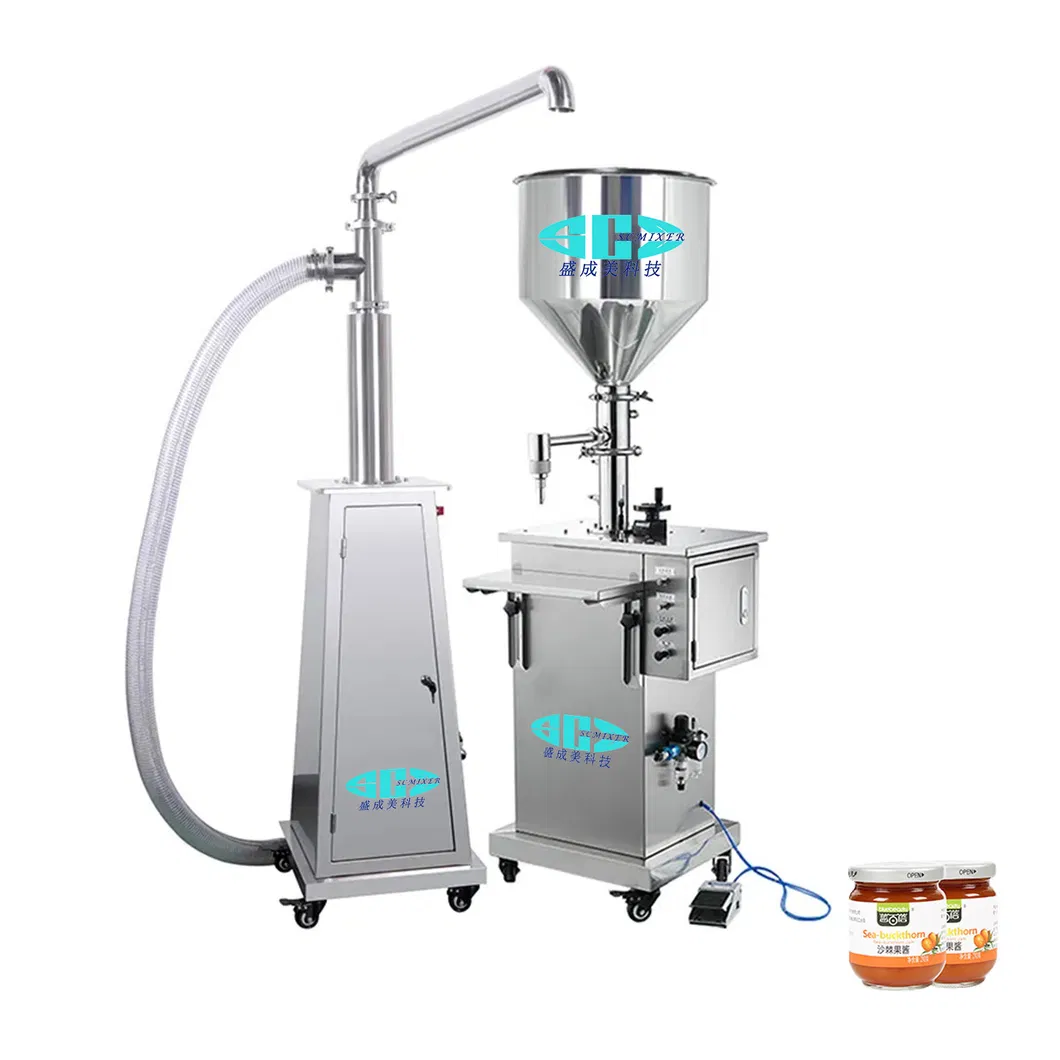

Semi Automatic Ointment Liquid Cosmetic Cream Vertical Type Filling Machine

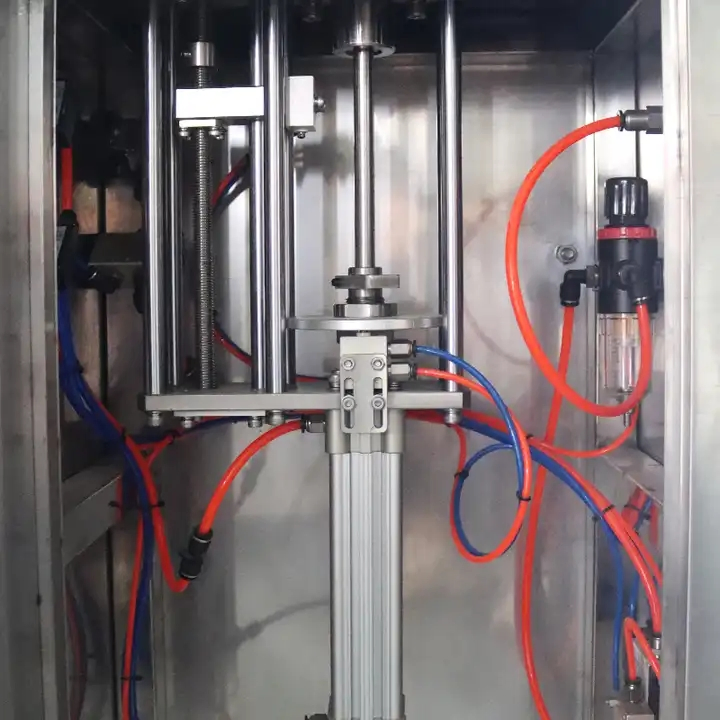

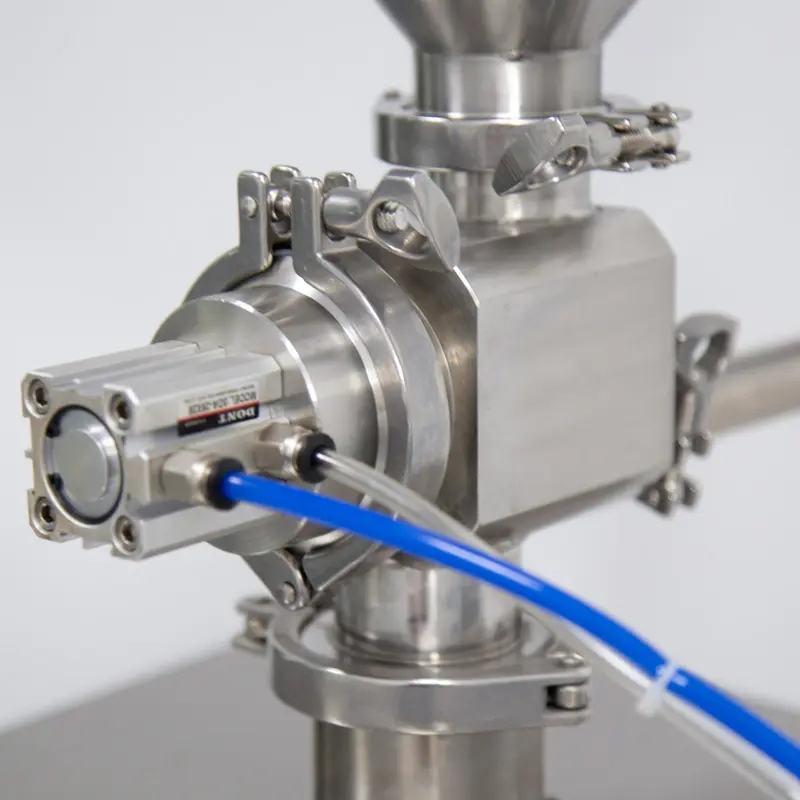

This semi-automatic pneumatic paste liquid filling machine is advanced equipment designed for viscous materials and products with poor flow ability. It utilizes a pneumatic cylinder and piston push rod structure to form a vacuum cavity for negative pressure material absorption.
| No. | Item | Specifications |
|---|---|---|
| 1 | Filling range | 50-1000ml |
| 2 | Filling head | 1 pcs (changeable) |
| 3 | Filling method | Pneumatic piston filling |

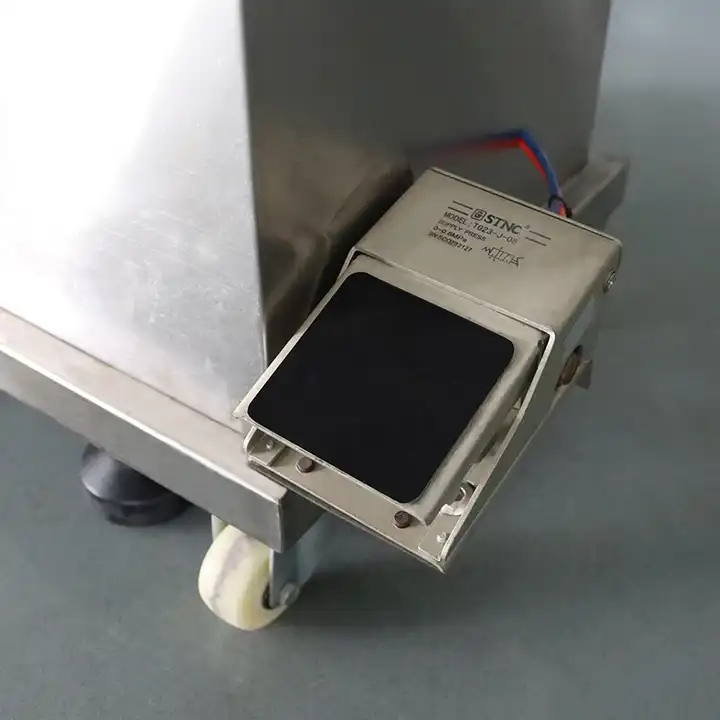

| 4 | Output method | Pedal switch or automatic discharge |
| 5 | Method of measurement | Scale measurement |
| 6 | Filling accuracy | ±2% (Adjustable speed) |

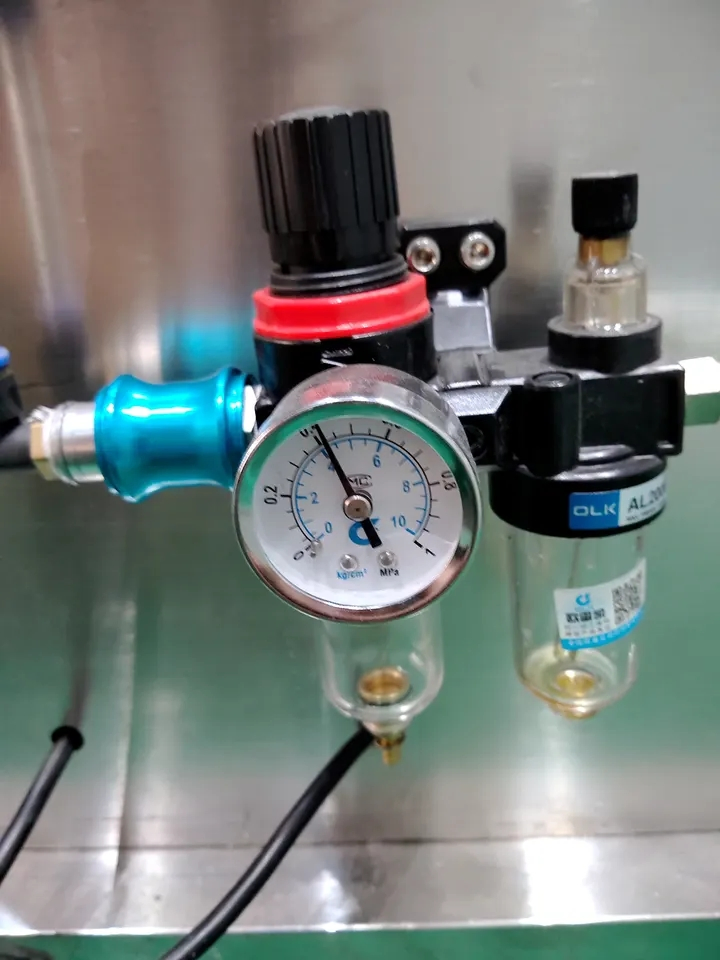

| 7 | Air pressure | 4-5kg/cm2 |
| 8 | Productivity speed | 20-35 bottles/min |
| 9 | Hopper volume | 30L |
| 10 | Material | Contact parts SUS316L Stainless Steel; Piston PTFE |
| Model | Filling Volume | Precision | Air Supply | Productivity |
|---|---|---|---|---|
| SFM-S-5 | 5-60ml | ±0.2% | 0.2-0.6Mpa | 0-45bot/min |
| SFM-S-10 | 10-120ml | ±0.2% | 0.2-0.6Mpa | 0-35bot/min |
| SFM-S-50 | 50-500ml | ±0.2% | 0.2-0.6Mpa | 0-30bot/min |
| SFM-S-100 | 100-1000ml | ±0.2% | 0.2-0.6Mpa | 0-25bot/min |
| SFM-S-500 | 500-5000ml | ±0.2% | 0.2-0.6Mpa | 0-12bot/min |
Machines are packed with seaworthy strong wooden cases for export. Inner packaging uses cartons to prevent damage during carriage. Custom packaging is available upon request.
Pre-sales Service: Engineering design, equipment model selection guide, and equipment machining.
After-sales Service: One-year warranty for spare parts (not caused by improper operation). Professional engineers available for overseas installation and debugging.
