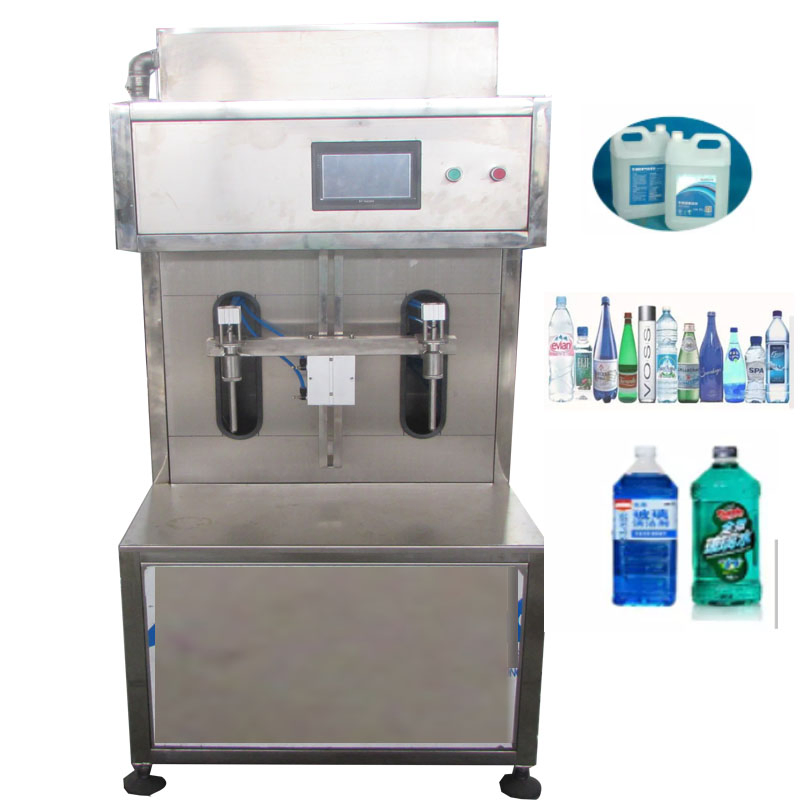

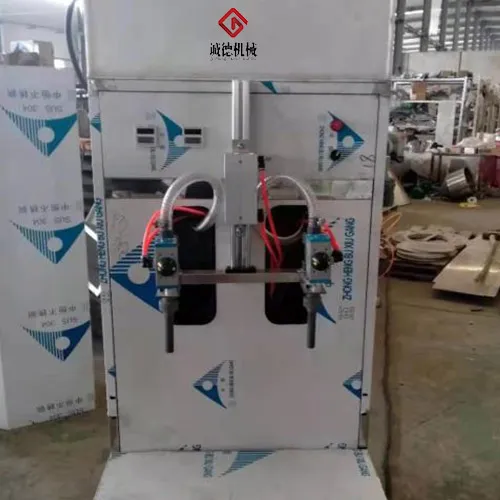

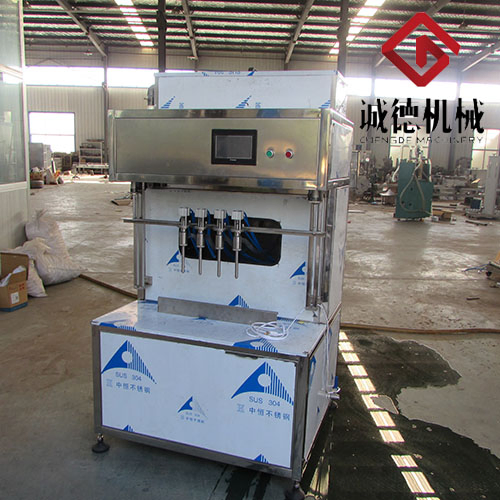

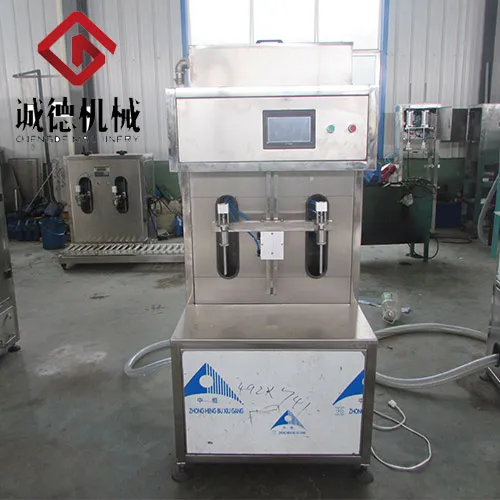

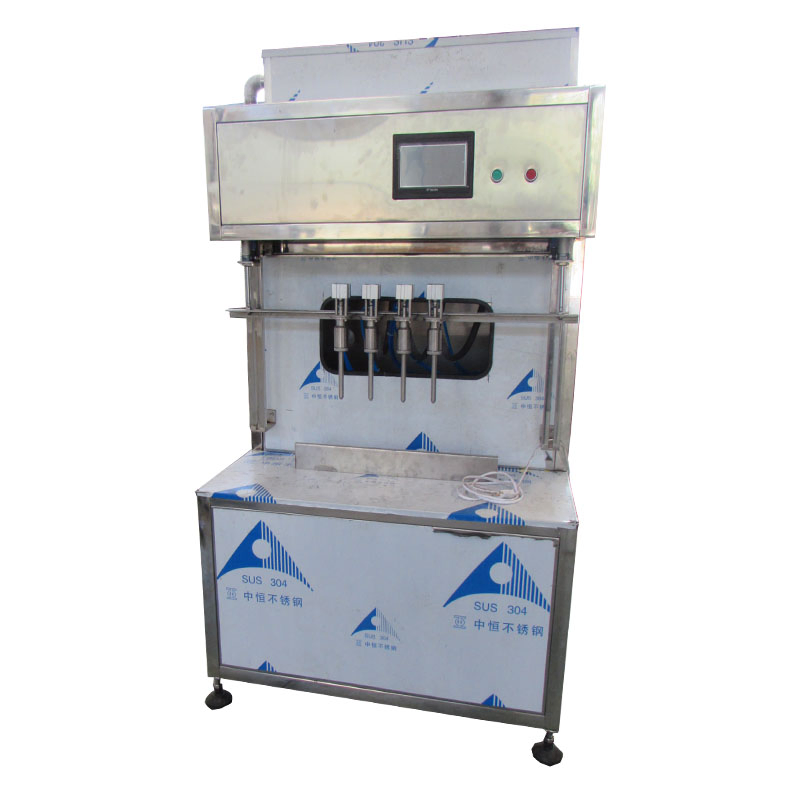

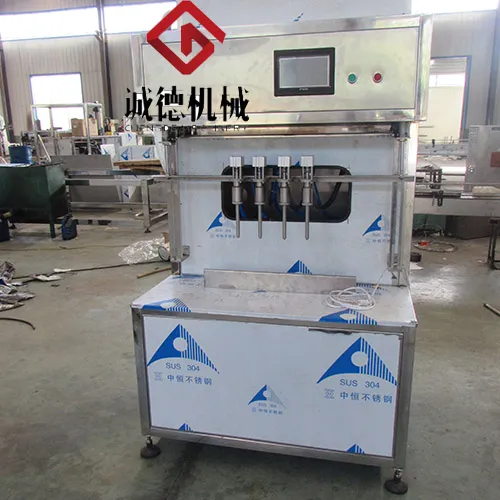

This machine is a semi-automatic filling machine with 2 or 4 heads, where bottles are loaded and unloaded manually. It is primarily designed for filling liquids with good flow properties and no gas, such as water, diesel exhaust fluid, liquor, beverages, and more. The entire machine is constructed from food-grade stainless steel.

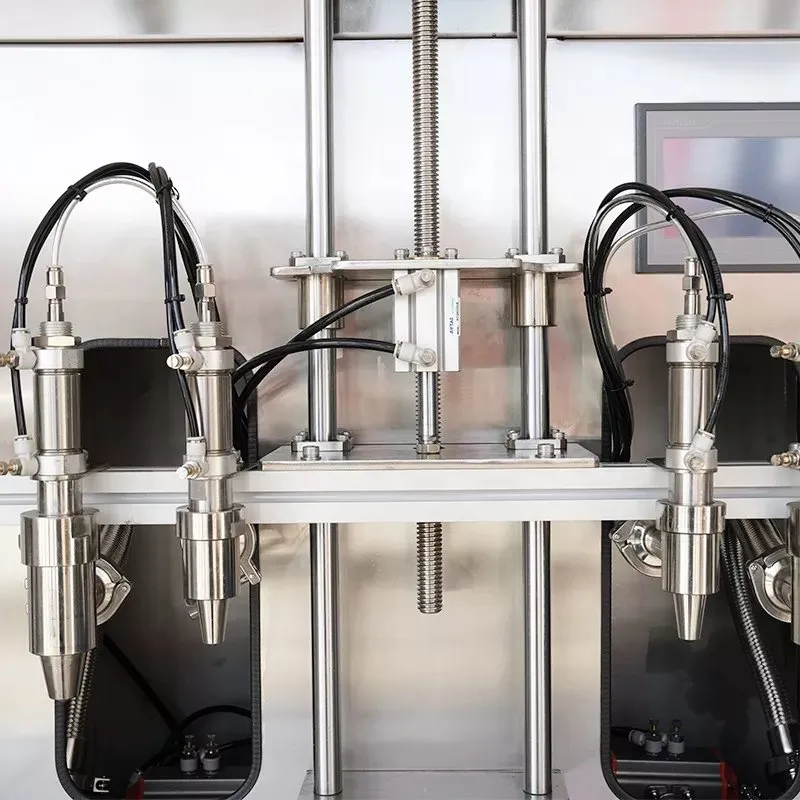

1. The filling valve is made from food-grade SUS304 materials.
2. Nozzles are customized according to your bottle mouth diameter.
3. Precision insertion design ensures no dripping and no overflow during operation.

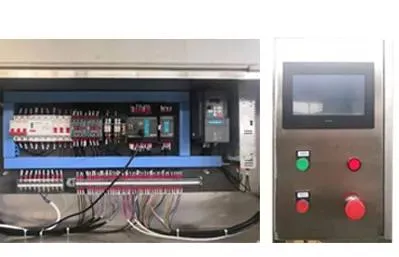

1. Multi-language support (English, Russian, Spanish, etc.).
2. Filling volume is easily adjusted via the digital panel.
3. Equipped with power indicator, ON/OFF button, and Emergency Stop for safety.
| Model | GFZL-2 | GFZL-4 | GFZL-6 |
|---|---|---|---|
| Filling Nozzles | 2 | 4 | 6 |
| Production Capacity | 300~500 bph | 500~800 bph | 800~1000 bph |
| Filling Principle | Gravity Filling | ||
| Filling Standard | 100~5000ml, 5L~20L (Customizable) | ||
| Bottle Height | 100~350mm (Customizable) | ||
| Power | 0.18Kw | 0.37Kw | 0.55Kw |
| Dimensions | 700*350*2200mm | 700*350*2200mm | 1000*350*2200mm |
1. Time-Based Control: Utilizes fixed flow channel parameters and precise timing to achieve consistent filling quantities.
2. Fine Tuning: Initial volume adjustment followed by micro-tuning ensures ideal measurement accuracy.
3. Consistency: Each filling head can be adjusted independently to maintain uniformity across all bottles.
4. Pneumatic Precision: Valve response time can be set to 0.01 seconds, maintaining an error range within ±1%.
5. Smart Sensors: Features a "No Bottle, No Fill" procedure to prevent material waste.

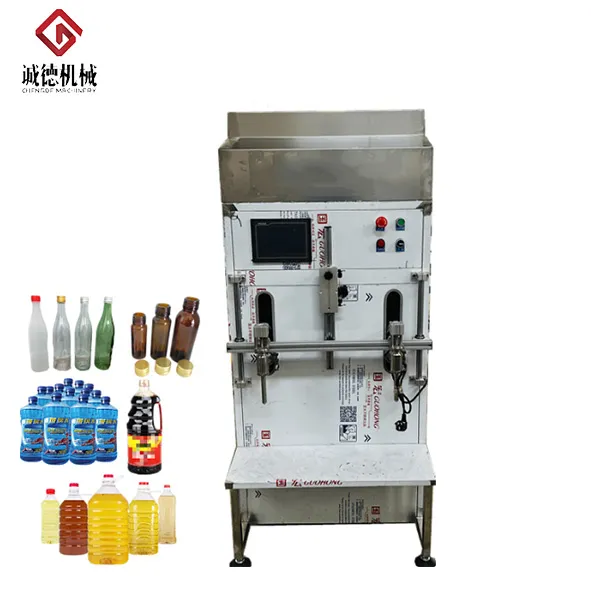

This equipment is versatile and suitable for various industries including food, cosmetics, chemicals, and pharmaceuticals. It handles liquids such as mineral water, milk, toner, soy sauce, vinegar, and automotive fluids (DEF) across different bottle materials and capacities.

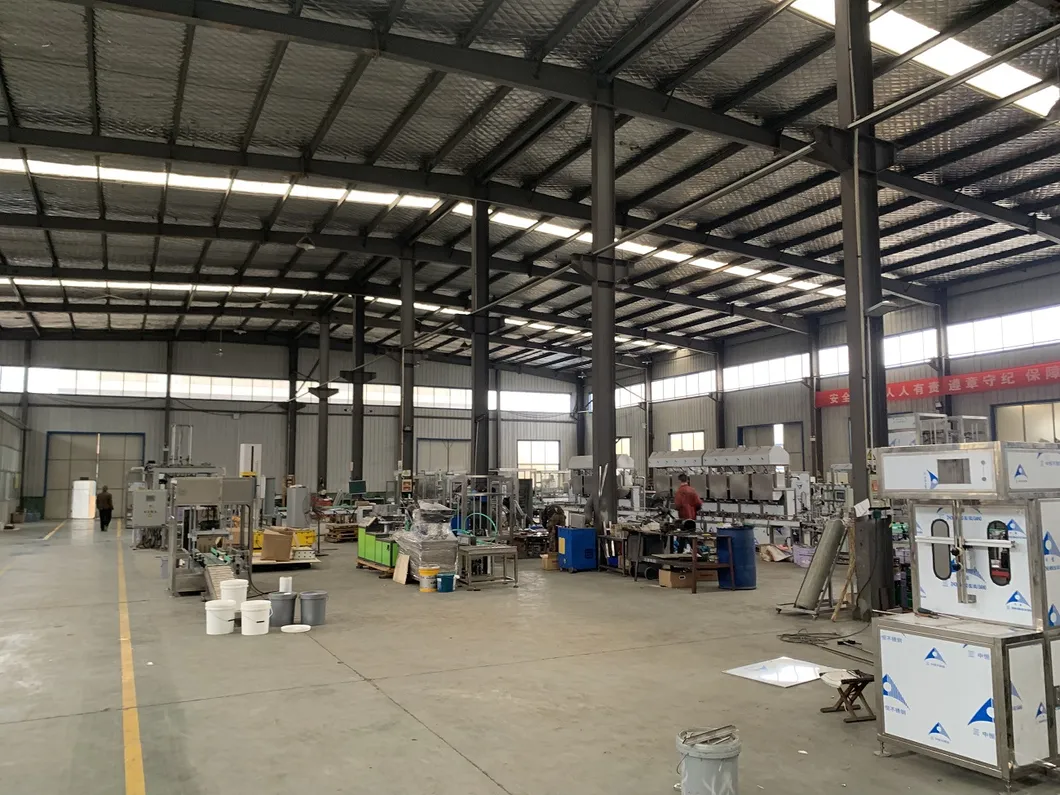

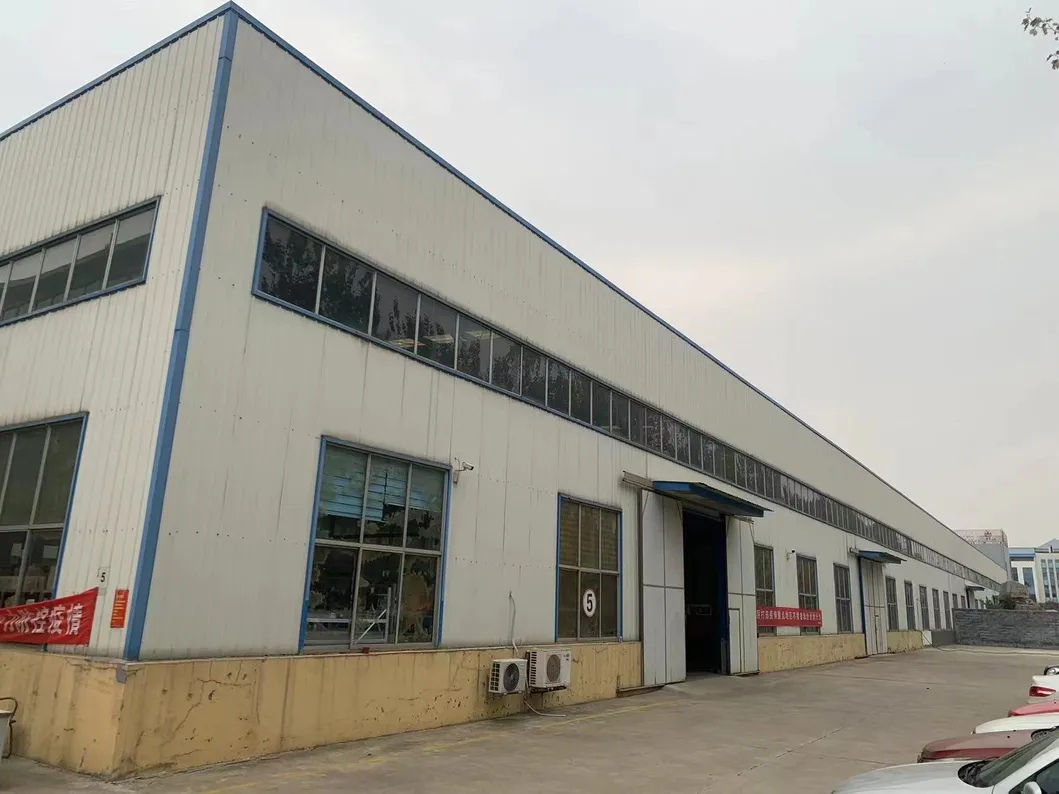

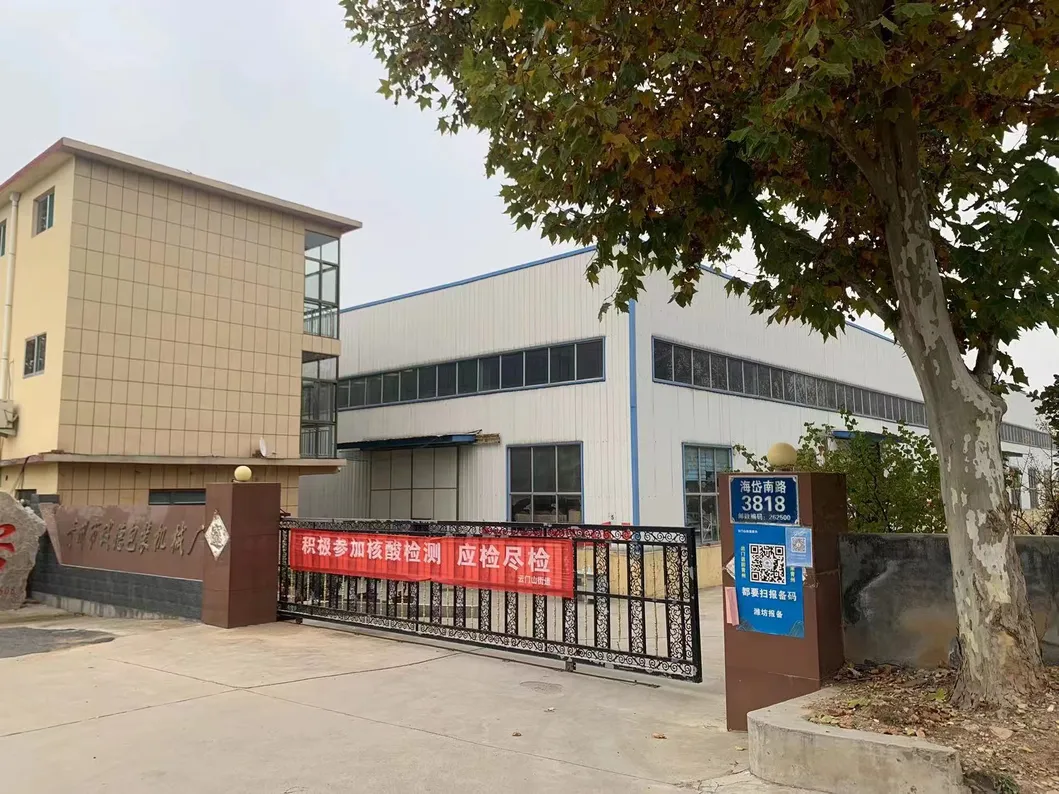

Our facility covers 6,000 square meters and is equipped with advanced CNC machine tools and large cutting machines to ensure high production capacity and service levels. We specialize in automatic packaging machinery including filling, washing, capping, and labeling systems.
We have passed CE certification for sealing and filling machines, ISO9001, and SGS audits to ensure the highest product quality.
We provide regular updates on the manufacturing process. Buyers are invited to test the machine at our factory upon completion, or we can provide detailed testing videos for remote inspection.
Machines are designed according to your specific requirements (material, power, filling type, bottle type). We also offer free technical consultation and factory layout design.
