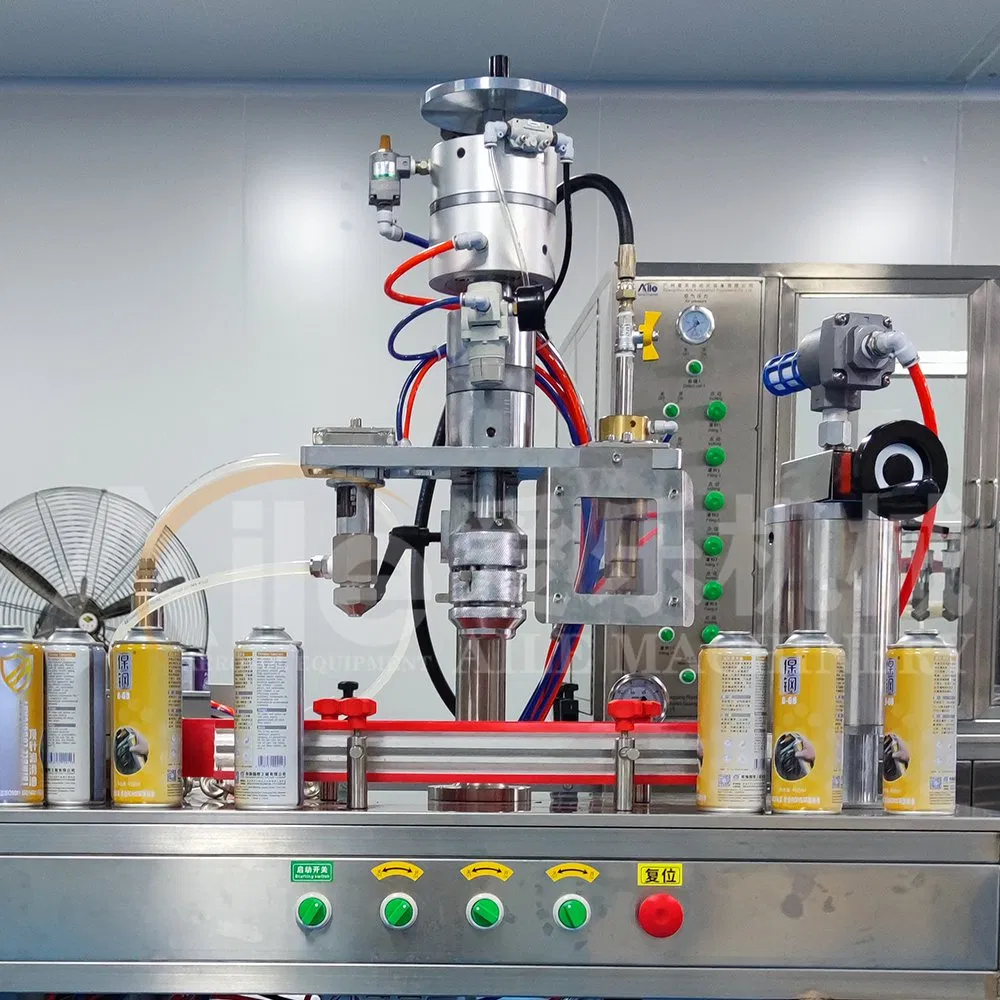

1. The filling head, sealing mouth, and charging head are arranged on a support in a straight line, optimizing the classic positioning mode. During operation, cans are pushed in from the guiding plate on the left, limited by the baffle plate, and removed from the front right after completion.
2. Efficient Operation: A single foot valve operation triggers liquid filling, sealing, and gas filling simultaneously. This allows a single operator to manage the entire semi-automatic process.
3. Stability: Utilizes standard cylinders for driving, providing higher stability and more reliable performance. The structure is refined with a beautiful appearance, maintaining a maximum irrigation and aeration volume of 450ml.

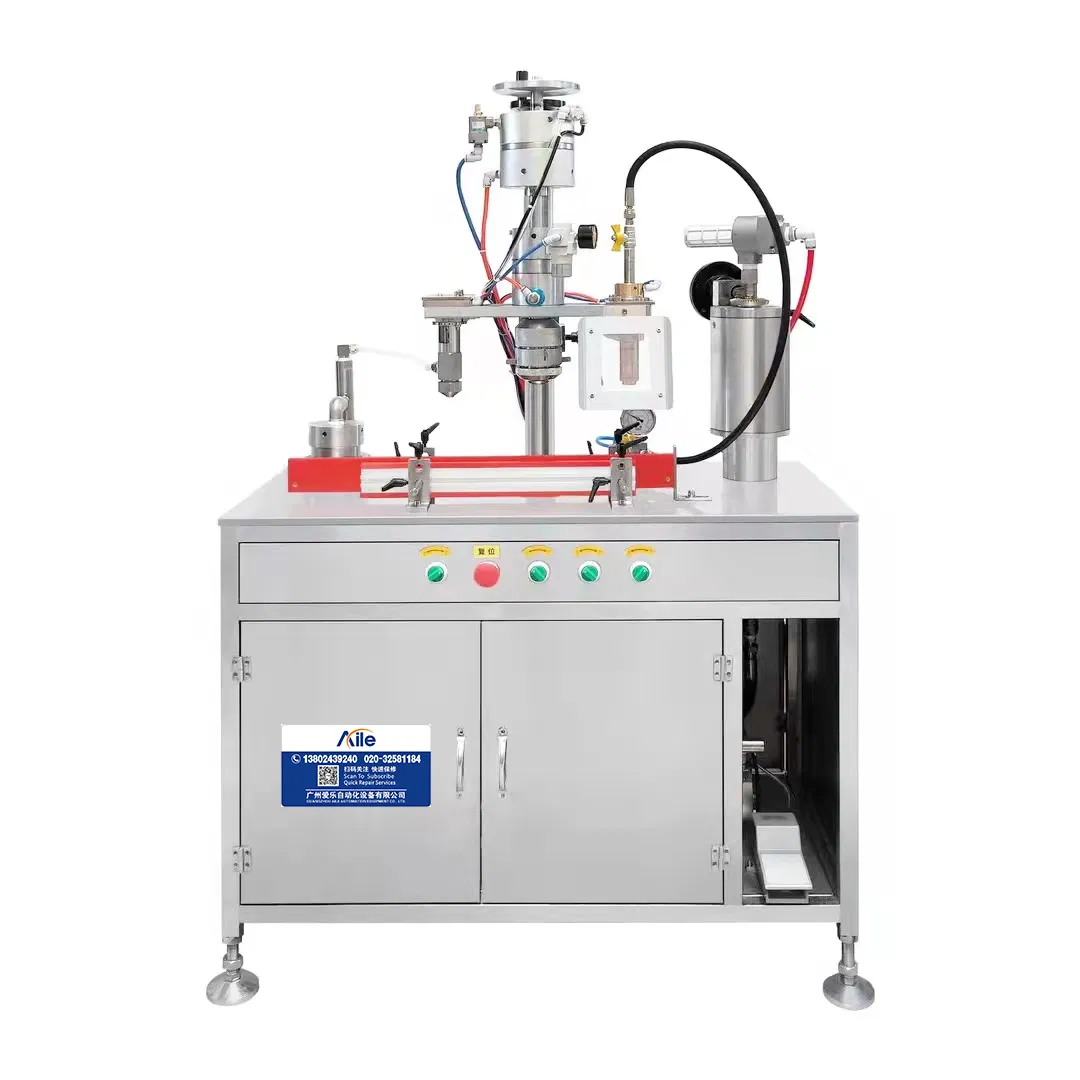

| Name | Semi automatic aerosol machine |
| Model | AL-SHY-3 |
| Production speed | 400-600 cans per hour |
| Suitable can's height | 80-330mm |
| Suitable can's diameter | 38-65mm |
| Liquid filling capacity | 450ml |
| Suitable valve size | 1 inch |
| Gas filling capacity | 450ml |
| Filling accuracy | ±1% |
| Work pressure | 0.6-0.8 Mpa |
| Applications | Air freshener, Deodorant Spray, Spray paint, Snow spray, Ribbon spray |
