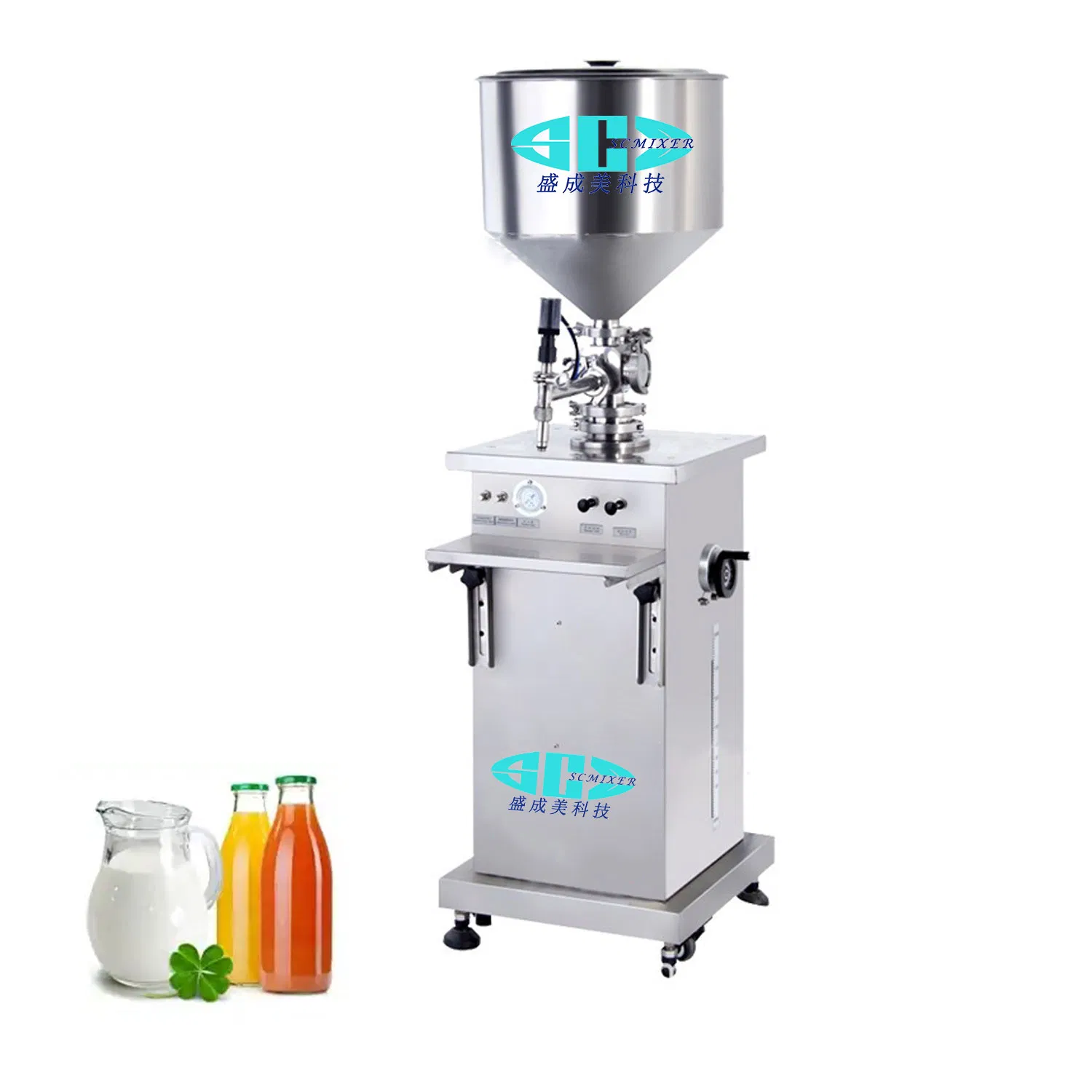

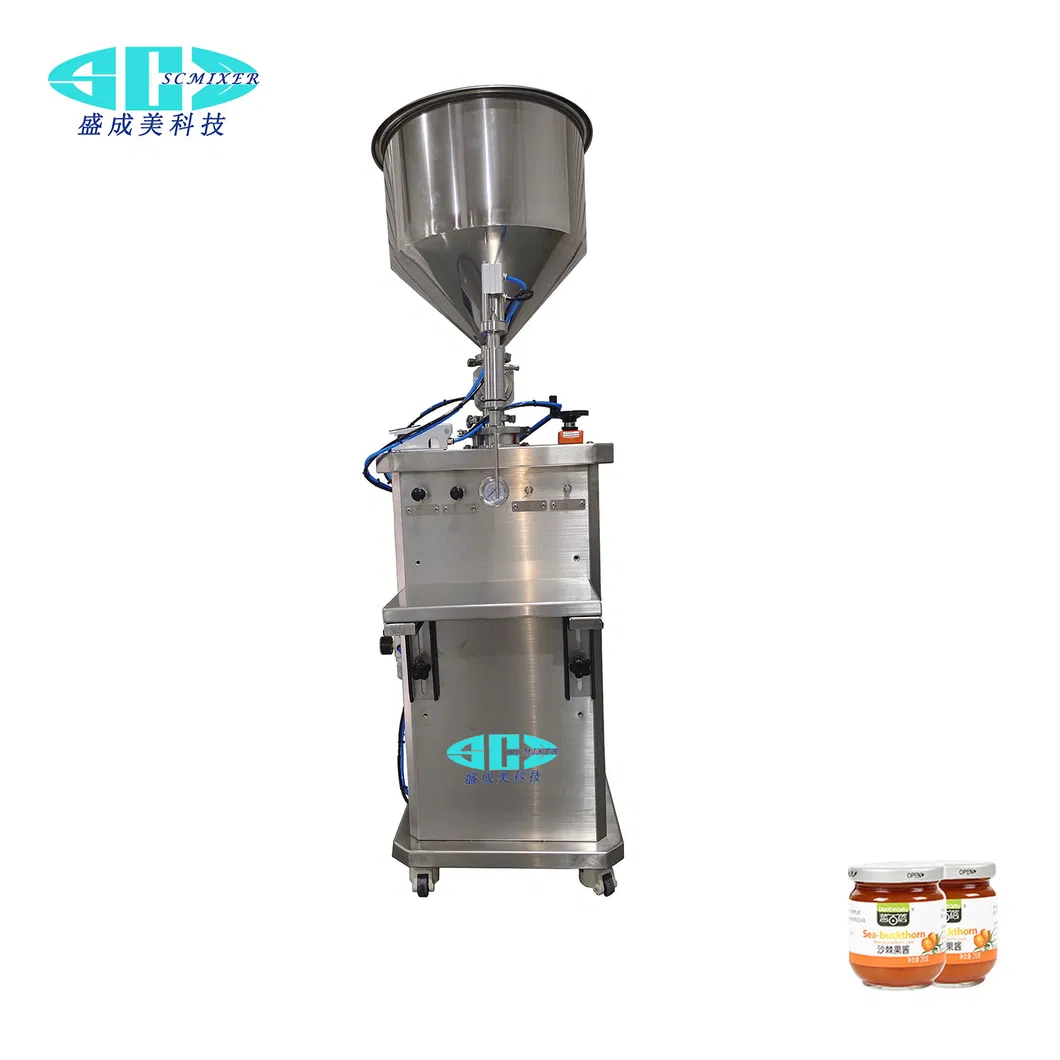

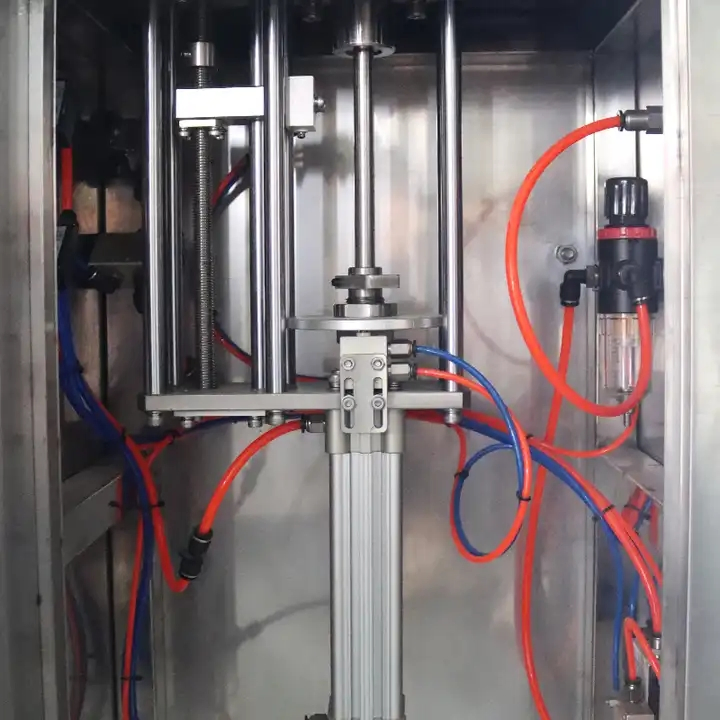

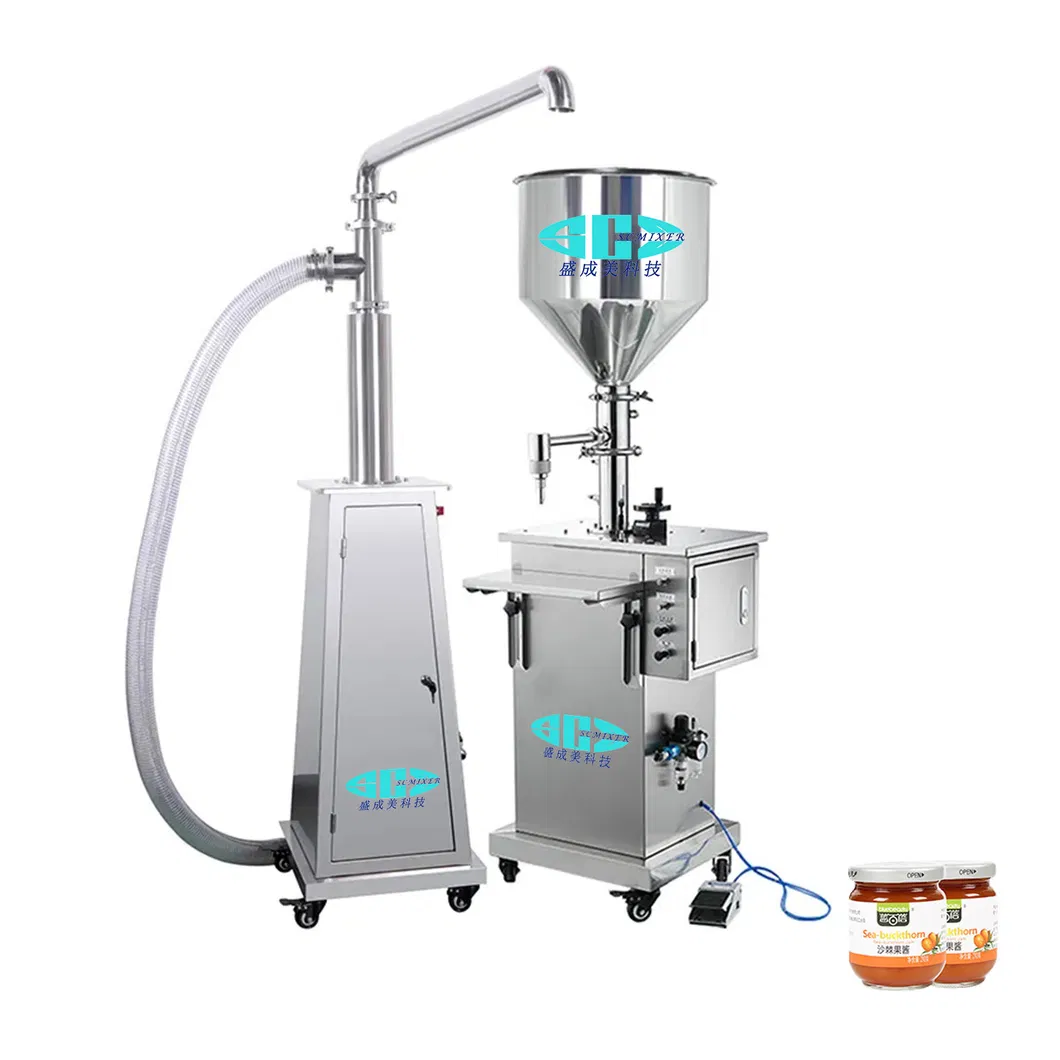

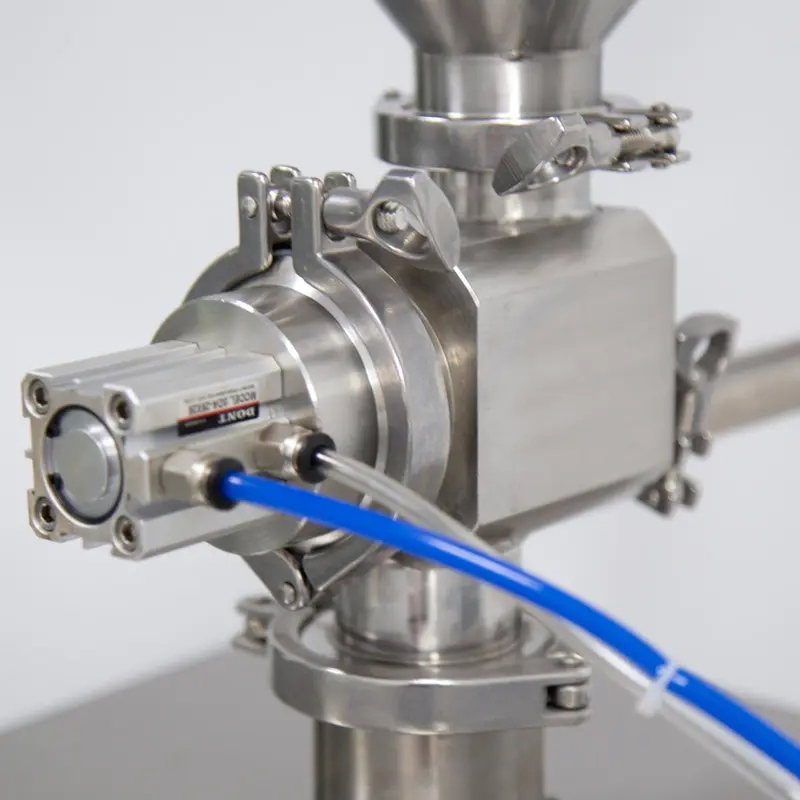

The semi-automatic pneumatic paste liquid filling machine is a specialized equipment designed for viscous materials. Utilizing domestic and foreign advanced technology, it features a new horizontal design that is lightweight and convenient. The equipment adopts pneumatic components and a piston push rod structure, creating a vacuum cavity for negative pressure absorption, making it ideal for materials with poor flow ability.
| No. | Item | Specification |
|---|---|---|
| 1 | Filling range | 50-1000ml |
| 2 | Filling head | 1 pcs (changeable) |
| 3 | Filling method | Pneumatic piston filling |

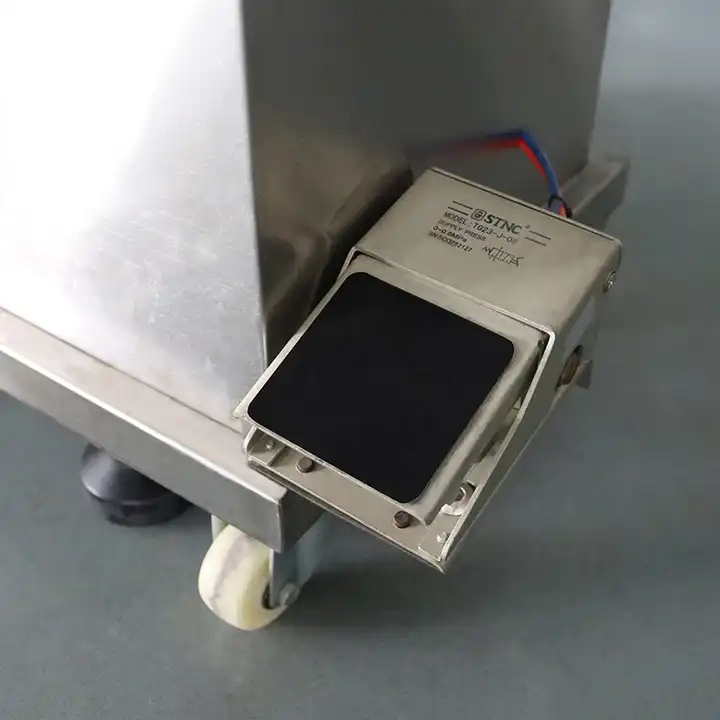

| 4 | Output method | Pedal switch or automatic discharge |
| 5 | Filling accuracy | ±2% (Adjustable speed) |

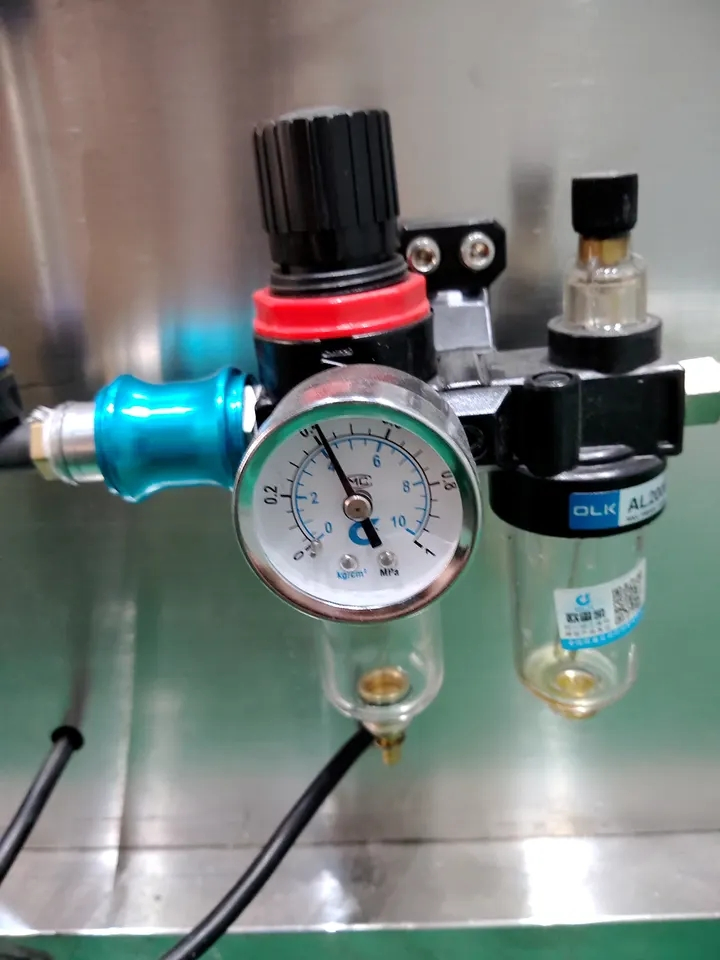

| 6 | Air pressure | 4-5kg/cm2 |
| 7 | Productivity speed | 20-35 bottles/min |
| 8 | Hopper volume | 30L |
| 9 | Machine material | Contact parts SUS316L Stainless Steel; Piston PTFE |
| Model | Filling Volume | Precision | Air Supply | Productivity |
|---|---|---|---|---|
| SFM-S-5 | 5-60ml | ±0.2% | 0.2-0.6Mpa | 0-45 bot/min |
| SFM-S-10 | 10-120ml | ±0.2% | 0.2-0.6Mpa | 0-35 bot/min |
| SFM-S-25 | 25-250ml | ±0.2% | 0.2-0.6Mpa | 0-30 bot/min |
| SFM-S-50 | 50-500ml | ±0.2% | 0.2-0.6Mpa | 0-30 bot/min |
| SFM-S-100 | 100-1000ml | ±0.2% | 0.2-0.6Mpa | 0-25 bot/min |
| SFM-S-500 | 500-5000ml | ±0.2% | 0.2-0.6Mpa | 0-12 bot/min |
