Basic Information
Filling Valve Head
Single-Head
Feed Cylinder
Single-Room Feeding
Filling Principle
Pressure
Packaging Material
Plastic
Suitable Material
Various Liquids, Viscous Liquids
Driving Way
Totally Pneumatical Controling
Machine Material
Stainless Steel 304
Production Capacity
50sets/Month
Product Description

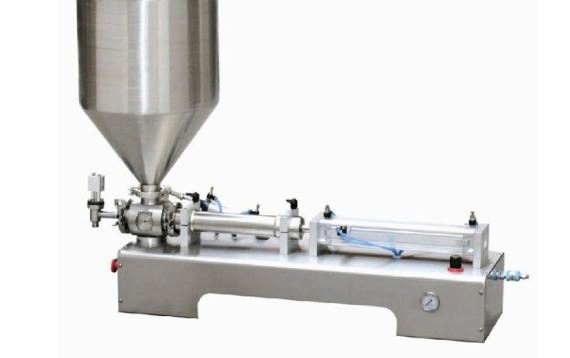

Semi-auto liquid soap filling machine without or with stand
Introduction
1
Fully controlled by pneumatic, simple operation; with top-quality piston to measure & fill, easy to dismantle and clean.
2
High filling precision, suitable for various liquids and liquids with a certain viscosity degree, especially good for flammable and explosive liquid.
3
Operation modes: controlled by foot pedal or automatically by time, offering great convenience.
4
Filling dosage is easy to adjust & filling precision is extremely high.
5
Constructed from stainless steel 304/316, ensuring the machine is both delicate and durable.
6
Double air pressure controlling, adjustable according to requirements, providing a more stable and steady performance.
Product Visuals

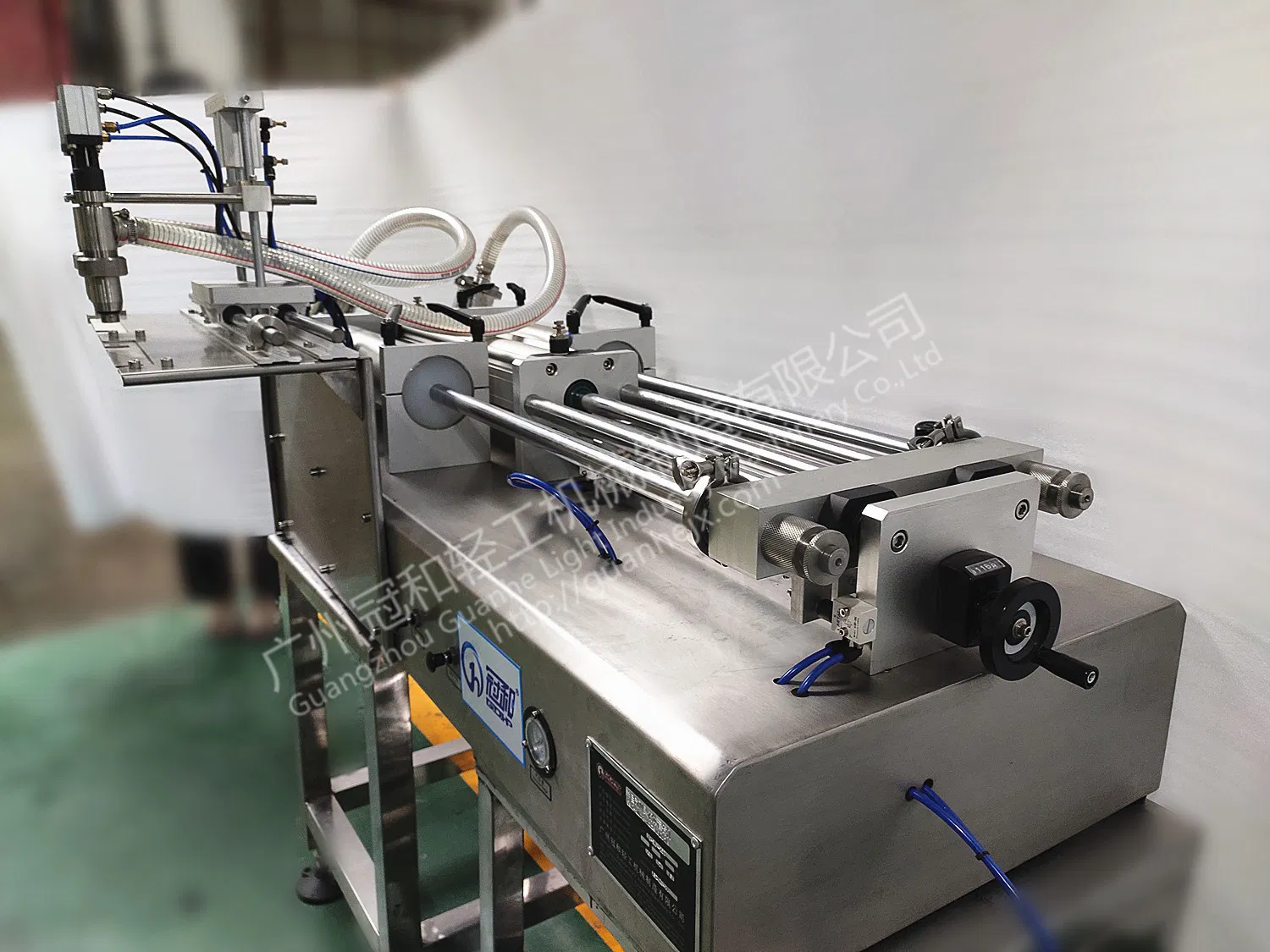

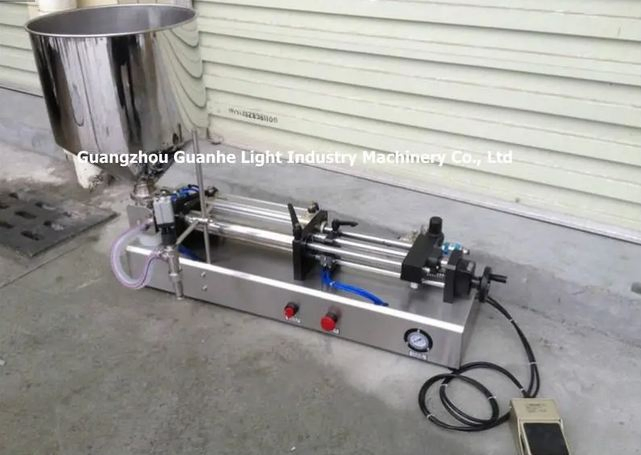

Semi-auto 1-nozzle liquid filler without stand

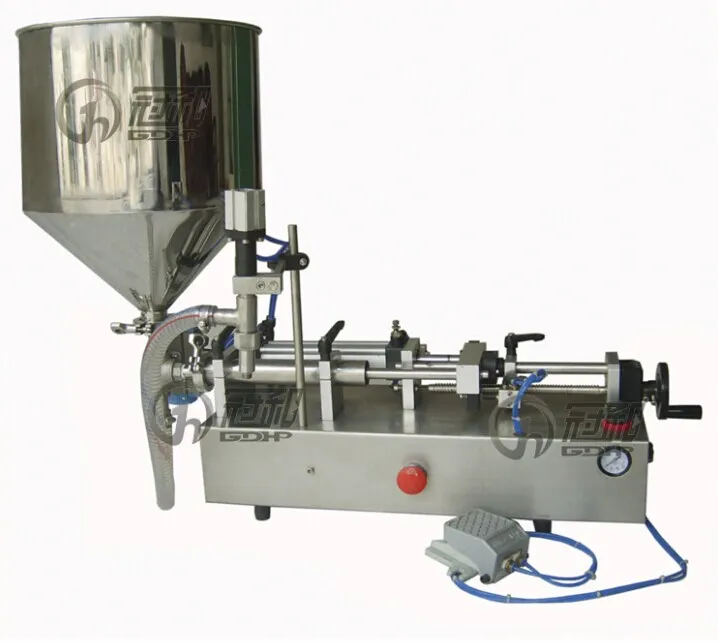

Controlled by foot pedal

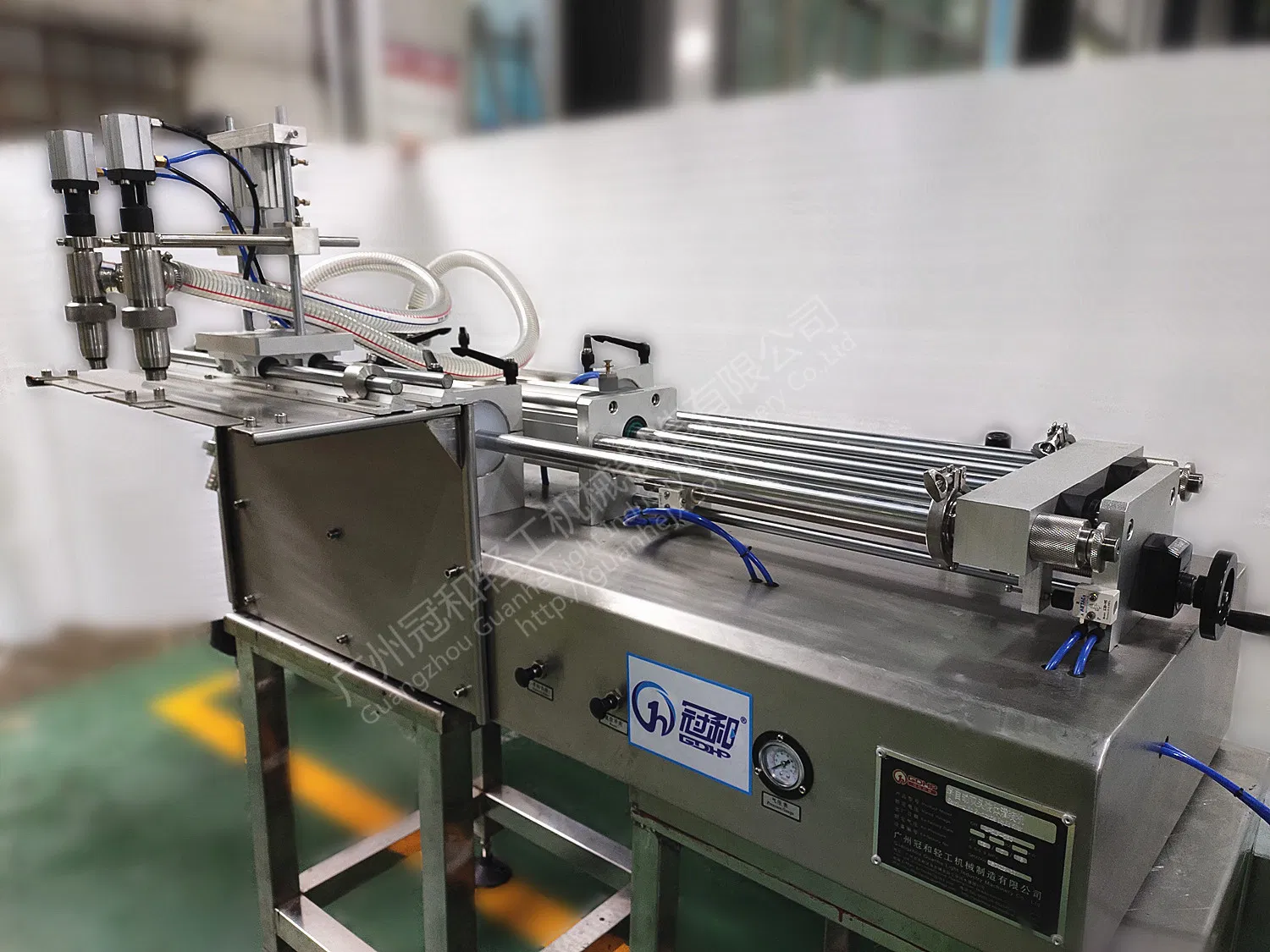

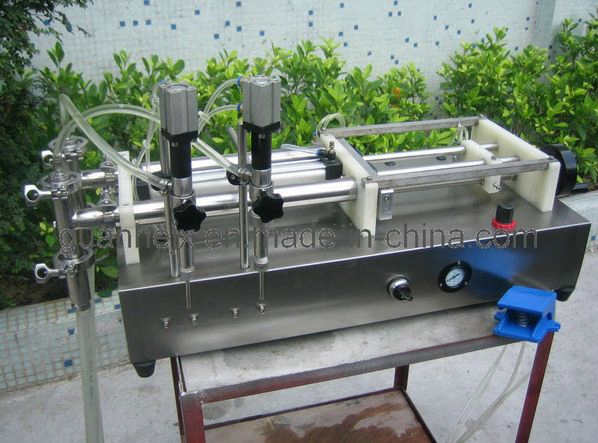

2-head pneumatic model

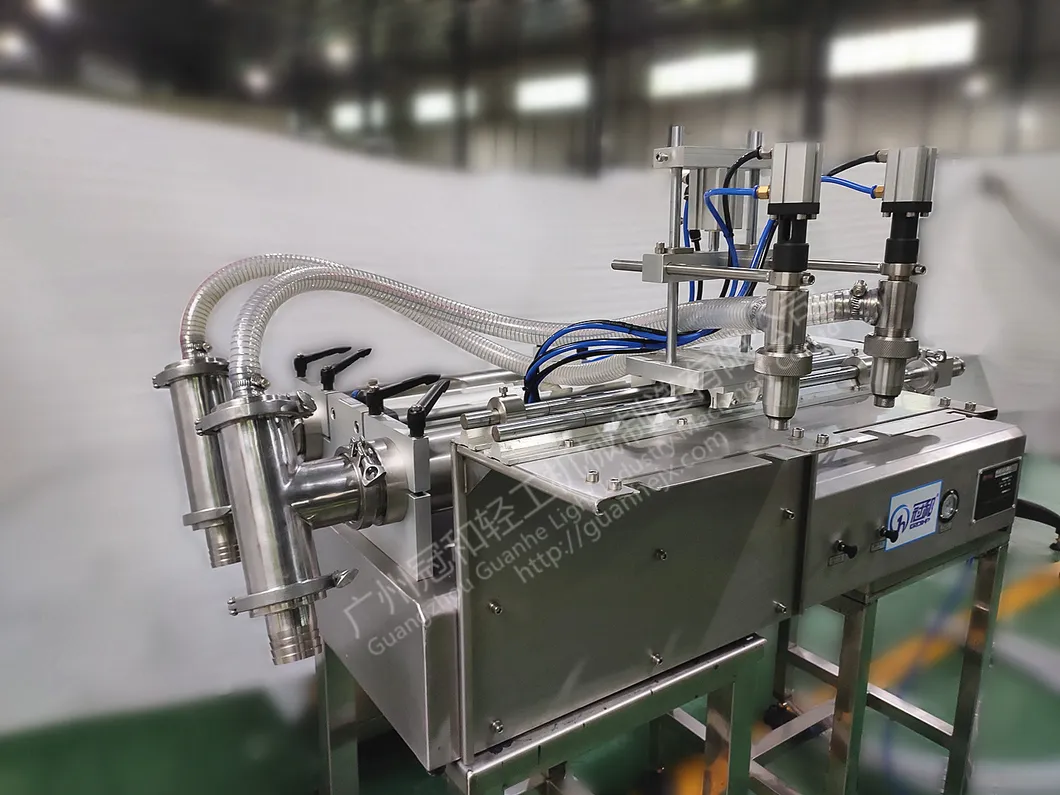

2-head piston-type detail

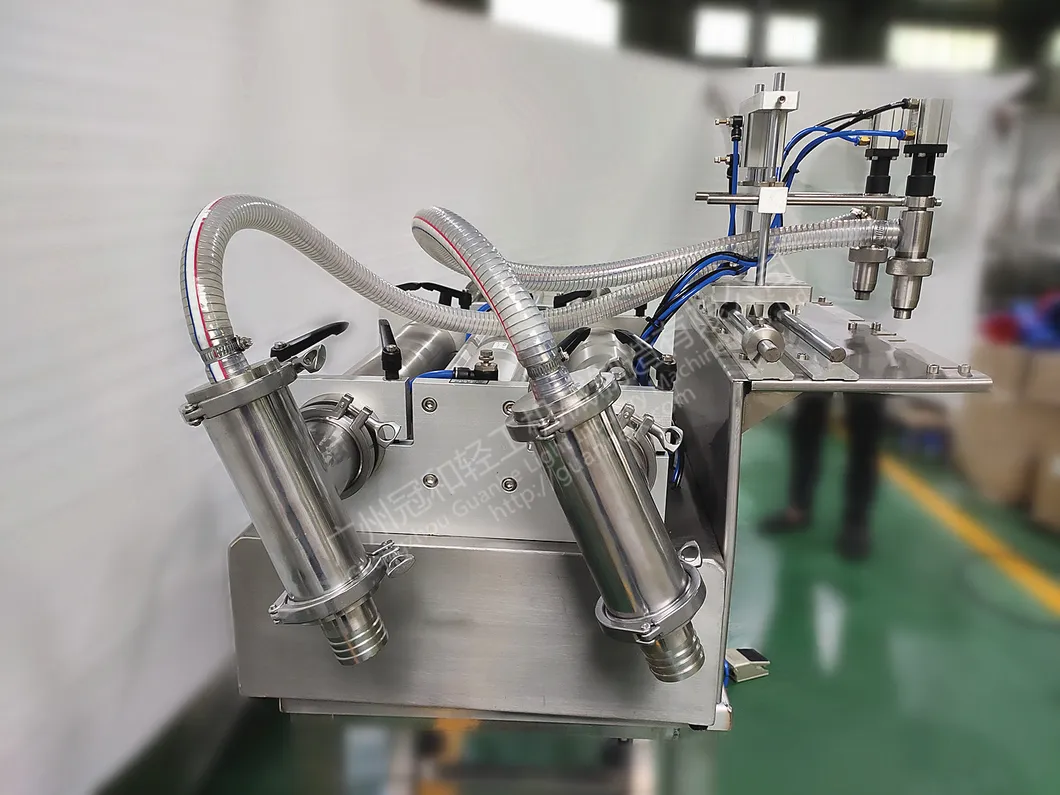

Suitable for paste or granules

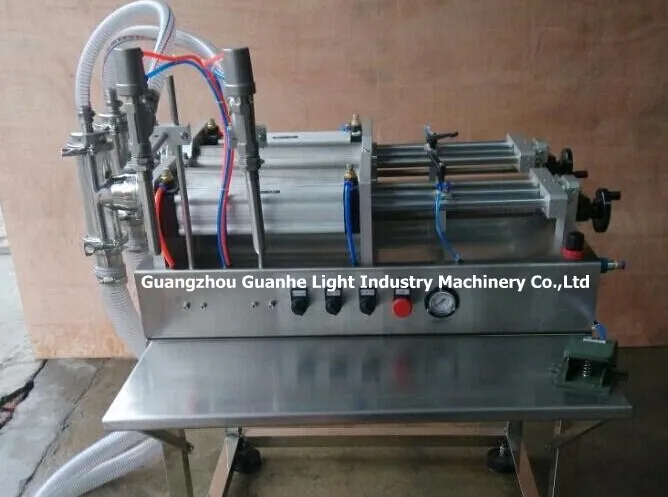

2-nozzle liquid filler with stand
Main Parameters
| ITEM |
SLF-P6 |
SLF-P12 |
SLF-P25 |
SLF-P50 |
SLF-P100 |
SLF-P250 |
SLF-P500 |
| Filling Scope |
5-60ml |
10-120ml |
25-250ml |
50-500ml |
100-1000ml |
250-2500ml |
500-5000ml |
| Ideal Scope |
25-60ml |
50-120ml |
100-250ml |
200-500ml |
400-1000ml |
800-2500ml |
2000-5000ml |
| Air Pressure |
4-6kg/cm² |
5-8 kg/cm² |
| Filling Speed |
0-30BPM |
0-20BPM |
0-15BPM |
| Filling Error |
5‰ |
| N. W. |
23kg-35 |
40-77kg |
| Dimensions |
785*425*530 |
862*412*530 |
918*420*480 |
1112*477*480 |
1175*505*480 |
1342*550*480 |
1264*634*480 |
Frequently Asked Questions
What types of liquids can this machine handle?
This machine is versatile and suitable for various liquids, including viscous liquids, liquid soaps, detergents, creams, and even materials with small granules.
Is the machine safe for flammable products?
Yes, because it is fully controlled by pneumatic power (air pressure) without electrical components in the filling mechanism, it is ideal for flammable and explosive environments.
How accurate is the filling process?
The machine utilizes a high-quality piston dosing device, achieving a very high filling precision with an error margin of only approximately 5‰.
Can I adjust the filling volume easily?
Absolutely. The filling dosage is easily adjustable by controlling the piston stroke, allowing you to switch between different container sizes quickly.
What are the available operation modes?
The machine supports two modes: manual control via a foot pedal for semi-automatic operation, or a timer-based automatic mode for continuous filling.
Is the machine easy to clean for different products?
Yes, the machine is made of Stainless Steel 304/316 and is designed for easy dismantling, making the cleaning process straightforward when switching between different materials.
