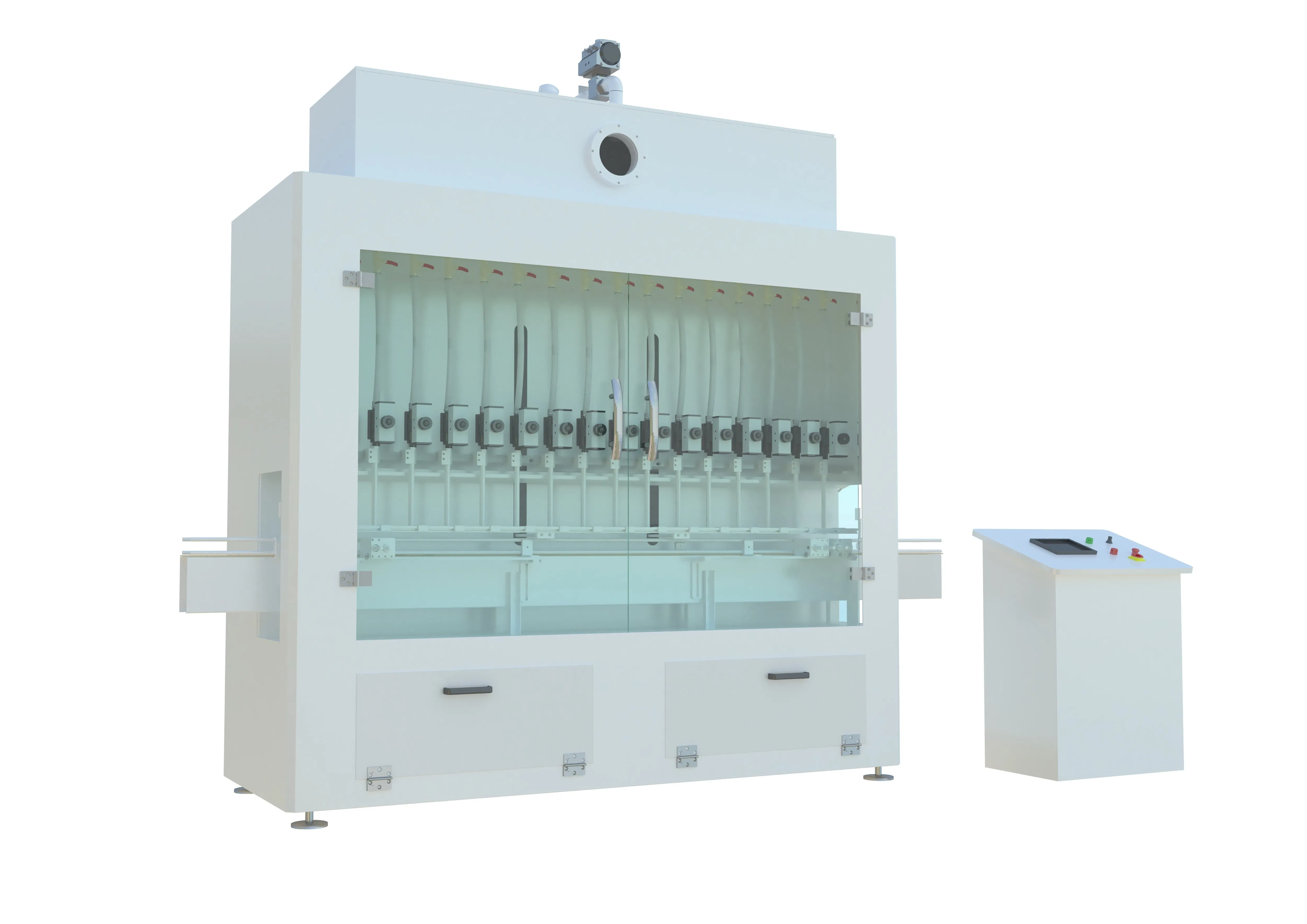

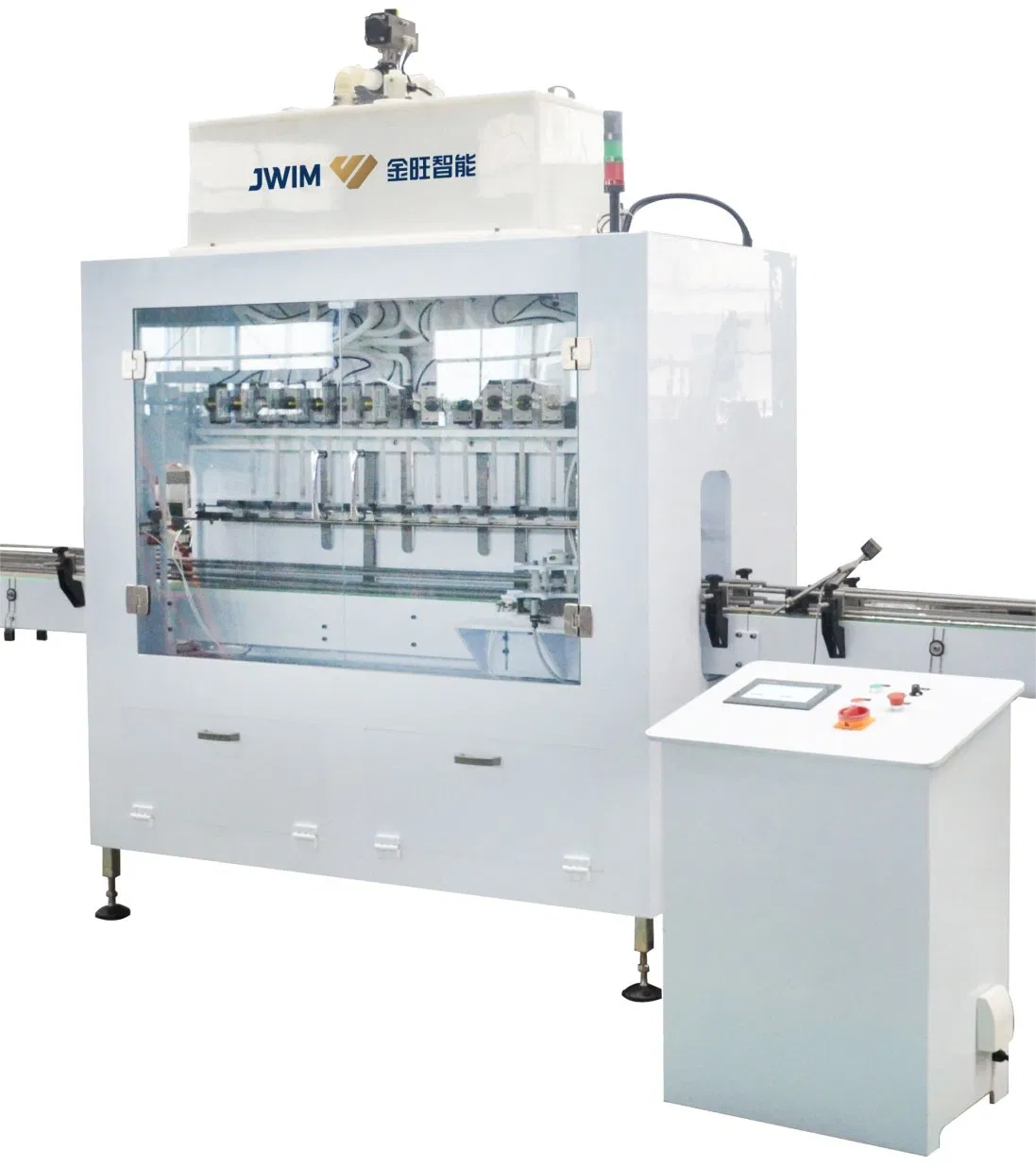

Microcomputer In-line Anti-corrosion Gravity Filling Machine is specifically designed for packing materials with good fluidity, such as pesticides, veterinary drugs, daily chemicals, and fertilizers.

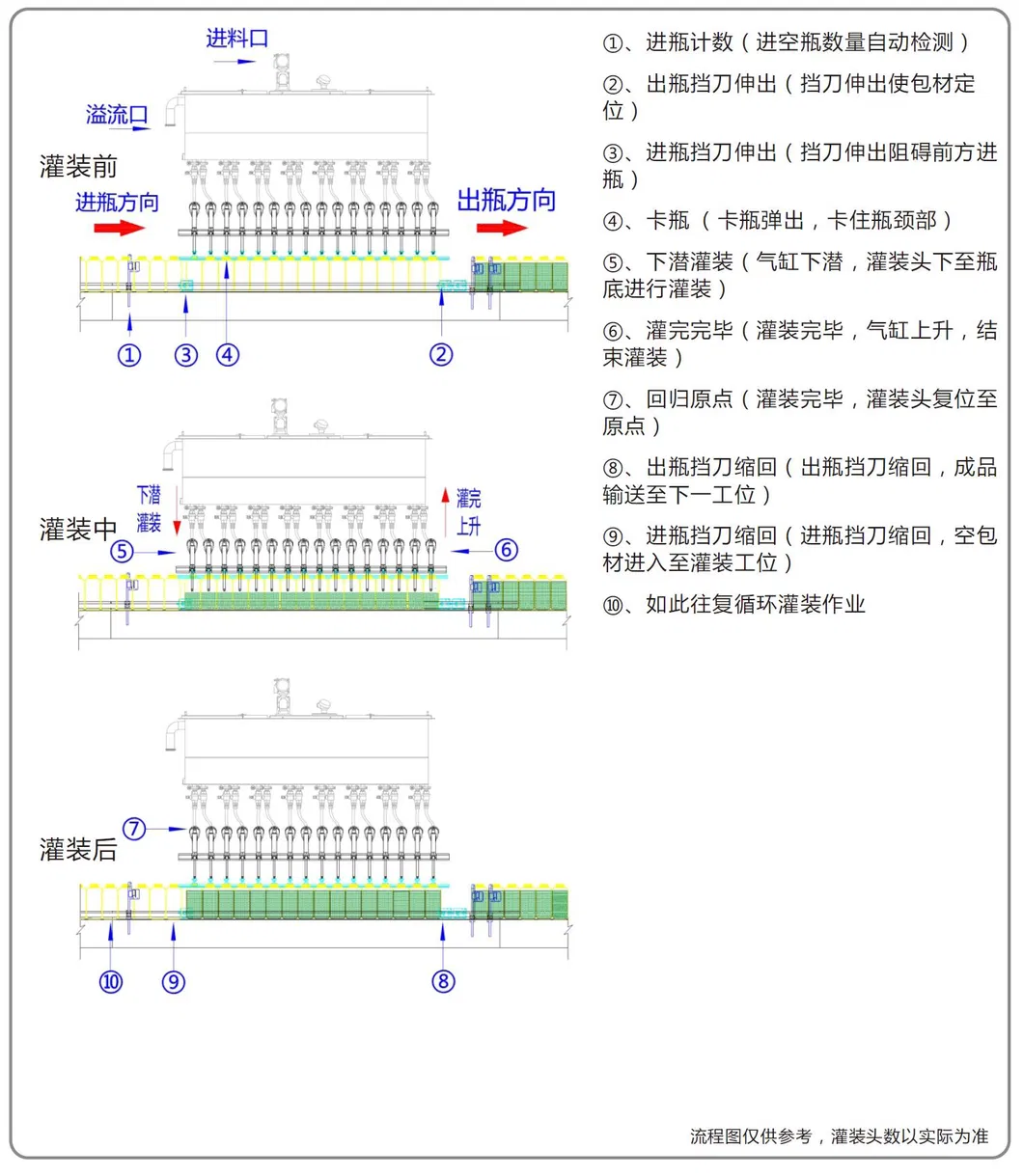

The CDP-16E features an in-line structure using a precise metering and timing mode to keep liquid levels constant. Controlled by a high-end PLC and touch-type man-machine interface, it ensures intuitive operation and high precision for corrosive liquid environments.
| No. | Description | Details |
|---|---|---|
| 1 | Filling Capacity | 100ml: ≤5500BPH | 500ml: ≤3200BPH | 1000ml: ≤2400BPH |
| 2 | Applied Bottles | Round bottle: Φ40-95mm, Height: 80-230mm |
| 3 | Filling Error | ±1g (50-200ml), ±2g (200-500ml), ±3g (500-1000ml) |

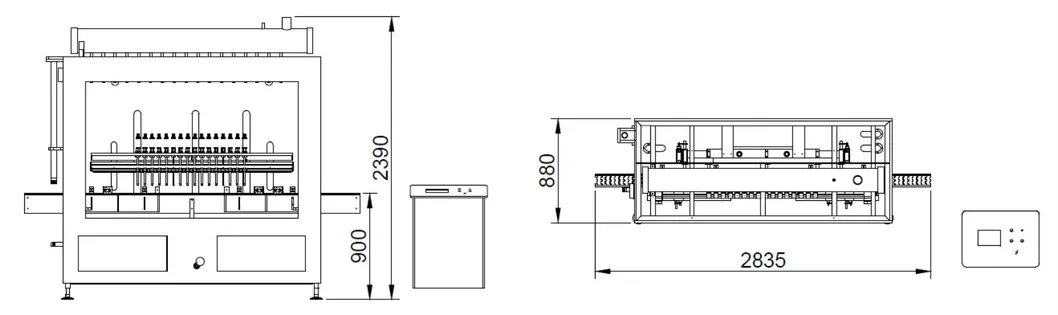

| 4 | Inlet Height | 2560mm |
| 5 | Inlet Diameter | Φ34mm |
| 6 | Power Source | 380V 50Hz / 0.7KW |
A: It is ideal for corrosive liquids with good fluidity, such as pesticides, veterinary drugs, fertilizers, and daily chemical products.

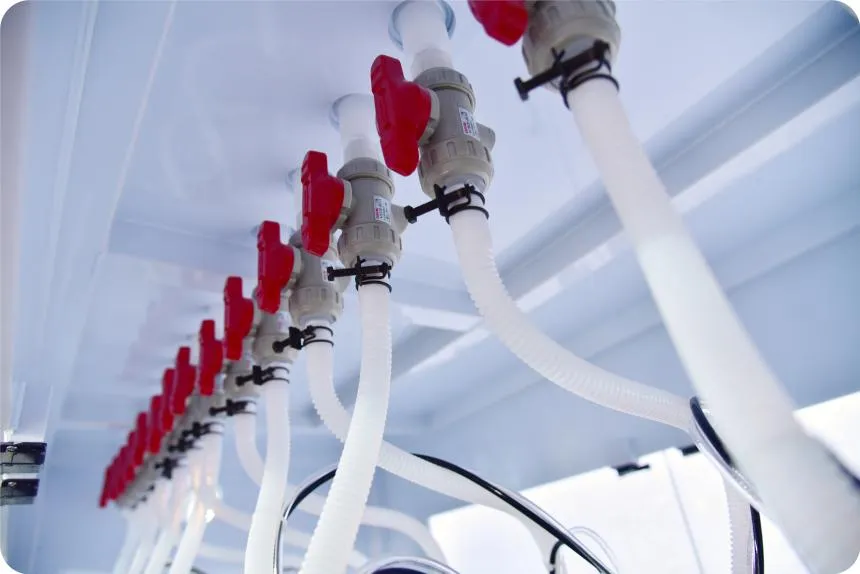

A: The equipment uses anti-corrosion PP (Polypropylene) for the frame, pipes, and filling heads, along with Teflon treatment on critical components.
A: The filling error ranges from ±1g to ±3g depending on the filling volume (from 50ml to 1000ml).

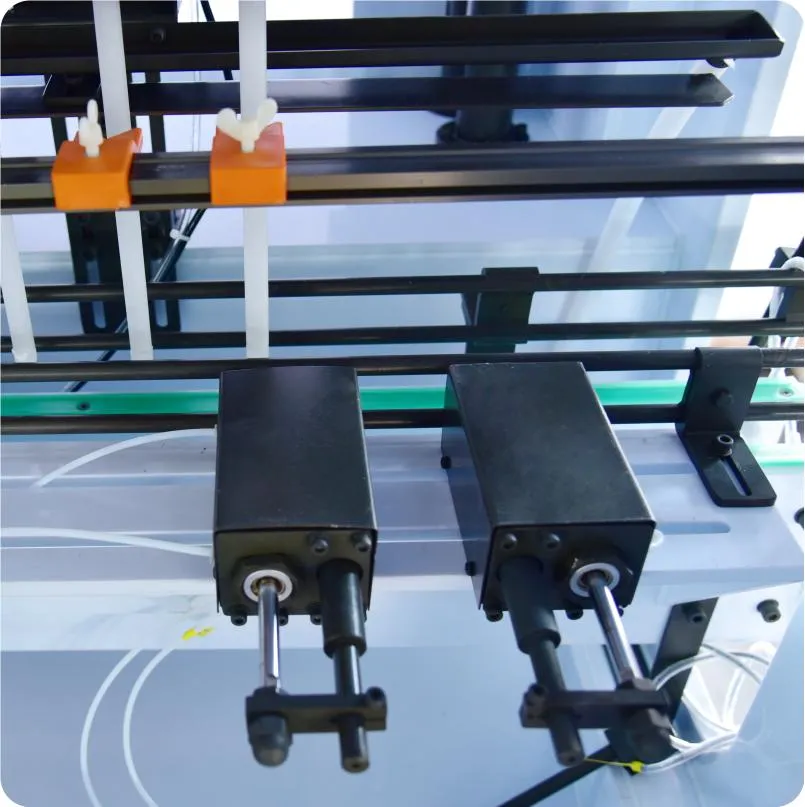

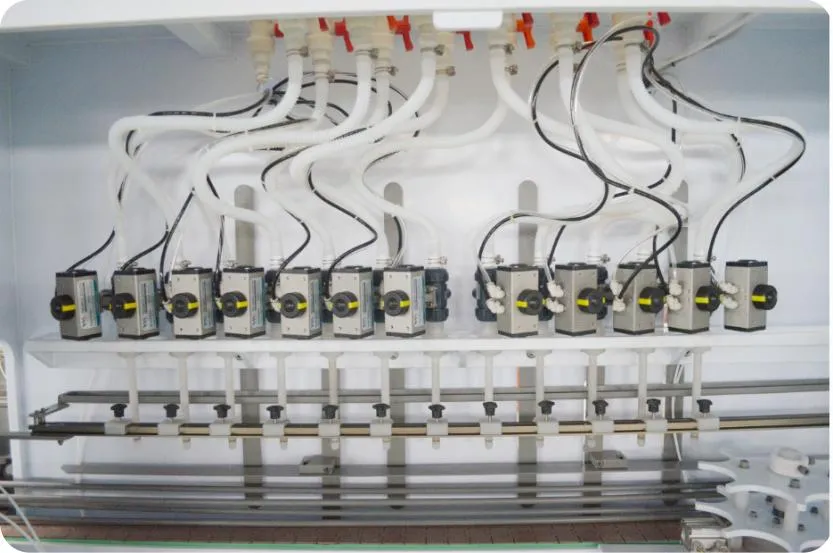

A: Yes, it uses a cylinder-driven diving filling method where the nozzle dives to the bottom of the bottle to minimize foam and overflow.
A: Yes, it supports round bottles with diameters between 40mm to 95mm and heights between 80mm to 230mm.

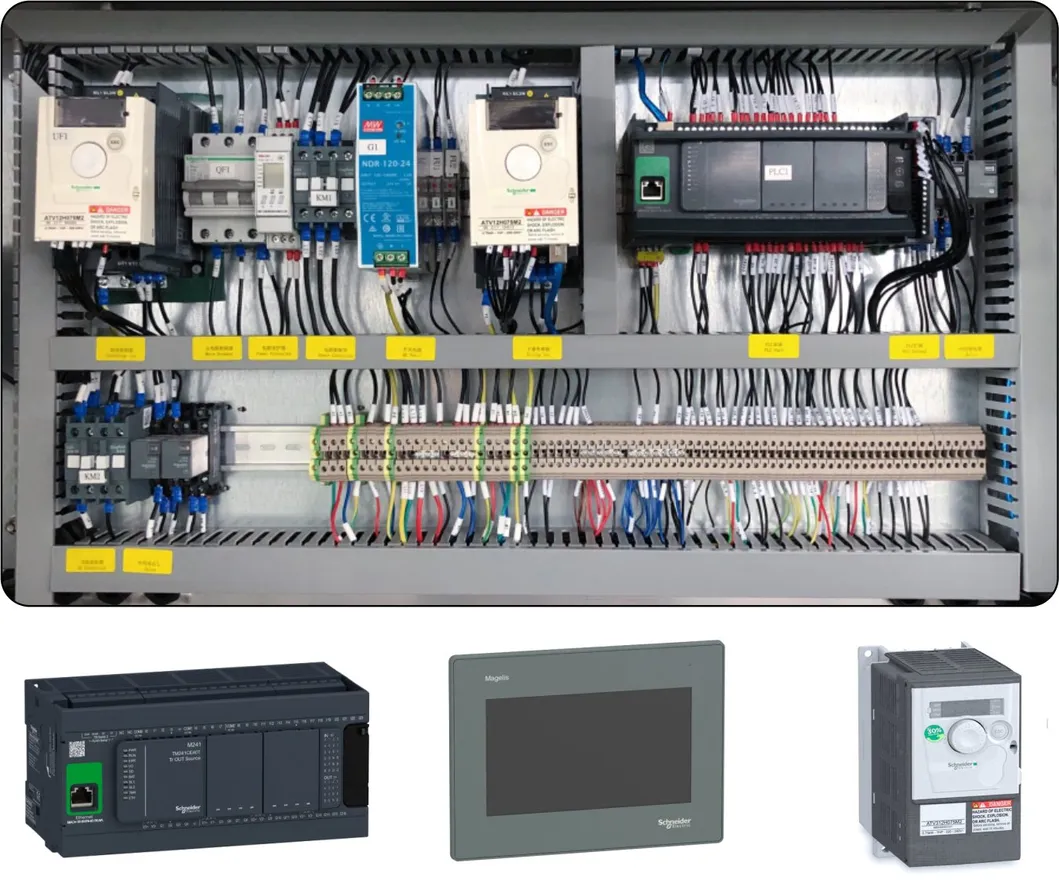

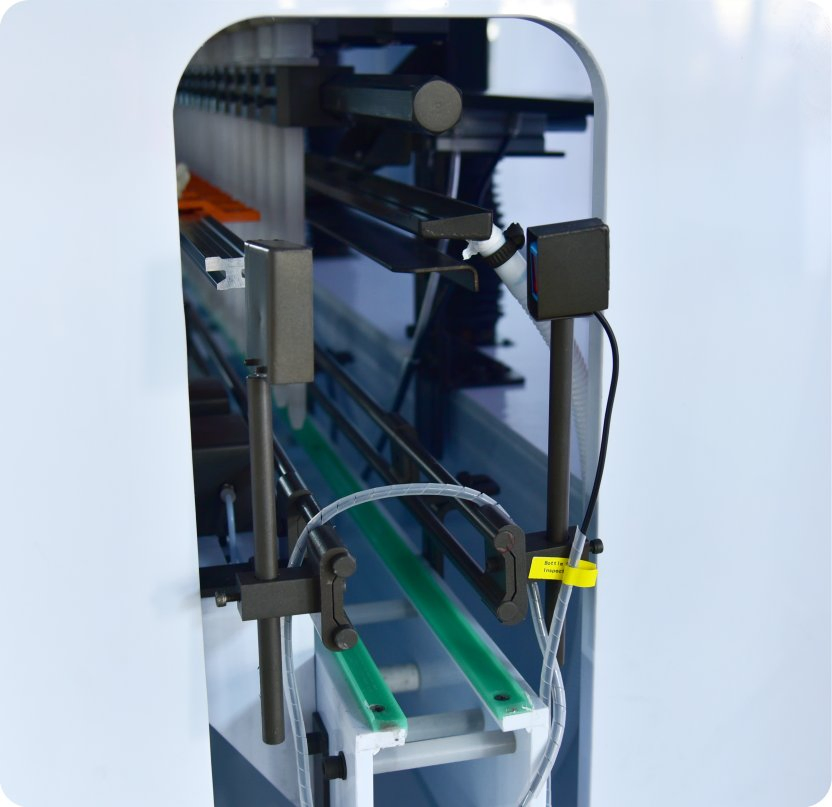

A: It includes an independent electrical box, waste gas exhaust interface, sound/light alarms for liquid level abnormalities, and automatic stop for low air pressure.
