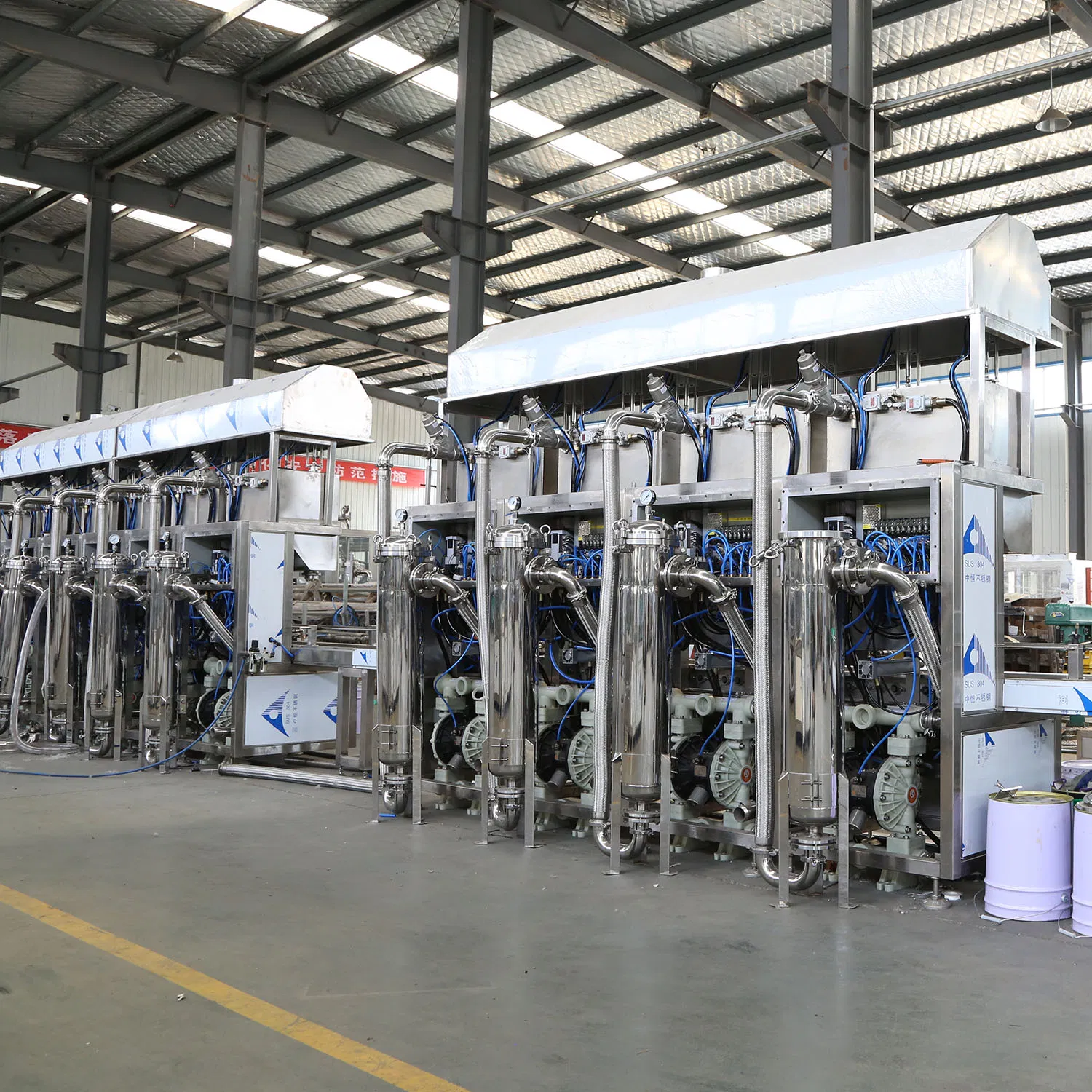

Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
1 / 5
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity
Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity

Automatic Pesticide Chemical Liquid Overflow Filling Capping Machine Low Viscosity

Customization: Available
After-sales Service: Provided
Warranty: One-Year Warrently
Send Inquiry

Product Description

Basic Specifications
Model NO.
CD14-12-5, CD18-16-6, CD24-18-8, CD32-24-10
Type
Automatic Gravity Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure
Structure
Linear
Packaging Material
Plastic / Barrel
Weight
2000kg
Application
Cleaning, Detergent, Oil, Cosmetics
Production Capacity
50 Sets Per Year
Professional Manufacturing Overview
Founded in 1998, we are one of the early filling machinery manufacturing enterprises, covering an area of 6,000 square meters. Our facility features newly invested CNC machine tools and large cutting machines to ensure high production capacity and service levels.
🏗️Factory Area: 20,000 m²
⚙️Technology Team: 5+ Experts
🛠️Service Team: 10+ Professionals

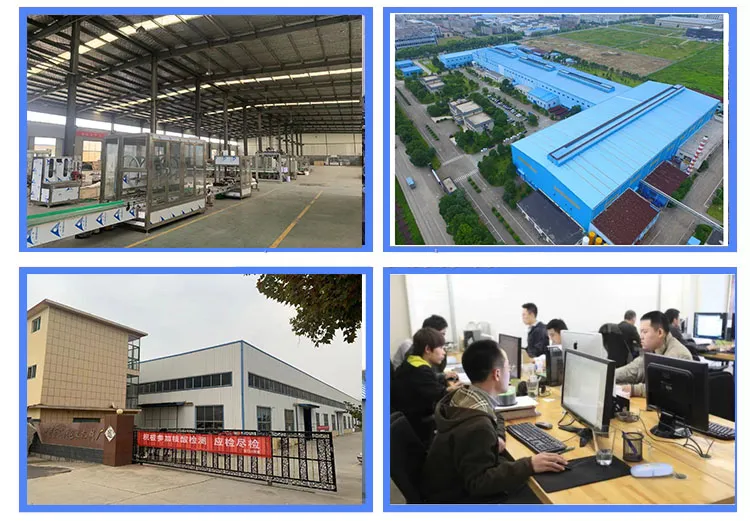

Filling Machine Factory

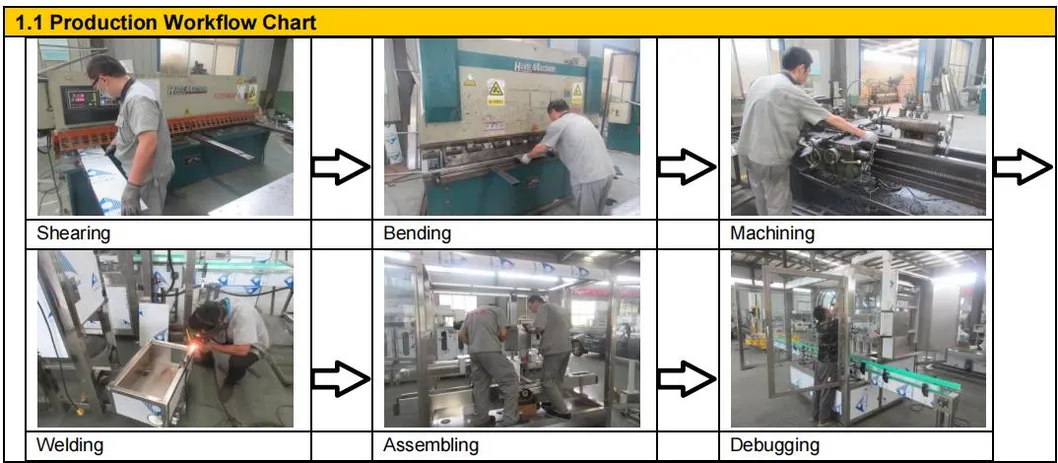

Automatic Production Line

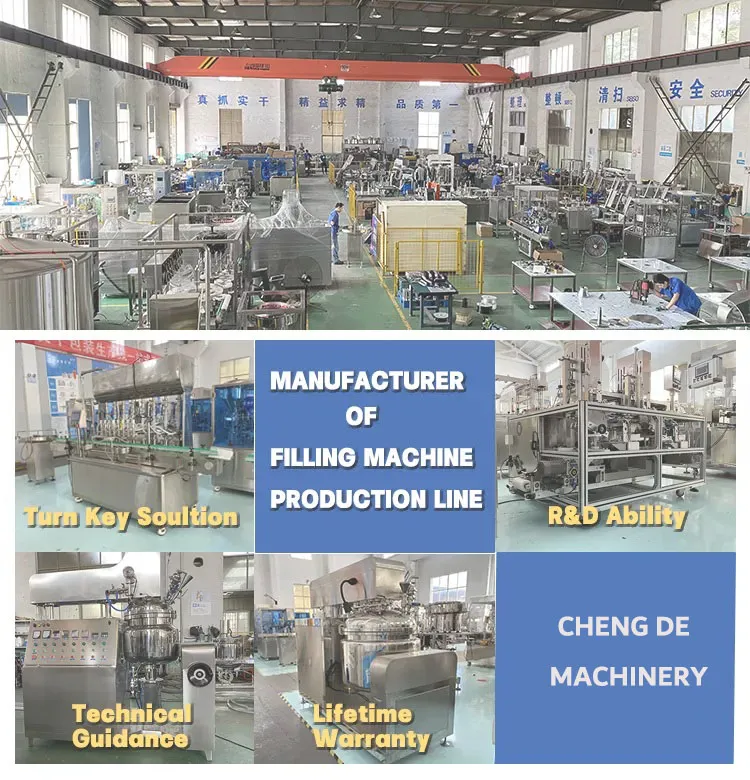

Equipment Display
Automatic Gravity Filling Machine
This machine is a high-tech filling equipment controlled by microcomputer PLC programmable systems, equipped with photo-electricity instructions and pneumatic action. It is suitable for all kinds of non-viscous liquids such as alcohol, glass water, antifreeze, and urea.

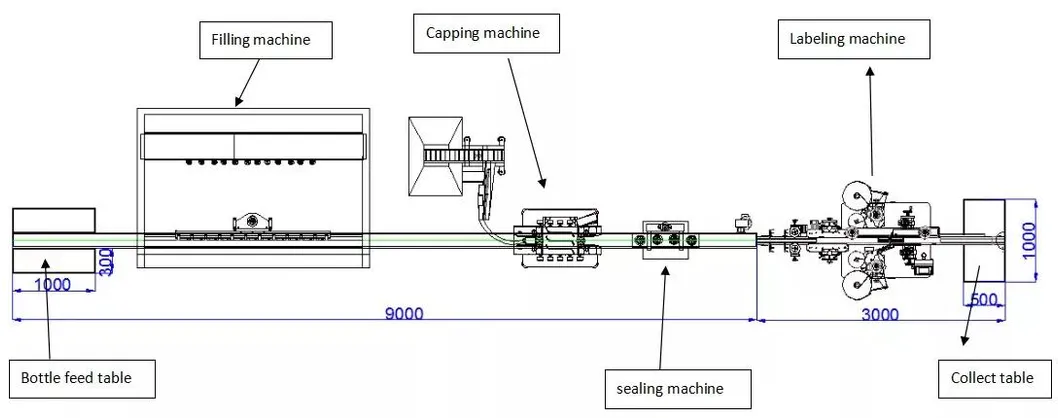

Product Intro 1
Product Intro 2
Product Intro 3
Key Features
✓It adopts a servo control system to ensure pistons reach constant positions accurately.
✓Automatic speed deceleration near target capacity to prevent liquid spill and pollution.
✓Frequency conversion speed adjustment with touch screen operation.
✓Safety features: No bottle - no filling; No bottle - no cap feeding; Cap shortage alarm.

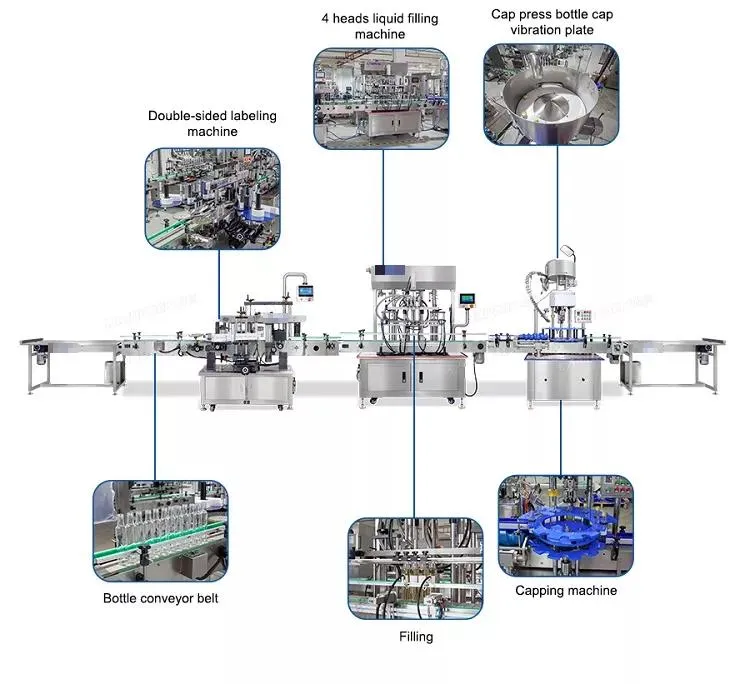

Bottling Line Case
Technical Parameters
ParameterSpecification
Bottling LineLinear Liquid Filling Production Line
Filling Nozzles4 ~ 12 (Customizable)
Production Capacity600 ~ 2000 BPH
Applicable Bottle Height160 ~ 360mm (Customizable)
Applicable Bottle DiameterΦ50 - Φ100 (Customizable)
Filling Volume100 ~ 5000ml (Customizable)
Filling Accuracy±0.01%
Overall Size (L*W*H)3000 * 1500 * 2200 mm
Core Components & Modules

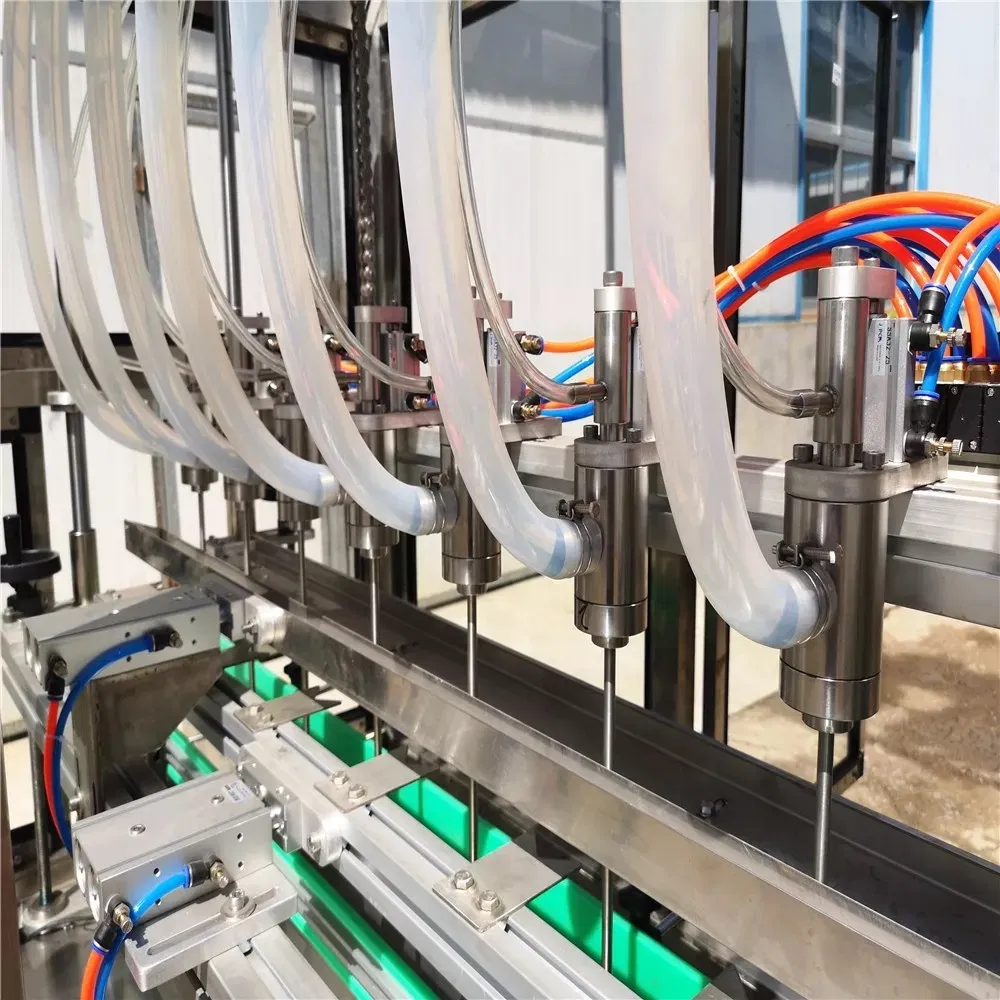

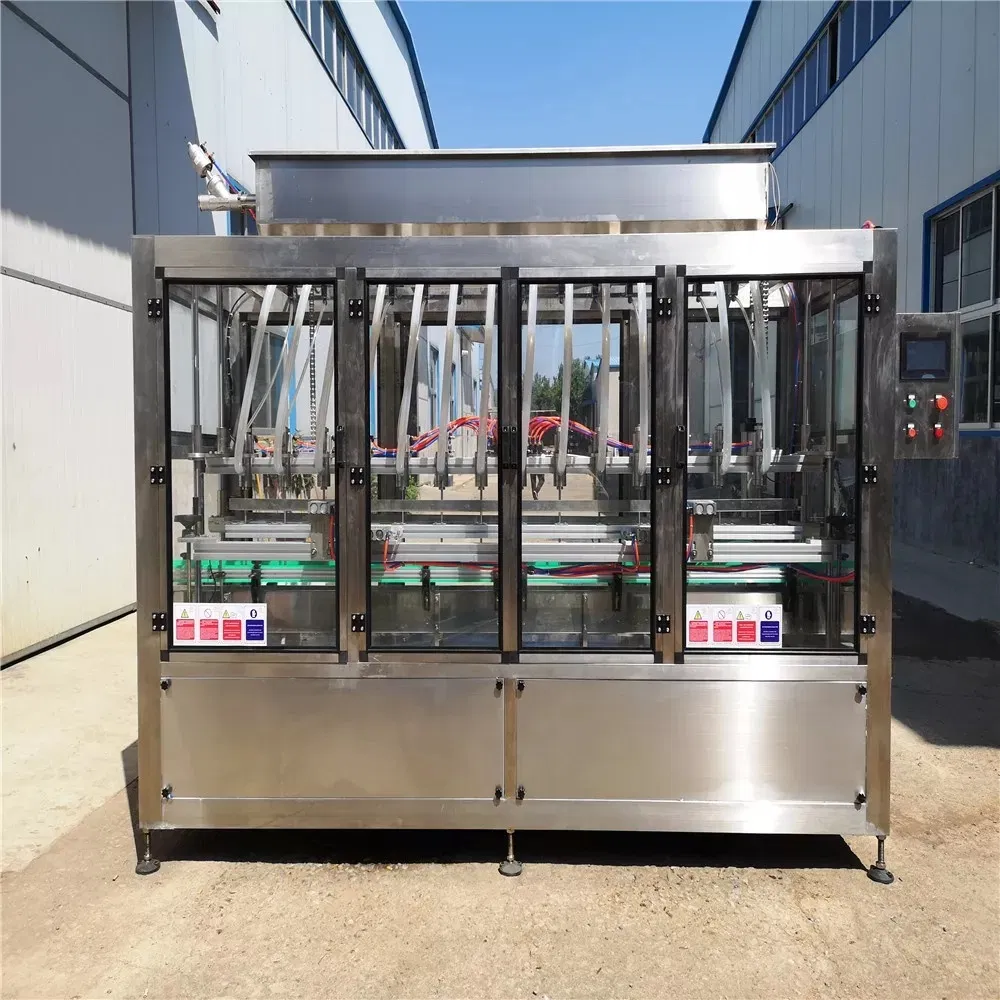

Filling Machine Part
Filling Part 1

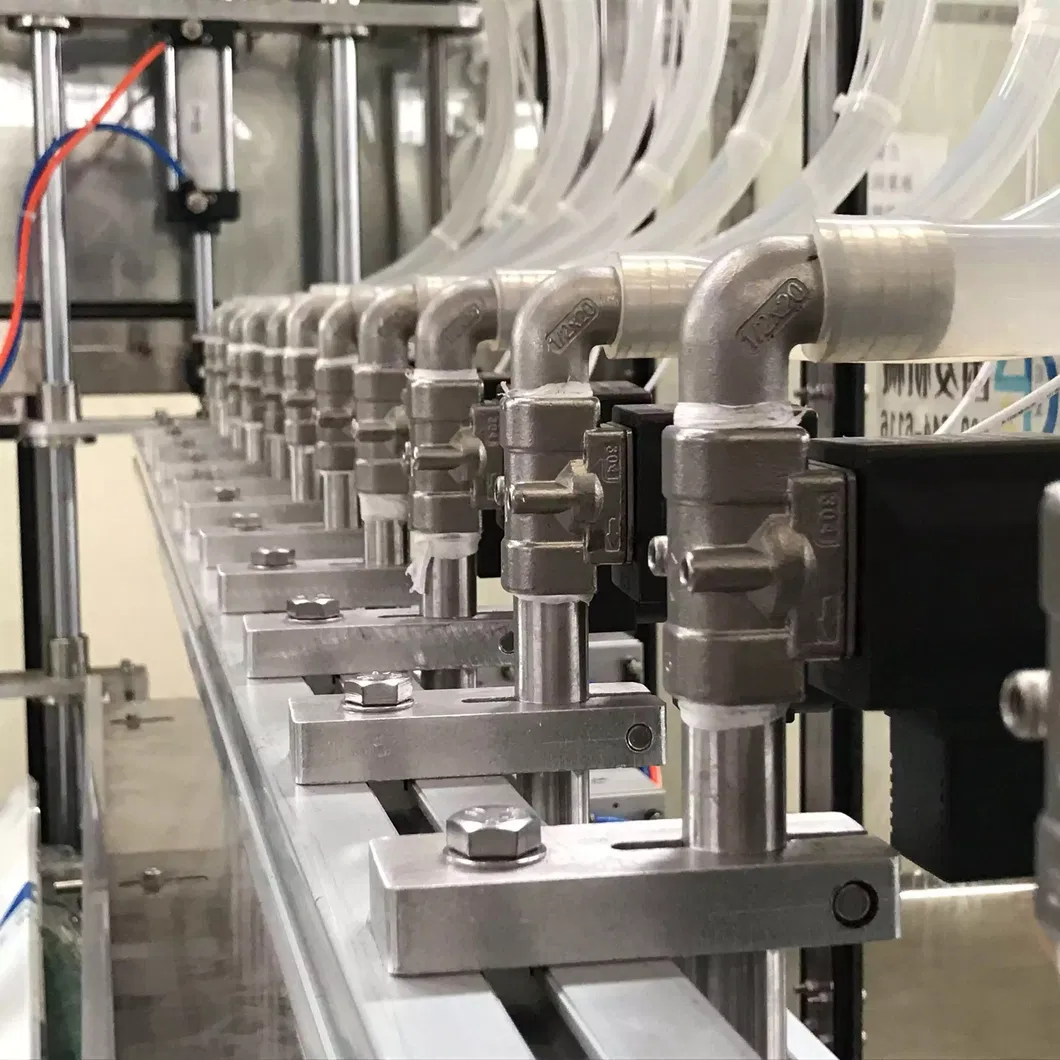

Filling Part 2
Filling Part 3
Uses linear type principles for easy adjustment. Features special silicone hoses, professional solenoid valves, and stainless steel nozzles for rust resistance and durability.

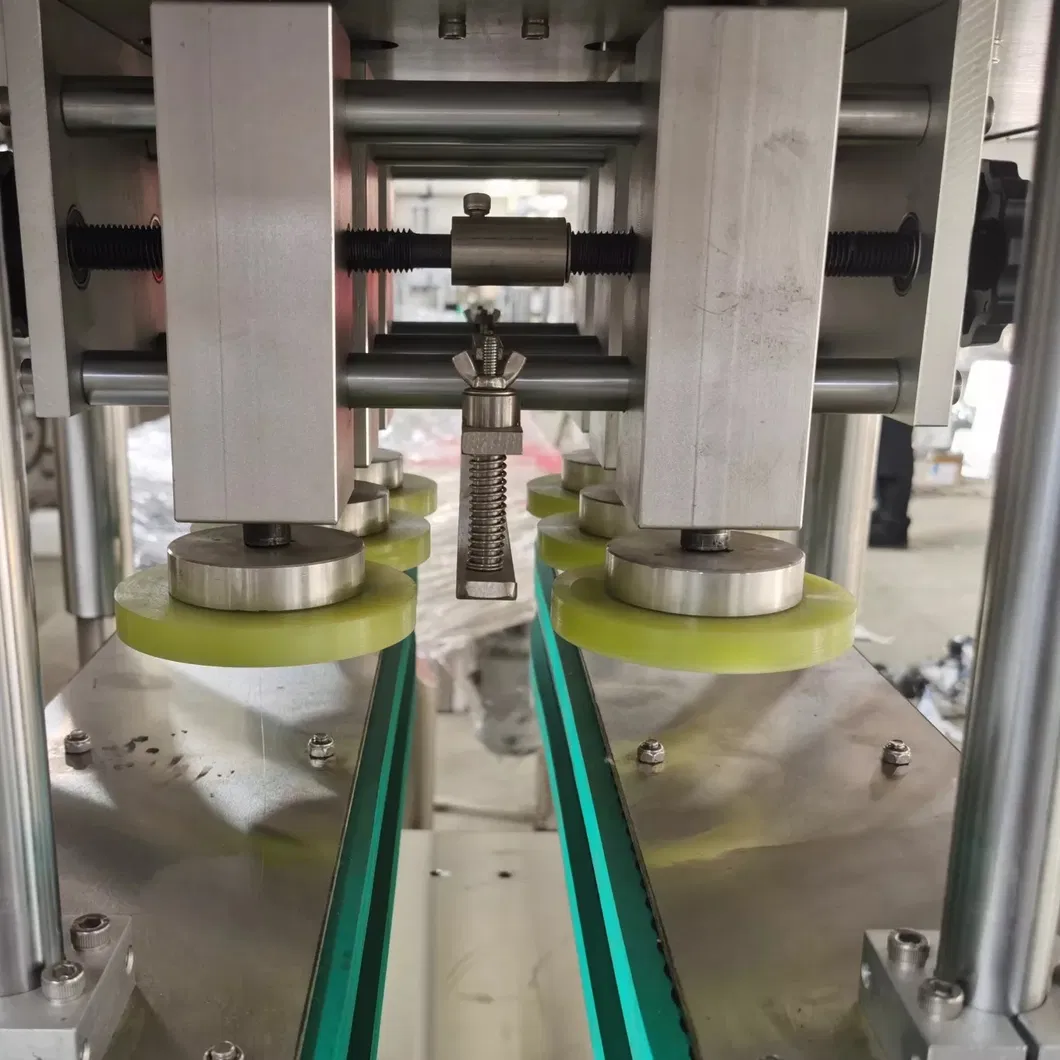

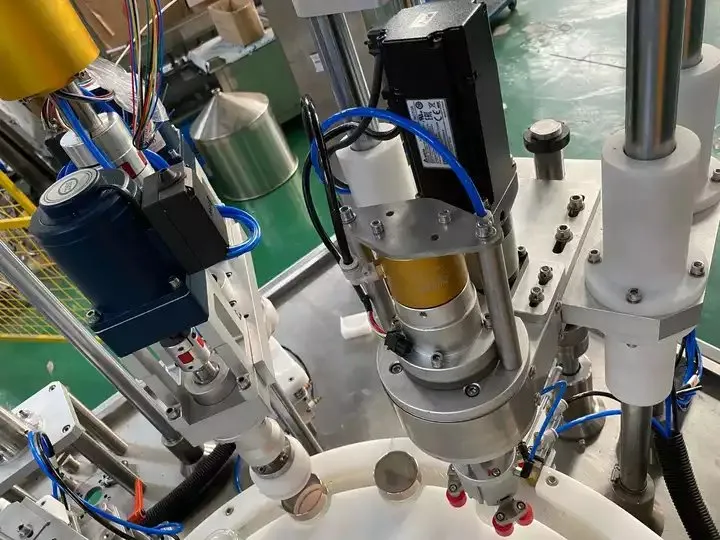

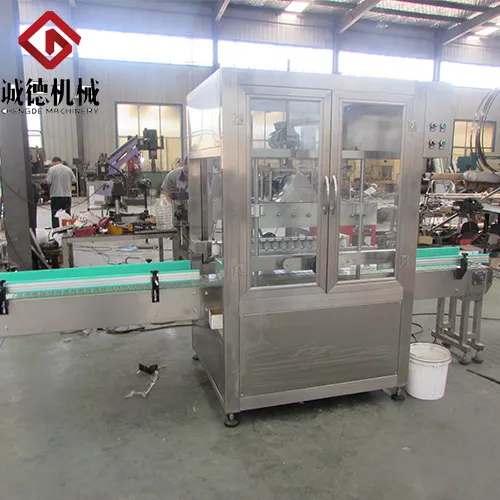

Capping Machine Part
Capping Part 1
Capping Part 2
Capping Part 3
Intelligent touch screen control with automatic induction screw capping. Humanized design suitable for a variety of bottle caps with no leakage.

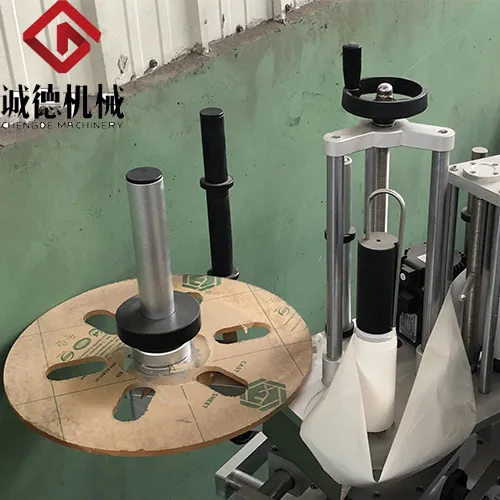

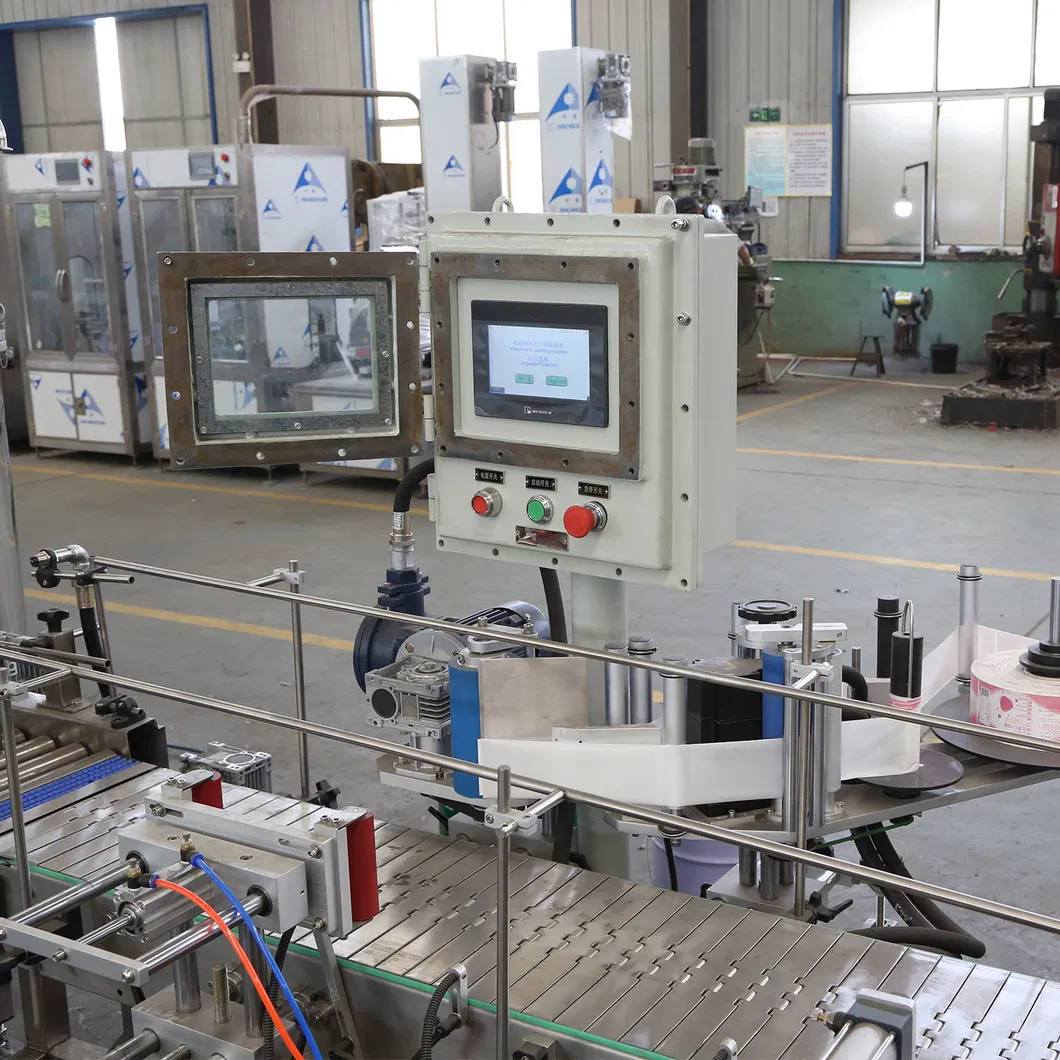

Labeling & Drying Modules
Labeling 1
Labeling 2

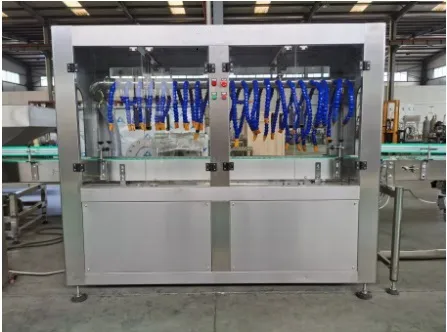

Drying Machine
The drying machine ensures bottles are moisture-free before labeling, which is critical for label adhesion and carton packing quality.
Wide Range of Applications
Applications
Our packing lines are suitable for various liquids, fluids, and paste materials:
  • Plant Oil: Lubricant oil, engine oil, gear oil.
  • Daily Chemicals: Liquid soap, laundry detergent, hand sanitizer, shampoo, body soap.
  • Food Industry: Tomato paste, honey, edible cooking oil, juice, sauce.
  • Cosmetics: Toner, lotion, cream, body milk.
A to Z Production Line Catalog Display
Quality Assurance & Service
Certificates
Our Services
1. Free sample testing: Send us your bottles for pre-debugging and video review.
2. Professional suggestions based on decades of industry experience.
3. One-year warranty with free spare parts.
4. Full training, guidance, and installation support.
Service Team
Shipping & Delivery
Packing: Wrapped with PE film and secured in exported wooden cases.
Delivery Time: Within 20~25 days upon receipt of payment.
Shipping: Normally by sea; air or express options available for urgent needs.
Ports: Qingdao, Shanghai, etc.
Shipping Process
Frequently Asked Questions
1. What types of liquids can this machine handle?
The machine is ideal for non-viscous liquids such as alcohol, glass water, antifreeze, liquid soap, edible oils, and various chemical fluids.
2. How do you ensure the filling accuracy?
We use a high-precision PLC control system and servo motors. The filling accuracy can reach ±0.01%, and the pneumatic valve timing can be set to 0.01 seconds.
3. Can the machine be customized for different bottle sizes?
Yes, the linear structure allows for easy adjustment. We can customize the machine for bottle heights between 160-360mm and diameters between 50-100mm.
4. What is the material of the machine construction?
The machine is primarily made of high-grade stainless steel and anodized aluminum, meeting GMP standards for food and sanitation requirements.
5. Do you provide after-sales support and warranty?
We provide a one-year warranty with free spare parts, along with free technical training and installation guidance.
6. What are the accepted payment and delivery terms?
We accept FOB, EXW, and CIF terms. Payments can be made via T/T, L/C, Credit Card, or Western Union in various major currencies.
