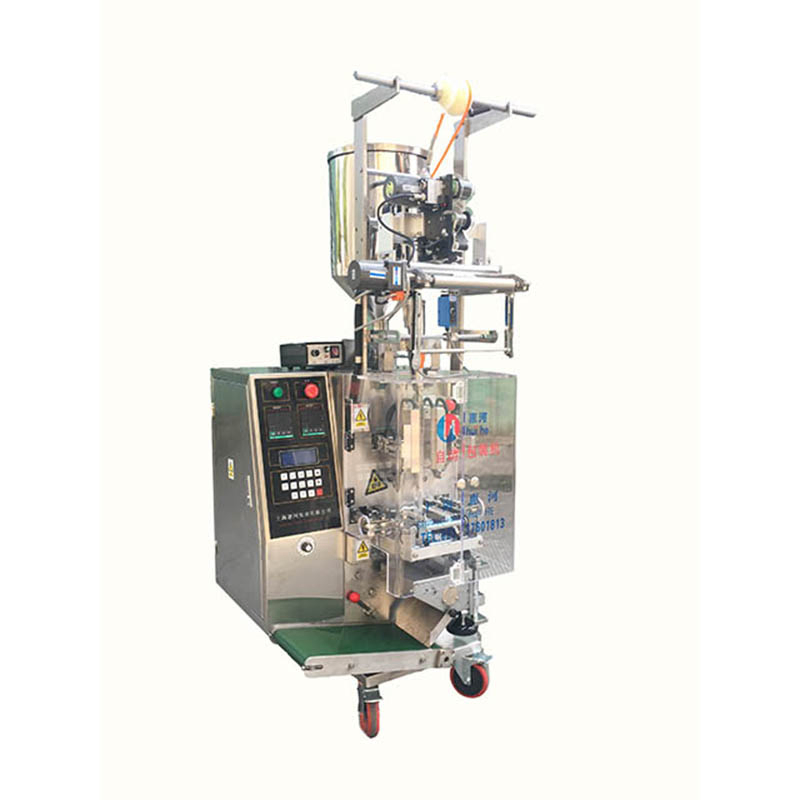

Sauce/Juice/ Soap Water/Tomato Paste/Cream/Ketchup/Fruit Jam/Beverage/Peanut Butter/ Shampoo/Oil/Honey/Liquid Sachet Filling Package Packaging Packing Machine

1 / 5

Sauce/Juice/ Soap Water/Tomato Paste/Cream/Ketchup/Fruit Jam/Beverage/Peanut Butter/ Shampoo/Oil/Honey/Liquid Sachet Filling Package Packaging Packing Machine

Customization:	Available
After-sales Service:	Online Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

DXDL-240

Automatic Grade

Automatic

Type

Forming Filling Sealing Machine

Driven Type

Electric

Material Type

Liquid / Paste

Packaging

Sachet / Bag

Packaging Material

Composite Film

HS Code

8422303090

Sachet Filling & Packaging Solution

Ideal for Sauce, Juice, Soap Water, Tomato Paste, Cream, Ketchup, Fruit Jam, Beverage, Peanut Butter, Shampoo, Oil, Honey, and Liquid products.

Key Features

✔ Integrated functions: auto filling, measuring, bag forming, sealing, and cutting.

✔ High-precision bag-making system with stepper motor (error < 1mm).

✔ Dual-language controller (Chinese/English) for intuitive operation monitoring.

✔ 4-side independent heating control for superior seal quality across various materials.

✔ Intelligent photoelectric controller system for precise positioning.

✔ Side-open protective platens for enhanced visibility and operational safety.

✔ Easy-to-clean hopper sets designed for quick adjustment and hygiene maintenance.

✔ Versatile sealing options: 3-side, 4-side, or back side seal based on requirements.

✔ Optional ribbon printer for date of production and batch number (1-3 lines).

✔ Compatible with various films: PET/PE, Paper/PE, PET/AL/PE, OPP/PE, etc.

Technical Specifications

Parameter	DXDL-240	DXDL-300
Bag Type	3 or 4 sides seal	Back side seal
Bag Size	W: 30-120mm \| L: 30-170mm	W: 30-140mm \| L: 30-170mm
Packing Speed	20-60 bag/min	20-60 bag/min
Measurement Method	Piston pump type	Piston pump type
Range of Measurement	0-100ml	0-150ml
Total Power	1400W	1600W
Machine Weight	200kg	260kg
Dimensions (LWH)	6307501600mm	10007501700mm
Voltage	380V / 220V (Customizable)	380V / 220V (Customizable)

Application Range

This machine is specifically designed for small sachet packaging of liquid, paste, and sauce products including water, oil, peanut butter, ketchup, honey, salad dressing, soup, milk, and shampoo.

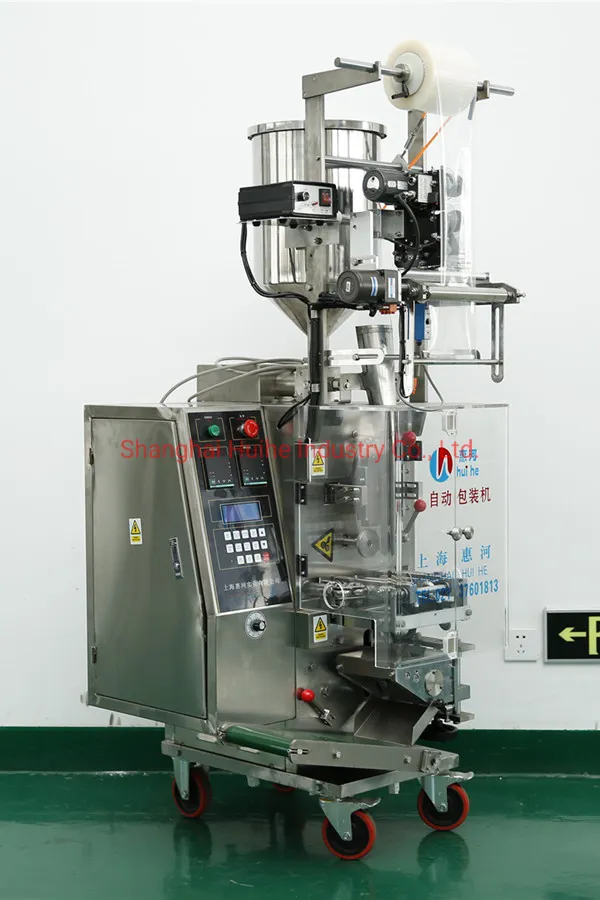

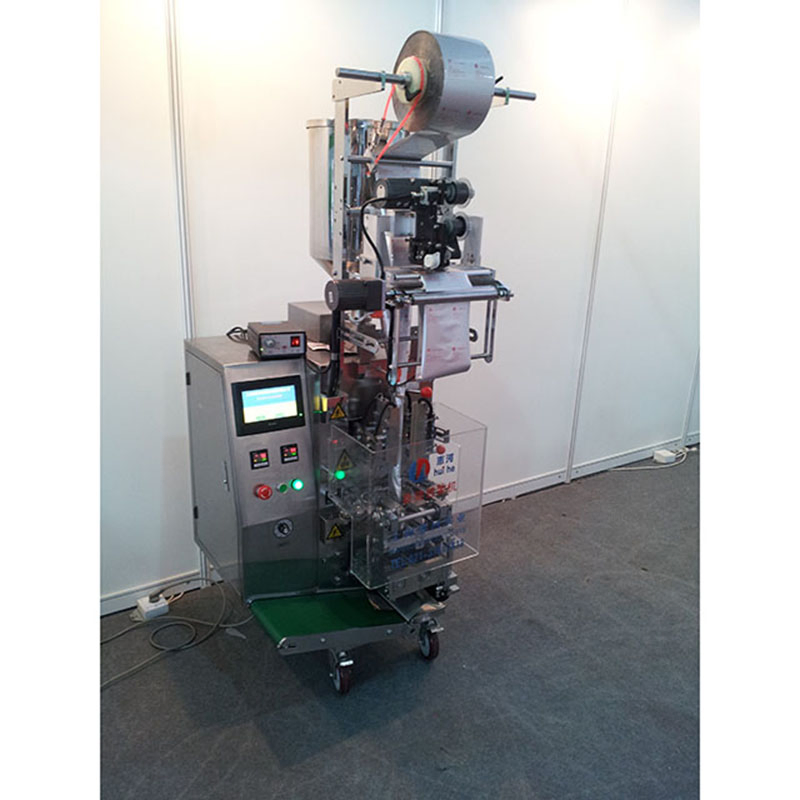

Product Showcase

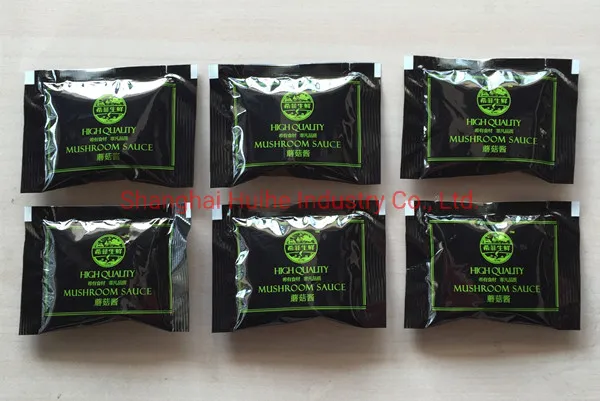

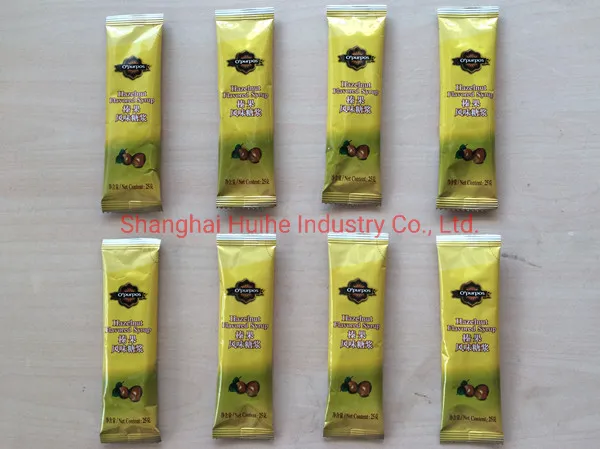

Packing Samples

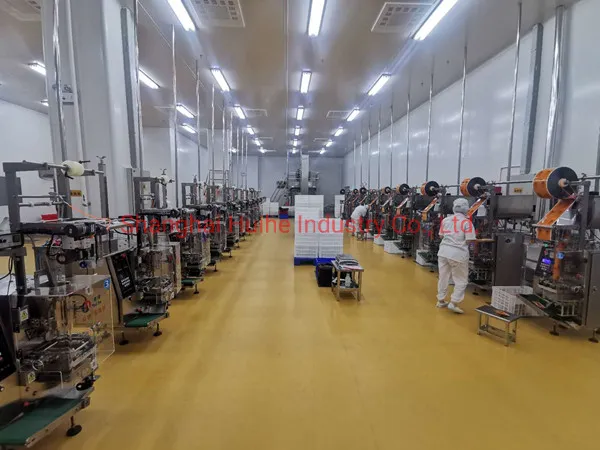

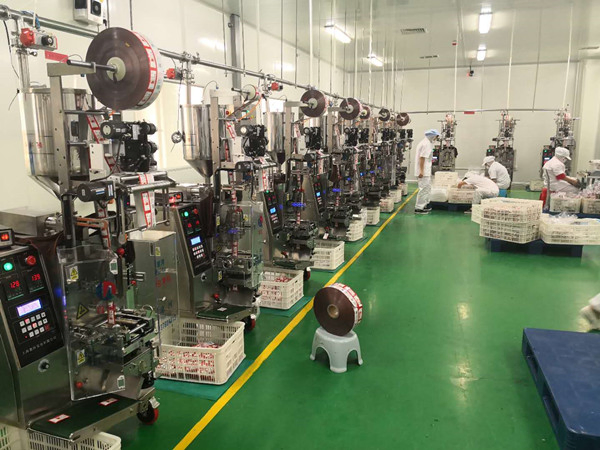

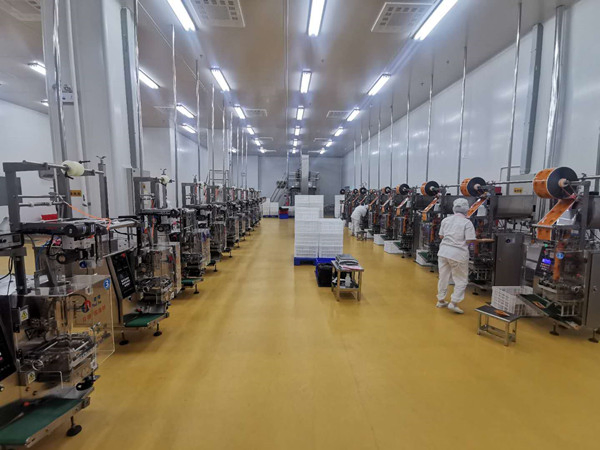

Factory Operation

Service & Workflow

Payment & Order Process:

Select Machine Type → Confirm Delivery Terms (FOB, CIF, CFR, EXW) → 30% Down Payment → Production based on requirements → Quality Inspection (Video or Factory Visit) → 70% Balance Payment → Shipment Arrangement.

After Sales Service:

One Year Guaranty.
Complimentary set of consumable accessories.
Ongoing consulting services and English manual provided.
Spare parts available for prompt delivery.

Our Certifications & Customers

Frequently Asked Questions

What types of products can this machine pack?

The machine is highly versatile and can pack various liquids, pastes, and sauces, such as honey, ketchup, shampoo, oil, juice, and cream.

What bag sealing styles are available?

Depending on your needs, you can choose between 3-side seal, 4-side seal, or back-side seal configurations for your sachets.

How accurate is the bag-making process?

The machine utilizes a high-precision stepper motor system, ensuring bag-making errors are kept under 1mm.

Is the machine easy to maintain and clean?

Yes, it features the latest hopper sets that are specifically designed for easy disassembly and cleaning without requiring readjustment after reassembly.

What is the warranty and after-sales support?

We provide a one-year warranty, a set of consumable parts, and lifelong consulting service. Our engineers are also available for overseas dispatch if necessary.

Can the machine print production dates on the bags?

Yes, an optional ribbon printer can be added to print up to three lines of information, including production dates and batch numbers.
