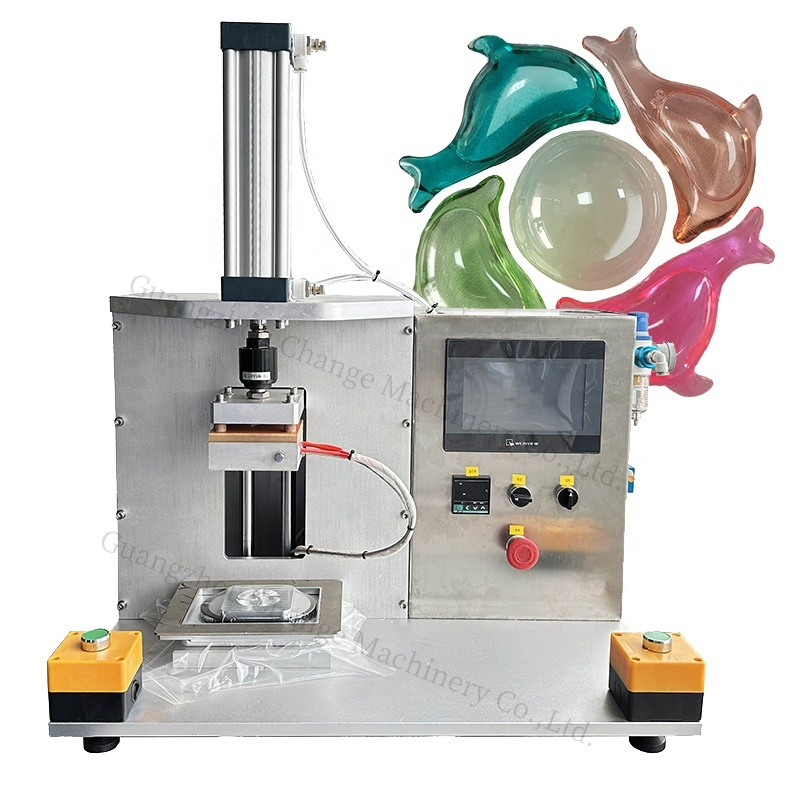

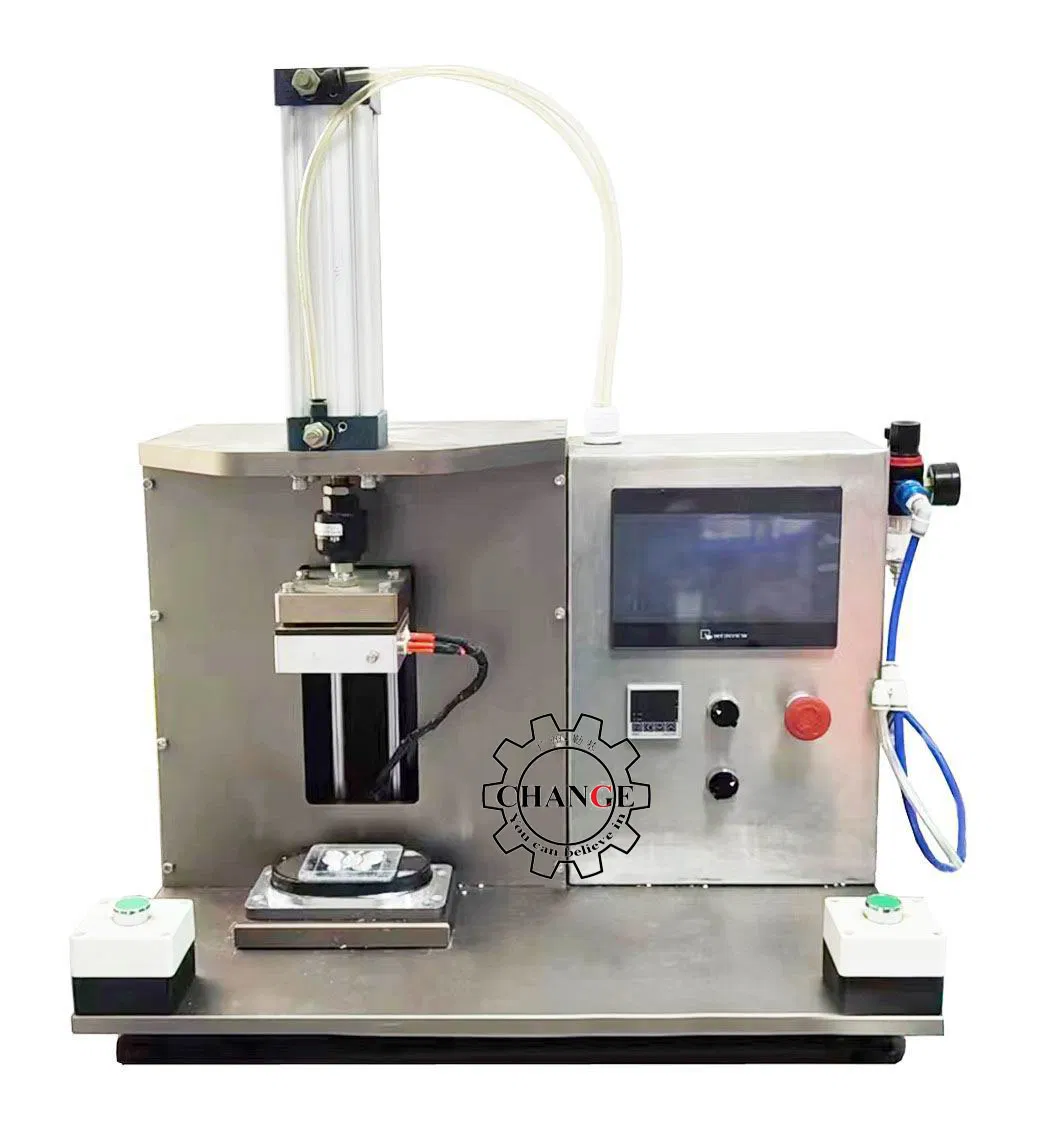

Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
1 / 5
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine
Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine

Lab Scale Laundry Pod Capsules Making Semi Automatic Liquid Detergent Filling Machine

Customization: Available
After-sales Service: Life Long Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
TC-240
Each Bead Size
25-35g/Piece
Capacity
15-20PCS./Min
Pack Product
Laundry Detergent
Packing Film Type
Dissolvable PVA Film
Voltage
AC 220V 50/60Hz 1 Phase
Compressed Air
0.4-0.6MPa.
Material
SUS 304 and 316
Control System
PLC and Touch Screen
Guarantee
1 Year
Active Ingredient
Over 85%
Transport Package
Standard Export Wooden Case
Product Description
This is a small and simple machine, desk-top style, easy to operate. It is designed for small-scale production of laundry detergent pods and beads, or for laboratory use to create detergent samples.
Detergent Beads Making Machine
Laundry detergent beads / pods / capsules display:
Detergent Pods
Detergent Capsules
Laundry Beads

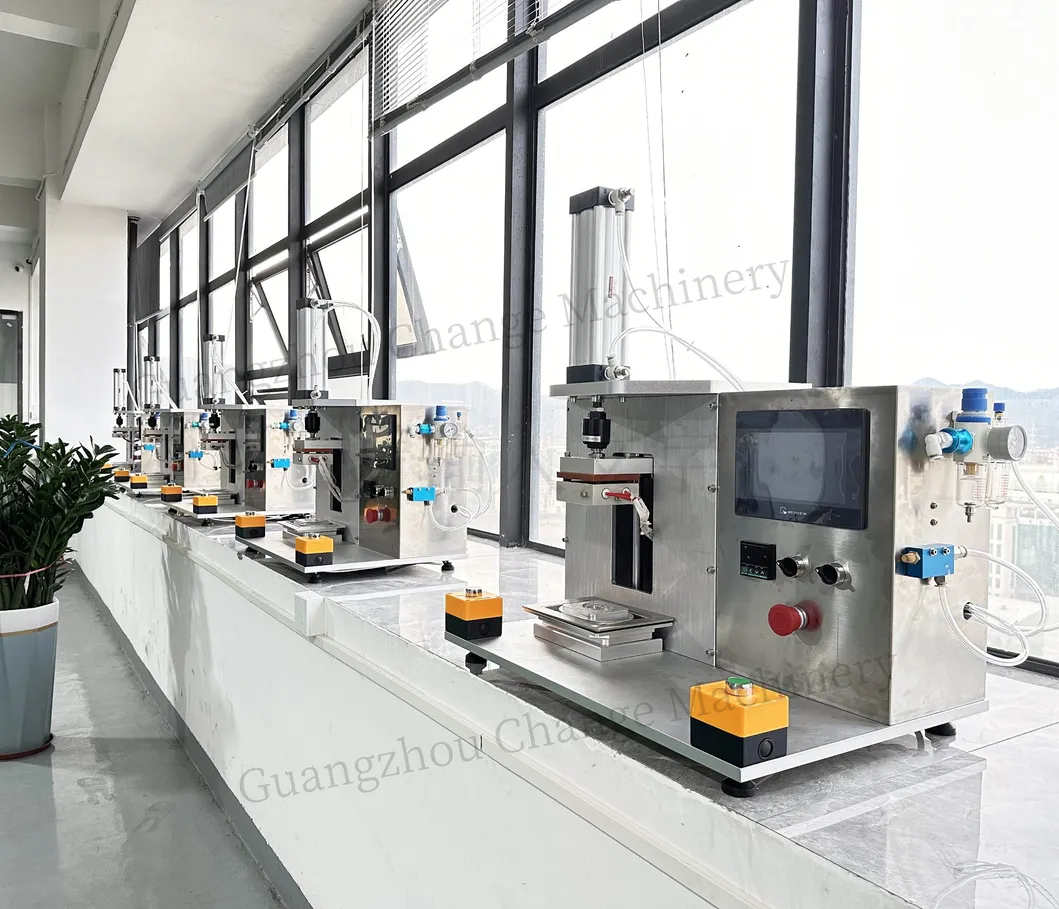

Equipment details
Applicable Products
🔹 Laundry Detergents
🔹 Washing Clothes Detergents
🔹 Kitchen Cleaning Detergents
🔹 Glass Cleaning Detergents
Technical Parameters
Packing materialPVA water soluble film
Filling methodManual or semiauto filler
Operation systemTouch screen + Button + Pedal
BodyshellSUS 304
Molds materialAluminum alloy
Capacity10-15 pcs/min
Packing volume5-35ml/pod
Beads / Pods patternsCan be customized
Cavity number1 to 5 cavities (Customizable)
Gross Weight85Kg
DimensionL650×W550×L750mm
Service & Terms
After Sales Service: Two years after-sales warranty. We can provide engineer support for installation and staff training (Buyer covers travel and accommodation costs). Free spare parts set included.

Payment Terms: T/T (30% deposit, balance before delivery), L/C.

Shipment Terms: FOB, EXW, CIF, CNF, CFR. Standard wooden case for export.
Frequently Asked Questions
Q: What is the main application of this machine?
A: This desk-top style machine is specifically designed for small-scale production or laboratory testing of laundry detergent pods and beads using PVA water-soluble film.
Q: Can I customize the shape and size of the detergent pods?
A: Yes, the beads/pods patterns and sizes can be fully customized according to customer requirements, with options for 1 to 5 cavities per bead.
Q: What materials are used to build the machine?
A: The bodyshell is made of high-quality SUS 304 stainless steel, and the molds are crafted from durable aluminum alloy.
Q: How is the machine controlled?
A: The machine features a user-friendly operation system including a touch screen, physical buttons, and a pedal for manual/semiauto control.
Q: What are the requirements for the air supply?
A: The machine requires compressed air with a pressure range of 0.4 to 0.6 MPa.
Q: What is the production capacity for this laboratory scale model?
A: The capacity is approximately 10 to 15 pieces per minute, making it ideal for sampling and small batches.
