Yongli Machine
1 / 5

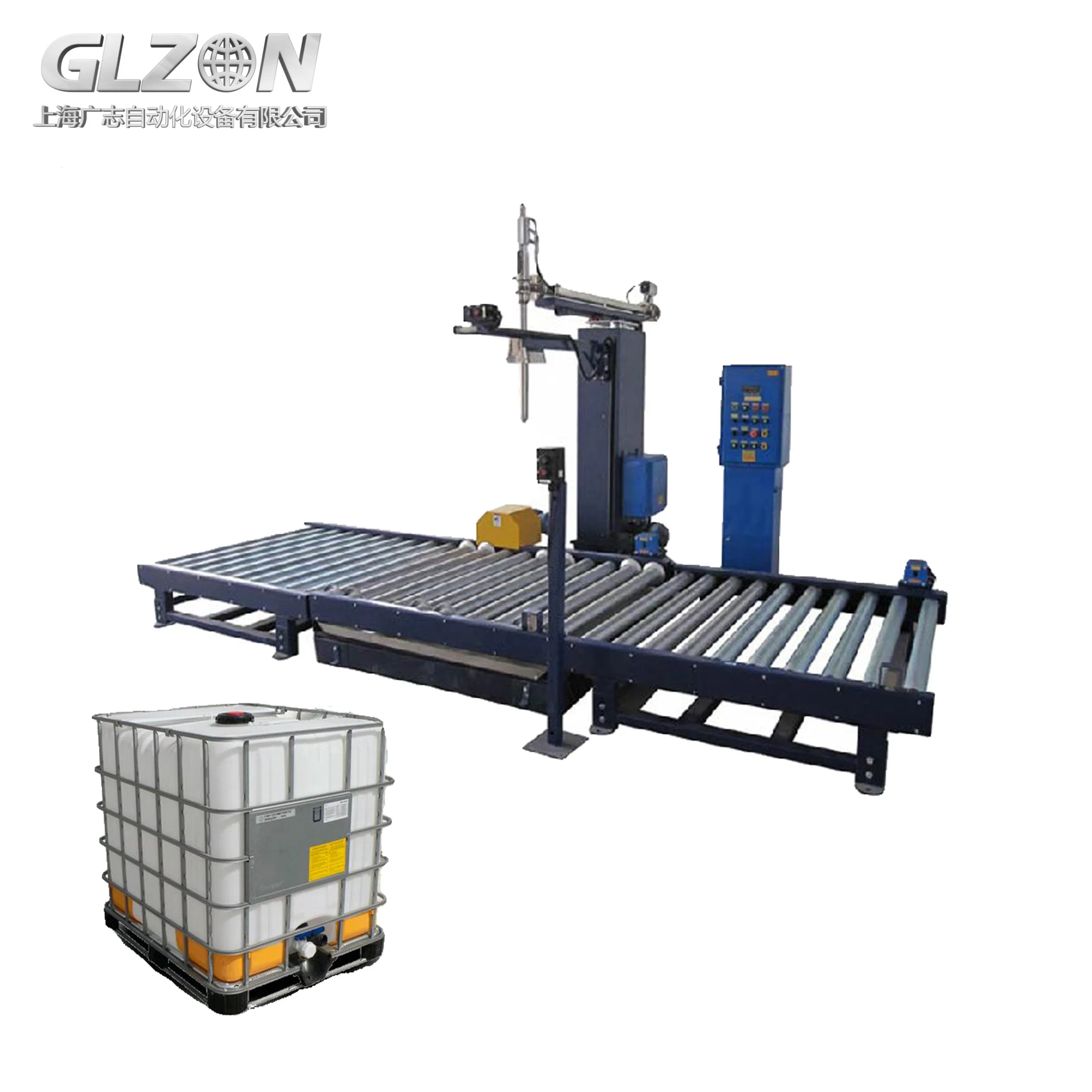

| Model NO. | GZM-1000L |
|---|---|
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Principle | Pressure |
| Filling Accuracy | 99.99% |
| Voltage | 220V 50/60Hz |
| Applicable Industries | Oil, Lube, Engine Oil, Liquid, Liquid Soap, Gel, Bitumen |
| Specification | 3900*1000*1700mm |
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
|---|---|
| Filling range(L) | 100-1000L |
| Power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed(can/hour) | 12~15 barrels/hour (1000L single station) |
| Material | sus304/sus316/carbon steel/PTFE |
Easy-to-use touchscreen interface with programmable settings.
Filling accuracy up to ±0.5% for consistent results.
SUS304/316 stainless steel for safe handling of viscous materials.
Clean, leak-free operation ensuring a tidy workspace.

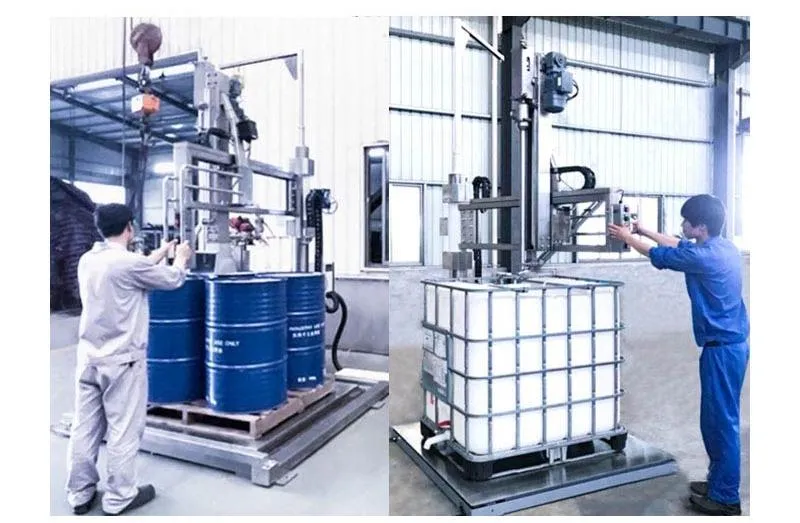

1. Placement: Manually place the bucket on the weighing platform; the system detects position.

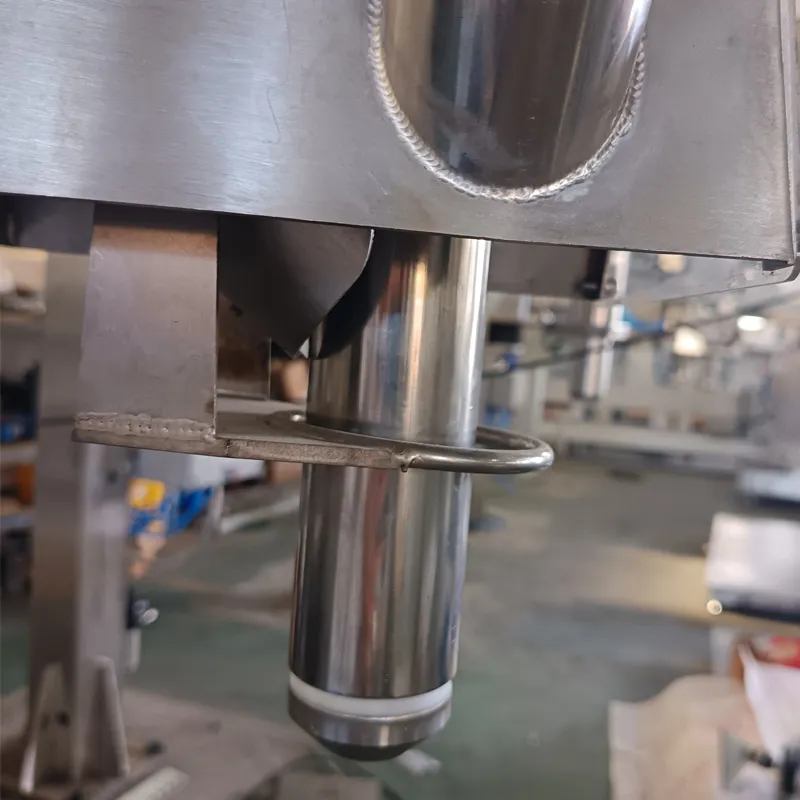

2. Insertion: Automatic insertion into the bucket mouth, peeling, and opening of the filling gun.
3. Filling: Four-stage filling process (large, medium, small, trace) until target value is reached.
4. Completion: Automatic gun rise; manual move to lid lock area.
5. Locking: Pneumatic locking of the cover followed by manual palletizing.
High-grade SS304/SS316 stainless steel for exceptional durability.
Flexible configurations for different barrel sizes and liquid types.
Explosion-proof and anti-static designs for hazardous environments.
The company is a professional manufacturer specializing in filling machines, packaging machines, and weighing systems. We focus on creating high-value products through innovation and sophisticated technology. Our engineering teams are dedicated to high technology development, quality enhancement, and humanized operating systems.
