Automatic Liquid Filling Machine for Lubricant/Diesel Engine/Motor Car Oil with Bottling Production/Packing/Filler/Capper/Labeller/Carton Packaging

1 / 5

Automatic Liquid Filling Machine for Lubricant/Diesel Engine/Motor Car Oil with Bottling Production/Packing/Filler/Capper/Labeller/Carton Packaging

Customization:	Available
After-sales Service:	Online Service & Send Engineers
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

ZSP-A

Type

Volumetric Filling Machine

Automatic Grade

Fully Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Dosing Device

Plunger

Filling Principle

Pressure

Structure

Linear

Packaging Material

Plastic / Metal / Glass

Certification

CE ISO SGS

Filling Material

Oil / Lubricant / Engine Oil

Filling Volume

100ml-1L / 1-5L / 5-30L / 208L

Capacity

800-4500bph

Filling Heads

6-32 Filling Nozzles

Product Description

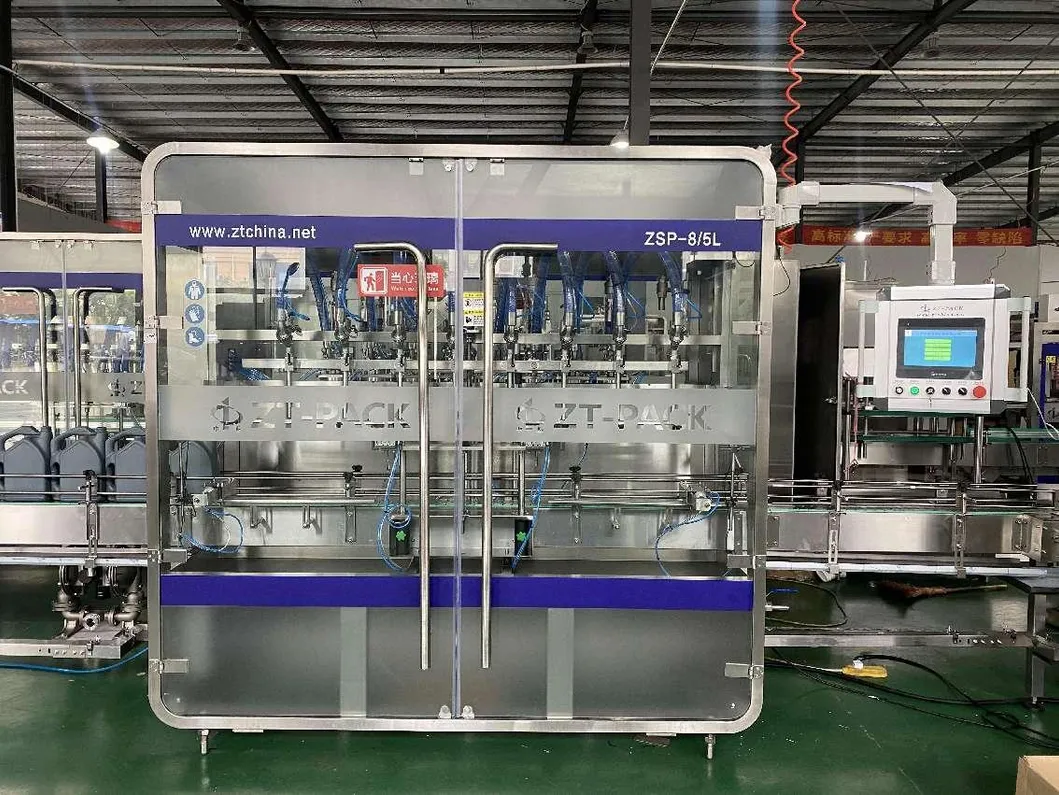

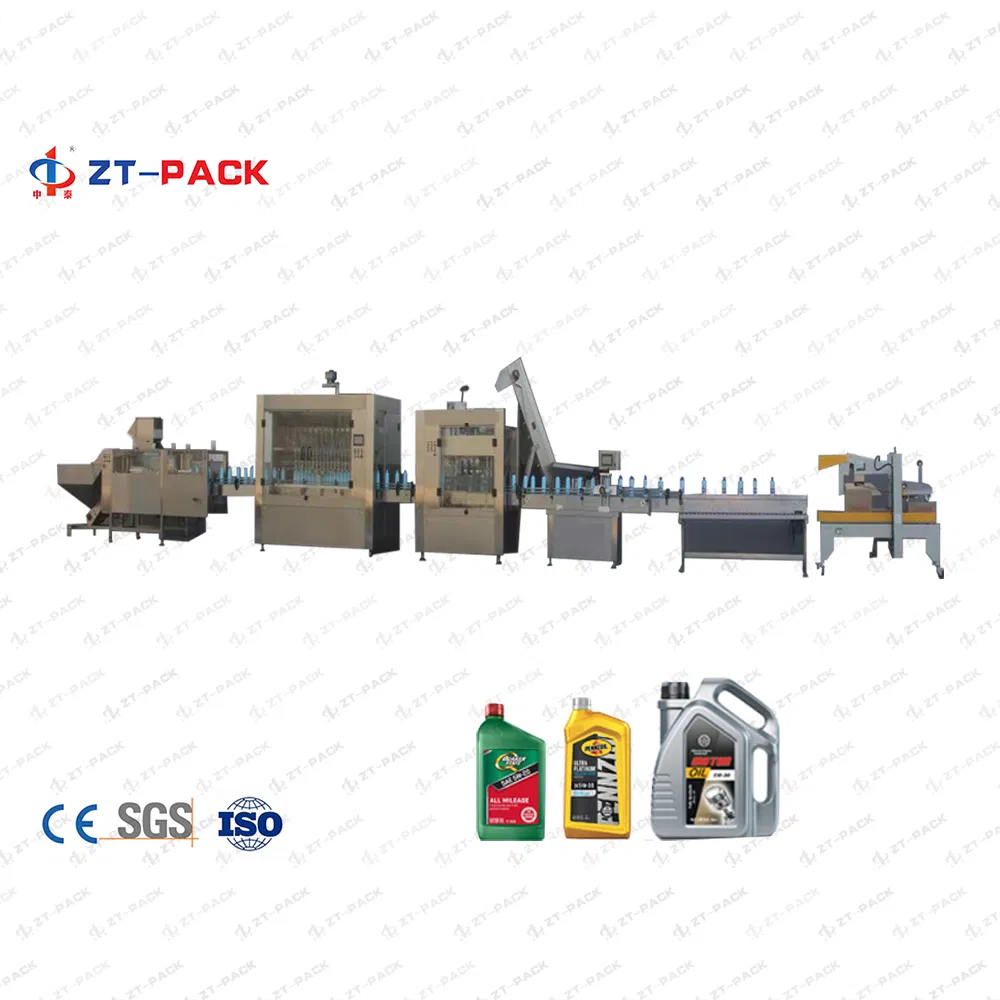

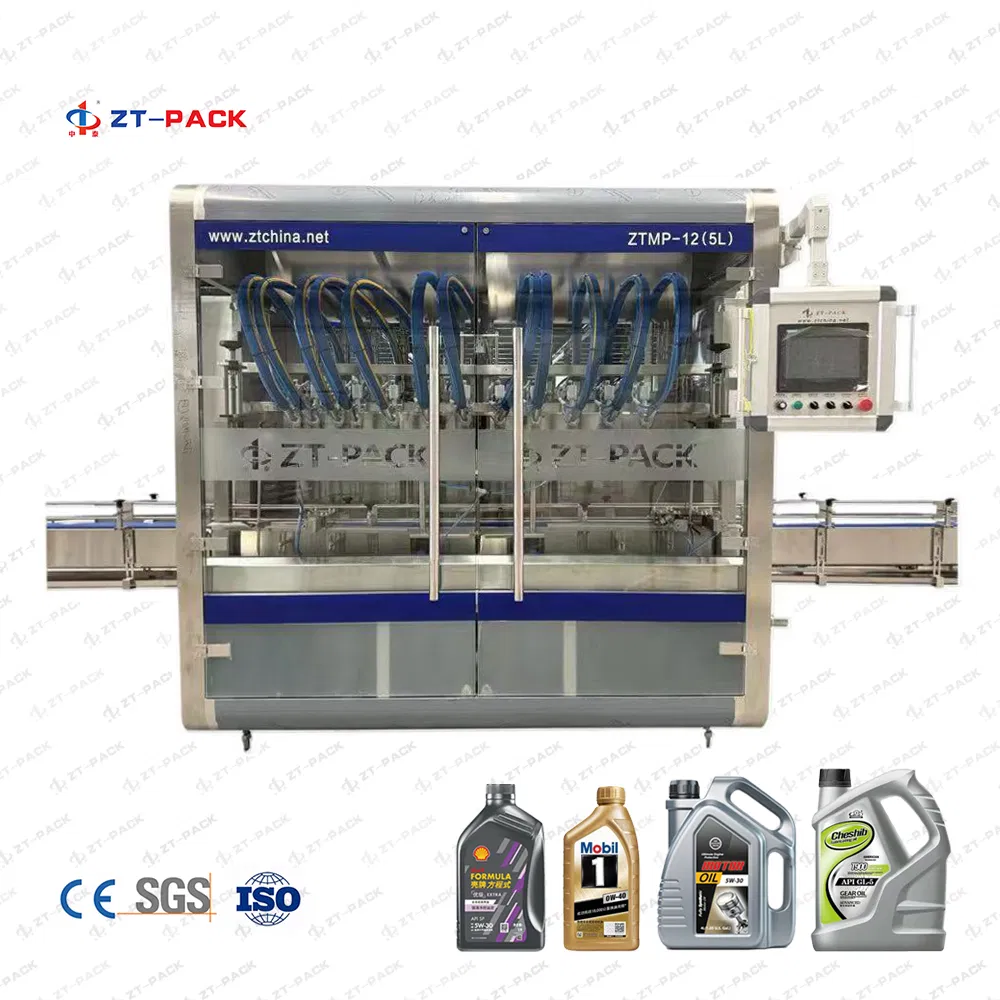

Automatic Liquid Filling Machine for Lubricant/Engine/Motor Car Oil Production Line

✓

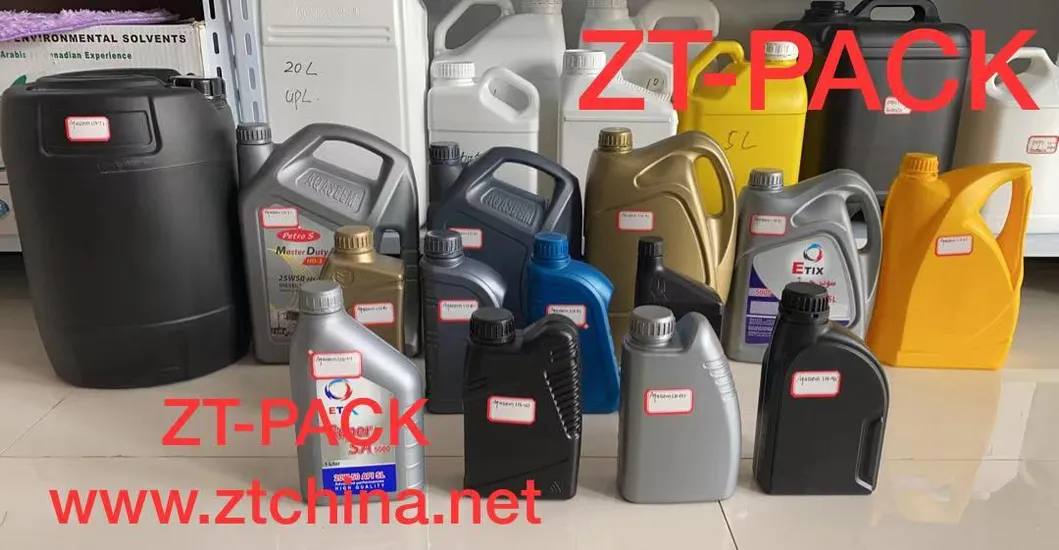

Suitable for: Lubricant Oil, Car Oil, Motor Oil, Coolant Liquid, Engine Oil, and various Lubricating products.

✓

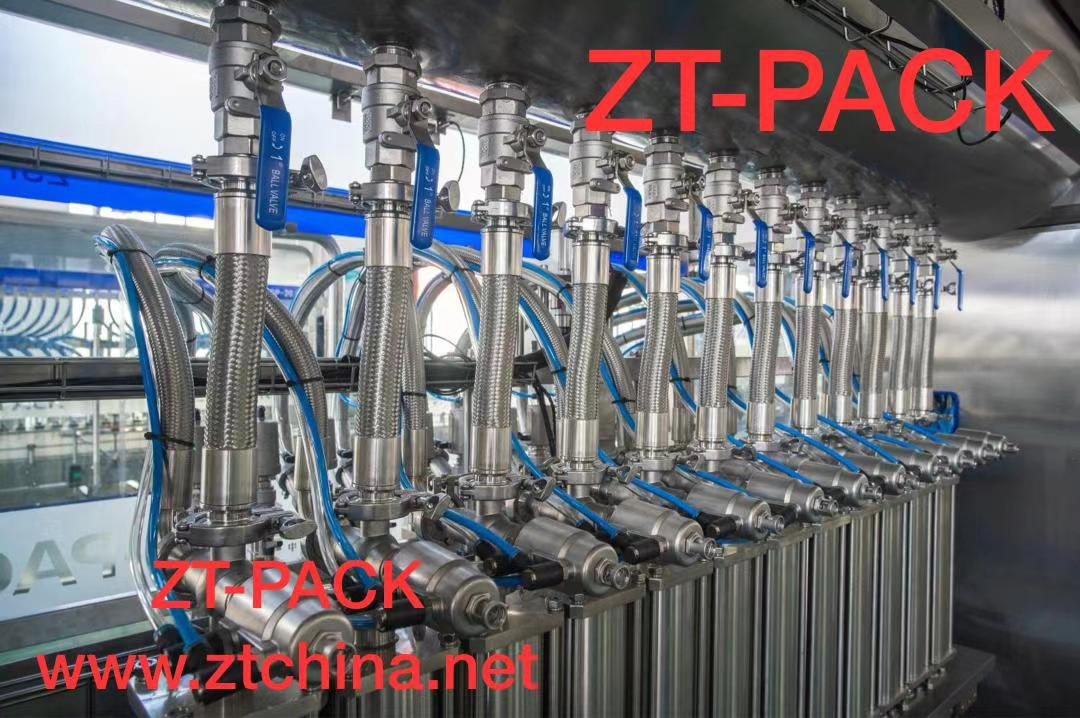

System Options: Piston / Flow Meter / Net Weight systems available based on requirements.

Linear Design: Easy to change bottle sizes without changing parts.

PLC Control: Full-automatic working process with touch screen interface.

High Precision: Accuracy of 1‰ ensured by high-precision rotary encoder measurement.

Food Grade: 316L Stainless Steel contact parts, fine polish, easy to clean.

Technical Specifications (100mL-1000mL)

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Filling Heads	6	8	10	12	16
Capacity (1L)	1800 B/H	2400 B/H	3000 B/H	3600 B/H	4800 B/H
Power	1.1KW	1.5KW	1.5KW	2.2KW	2.5KW
Filling Range	50ml - 1000ml
Air Pressure	0.6Mpa - 0.8Mpa

Technical Specifications (1L-5L)

Model	ZSP-6A	ZSP-8A
Filling Heads	6	8
Capacity (1L)	1800 B/H	2200 B/H
Capacity (5L)	700 B/H	900 B/H
Power	3KW	4KW
Filling Range	1000ml - 5000ml

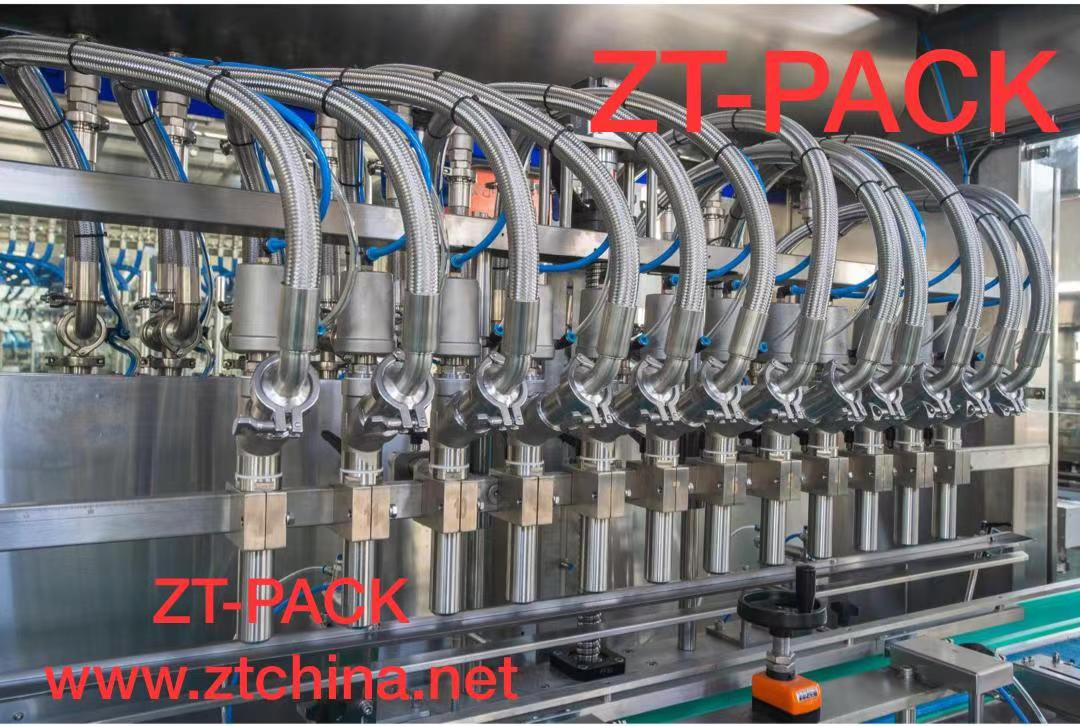

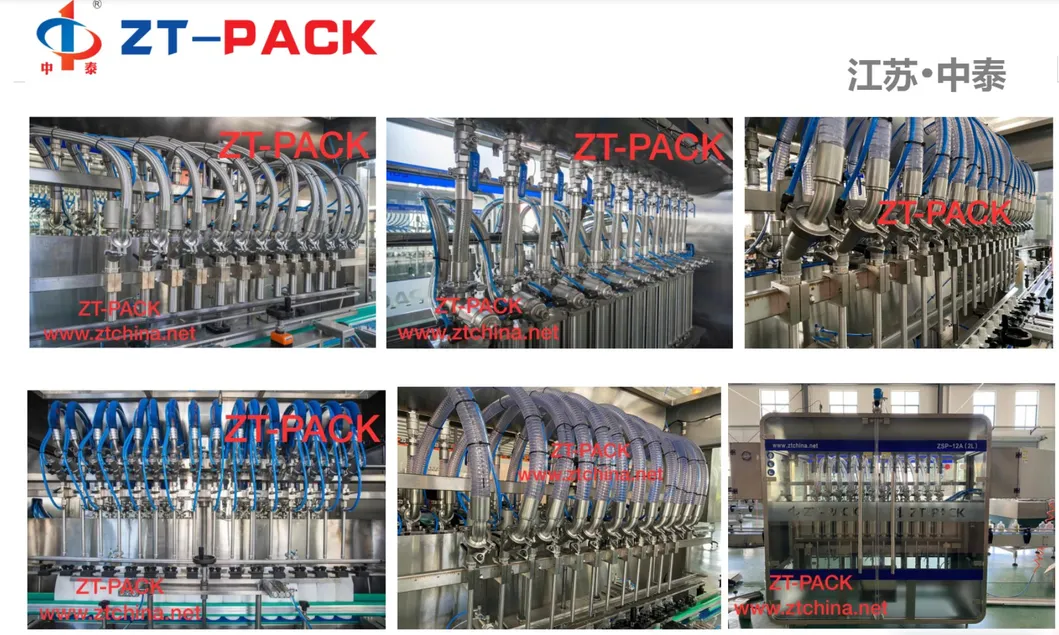

Product Gallery

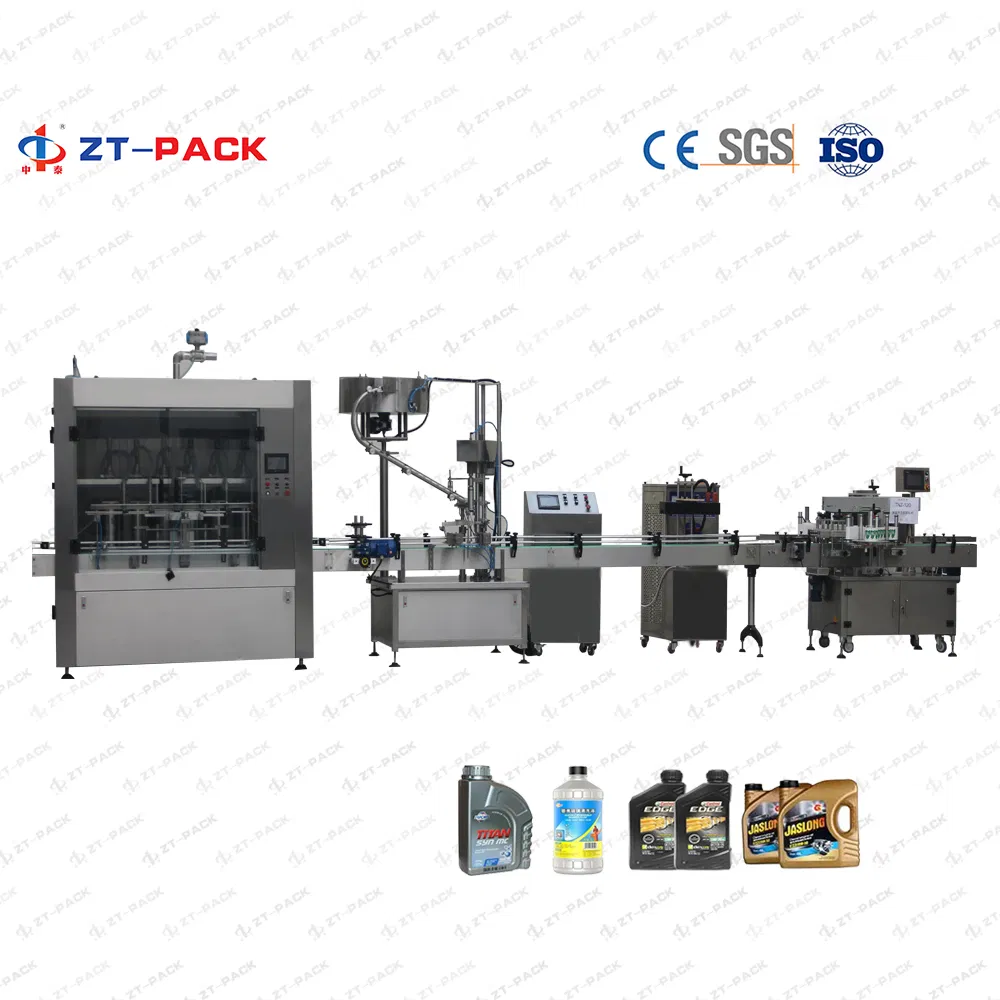

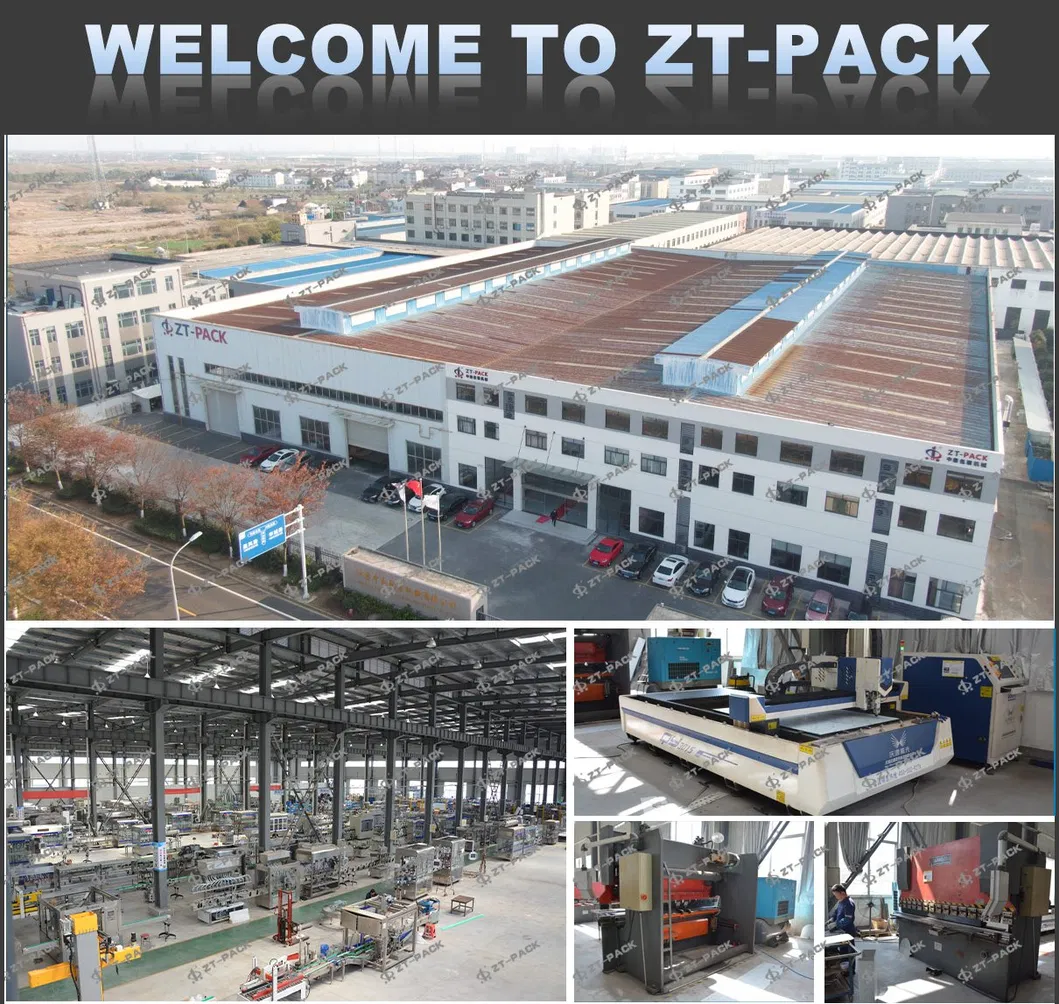

Production Capabilities

Our production lines are designed for high-quality packaging and bottling, covering everything from filling and capping to labeling and carton packing. We specialize in solutions for seasonings, cosmetics, agrochemicals, and various oils.

Factory Scale: 13,000 m² modern manufacturing facility.

Expert Team: Over 20 senior technical staff and 80+ employees.

Certifications: ISO9001:2008 and CE certified.

Frequently Asked Questions

What types of liquids can this machine fill?

This machine is ideal for lubricant oil, engine oil, motor oil, car oil, coolant liquid, brake oil, and other high or low viscosity liquids.

What is the filling accuracy of the equipment?

The equipment adopts high-precision rotary encoder measurement to ensure a filling accuracy of 1‰.

Does the machine support different bottle sizes?

Yes, the linear design allows for easy adjustment between different bottle sizes (from 50ml to 5L and more) without the need to change parts.

What materials are used in the machine construction?

The contact parts are made of 316L Stainless Steel with a fine polish, meeting food-grade standards and ensuring easy cleaning.

What is the maximum production capacity?

Depending on the model and bottle size, the capacity ranges from 1000BPH to 6000BPH (based on 1L bottles).

What control system does the machine use?

The machine utilizes a PLC and touch screen control panel for stable operation and easy adjustment of metering for each filling head.
