The perfume filling line is mainly used to manufacture perfume. The production line consists of a perfume manufacturing machine, an irrigation machine, and a covering machine. Customers can choose their own production machines according to their needs.

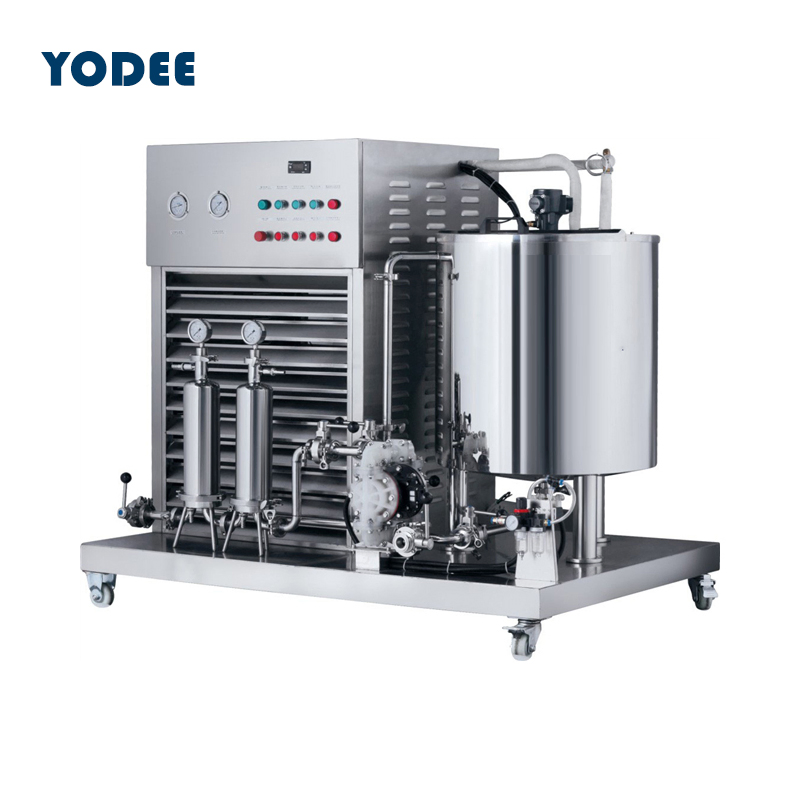

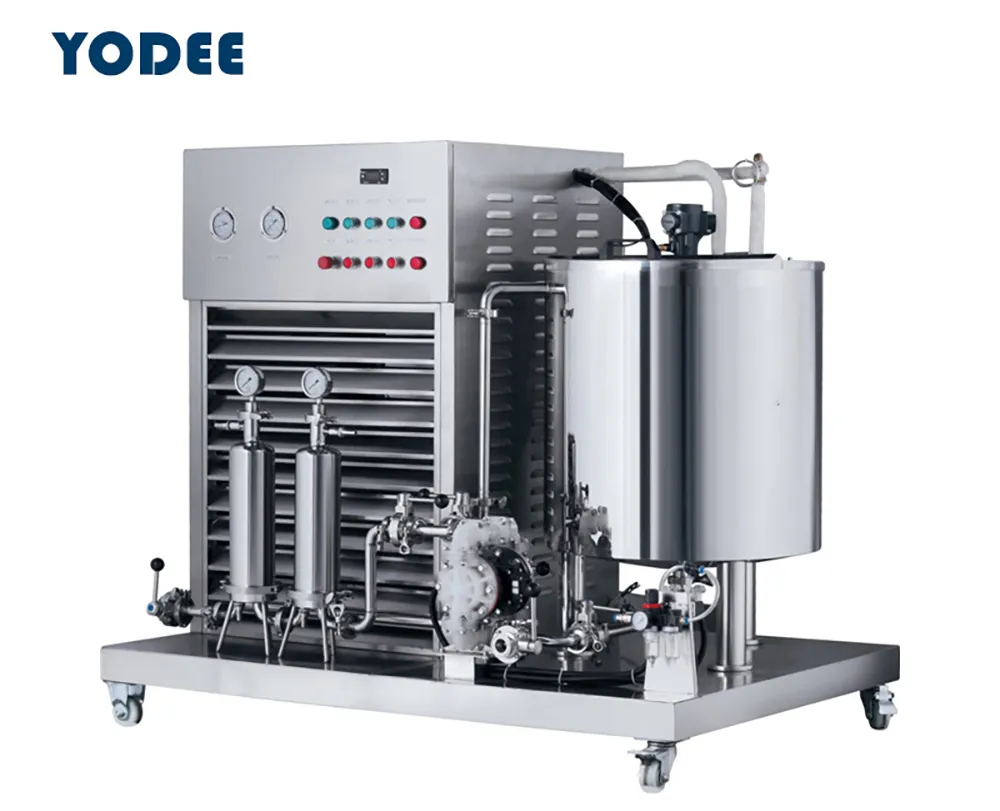

The perfume making equipment is specialized for clarification and filtration of fluid after freezing in cosmetic water and perfume water. It adopts stainless steel 304-2B or 316L, with a pneumatic diaphragm pump as the pressure source for positive pressure filtration. The connecting pipes adopt sanitation grade polishing pipes with quick-install connections for easy cleaning.
| Capacity | 100L | 200L | 300L | 500L |
|---|---|---|---|---|
| HP | 3P | 3P | 3-5P | 5-10P |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power | 2.2kw | 2.2kw | 3.75kw | 7.5kw |
| Freezing Temp | -5°C | -5°C | -5°C | -5°C |
| Air Source | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa |

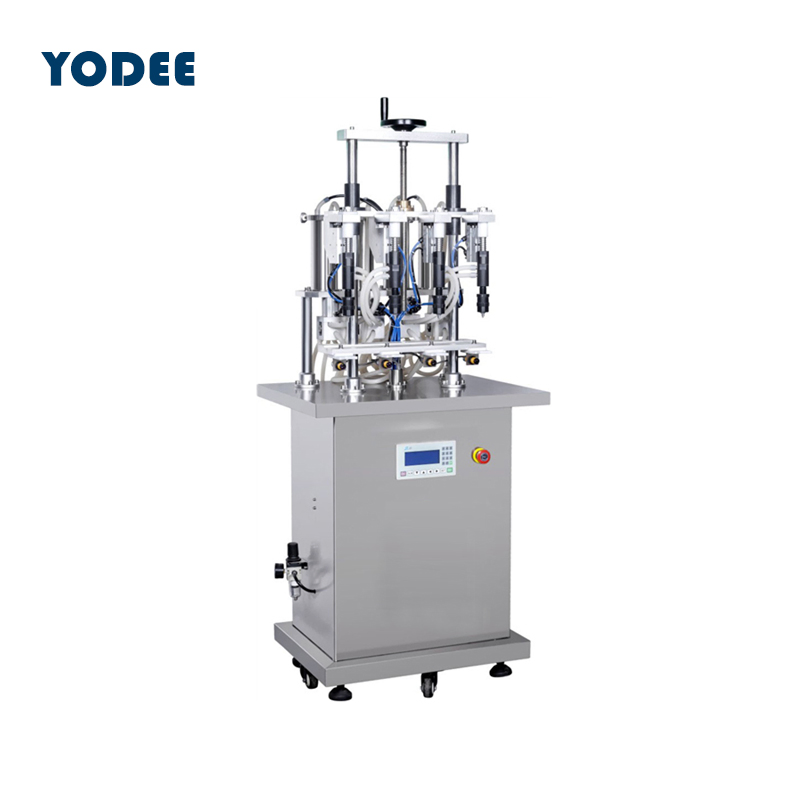

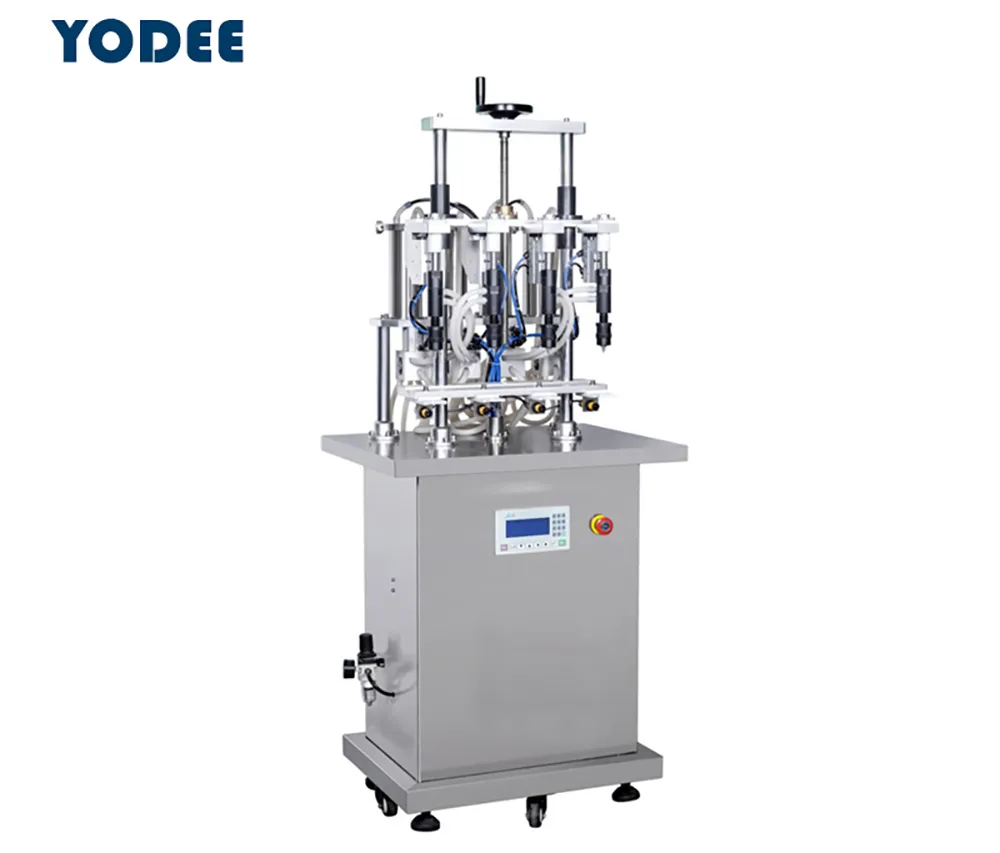

Pneumatic semi-automatic four-head vacuum bottle perfume filling machine is used for floral water, perfume, and other water-based materials. It uses negative pressure suction filling, where the liquid level height determines the filling amount. Suitable for glass or rigid plastic bottles.
| Filling Head | Four Heads |
| Filling Speed | 10-40 bot/min |
| Filling Volume | 5-1000ml |
| Bottle Height | ≤250mm |
| Bottle Diameter | ≤φ90mm |
| Filling Accuracy | ±1% |

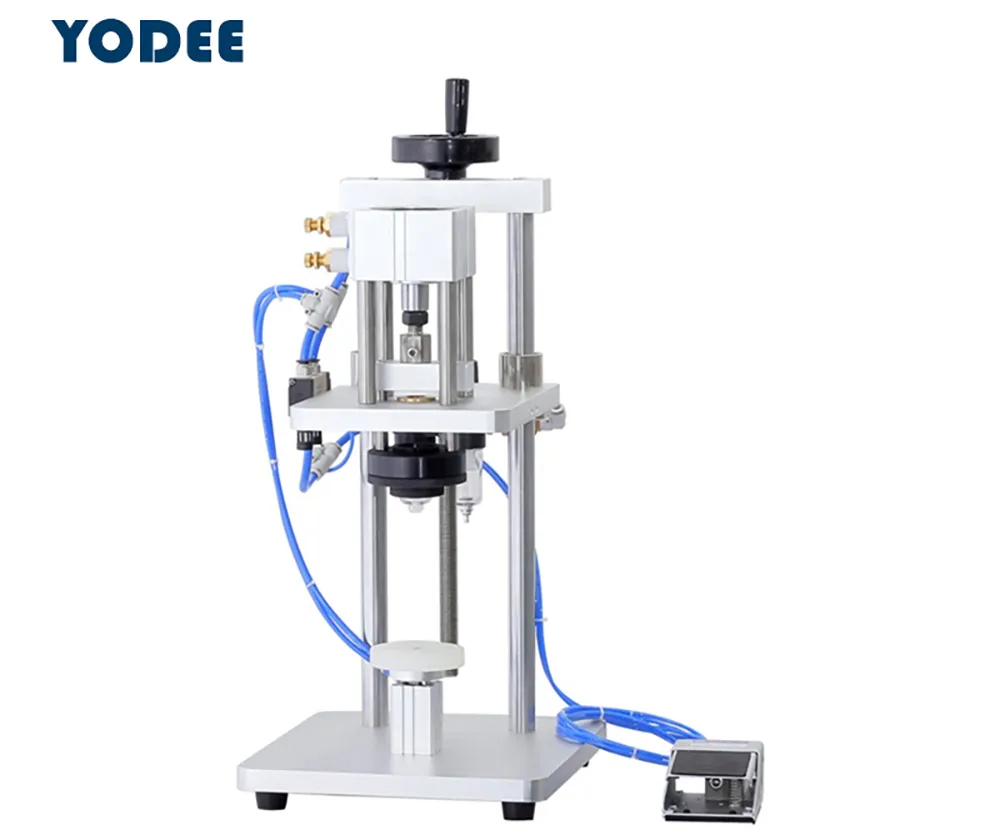

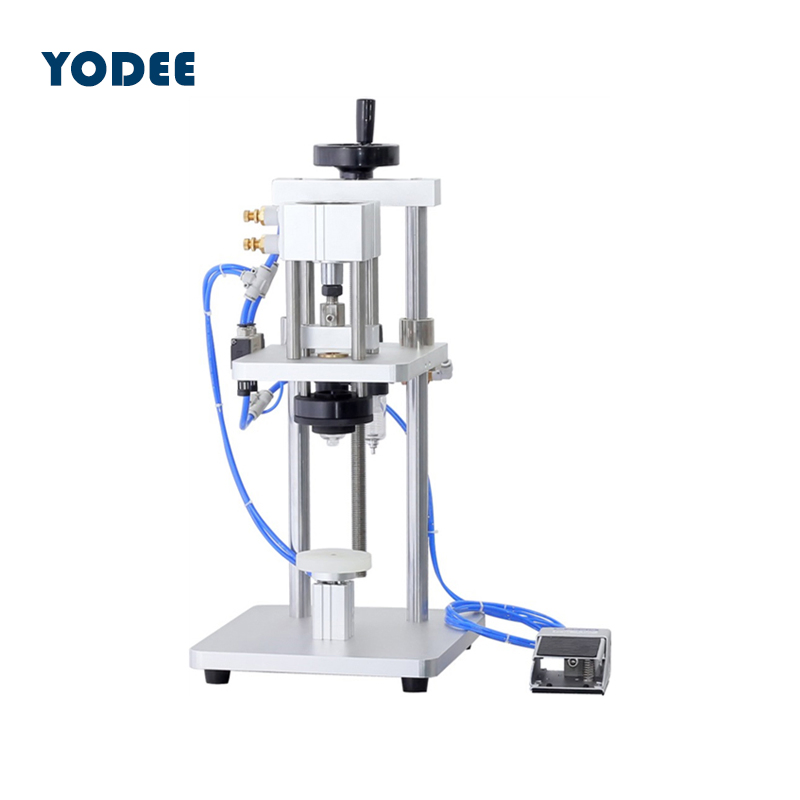

This tightening type closing machine uses a chuck to fasten the cap on the bottle mouth flange. Ideal for spray type and perfume bottles. It features a compact structure, accurate positioning, and pneumatic control.
| Working Method | Pneumatic |
| Capping Speed | 10-25 bot/min |
| Air Source | 0.4-0.6MPa |
| Mould Size | 14, 16, 19, 21mm (Customized) |
| Machine Weight | 32kg |
