Compatible with: 10L | 30L | 50L | 200L | 1000L
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals, etc. |
|---|---|
| Filling range (L) | 100-400L |
| Power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed (can/hour) | 30-50 barrels (Depending on material flow rate) |
| Material | SUS304 / SUS316 / Carbon Steel / PTFE |

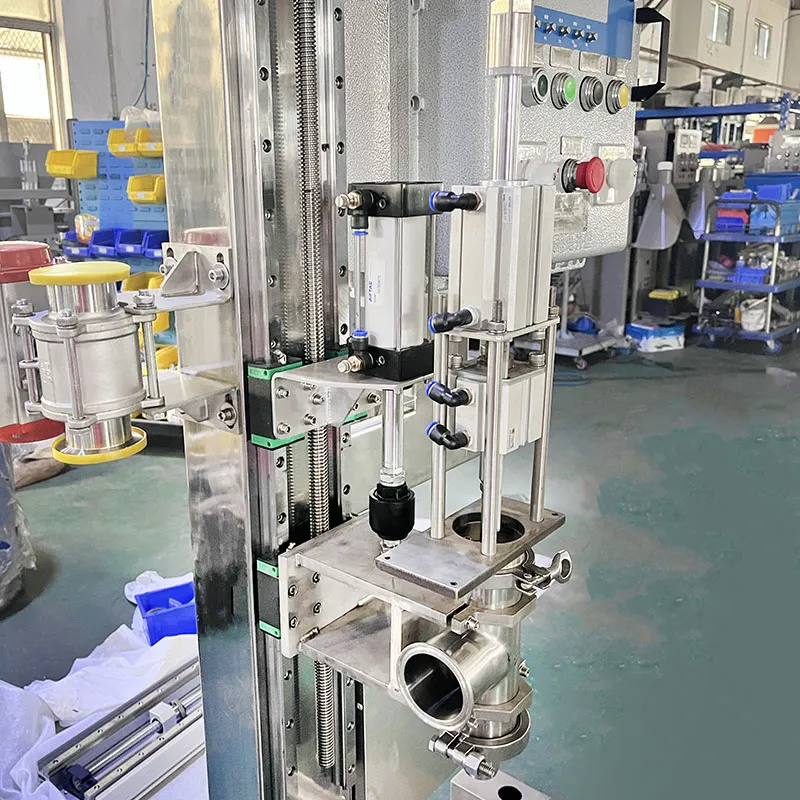

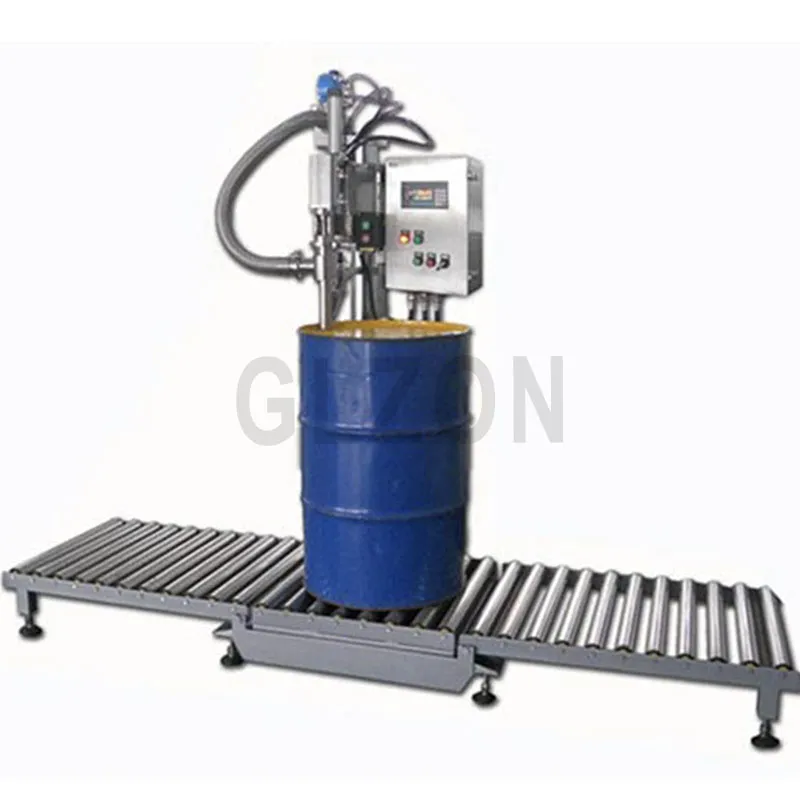

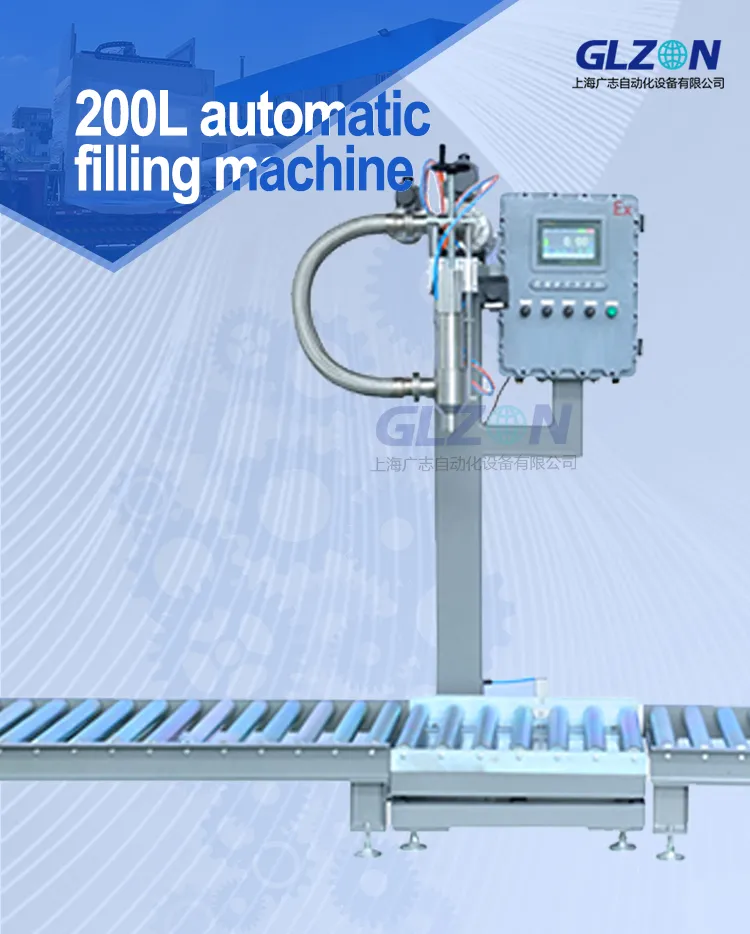

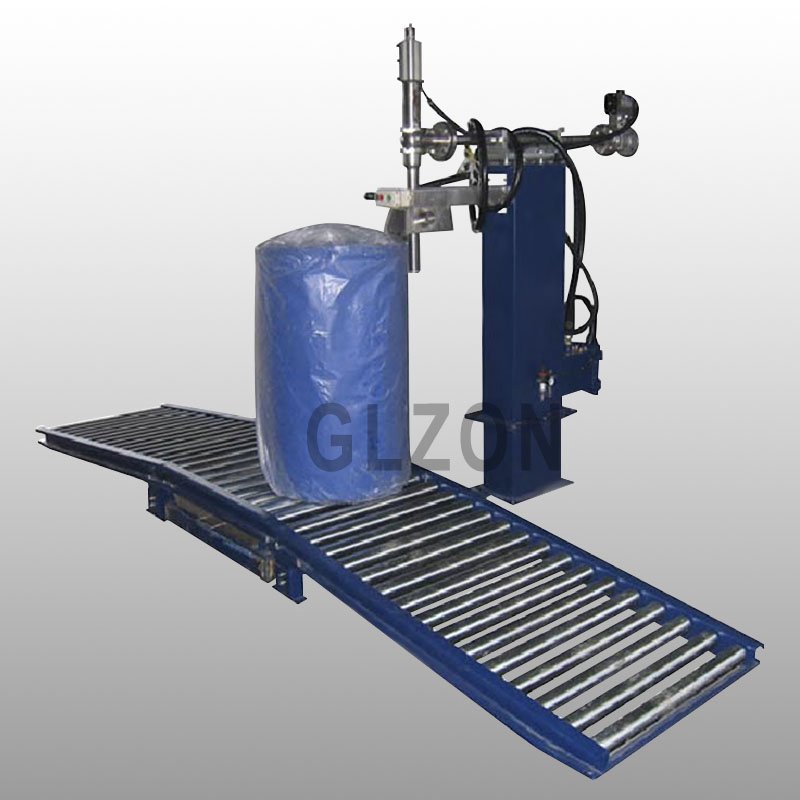

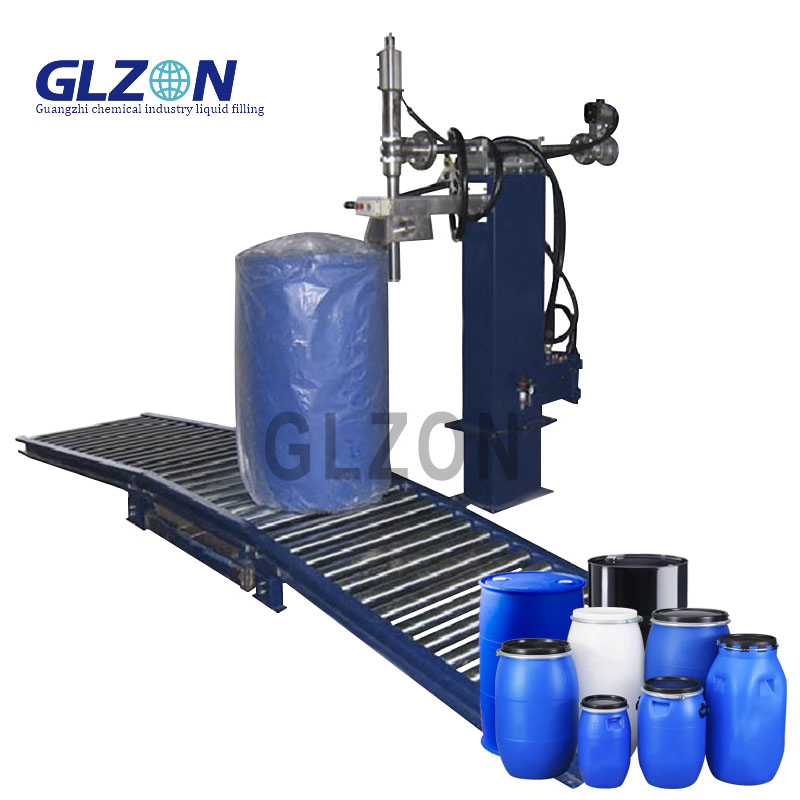

Suitable for 200L single barrel filling. Features an adjustable pneumatic ball valve and spray valve to increase speed while ensuring grain accuracy and minimizing residual dripping.

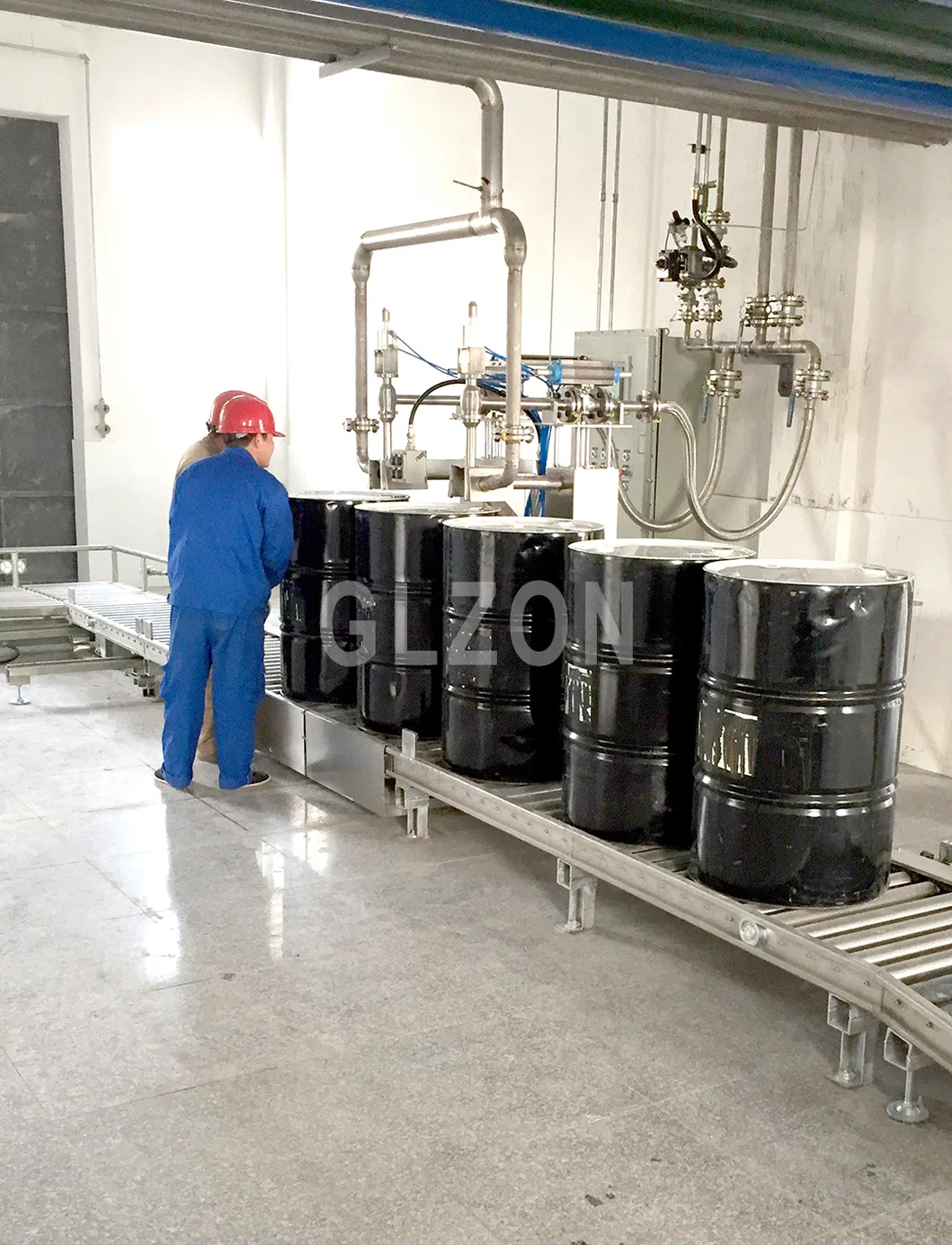

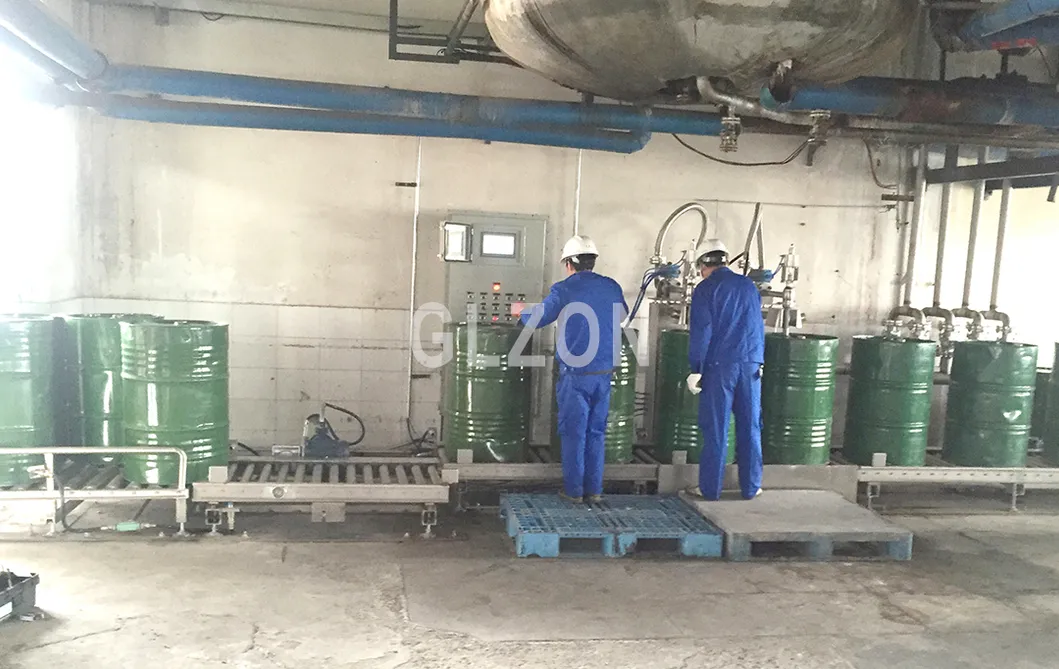

Empty barrels are automatically positioned under the nozzle. The valve lowers, tares the weight, and fills at two speeds. Once full, it proceeds to the capping station for manual finishing.
Equipped with a C3 level load cell and dual 6-bit high-precision weighing controller. Sampling speeds up to 128 times/second ensure filling quality.

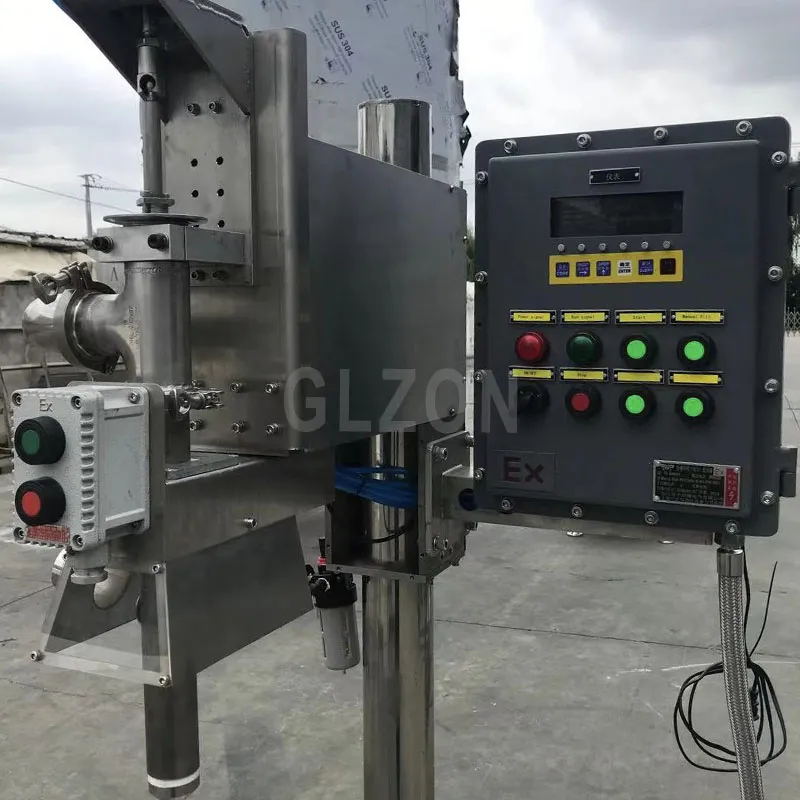

Computer-controlled weighing with submersible filling and three-speed frequency conversion adjustment. Includes gap compensation for high precision.
The enterprise is a high-tech manufacturer located in a major industrial and equipment manufacturing base. "High excellence and high compatibility" is the core manufacturing guideline. The facility has passed ISO9001 international quality system certification and ISO14001 environmental management system certification. Mechanical equipment is designed to meet CE certification standards, specializing in high-performance packaging machinery.
Component Brands
