Dishwashing Cleaning Solution Detergent Liquid Filling Piston Linear Type Machine for Bottle

Customization: Available
After-sales Service: Online Video Guidance, Offline Field Guidance
Warranty: 1 Year

Product Description

Basic Information
Model NO.
AL-SJ-GZJ
Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pistion Cylinder Filling
Structure
Linear
Packaging
Bottle
Filling Speed
5L/Min,Based on Volume
Filling Accuracy
1%
Capping Speed
30-40 B/Min
Voltage
AC220V, 50Hz
Production Capacity
10sets/Month
Product Description
Liquid Filling Machine

Introduction:

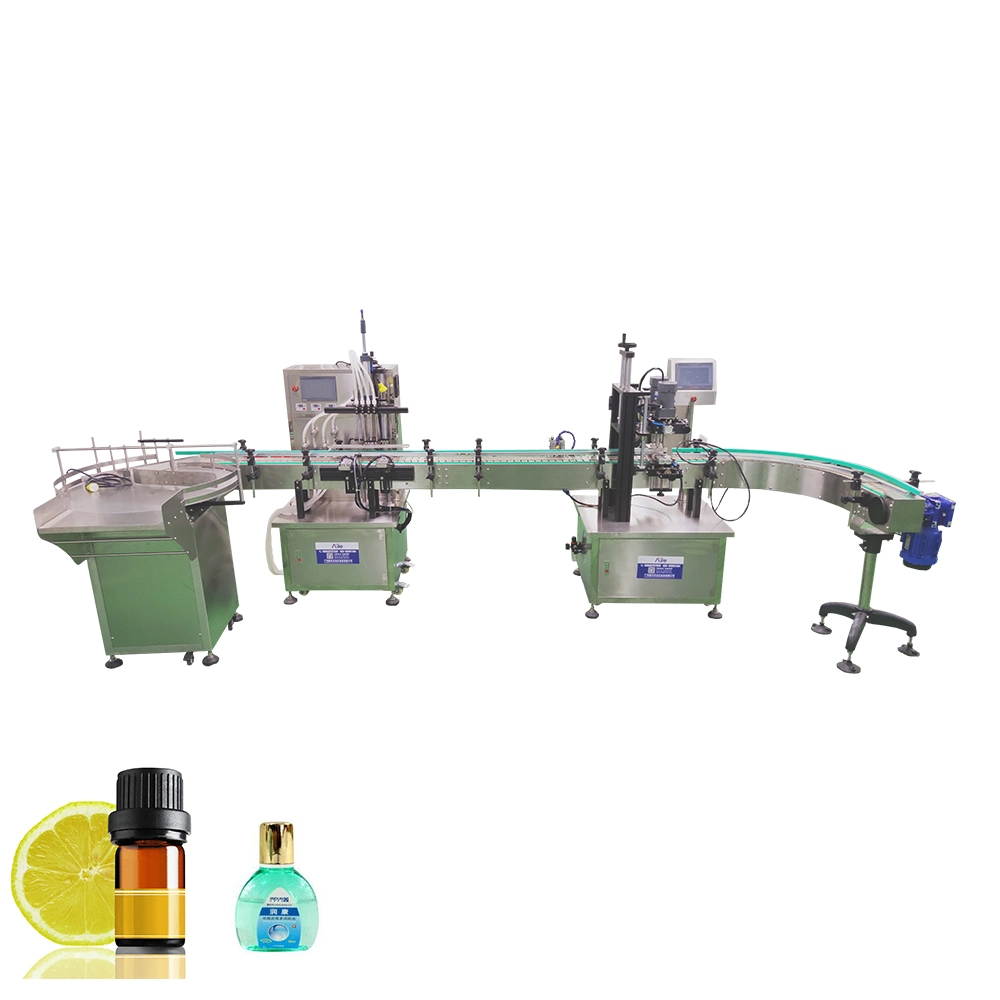

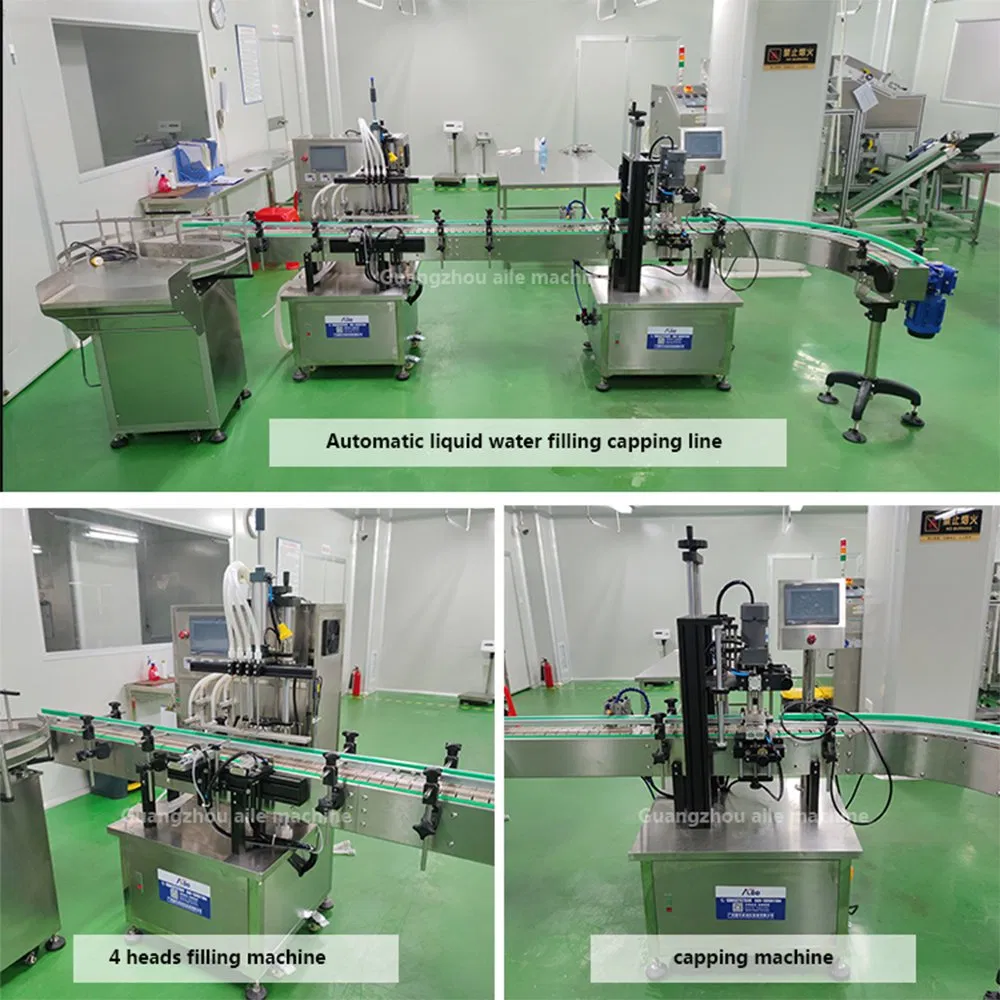

The production line is suitable for small glass bottles, plastic bottles and other filling and capping labeling, such as eye drops, essential oil, toner, skin care water, essence, makeup remover and other water products. The whole line is controlled by PLC, and all parameters are adjusted by touch screen. The circuit is connected by aviation plug, so there is no need to power each machine separately. The feeding table, filling station and capping station are set on one main machine, which greatly reduces the floor area. This is a good choice for customers with small workshop area.

Key Features
⚙️ Stainless steel gear pump filling, easy to clean tube change.
💧 Glass check valve leakage to ensure the filling process reduces drip phenomenon.
📏 Straight line into the bottle design, high compatibility for various bottle types.
👁️ Automatic induction for bottle entry and exit with flexible discharge head selection.
📦 Compact machine design that covers a small floor area.
Technical Parameters
VoltageSingle phase; 220V 50HzAir pressure8 Mpa
Power1500WOutput20-40 bottles/min
Filling Accuracy0.5%≤Max FlowSingle head 5L/ min
Bottle Height30-250mmBottle Width20-100mm
Filling Volume5ml - UnlimitedFilling ModeServo lifting filling
Line Speed0-20 m/minServo Power400W

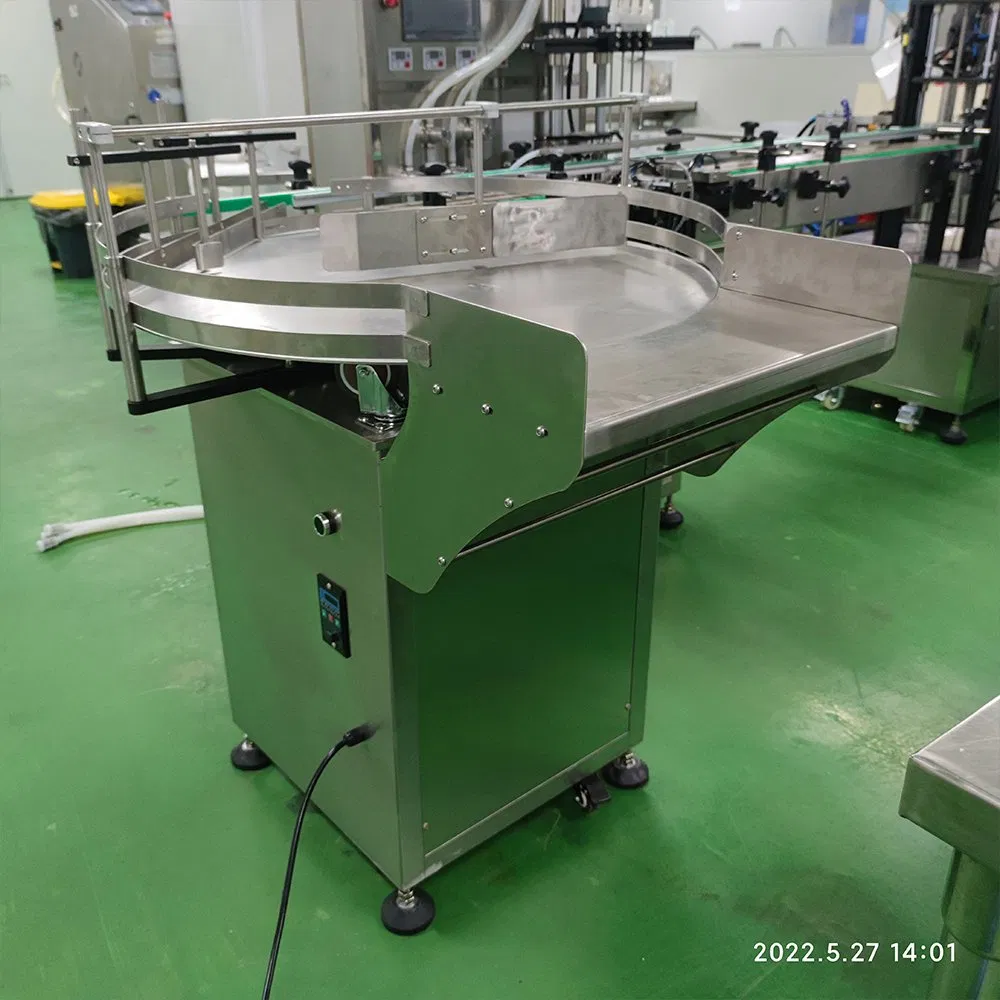

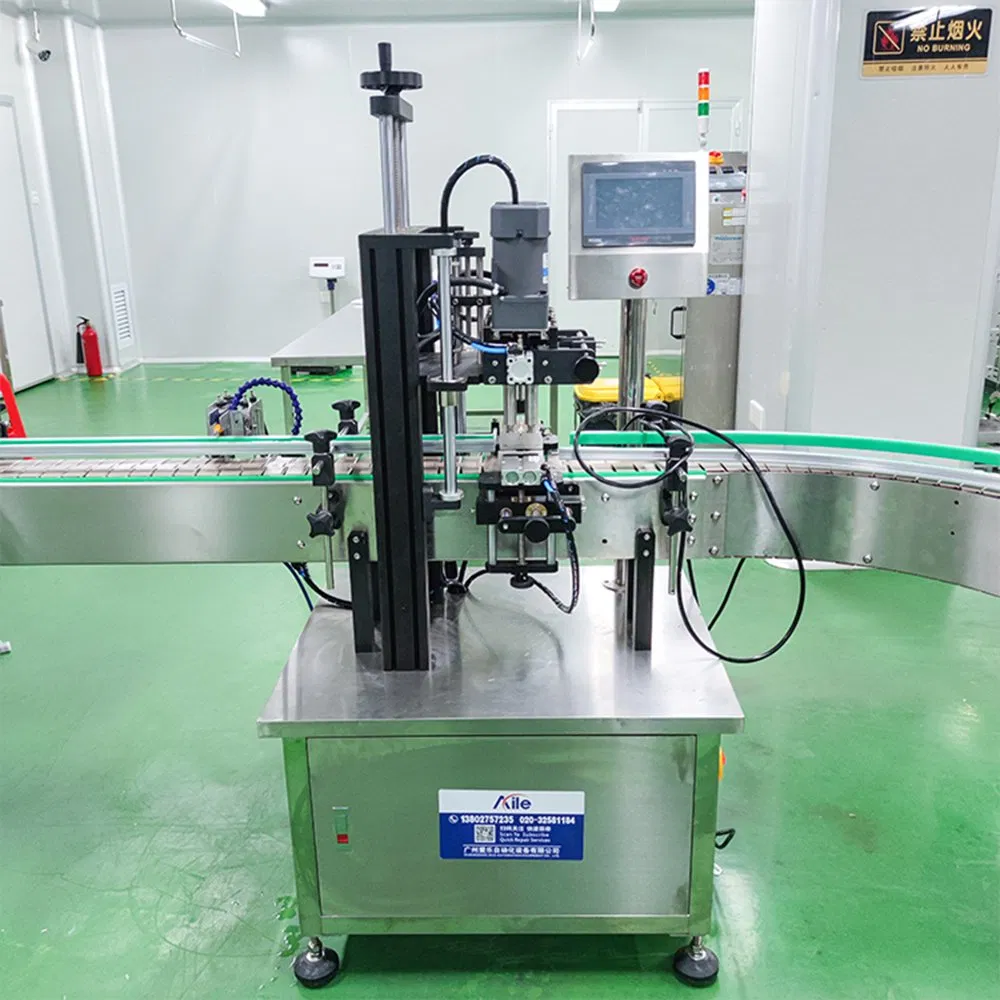

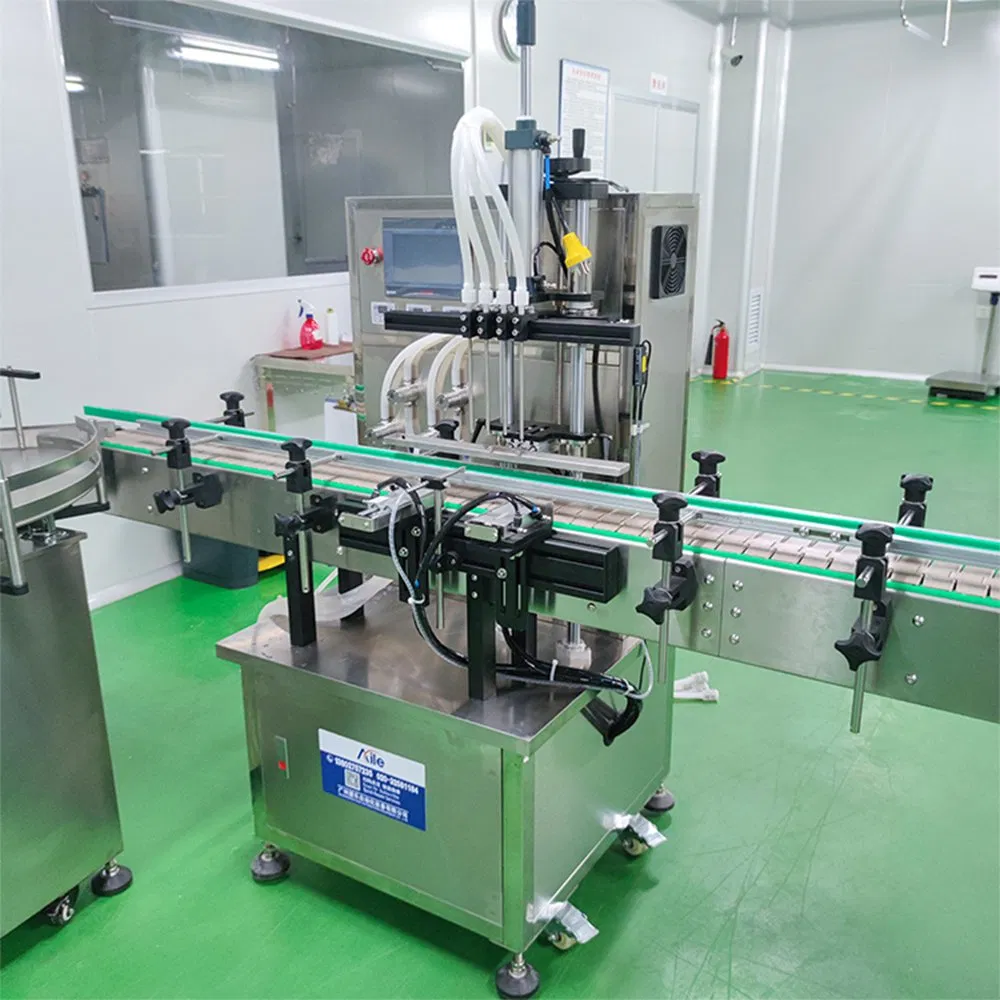

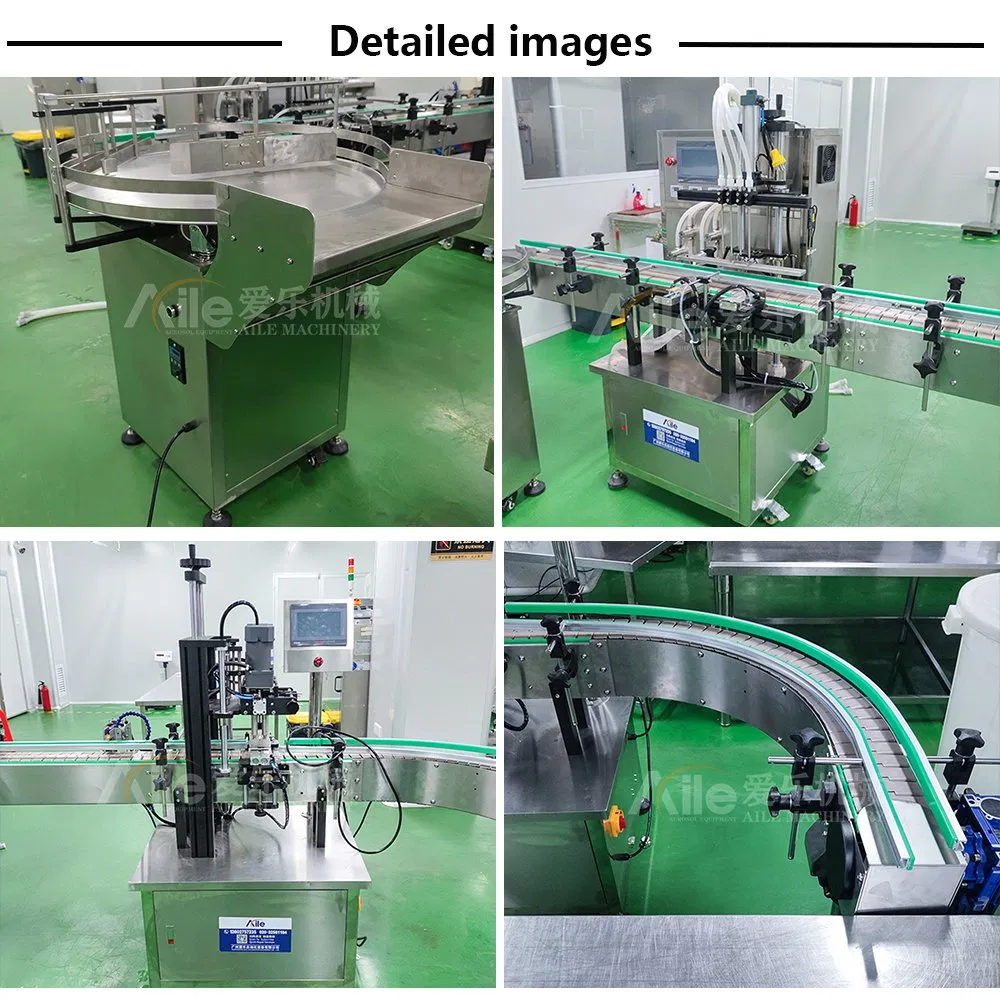

Detailed Photos

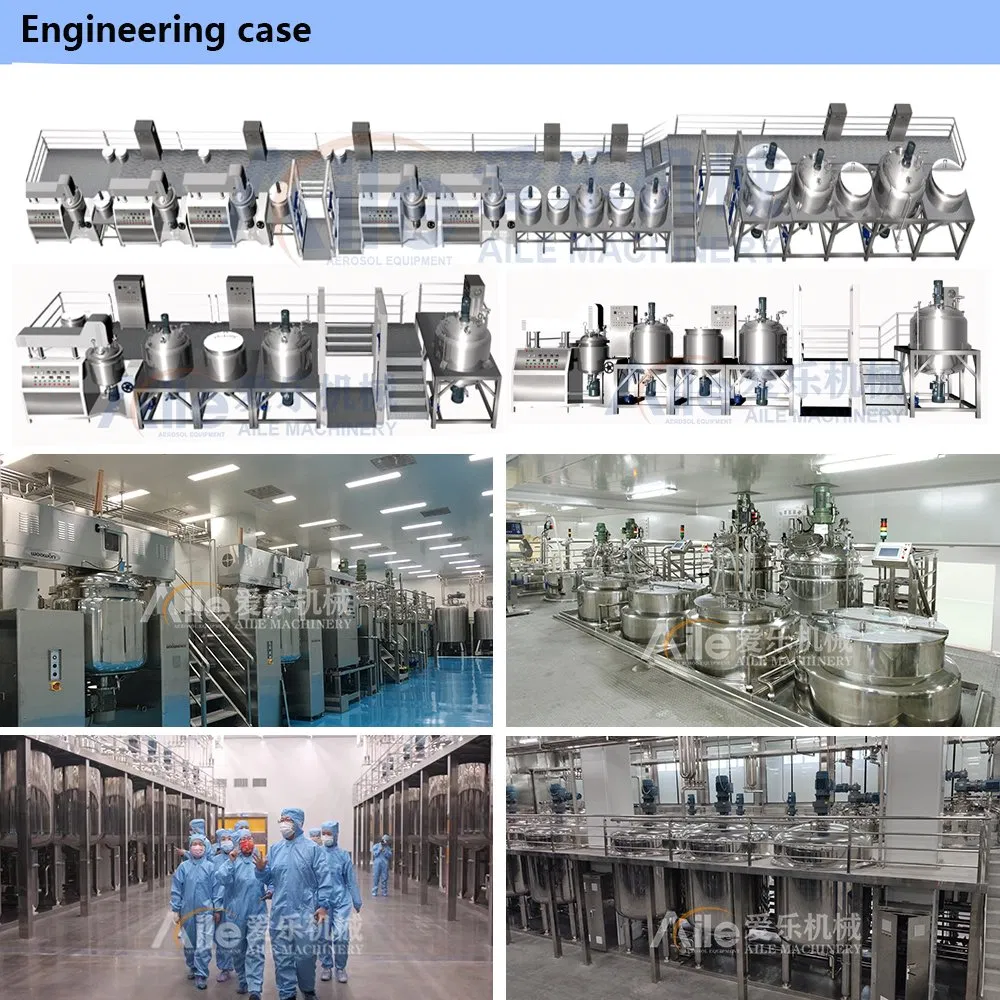

Factory Display
Frequently Asked Questions
How to install and use the machine?
We provide a comprehensive installation guide (documents and videos), operations and maintenance manuals, and adjustment videos to ensure smooth setup.
What kind of certificates do you have?
Our machines hold CE and ISO9001 certifications. The aerosol line specifically includes an explosion-proof certificate for safety.
What is the guarantee period?
We offer at least a 1-year warranty on our high-quality filling machines along with lifetime technical support.
Do you provide customized services?
Yes, we can design the machine according to your specific requirements, including material types, power needs, filling volume, and factory layout.
What is the typical delivery time?
Semi-automatic machines usually require 15 working days after prepayment. Automatic machines typically take 30-35 working days.
What are the available payment methods?
We accept T/T (40% in advance, 60% balance before delivery) and L/C payment methods.
