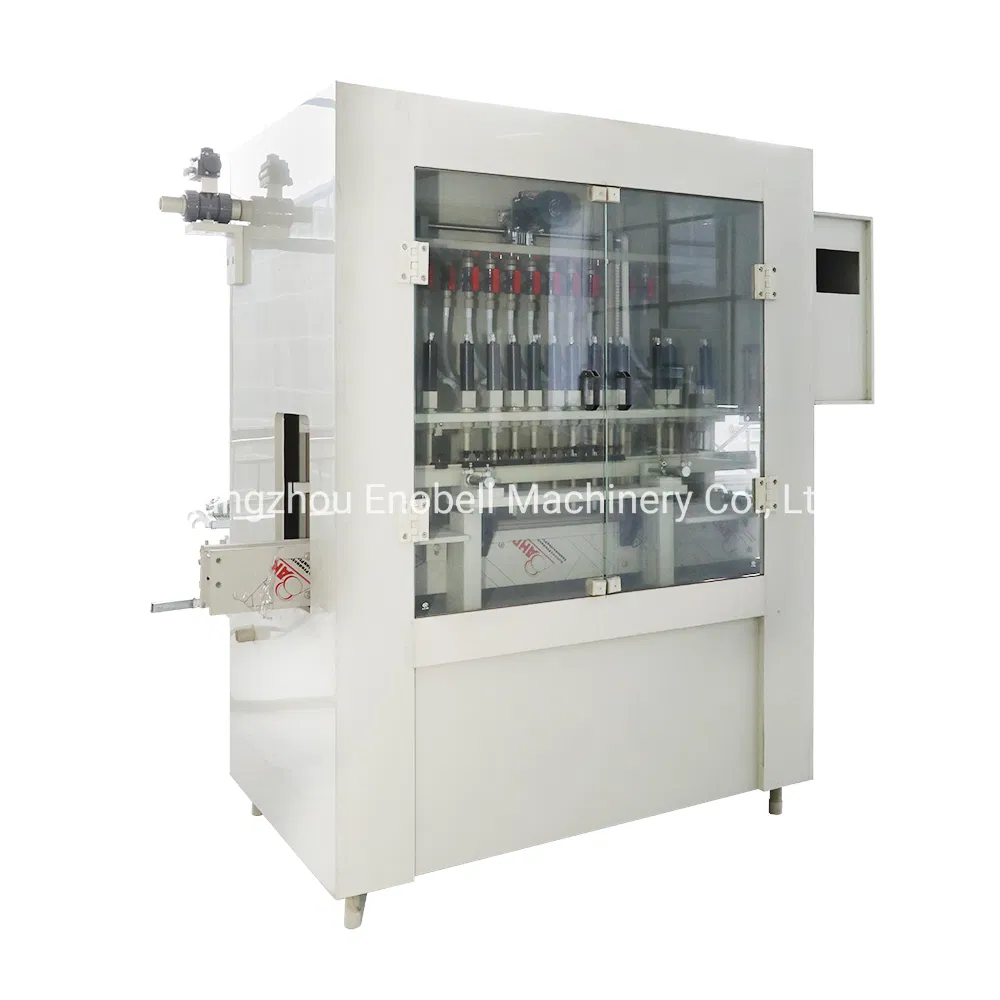

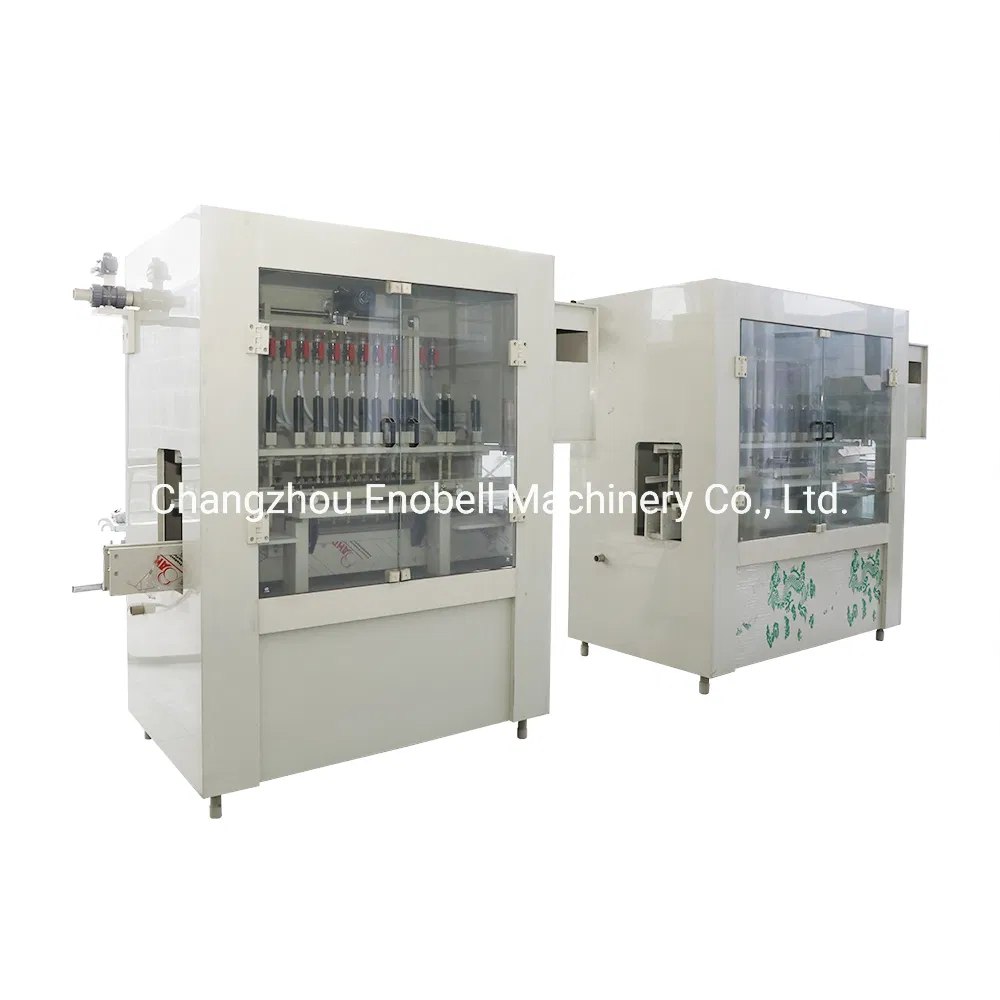

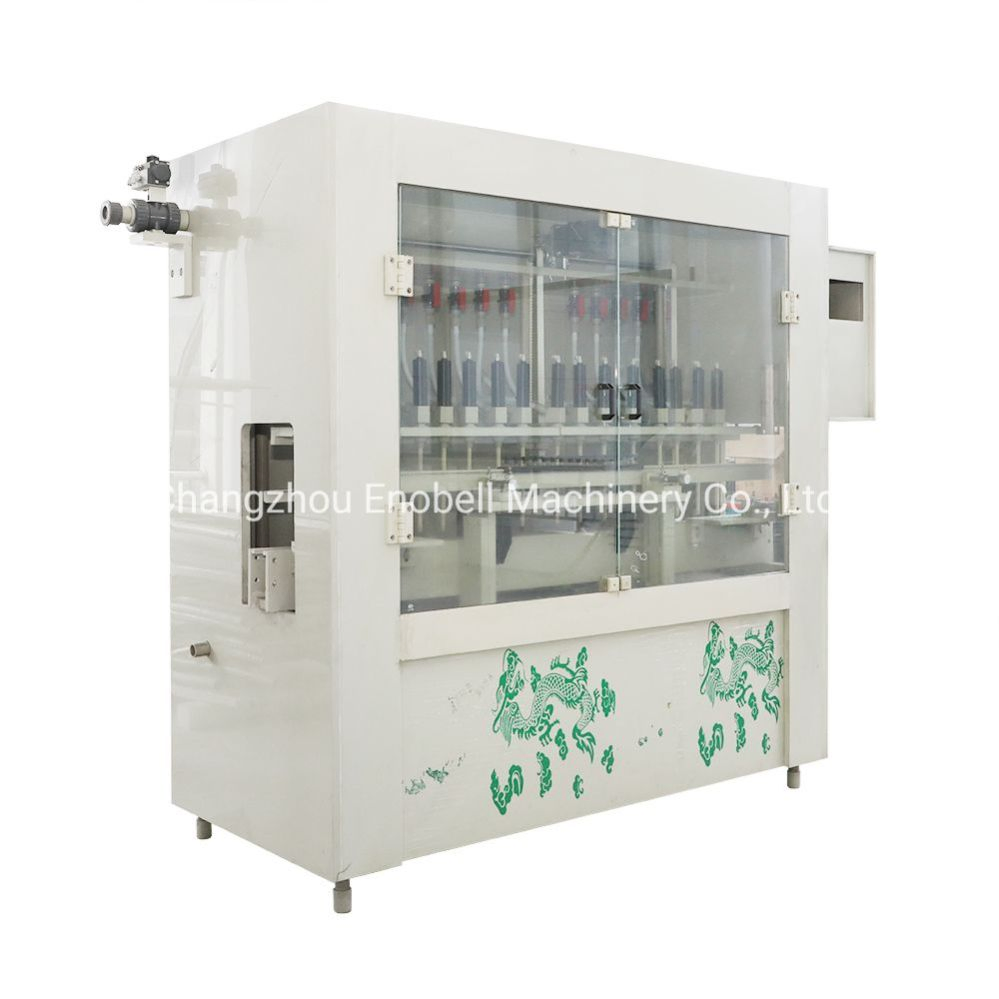

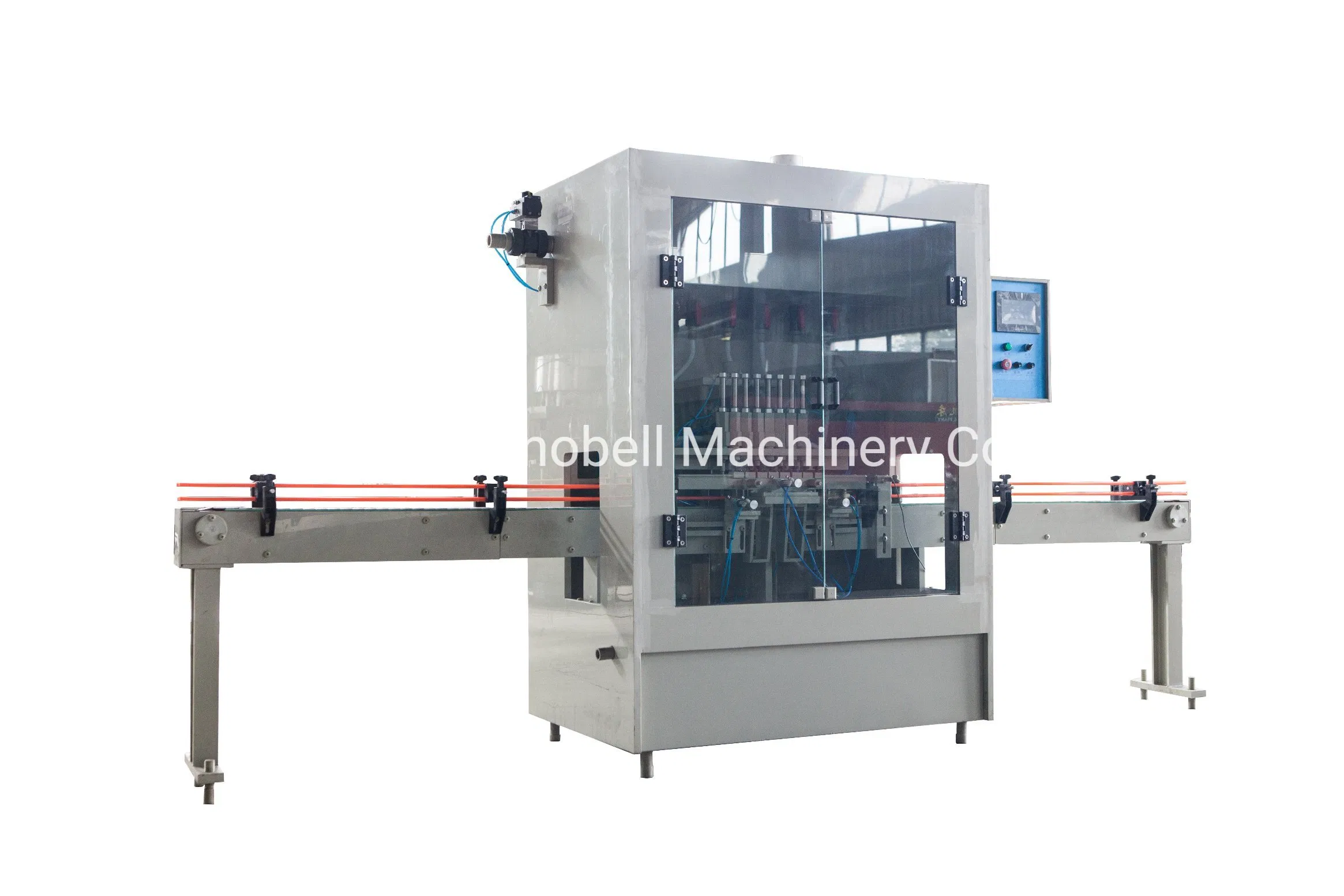

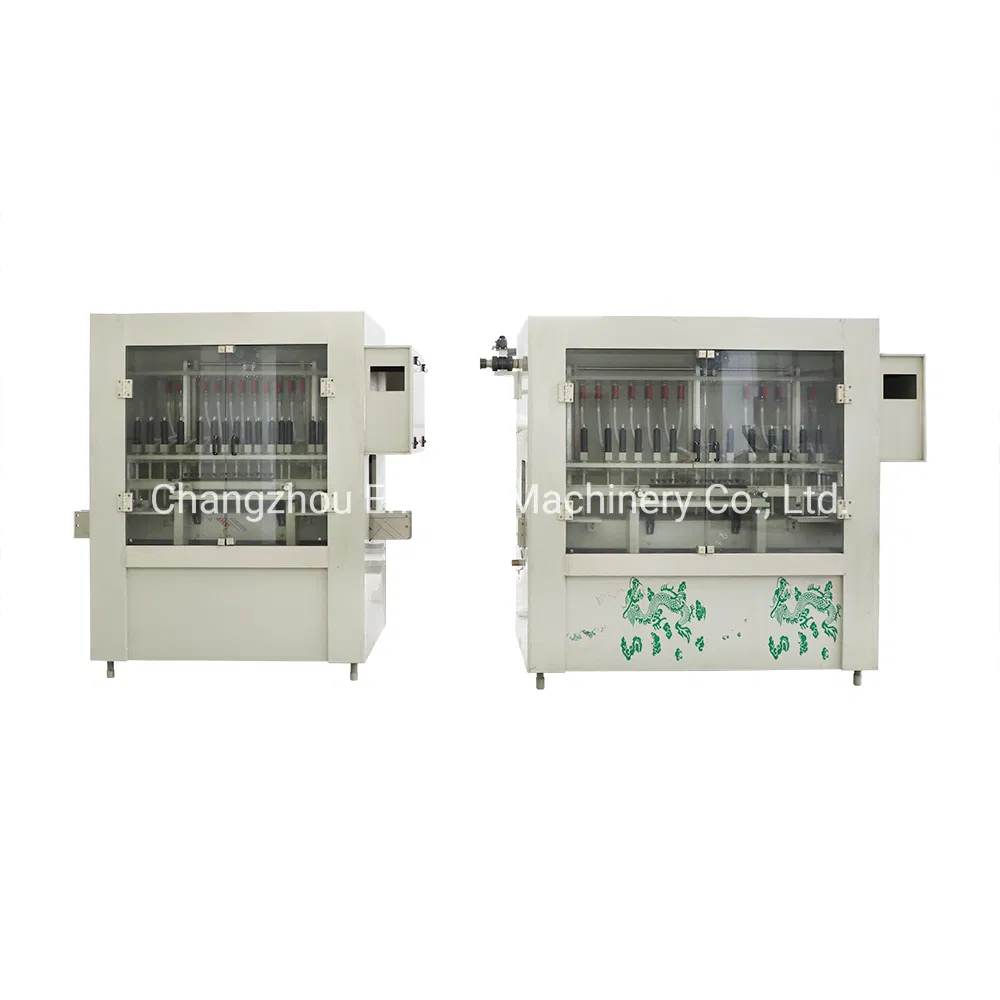

Super Corrosive Liquid 96 Sulfuric Acid Anti-Corrosion Explosion-Proof Filling Machine

Customization: Available
Type: Volumetric Filling Machine
Automatic Grade: Fully Automatic

Product Description

Product Introduction
Anti-Corrosive PP Piston bottle Liquid Filling Machine
YPZ16-F2 is used to fill corrosive sticky liquid into bottles.

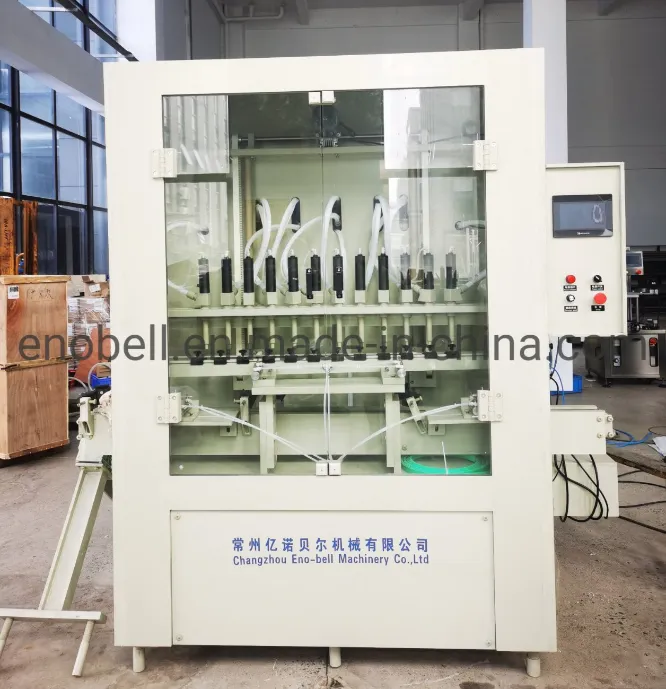

Anti-Corrosion Filling Machine
Technical Characters
Superior Anti-Corrosive Material Whole machine uses PP material, which is significantly better than stainless steel for anti-corrosive functions.
Isolated Valve Design Three-way valves are installed separately in an isolated room at the back, protecting them from corrosive liquid and air.
Zero-Leak Piston System Piston cylinders feature 2 sealing rings, guaranteeing 100% no leaking or dripping even after years of use.
Glass Piston Cylinders Inner walls are smooth glass, providing minimal resistance to sealing rings for a longer service life.
High-Grade Sealing Specially-designed drawing valves are made of F4 (PTFE) material for maximum chemical resistance.
Efficient Production Equipped with 16 filling heads, capable of 3 cycles per minute for 100ml-1000ml volumes.
Basic Information
Model NO.YPC16-F2
Material TypeLiquid
Filling Valve HeadMulti-Head
Feed Cylinder StructureSingle-Room Feeding
Dosing DeviceCapacity Cup
Filling PrinciplePressure
StructureLinear
ApplicationSticky Corrosive Liquid
Filling Nozzles Quantity16 PCS
MaterialMade of Stronger PP Plate
Cylinder BrandAirtac From Taiwan
SealingPTFE
Machine TankOn Top of Machine (Approx. 200L)
OriginChina
HS Code8422301090
Packaging & Delivery
Package Size2000.00cm * 1000.00cm * 2200.00cm
Package Gross Weight800.000kg
Transport PackageIron Frame Structure Plywood
Product Gallery

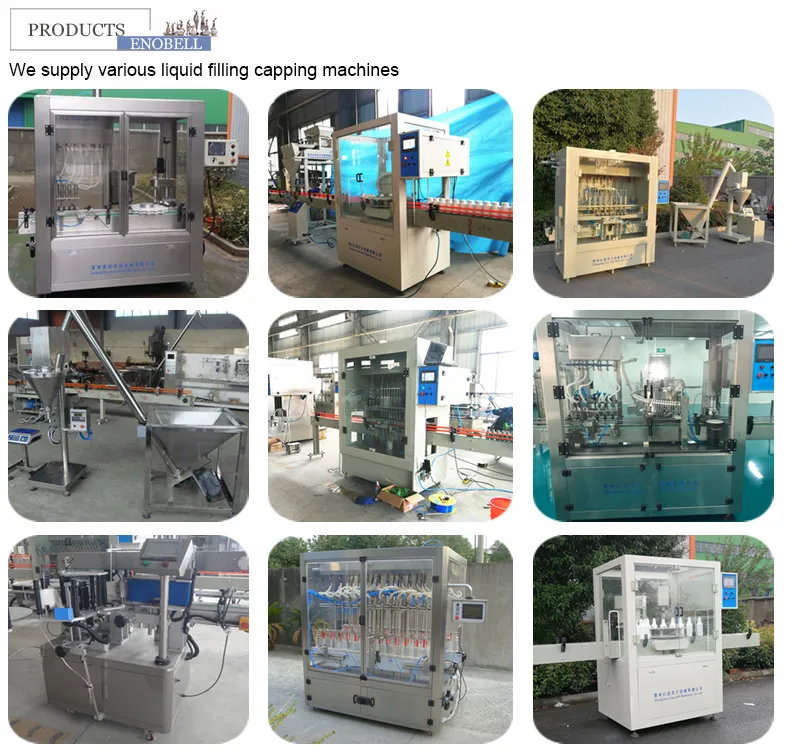

Filling Machine View 1 Filling Machine View 2 Filling Machine View 3 Filling Machine View 4
Frequently Asked Questions
What materials are used to ensure the machine is anti-corrosive?
The entire machine is constructed using high-quality PP (Polypropylene) material, which provides superior resistance to corrosion compared to standard stainless steel.
How does the machine handle highly corrosive sticky liquids?
It utilizes a piston filling principle with glass cylinders and PTFE (F4) sealing to handle sticky and corrosive substances like 96% sulfuric acid without damage.
What is the production capacity of the YPZ16-F2 model?
The machine features 16 filling heads and can complete approximately 3 cycles per minute for volumes ranging from 100ml to 1000ml.
How is the leaking and dripping prevented?
The piston cylinders are equipped with two sealing rings and are specifically positioned at the back of the machine to ensure 100% leak-proof operation.
Can this machine handle special bottle types like angle neck bottles?
Yes, we have developed a specialized capping system that can automatically feed the inner mouth for angle neck bottles before the capping process.
What brands of components are used in the machine?
The machine uses reliable components such as Airtac cylinders from Taiwan and high-grade PTFE sealing materials for long-term durability.
