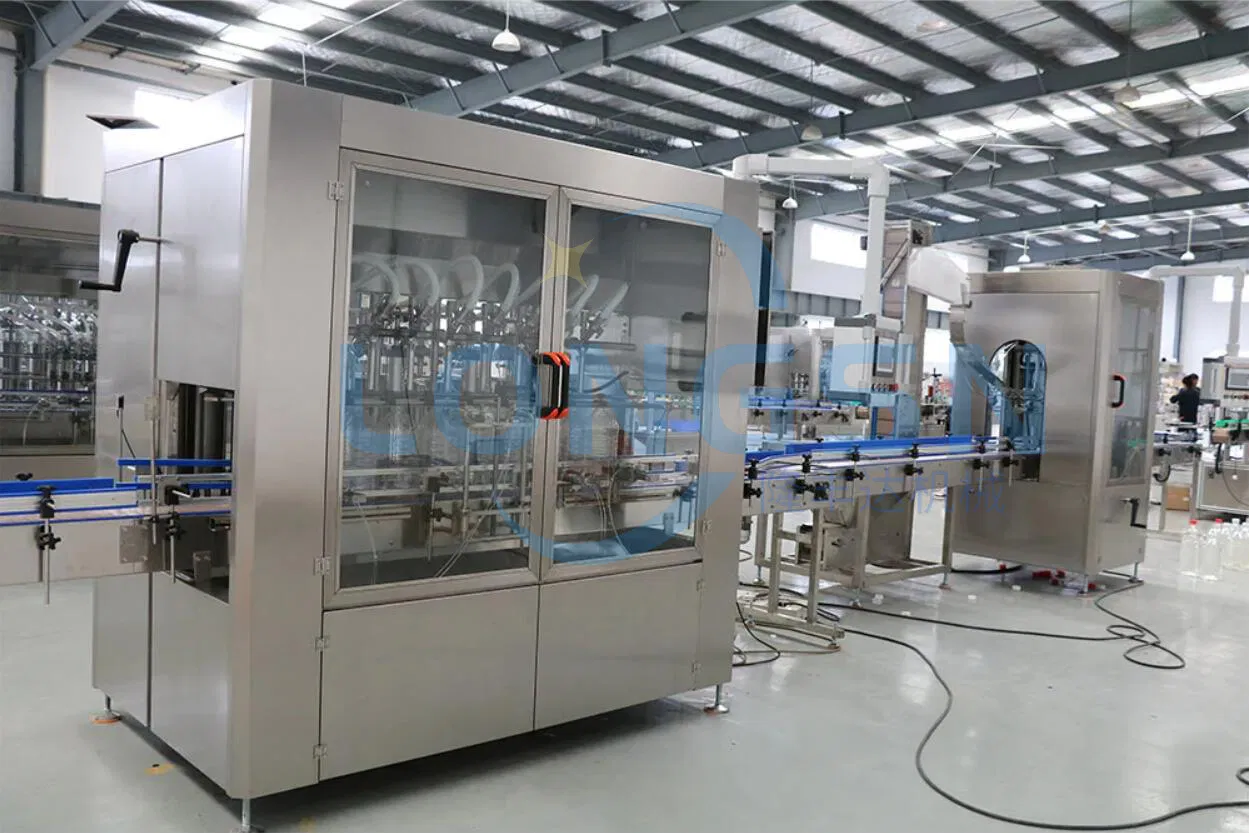

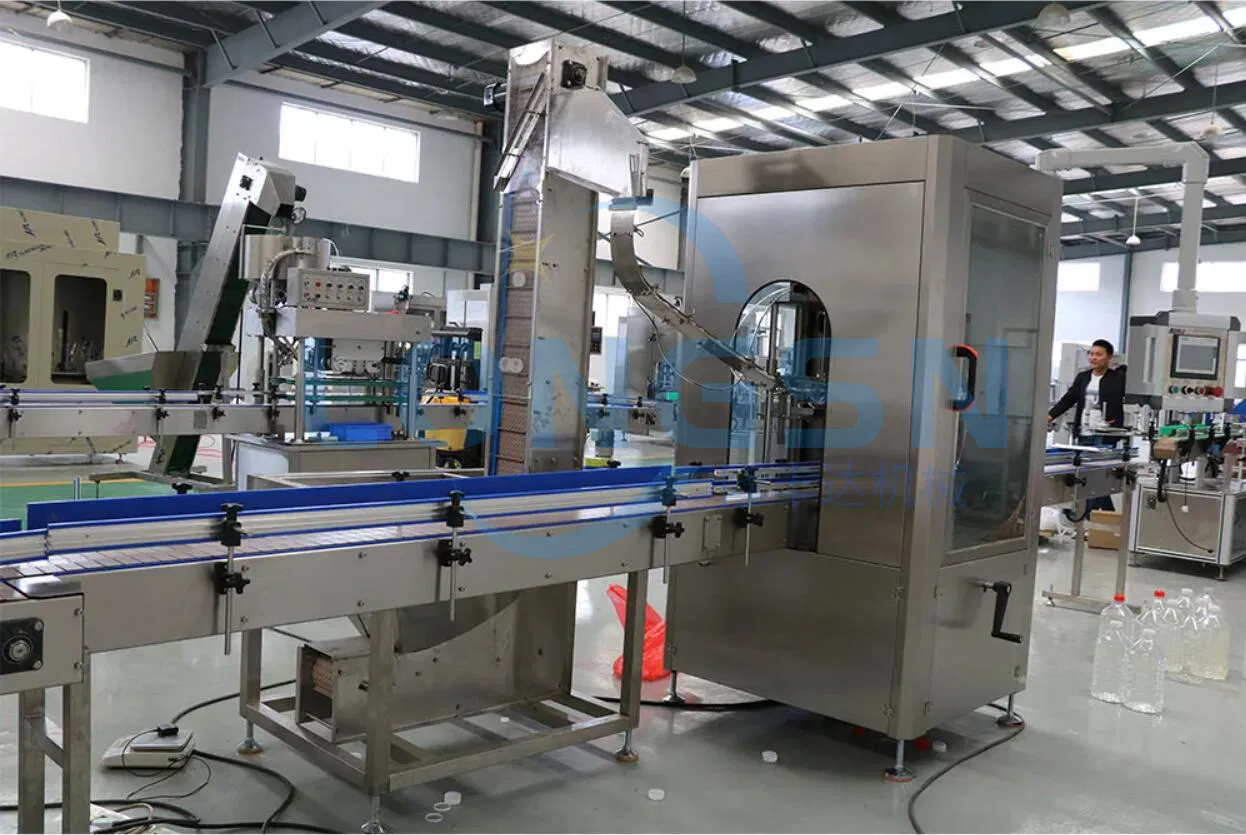

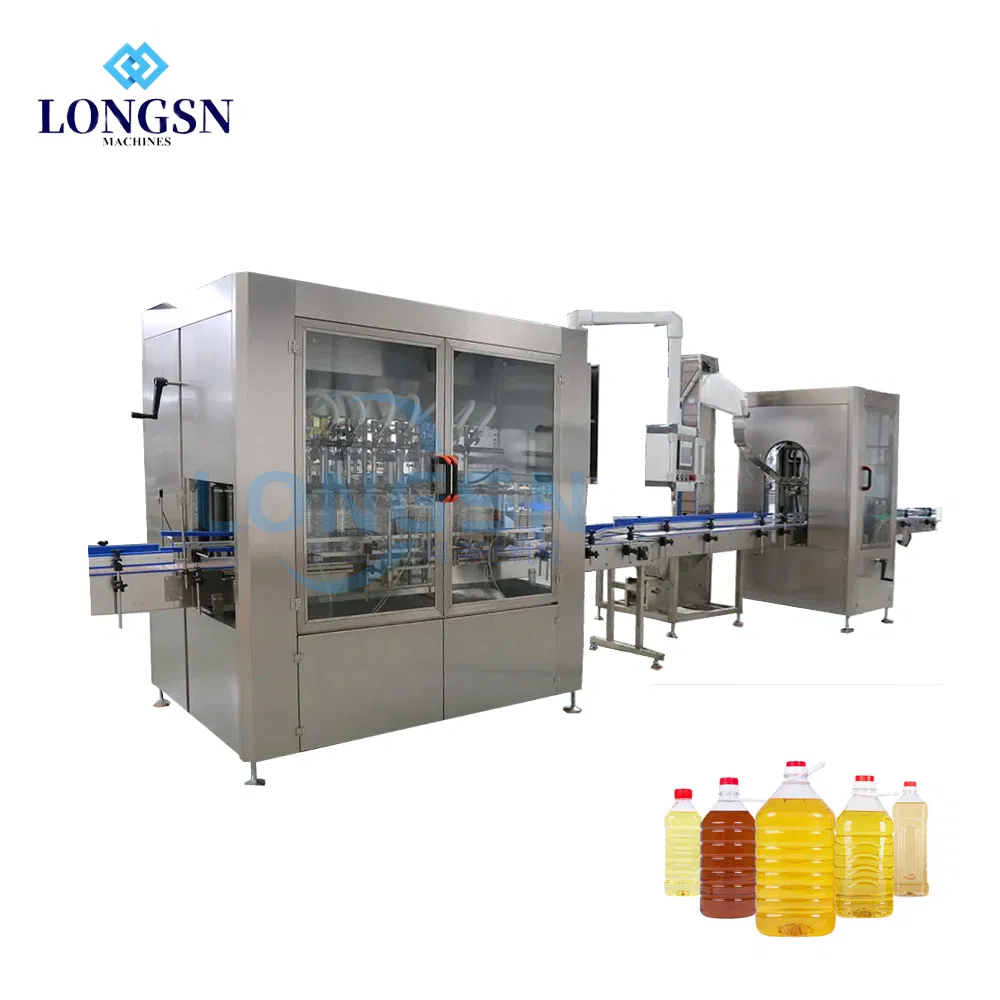

Automatic 1-5L PLC Controlled Servo Piston Type Edibletechnical Industrial Engine Hydraulic Lube Oil Liquid Filling Machine

Customization: Available
Type: Piston Filling Machine
Automatic Grade: Fully Automatic

Product Description

Basic Specifications

Model NO.LFD
Material TypeOil
Filling Valve HeadMulti-Head
Dosing DeviceCapacity Cup
Filling PrincipleAtmospheric Pressure
StructureLinear
Packaging MaterialPlastic / Stainless Steel 304/316
Suitable Bottle100ml - 5L
Capacity1000bph - 8000bph
Control SystemPLC Mitsubishi + Touch Screen
Filling Precision0.5% (Liquid Level)
Bottle MaterialPET Bottle / Glass Bottle
CertificationCE, ISO, SGS
Warranty2 Years

Product Description

Automatic 1-5L PLC Controlled Servo Piston Type Edible Technical Industrial Engine Hydraulic Lube Oil Liquid Filling Machine

The oil bottle filling line is a high-tech product designed and developed for different viscosities of water agents, semi-fluids, and pastes. It is widely used in the foodstuff, cosmetics, medicine, grease, daily chemical, detergent, and pesticide industries.

Technical Parameter: Oil Filling Machine
Model LFD06 LFD08 LFD10 LFD12 LFD16 LFD24
Capacity (1000ml) 1200bph 1800bph 2500bph 2500bph 4000bph 8000bph
Suitable Bottle Glass Bottle / PET Bottle
Bottle Volume 0.1L~1L, 1L~2L, 1L~3L, 1L~5L
Compressor Air 0.3-0.7Mpa
Total Power (KW) 1.2kw 1.6kw 1.8kw 2.5kw 2.8kw 3.2kw
Weight (kg) 1200kg 2000kg 2200kg 2500kg 3000kg 3200kg

Key Features

Suitable Material: Efficiently handles oil, jams, daily chemicals, and highly viscous liquids.
PLC Control: High-tech equipment controlled by Mitsubishi PLC programmable system with photo-electricity transduction.
Accurate Measurement: Servo control system ensures the piston reaches a constant position every time.
Anti-Drop Function: Realizes slow filling when close to target capacity to prevent spills and pollution.
Convenient Adjustment: Change parameters easily via touch screen for different filling specifications.

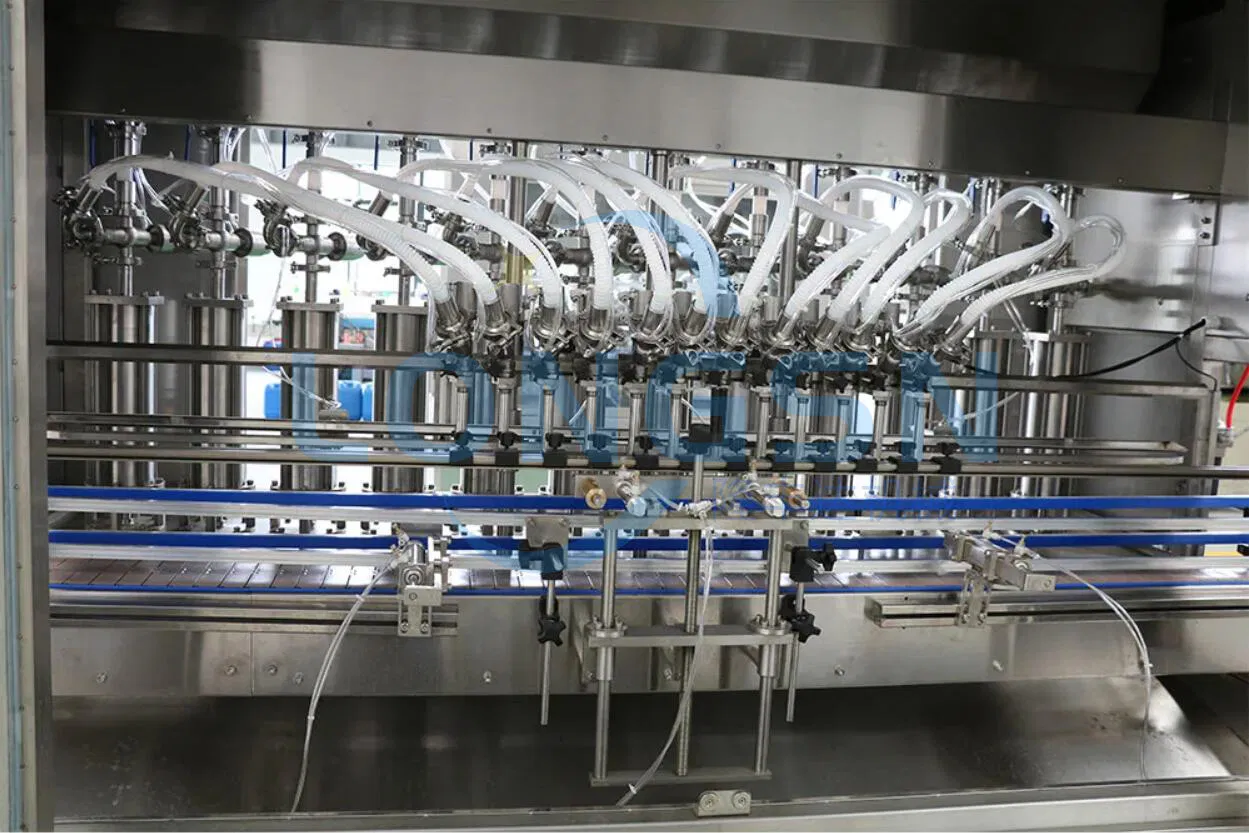

Anti-Leakage Filling Valve

  • Used for viscous materials with high precision and stability.
  • Fast speed filling with anti-foam function via diving system.
  • Airtac cylinder integrated to ensure anti-leakage performance.

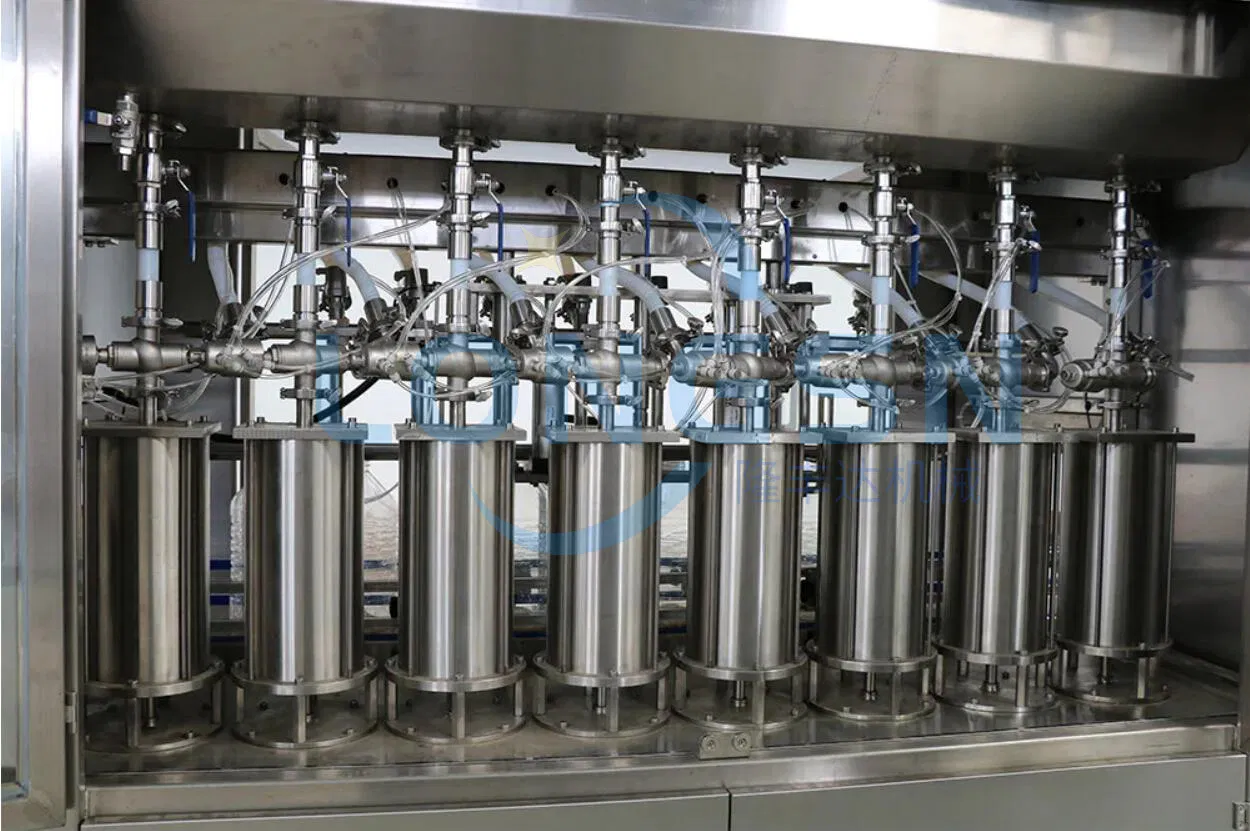

Volumetric Filling Piston

  • Driven by servo motor for precision.
  • Material: SUS316L Stainless Steel.
  • Adjustable for volumes: 1L / 2L / 3L / 5L.

Professional Services

Pre-Order Service

Detailed solutions based on requirements; Product demonstration videos; Factory visit coordination.

Post-Order Service

Production progress updates; Professional equipment layout drawing by engineers.

After-Sales Support

On-site installation and employee training; 2-year warranty with free spare parts; 24-hour engineer response.

Frequently Asked Questions

What types of liquids can this machine handle?
This machine is specifically designed for viscous liquids including edible oil, engine oil, hydraulic lube oil, detergents, sauces, and chemical liquids.
What is the filling range and accuracy?
The machine supports bottle sizes from 100ml up to 5L with a high filling precision of ±0.5% controlled by a servo piston system.
Does the machine prevent dripping and foaming?
Yes, it features specialized anti-leakage valves with Airtac cylinders and a diving system to prevent foaming and spills during the filling process.
Is the machine compatible with different bottle materials?
Absolutely. The linear structure allows it to process both PET plastic bottles and glass bottles of various shapes.
What kind of control system is used?
The machine uses a high-end Mitsubishi PLC system combined with a user-friendly touch screen for easy parameter adjustment and monitoring.
What is included in the after-sales warranty?
We provide a comprehensive 2-year warranty which includes free spare parts and 24-hour technical support response for any operational needs.
