| Model NO. | CCG5000-6TS |
| Type | Piston Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Multi-Head |
| Filling Principle | Vacuum |
| Packaging | Bottle |
| Filling Volume | 1000ml-5000ml |
| Air Pressure | 0.6-0.8MPa |
| Power Source | 380V 50Hz/2.2kw |
| Weight | 1920kg |
| Production Capacity | 10 Set/Month |

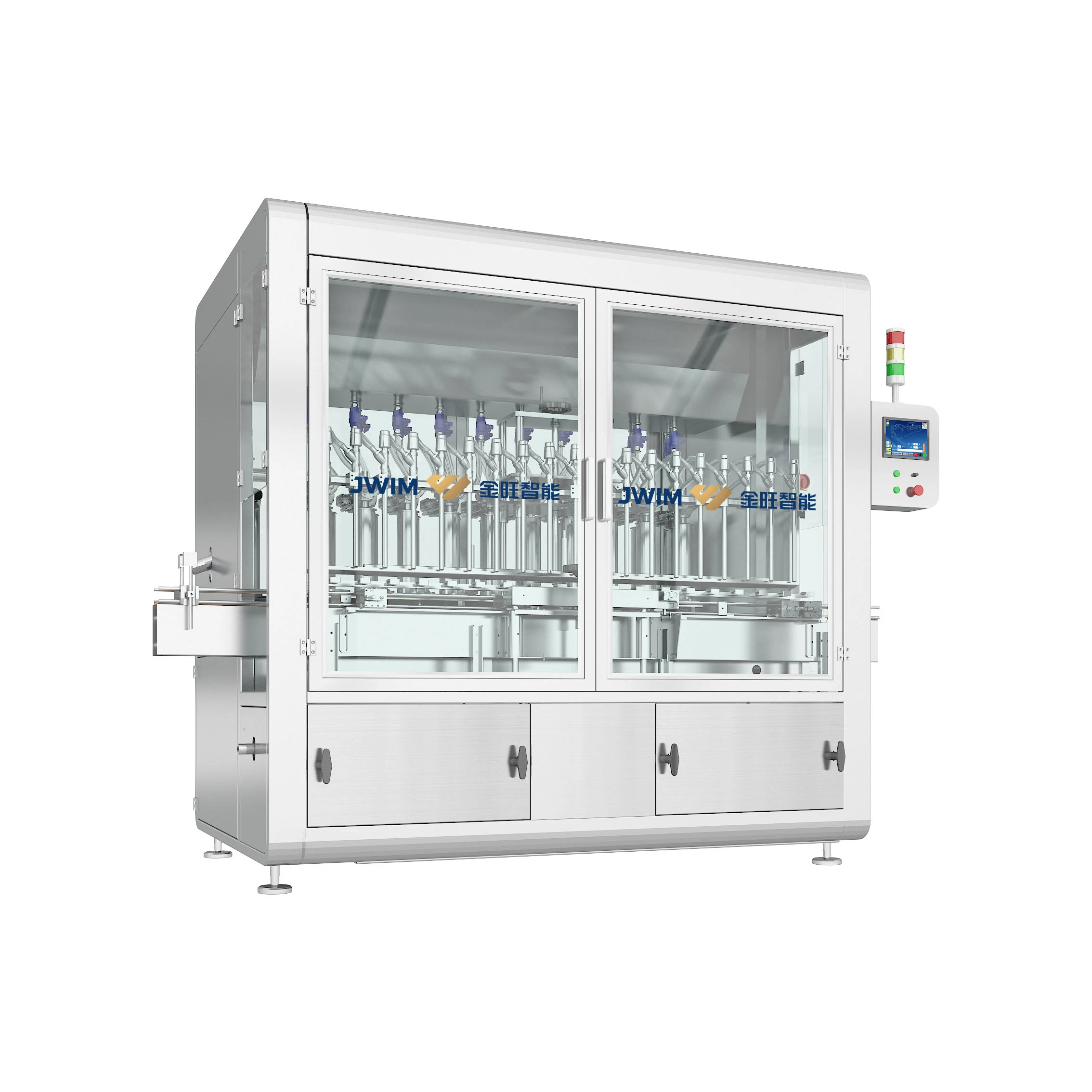

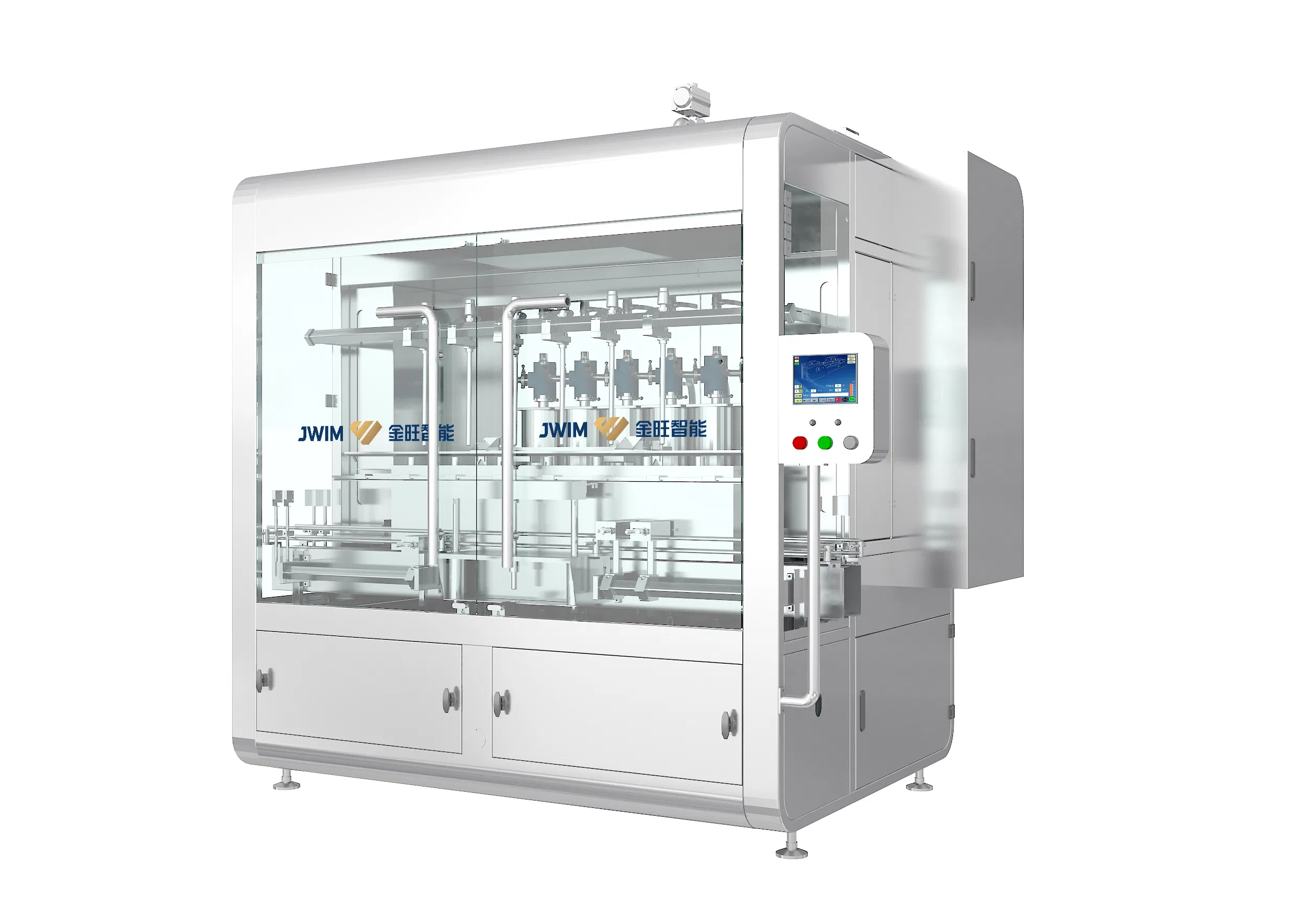

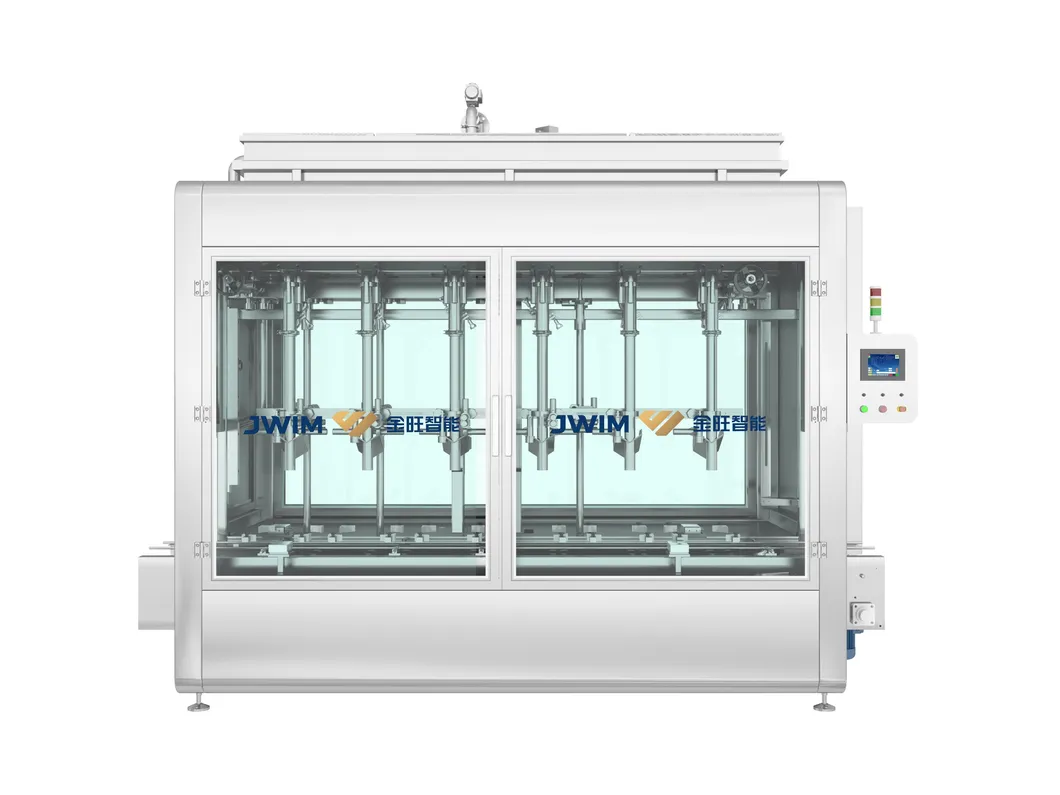

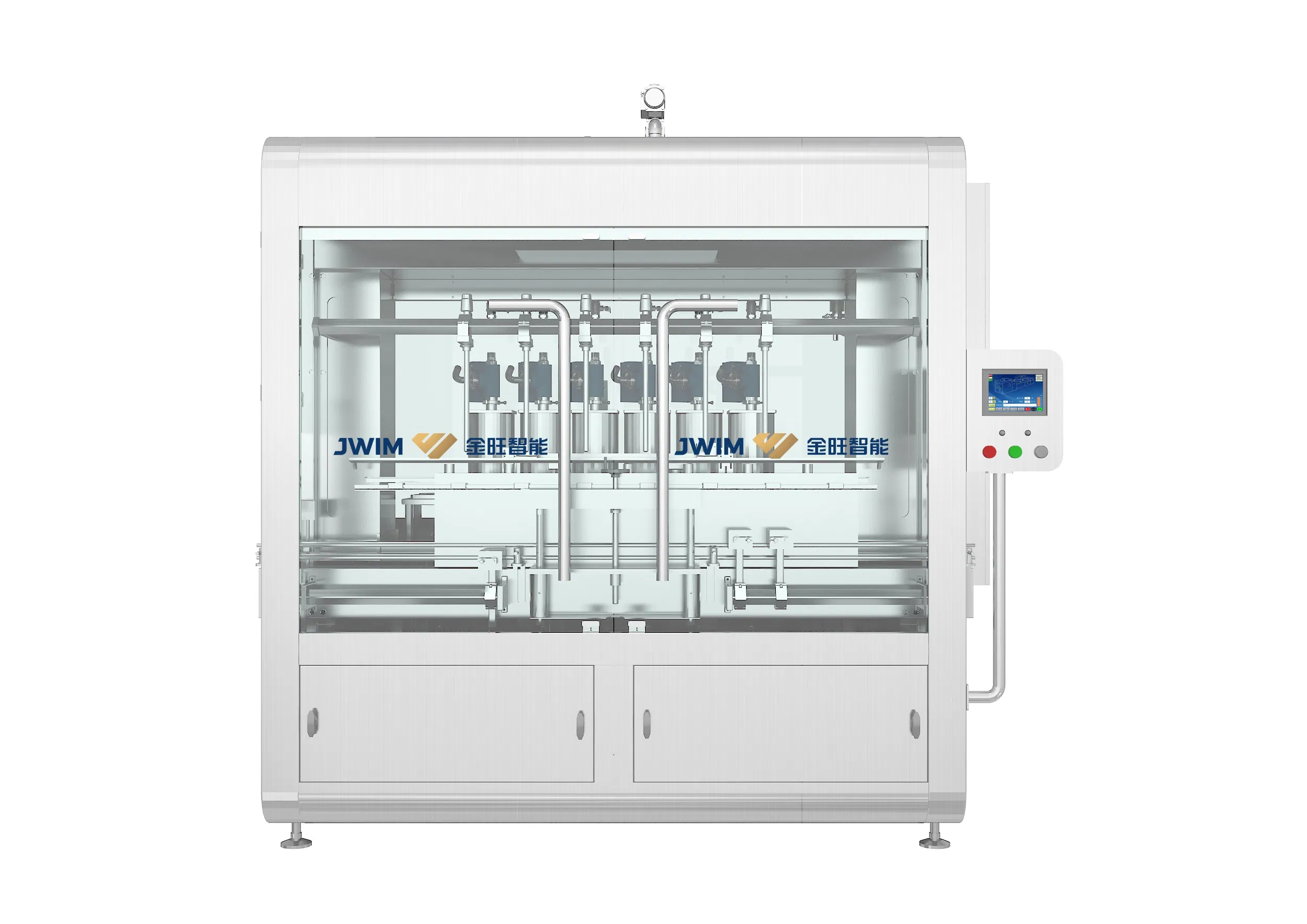

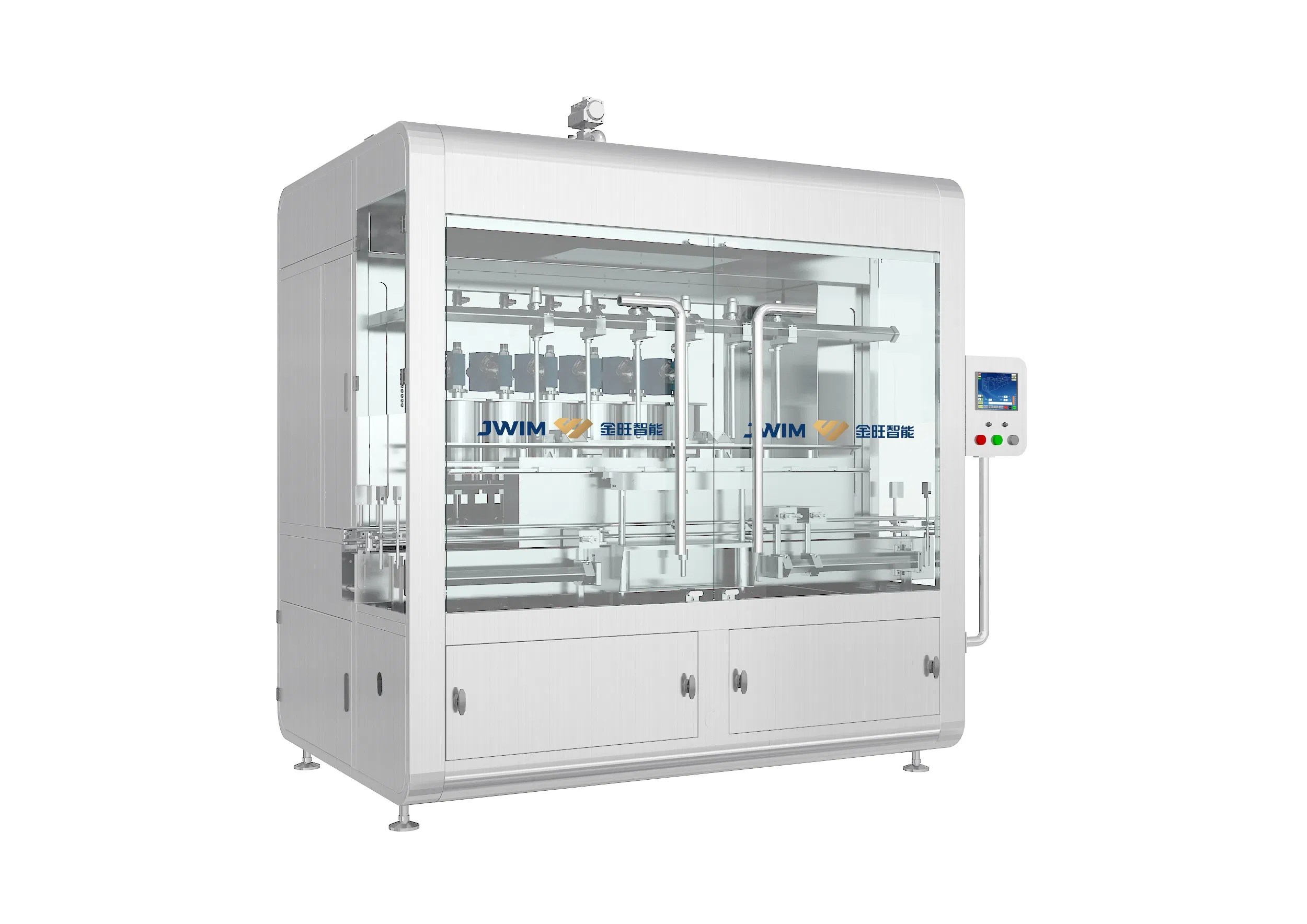

The CCG5000-6TS Automatic Piston Filling Machine is expertly designed for packaging various water agents and high-viscosity products. Featuring an in-line structure driven by a high-precision servomotor and volume metering principle, it ensures exceptional dosage accuracy. The system integrates PLC control with a user-friendly human-machine interface for seamless operation.
| No. | Item | Specification |
|---|---|---|
| 1 | Capacity | 1000ml: ≤1200 BPH; 5000ml: ≤600 BPH |

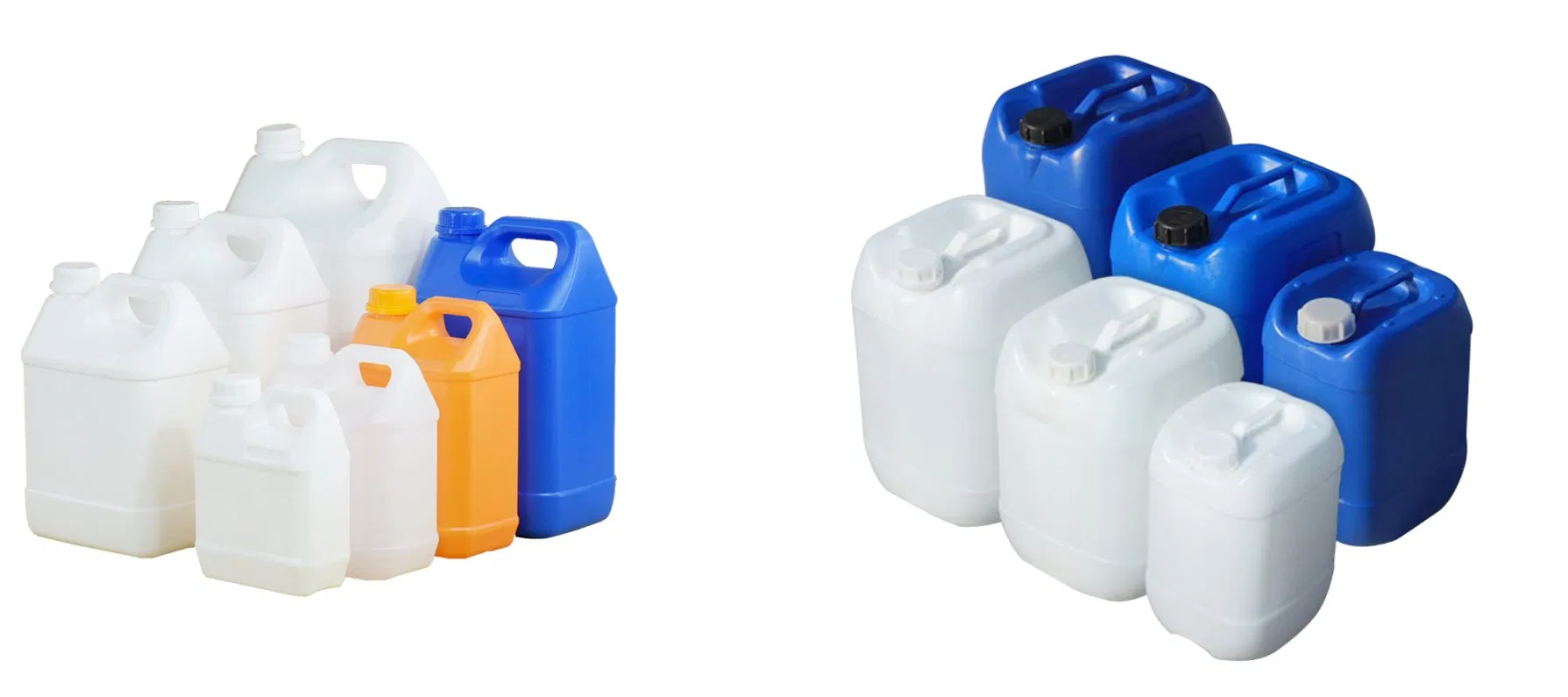

| 2 | Applicable Bottle | Round: Φ80-140mm; Square: L 80-200mm, W 80-140mm |
| 3 | Filling Volume | 1000ml-5000ml |
| 4 | Filling Precision | ±0.2% |
| 5 | Feeding Height | 2550mm |
| 6 | Nozzle Diameter | Φ26mm |
| 7 | Air Pressure | 0.6-0.8MPa |
| 8 | External Dimension | 2365×1600×2750mm |

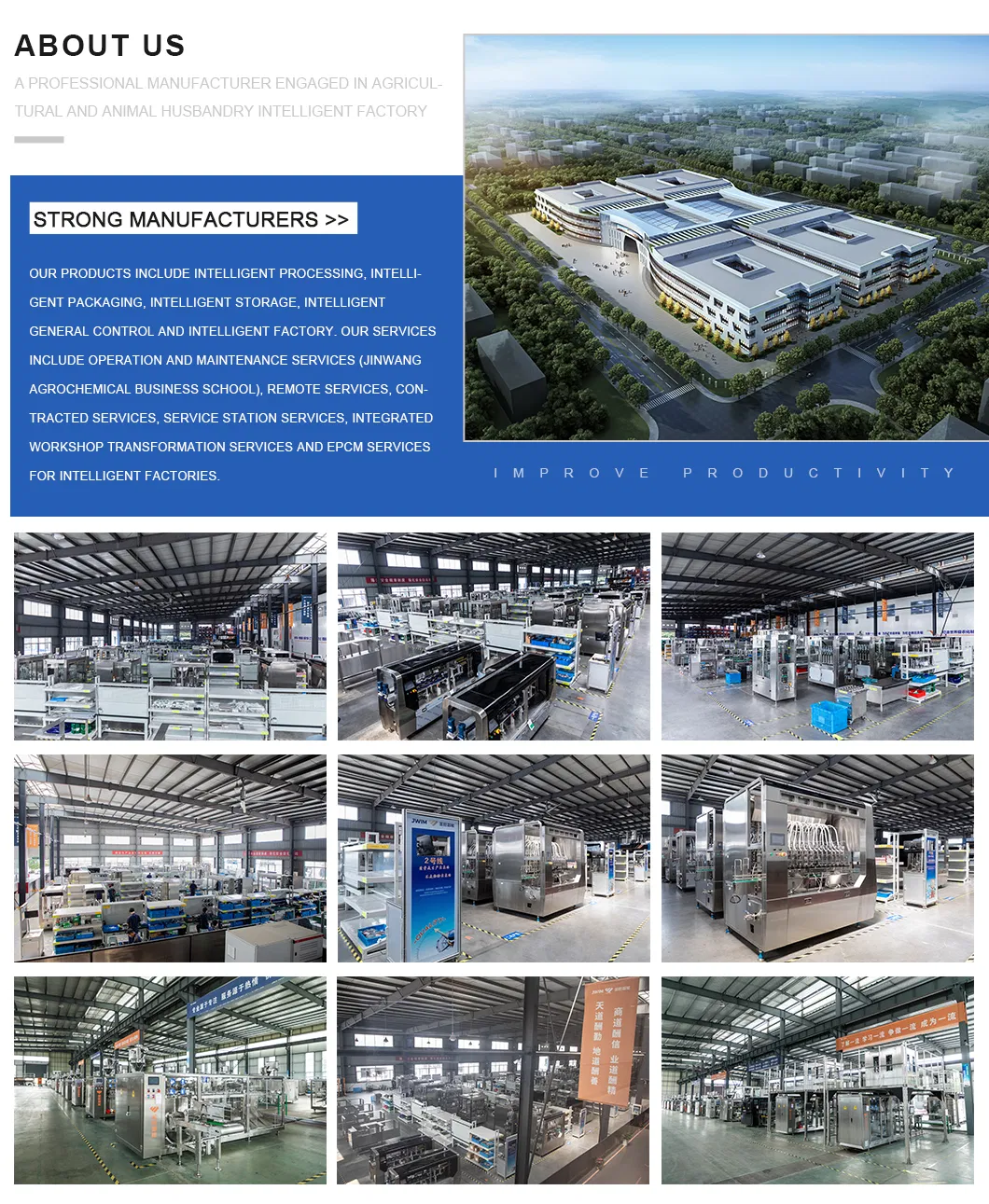

Our solutions focus on the agriculture and animal husbandry industry, providing professional services to over 3,000 customers globally. We specialize in safe, environmentally friendly, and efficient intelligent formulation workshops, including processing, packaging, and storage systems.
