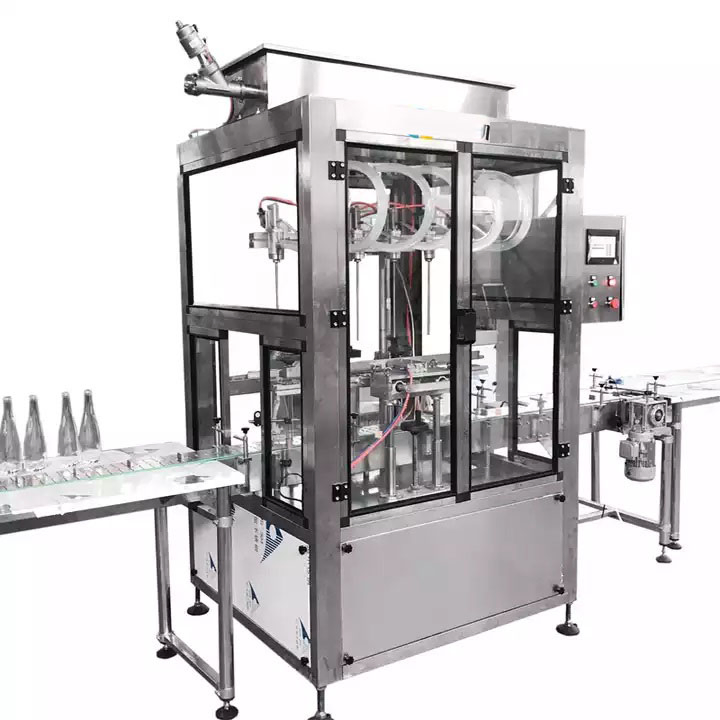

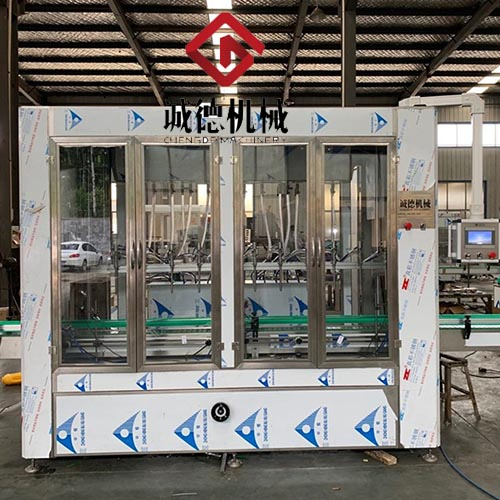

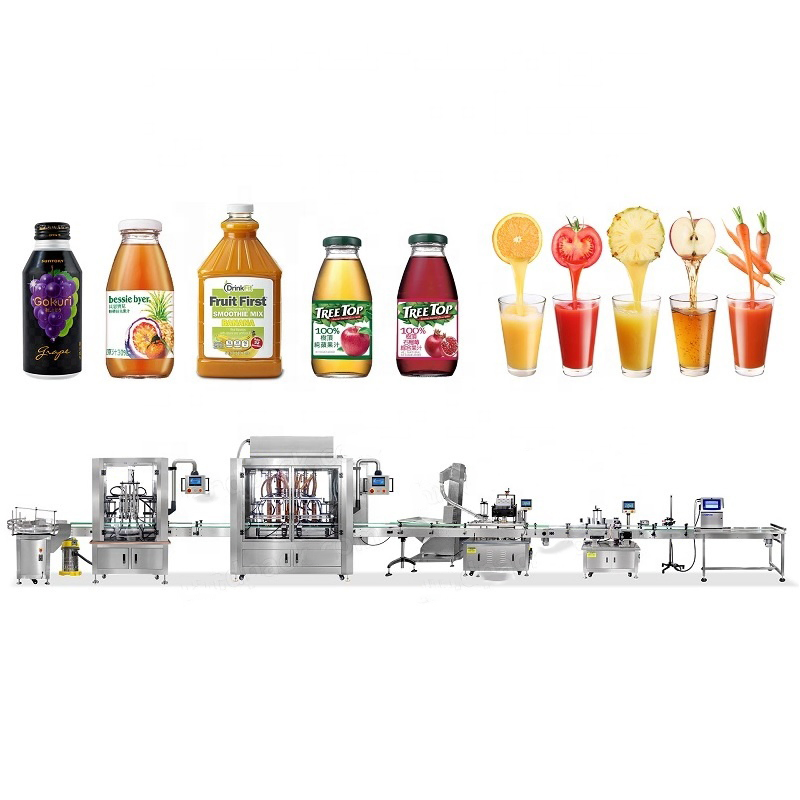

Automatic Linear Liquid Bottle Gravity Overflow Filling Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	One-Year Warrently

Basic Specifications

Model NO.

CDQ-4, CDQ-6, CDQ-8, CDQ-10, CDQ-12

Type

Automatic Gravity Filling Machine

Automatic Grade

Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Dosing Device

Capacity Cup

Filling Principle

Pressure

Packaging

Barrel / Bottle

Weight

2000kg

Capacity

1500-3000bph

Volume Range

250-3000ml

HS Code

8422303090

Product Introduction

●

This Automatic Gravity Filling Machine is suitable for all kinds of non-viscous liquid filling, such as alcohol, glass water, antifreeze, urea, and other liquids. It is designed for filling liquid in round glass bottles and plastic bottles.

●

Controlled by microcomputer PLC programmable system and equipped with photo electricity instruction and pneumatic action. It adopts a servo control system to ensure pistons reach constant positions accurately.

Automatic Linear Liquid Bottle Gravity Overflow Filling Machine

Technical Parameters

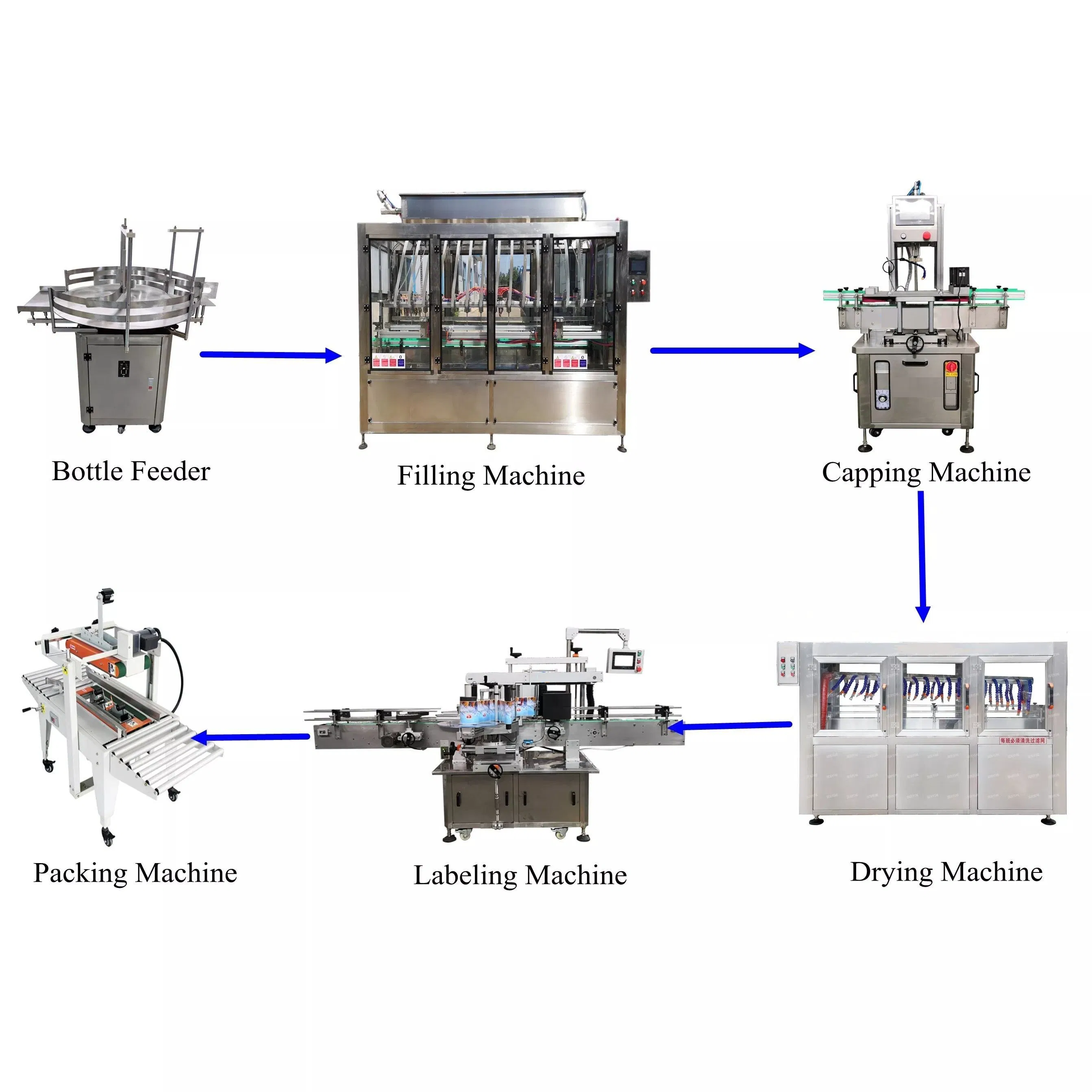

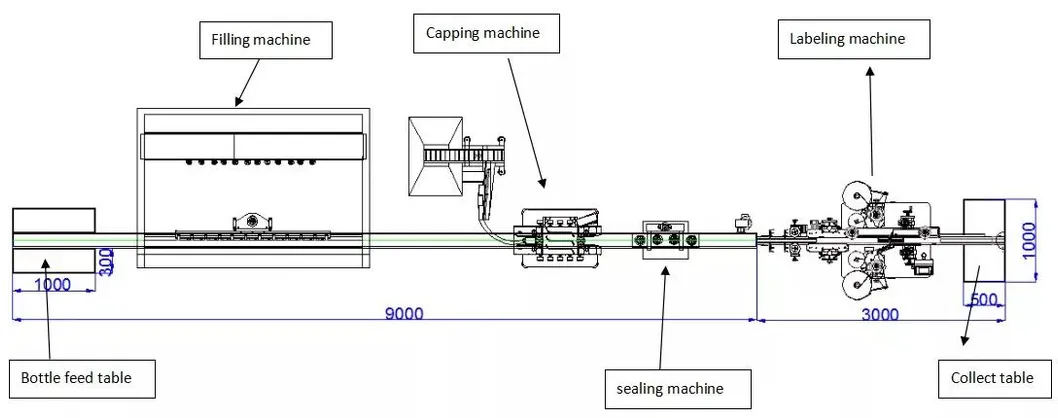

Bottling Line	Linear Liquid Filling Production Line
Filling Nozzles	4~12
Production Capacity	600~2000 bph
Applicable Bottle Height	160~360mm (Customizable)
Applicable Bottle Diameter	Φ50-Φ100 (Customizable)
Filling Volume	100~5000ml (Customizable)
Filling Accuracy	±0.01%
Overall Size (LWH)	300015002200 mm

Key Features & Advantages

✓

Accurate Metering: Uses fixed flow channel parameters and controls filling time. Precision can be set to 0.01 seconds with an error range within ±1%.

✓

Smart Control: PLC software support for various liquids. Features "No Bottle - No Filling" technology to prevent waste.

✓

Advanced Valve Design: International standard filling valves ensure no dripping or salivation during the process.

✓

Versatility: Linear grouping design allows for effective filling of containers in various shapes.

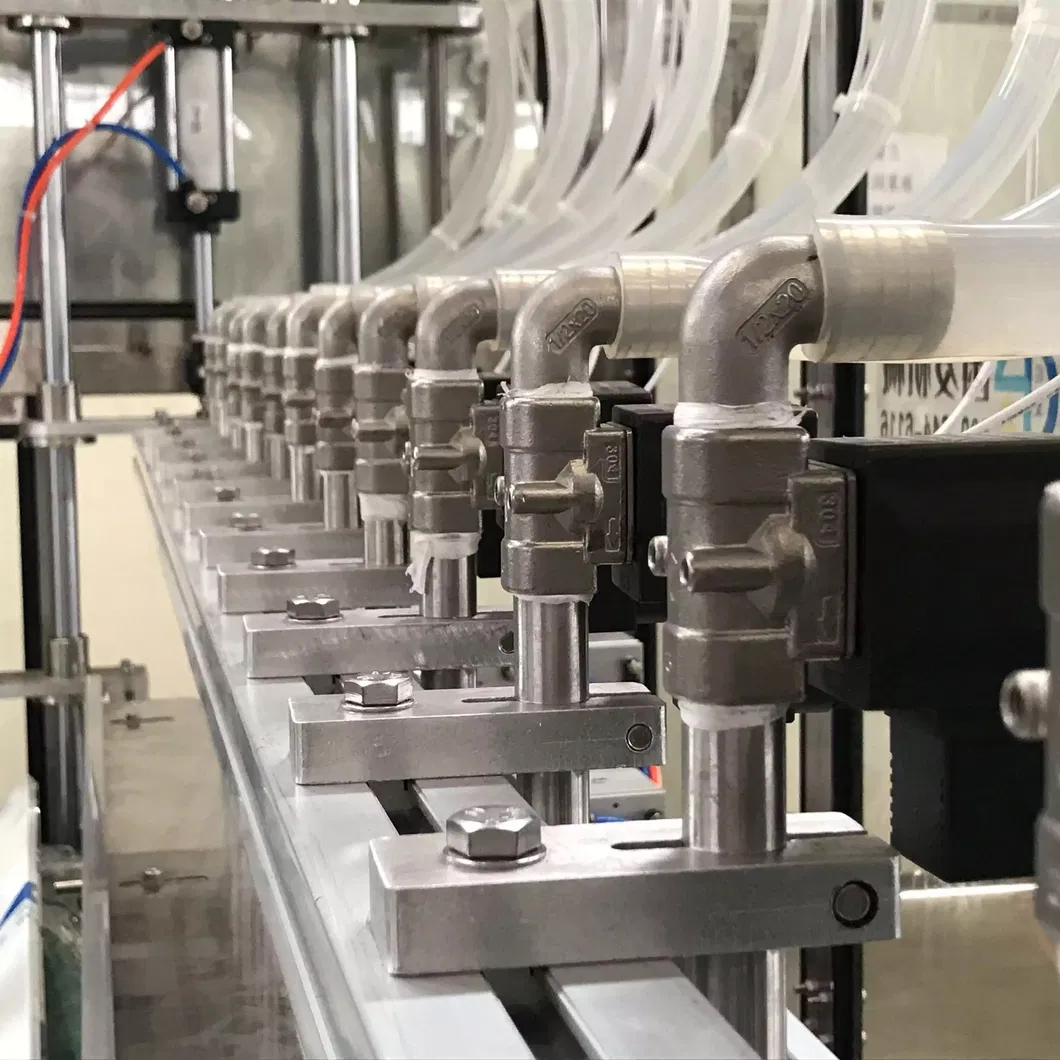

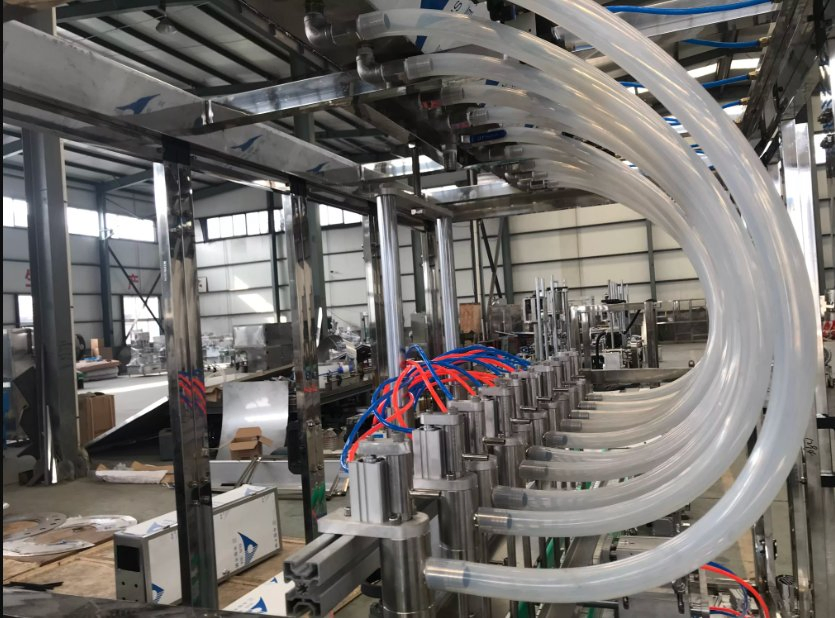

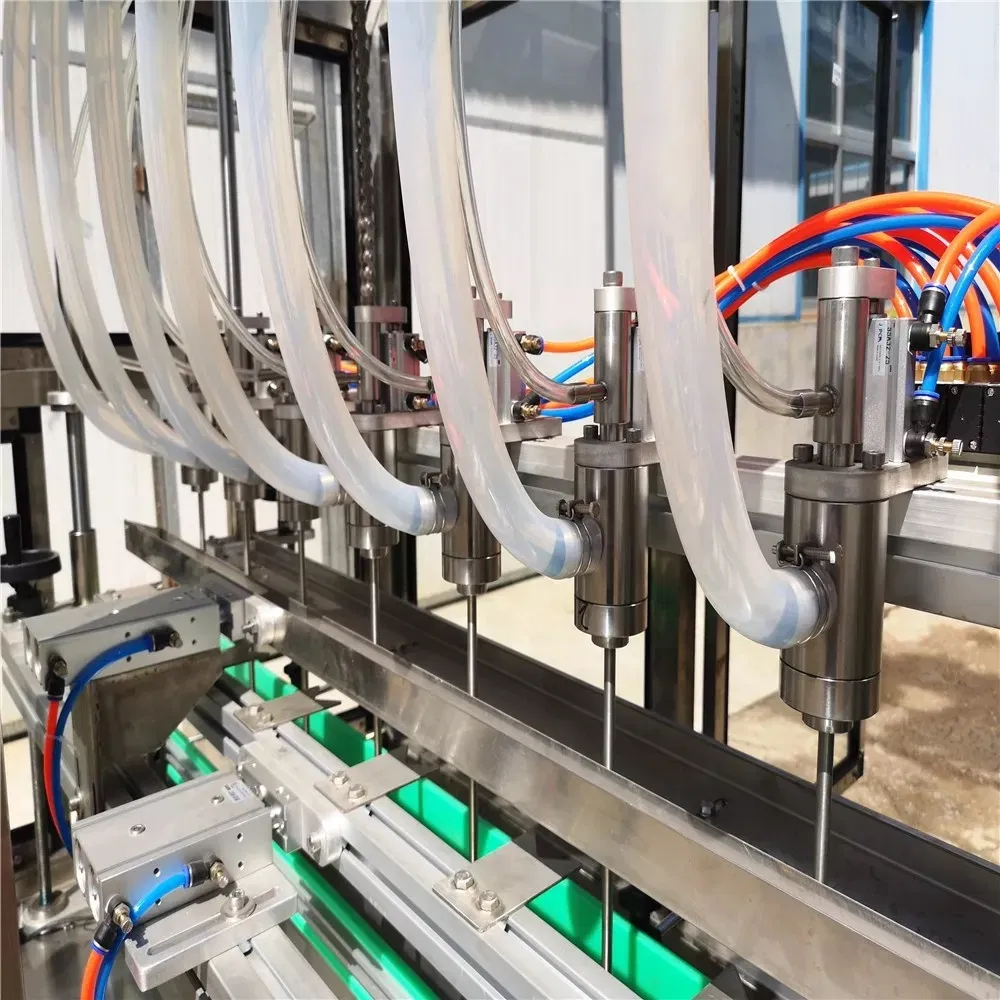

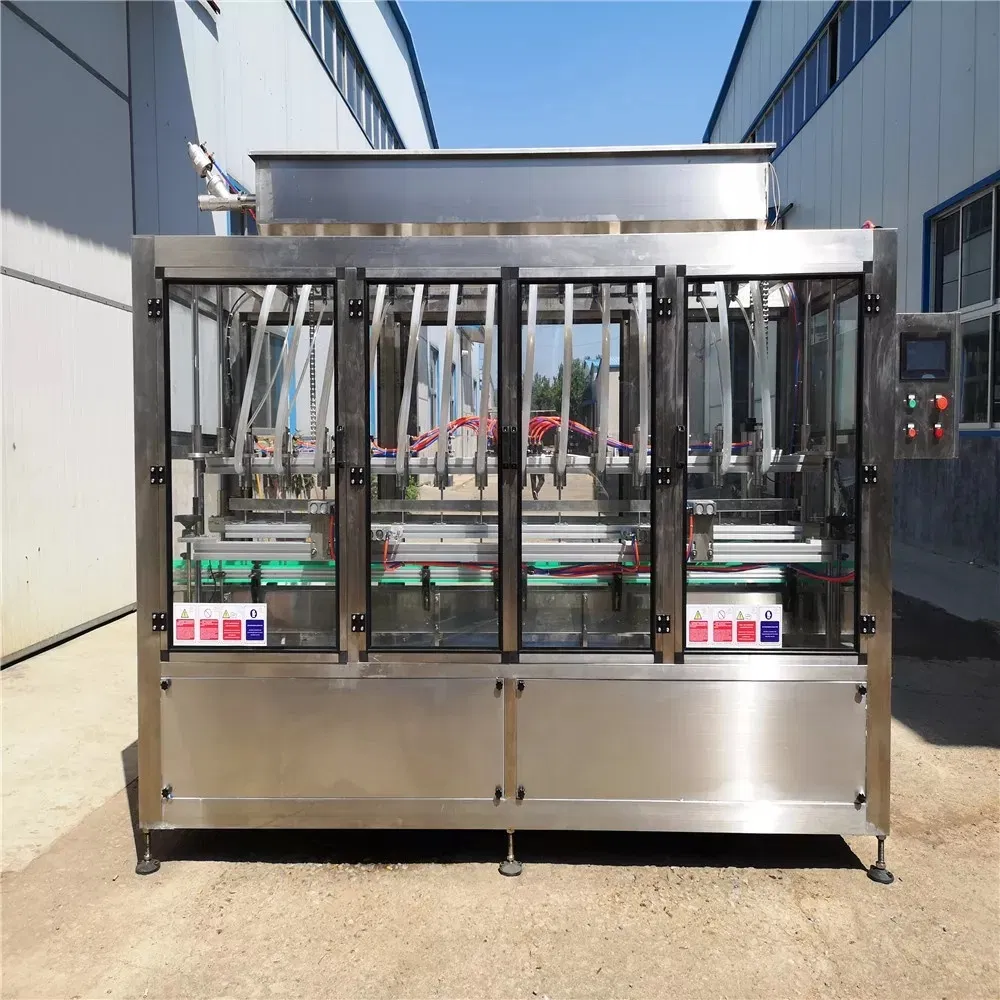

Filling Machine Details

Special silicone hose with professional solenoid valves and stainless steel nozzles. Reliable PLC touch screen control with brand electrical components.

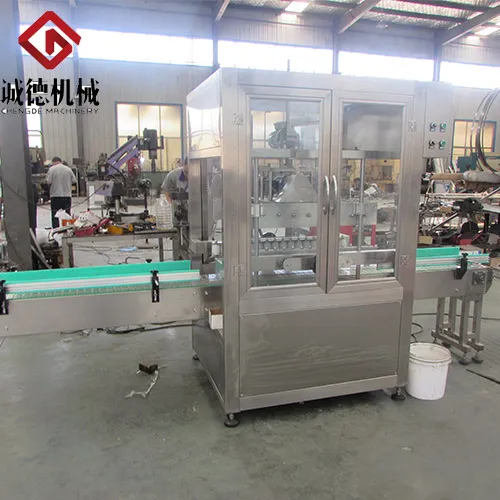

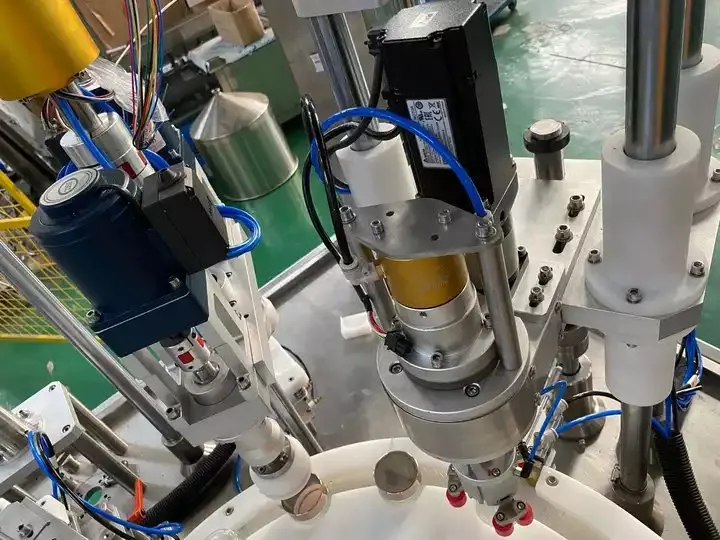

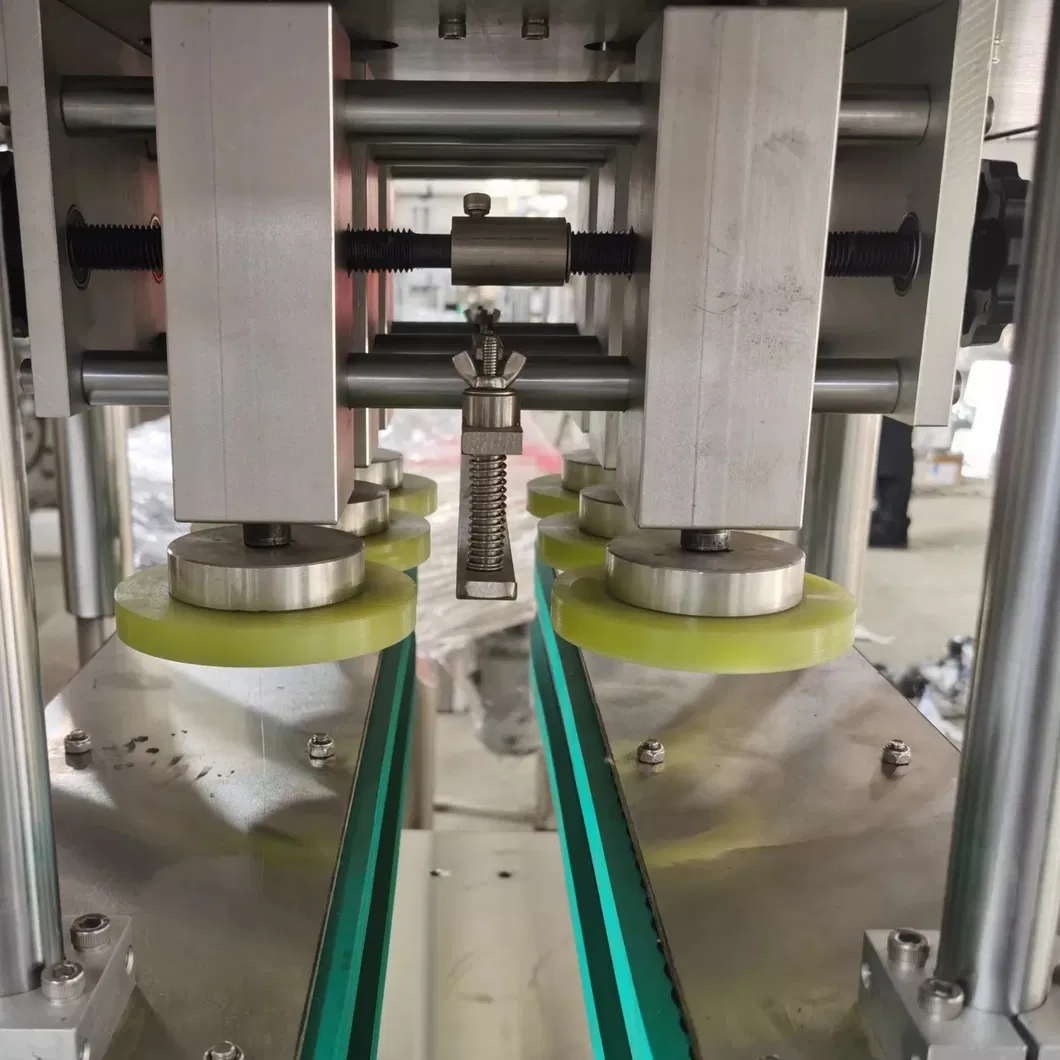

Capping Machine Details

Intelligent induction screw cap system suitable for a variety of bottle caps. Ensures tight sealing with no leakage.

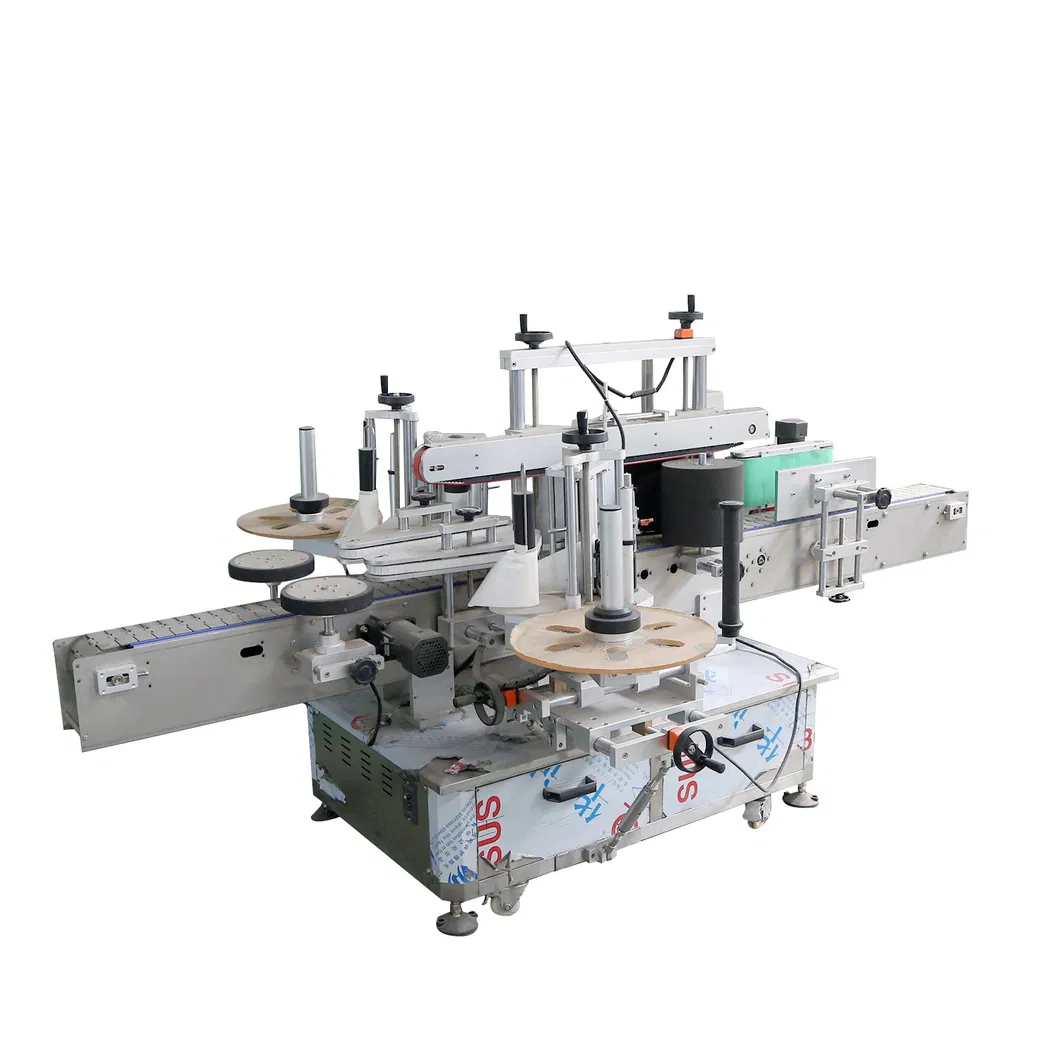

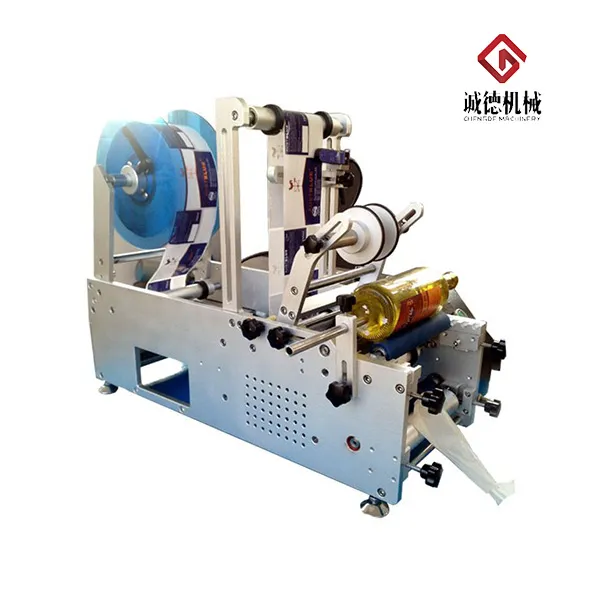

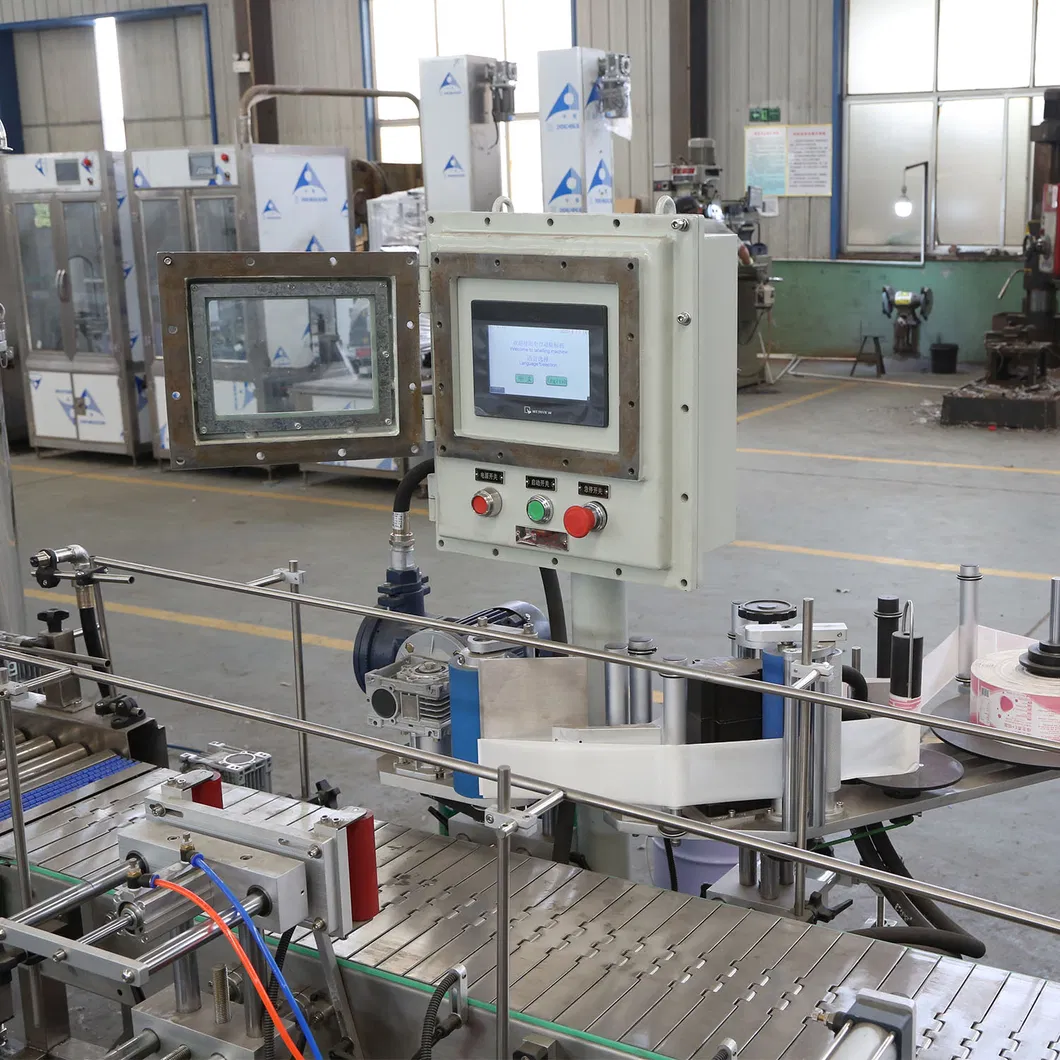

Labeling Machine Details

Stainless steel and anodized aluminum construction meeting GMP standards. Features bottle separation, counting, and adjustable label positioning.

Wide Application

Plant Oil: Lubricant oil, engine oil, gear oil, etc.

Chemicals: Liquid soap, toilet cleaner, laundry detergent, hand sanitizer, alcohol gel, shampoo.

Food Industry: Vinegar, soy sauce, edible cooking oil, juice drinks, wine, liquor.

Cosmetics: Toner, lotion, cream, body milk.

Quality Assurance & Service

★

Free sample testing and machine debugging based on your bottle samples.

★

One-year warranty with free spare parts.

★

Professional guidance and installation support.

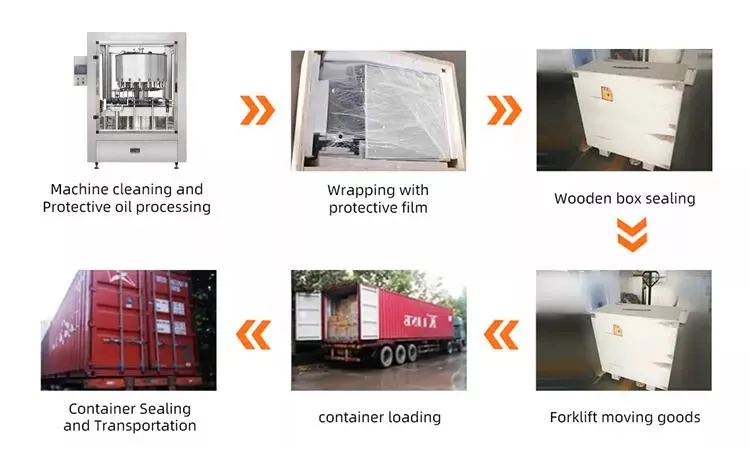

Shipping & Delivery

Packing: Wrapped with PE film and packed in exported wooden cases.

Delivery: Within 20-25 days upon receipt of payment. Shipping via sea, air, or express.

Frequently Asked Questions

1. How do you guarantee the quality of the machines?

We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure everything meets the required standards.

2. What types of machines can I purchase from you?

We offer complete liquid bottling production lines, including filling machines, capping machines, labeling machines, bottle washing machines, and sealing machines.

3. Why should I choose your equipment over other suppliers?

We have over 20 years of production experience, offer direct factory pricing, provide a one-year after-sales service, and support full customization (OEM & ODM).

4. What is the filling accuracy of your gravity filling machine?

Our machines achieve a high filling accuracy of ±0.01% through precise PLC control and high-quality pneumatic valves.

5. What payment and delivery terms do you accept?

We accept various delivery terms like FOB, EXW, and CIF. Accepted payment methods include T/T, L/C, Credit Card, and Western Union in multiple currencies including USD and EUR.
