Product Description

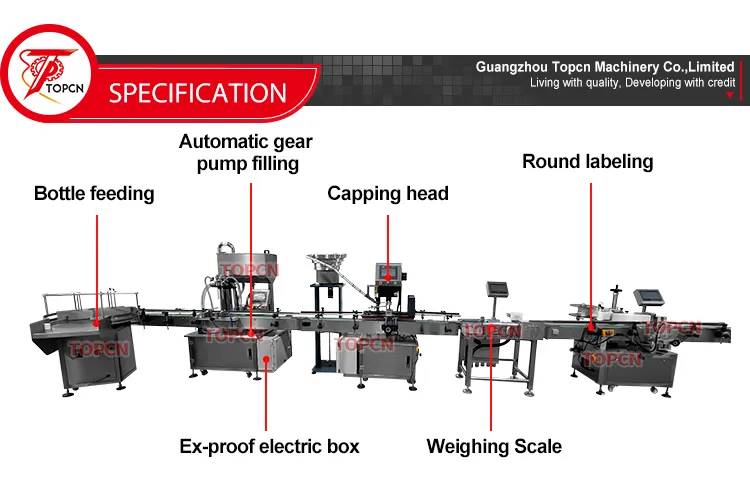

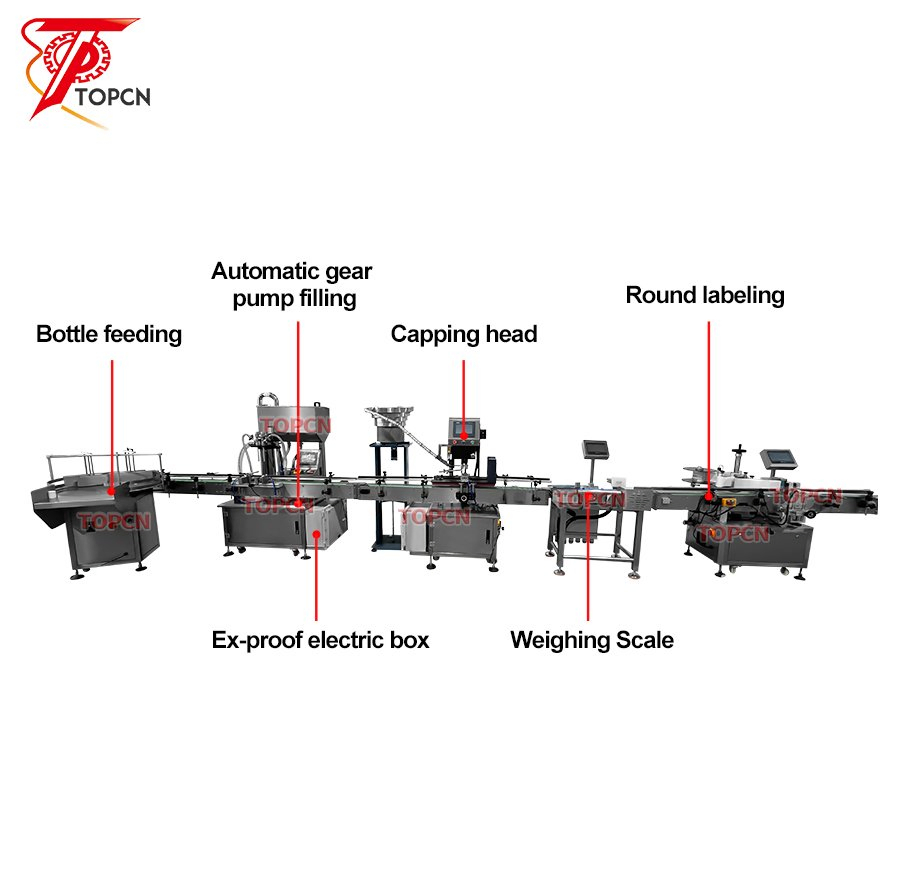

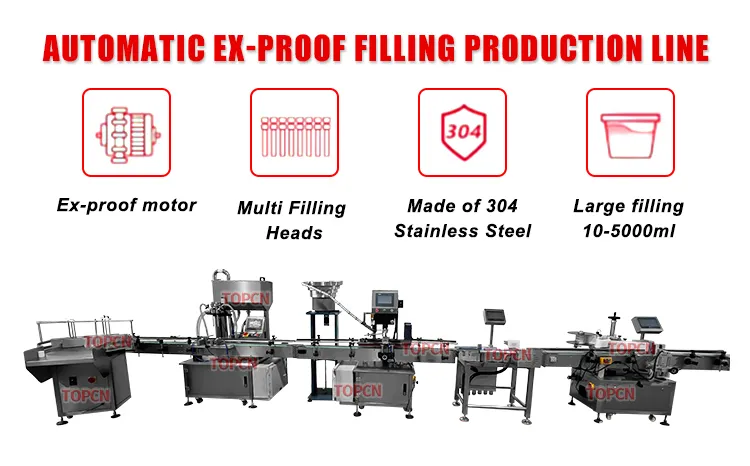

The explosion-proof gear pump production line is designed for handling alcohol-based liquids or pastes such as purifying agents, alcohol, and hand sanitizer gels. These materials are highly flammable, posing significant fire and explosion risks during production, filling, transportation, and storage. Therefore, specialized equipment that meets explosion-proof standards is essential to ensure safety and uninterrupted production.

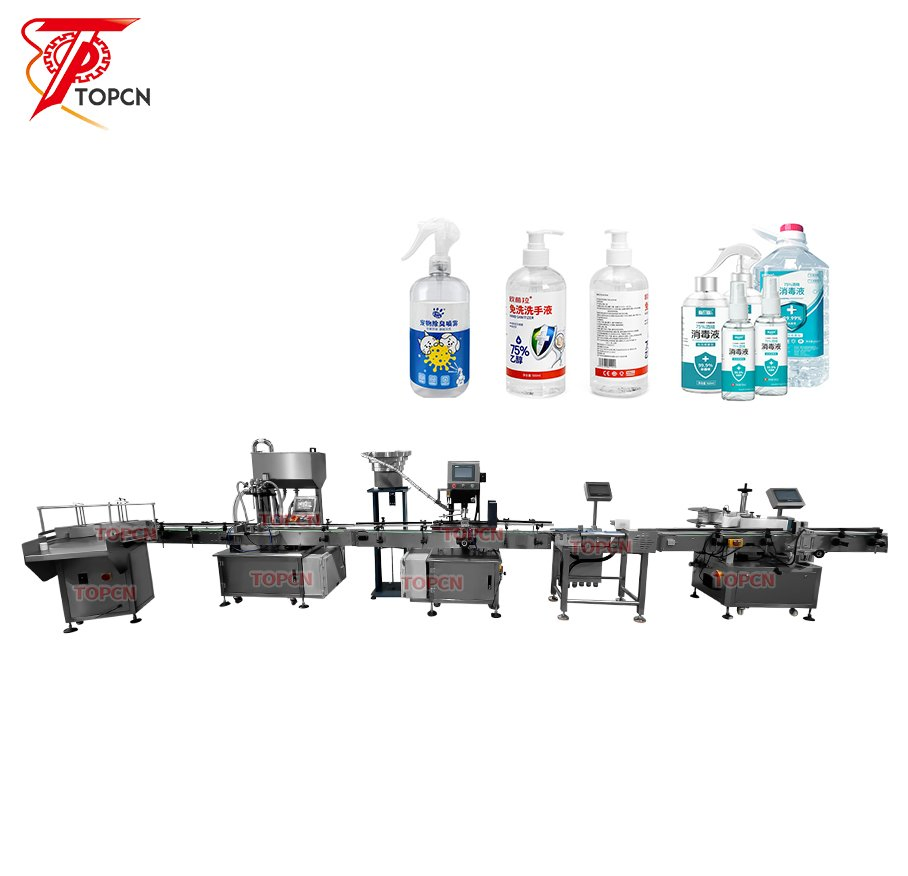

In the manufacturing of alcohol-based disinfectants like hand sanitizers, medical alcohol, and disinfectant gels, gear pumps serve as critical conveying and metering devices. They are commonly used to move raw materials or finished products between storage tanks, mixers, filling machines, and packaging lines. Because alcohol is highly volatile and has a low flash point, it can easily ignite when its vapor concentration in the air reaches explosive levels.

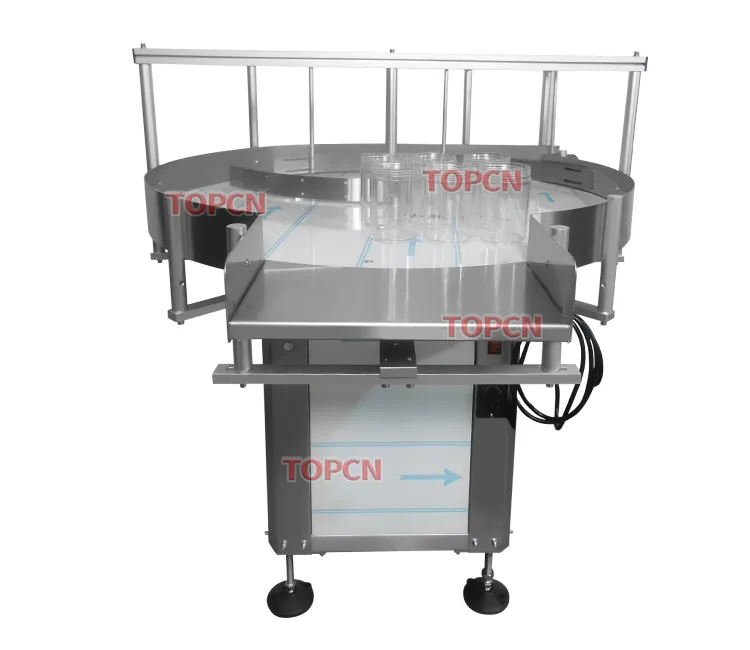

| Bottle Feeding Turntable Specifications |
| Product Name | Bottle feeding turntable |
| Model | TP-LP800 | TP-LP1000 | TP-LP-1200 |
| Turntable Diameter | 800mm | 1000mm | 1200mm |
| Working Speed | 40-60 bottles/min (depends on bottle size) |
| Machine size | 95*100*110cm | 115*120*110cm | 135*130*110cm |
| Machine Technical Data |
| Machine model | TAFM-2GP |
| Filling nozzles | 2-12 nozzles |
| Filling pump | Gear Pump |
| Filling range | 100-3000ml |
| Filling accuracy | About ±0.5% |
| Machine size | About 2900*1400*1980mm |

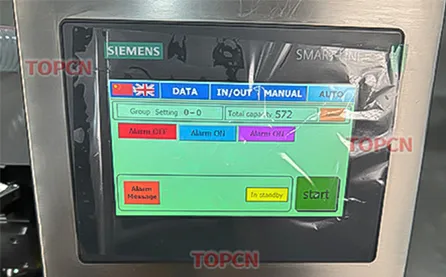

High Quality Touch Screen
High quality PLC, filling volume, and filling speed are adjustable via the touch screen interface. Multiple operation languages can be customized as needed.

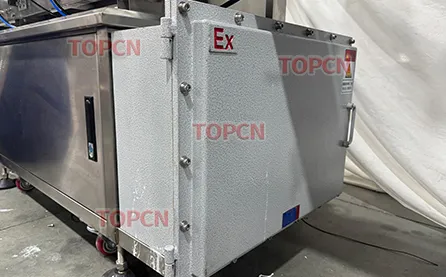

Explosion-proof Control Box
Adopts special protective measures in structural design and material selection to prevent explosions from electric sparks or high temperatures, ensuring environment safety.

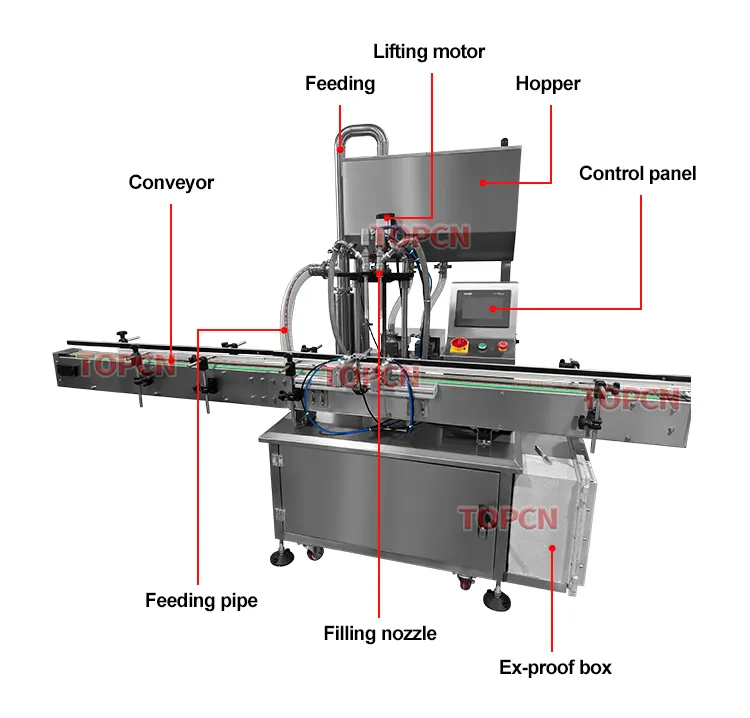

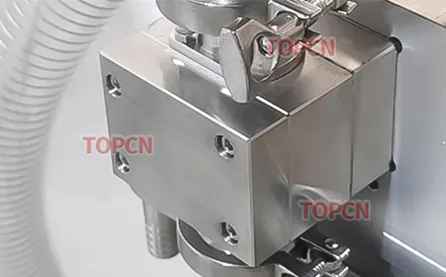

Precision Gear Pump
Suitable for high viscosity products such as cosmetic creams, pastes, mayonnaise, chocolate sauce, and glue.

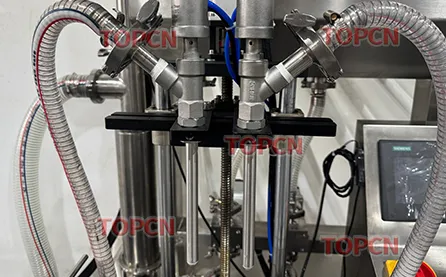

Anti-drip Filling Nozzle
Equipped with pneumatic anti-proof filling nozzles, sized according to your specific product and filling range requirements.
?
Frequently Asked Questions
Are you a machine manufacturer or trading company?
We are a reliable machine manufacturer. Our equipment can be fully customized based on client requirements to ensure optimal production performance.
How do you guarantee the machine operates normally before shipping?
Every machine is rigorously tested in our facility. We adjust the equipment to its optimal effect before delivery. Spare parts are available and provided free during the warranty period.
Can the interface language be customized?
Yes, the touch screen interface supports multiple languages including Spanish, French, Italian, Arabic, Korean, and more.
How do I choose the most suitable machine for my needs?
Please provide details regarding the material type (viscosity), required filling capacity (bottles per minute), and container dimensions. Our engineers will recommend the best filling head and pump configuration.
What is your policy for broken spare parts?
If a part fails, please provide photos or video of the issue. Once confirmed, we will send replacement spare parts free of charge, with the client only covering the shipping costs.
Do you provide operation manuals and training?
Yes, we provide comprehensive operation manuals and videos. Additionally, our engineers are available to travel overseas to assist with installation, commissioning, and staff training.
