Suitable for packing Es, Sc materials with good fluidity such as pesticides, veterinary drugs, daily chemicals, and fertilizers.

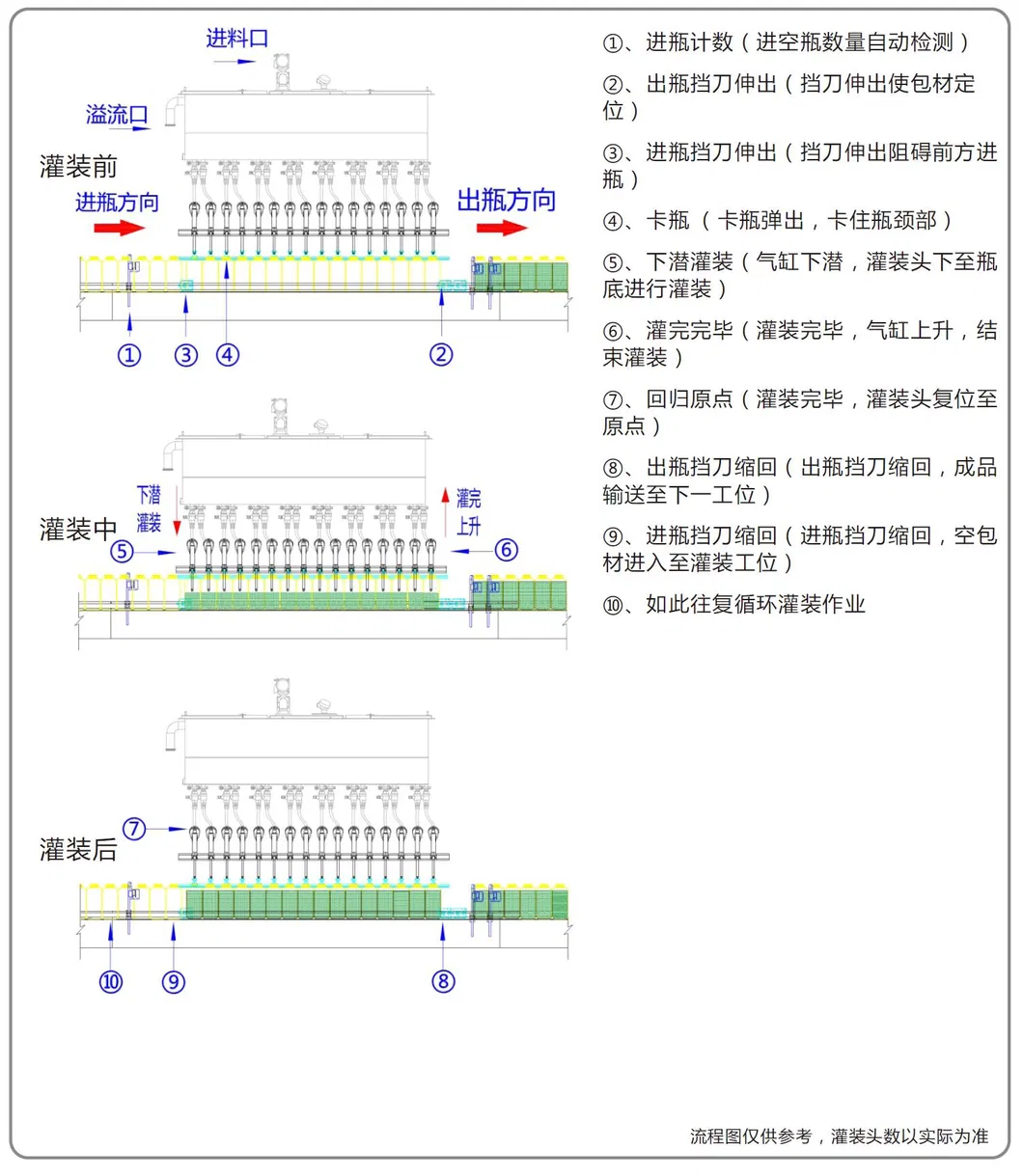

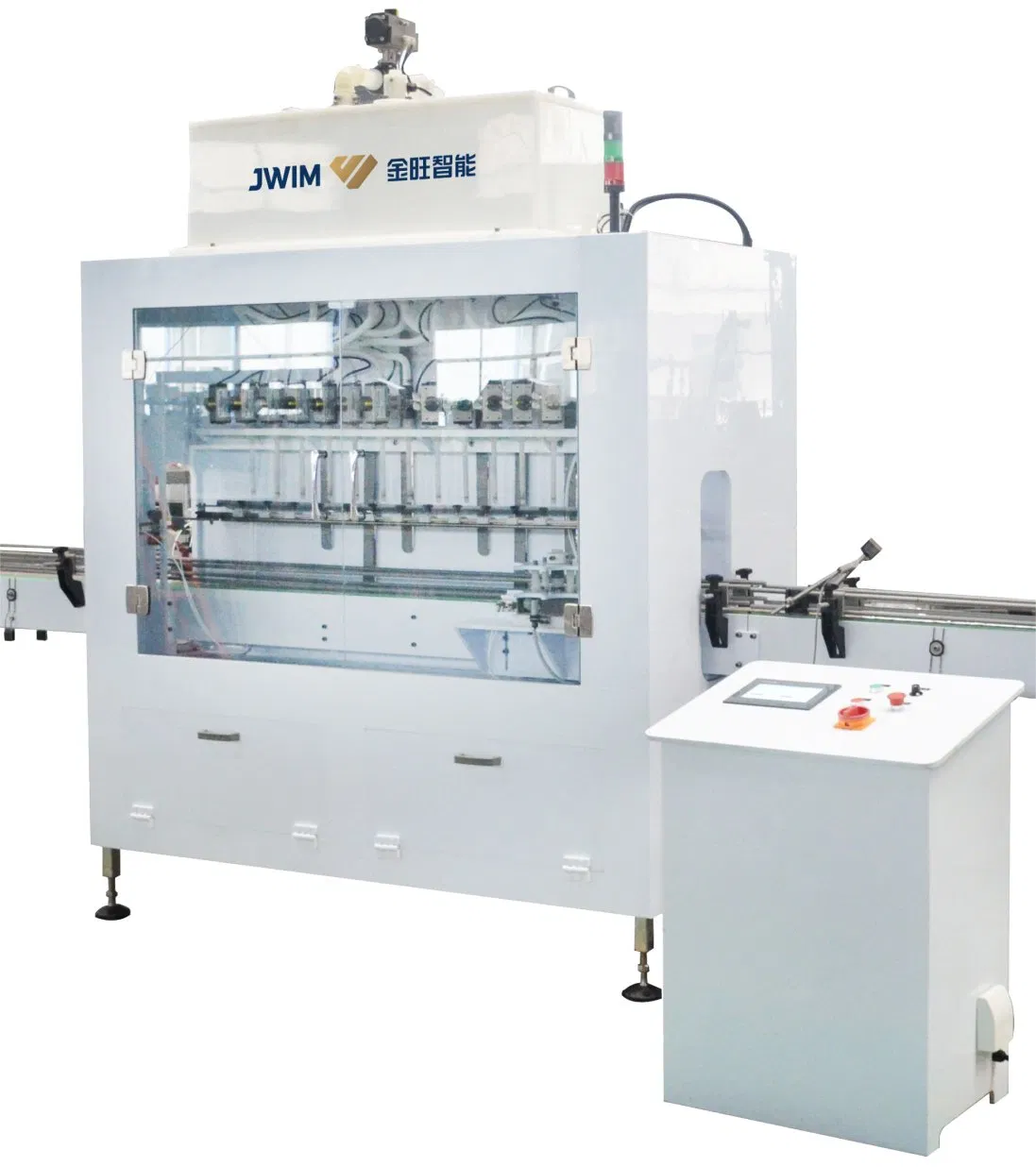

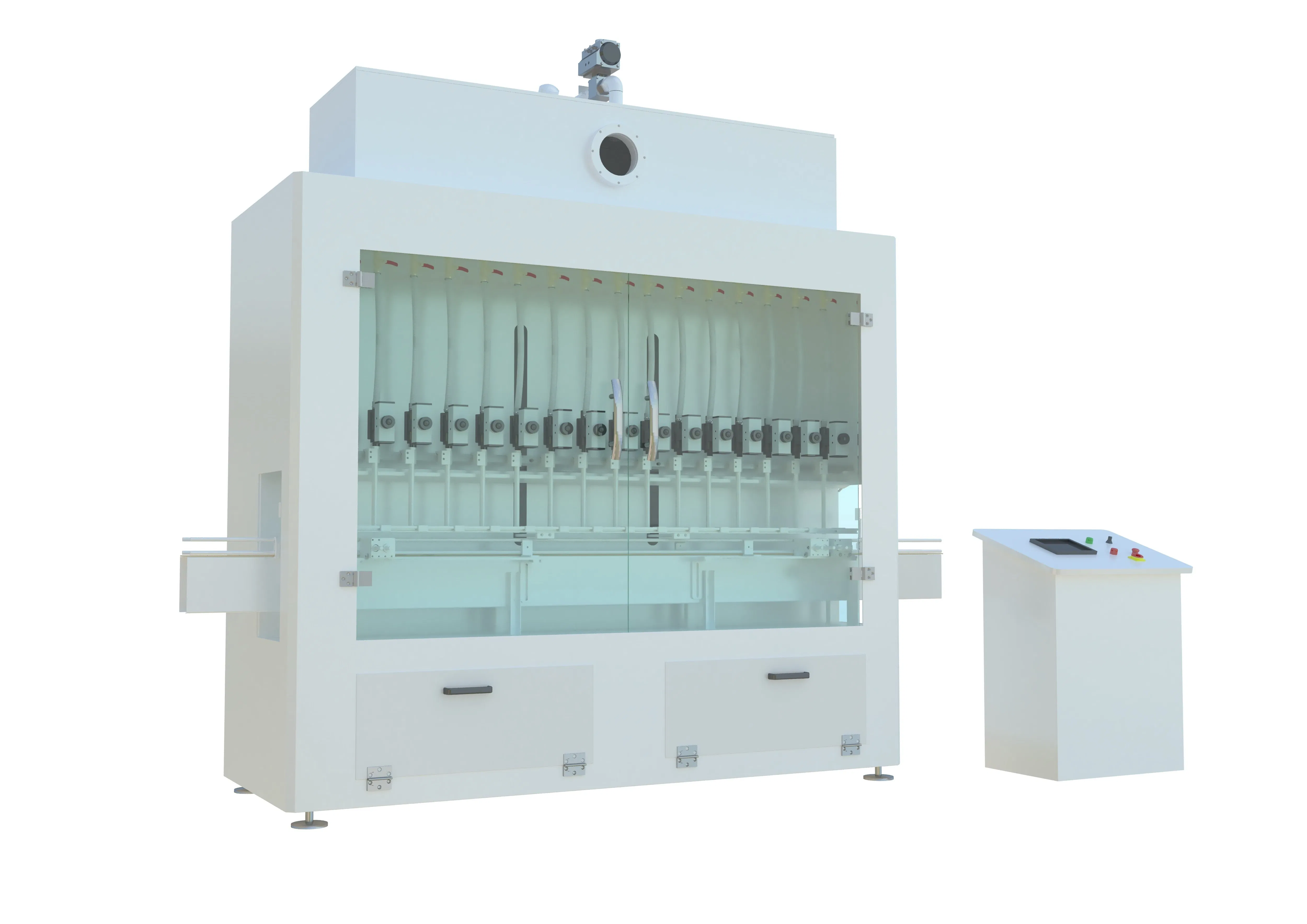

The CDP-16E microcomputer in-line anti-corrosion gravity filling machine adopts the metering and filling principle of keeping liquid level constant (constant speed) and timing mode to realize precise filling. Controlled by PLC with a touch-type man-machine interface, it offers easy and intuitive operation.
| Parameter | Specifications |
|---|---|
| Filling Capacity | 100ml: ≤5500BPH; 500ml: ≤3200BPH; 1000ml: ≤2400BPH |
| Applied Bottles | Round bottle: Φ40-95mm, Height: 80-230mm |
| Filling Error | ±1g (50-200mL); ±2g (200-500mL); ±3g (500-1000mL) |
| Inlet Height | 2560mm |
| Inlet Diameter | Φ34mm |
| Air Source | 0.6-0.8MPa |
| Power Source | ~380V, 50Hz / 0.7KW |

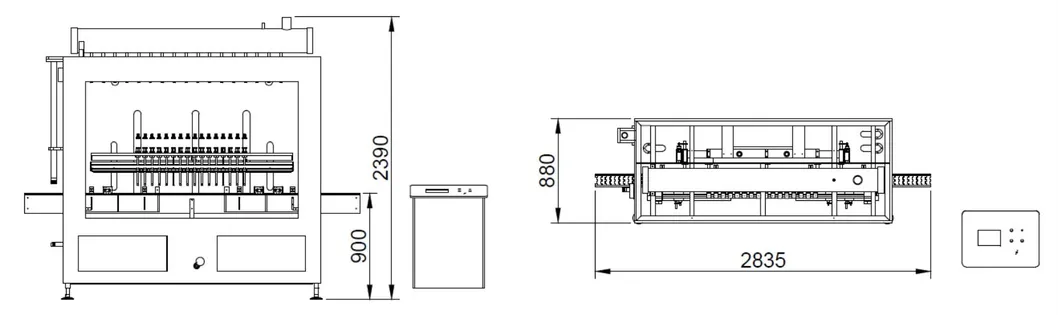

| Dimensions | 2835×880×2390mm |
| Weight | ~400Kg |

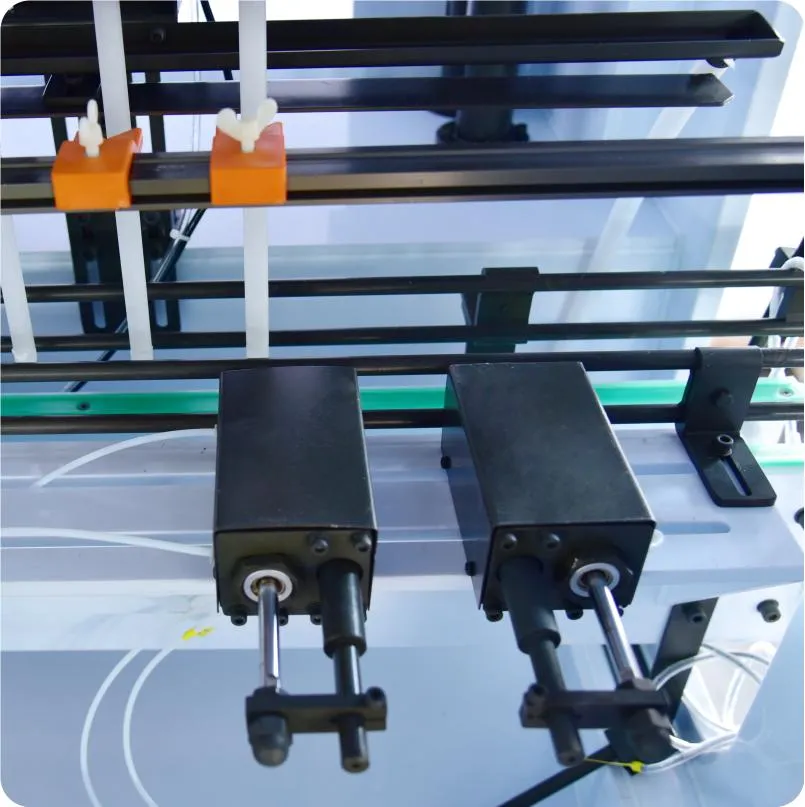

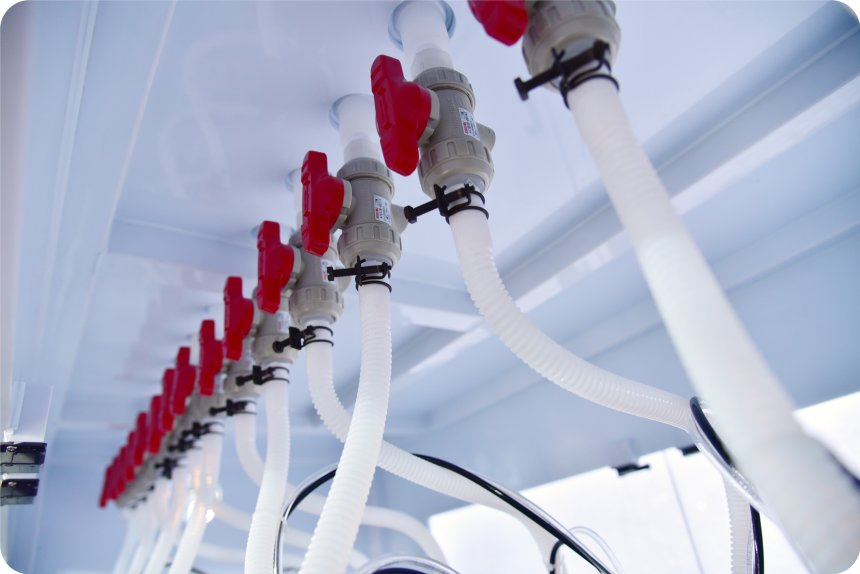

The external frame, material box, feed pipe, and filling heads are made of anti-corrosion PP material. Actuators and threading pipes receive Spray Teflon Treatment for maximum longevity.
Independent electrical box design with toughened glass door. Integrated air exhaust system to discharge waste gas generated during the filling process.

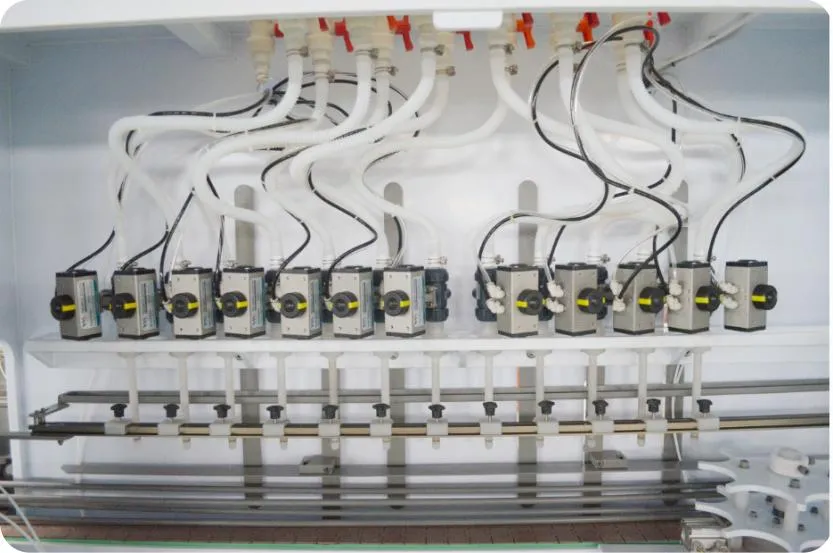

The air cylinder diving filling method reduces foam and prevents bottle mouth contamination caused by material overflow.

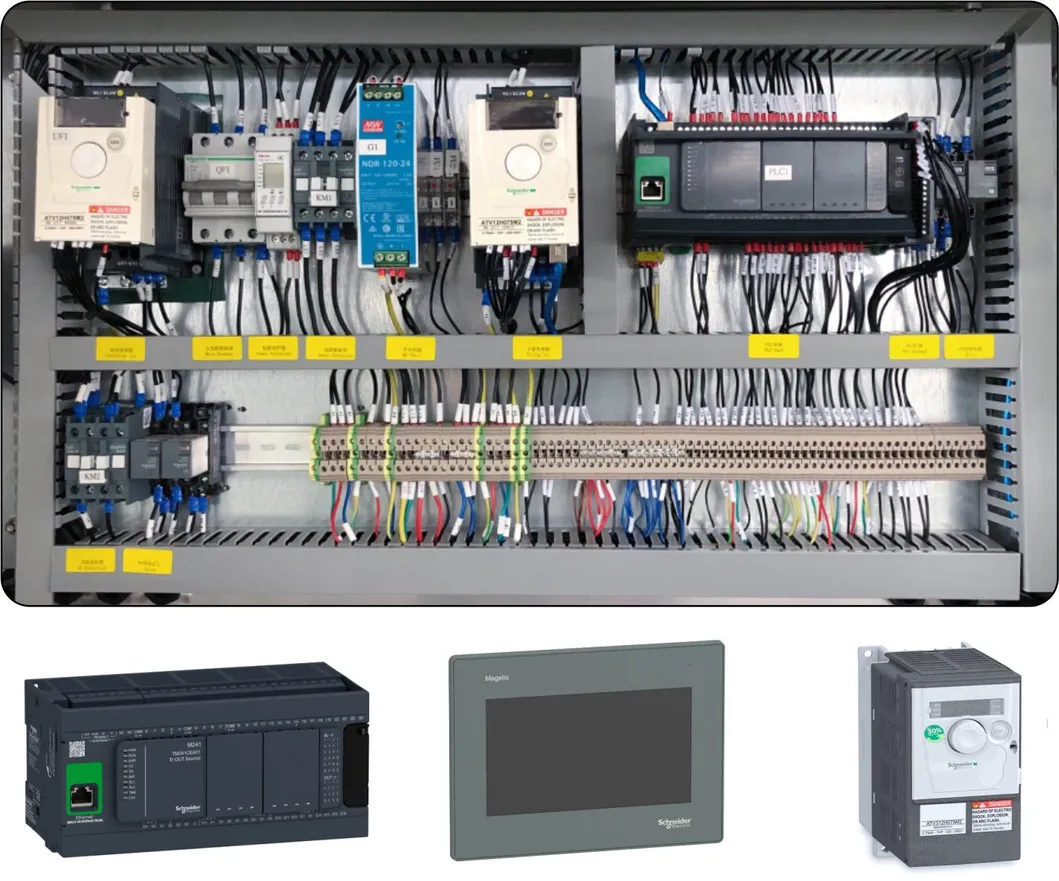

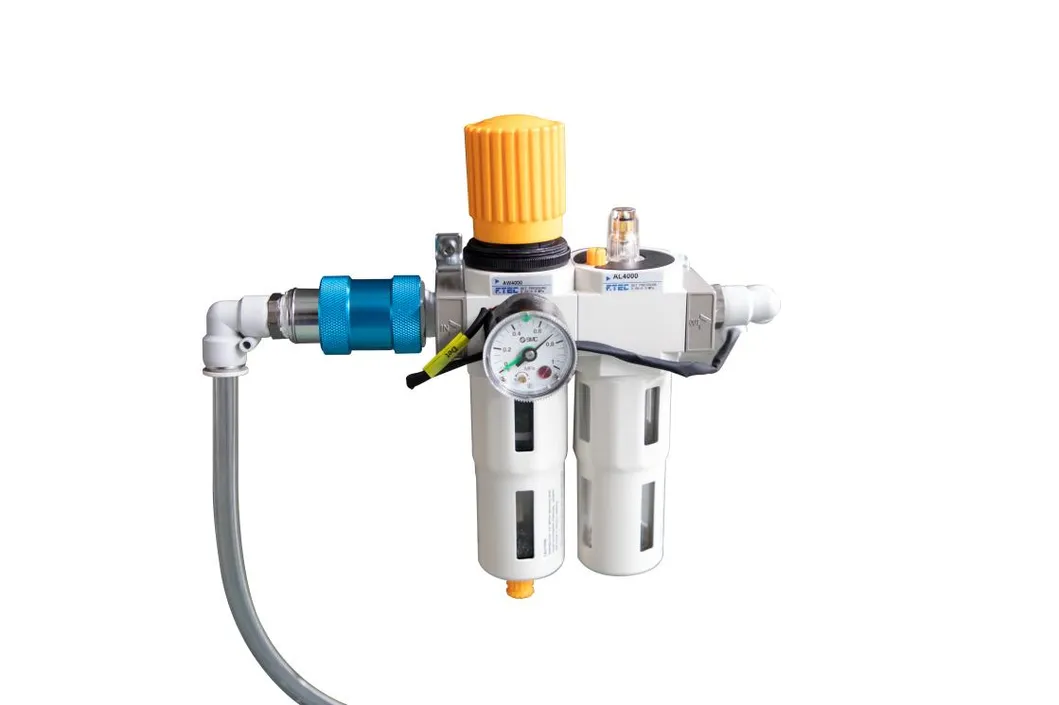

Equipped with Schneider electrical components for stability and SMC air pressure testing to automatically stop equipment if pressure drops below set values.
A professional manufacturer engaged in agricultural and animal husbandry intelligent factories. Integrated with R&D, manufacturing, marketing, and service, focusing on safe, environmentally friendly, and efficient formulation workshops. The facility includes intelligent processing, packaging, and storage solutions.
