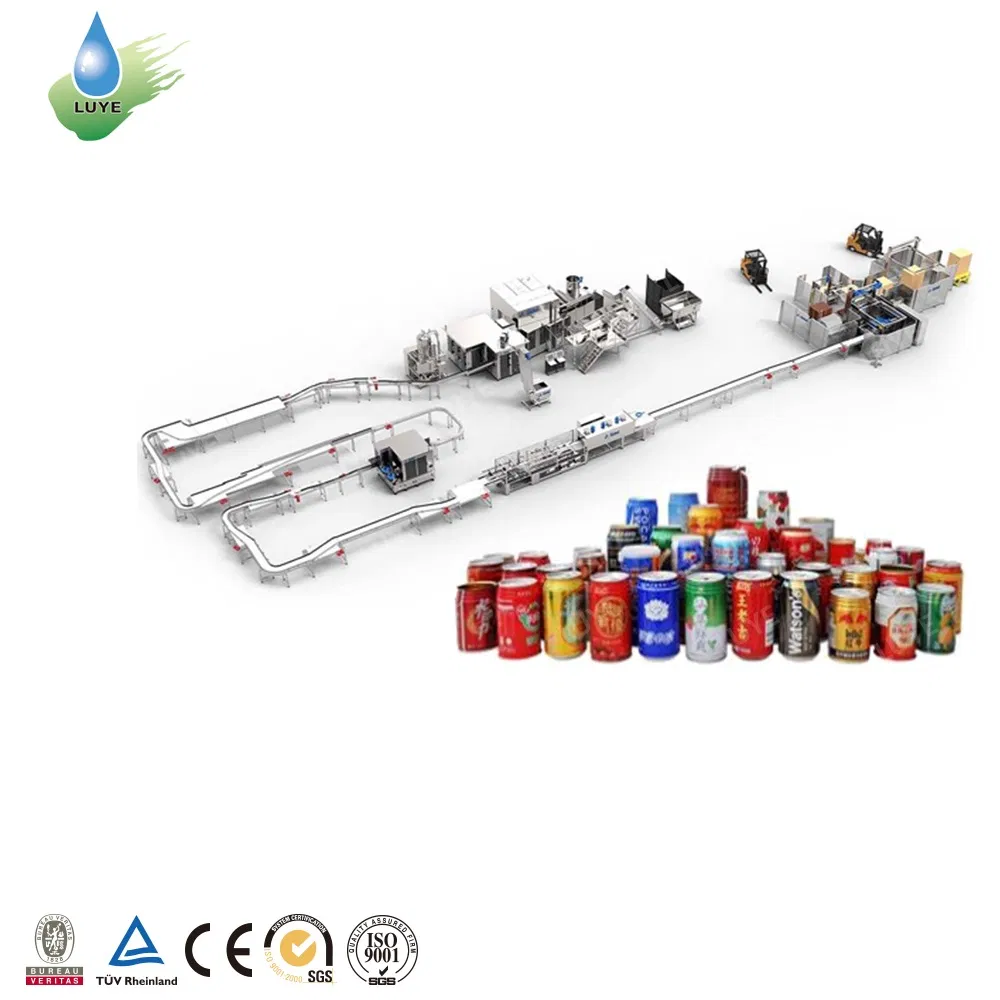

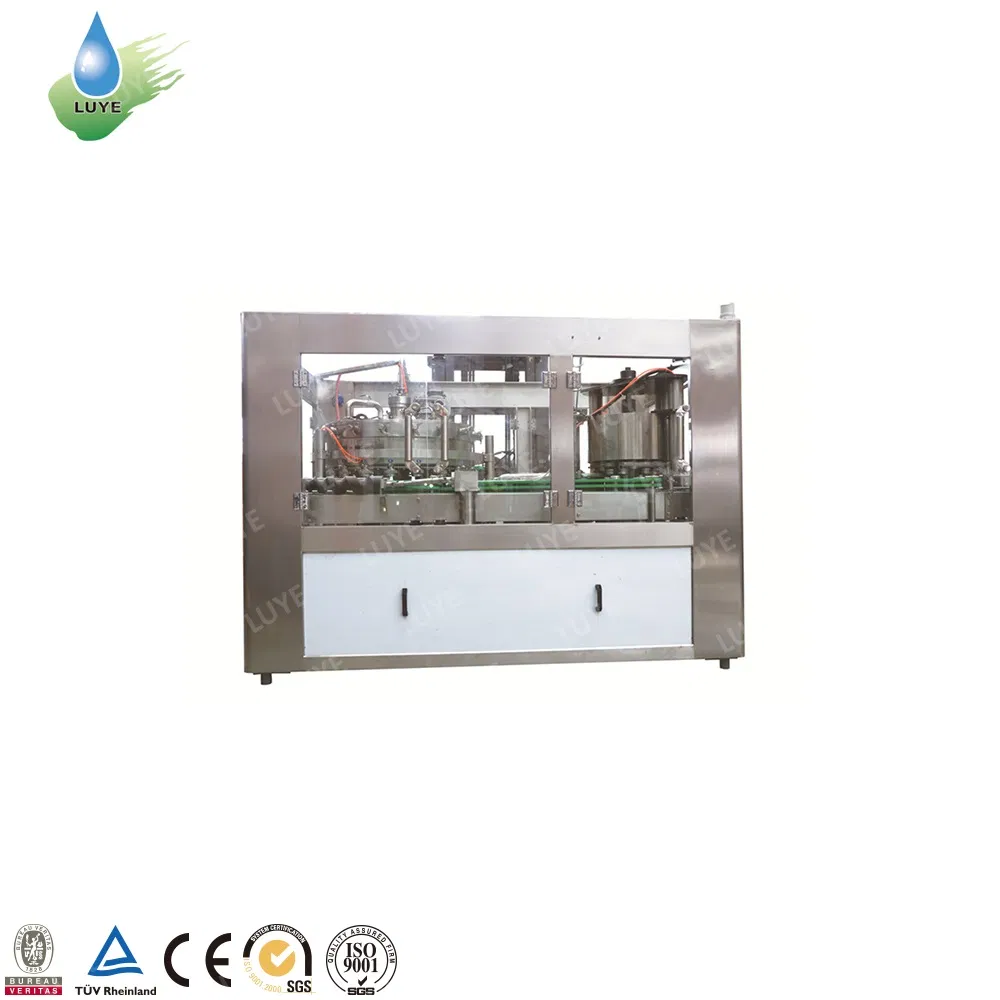

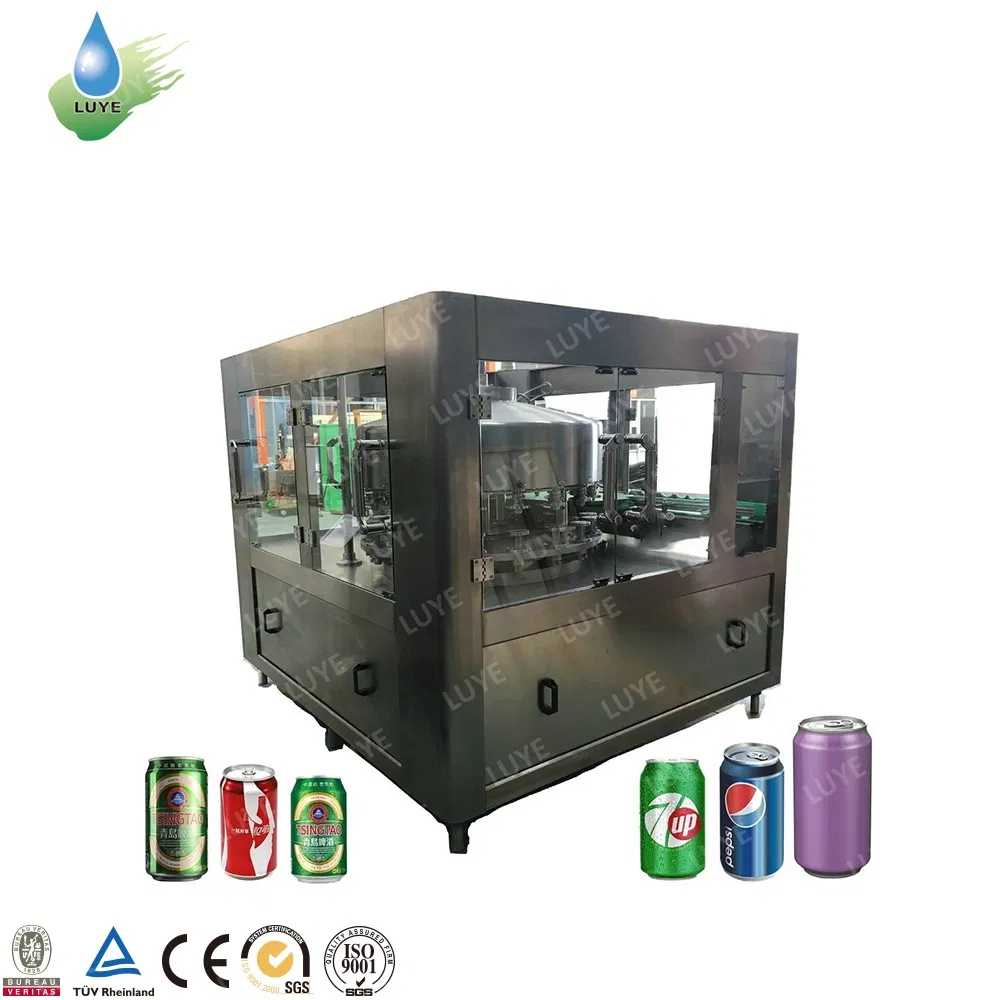

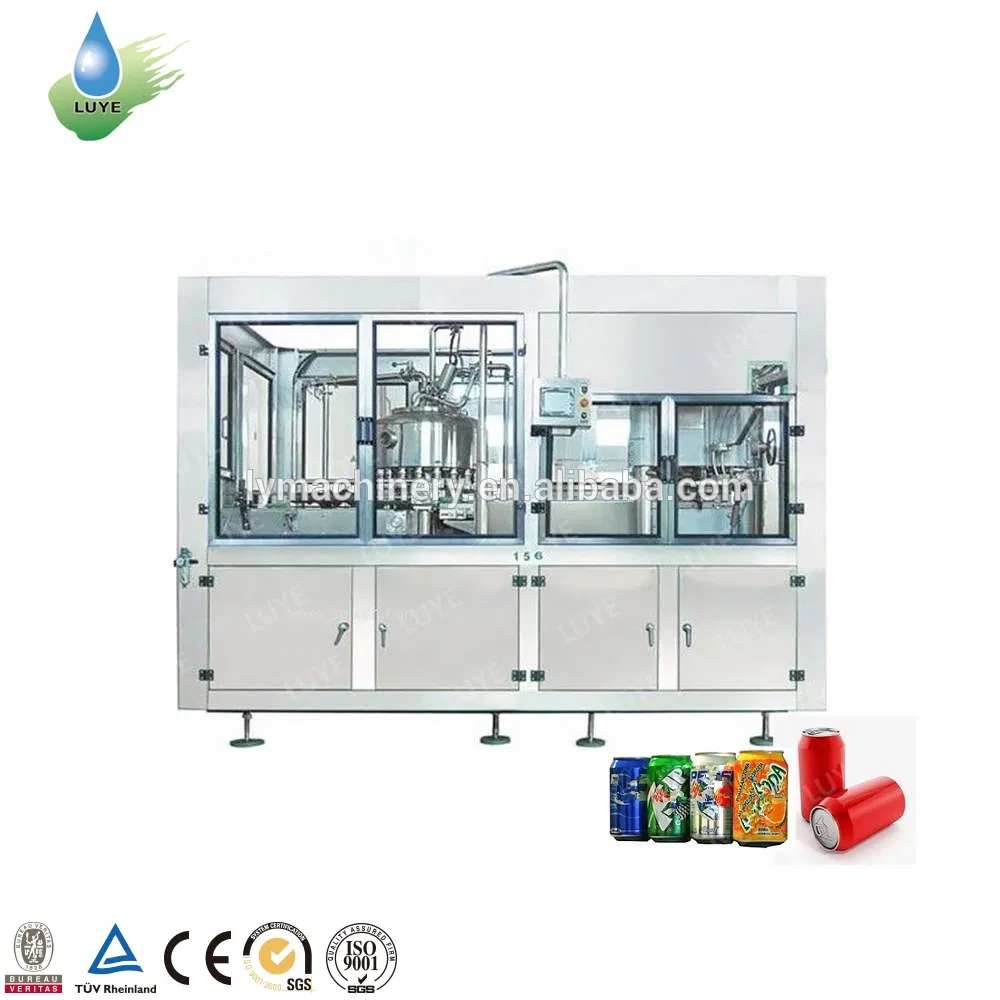

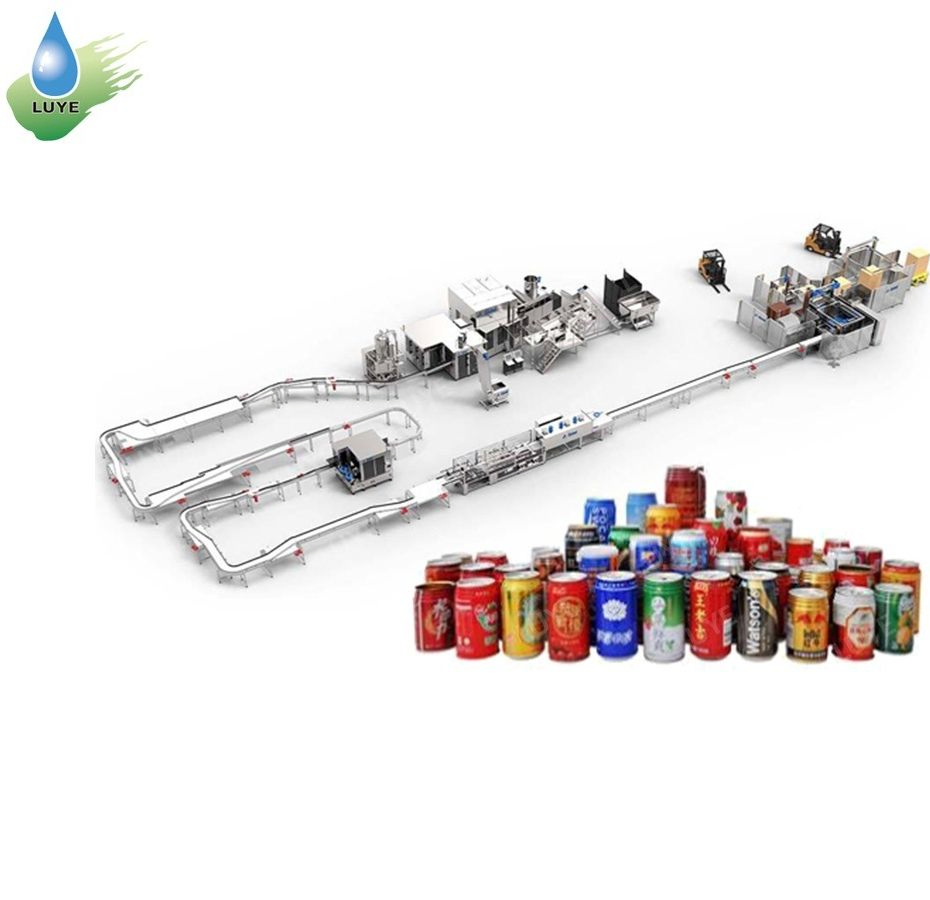

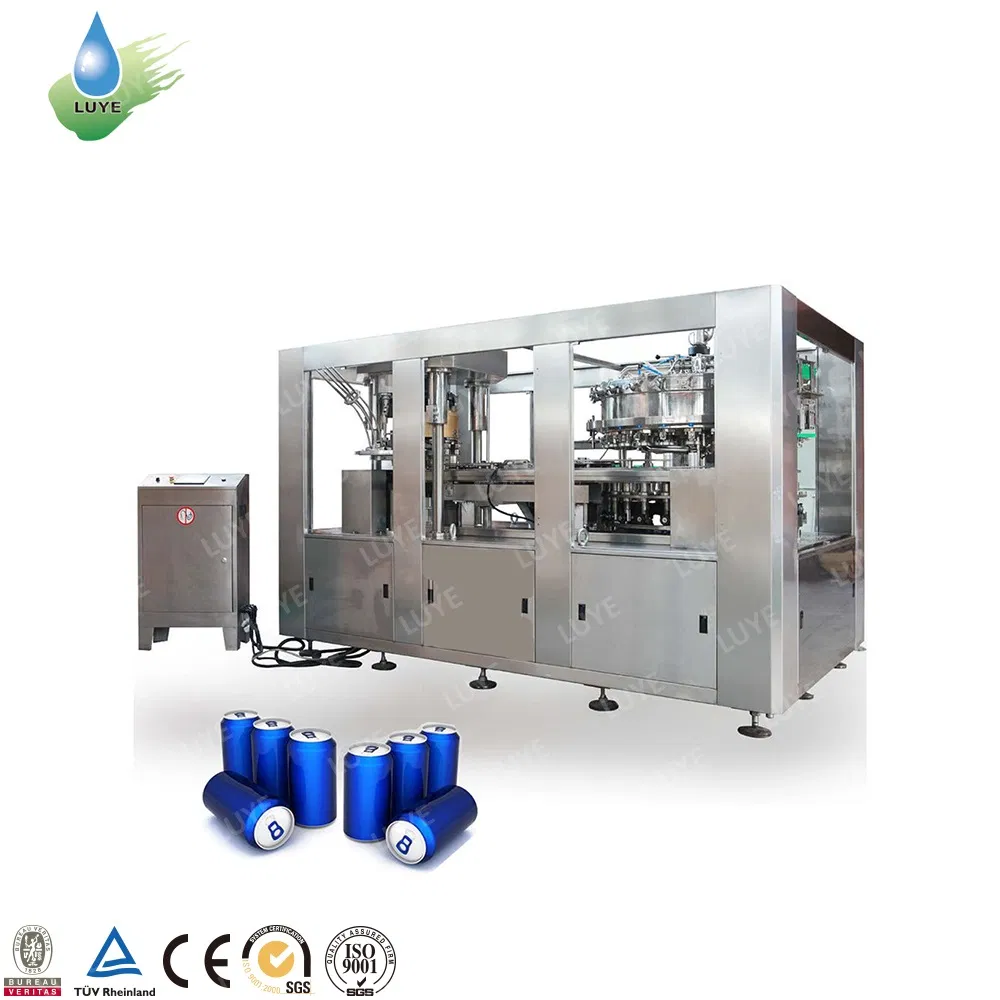

This equipment is suitable for filling and sealing aluminum canned beer and carbonated soft drinks. It is equipped with advanced electrical equipment and pneumatic control technology. It features stable filling, high speed, precise liquid level control, reliable capping, and frequency conversion timing with minimal material loss.
| Model | GD-12 YD-1 | GD-18 YD-6 | GD-24 YD-8 |
|---|---|---|---|
| Capacity (500ml/can/min) | 15-40 | 40-60 | 60-80 |
| Power (kw) | 0.55 | 0.75 | 0.87 |
| Overall dimensions (mm) | 810*800*1100 | 930*1050*1550 | 1800*1050*1750 |
| Weight (kg) | 480 | 550 | 650 |
| Model | GD12-4 | GD18-4 | GD20-4 | GD30-6 |
|---|---|---|---|---|
| Capacity (500ml/can/min) | 40-60 | 60-100 | 100-150 | 200-300 |
| Can Height (mm) | 65-190mm (Customizable) | |||
| Filling Temperature | 0-4ºC | |||
| Motor Power (kw) | 5.5 | 6.5 | 7.8 | 8.5 |
| Weight (kg) | 3000 | 4000 | 4800 | 5200 |

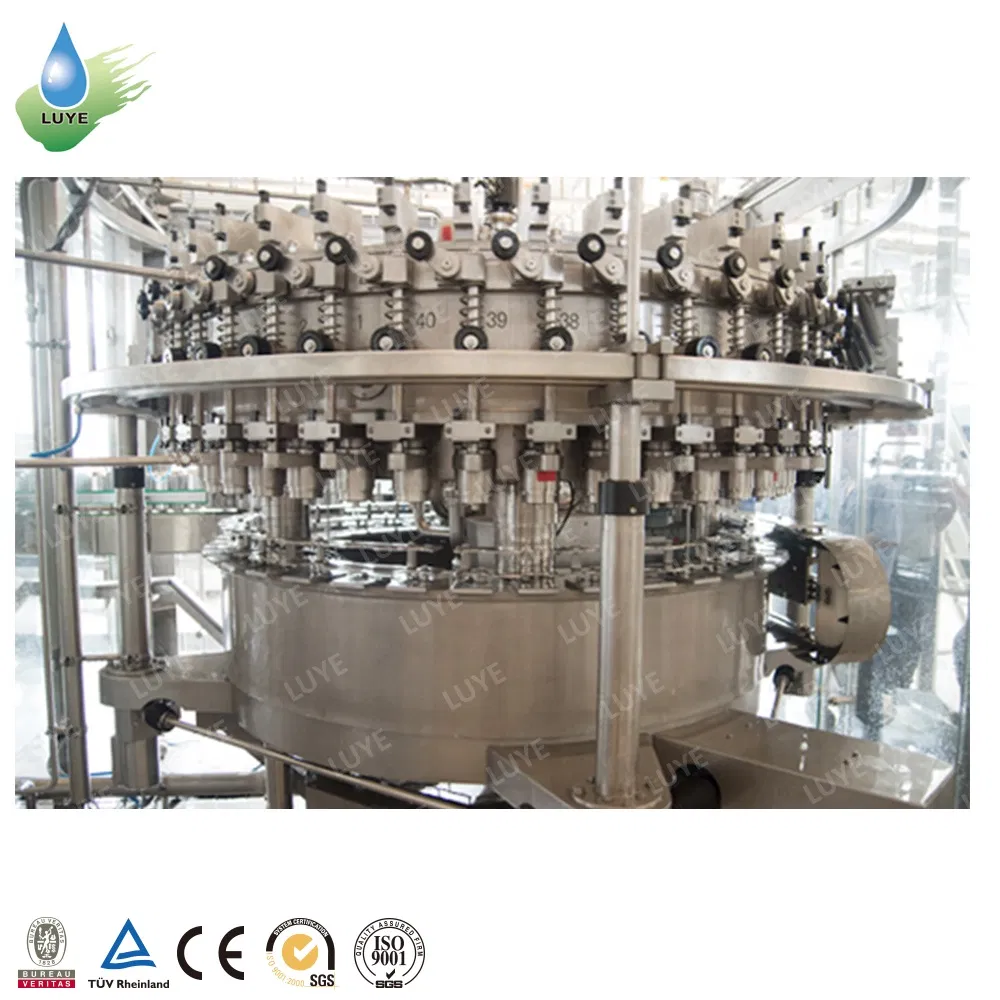

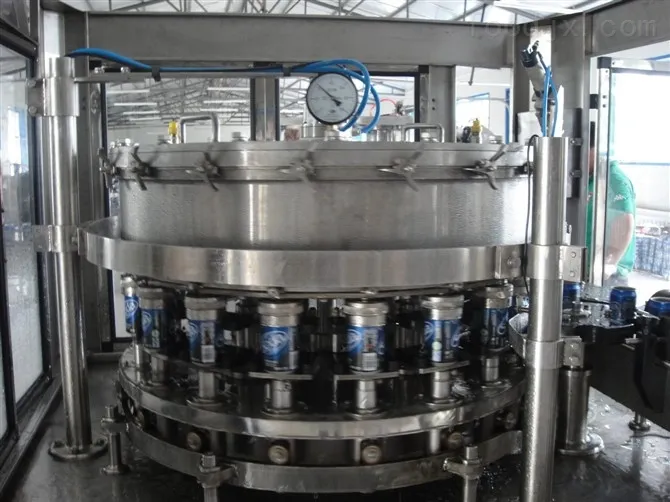

Consists of main liquid pipes, cylinder parts, filling valves, and distributors. All parts touching materials are made of high-grade stainless steel. The system uses CO2 pressure balancing to ensure smooth filling without excessive bubbling.

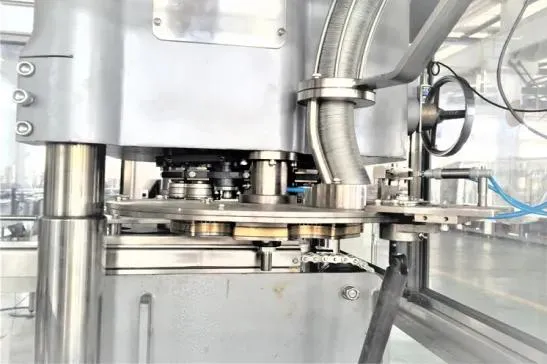

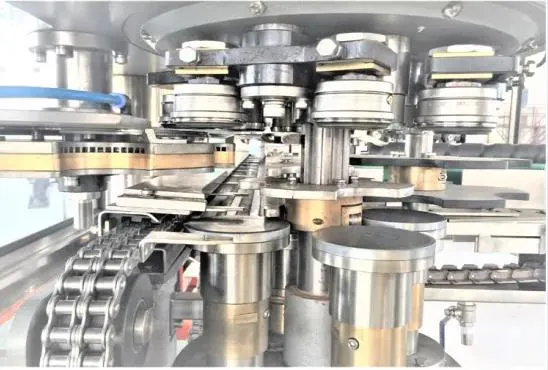

Features electromagnetic capping heads with burden discharge functions to minimize bottle crash. Includes "No bottle - No capping" safety sensors and automatic stop functionality.
 |

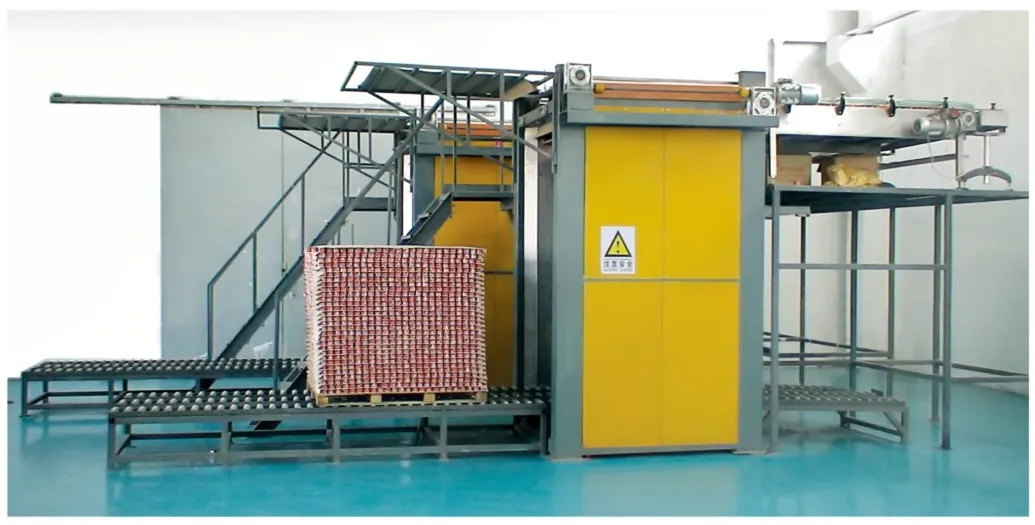

Can Depalletizer Replaces manual arrangement to increase efficiency. Uses PLC controllers and photoelectric switches from world-class brands. |
 |

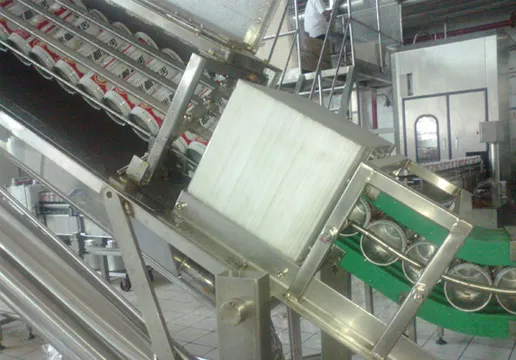

Can Rinsing Machine Inline washing that inverts cans for thorough water rinsing. Features water recycling to reduce consumption. |
 |

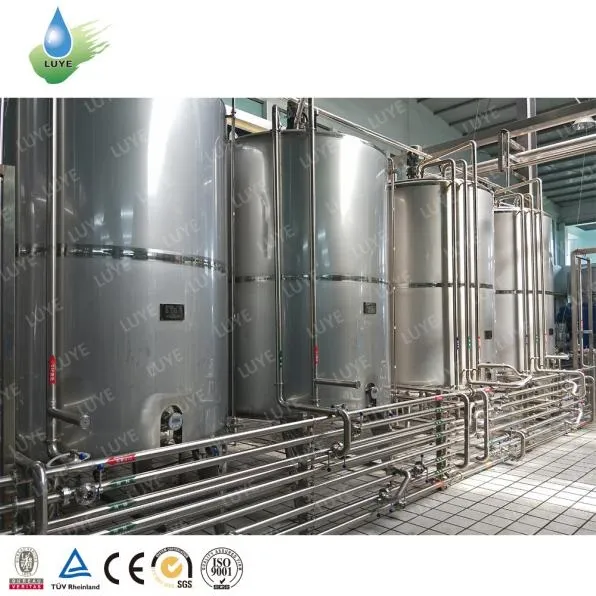

Carbonated Soft Drink Pre-Process System Includes high-shear emulsifying tanks, mixing tanks, and carbonated mixers with refrigeration units and CIP cleaning. |
 |

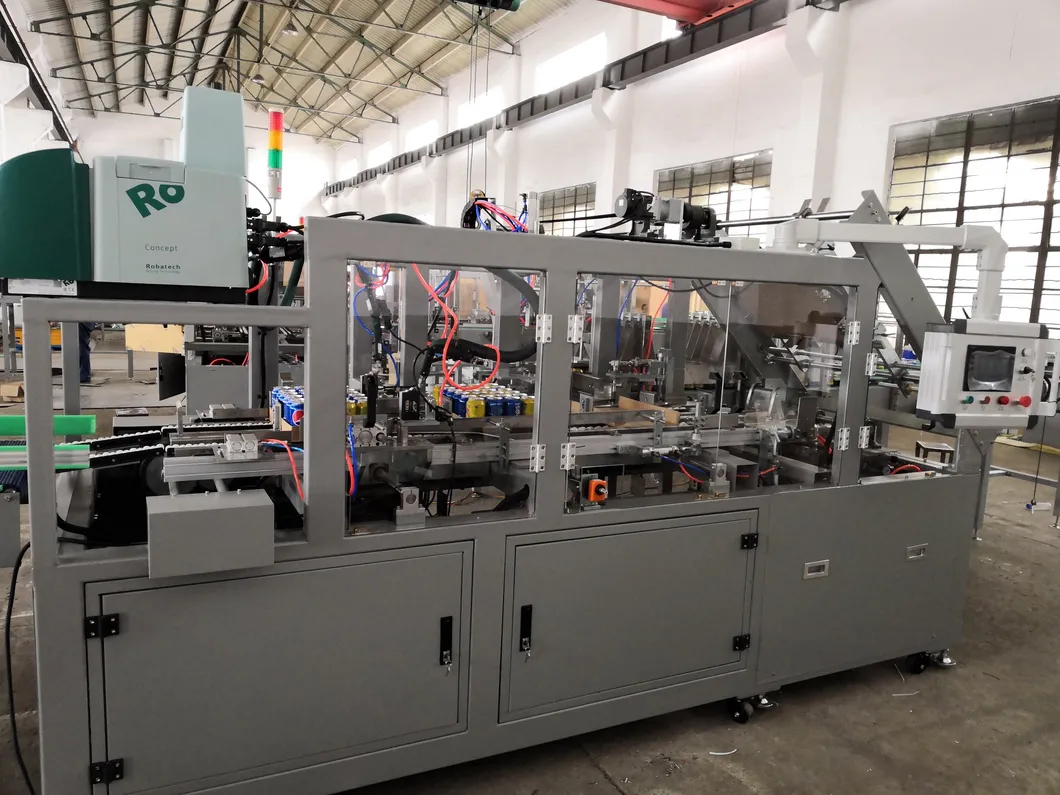

Shrink Wrapping & Carton Packaging Options for PE film shrink wrapping, half-tray carton wrapping, or full carton packaging based on requirements. |
