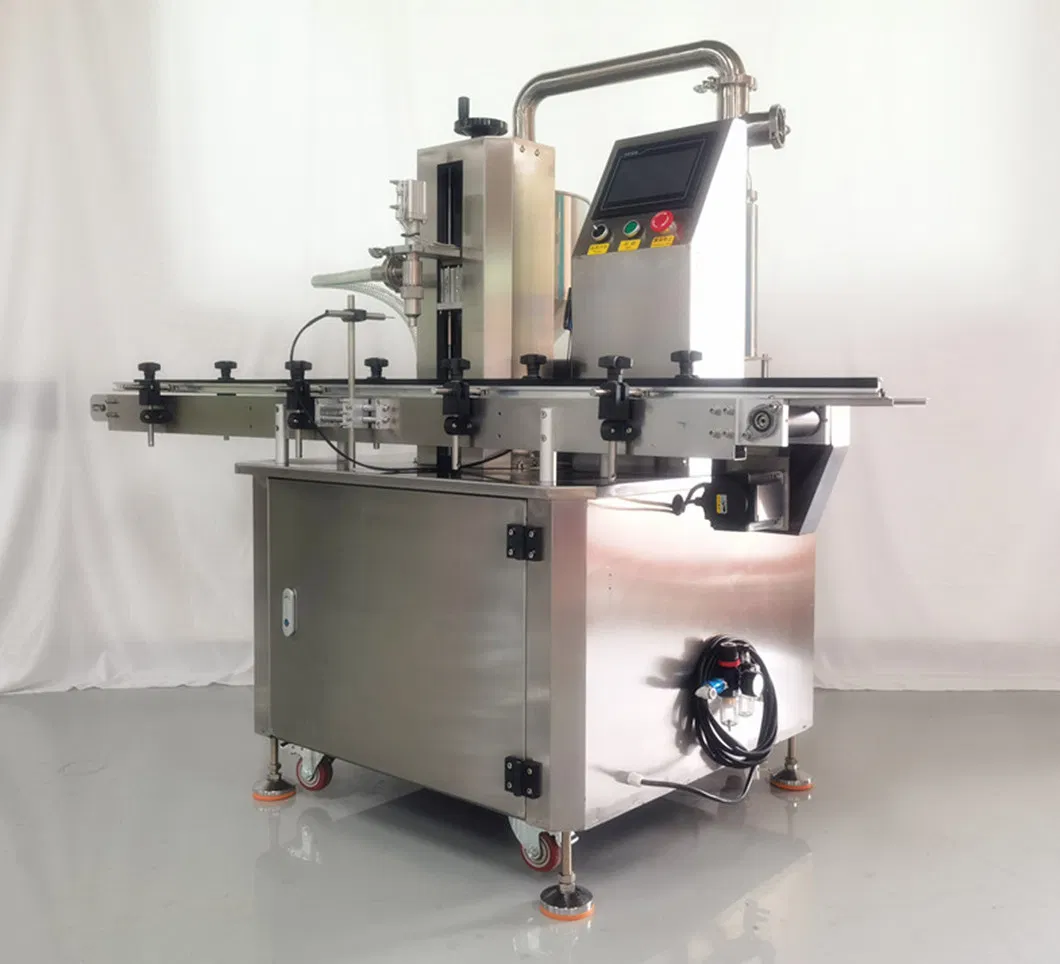

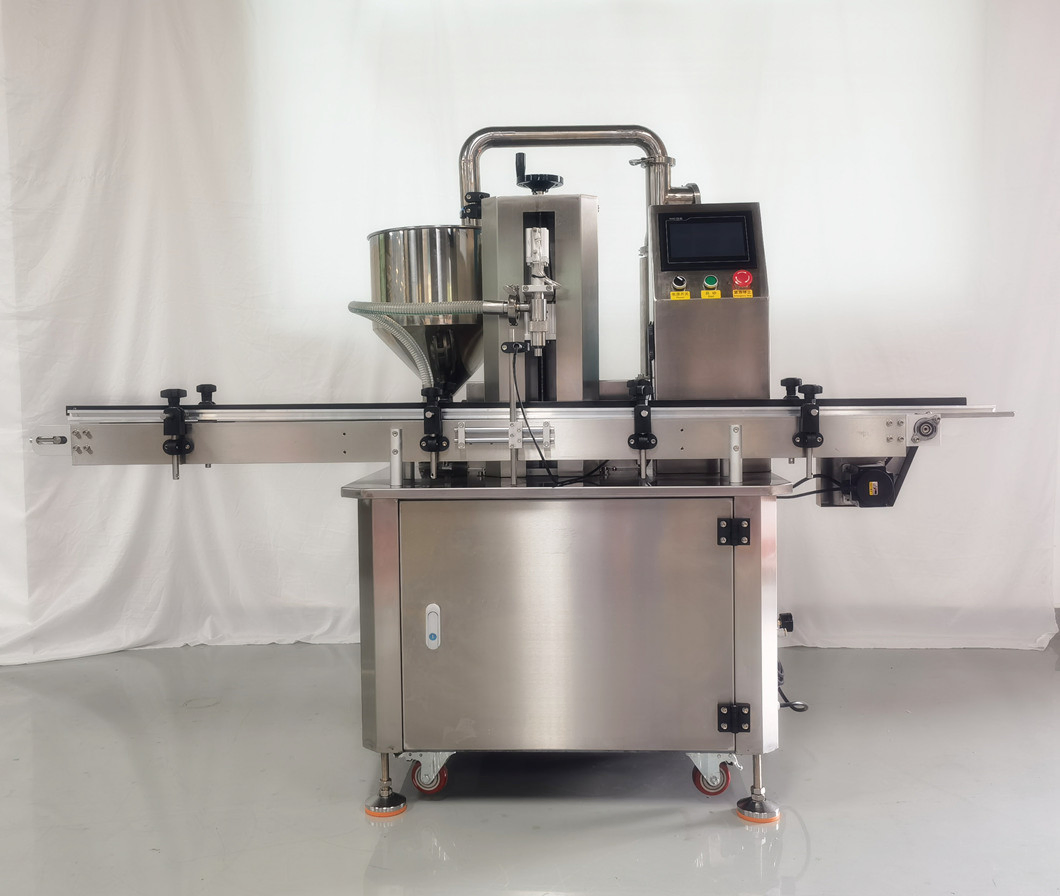

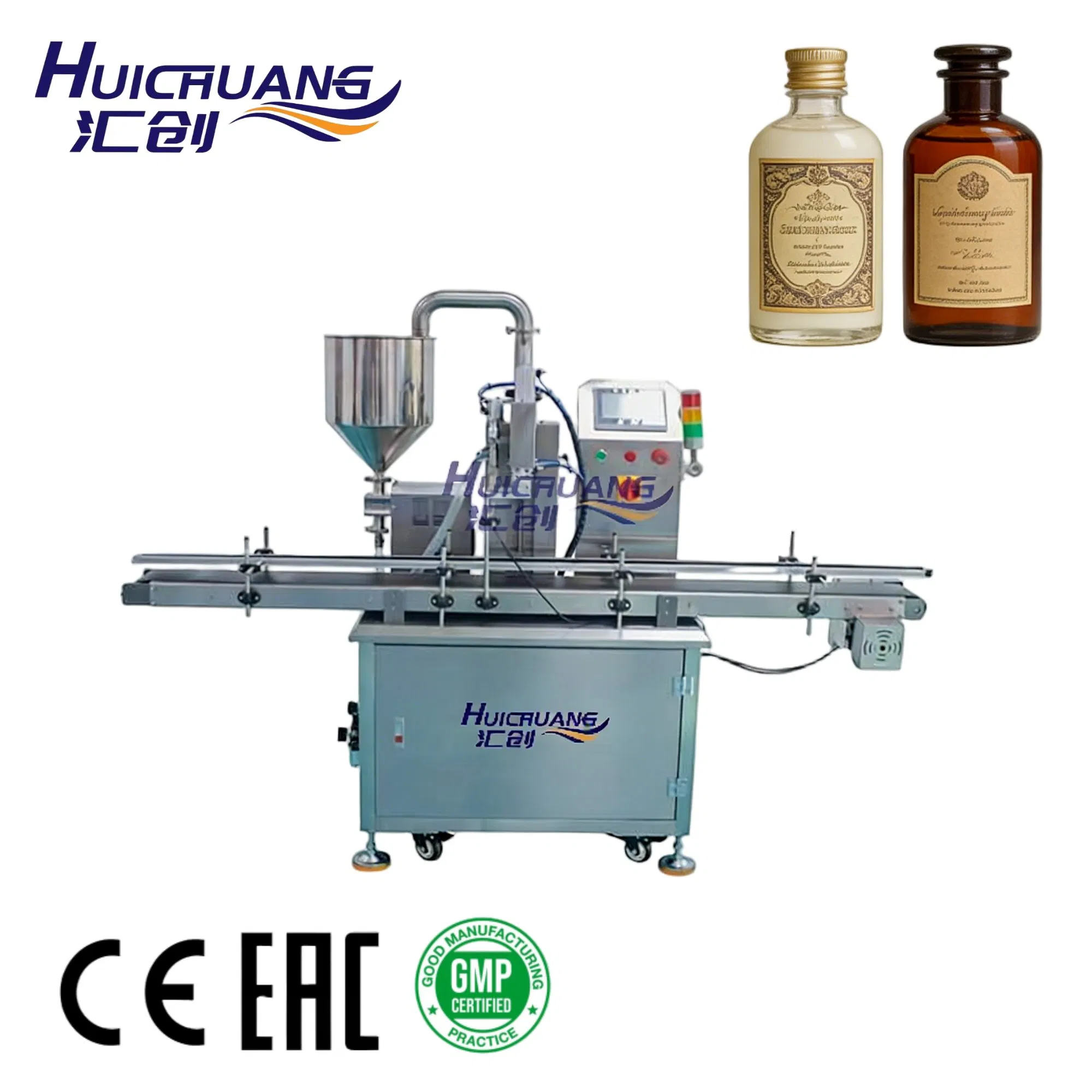

Single Head Piston Filling Machine for Accurate Liquid Bottle Filling Operations

Customization: Available
After-sales Service: Provide
Warranty: Provide

Product Description

Basic Information
Model NO.GZJ-A
TypePiston Filling Machine
Automatic GradeAutomatic
Material TypeLiquid / Semi-liquid
Filling Valve HeadMulti-Head

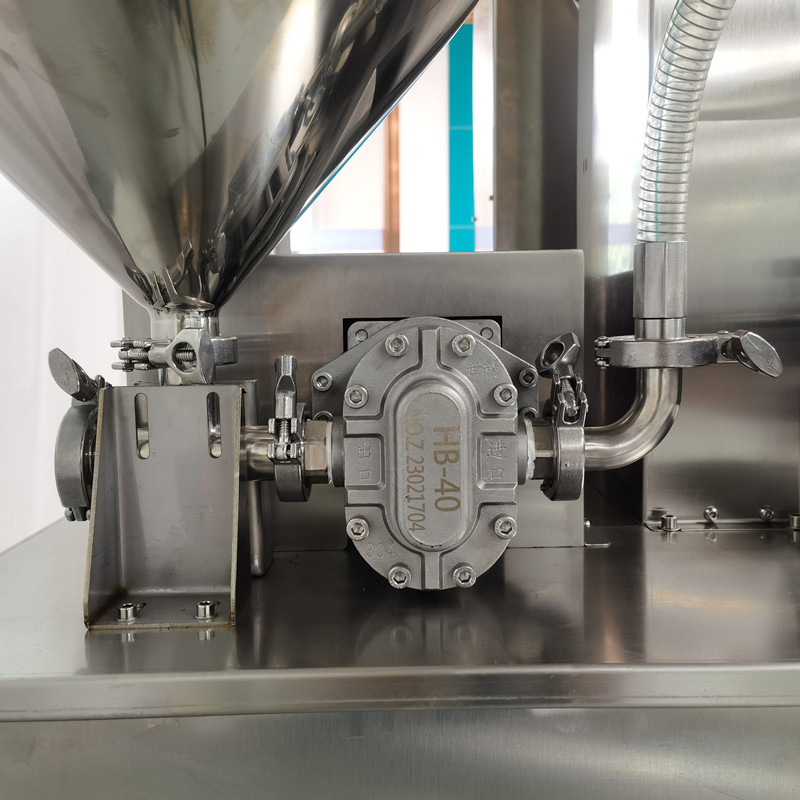

Dosing DeviceRotor / Piston
Filling PrincipleAtmospheric Pressure
StructureLinear
Packaging MaterialPlastic / Glass / Metal
Filling Volume50-5000ml
Filling Speed0-60 PCS/Min
Filling Accuracy<0.5%
Power Supply220V/50Hz/1phase
Machine MaterialStainless Steel
Product Overview

The automatic filling machine features a robust stainless steel frame structure with a transparent PC protective frame, fully complying with GMP requirements.

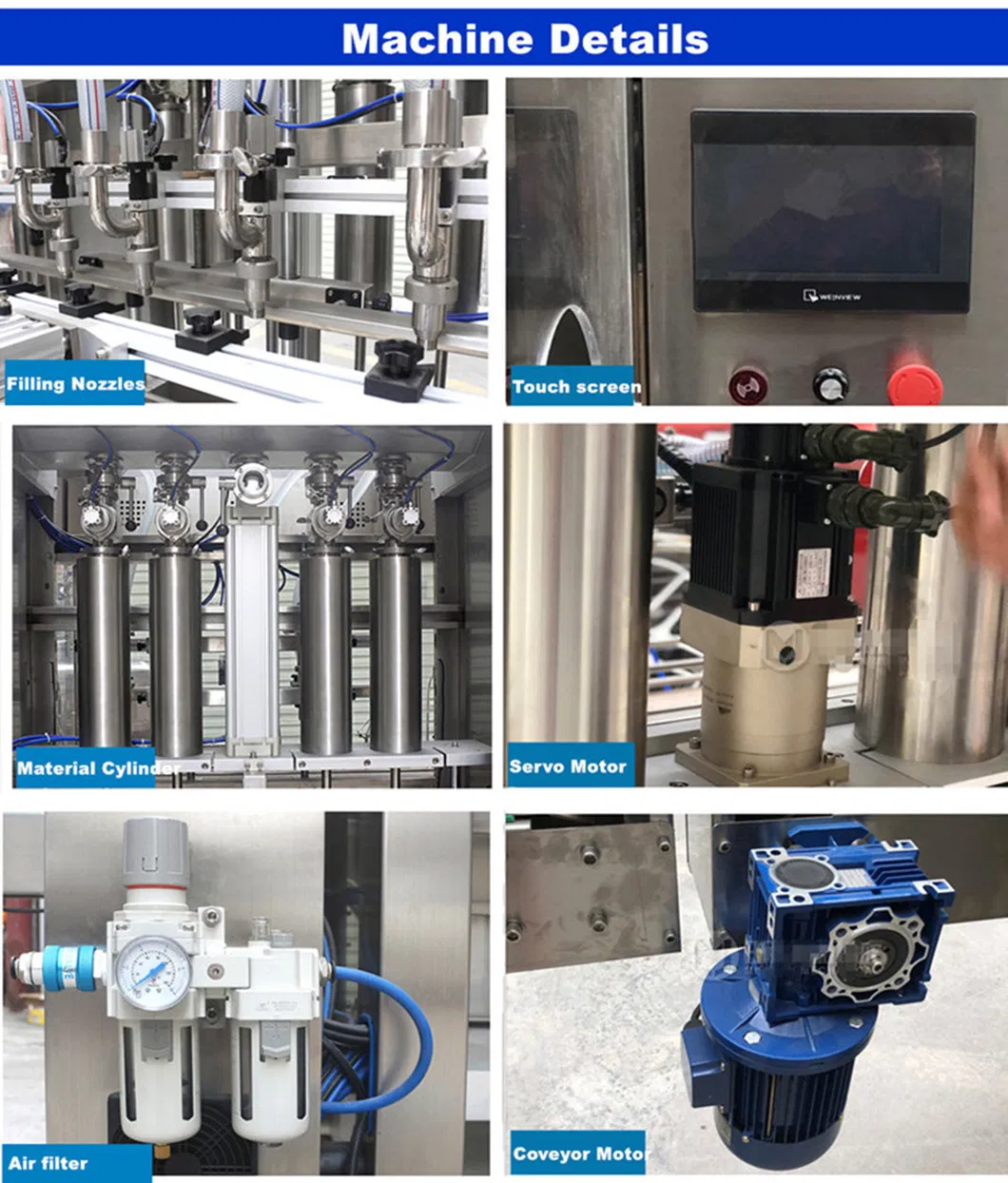

  • Automatically tracks bottle positions for continuous filling without stopping.

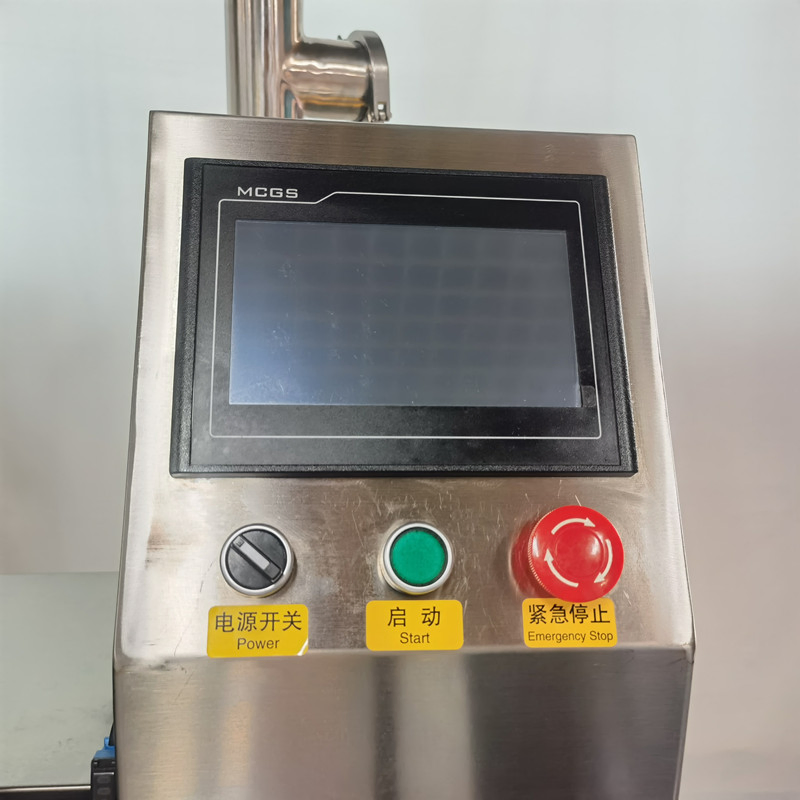

  • Touch panel operation for convenient and simple control.
  • Drip-tight filling nozzles and ultrasonic liquid level control.
  • Intelligent memory and automatic counting functions.
  • Motion control system with servo motors for high-speed synchronous filling.
  • Independent cylinder control for precise capacity adjustment.
Technical Parameters
Filling ProductCream, ointment, lotion, paste, shampoo, soap, detergent
Volume Options10-100ml, 25-250ml, 50-500ml, 100-1000ml, 500-5000ml
Capacity0-80 Pcs/Min
Container TypeJar, bottle, can, etc.
Air Pressure0.4-0.8 Mpa
Air Consumption0.05m³/min
Machine Dimension2500*1100*1900mm (L*W*H)
Net Weight450kg
Industry Applications
Cosmetics

Baby cream, face cream, lotion, shampoo, toothpaste, liquid soap.

Food & Beverage

Sauce, mayonnaise, juice, cheese, chocolate, tomato paste.

Pharmaceutical

Ointments, latex, emulsions, oral syrups, liquid medicines.

Chemical

Paints, coatings, resins, adhesives, lubricants.

Product Visuals

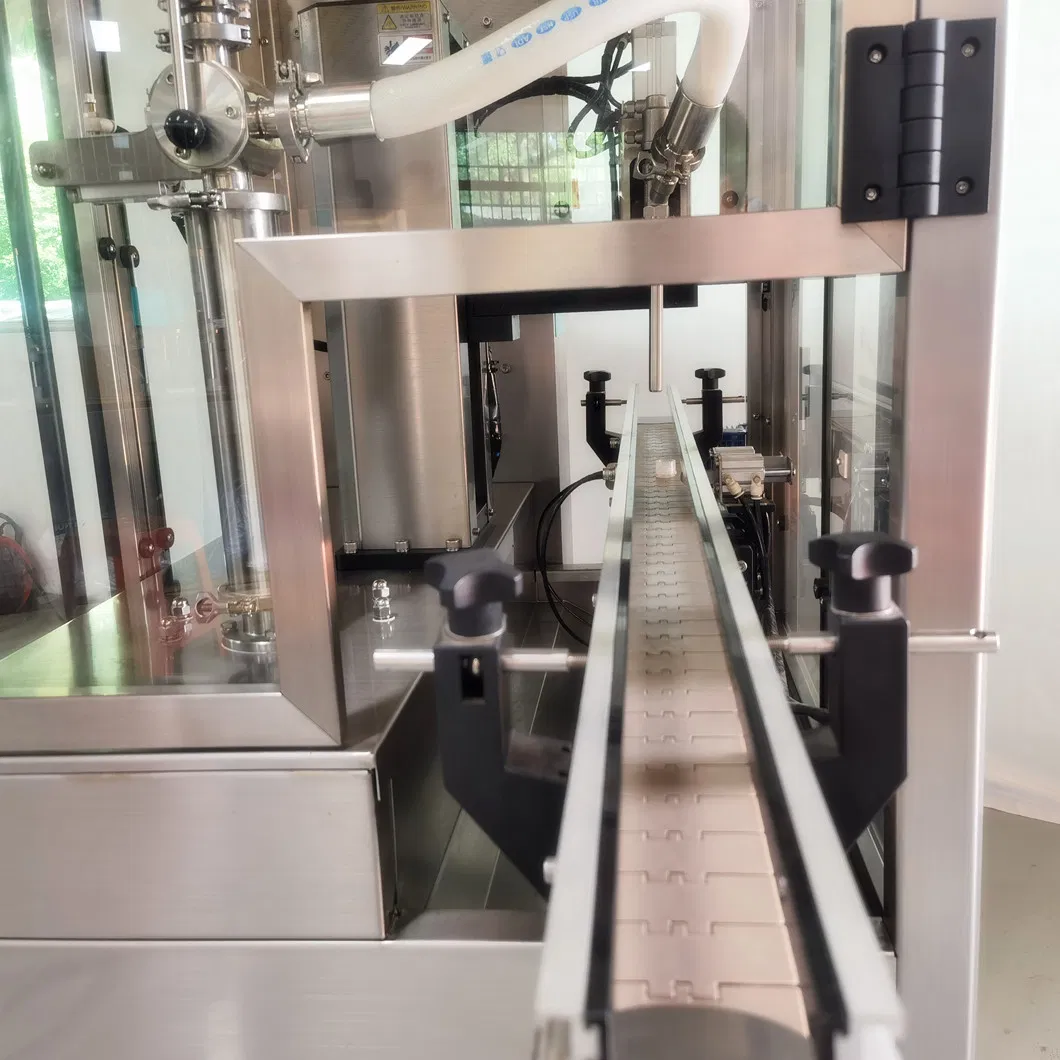

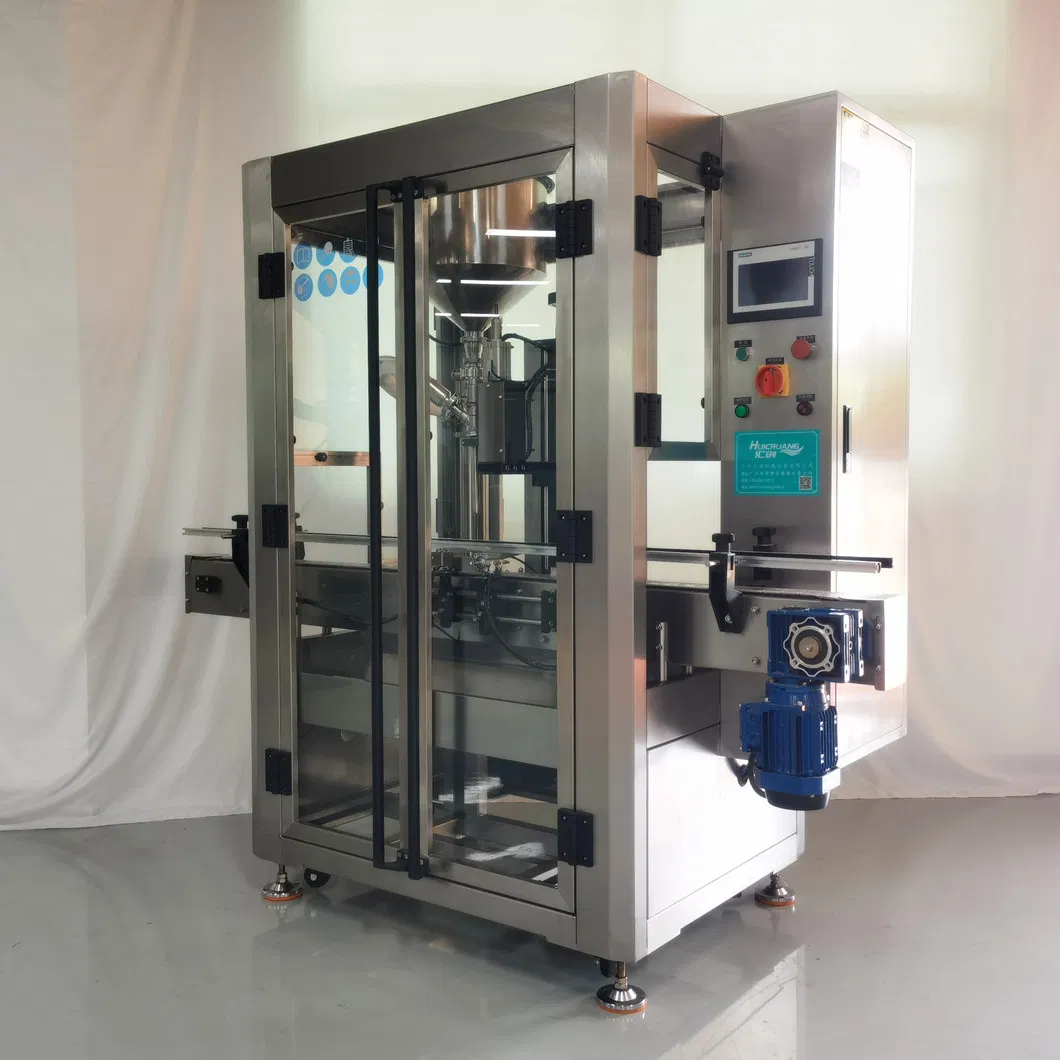

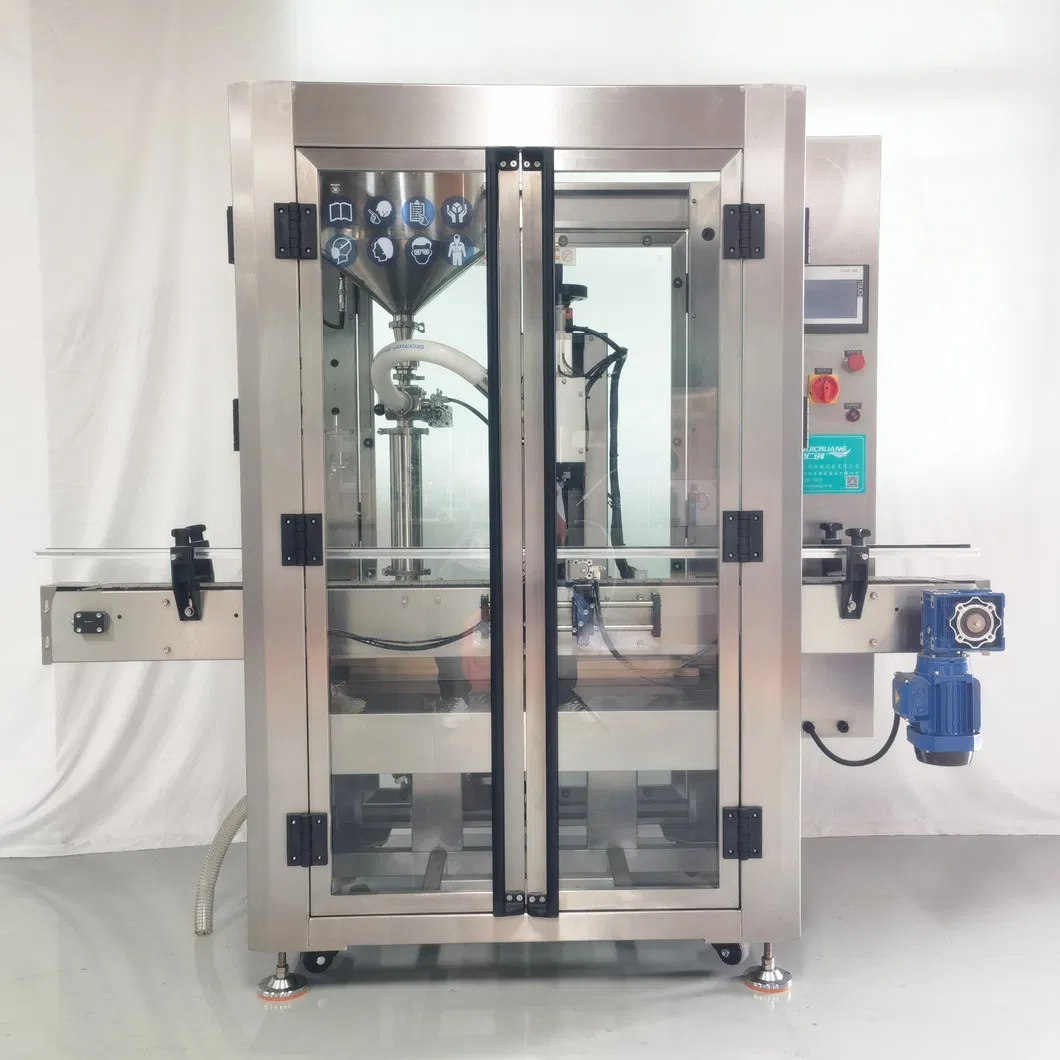

Automatic Piston Filling Machine

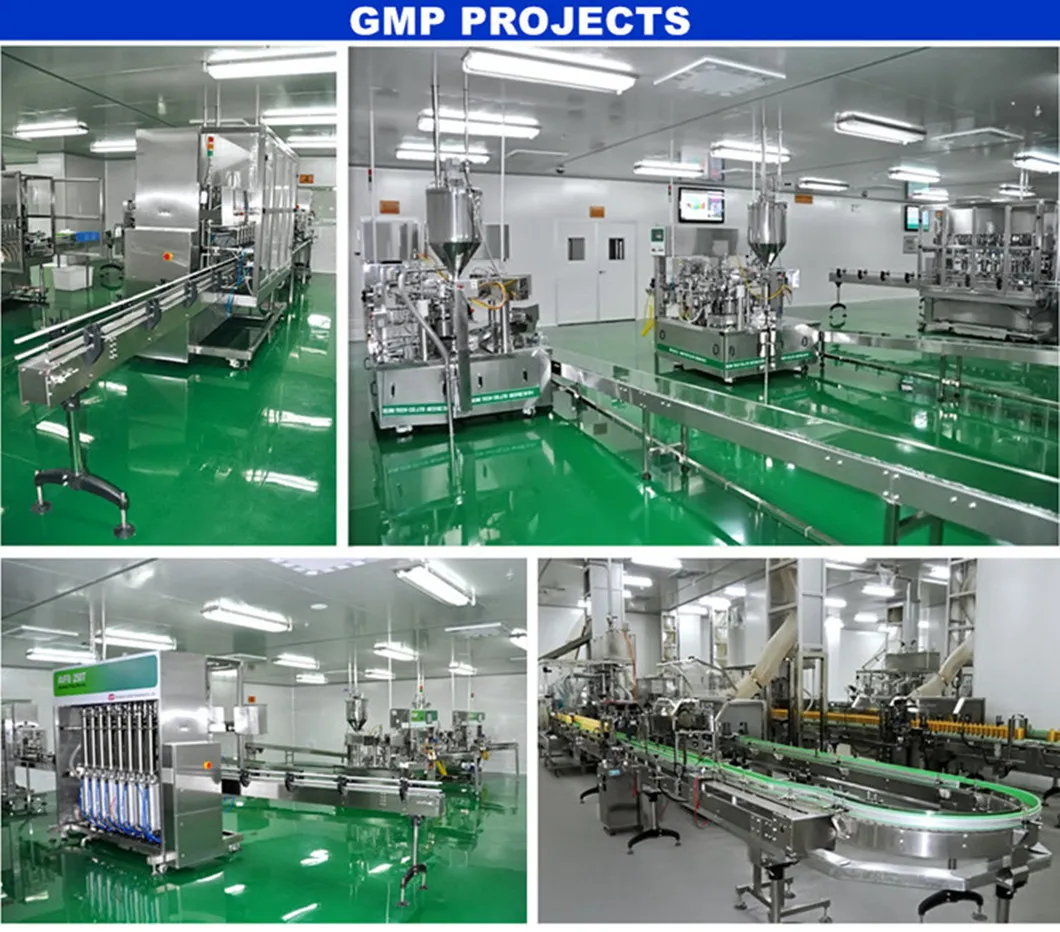

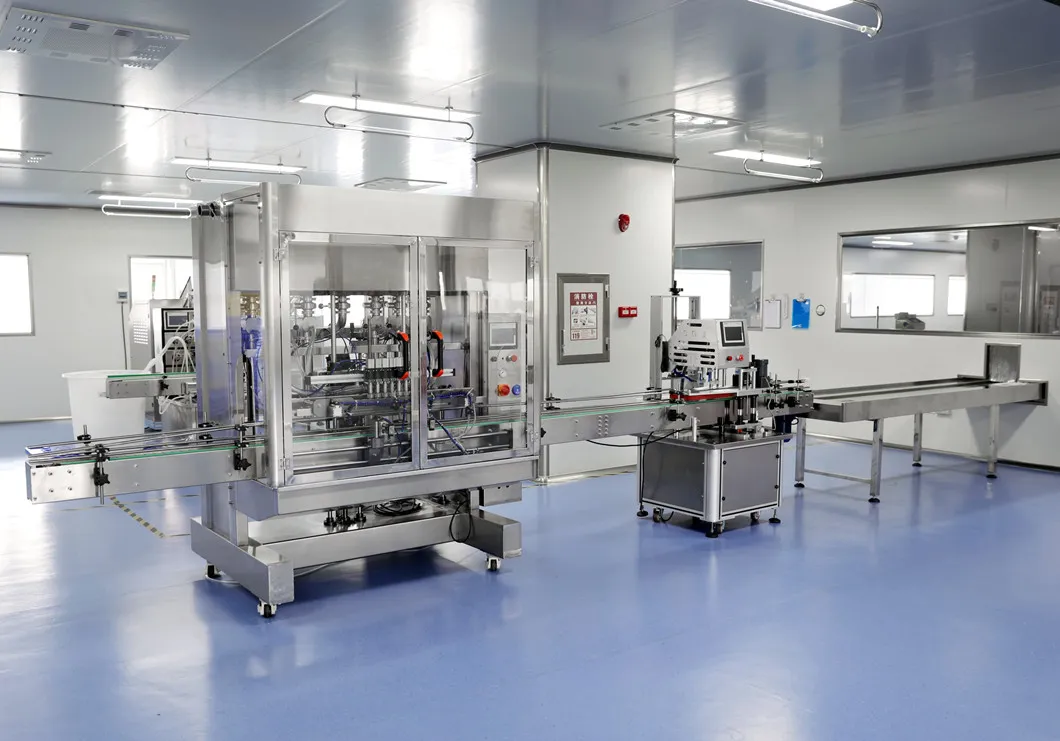

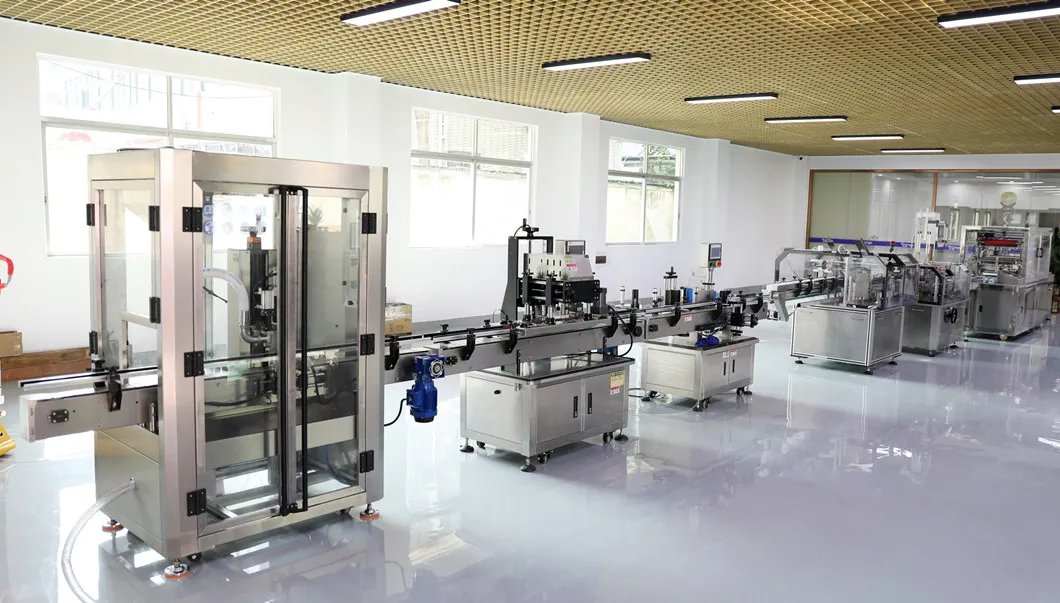

GMP Project & Workshop
Frequently Asked Questions
1. What is the filling accuracy of the GZJ-A machine?

The machine utilizes a servo motor and piston pump system, achieving a high filling accuracy of ±0.5%.

2. Can this machine handle high-viscosity pastes?

Yes, it is specifically designed for a wide range of products including creams, ointments, lotions, and thick pastes used in cosmetic and food industries.

3. Does the machine require the bottles to stop during filling?

No, the machine features an automatic tracking system that allows for synchronous filling while bottles are in motion, significantly increasing production speed.

4. What materials are used for the parts in contact with the product?

All filling nozzles and contact parts are made of food-grade stainless steel 304, ensuring safety and compliance with GMP standards.

5. Is the filling volume adjustable?

Yes, the filling capacity can be adjusted independently for each cylinder, with standard ranges available from 10ml up to 5000ml.

6. What kind of control system is integrated into the machine?

The machine is equipped with a PLC motion control system and a user-friendly touch screen interface for easy operation and monitoring.
