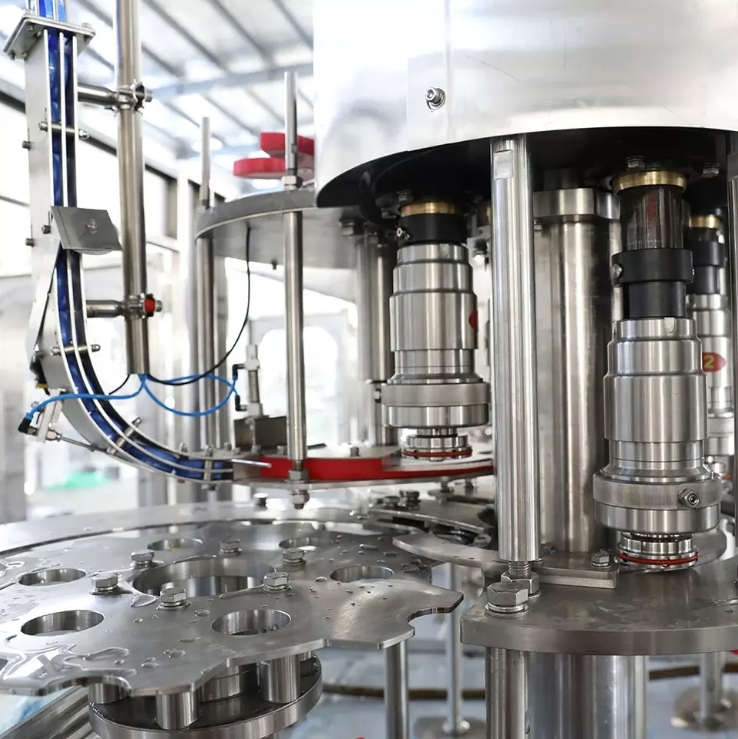

Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
1 / 5
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock
Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock

Good Service Liquid Multi-Head Coffee Capsule Water Line Small Manufacturing Machines Filling Machine Combiblock

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

■ Basic Information
Model NO.Blowing Filling Capping Combiblock
TypeVolumetric Filling Machine
Automatic GradeAutomatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Filling PrincipleNegative Pressure
StructureRotary
PackagingBottle / Aluminum Can
UsageBeer, Carbonated Soft Drinks, Gas Water
Capacity2000-20000 cans per hour
Filling Accuracy±2%
Driven TypeElectric
■ Product Description

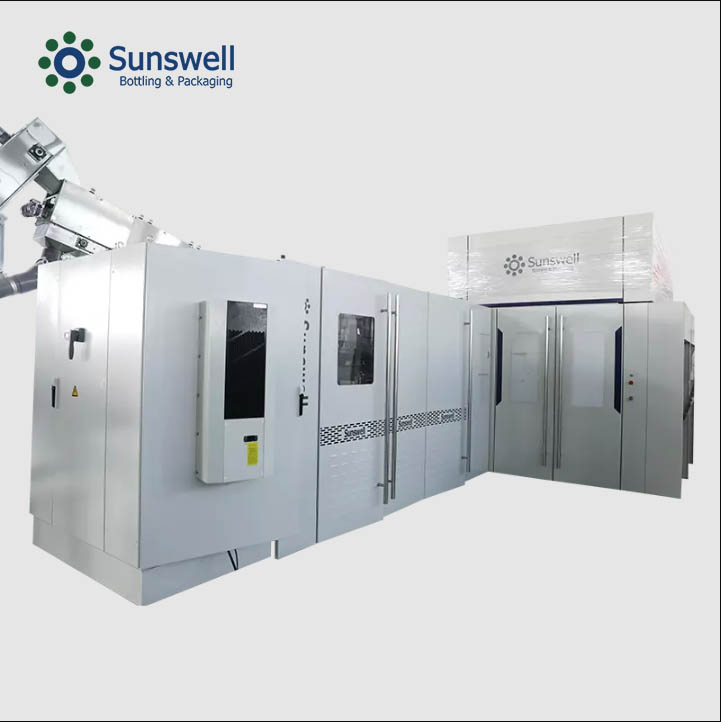

Blowing-Filling-Capping Monoblock

This high-technology blowing-filling-capping machine is used in the beverage business for drinking water, juice, and carbonated drinks. This combiblock consists of a blowing unit, filling unit, and capping unit. With the synthetic application of electricity, mechanics, and pneumatics, and synchro controlled by a servo system, it is applicable for the integrated control of several equipment and the whole production process.

Key Advantages:
  • Saves a lot of room for the production plant.
  • Reduces water consumption from rinsing.
  • Lowers energy consumption from fans used on empty bottle conveyors.
  • Guarantees overall hygiene standards and increases production efficiency.
■ Working Process

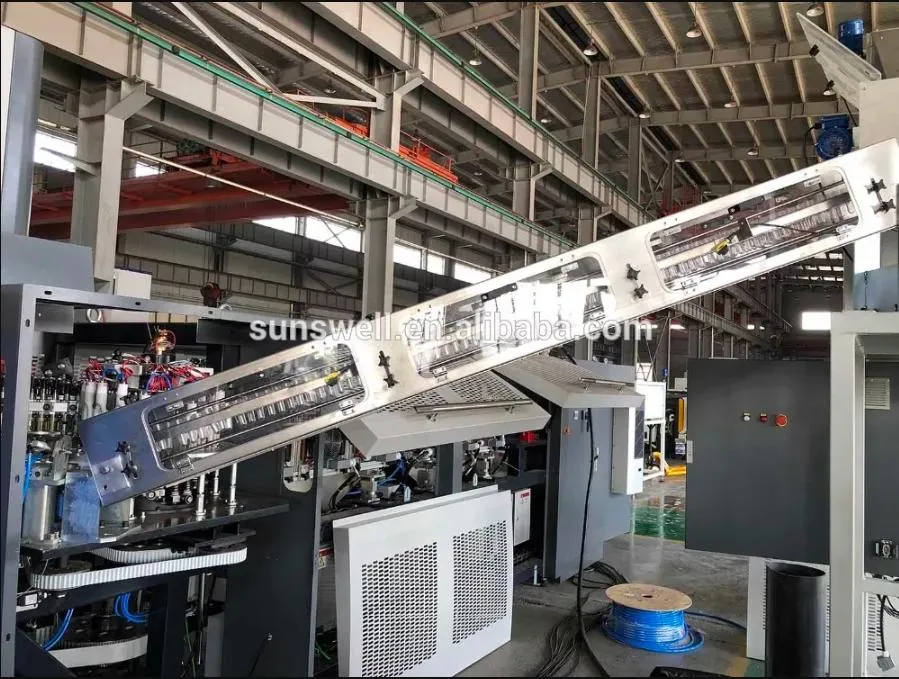

1 Preform feed-in and unscrambling

Adopts standardized preform feed-in where preforms go through an elevator to the unscrambler. Preforms are automatically sorted by two inclined revolving cylinders. The process is fully automatic with high efficiency and no scratches.

Preform Feed-in

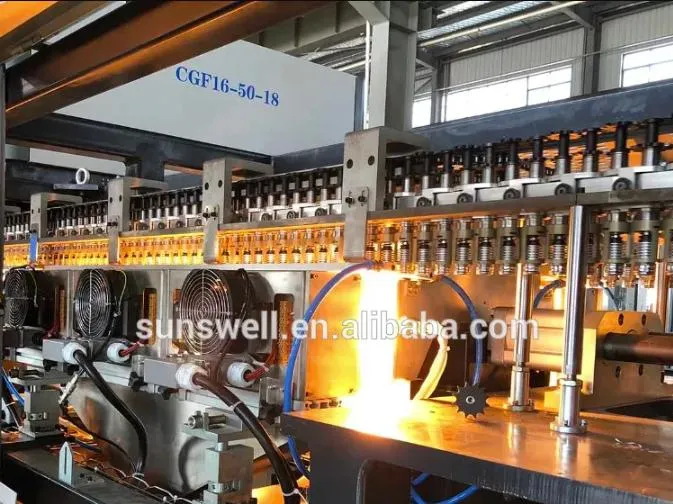

2 Heater

The heating unit ensures the preforms reach the optimal temperature for blowing, maintaining consistency across the production cycle.

Heater Unit

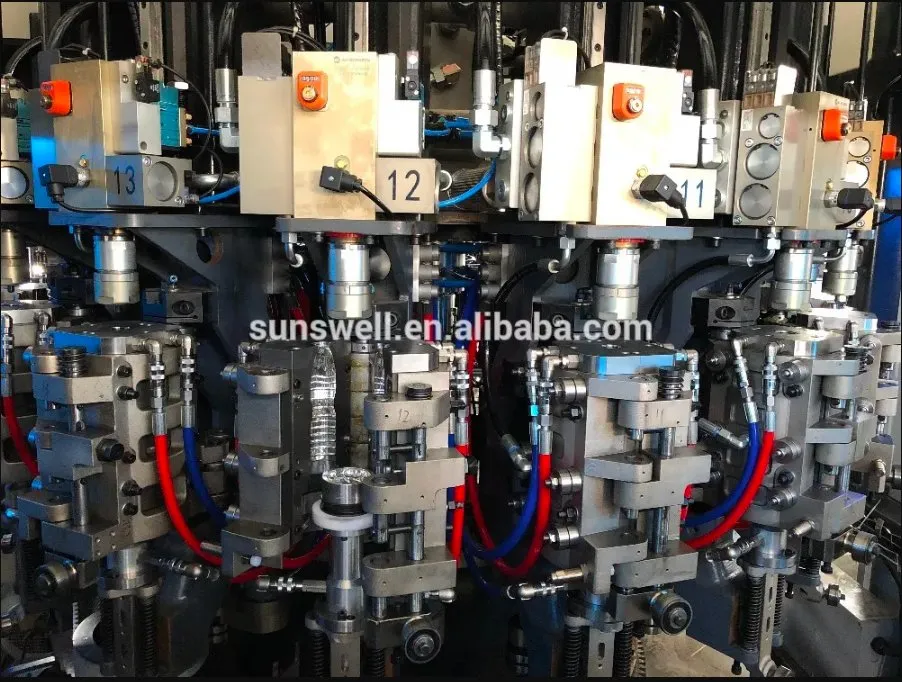

3 Blowing Unit

Special manipulators deliver heated preforms to moulds. After stretch pre-blow, high-pressure compressed air blows the preforms into bottles.

Blowing Unit

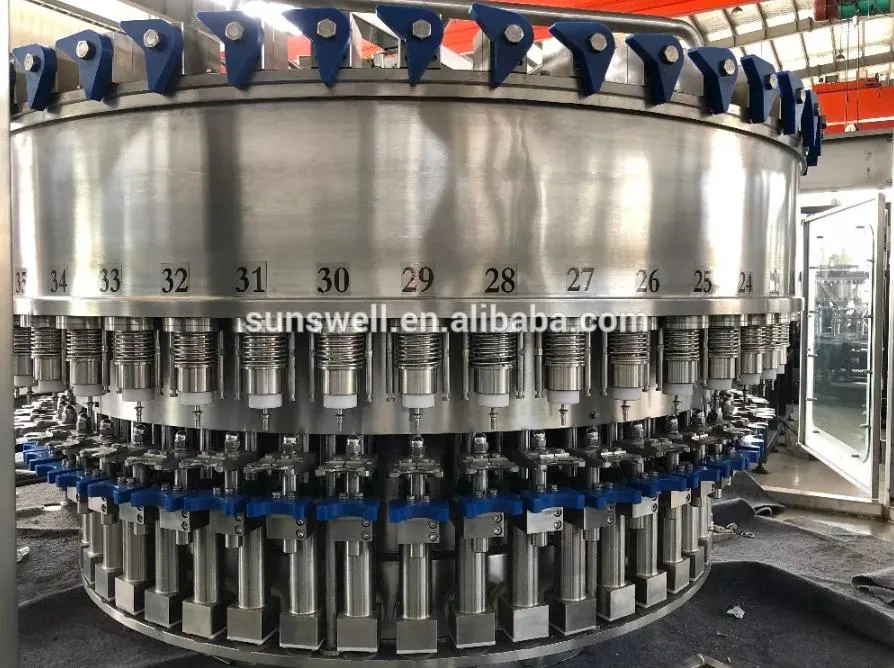

4 Filling Unit

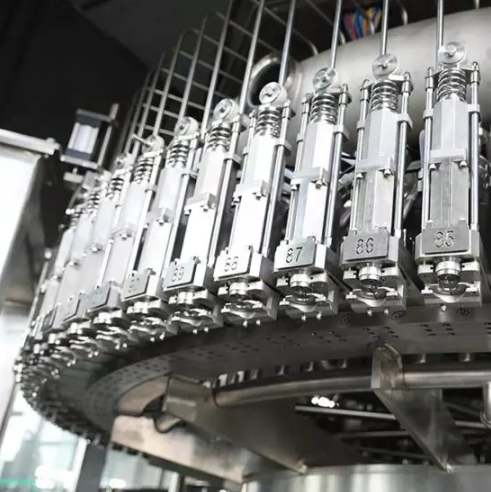

Bottles are transported to the filler via starwheel. The filler adopts a gravity filling method. Bottle mouths rise to open filling valves, and filling stops once the air return hole is plugged.

Filling Unit

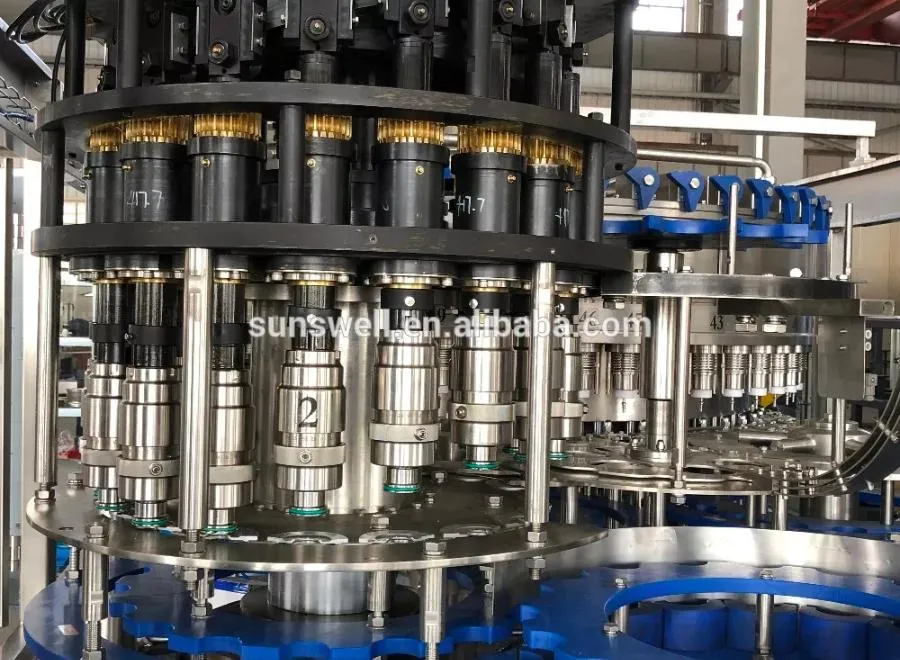

5 Capping Unit

Bottles enter the capper via transition starwheel. The anti-rotation knife keeps bottles vertical. Capping heads perform the gripping, sleeving, and screwing actions to finish the course.

Capping Unit
■ Technical Specifications
NO. Model Capacity Remark
18-24-812000bph500ml
212-32-1018000bph500ml
316-40-1524000bph500ml
420-60-1836000bph500ml
■ Factory & Equipment Display
Factory View 1
Factory View 2
Factory View 3
Factory View 4
Factory View 5
Factory View 6
Factory View 7
Factory View 8
FAQ
Q: What are the main components of the Combiblock?
A: The system integrates the blowing unit, filling unit, and capping unit into one synchronized machine.
Q: How does this machine help in saving costs?
A: It eliminates the need for empty bottle conveyors and rinsing units, significantly reducing floor space, water consumption, and energy usage.
Q: What is the filling accuracy of the machine?
A: The machine provides high-precision filling with an accuracy of ±2%.
Q: What types of beverages can be processed?
A: It is ideal for water, juice, carbonated soft drinks, beer, and other liquid products.
Q: What is the production capacity range?
A: Depending on the specific model, the capacity ranges from 2,000 to 36,000 cans or bottles per hour.
Q: Does the machine support different bottle materials?
A: Yes, it is compatible with both plastic (PET) and aluminum containers.
