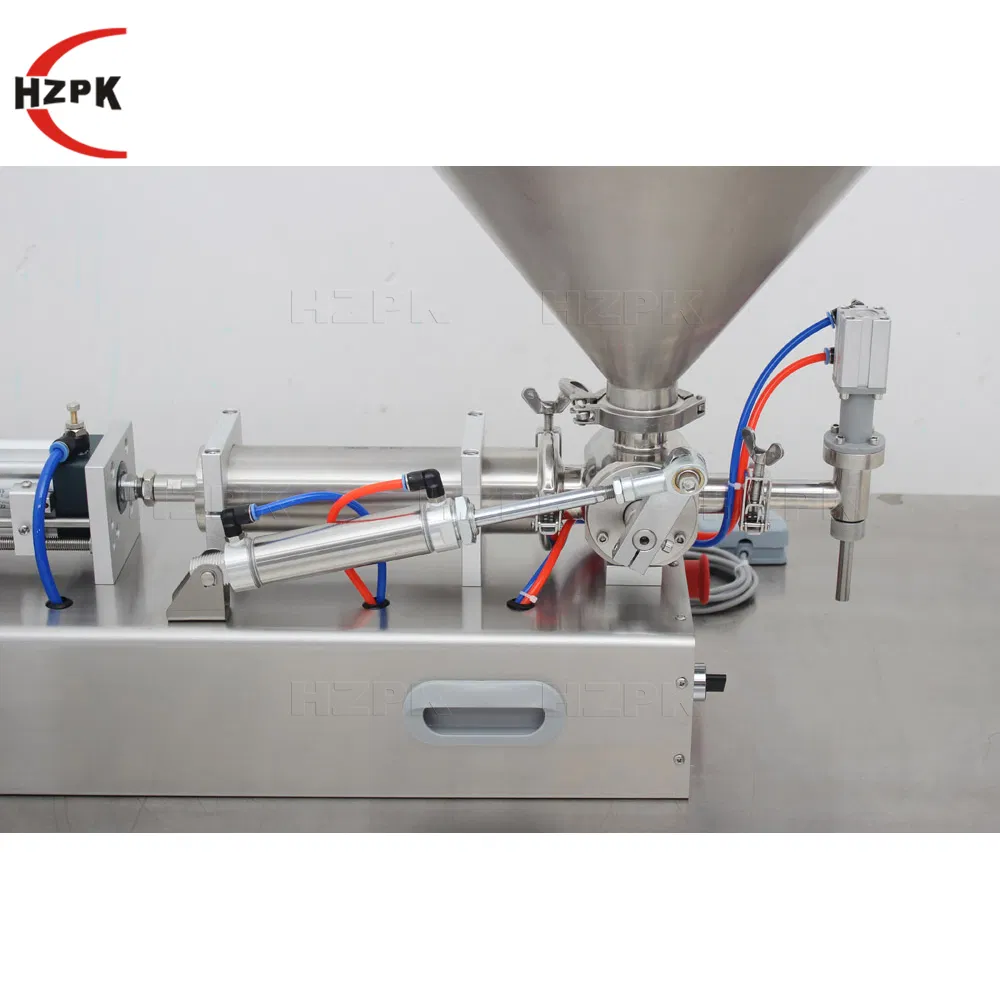

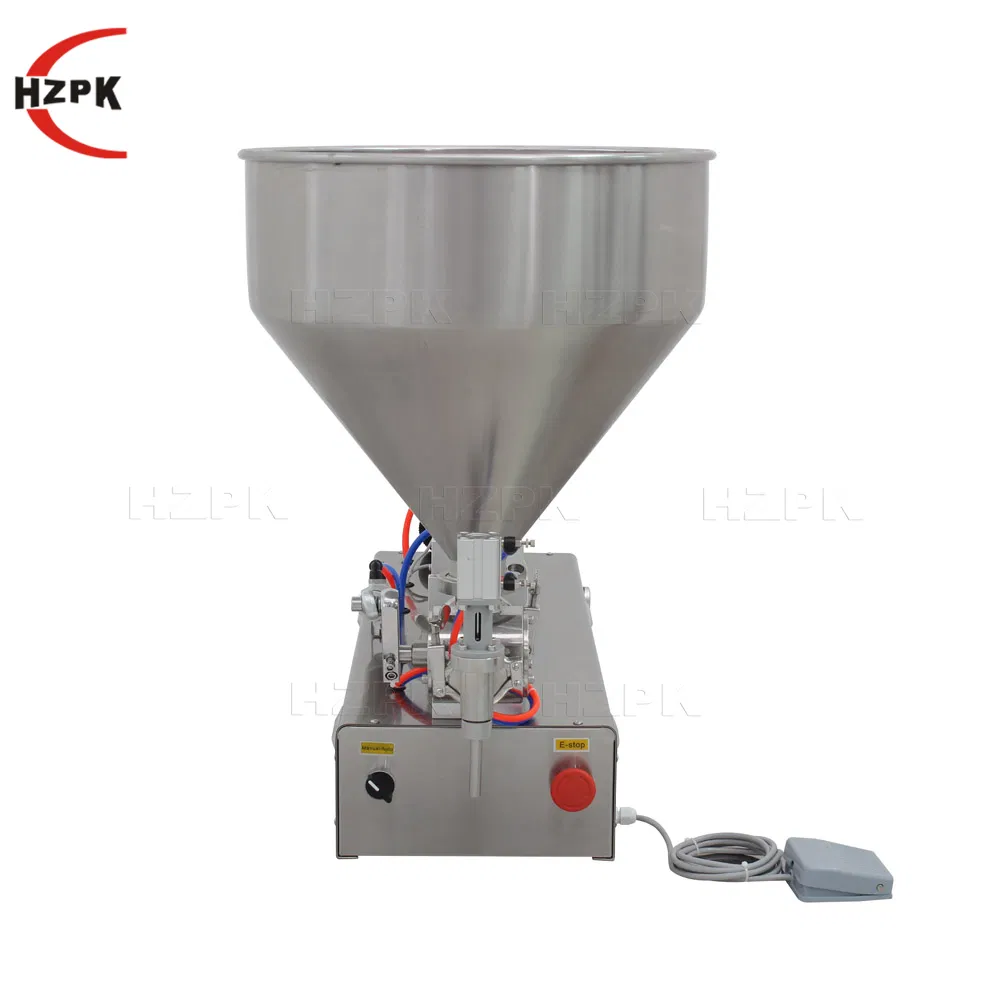

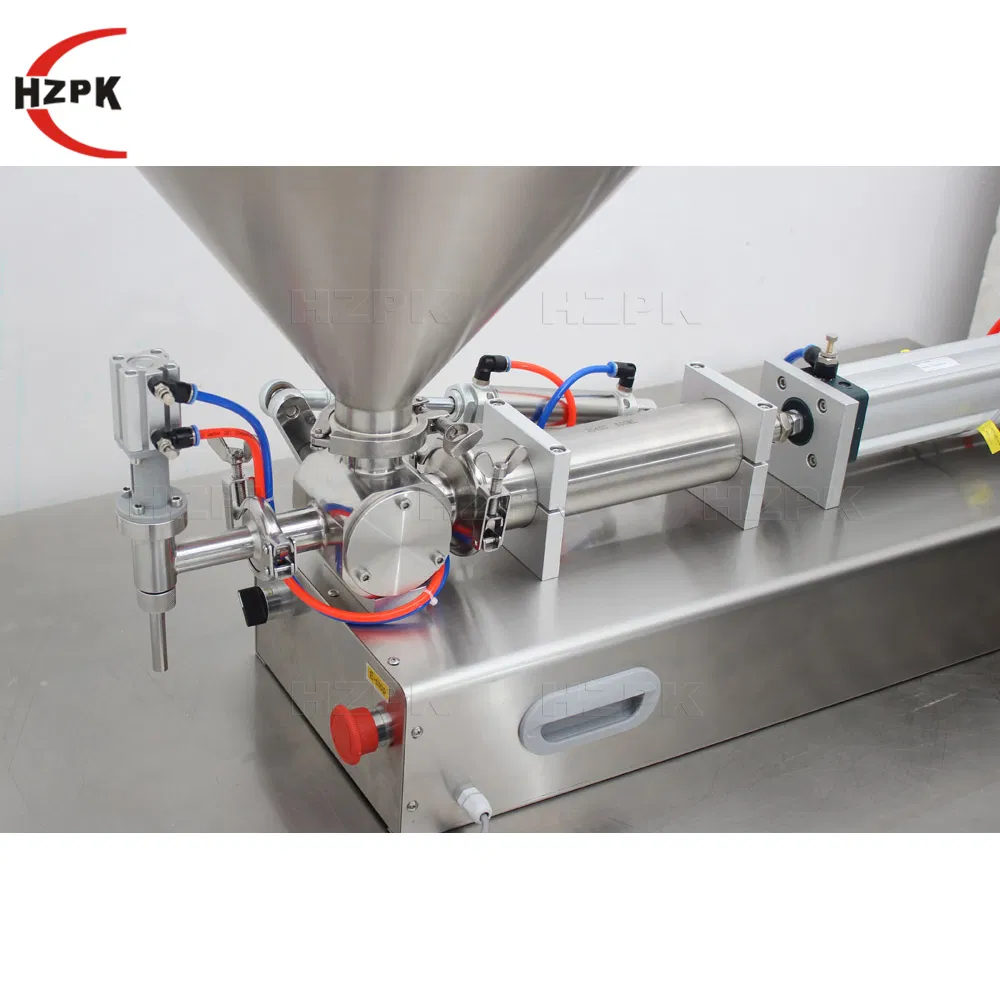

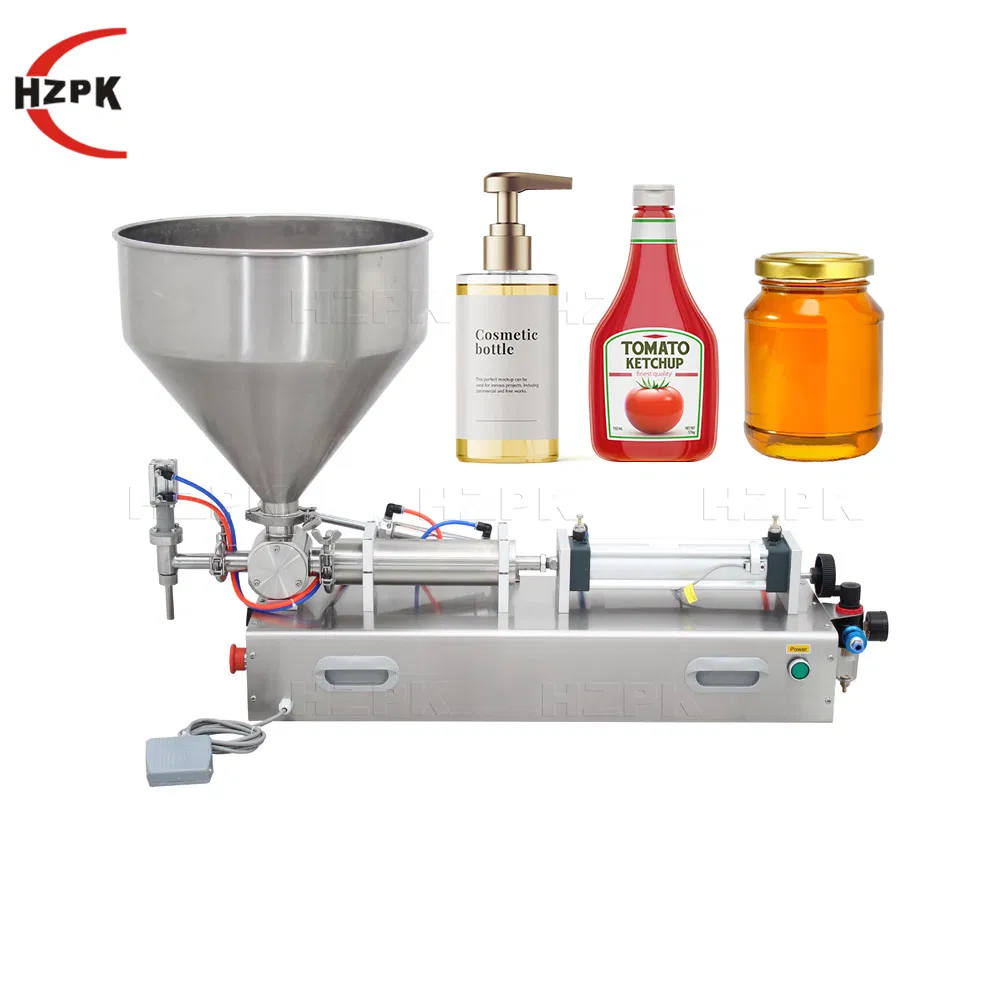

Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
1 / 5
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine
Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine

Hzpk Single-Head Filling Machine Water Dishwashing Liquid Thick Perfume Filling Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
G1WGD-100 (10-100ml)
Type
Piston Filling Machine
Automatic Grade
Semi-Automatic
Material Type
Liquid and Paste
Filling Valve Head
Single-Head
Dosing Device
Plunger
Filling Principle
Pressure
Structure
Horizontal
Air Pressure
0.4-0.6MPa
Hopper Size
30L
Speed
1000bph
Filling Accuracy
±1%
📦

Packaging & Delivery

Package Size
93.00cm * 35.00cm * 38.00cm
Package Gross Weight
23.000kg
★

Why Choose Us

  • More than 20 years manufacture in packing machine
  • 100% QC inspection before shipment
  • 1 year after-sales service
  • Product Certificated by CE
⚙

Product Description

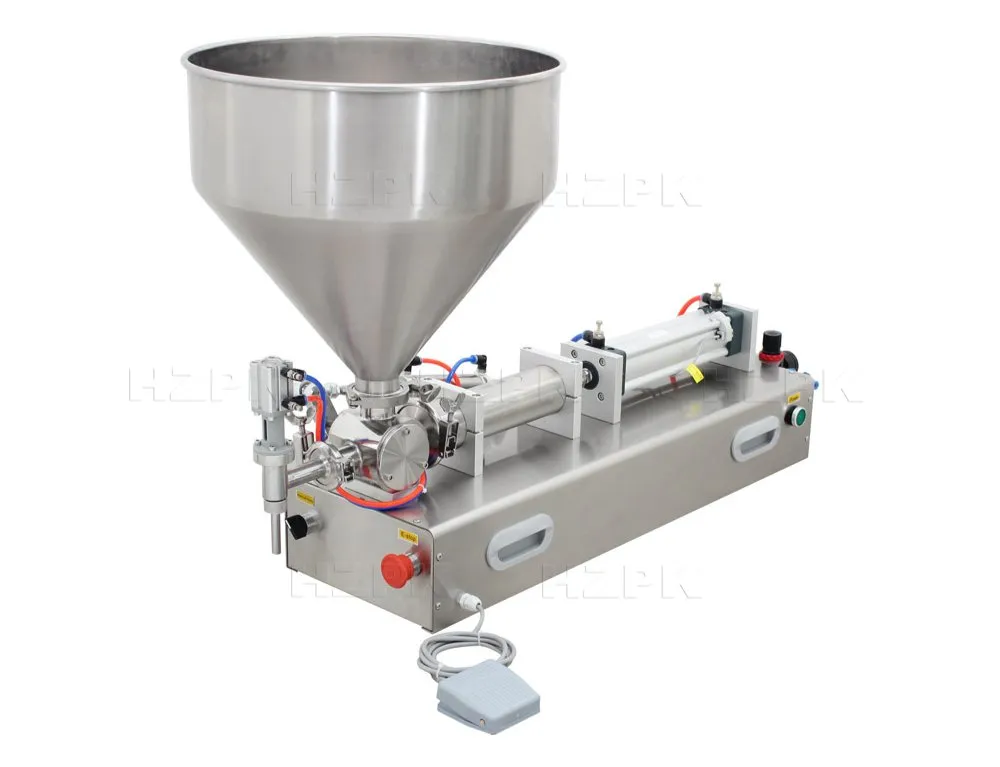

Single-Head Filling Machine
Introduction

This machine is the ideal equipment for filling high viscosity fluid and paste. It is widely applicable to cosmetic, food, beverages, and special industries. This series of filling machine is available in single head and double head models.

Key Features
  • Two pneumatic filling modes: foot pedal and automatic switching.
  • Full stainless steel construction, meeting CE standard levels.
  • Reasonable structure design, compact size, and easy operation.
  • Equipped with filling volume adjustment handle and adjustable speed for high precision.
Technical Specifications Details
ModelG1WGD100
Filling Range10-100ml
Product Capacity5-20 bots/min
Filling Accuracy±1%
Air Pressure0.4-0.6MPa
Required Air Compressor≥1.5KW 65L
Filling Machine Overview
🔍

Product Details

Filling nozzle
Filling Nozzle

Made of high-quality 304 stainless steel (food grade). Customizable options for 2 or 4 filling nozzles are available.

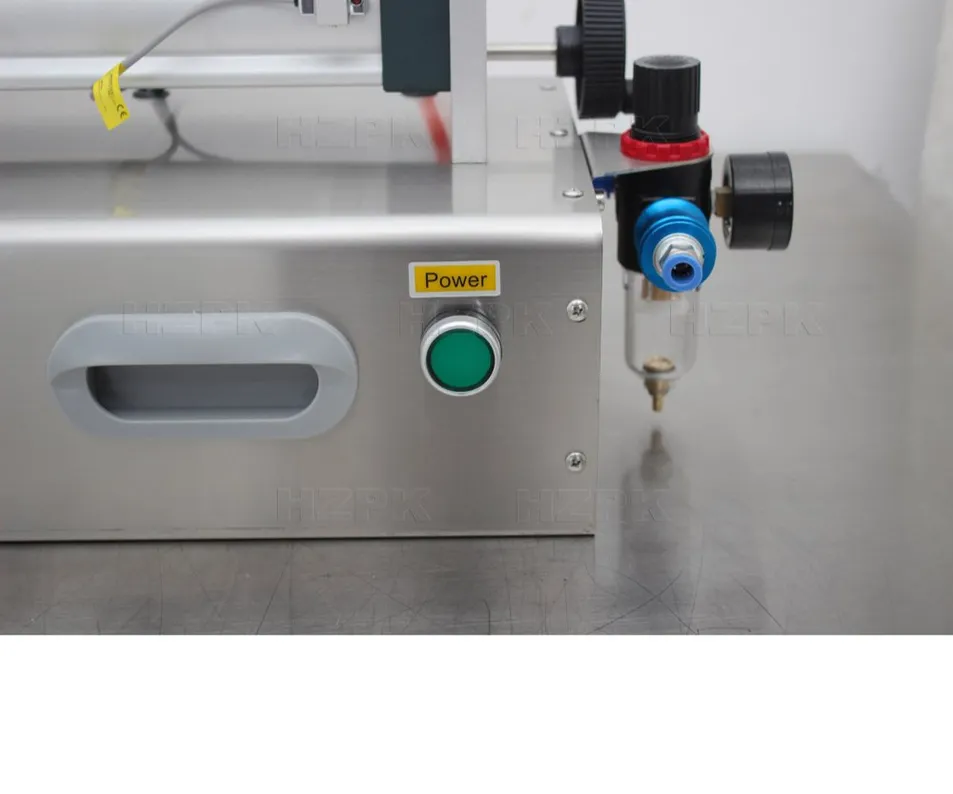

Control Panel

Simple button interface to control the machine, ensuring ease of operation for all users.

Control panel

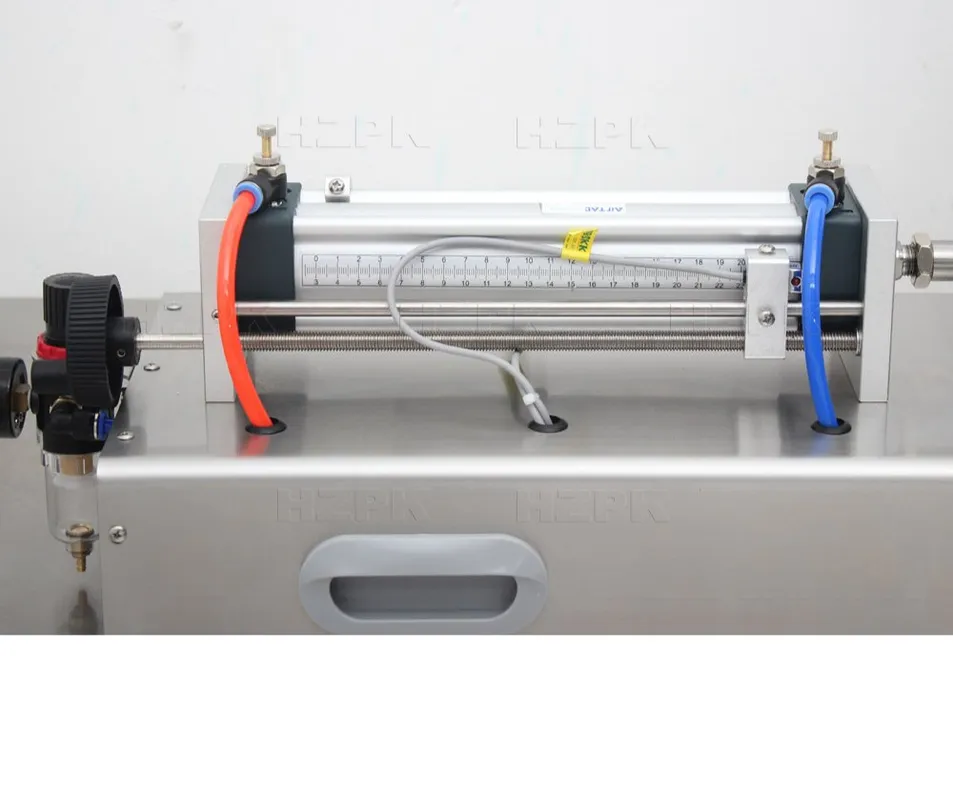

Cylinder
Cylinder

Equipped with a practical, high-quality AirTAC cylinder for durability. Includes a wheel to adjust the filling volume precisely.

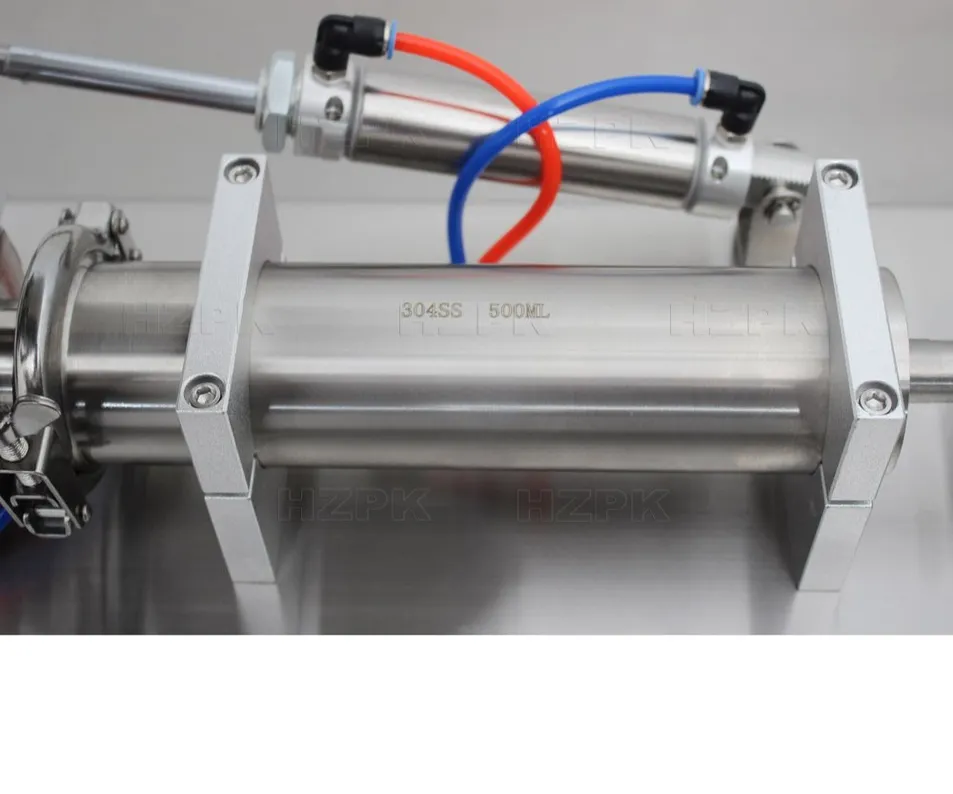

Material Plunger

Plunger made of food-grade 304 stainless steel. For corrosive products, 316 stainless steel barrels can be customized.

Material Plunger

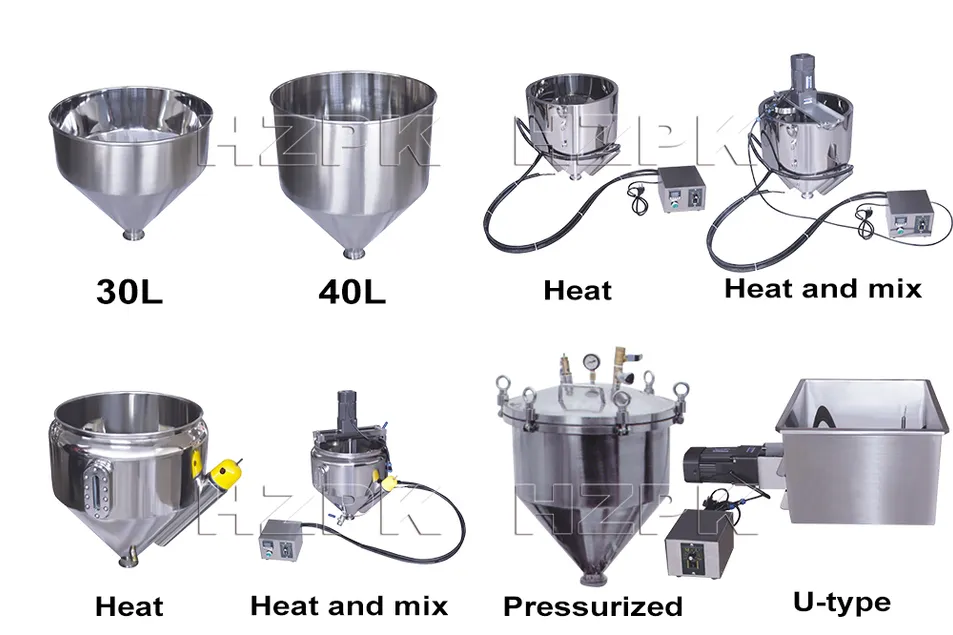

Hopper
Hopper Options

We offer various hoppers depending on your product needs, including heated, stirred, pressurized, and U-stirred hoppers.

🖼

Product Showcase

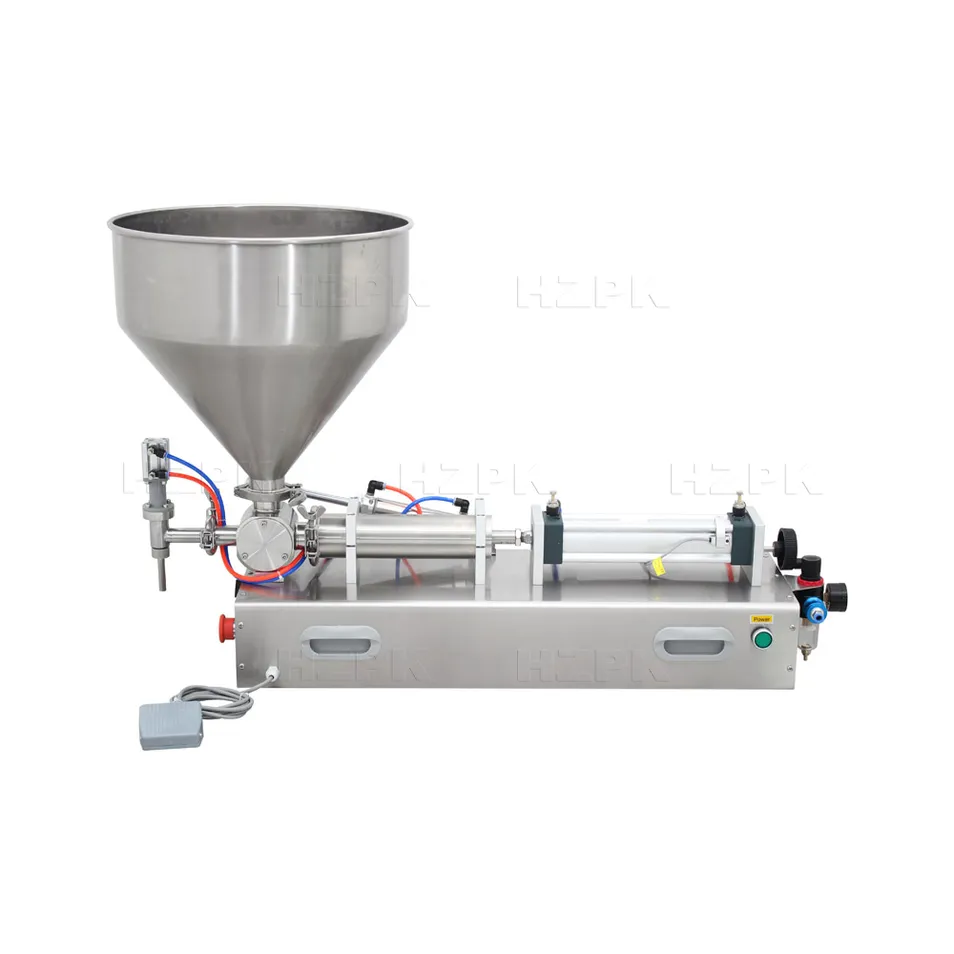

Gallery 1

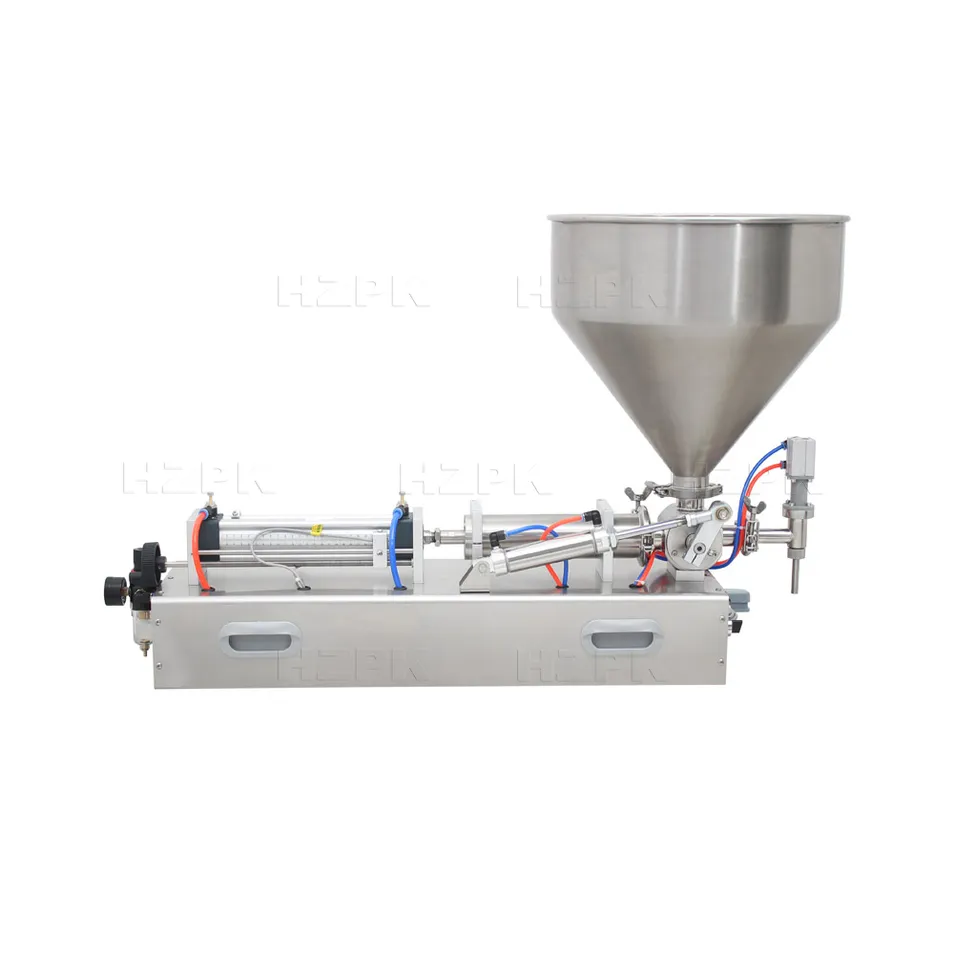

Gallery 2

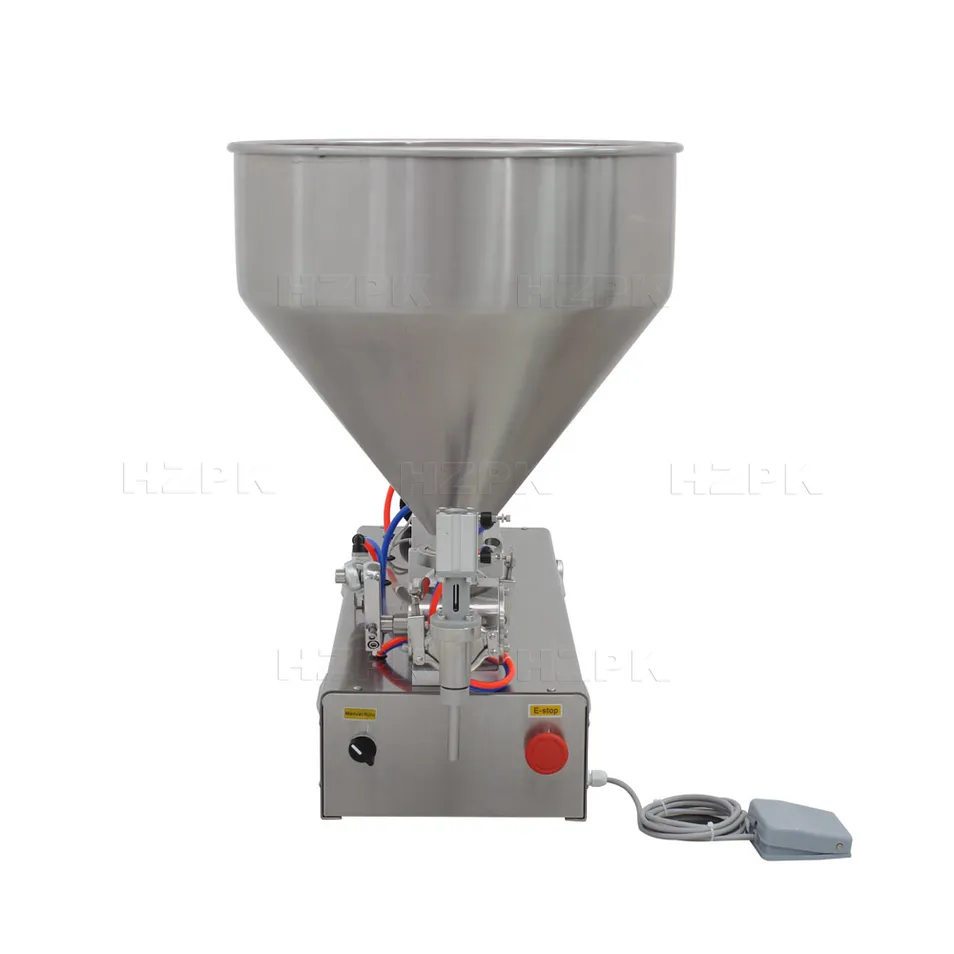

Gallery 3

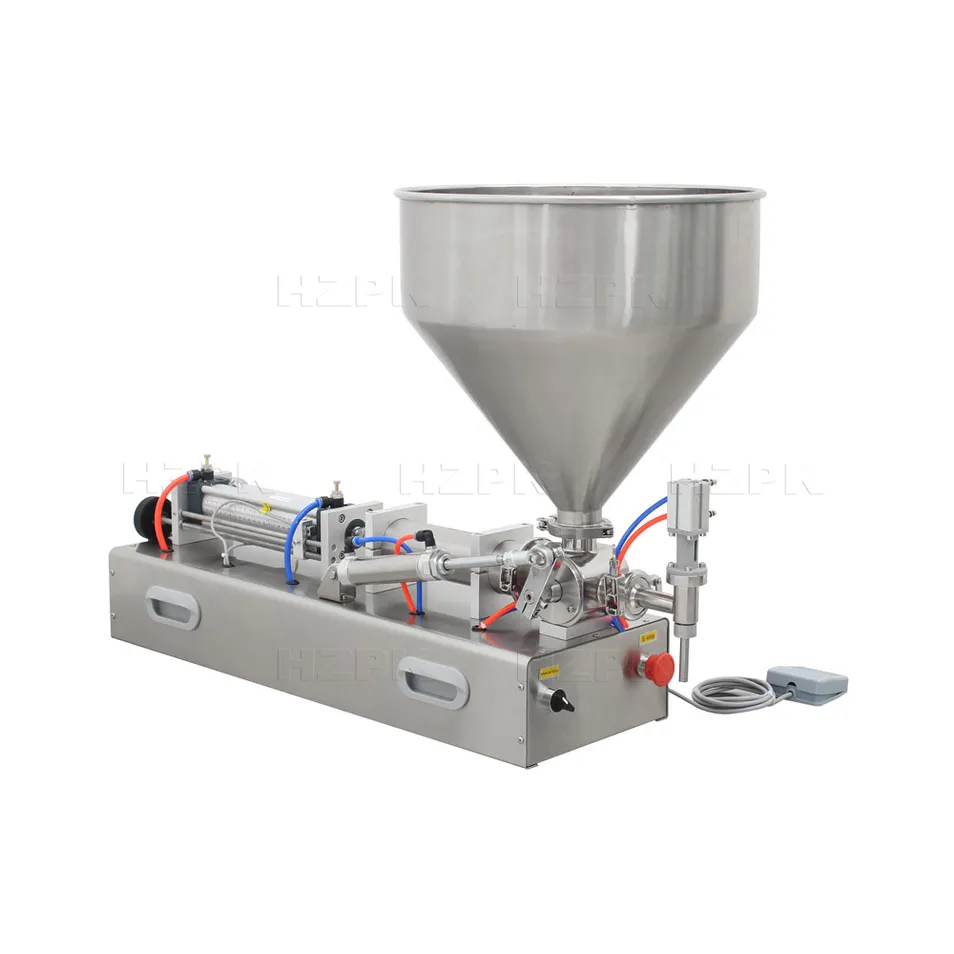

Gallery 4
Additional View 1 Additional View 2 Additional View 3 Additional View 4 Additional View 5
?

Frequently Asked Questions

What types of materials can this machine fill?
This piston filling machine is ideal for high viscosity fluids and pastes, such as cosmetics, food products, and various liquids.
What is the filling accuracy of the G1WGD-100?
The machine offers a high filling accuracy of ±1%, ensuring consistent product volume for every cycle.
Does the machine operate automatically?
It is a semi-automatic machine that features two pneumatic modes: a foot pedal for manual control and an automatic mode for continuous operation.
What air pressure is required for operation?
The machine requires an air pressure range of 0.4-0.6MPa and should be used with an air compressor of at least 1.5KW 65L.
Is the machine made of food-grade materials?
Yes, the filling nozzle and plunger are made of high-quality 304 stainless steel, which is food-grade and meets CE standards.
Can I customize the filling volume?
Yes, the machine includes a volume adjustment handle, allowing you to set the filling range between 10ml and 100ml for this specific model.
