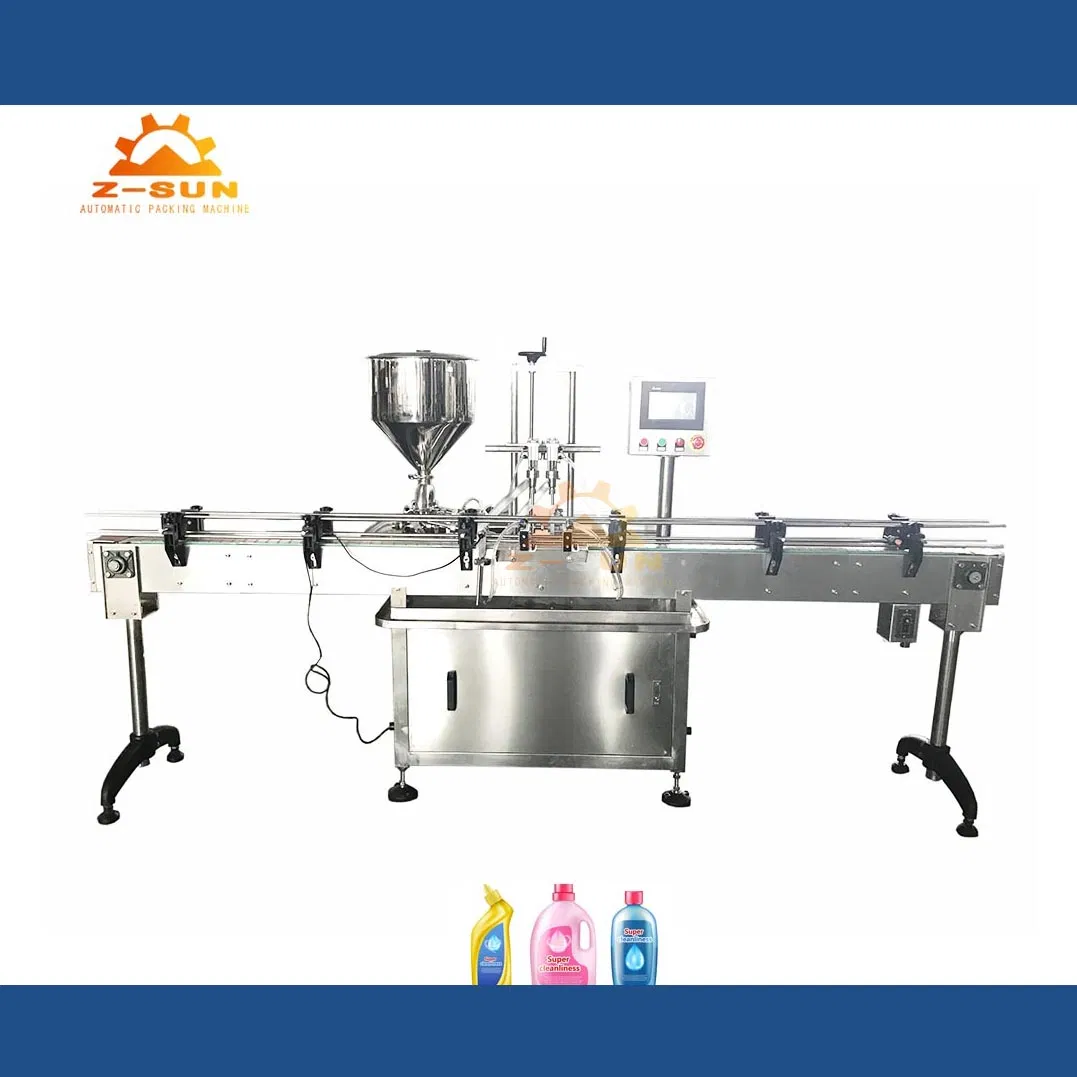

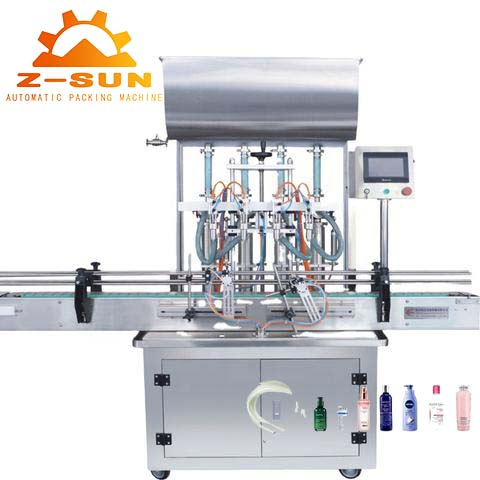

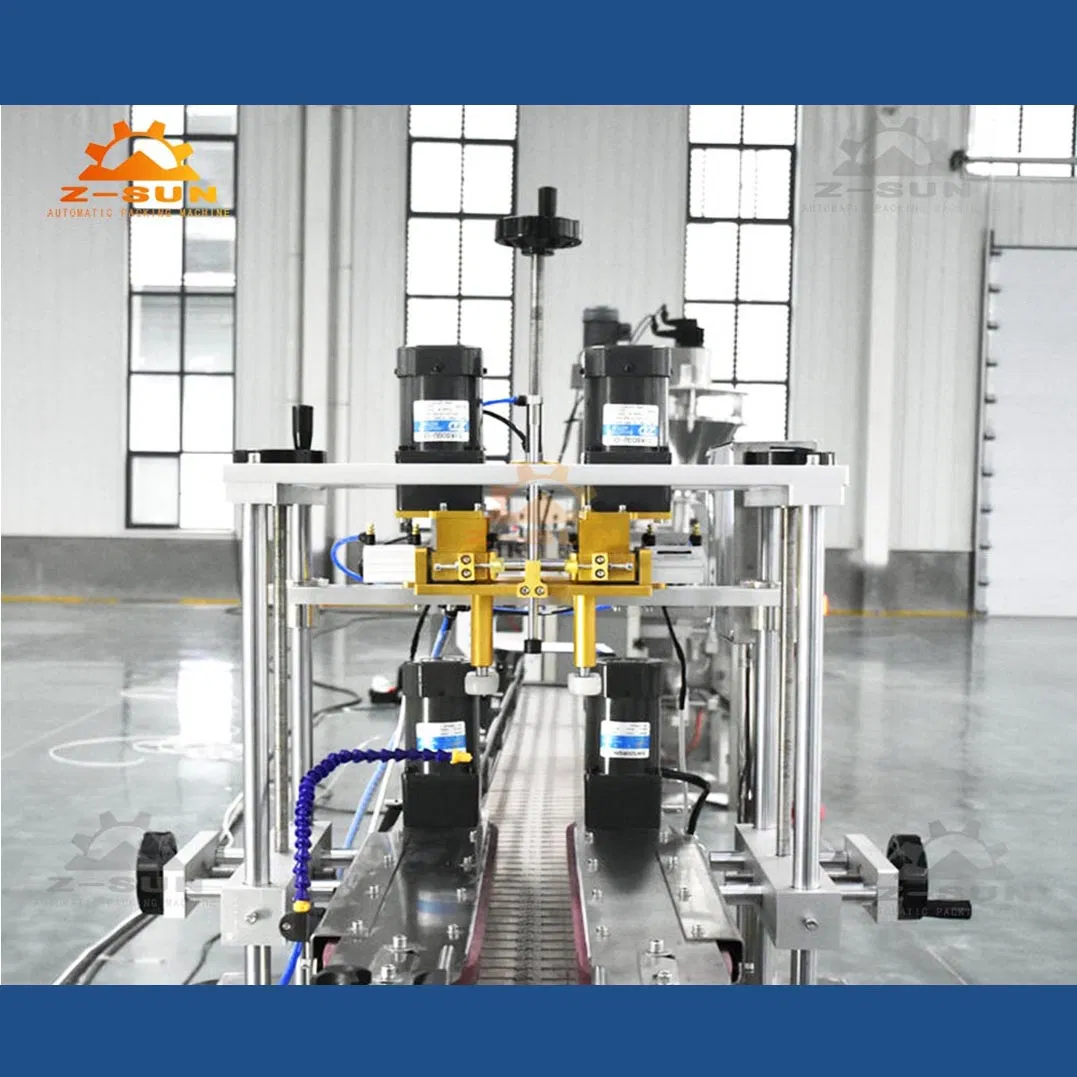

100-1000ml Automatic Linear Filling Machine for Daily Chemical Liquid

Customization: Available
After-sales Service: Permanent Validity
Warranty: 12 Months

Product Description

Basic Info

Model NO.
DHF-100
Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Filling Principle
Pressure
Structure
Linear
Filling Volume (Ml)
50-9999
Filling Speed
60-80bpm, 80-120bpm
Filling Accuracy
±0.25%
Production Capacity
20set/Month

Product Description

This device is fully automated and intelligent. By saving the basic parameter settings of a product, you can simply call up the saved number for future production. The size, height, and position of the bottle are automatically adjusted without manual intervention.

  • Instant Switching: Changing lines from 50ML to 150ML can be completed in just 3 seconds.
  • No Piston Design: Eliminates the trouble of replacing sealing rings.
  • High Accuracy: Adopting servo motor control for fast and accurate filling.
  • Tool-free Adjustment: Bottle guardrails and specifications can be adjusted via touch screen or simple manual press.

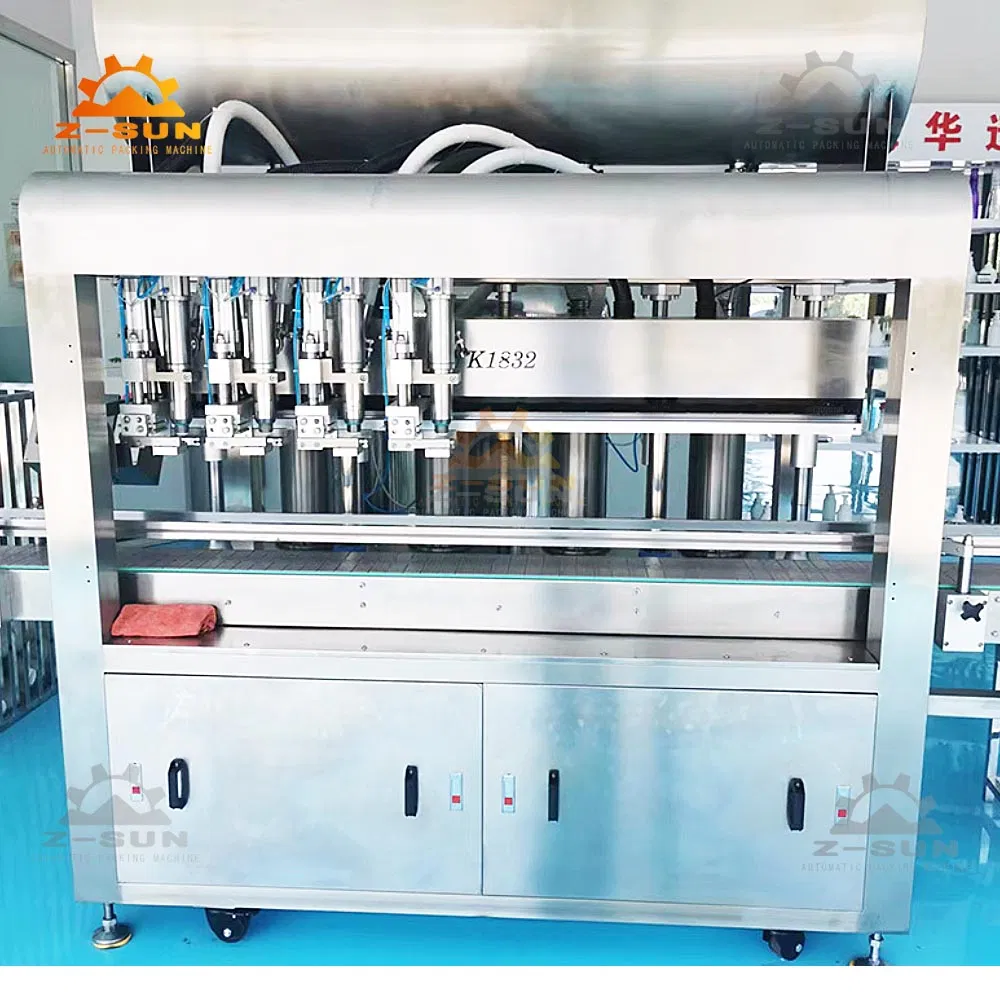

Automatic Linear Filling Machine

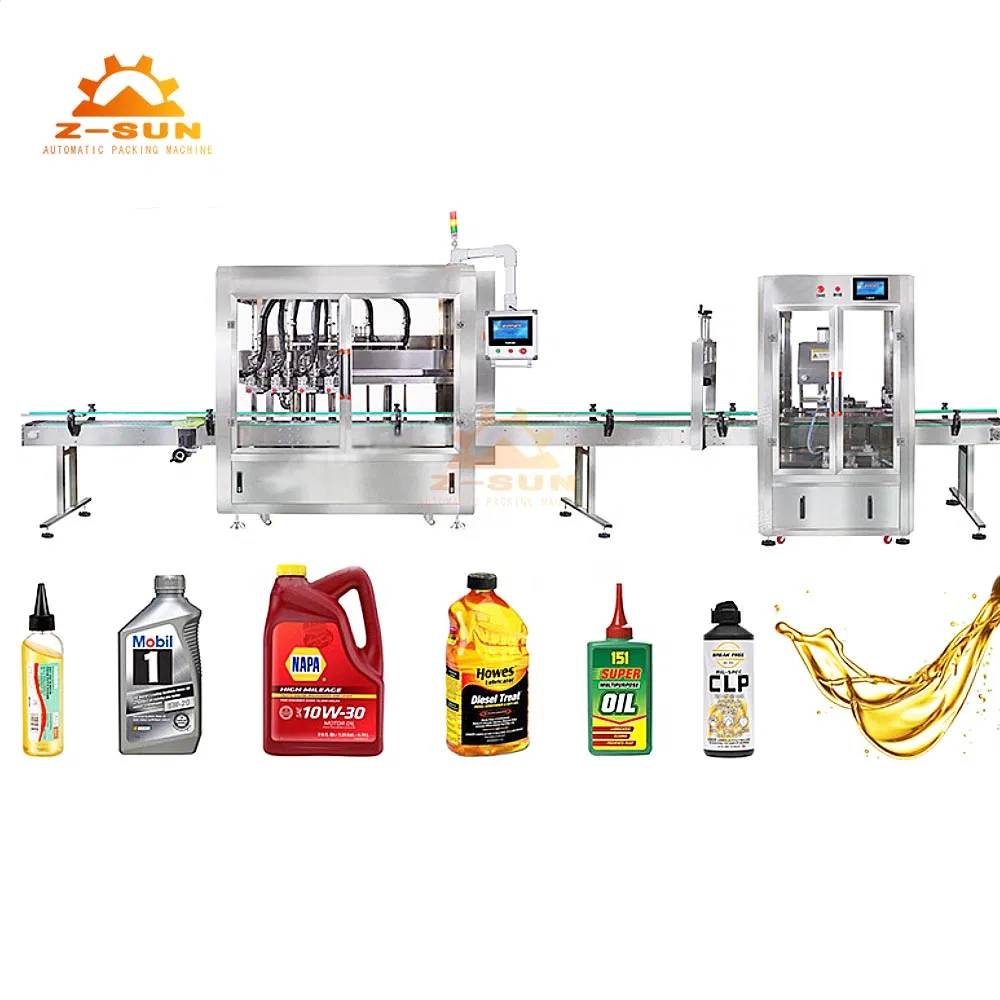

Linear Filling Machine Detail

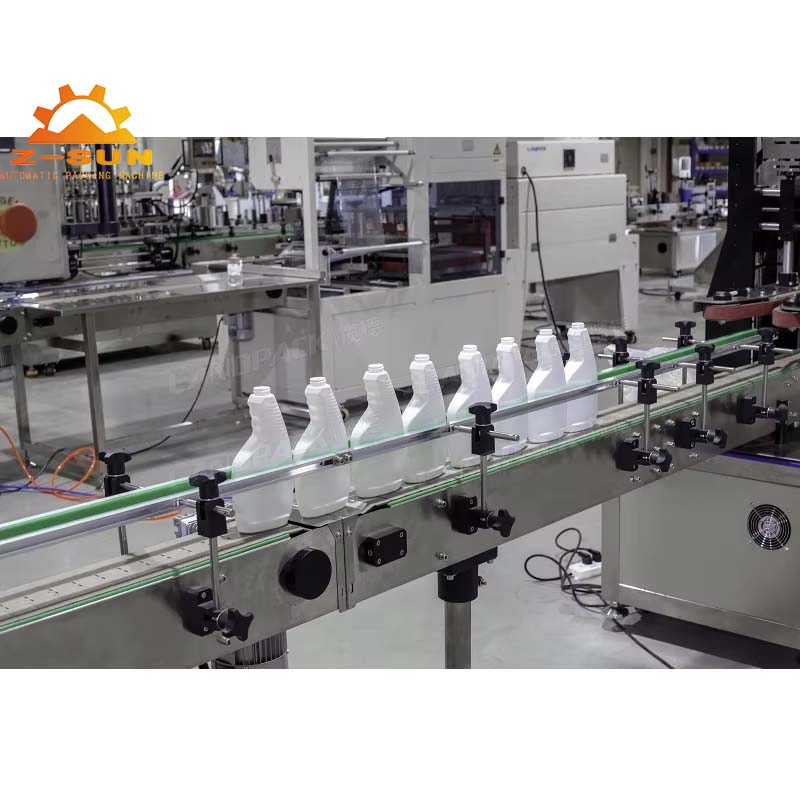

Bottle Guardrail Adjustment

Technical Parameters

NO. Item Parameter Remarks
1Filling heads2-4-6-8-12 headsCustomized
2Filling capacity50ml - 9999mlSample based
3Filling formServo-quantitativeHigh-precision gear
4Filling speed60-120 bpmBased on 500ml
5Filling accuracy±0.25%-
6Rack material304# Stainless steel-
7ControlPLC + Touch screen-
8Air pressure0.6-0.8MPa-
9Conveyor motor0.75KW Servo-
10Slot capacity150 LitresWith level switch

Manufacturing & Factory Display

Factory Show 1
Factory Show 2

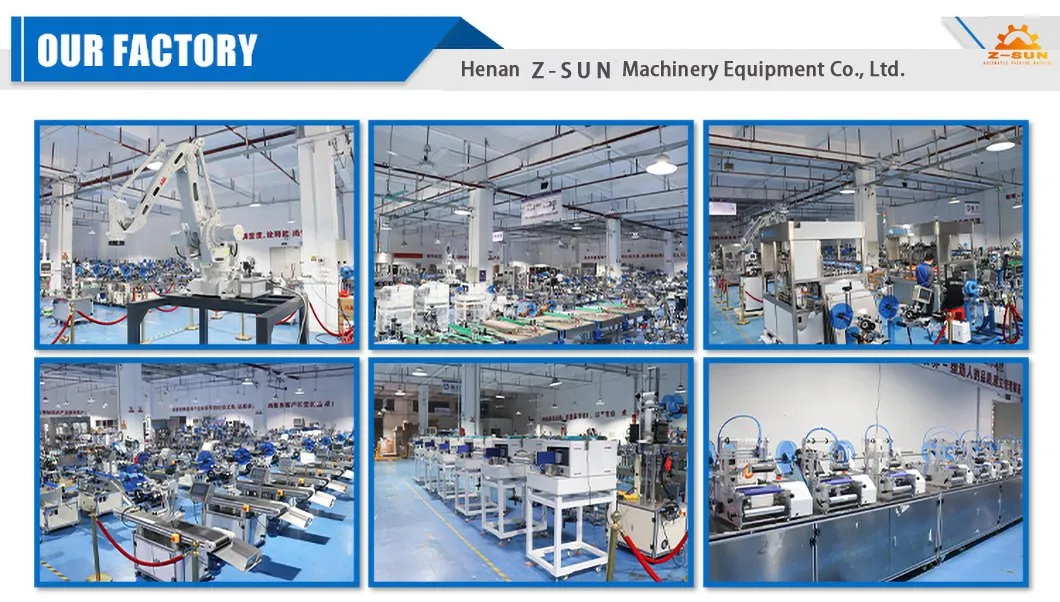

Factory Show 3
Factory Show 4
Process Show 5
Machine Assembly
Quality Control
Equipment Testing
Packaging Area

Frequently Asked Questions

Q1: What is the filling range of the DHF-100 machine?
The machine supports a wide filling range from 50ml up to 9999ml, making it highly versatile for different product sizes.
Q2: Does the machine require manual adjustment when changing bottle types?
No, the machine features intelligent automated adjustment. You can switch between different bottle configurations via the touch screen in seconds without manual tool adjustments.
Q3: How is the filling accuracy maintained?
Accuracy is maintained through high-precision servo motor control and a high-precision gear quantitative filling system, achieving an accuracy of ±0.25%.
Q4: What are the benefits of the "No Piston" design?
The design eliminates the need for traditional pistons and three-way valves, which means no sealing rings to replace and much faster cleaning and maintenance.
Q5: Is the machine compatible with different bottle shapes?
Yes, the linear structure and synchronous tracking system allow it to fill bottles of various shapes and specifications, including special-shaped bottles.
Q6: What material is used for the machine construction?
The filling frame and main structure are constructed from high-quality 304# stainless steel for durability and hygiene compliance.
