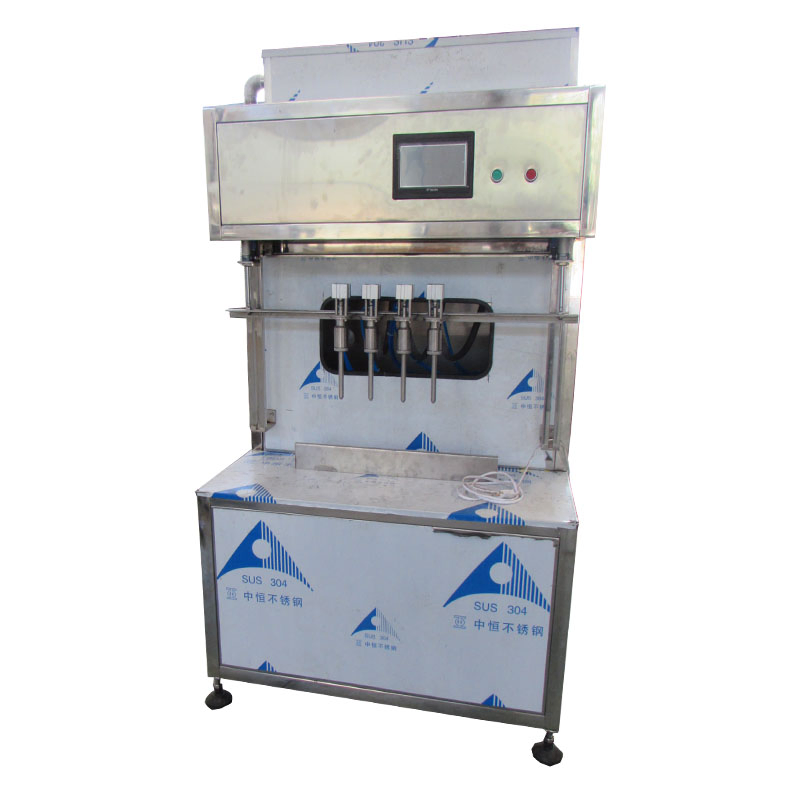

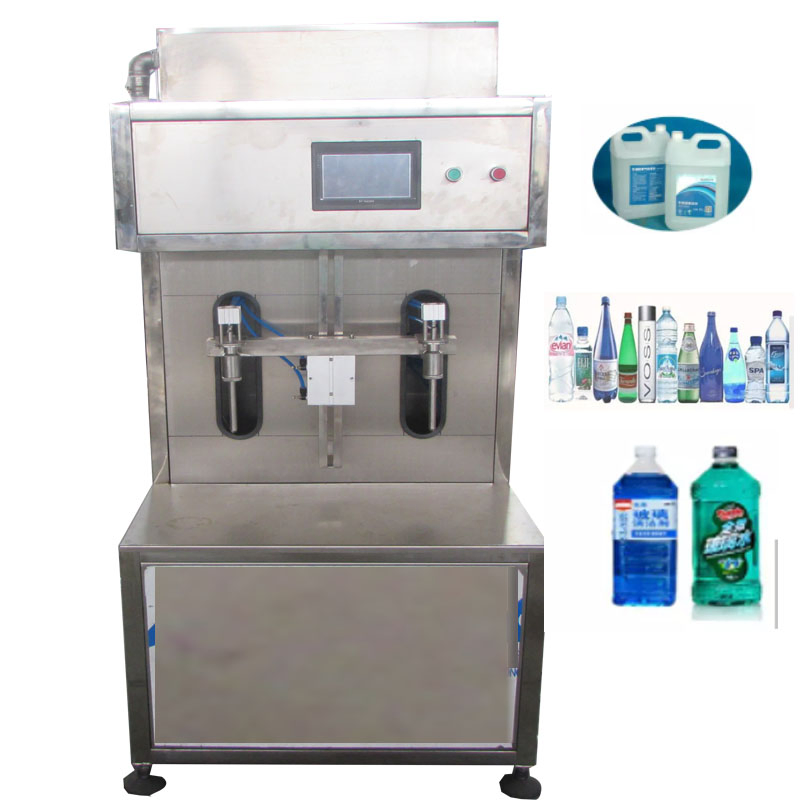

Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
1 / 5
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine
Fully Automatic Gravity-Flow Liquid Filling Machine

Fully Automatic Gravity-Flow Liquid Filling Machine

Customization: Available
After-sales Service: Provided
Warranty: One-Year Warrently
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
CD-2, CD-4, CD-6, CD-8
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure
Structure
Linear
Packaging Material
Plastic / Glass
Weight
650kg
Application
Eye Drops, Perfume, Laboratory Liquids
Production Capacity
10-20 Sets Per Week
🚀 Product Introduction

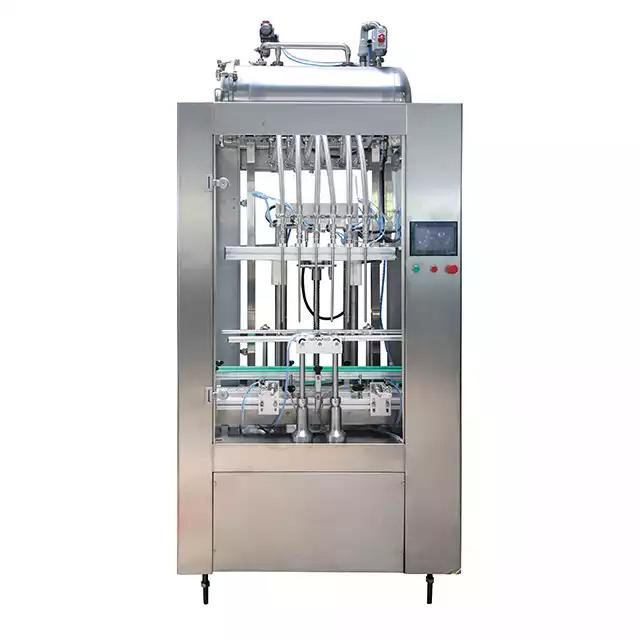

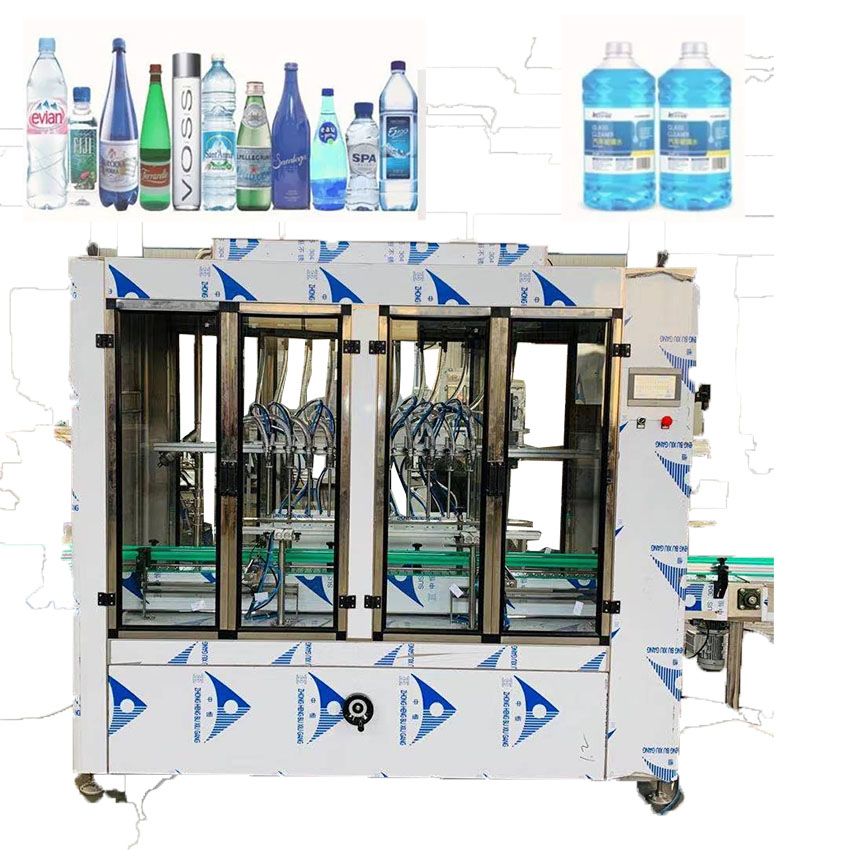

Fully Automatic Gravity-Flow Liquid Filling Machine
This machine is an Automatic Gravity Filling Machine. It is ideally suited for all kinds of non-viscous liquid filling, such as alcohol, glass water, antifreeze, urea, and other similar fluids. It is compatible with round glass bottles and plastic bottles.
Filling Process Flow:
Self-priming pump (Liquid Tank) → Refiller → Bottle Enter → Filling Valve Drive → Filling → Filling Heads Return → Bottle Out

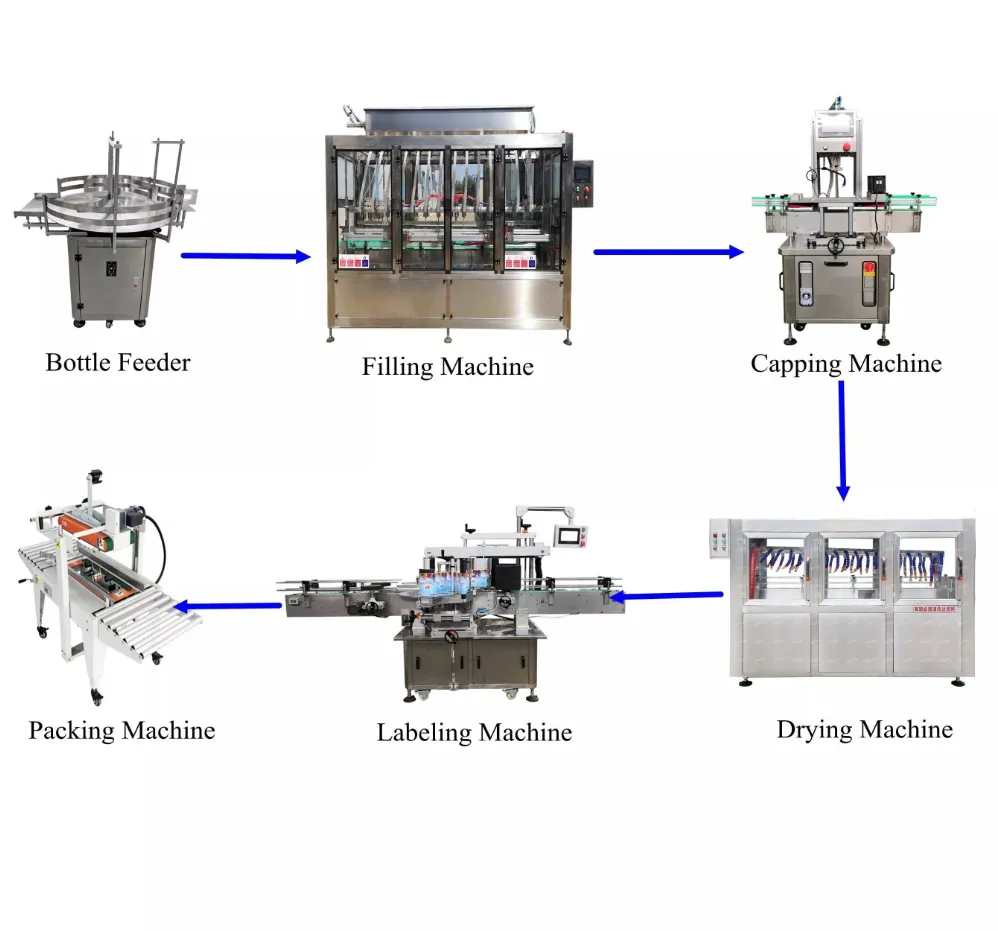

Filling Process Diagram
⭐ Key Features
01
Advanced compact construction, making it exceptionally easy to operate and maintain.
02
Equipped with high-quality electrical components ensuring stable performance and low failure rates.
03
All contact parts are made of SUS304 stainless steel, meeting national food hygiene standards.
04
High filling precision and compatibility with various bottle shapes, including irregular containers.
Machine Characteristics
🔍 Detailed Components

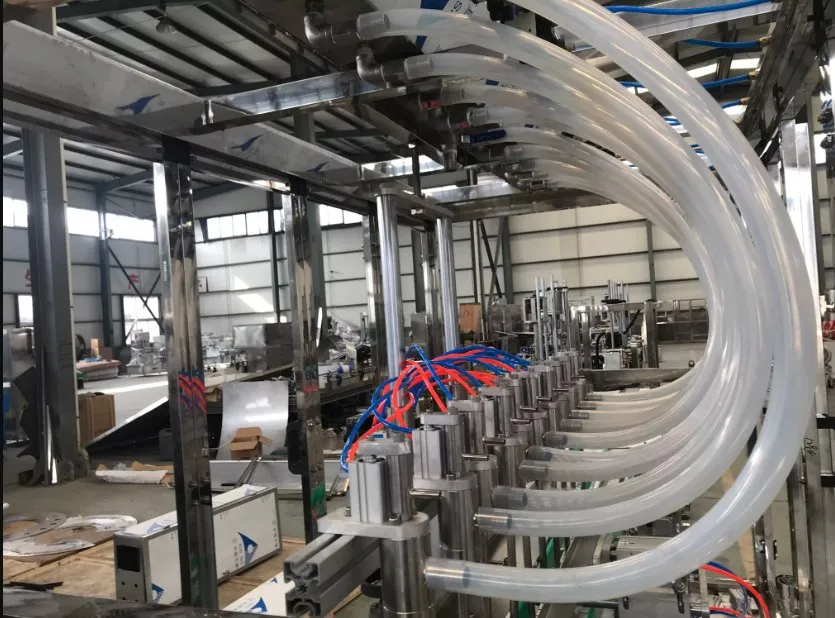

Infusion Tube

Infusion Tube: High-grade materials, tight connection to prevent dripping.

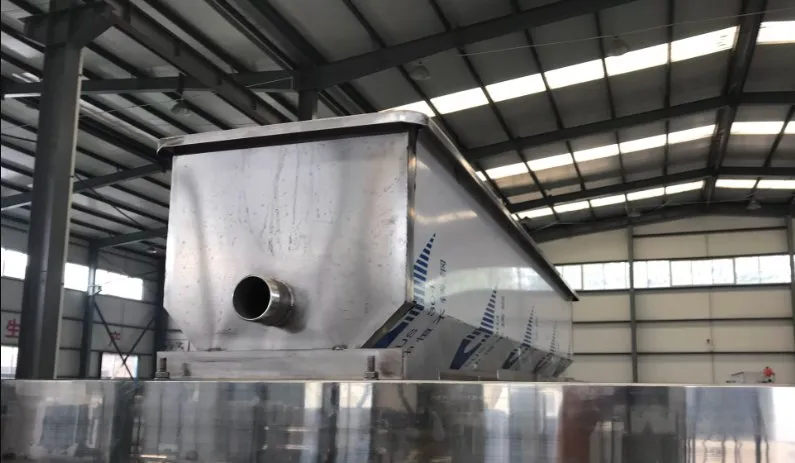

Storage Tank

Storage Tank: Automatic liquid level control and replenishment.

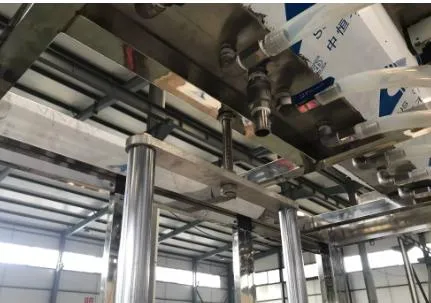

Outer Drain

Drain System: Located at the bottom for easy cleaning and waste discharge.

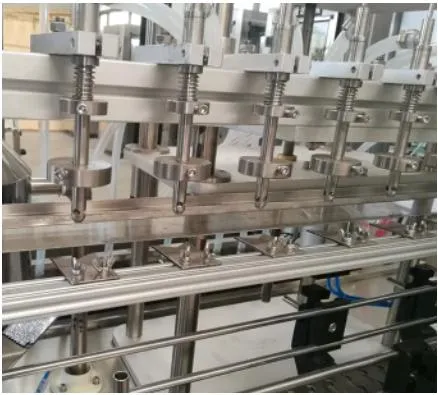

Level Filling

Level Filling: Digital PLC control for consistent liquid levels.

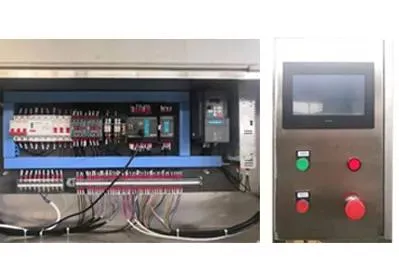

Control System

Control System: Siemens/Schneider PLC and touch screen interface.

⚙ Technical Parameters
Number of filling heads6-12 (Customizable)
Filling volume200mL - 25L
Production Capacity1500BPH - 3000BPH
Filling accuracy±1%
Motor power1.4KW
Voltage220V/380V or Customized
Air supply0.4-0.8MPa
Total weight300Kg - 650Kg
📦 Industry Applications
Widely used in food, cosmetics, chemical, and pharmaceutical industries. Suitable for water, milk, toner, car urea, soy sauce, vinegar, and more.
Application 1

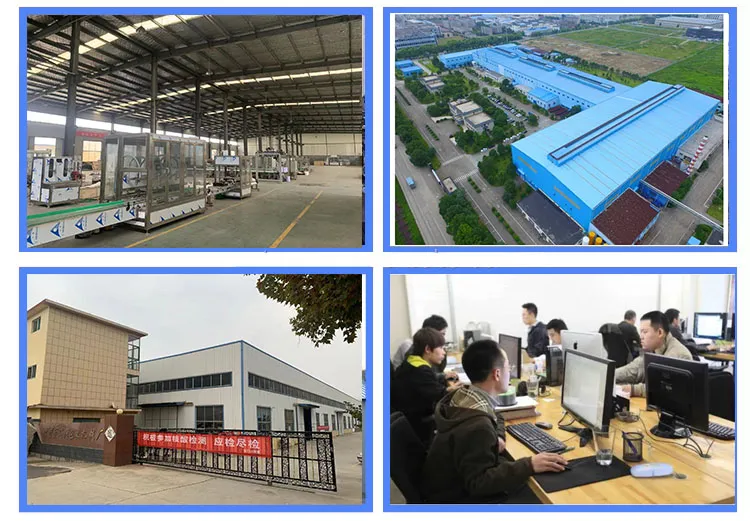

Application 2
Production Line 1
Production Line 2

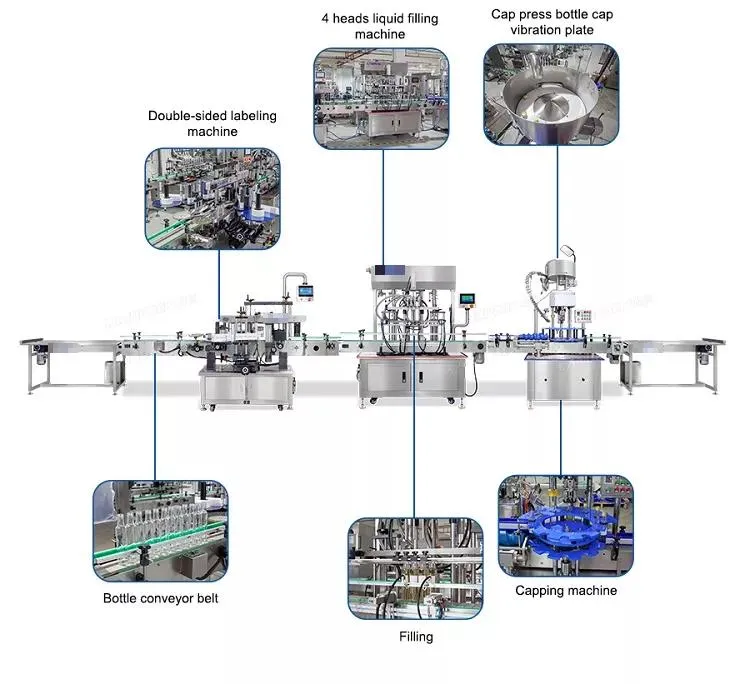

Production Line 3
❓ Frequently Asked Questions
What types of liquids can this machine handle?
It is designed for non-viscous liquids including water, alcohol, antifreeze, glass water, car urea, and thin chemical or food-grade liquids.
How accurate is the filling volume?
The machine uses PLC control and pneumatic valves with a precision of 0.01 seconds, maintaining a filling accuracy error within ±1%.
Can I customize the number of filling heads?
Yes, we offer customized configurations ranging from 6 to 12 filling heads based on your production capacity requirements.
What is the material of the machine?
All parts that come into contact with the liquid or are exposed to the air are made of high-quality SUS304 stainless steel to ensure hygiene and durability.
Does the machine support different bottle sizes?
Yes, the linear grouping design allows for high compatibility with various bottle shapes and sizes, ranging from 200mL to 25L.
What kind of after-sales support do you provide?
We offer technical support, video guidance for installation and maintenance, and can provide spare parts as needed.
